Renderings 2 – 2-Story House Plan 2760 ft², 4 Beds — 15943C
Renderings 4 – 2-Story House Plan 2760 ft², 4 Beds — 15943C Renderings 6 – 2-Story House Plan 2760 ft², 4 Beds — 15943C
14
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2760 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
15943C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2760
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

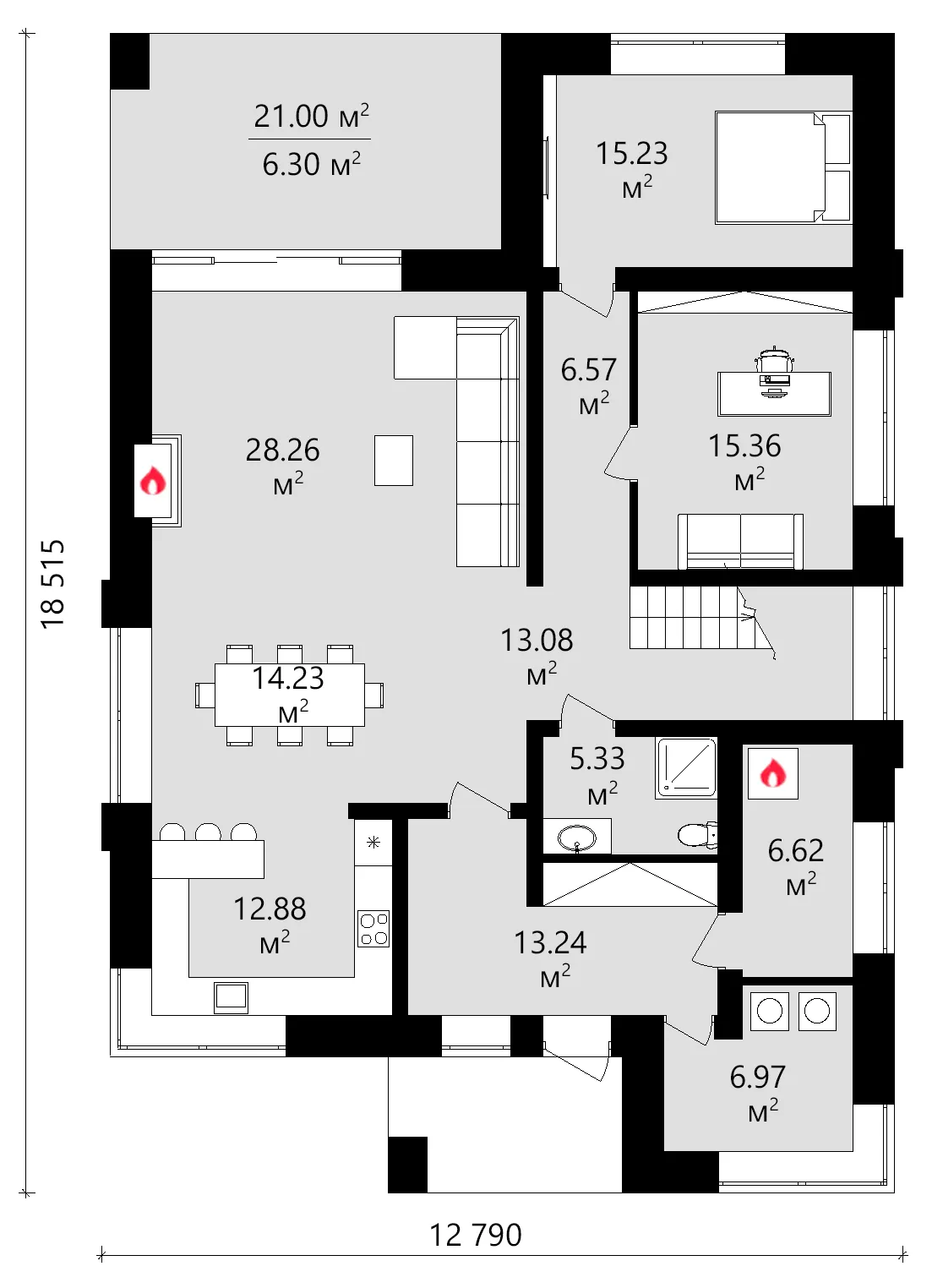

Main Floor
Main Floor 19 – 2-Story House Plan 2760 ft², 4 Beds — 15943C

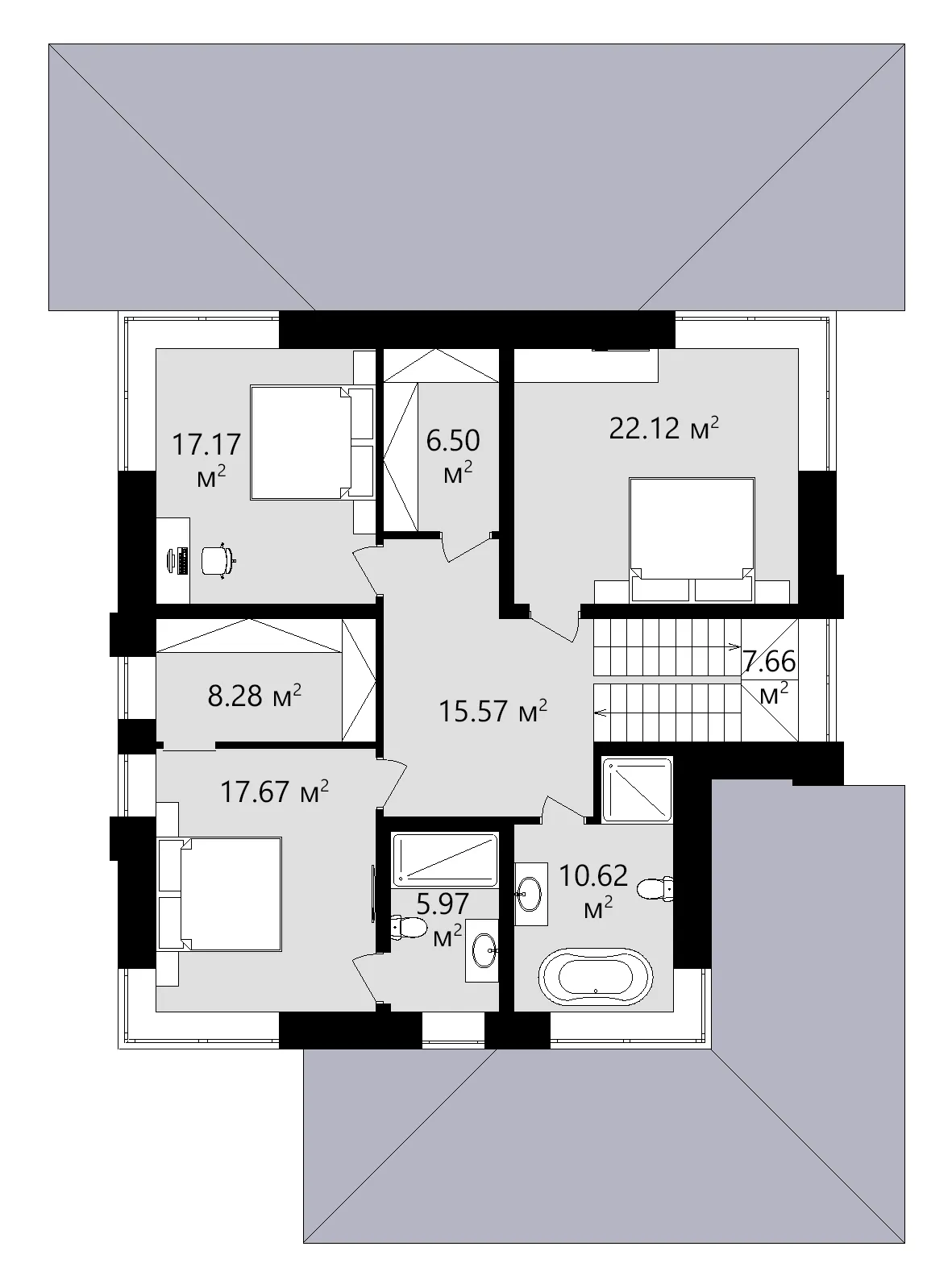

Second Floor
Second Floor 20 – 2-Story House Plan 2760 ft², 4 Beds — 15943C
Full Specs & Features
Area
Total Heated: 2759.87 ft²
Dimensions
Depth: 56'4" ft
Width: 39'0" ft
Height: 29'0" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

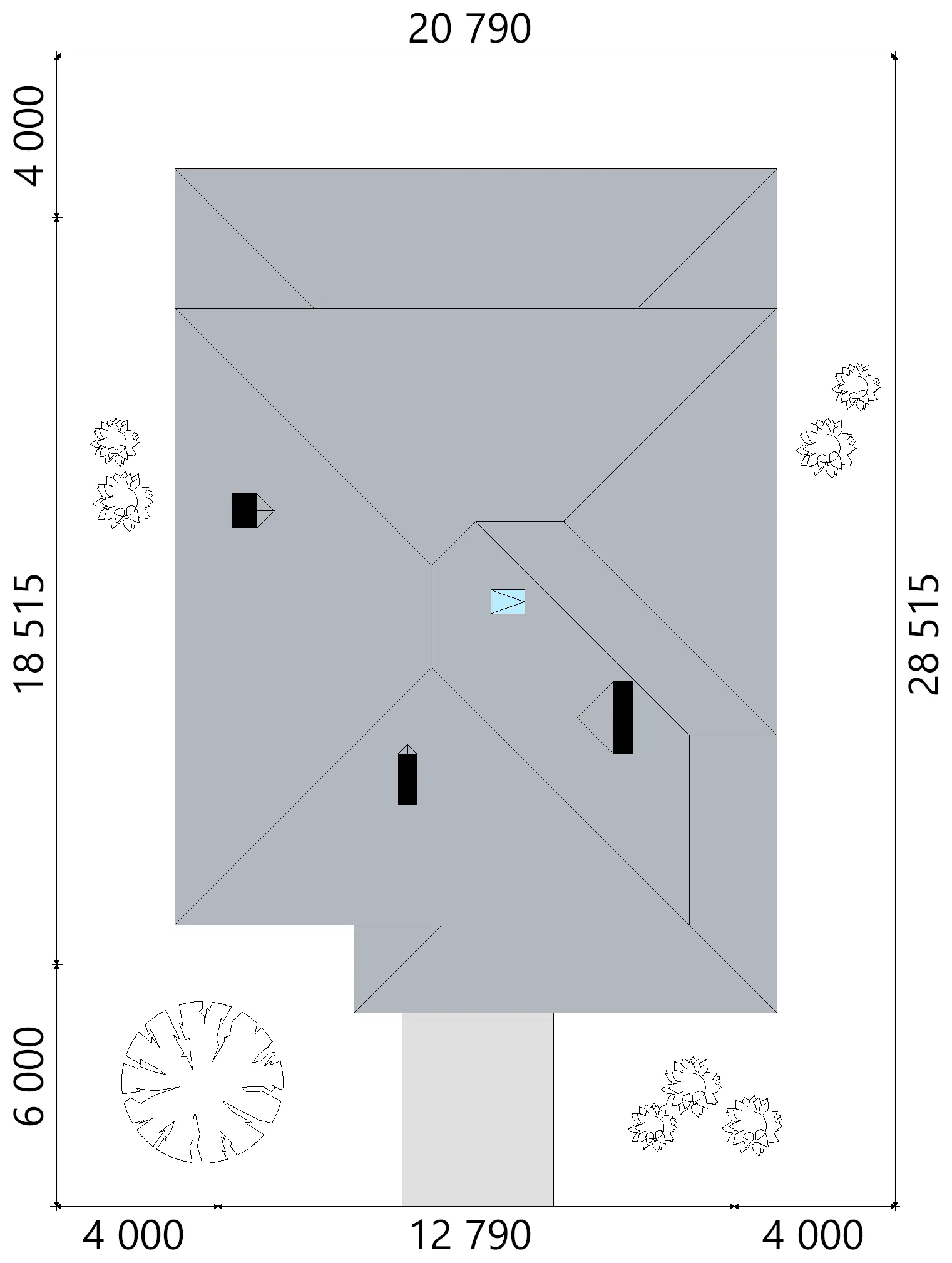

Roof
Roof Area: 3845.95 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

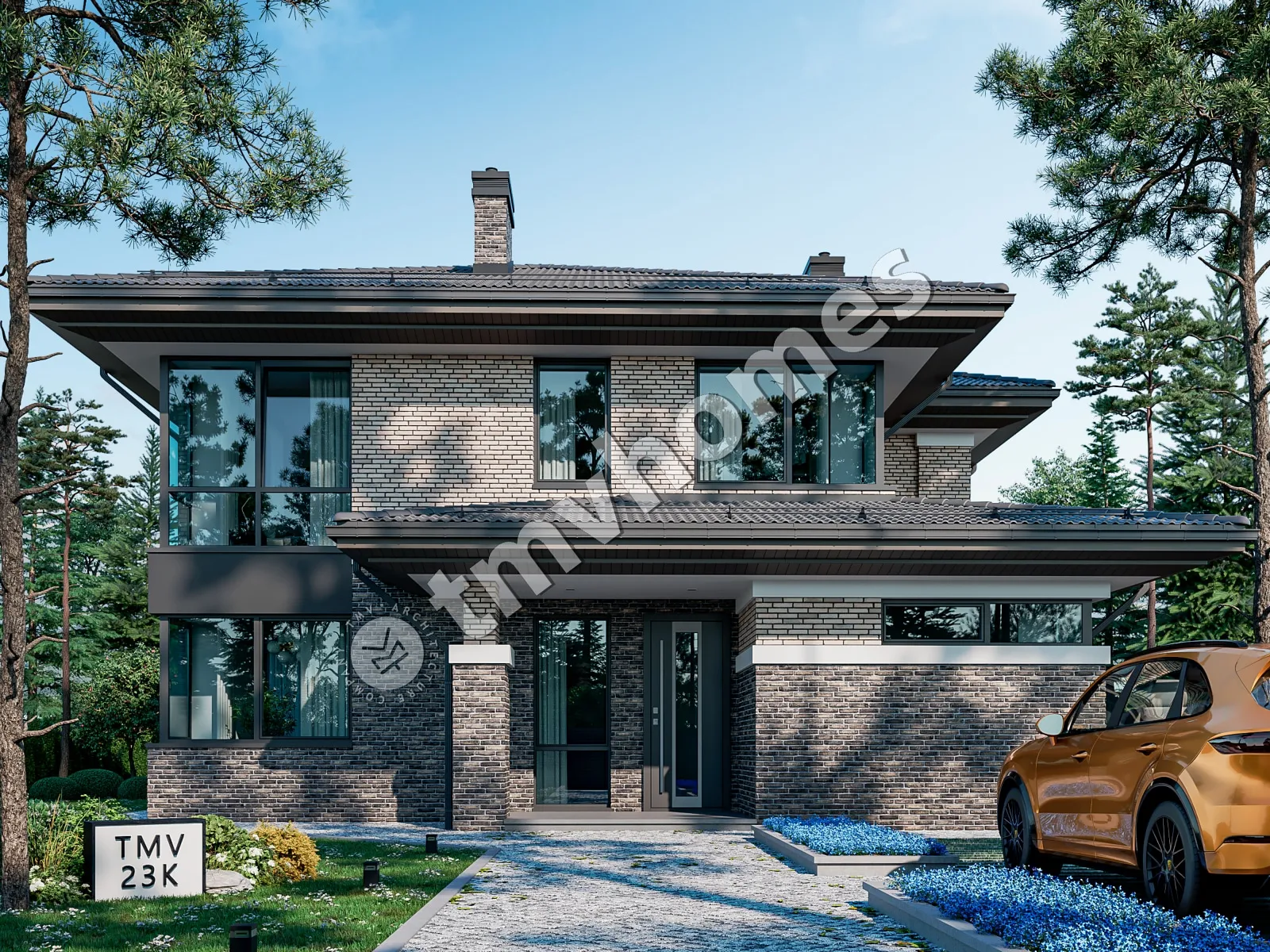

Three storeys, four bedrooms and 2760 ft² of carefully arranged space define Plan 15943C, a 4-bedroom 3-storey house plan with a contemporary European silhouette and a hip and valley roof pitched at 5/12 (22°). A stone/brick veneer exterior gives this single family home a grounded, lasting presence, while large windows and floor-to-ceiling windows open the modern façade to light and views. The house is 39'0" wide and 56'4" deep and rises to a height of 29'0", an upright form that puts every level to good use. Among house plans Canada families compare for a modern look with a practical layout, this one balances both.

The private side of the home is planned with real care. The master suite is on the second floor and comes with a walk-in closet, a calm retreat set apart from the busier living areas. The bedrooms combine split and clustered planning: some rooms sit on their own for privacy, while others are grouped close together, which suits a family with young children or visiting relatives. Three full bathrooms serve the four bedrooms, so mornings stay unhurried. A dedicated home office gives a quiet place to work or study away from household noise. Laundry on the main floor and a separate utility room keep chores and equipment within easy reach yet out of sight.

From the entry, an open floor plan unfolds around a large family room, where a fireplace forms the centre of the space and draws everyone together at the end of the day. The large kitchen connects directly to this room, so whoever is cooking stays part of the conversation. A breakfast bar handles quick meals and homework sessions, and a breakfast nook beside a corner window offers a bright spot for slow weekend mornings. Together these rooms give the home design an easy, sociable rhythm from morning to evening.

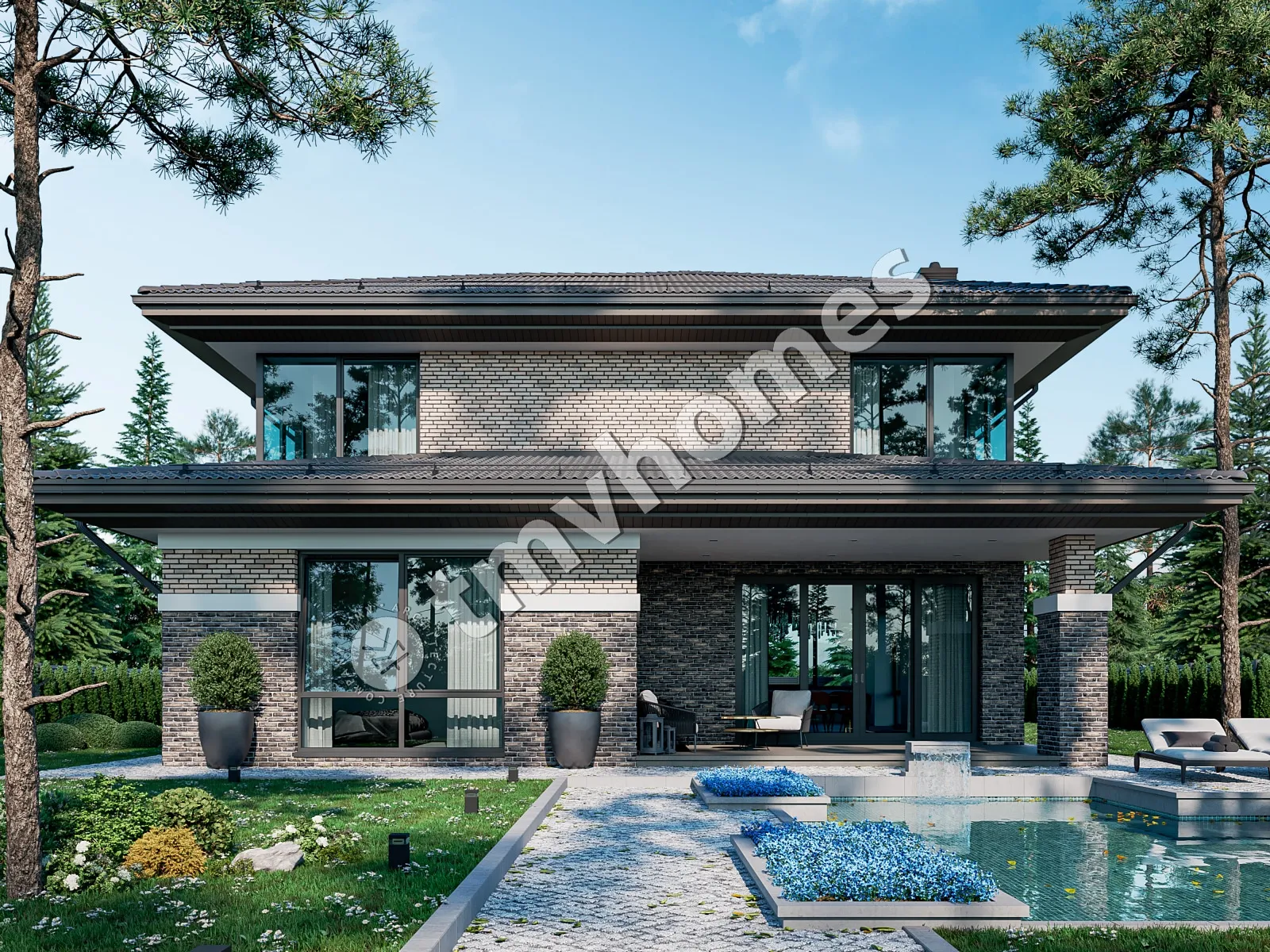

At the back, a covered rear porch extends the living space outdoors, a sheltered place for meals and quiet conversation. The house is built on strip footings, and a slab or concrete block foundation is available on request; there is no basement. Exterior walls are framed in aerated concrete, with ceramic hollow block or sand-lime block offered as alternatives. The plan includes no garage, keeping the whole footprint devoted to living. Corner windows on the elevations add a crisp contemporary detail that sets this modern house plan apart.
