Renderings 2 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C
Renderings 5 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C Renderings 7 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C
7
Concept
Construction documents are prepared for the following countries:

2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms

Plan
19745C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2698
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

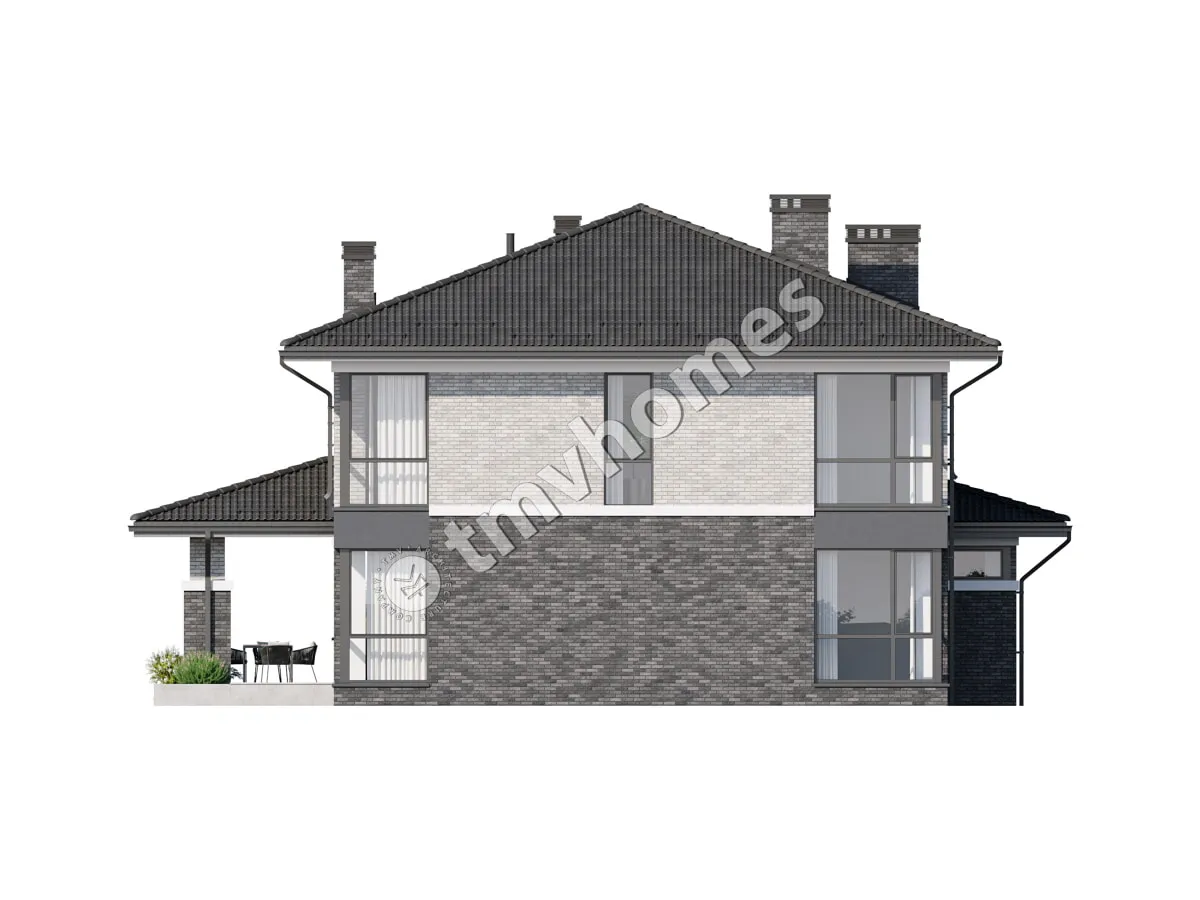

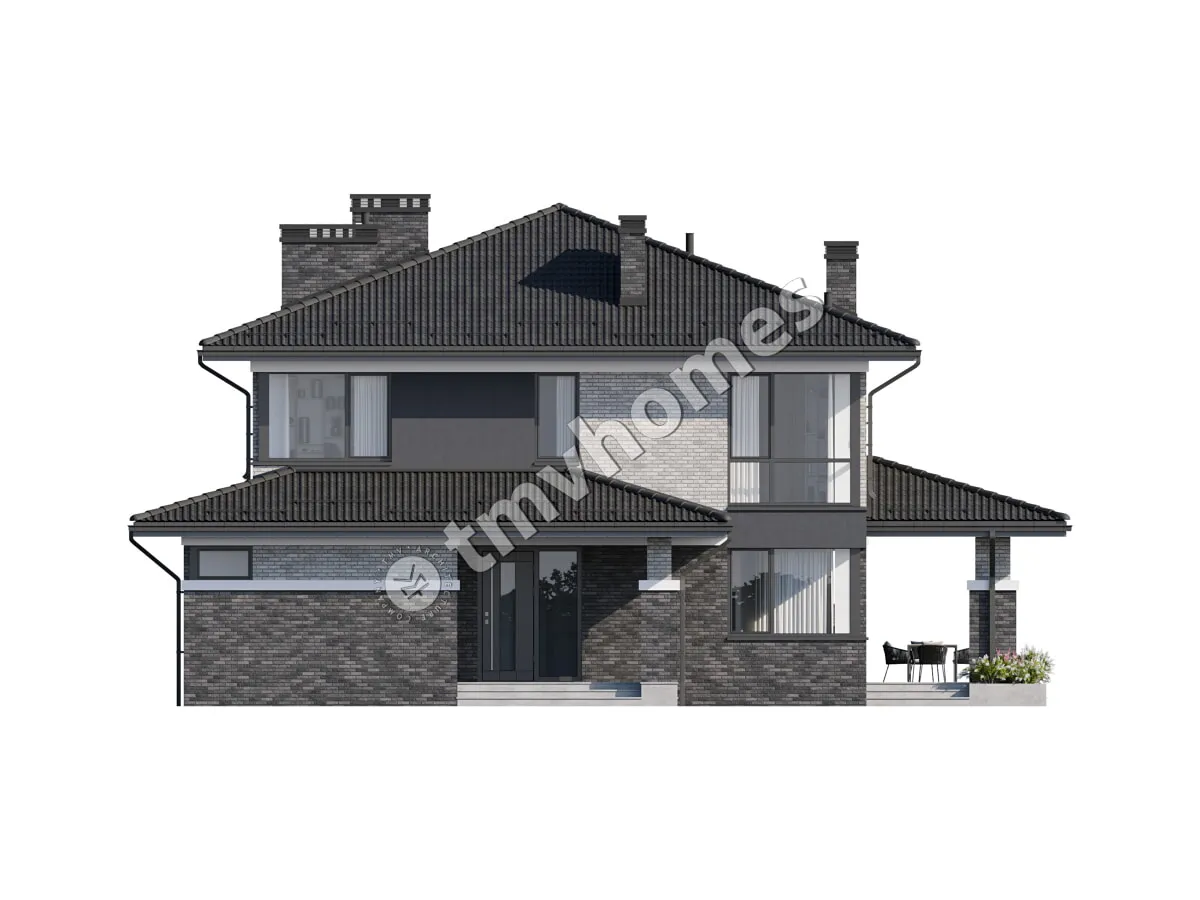

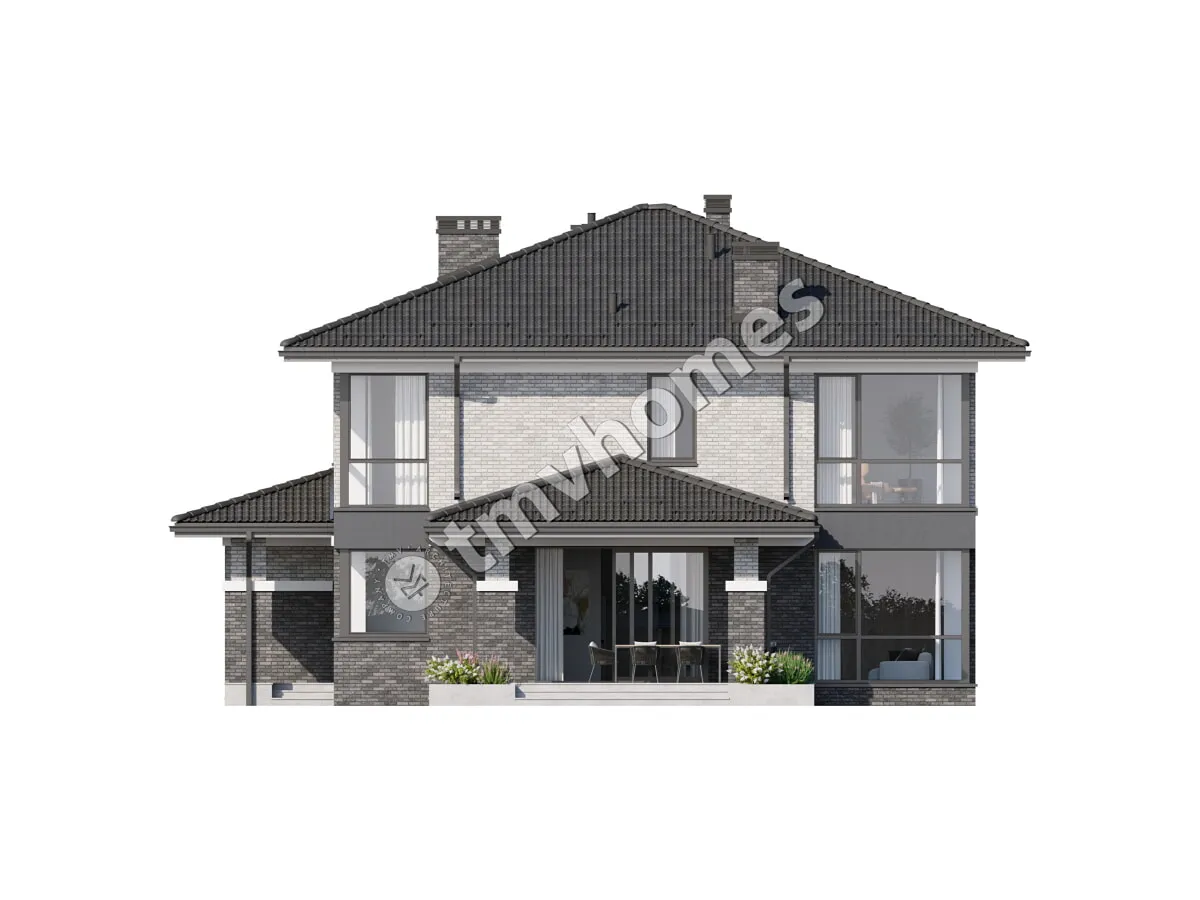

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

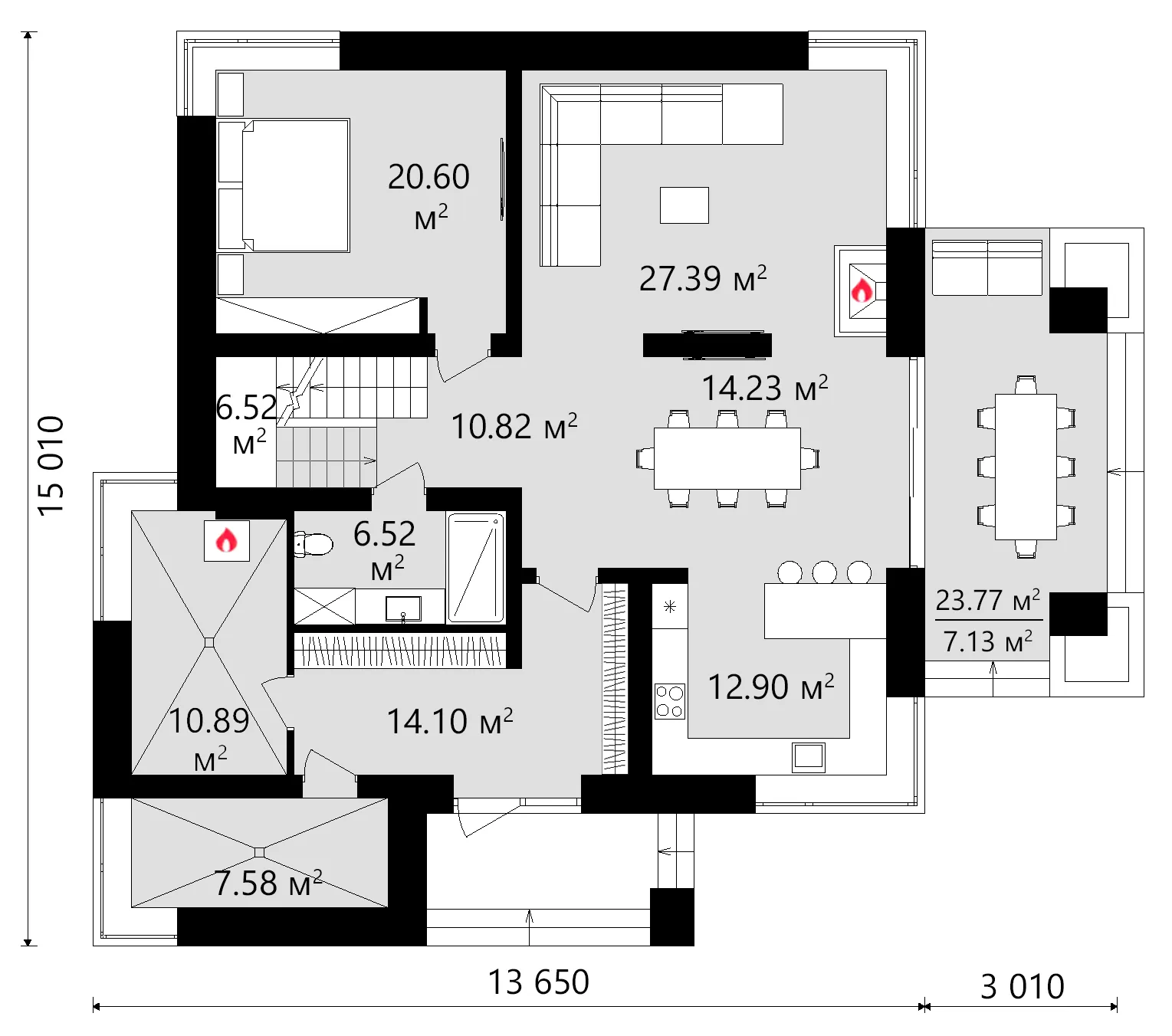

Main Floor
Main Floor 12 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C

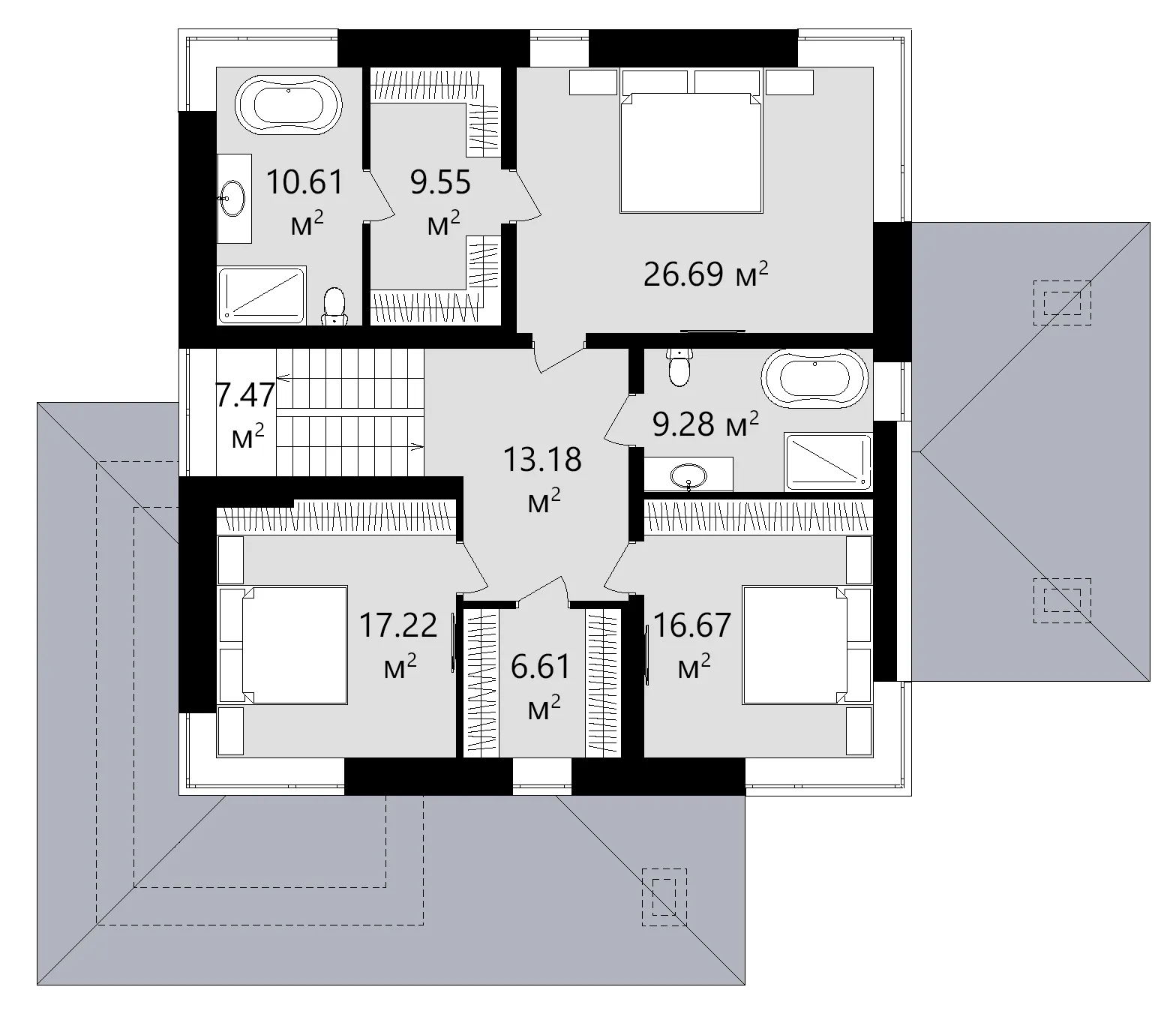

Second Floor
Second Floor 13 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C
Full Specs & Features
Area
Total Heated: 2697.97 ft²
Dimensions
Depth: 45'7" ft
Width: 50'6" ft
Height: 30'4" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Corner Window
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Prairie

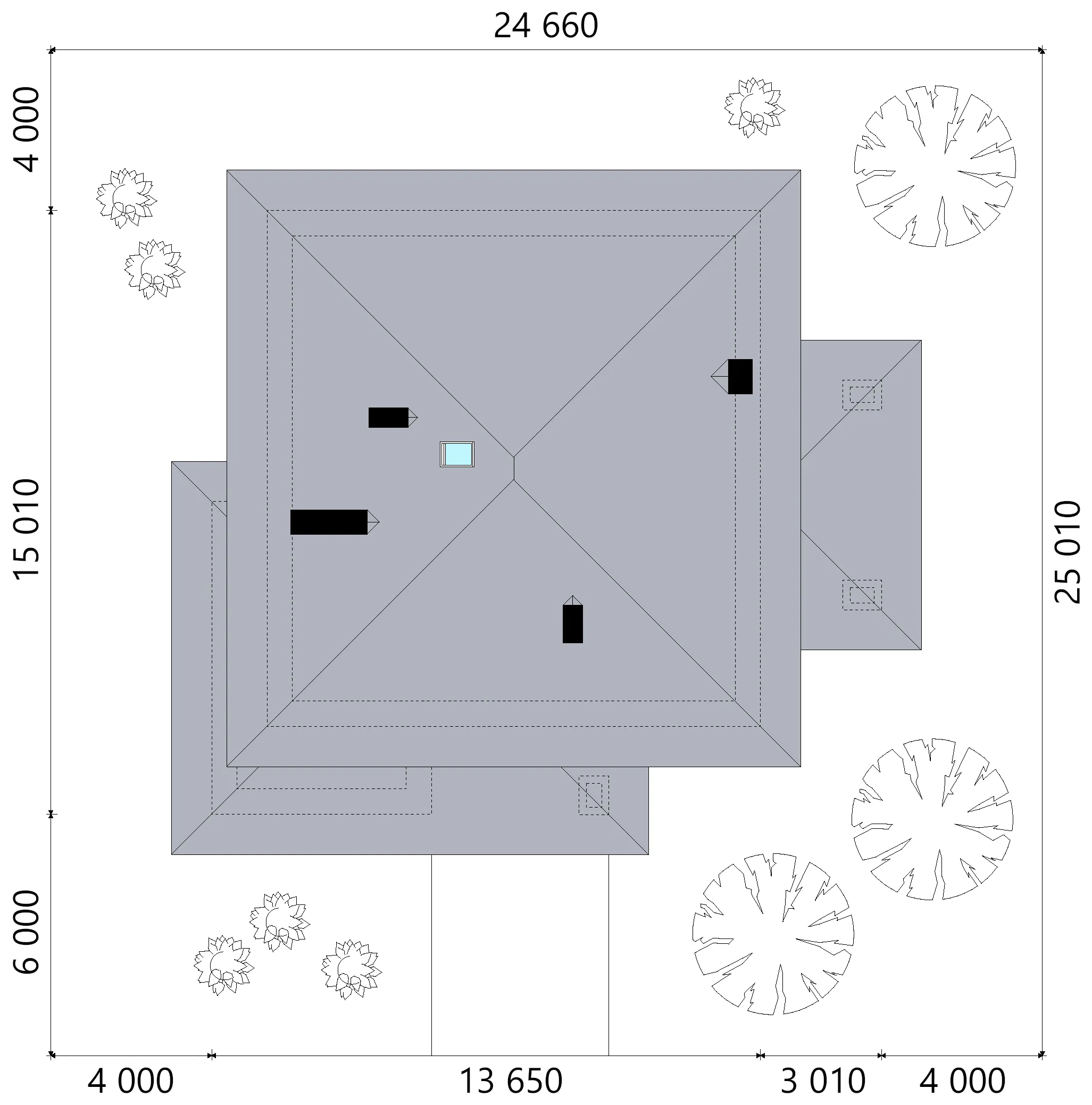

Roof
Roof Area: 3454.25 ft²
Hip
Pyramid
Roof Pitch: 5/12 (22°)

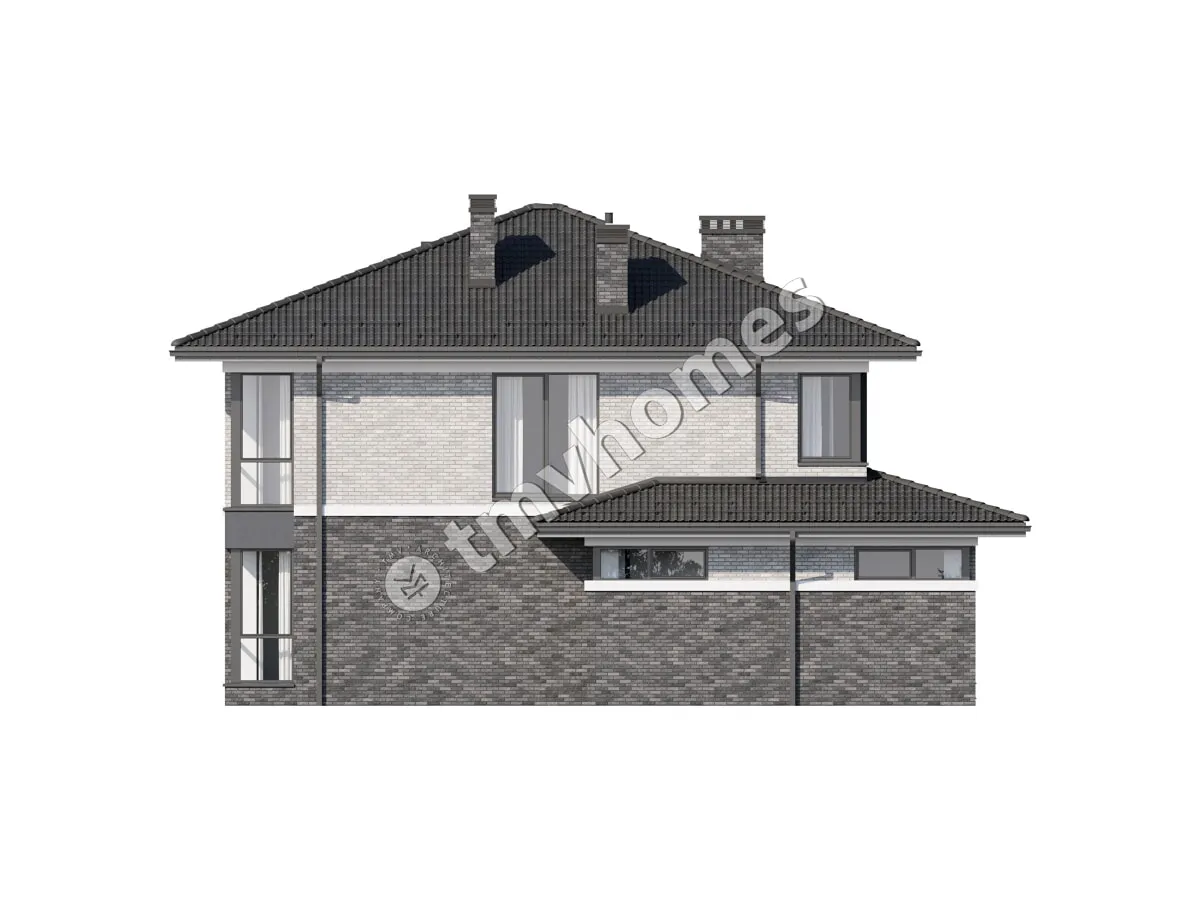

Plan 19745C is a 4-bedroom 3-storey house plan offering 2,698 Sq Ft of space in a contemporary home design shaped by European and Prairie detail, all beneath a hip roof gathered into a tidy pyramid form. Brick cladding gives the facade weight and texture, while the 5/12 (22°) roof pitch keeps the profile settled and calm despite the three levels. The footprint is 50'6" wide and 45'7" deep, with an overall height of 30'4", and inside it holds 4 bedrooms and 3 full bathrooms for a growing single-family household.

The private rooms are planned with parents in mind. The principal bedroom sits on the second floor and has its own walk-in closet, so clothing and off-season wear stay organized and out of sight. The bedrooms are clustered together rather than spread through the house, which keeps younger children within easy reach at night. With three full bathrooms and no half baths, every washroom is a complete one, and busy mornings flow more smoothly. A utility room takes care of laundry and household equipment, and a dedicated storage room absorbs sports gear, boxes and anything else that would otherwise end up in the hallways.

Shared living happens in an open floor plan centred on a large family room with a fireplace, a natural spot for the family to settle on cold evenings. Arrivals pass through a proper entry first, giving boots and coats a place to land before anyone steps into the main rooms. The large kitchen opens onto the same space, and its breakfast bar lets someone pull up a stool for a quick snack or keep the cook company. A corner window over the kitchen invites morning light from two sides, and elsewhere large windows and floor-to-ceiling windows open the rooms to the views around the house.

Two sheltered outdoor spaces extend the living area: a covered front porch at the entrance and a covered side porch that works well as a quieter retreat away from the street and the neighbours. The house is built on strip footings, with a slab or a concrete block foundation available on request. Its walls are framed in autoclaved aerated concrete beneath the brick, and ceramic hollow block or sand-lime block can be chosen as alternatives. This design includes neither a garage nor a basement, making it a clear option among house plans Canada buyers consider when they want a vertical brick home with generous glazing and a distinctive pyramid roof.
