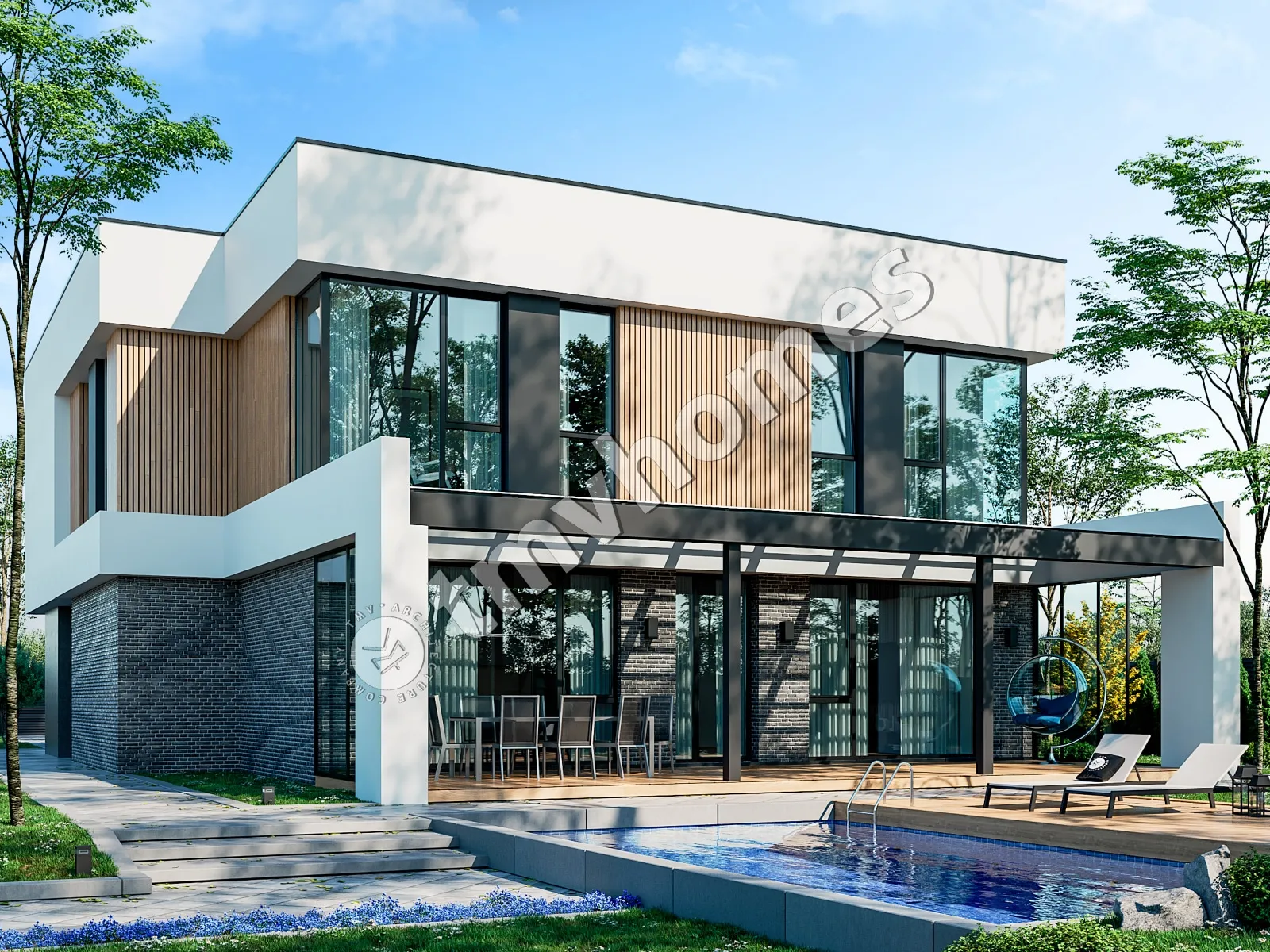

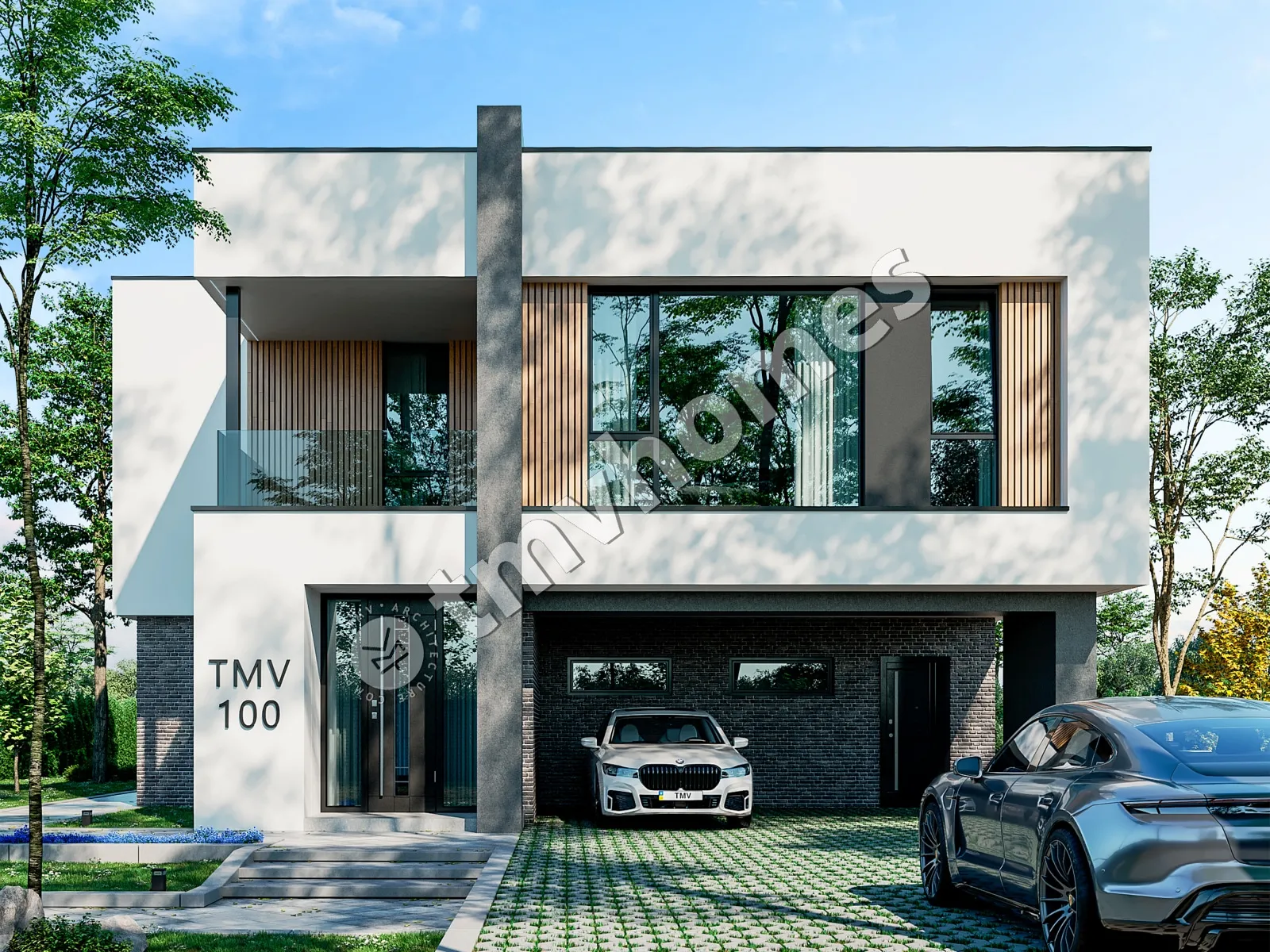

Renderings 2 – 2-Story House Plan 2714 ft², 3 Beds — 32603C

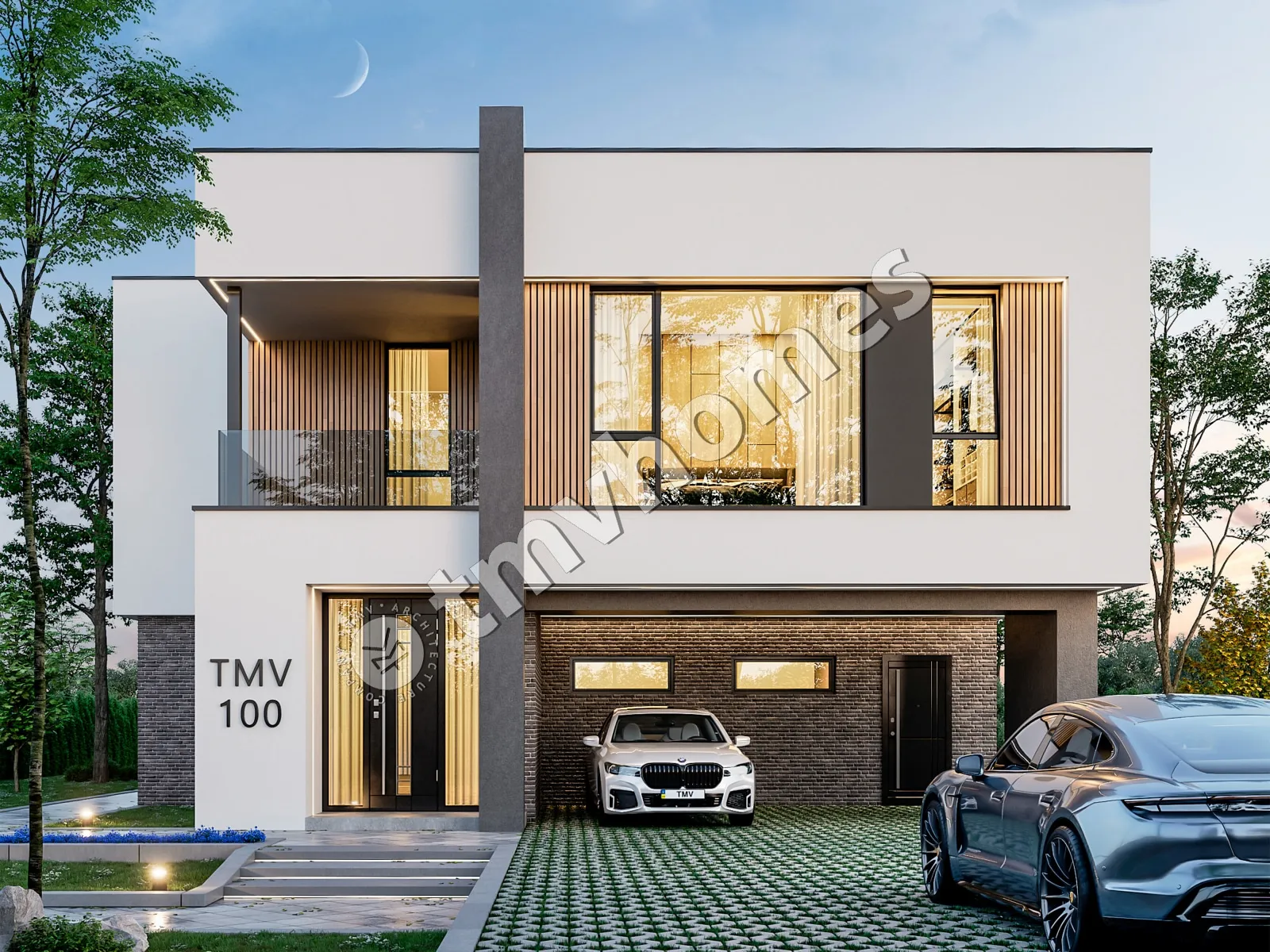

Renderings 4 – 2-Story House Plan 2714 ft², 3 Beds — 32603C Renderings 8 – 2-Story House Plan 2714 ft², 3 Beds — 32603C
7
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2714 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
32603C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2714
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

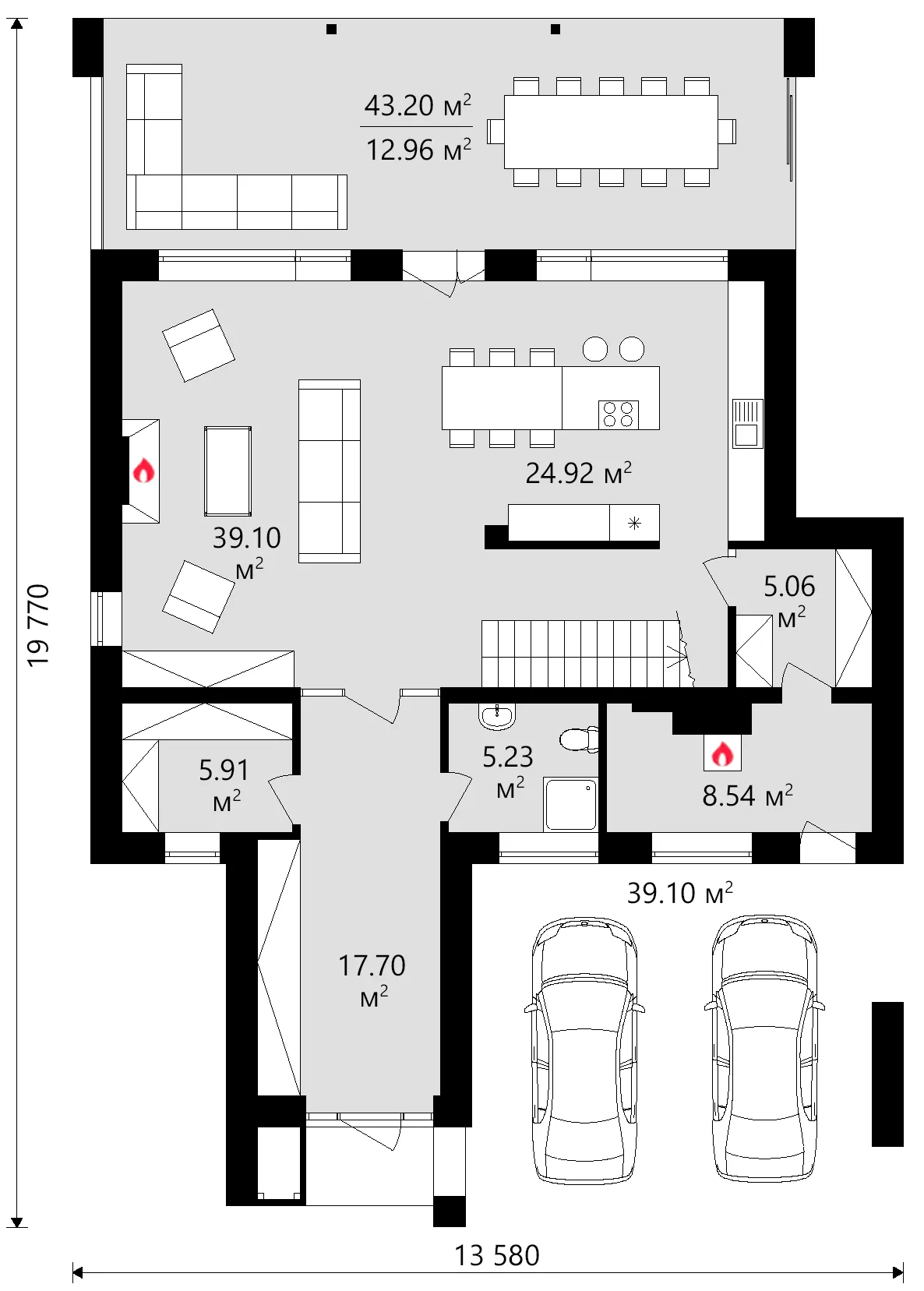

Main Floor
Main Floor 6 – 2-Story House Plan 2714 ft², 3 Beds — 32603C

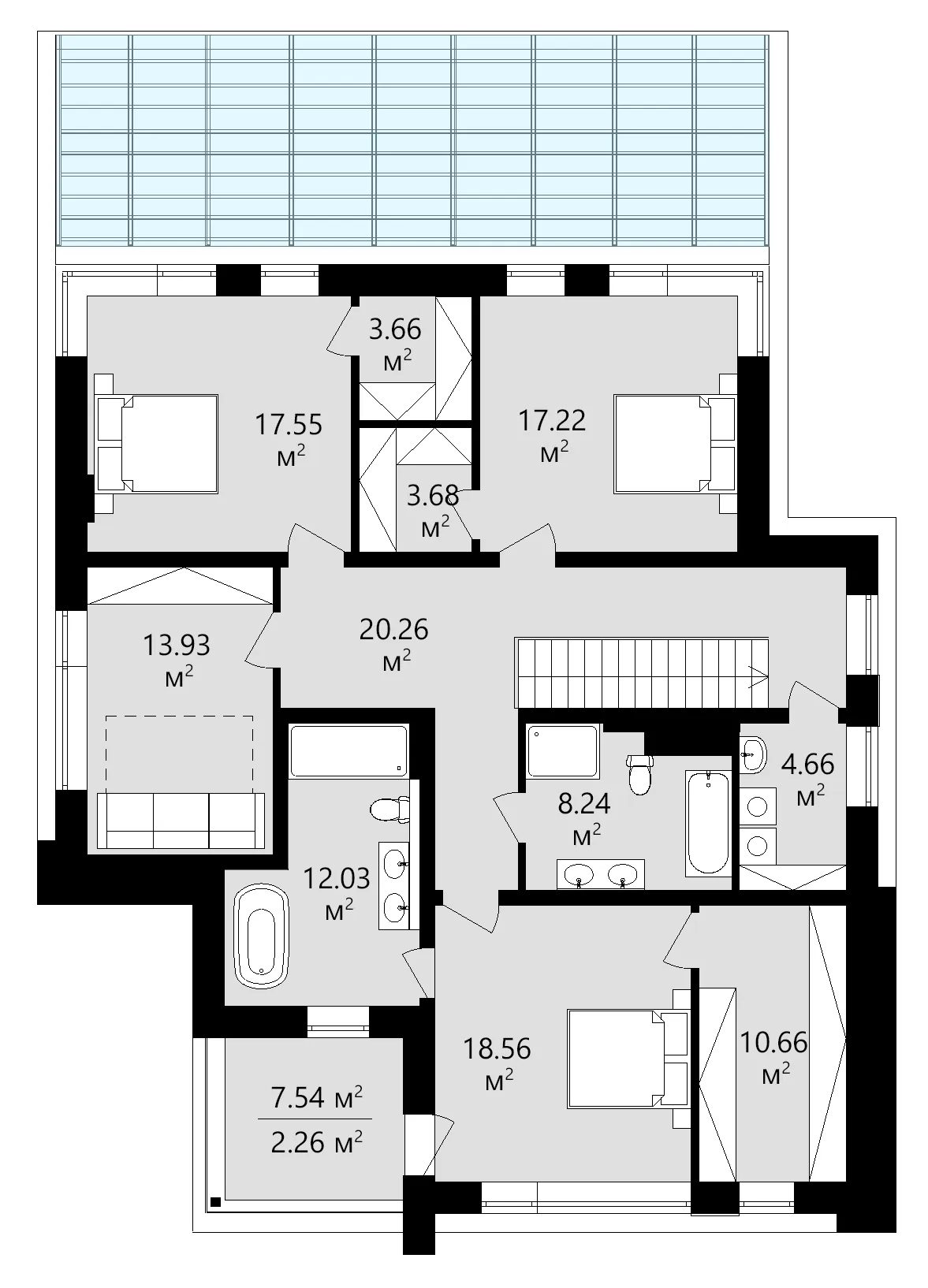

Second Floor
Second Floor 7 – 2-Story House Plan 2714 ft², 3 Beds — 32603C
Full Specs & Features
Area
Total Heated: 2713.9 ft²
Dimensions
Depth: 60'3" ft
Width: 41'4" ft
Height: 24'4" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 1819.10 ft²
Flat

Designed for a family that values clean lines and generous glazing, plan 32603C is a 3-bedroom 3-storey house plan offering 2714 ft² of living space under a flat roof, drawn in a contemporary, modern and high-tech idiom. Among house plans Canada families explore for a bold modern home design, this single-family residence is marked by a layered facade of stone/brick veneer, wood and stucco, materials that give its sharp geometry a natural texture. The footprint is 41'4" wide and 60'3" deep, and the house reaches a height of 24'4".

The private side of the home is planned with daily routines in mind. The master suite sits on the second floor, and the bedrooms are clustered together, so parents and children stay close at night. The principal bedroom has its own walk-in closet, while three full bathrooms keep busy mornings moving for everyone. Laundry on the second floor places the washer and dryer steps from the bedrooms and closets, sparing the family from carrying baskets between storeys. A separate utility room gathers the mechanical equipment in one place, well away from the rooms where people relax.

The shared spaces follow an open concept layout. A defined entry greets visitors before the plan opens into a large family room with a fireplace, the natural centre of household life on long winter evenings. The large kitchen shares this open space and is organized around an island, so whoever is cooking can stay part of the conversation. A breakfast nook makes an easy spot for weekday meals, and a walk-in pantry stores groceries and small appliances behind a door, keeping the counters clear. For anyone who works from home, a dedicated home office provides a quieter room apart from the bustle of the open areas.

Floor-to-ceiling windows, panoramic windows, large windows and a corner window tie the interior to the outdoors and let daylight reach across the rooms. A covered rear porch offers sheltered outdoor living at the back of the house, and a balcony adds a private place on an upper level to step out for fresh air. Rather than an enclosed garage, a 2-car carport protects the vehicles under an open roof that suits the crisp architecture. The house is built on strip footings with no basement, and a slab or concrete block foundation is also available on request. Its exterior walls are framed in aerated concrete, with clay hollow block or sand-lime block offered as alternatives. With three storeys of well-zoned rooms, a fireplace and abundant glass, this house plan with fireplace brings refined contemporary living to a growing family.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1824
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
