Renderings 2 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C
Renderings 3 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C Renderings 4 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C
7
Concept
Construction documents are prepared for the following countries:

2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms, 2 Bathrooms and 2-Car Garage

Plan
20434C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2884
Total Heated ft²
2 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

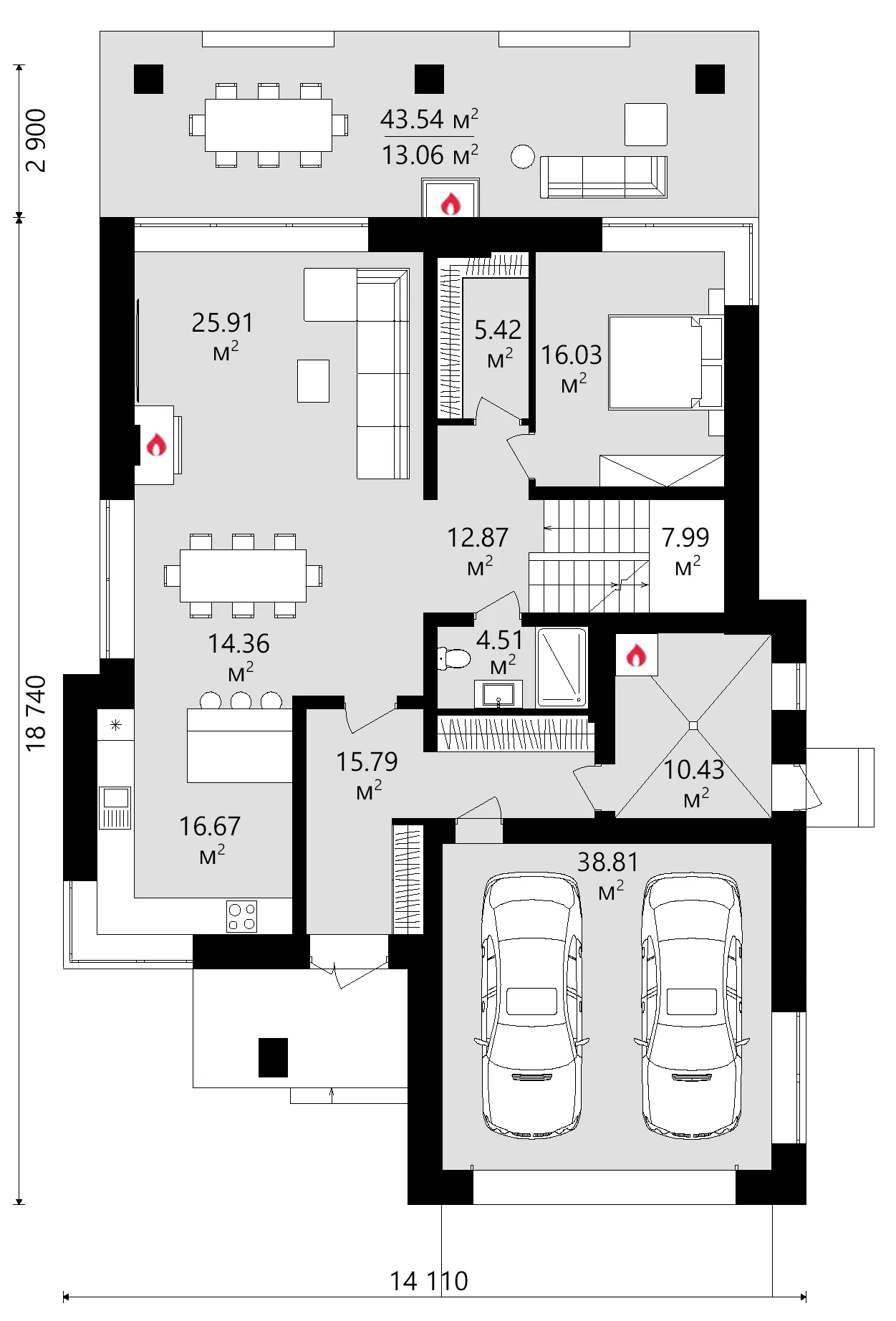

Main Floor
Main Floor 12 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C

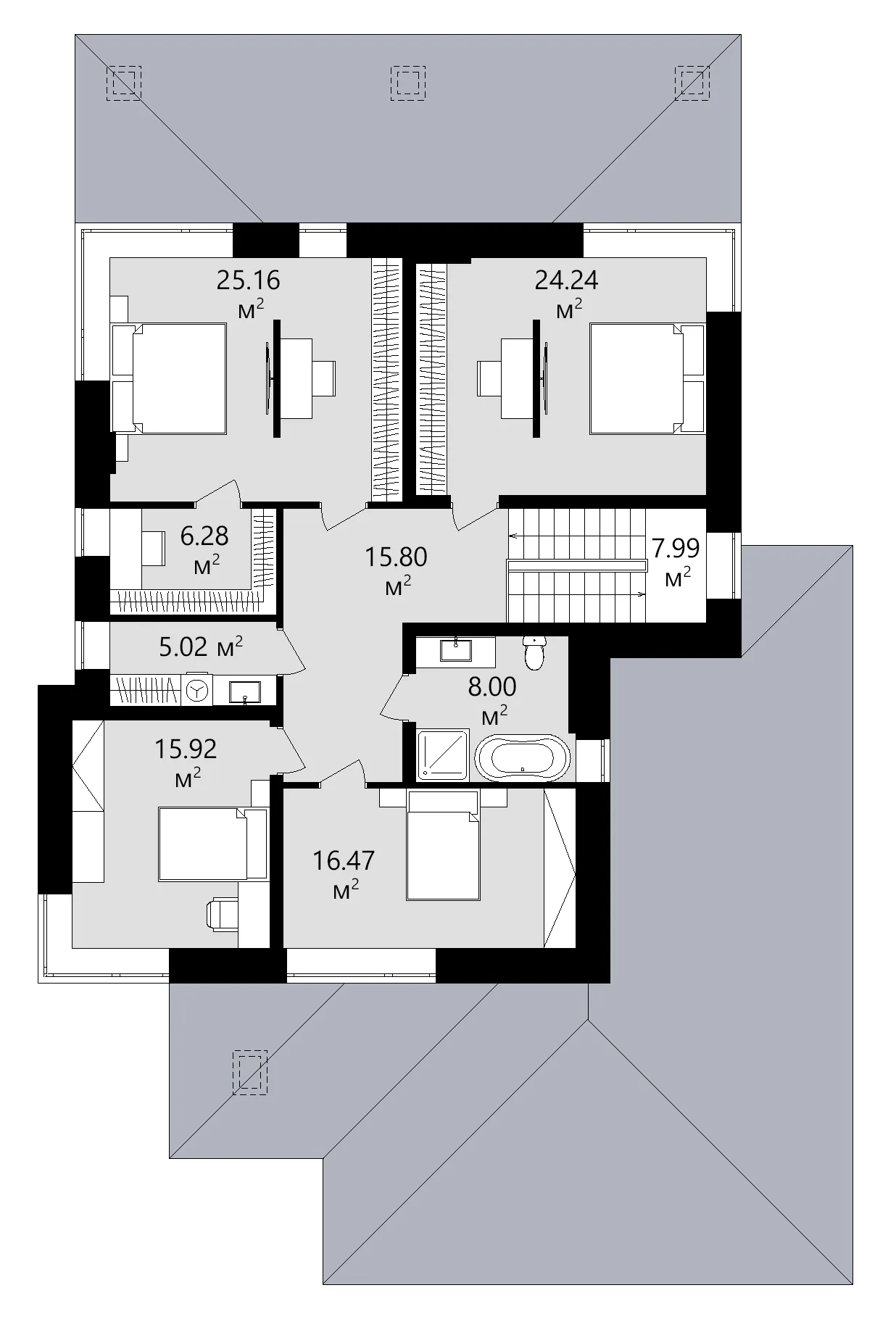

Second Floor
Second Floor 13 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C

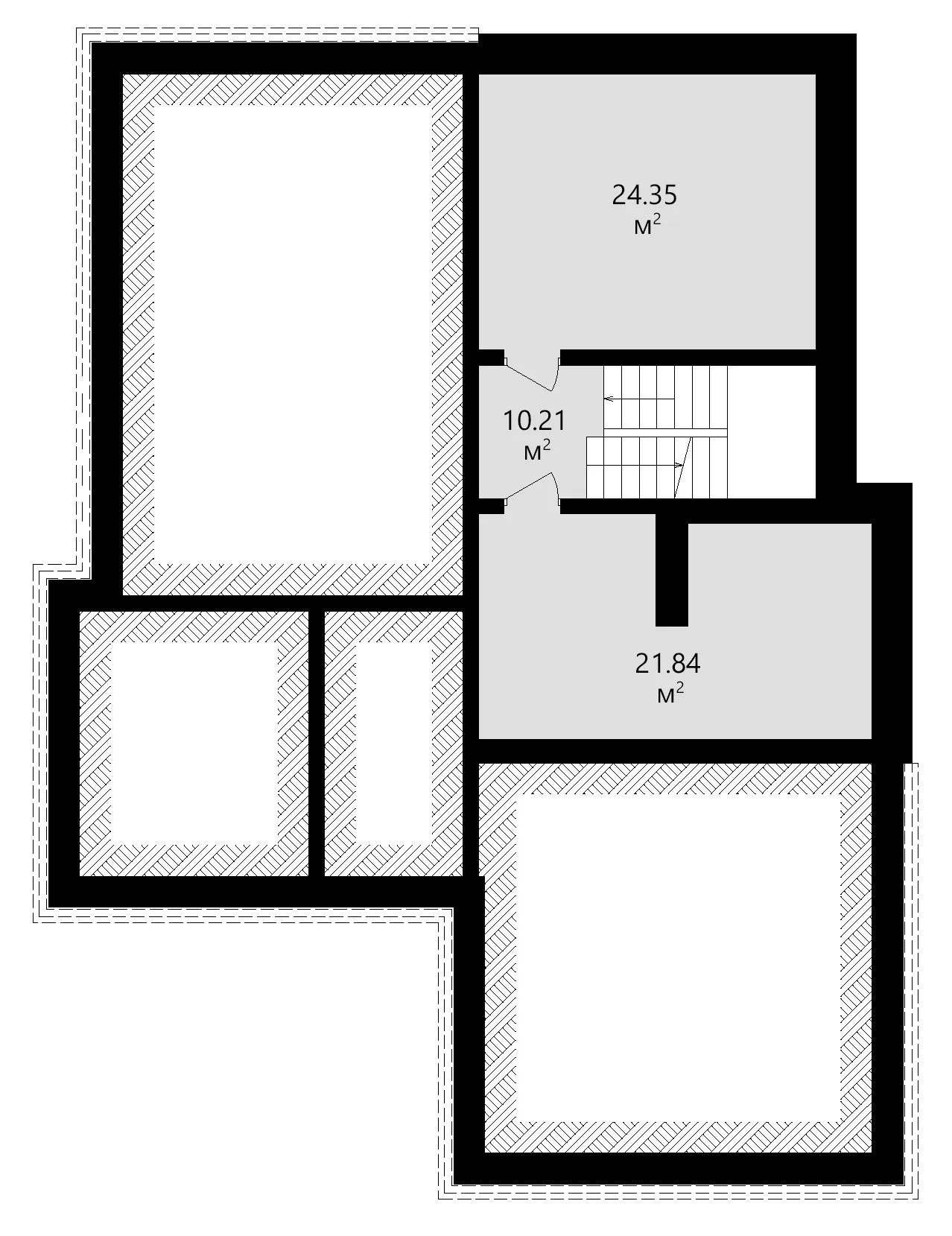

Basement
Basement 11 – 2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms and 2-Car Garage – 20434C
Full Specs & Features
Area
Basement: 607.08 ft²
Total Unheated: 1024.83 ft²
Total Heated: 2883.87 ft²
Dimensions
Depth: 66'0" ft
Width: 43'0" ft
Height: 28'0" ft
Garage
Area: 418 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall (Optional)
Slab (Optional)
Block Stem Wall (Optional)
Full Basement
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 2
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Outdoor Fireplace
Outdoor Kitchen
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional
Roof
Roof Area: 4330.86 ft²
Hip & Valley
Skylight
Roof Pitch: 5/12 (22°)

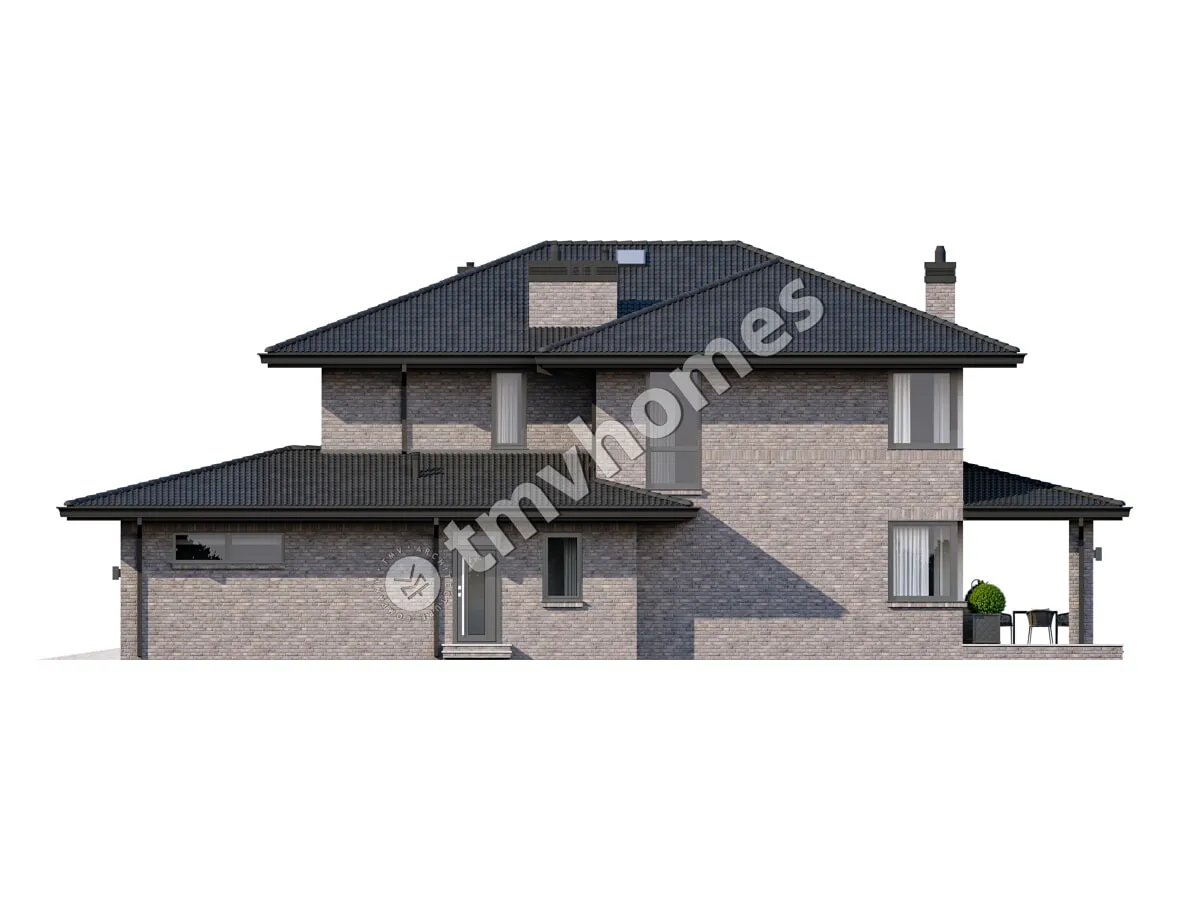

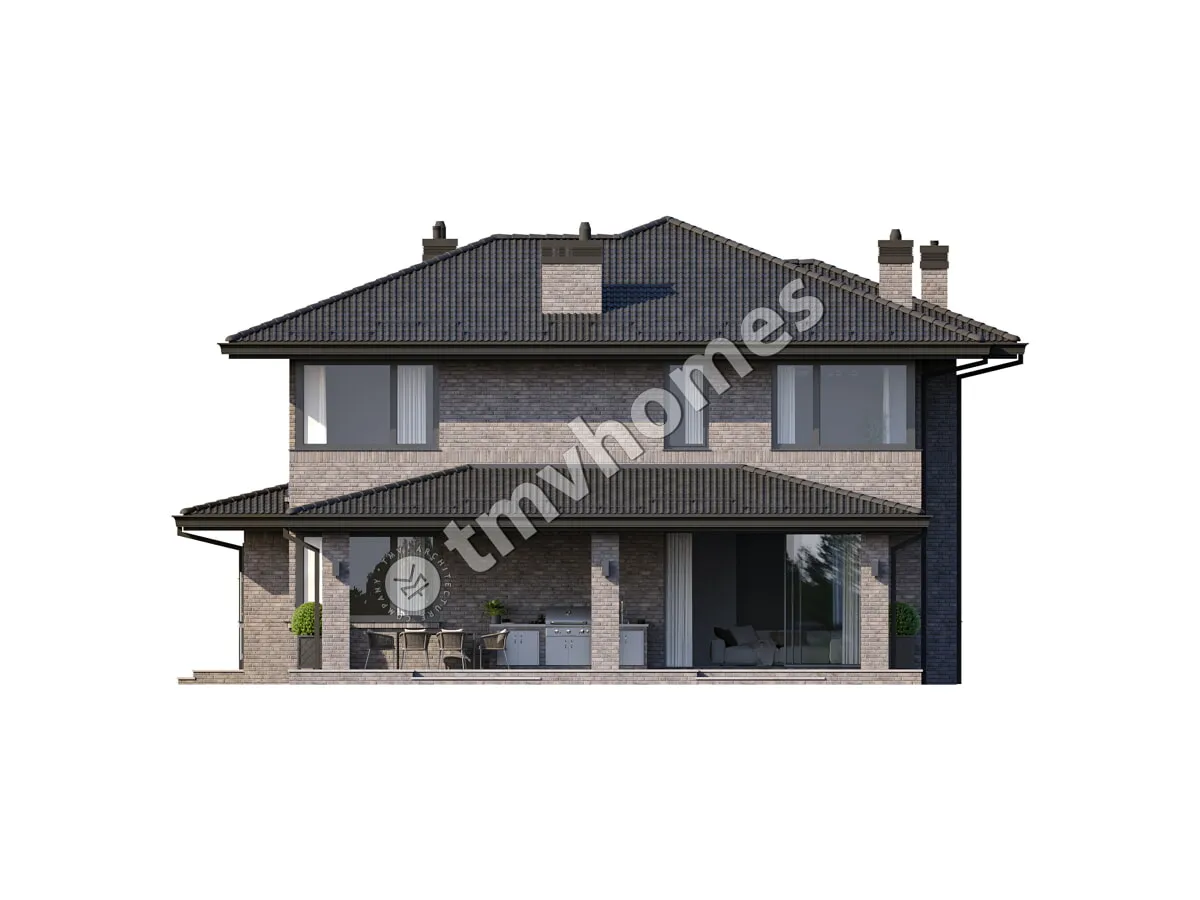

Home plan 20434C is a 5-bedroom 3-storey house plan of 2,884 Sq Ft, wrapped in brick and topped with a hip & valley roof, with European, Prairie and Traditional influences shaping its look. The roof rises at a 5/12 (22°) pitch, and a skylight brings daylight in from above. The house is 43'0" wide and 66'0" deep, with an overall height of 28'0". Behind the brick facade, the walls are framed in aerated concrete; ceramic hollow block or silicate block framing can be specified instead on request.

The sleeping quarters are grouped together, keeping the family close at night. The second-floor master is one of two master suites, an arrangement that gives parents, a grown child or a visiting grandparent a private retreat of their own. A walk-in closet adds generous wardrobe space, and two full bathrooms serve the five bedrooms. Laundry sits on the second floor, steps from the bedrooms where the clothes are worn and folded. A utility room and dedicated storage keep tools, cleaning supplies and seasonal gear organized and out of the way.

From the front entry, an open concept layout unfolds, joining a large family room and a large kitchen in one continuous space. In the family room, a fireplace creates a natural focal point for movie nights and slow Sunday afternoons. The kitchen is planned for a busy household: the island handles prep work, the breakfast bar seats quick meals and homework sessions, and the breakfast nook is set beside a corner window. Large windows and floor-to-ceiling glass draw the eye outdoors and fill the rooms with soft daylight through the seasons.

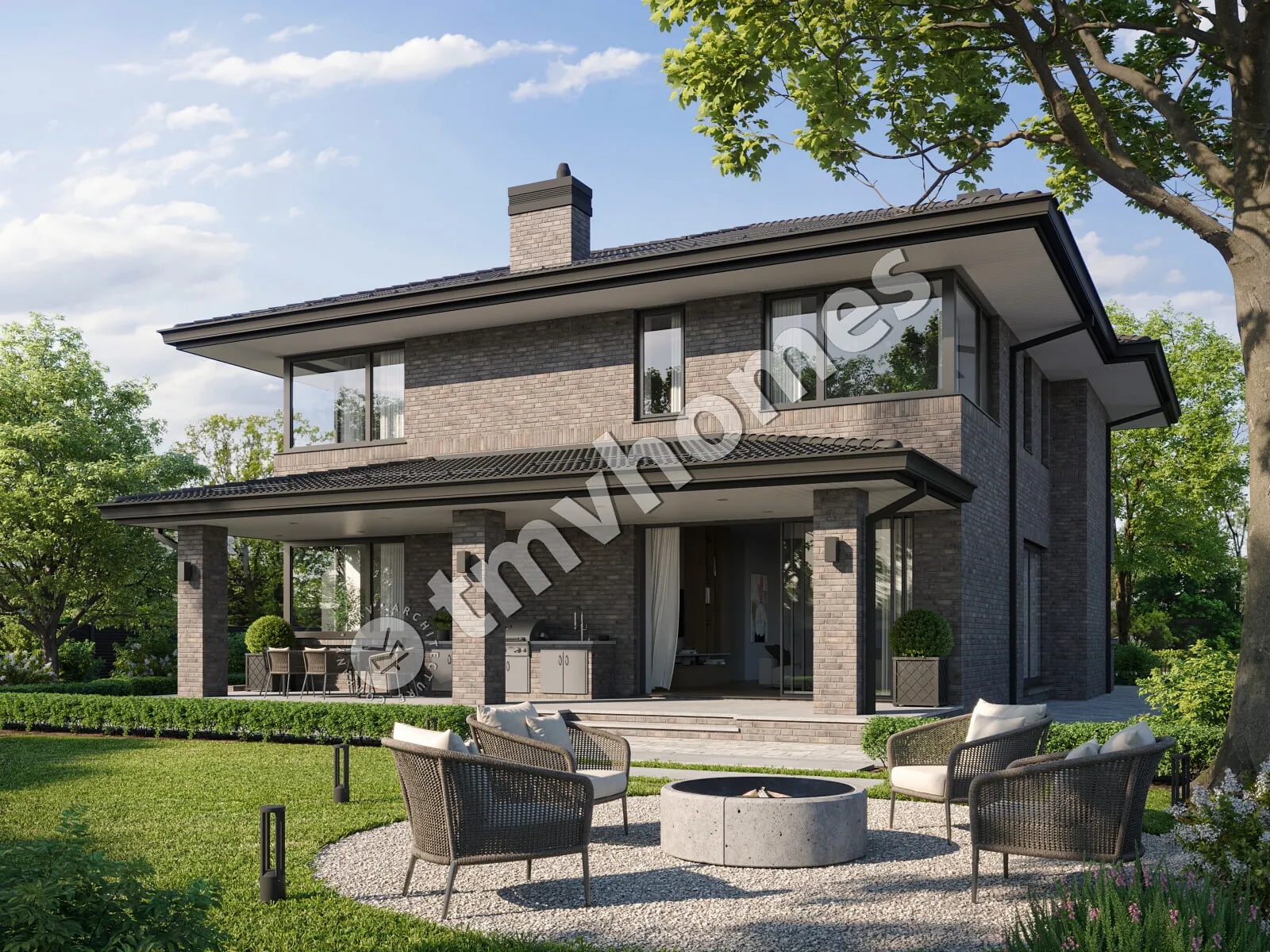

Outside, the covered rear porch is fitted with an outdoor kitchen and an outdoor fireplace, so summer dinners and cool autumn evenings can happen under the open sky. The two-car garage is front entry and extends forward of the house, providing direct access from the street. This home design stands on a full basement that adds a whole lower level beneath the living spaces, while strip footings, a slab or a concrete block foundation are also available on request. For families comparing house plans Canada wide for space to grow, this 5 bedroom home with two master suites offers a practical layout behind a timeless brick exterior.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2636
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
