Renderings 2 – 2-Story House Plan 2916 ft², 4 Beds — 60565C
Renderings 3 – 2-Story House Plan 2916 ft², 4 Beds — 60565C Renderings 4 – 2-Story House Plan 2916 ft², 4 Beds — 60565C
8
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2916 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
60565C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2916
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

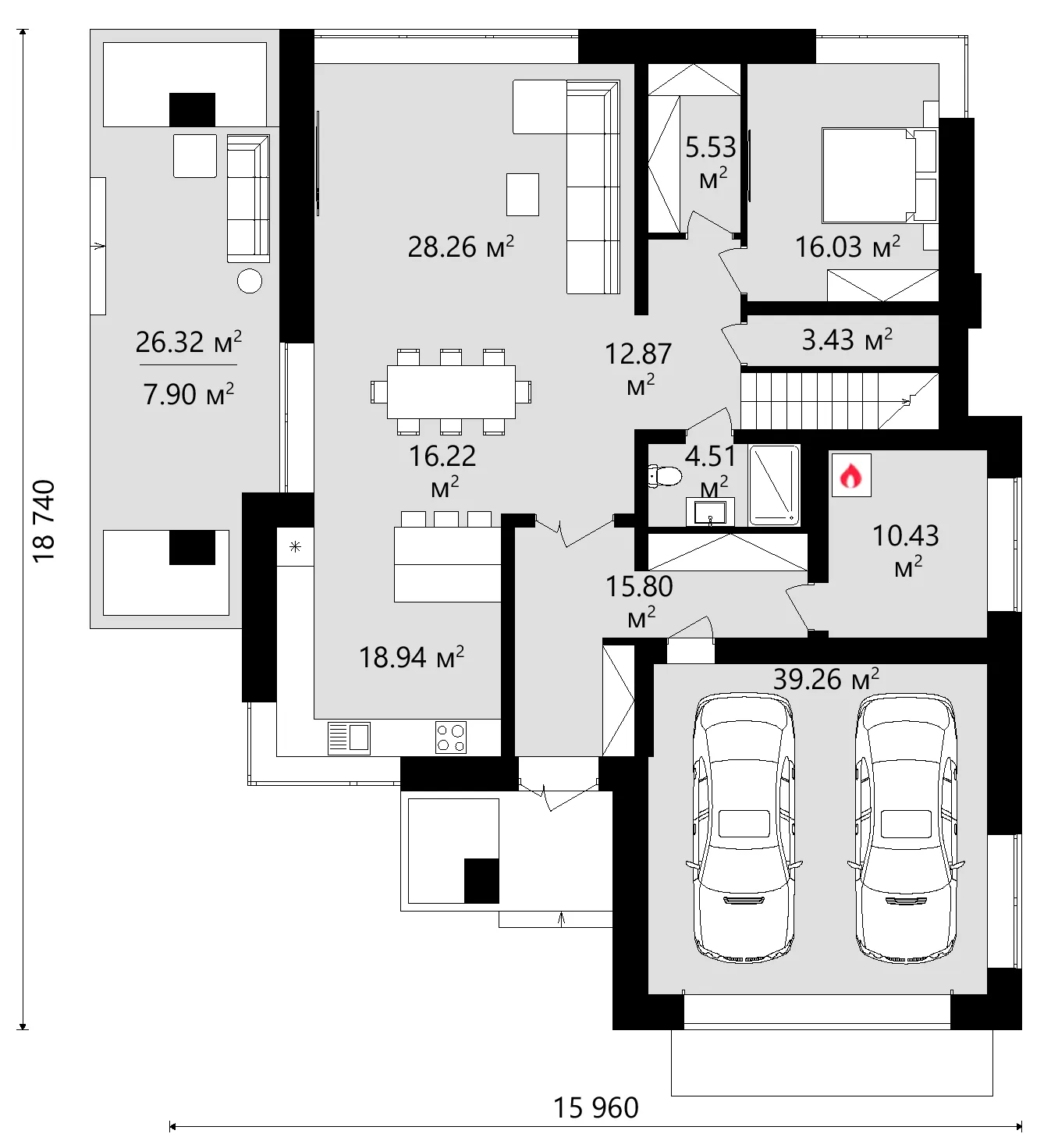

Main Floor
Main Floor 13 – 2-Story House Plan 2916 ft², 4 Beds — 60565C

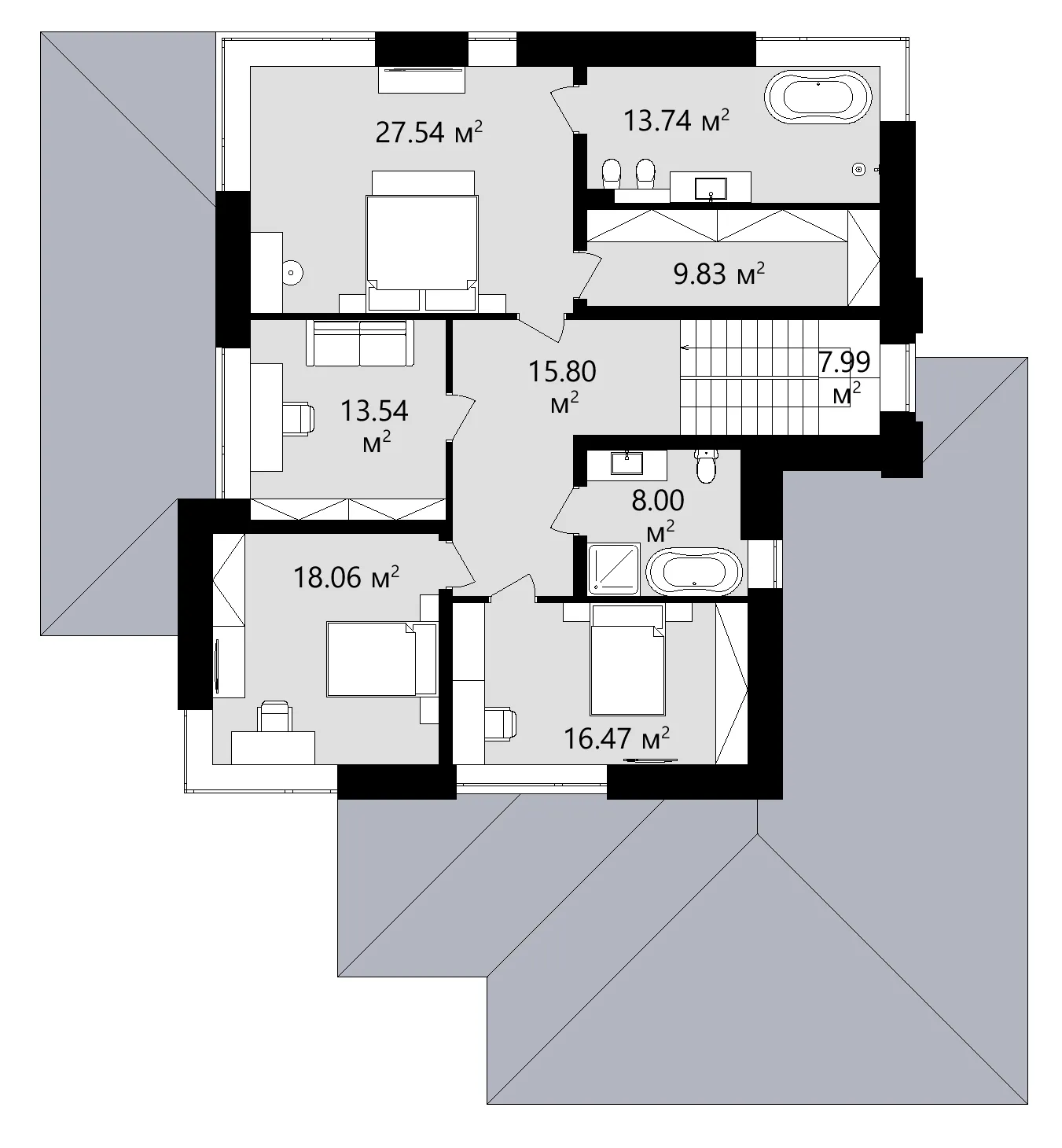

Second Floor
Second Floor 14 – 2-Story House Plan 2916 ft², 4 Beds — 60565C
Full Specs & Features
Area
Total Unheated: 422.59 ft²
Total Heated: 2915.73 ft²
Dimensions
Depth: 57'1" ft
Width: 48'6" ft
Height: 27'2" ft
Garage
Area: 423 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Corner Window
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

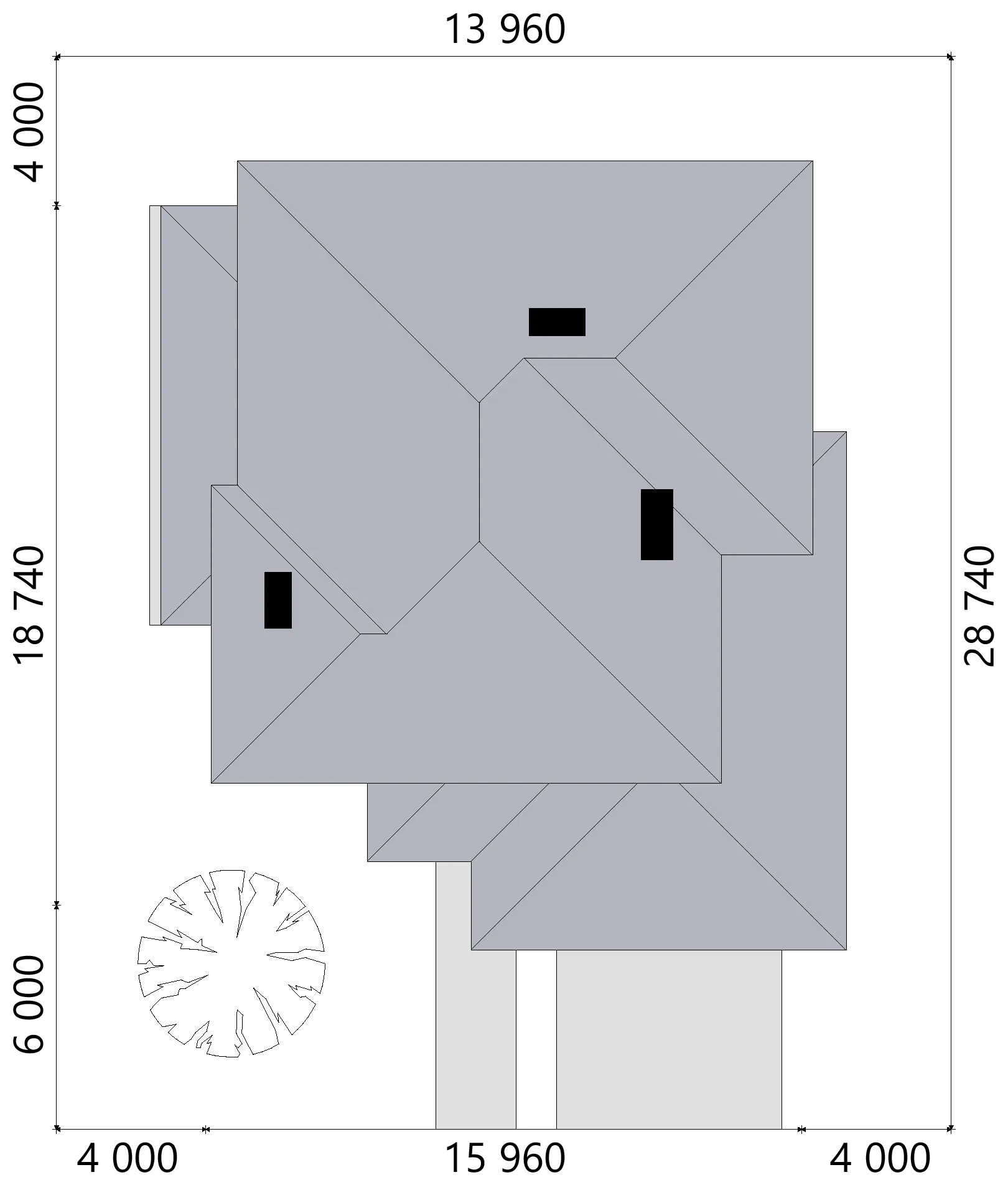

Roof
Roof Area: 4334.20 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Plan 60565C is a 4-bedroom 3-storey house plan that blends modern and European lines with a contemporary attitude, spread across 2916 ft² beneath a hip & valley roof. The 5/12 (22°) pitch keeps the roofline low and composed, while stone/brick veneer gives the walls weight and texture. This single family home design measures 48'6" wide and 57'1" deep and rises to a height of 27'2". An attached 2-car garage with front entry faces the street, and a defined entry welcomes guests into the house.

The master suite is on the second floor and has its own walk-in closet. The bedrooms are clustered together, so parents stay within earshot of the children and evening routines stay out of the shared rooms. Three full bathrooms divide the work among the four bedrooms, which matters on busy school mornings. This is also a house plan with home office, offering a room with a door to close on video calls. A utility room takes care of household chores, and dedicated storage keeps seasonal gear and sports equipment neatly put away.

In the living areas, an open floor plan joins a large family room with a large kitchen, so whoever is cooking remains part of the conversation. The island is the working centre of the kitchen, and a breakfast bar along it handles quick snacks and homework sessions. A breakfast nook tucked beside a corner window becomes the natural place for the first coffee of the day. Floor-to-ceiling windows and large windows connect the rooms to the outdoors and let each season's colour into the house.

The home rests on strip footings, with a slab or a concrete block foundation offered as alternatives on request. Wall framing is aerated concrete; ceramic hollow block and silicate block can be chosen instead. The design has no basement. A covered side porch gives the family a sheltered place to sit outside, away from the driveway and the garage doors. If your search through house plans Canada has drawn you toward contemporary European homes, this 4 bedroom house plan offers three levels of well-organized living with a refined, modern exterior.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2217
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
