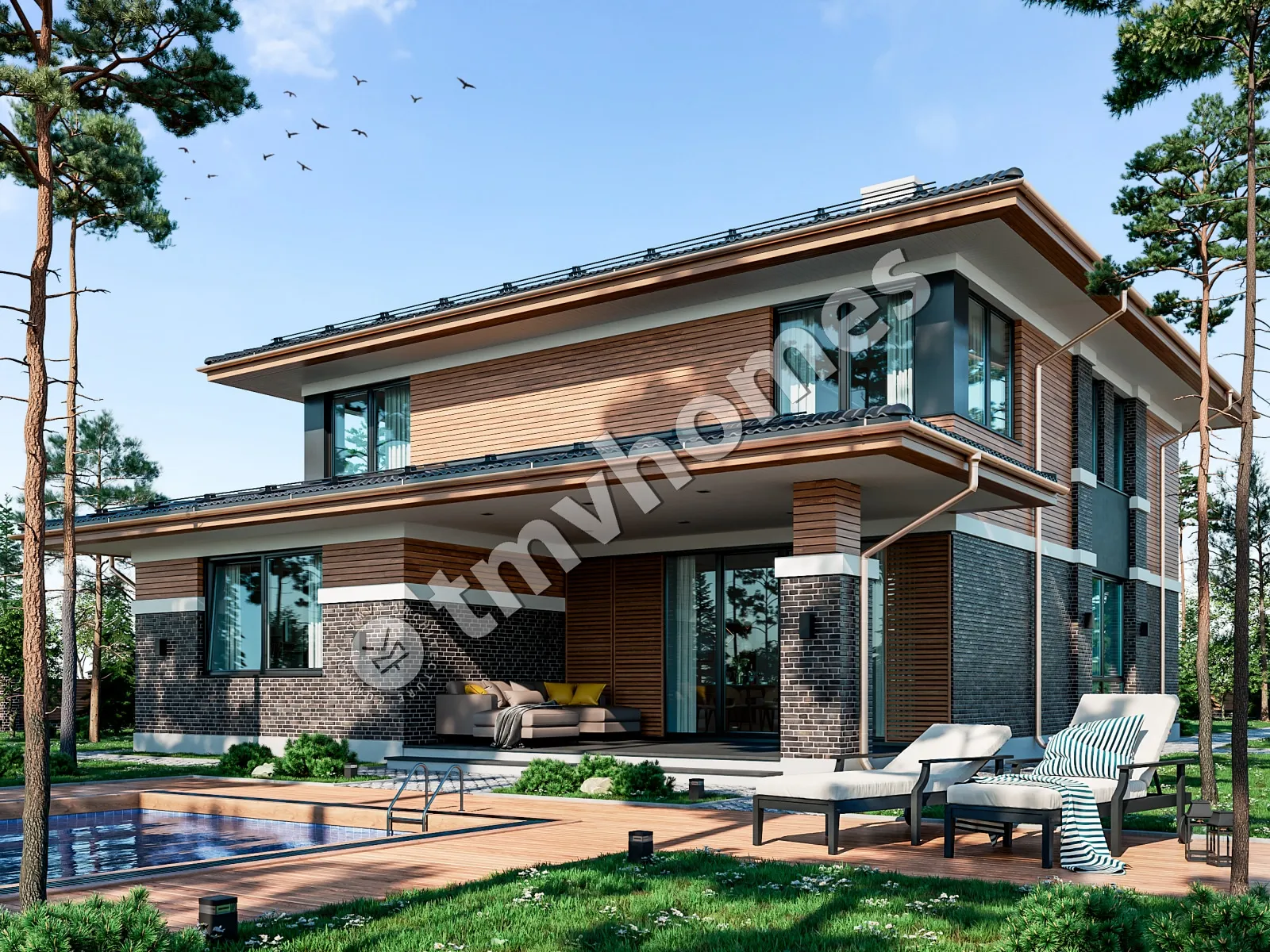

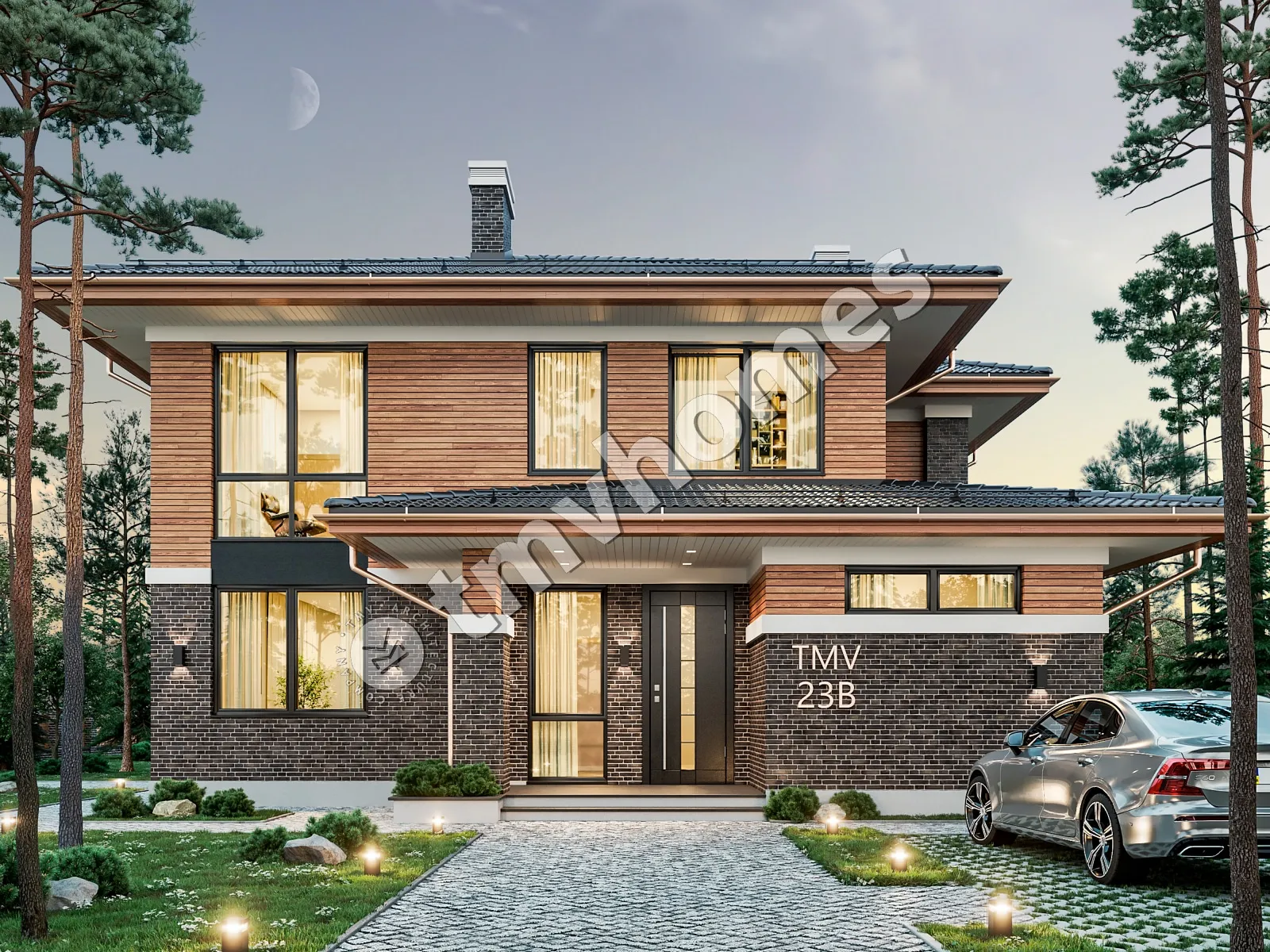

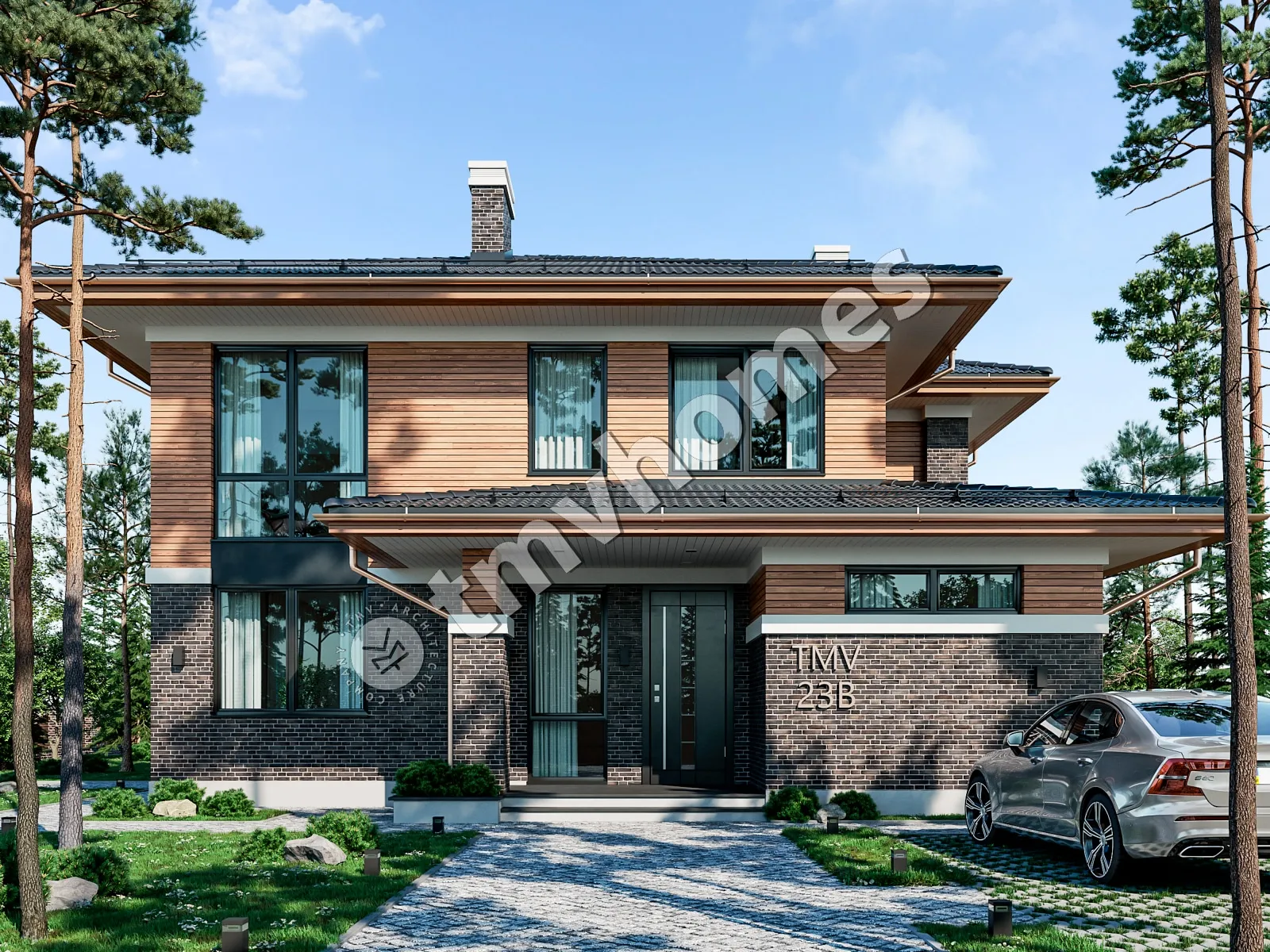

Renderings 2 – 2-Story House Plan 2751 ft², 4 Beds — 29699C

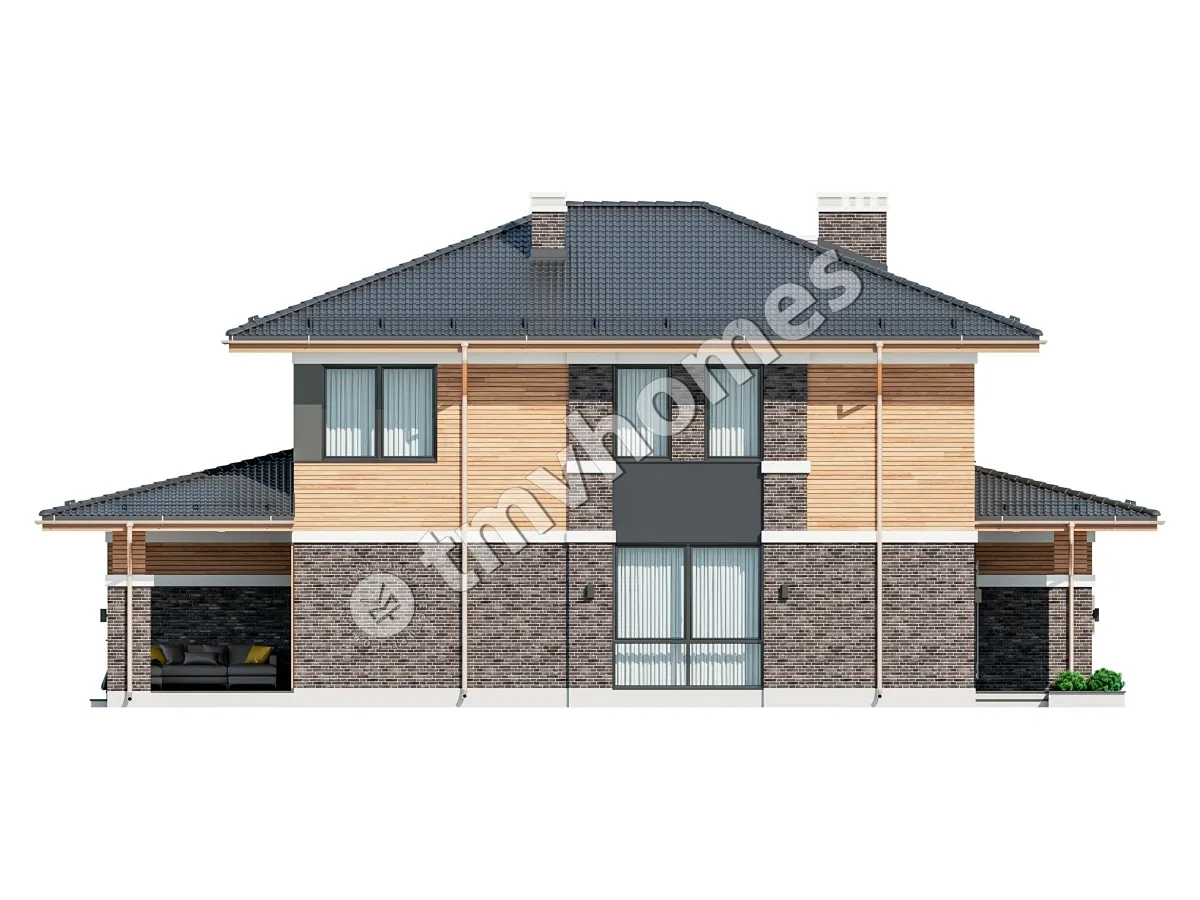

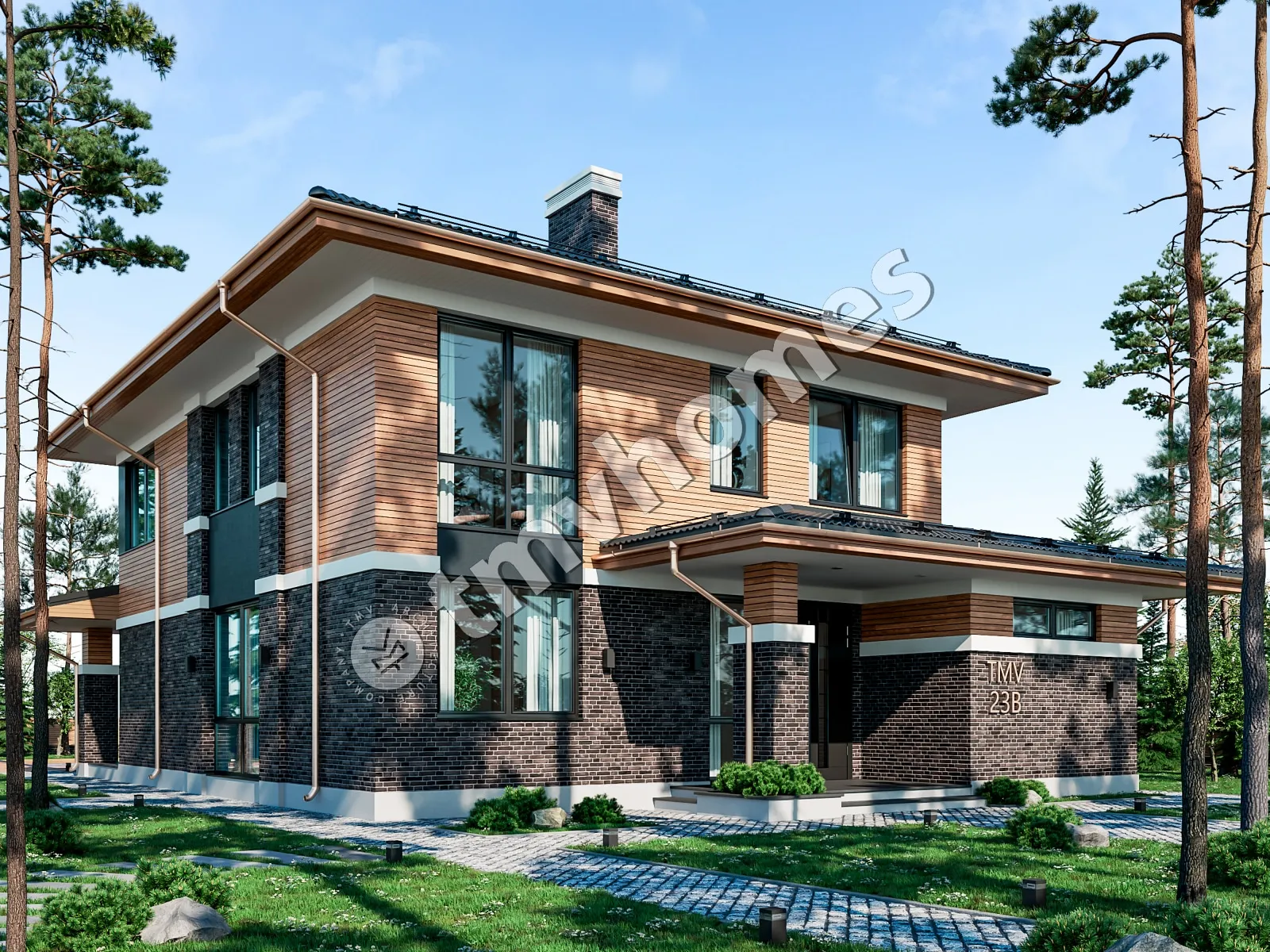

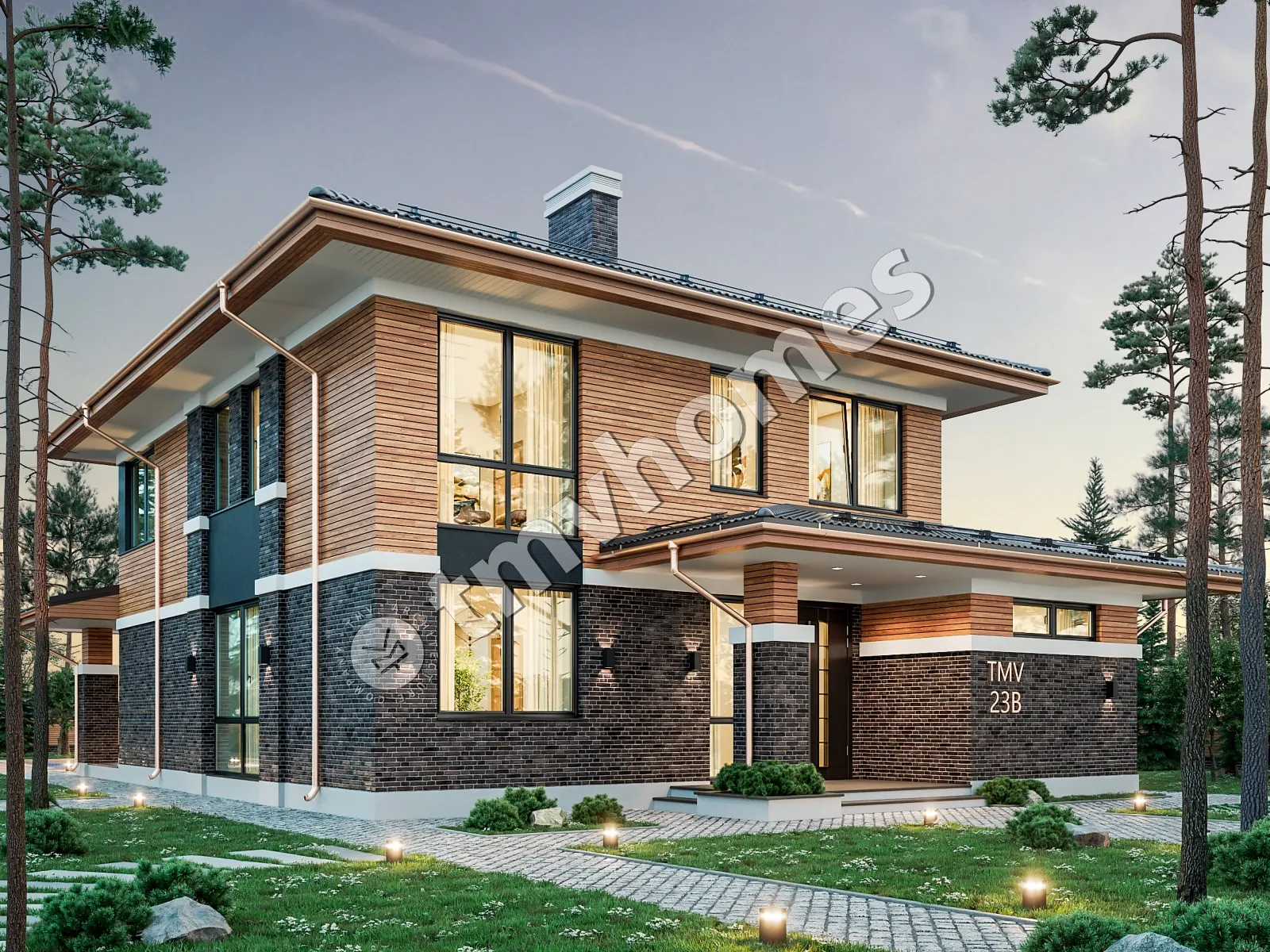

Renderings 3 – 2-Story House Plan 2751 ft², 4 Beds — 29699C Renderings 4 – 2-Story House Plan 2751 ft², 4 Beds — 29699C
8
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2751 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
29699C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2751
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

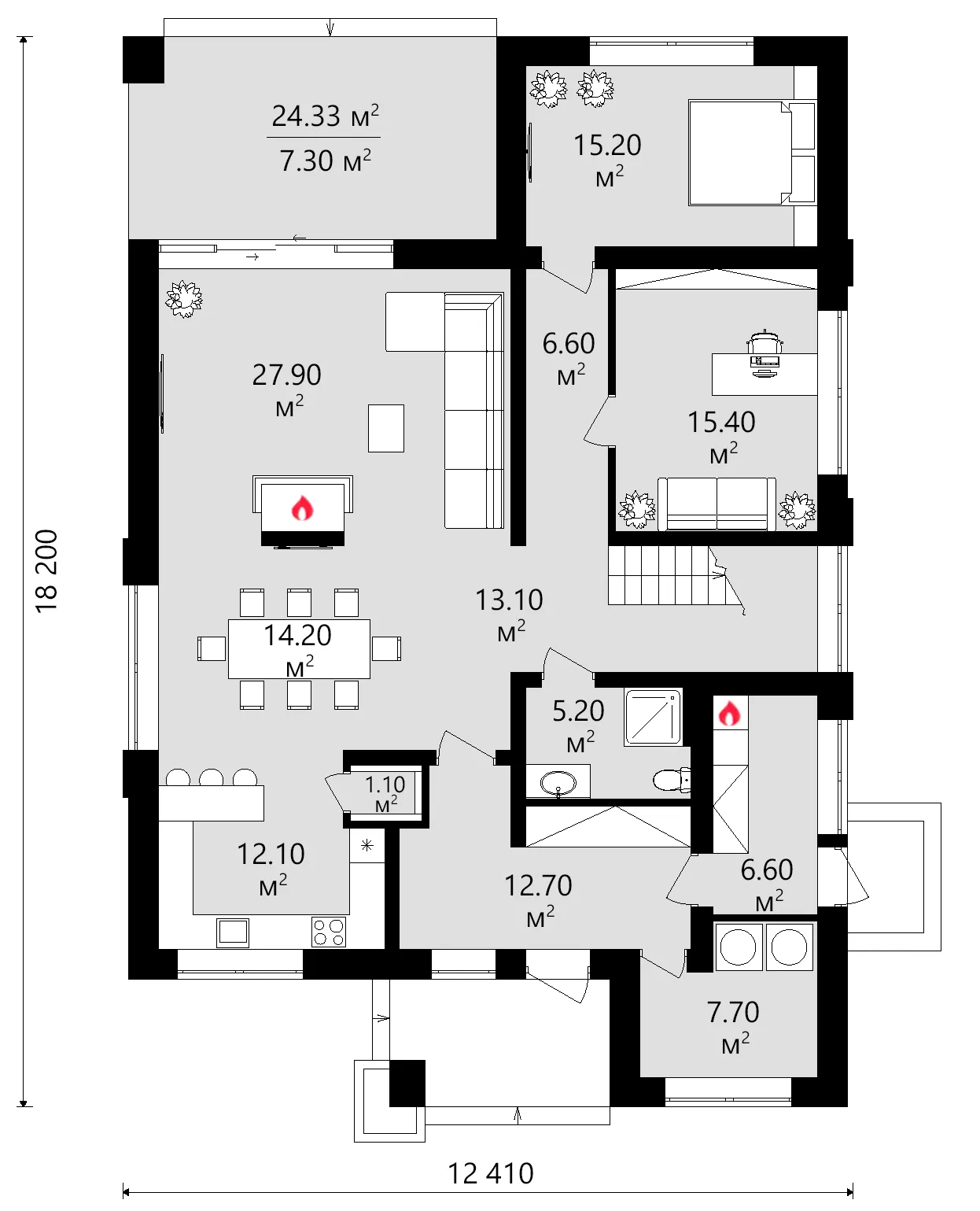

Main Floor
Main Floor 7 – 2-Story House Plan 2751 ft², 4 Beds — 29699C

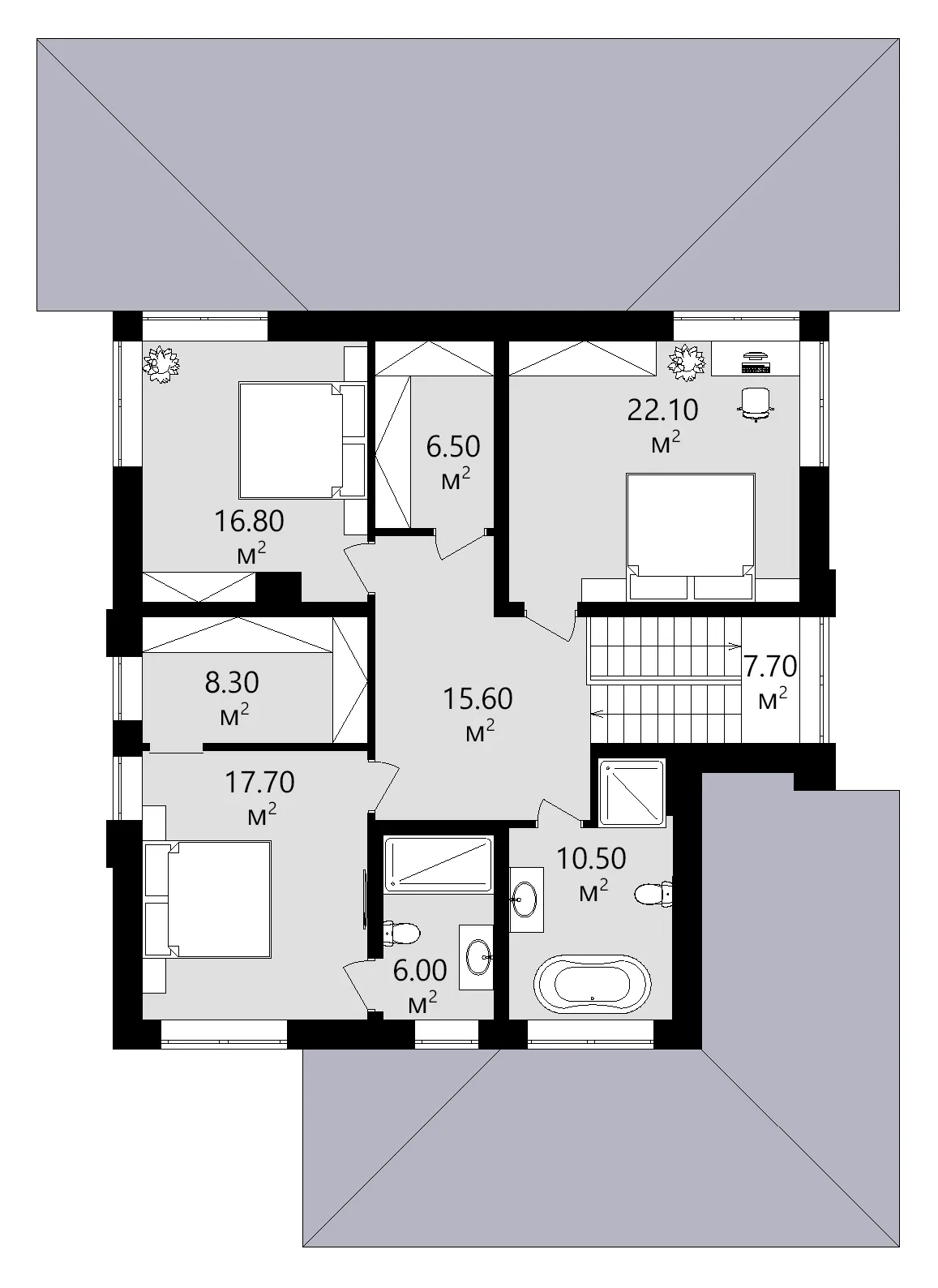

Second Floor
Second Floor 11 – 2-Story House Plan 2751 ft², 4 Beds — 29699C
Full Specs & Features
Area
Total Heated: 2751.26 ft²
Dimensions
Depth: 55'5" ft
Width: 37'8" ft
Height: 28'2" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Fireplace in Master Suite
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

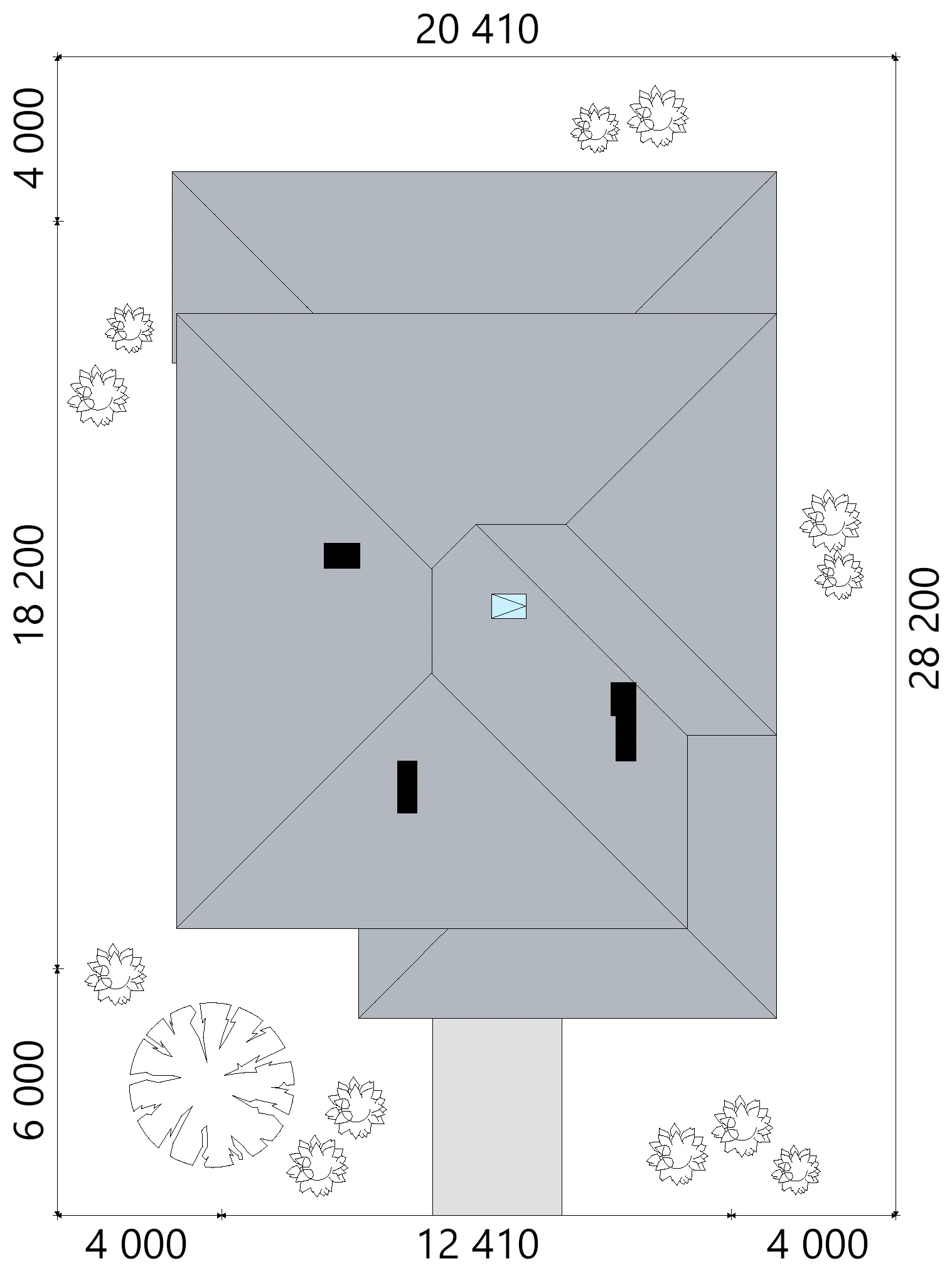

Roof
Roof Area: 3707.74 ft²
Hip & Valley
Roof Pitch: 3/12 (14°)

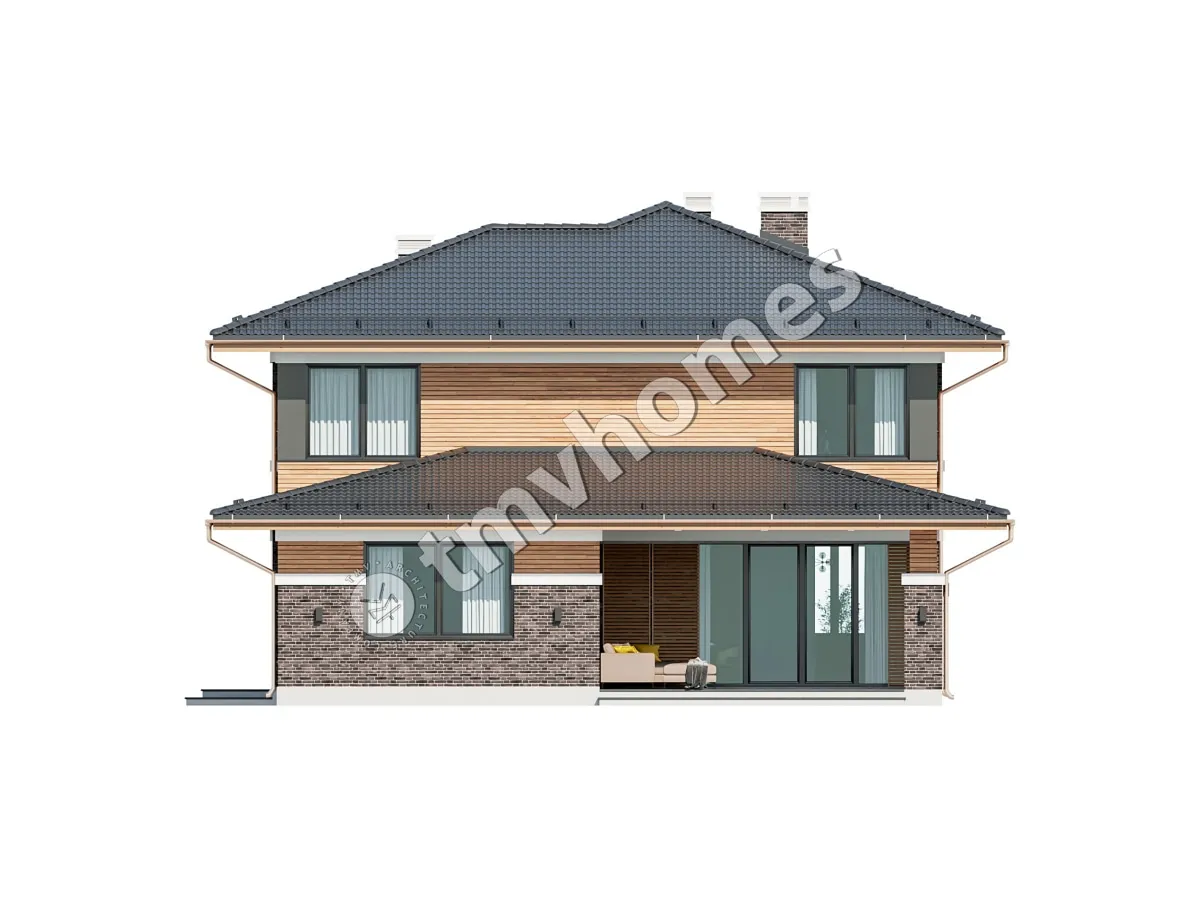

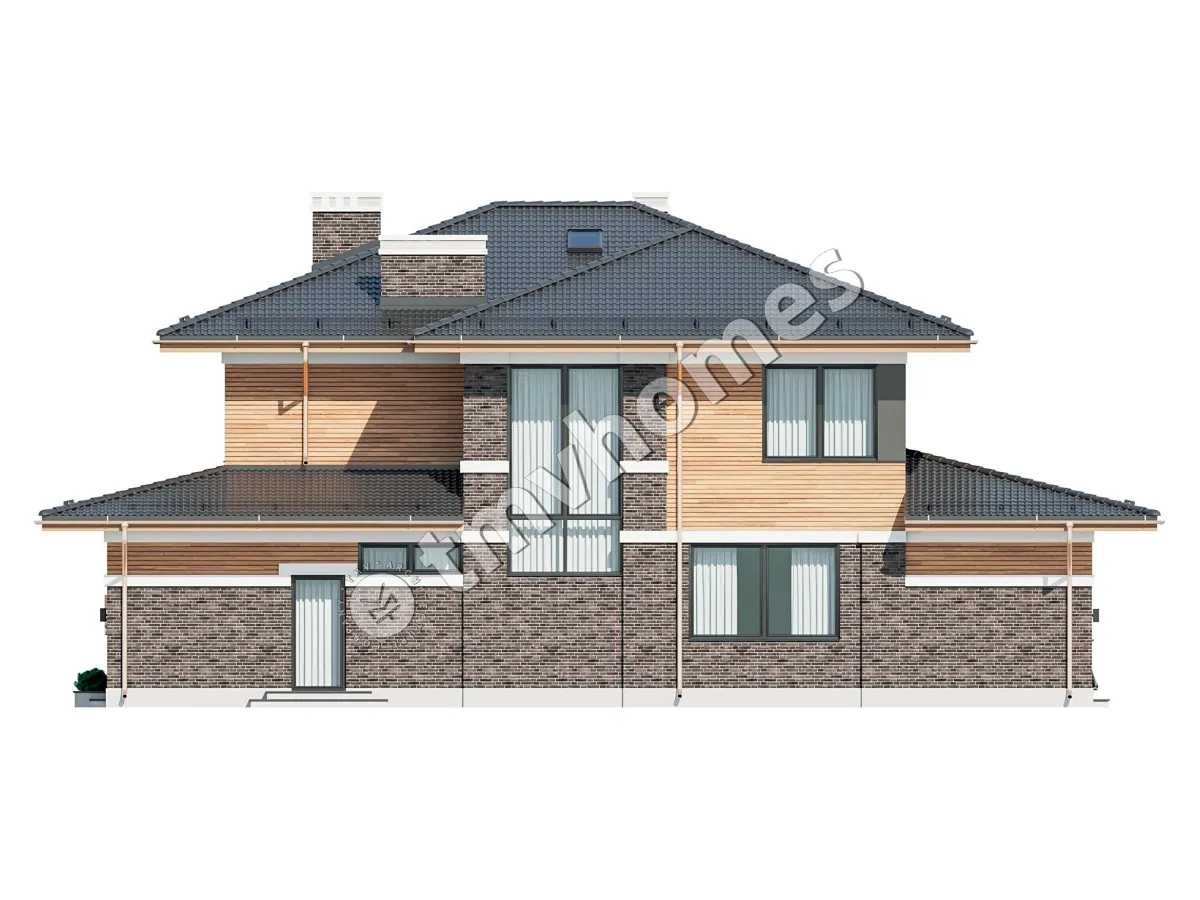

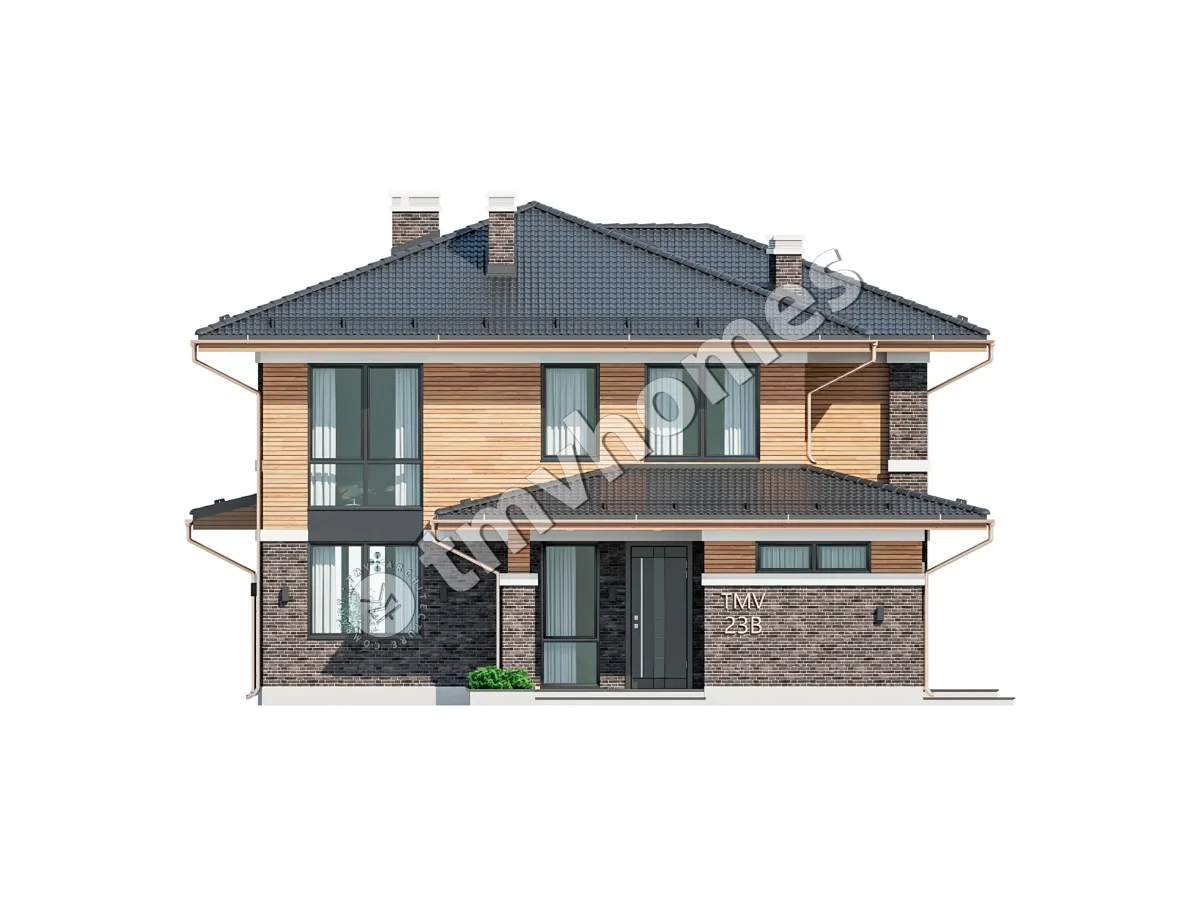

Rising three storeys beneath a low hip & valley roof, plan 29699C is a 4-bedroom 3-storey house plan that draws Contemporary, European and Modern influences together across 2751 ft². Brick and wood share the exterior walls, and the gentle 3/12 (14°) roof pitch keeps the profile calm and horizontal. This single-family home design is 37'8" wide and 55'5" deep, with a height of 28'2", and it holds four bedrooms and three full bathrooms. Large windows, floor-to-ceiling glass and a corner window give the elevations a sharp, modern character.

The bedrooms are grouped together rather than spread apart, so parents and children stay within easy reach of one another. The master suite is the highlight: it has a fireplace of its own for quiet evenings, plus a walk-in closet that keeps wardrobes neatly organized. With three full bathrooms, no one waits long at the start of the day. Practical rooms are given real thought as well. Laundry is on the main floor, where it is simple to reach between other tasks, and a separate utility room gathers equipment and household storage in one place. A home office offers a door to close for video calls, paperwork or study.

From the entry, the open floor plan unfolds into a large family room anchored by a fireplace, connected without dividing walls to a large kitchen. This open concept layout lets someone cooking stay part of what happens in the family room. A breakfast bar provides a casual spot for coffee, homework or a quick lunch, and the walk-in pantry stores groceries and small appliances out of sight, leaving the counters clear. The generous glazing brings plenty of daylight into the shared rooms, and the hearth becomes the natural centre of family time.

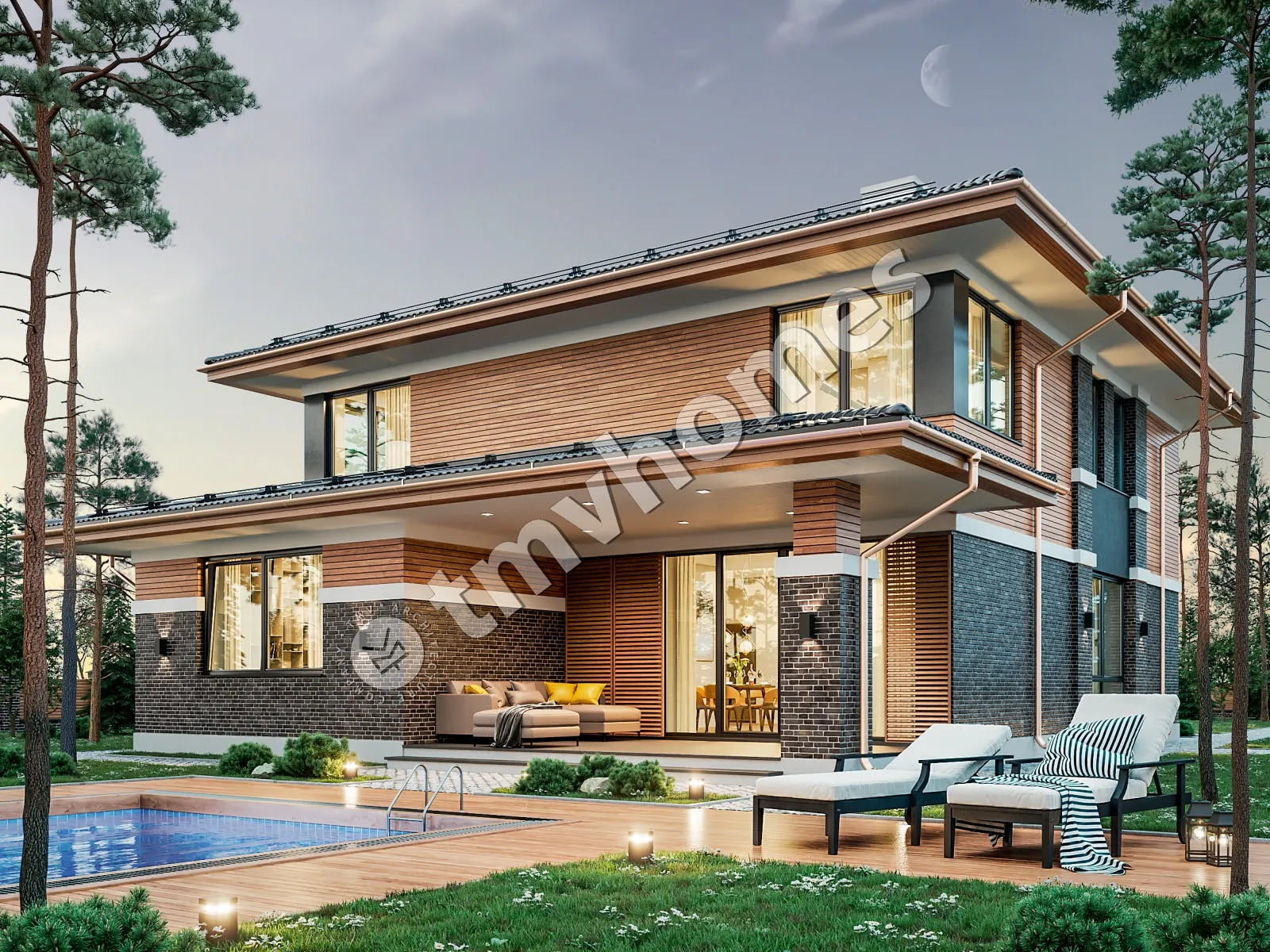

Outside, a covered rear porch extends the living space into the open air, sheltered for summer meals or a slow weekend breakfast. The house is designed on strip footings, and a slab or a concrete block foundation can be requested instead. Its walls are built in aerated concrete, with clay block or sand-lime block available as alternatives. The plan includes neither a garage nor a basement, which keeps every square foot of the design devoted to living. For families browsing house plans Canada wide for a 4 bedroom house plan with fireplace, two hearths and abundant glass, 29699C offers a refined, well-balanced home.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1892
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
