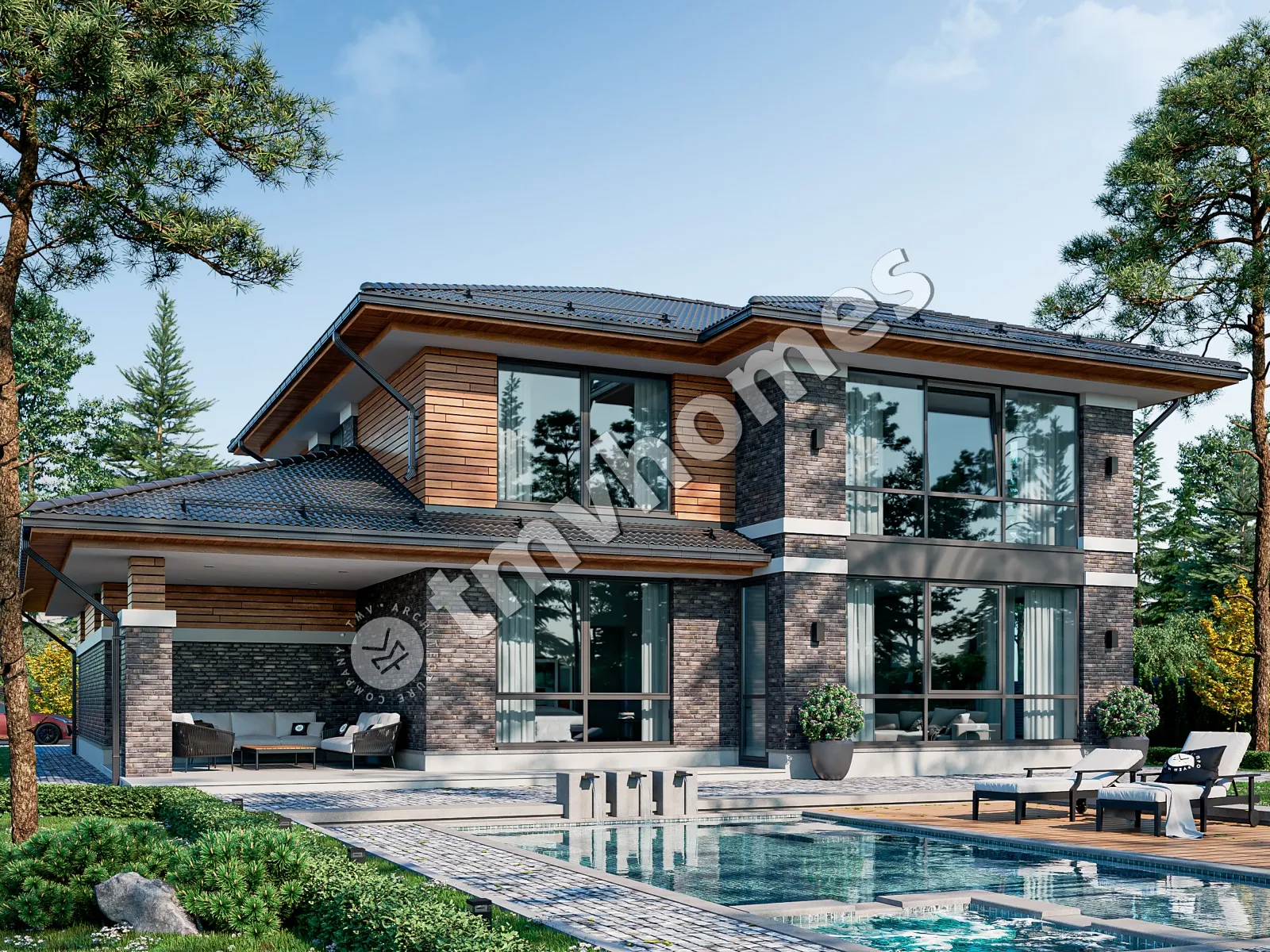

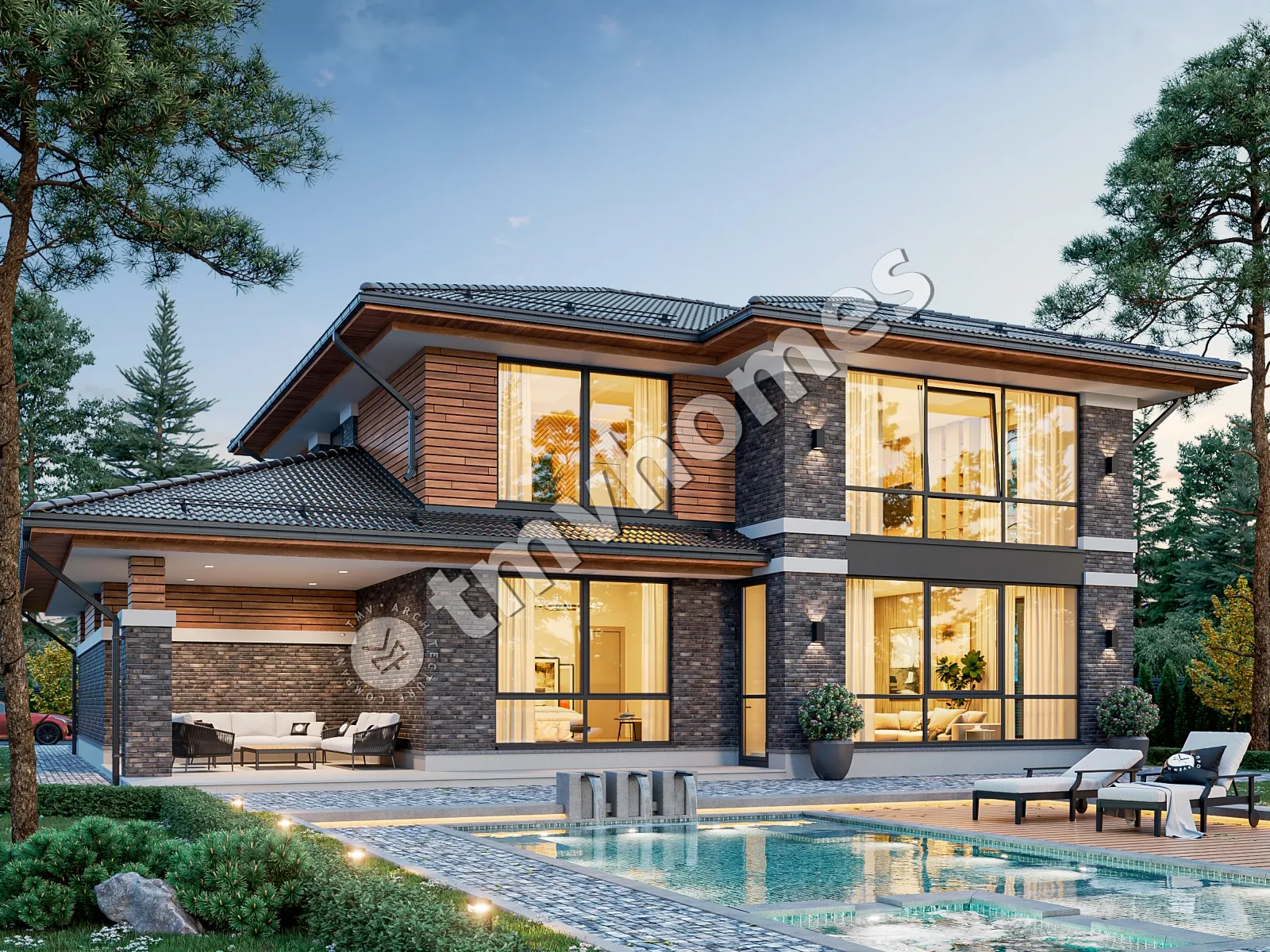

Renderings 2 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C

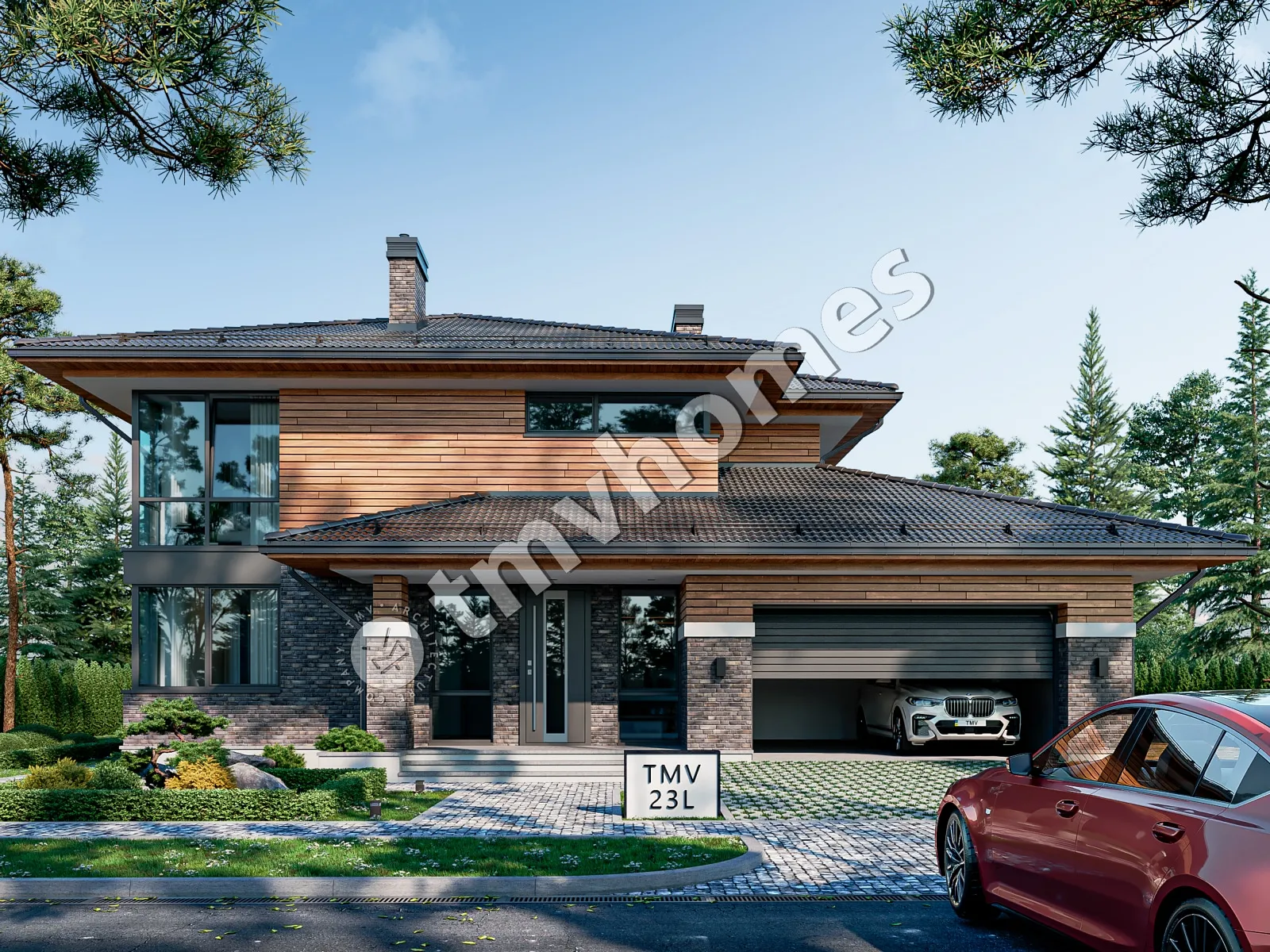

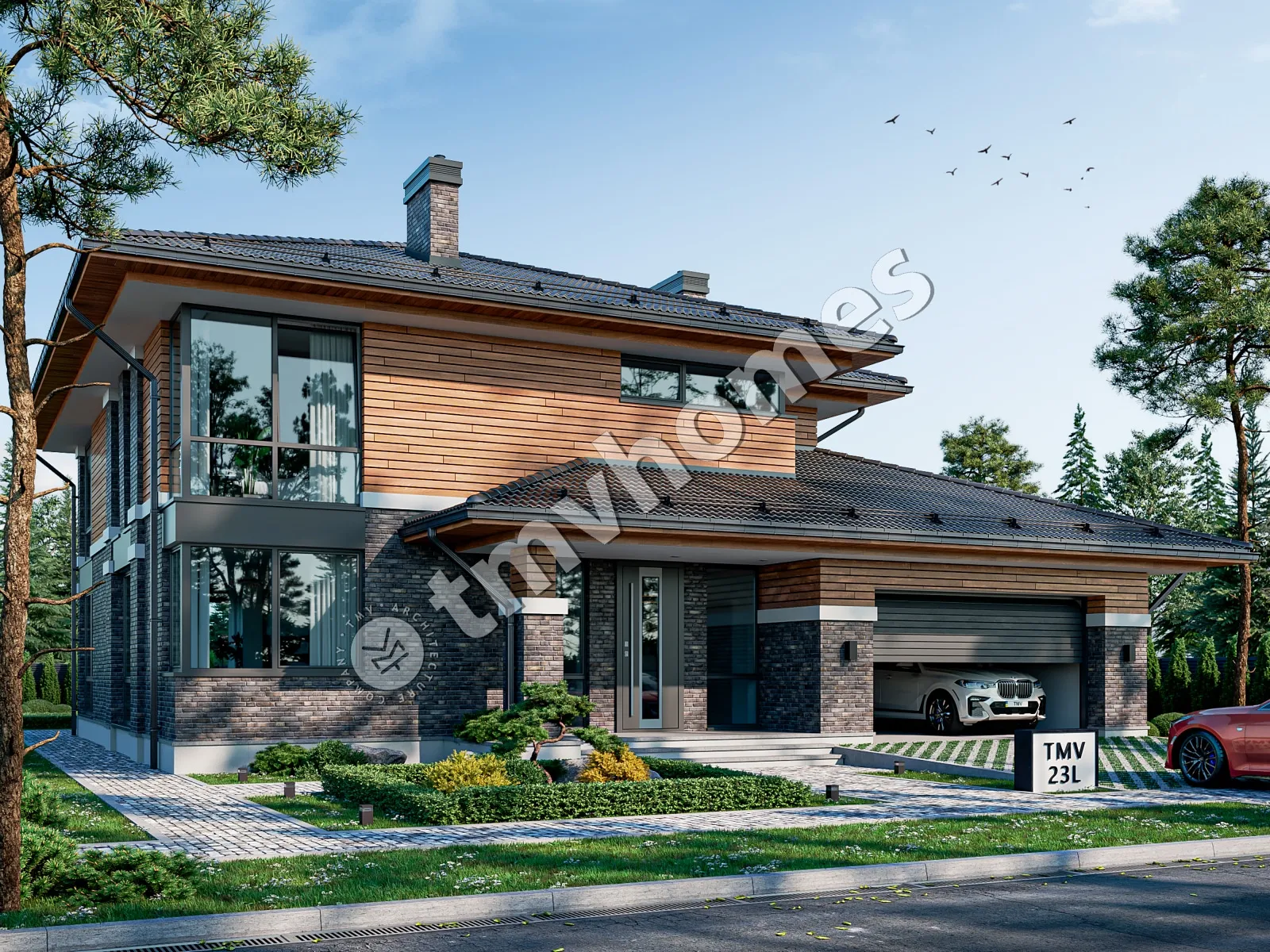

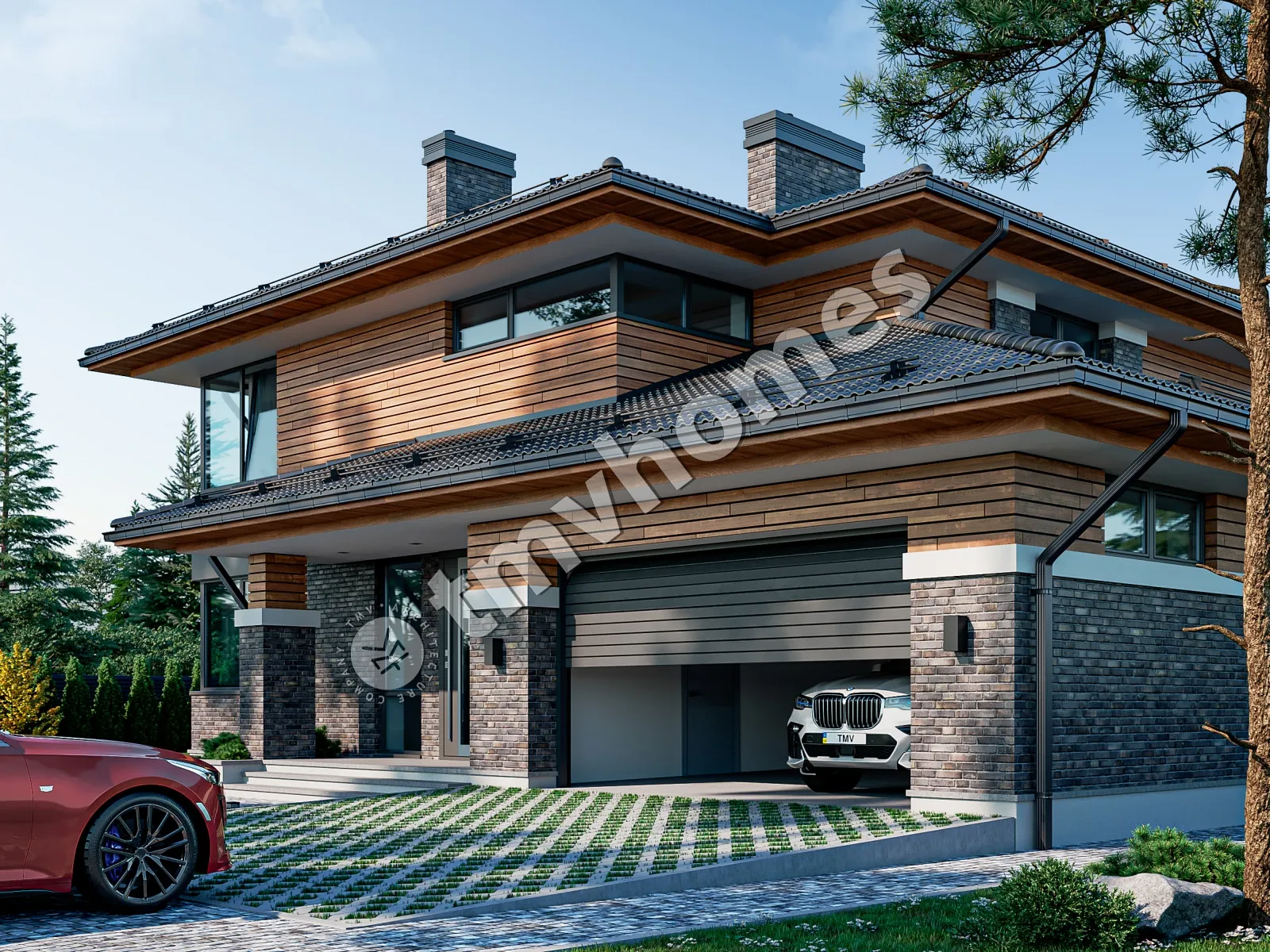

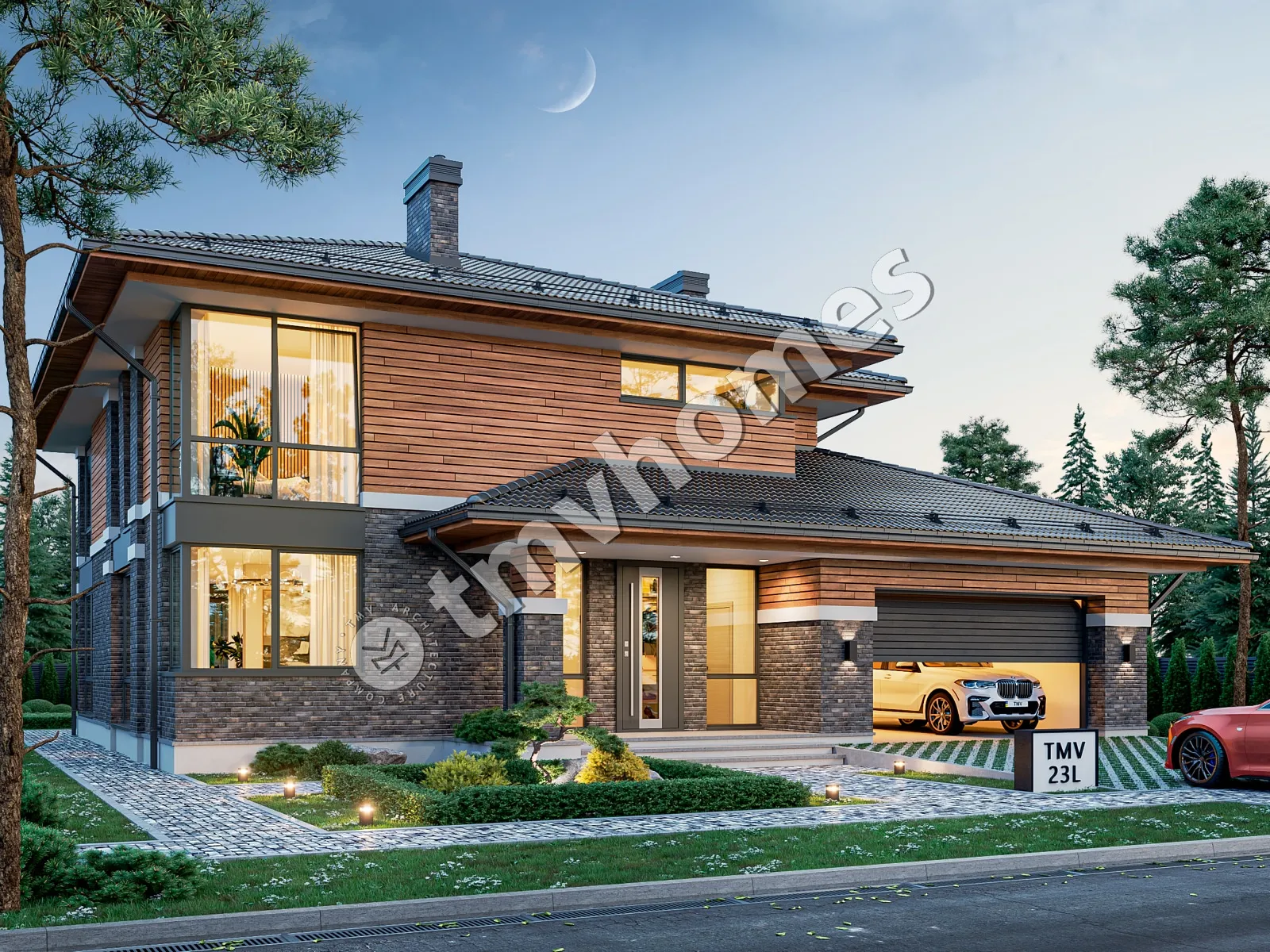

Renderings 3 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C Renderings 4 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C
8
Concept
Construction documents are prepared for the following countries:

2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
18457C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2823
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

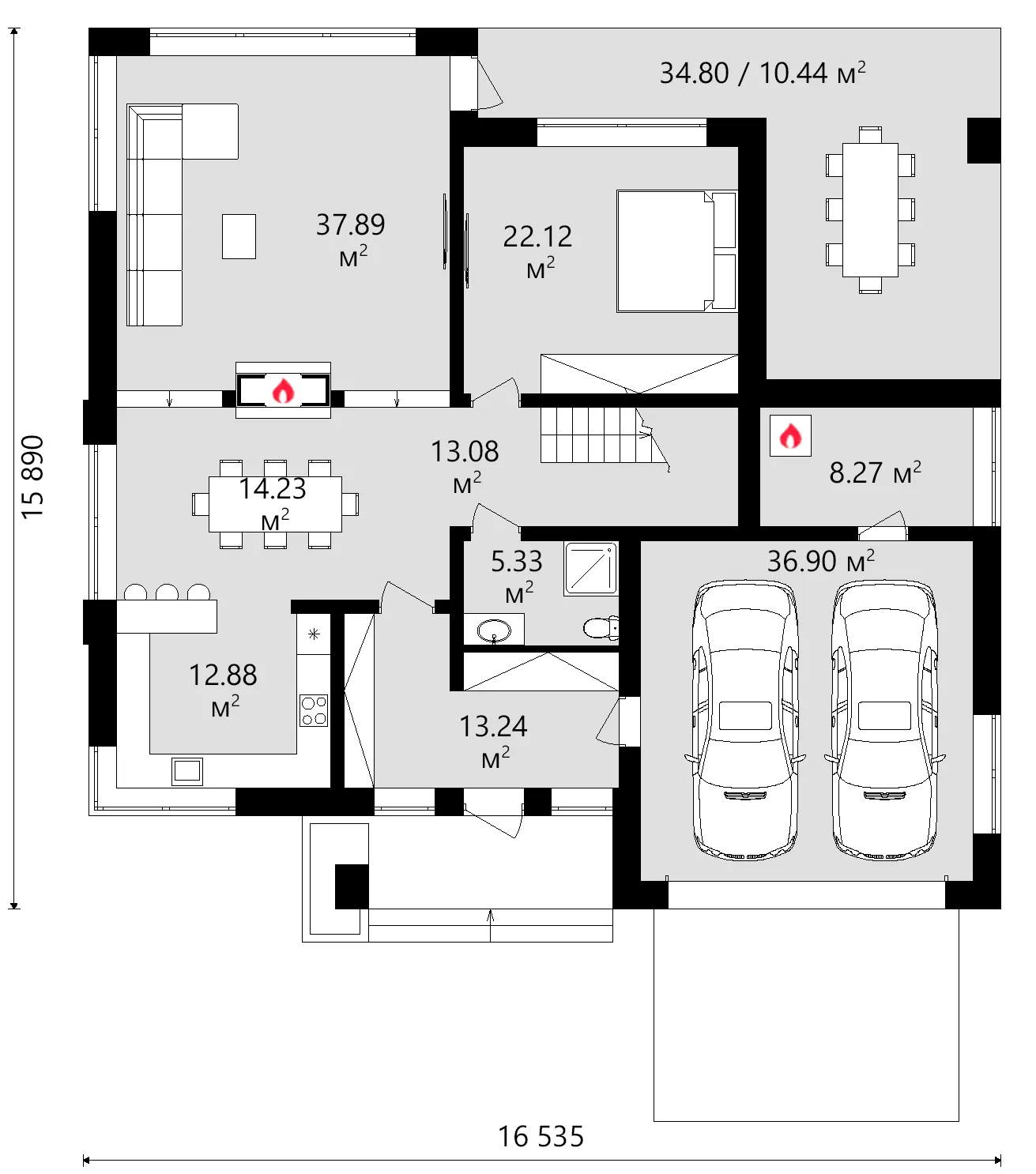

Main Floor
Main Floor 13 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C

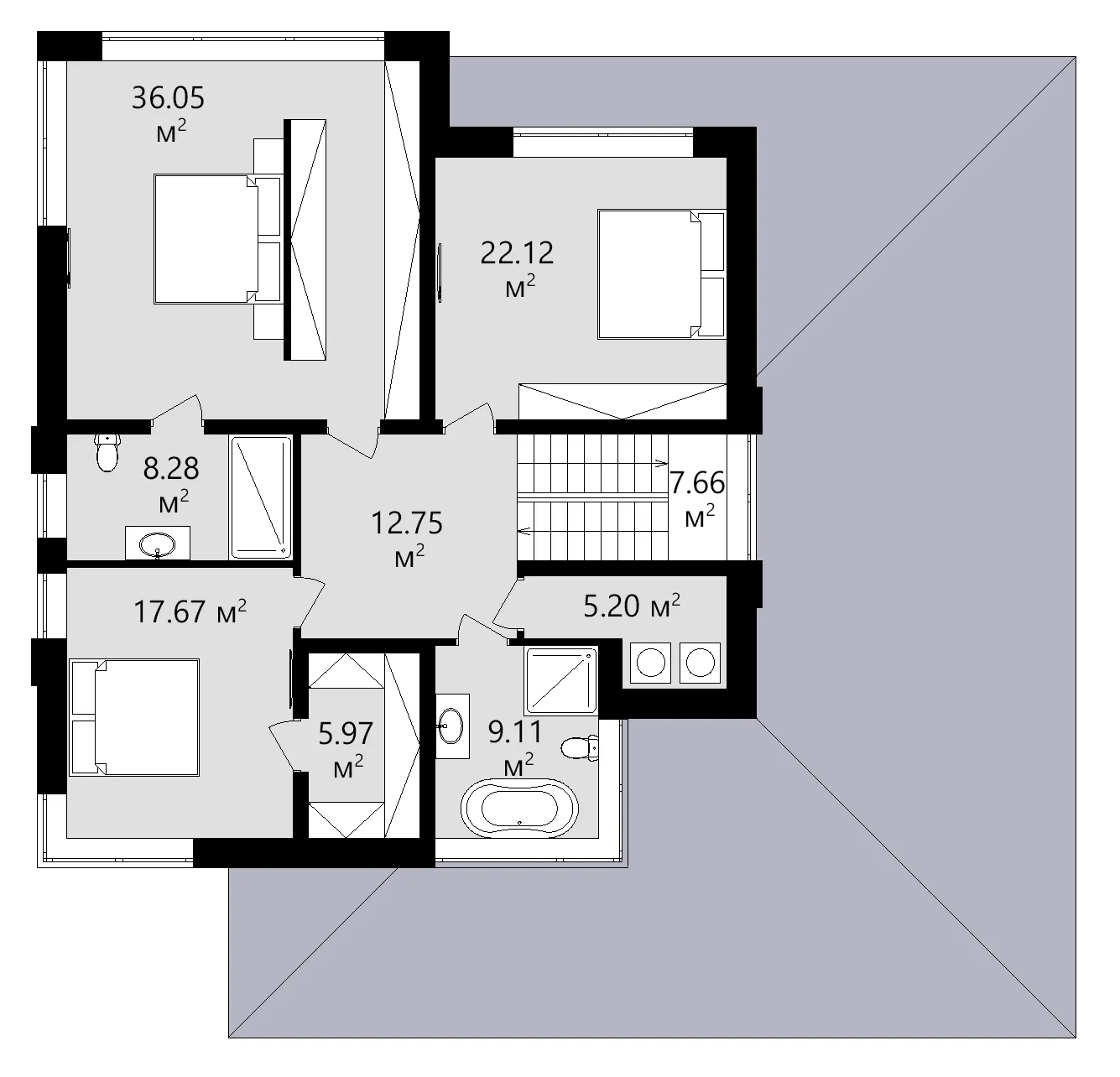

Second Floor
Second Floor 14 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C
Full Specs & Features
Area
Total Unheated: 397.19 ft²
Total Heated: 2823.27 ft²
Dimensions
Depth: 48'4" ft
Width: 50'4" ft
Height: 27'8" ft
Garage
Area: 397 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 4165.63 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Rising three storeys beneath a hip and valley roof, design 18457C is a 4-bedroom 3-storey house plan that offers 2,823 Sq Ft of living space with a Contemporary, European and Modern character. The roof is set at a 5/12 (22°) pitch, and the elevations combine wood siding with stone/brick veneer for a layered, tailored look. Floor-to-ceiling windows, a corner window and other large windows open the walls generously, letting daylight reach well into the rooms of this single-family home. Overall, the house is 50'4" wide and 48'4" deep, with a height of 27'8".

The master suite is on the second floor, where it comes with a walk-in closet, and the bedrooms are clustered together rather than scattered across the storeys. Four bedrooms share three full bathrooms, a comfortable ratio that keeps the morning routine moving for parents and children alike. Laundry is also placed on the second floor, so hampers never travel far from the closets they serve. A dedicated utility room holds the household systems on its own, away from the rooms where the family actually lives.

Beyond the entry, a closed floor plan gives each space defined walls and a clear role, which suits households that prefer quiet corners to one open hall. The large family room is among the most generous rooms in the home, and its fireplace makes it the obvious place to settle in once the evenings grow long. The large kitchen offers two ways to eat: a breakfast bar for coffee on the run, and a breakfast nook beside a corner window for unhurried weekend breakfasts. Anyone looking for a home design with a fireplace and a roomy kitchen will find both here, each in its own well-proportioned room.

Structurally, the house rests on strip footings, with a slab or a block foundation available on request; the plan does not include a basement. Its exterior walls are built from aerated concrete, and ceramic hollow block or sand-lime block can be chosen instead. A front-entry 2-car garage keeps vehicles and seasonal gear close at hand. Covered porches at the front and the rear give the family two sheltered outdoor spots, one for greeting neighbours and one for dinners outside in summer. Among house plans Canada families compare, this 4 bedroom house plan with a 2-car garage and 2,823 Sq Ft across three storeys stands out for its balance of modern presence and practical order.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2066
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
