Renderings 2 – 2-Story House Plan 3002 ft², 4 Beds — 66123C
Renderings 3 – 2-Story House Plan 3002 ft², 4 Beds — 66123C Renderings 7 – 2-Story House Plan 3002 ft², 4 Beds — 66123C
13
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 3002 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
66123C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
3002
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

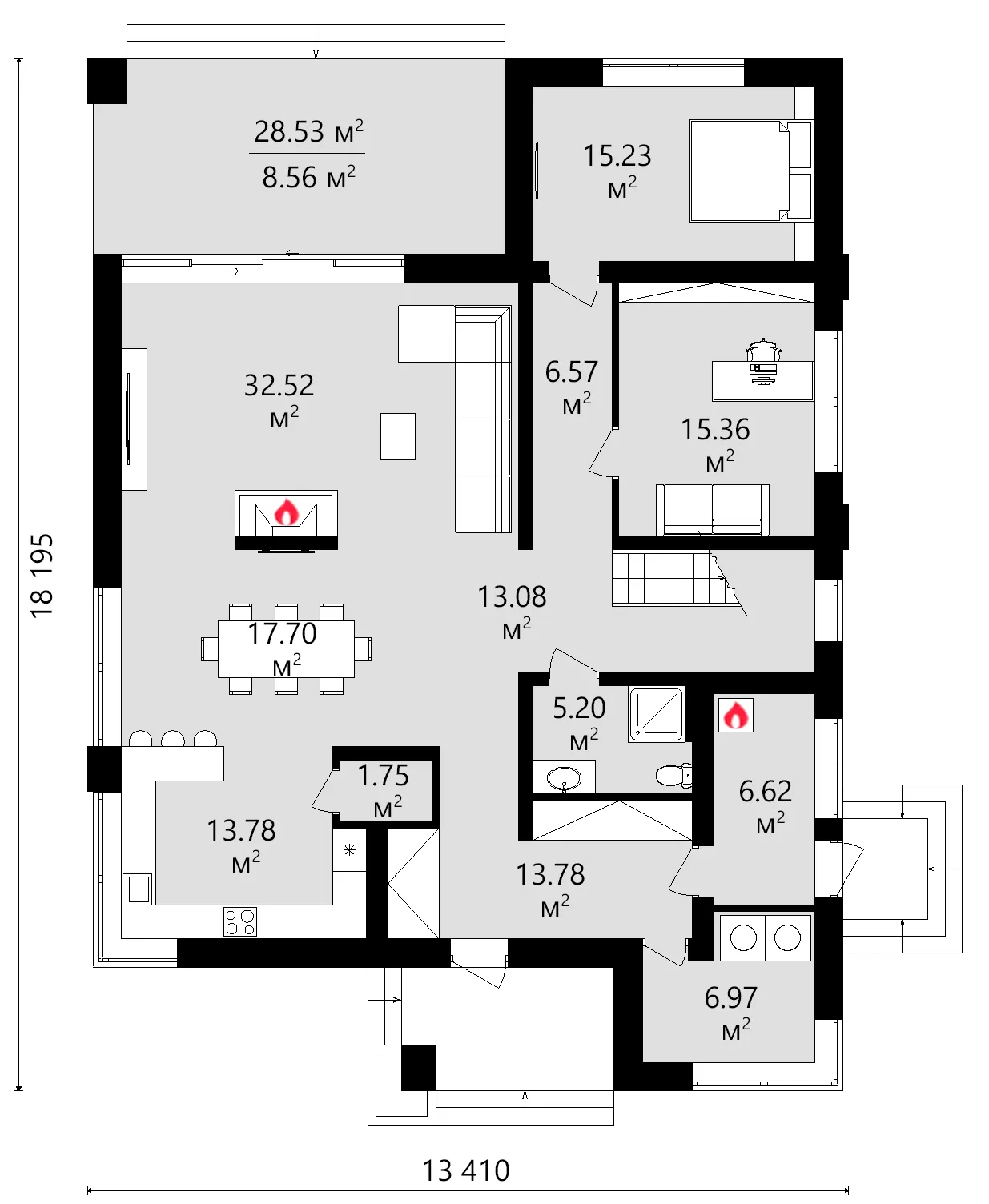

Main Floor
Main Floor 18 – 2-Story House Plan 3002 ft², 4 Beds — 66123C

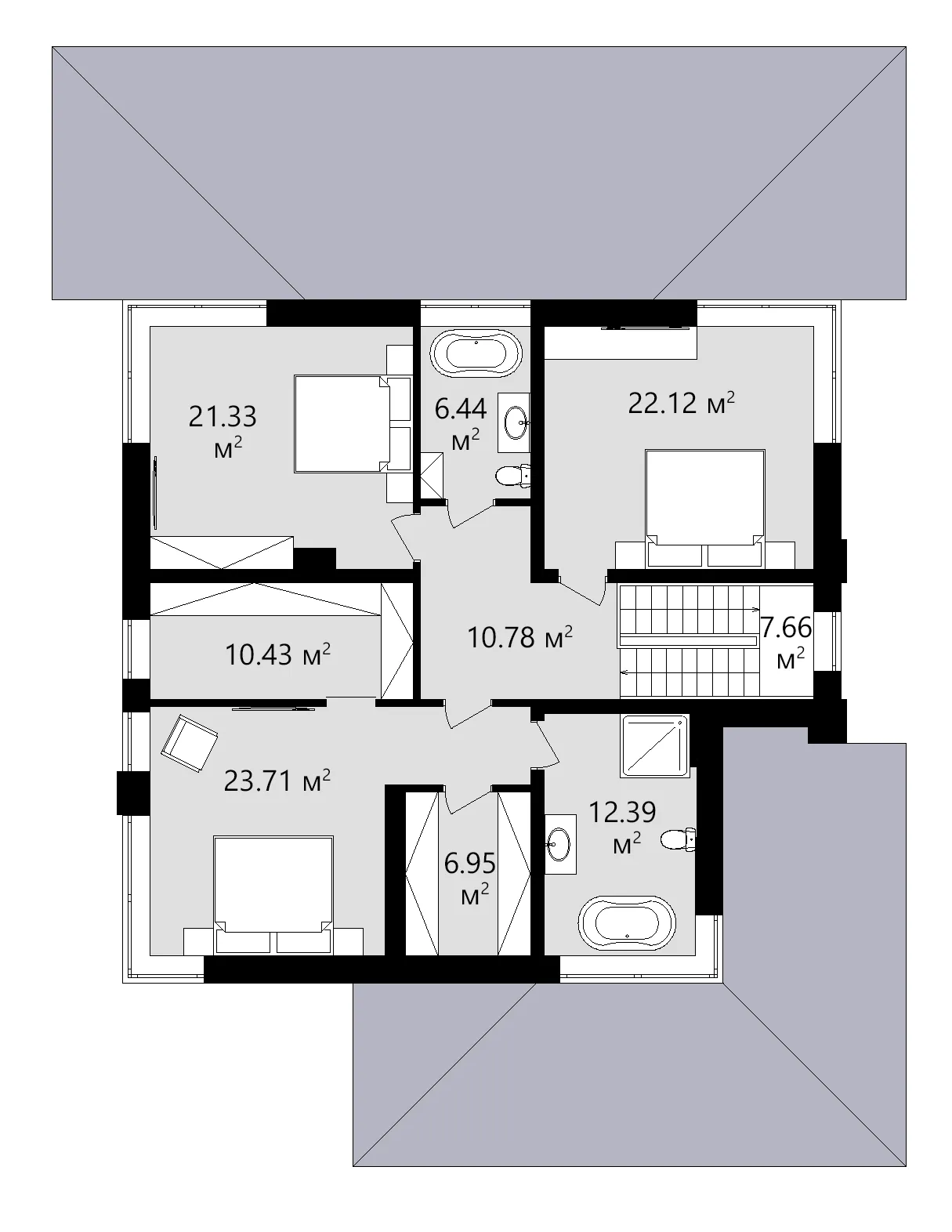

Second Floor
Second Floor 19 – 2-Story House Plan 3002 ft², 4 Beds — 66123C
Full Specs & Features
Area
Total Heated: 3002.38 ft²
Dimensions
Depth: 55'4" ft
Width: 40'9" ft
Height: 29'9" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Panels
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof

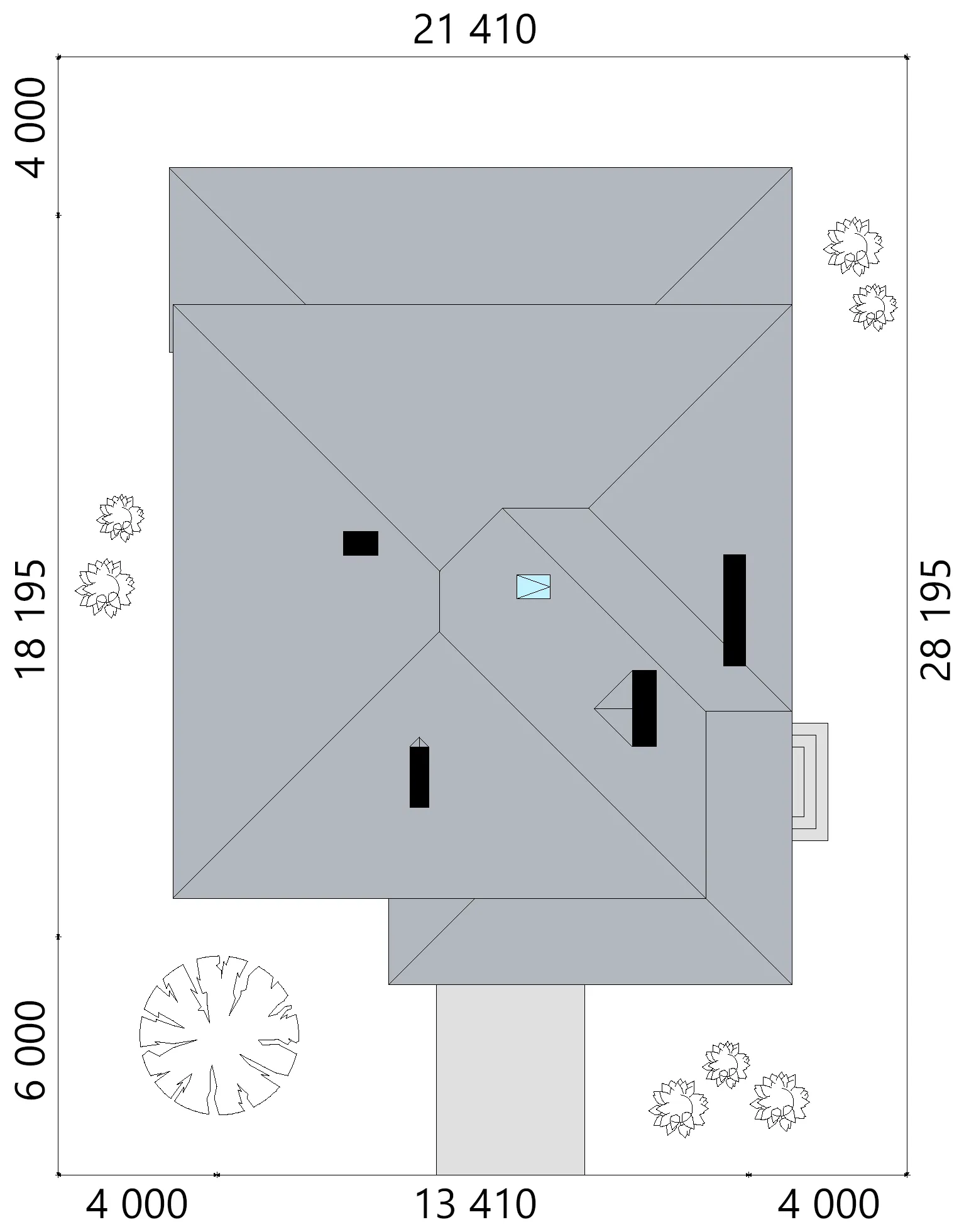

Roof Area: 3939.59 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

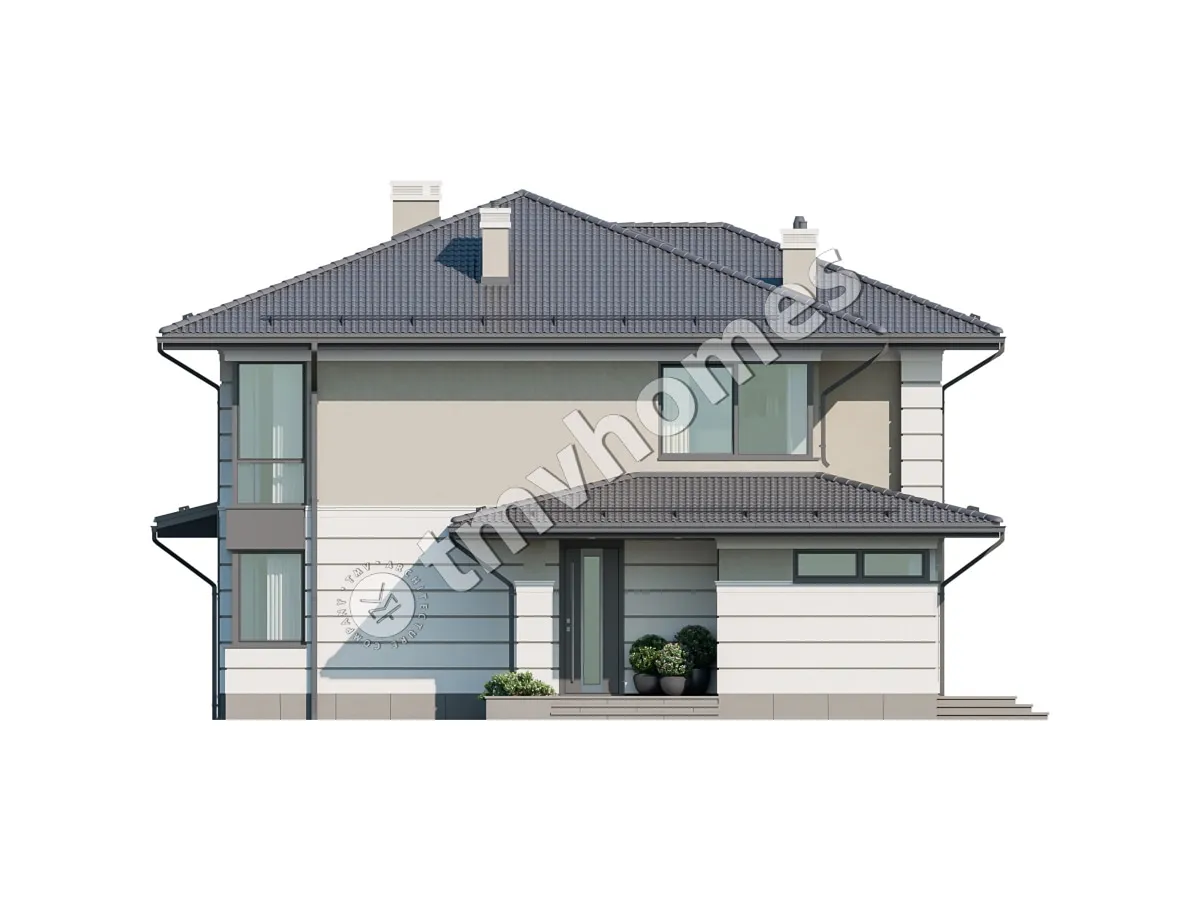

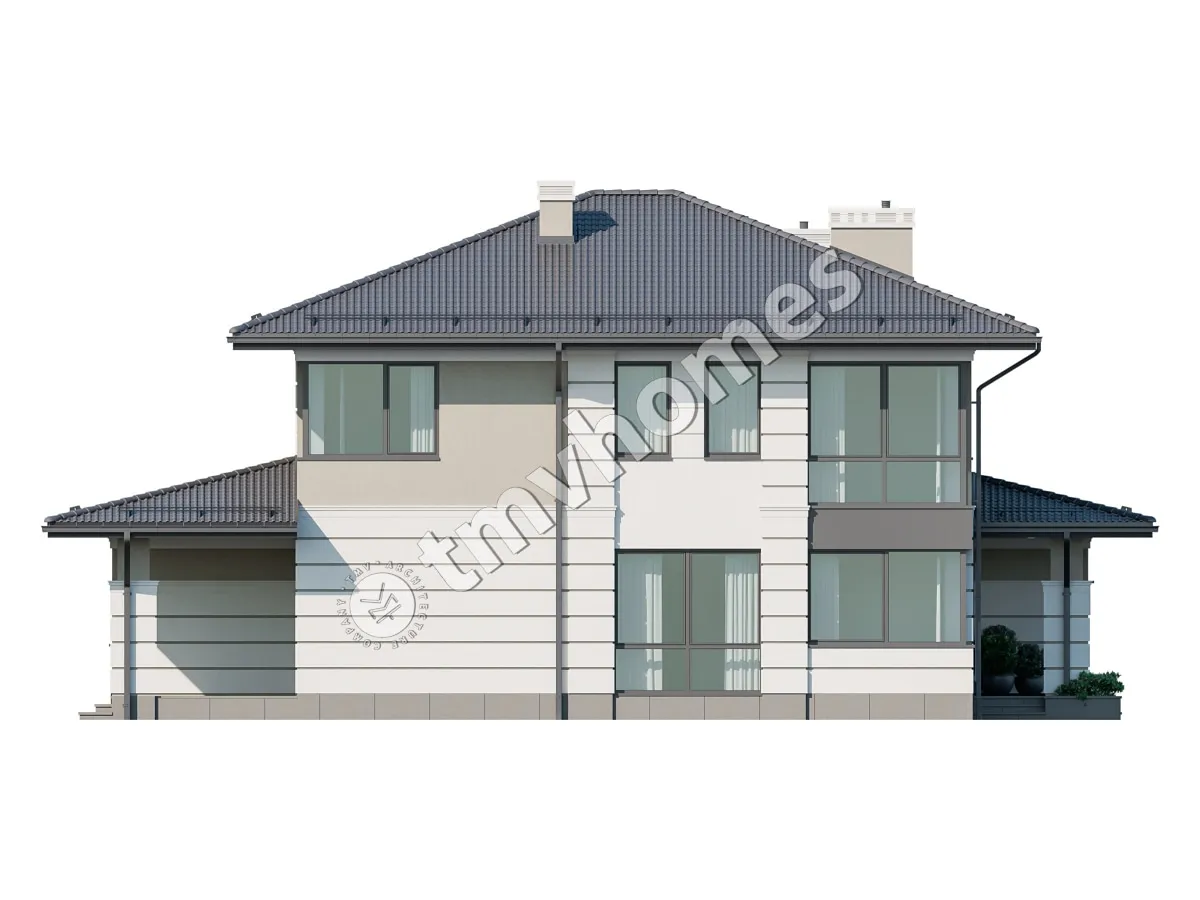

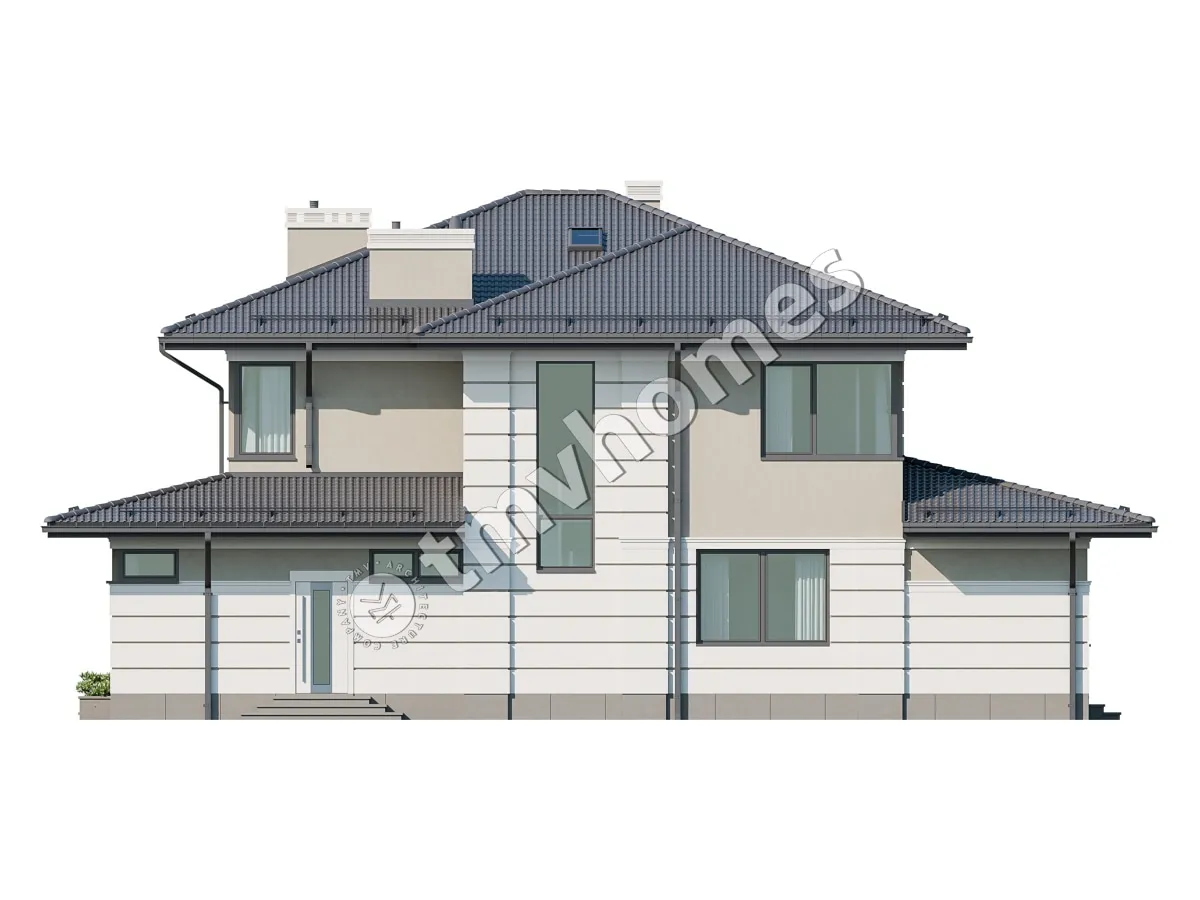

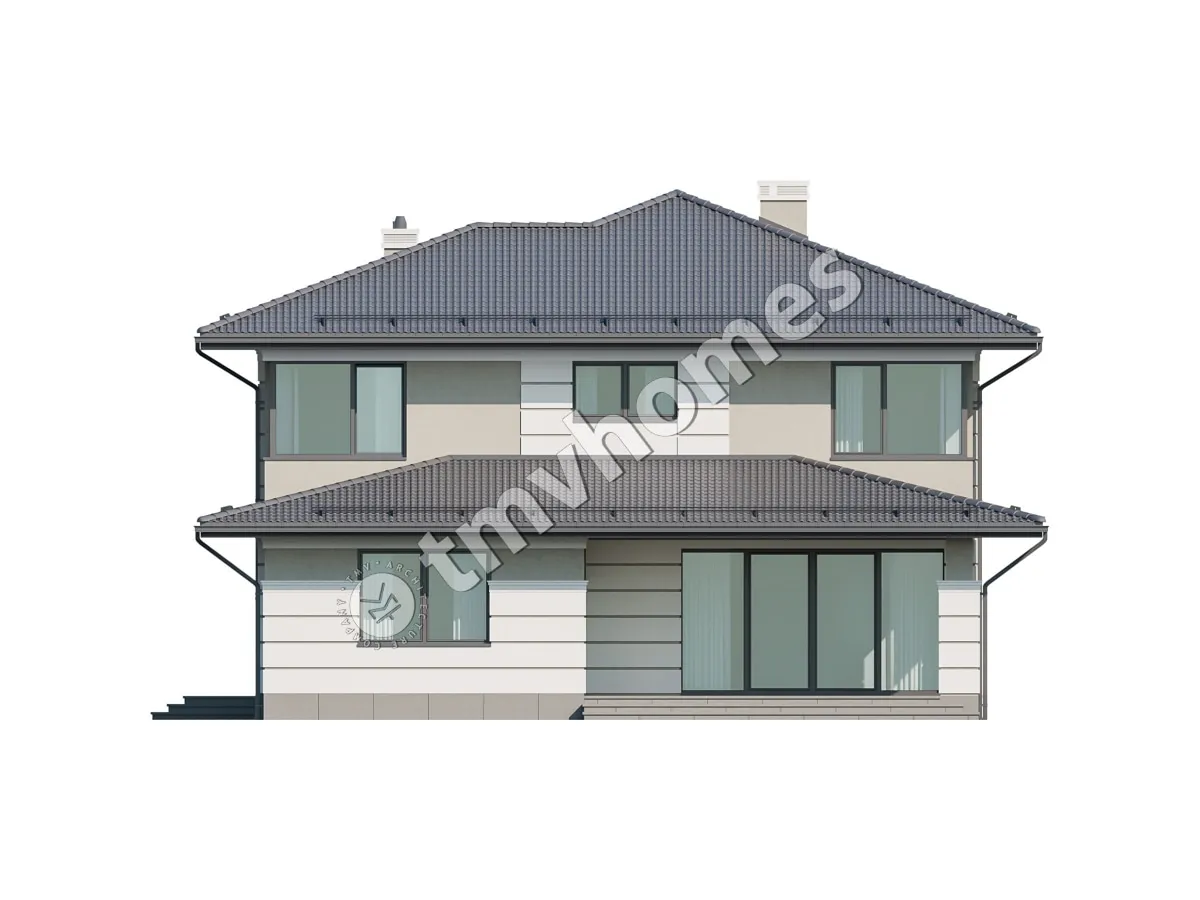

Plan 66123C is a 4-bedroom 3-storey house plan that arranges 3002 ft² under a hip & valley roof with a 5/12 (22°) pitch, drawn in a Contemporary, European and Modern vocabulary. Stucco and panels clad the exterior, and floor-to-ceiling windows, large windows and a corner window give the elevations a clean, generous rhythm. The single-family home is 40'9" wide and 55'4" deep, with a height of 29'9", which makes it a confident choice among house plans Canada families compare for a modern, light-filled residence.

The sleeping quarters come first in this home design's logic. All four bedrooms are clustered, so parents and children stay within easy reach of one another, and the master bedroom is placed on the second floor with its own walk-in closet. Three full bathrooms share the load across the levels, a real advantage when everyone leaves the house at the same hour. Daily chores stay simple: laundry sits on the main floor, a separate utility room holds the mechanical equipment, and a defined entry gives coats and boots a proper place to land before anyone steps inside.

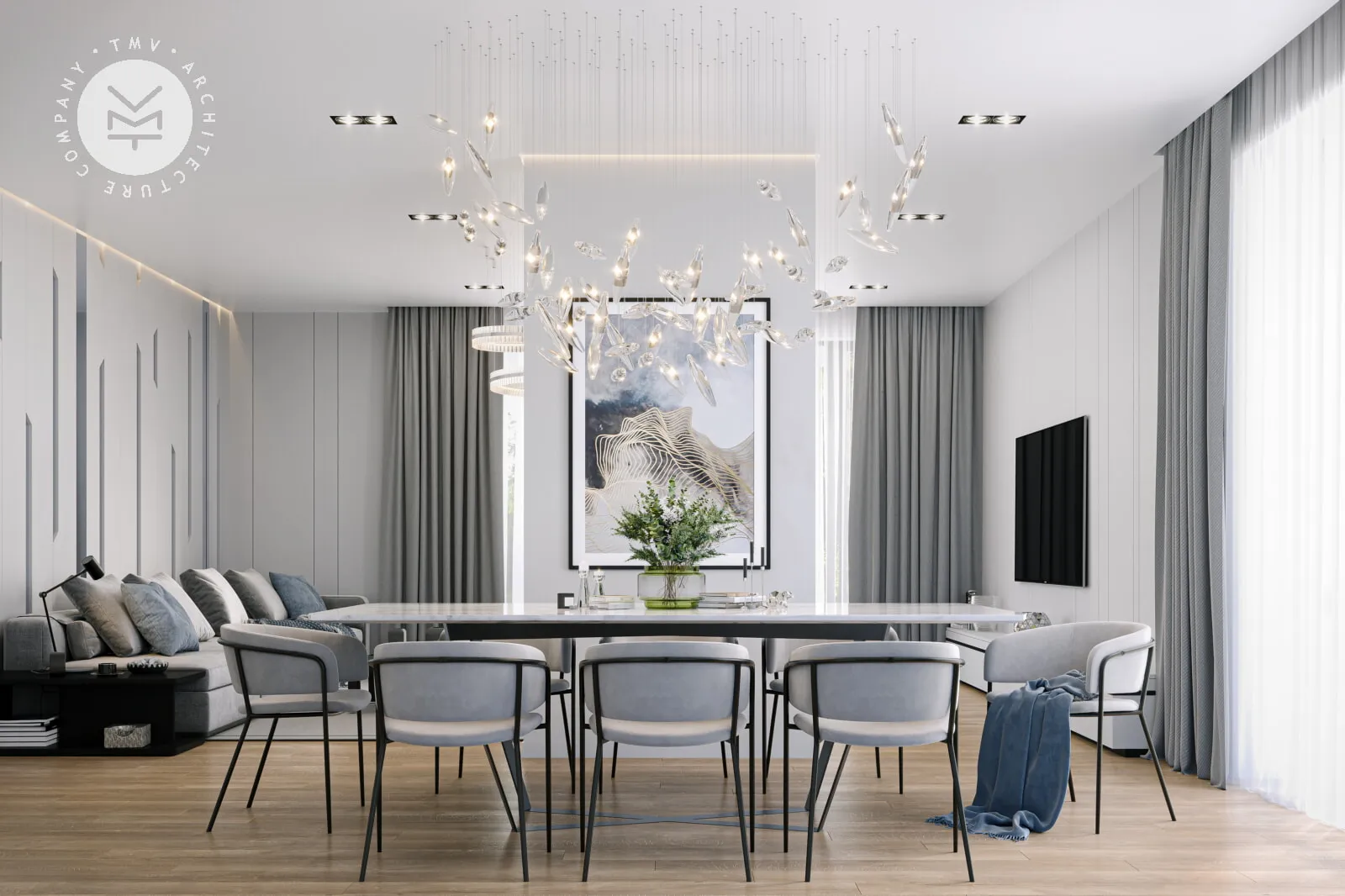

Downstairs, an open concept plan joins the living spaces into one continuous area. The large family room, more than 270 square feet in itself, is anchored by a fireplace that becomes the centre of the house on long January nights. The large kitchen, over 130 square feet, works in two registers: a breakfast bar for quick snacks and conversation across the counter, and a breakfast nook for unhurried meals, brightened by a corner window. A home office rounds out the floor, giving remote work or study a quiet door to close, a feature that makes this a practical house plan with home office for working households.

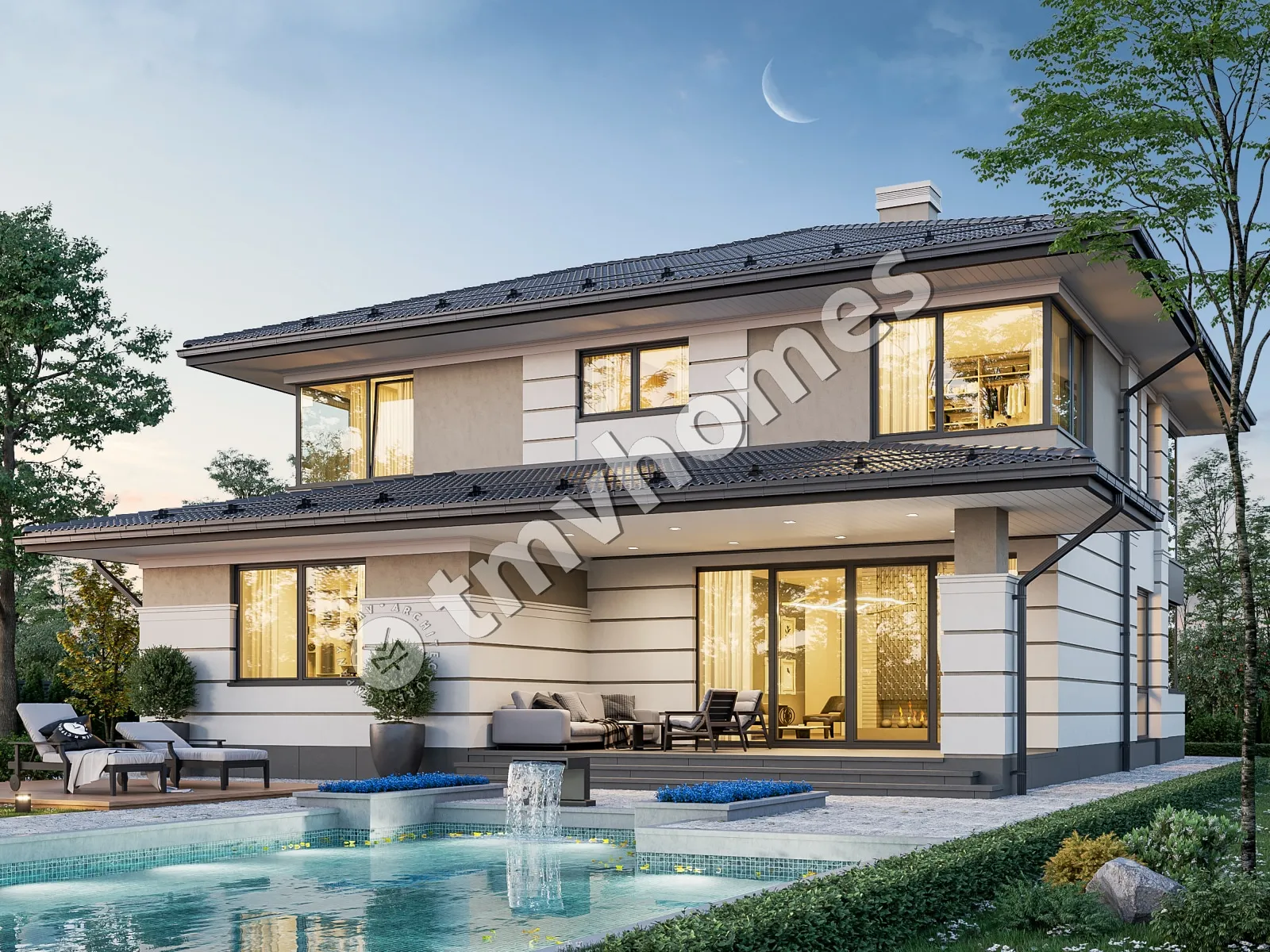

The covered rear porch carries family life outdoors, sheltered for a morning coffee or an evening meal with friends. There is no basement and no garage in this design; the house stands on strip footings, while a slab or a concrete block foundation can be provided on request. The exterior walls are built of aerated concrete, with clay block or calcium silicate block available as alternatives. For anyone seeking a contemporary house plan with three storeys, ample glazing and a warm hearth at its core, 66123C turns 3002 ft² into a well-ordered family home.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2070
