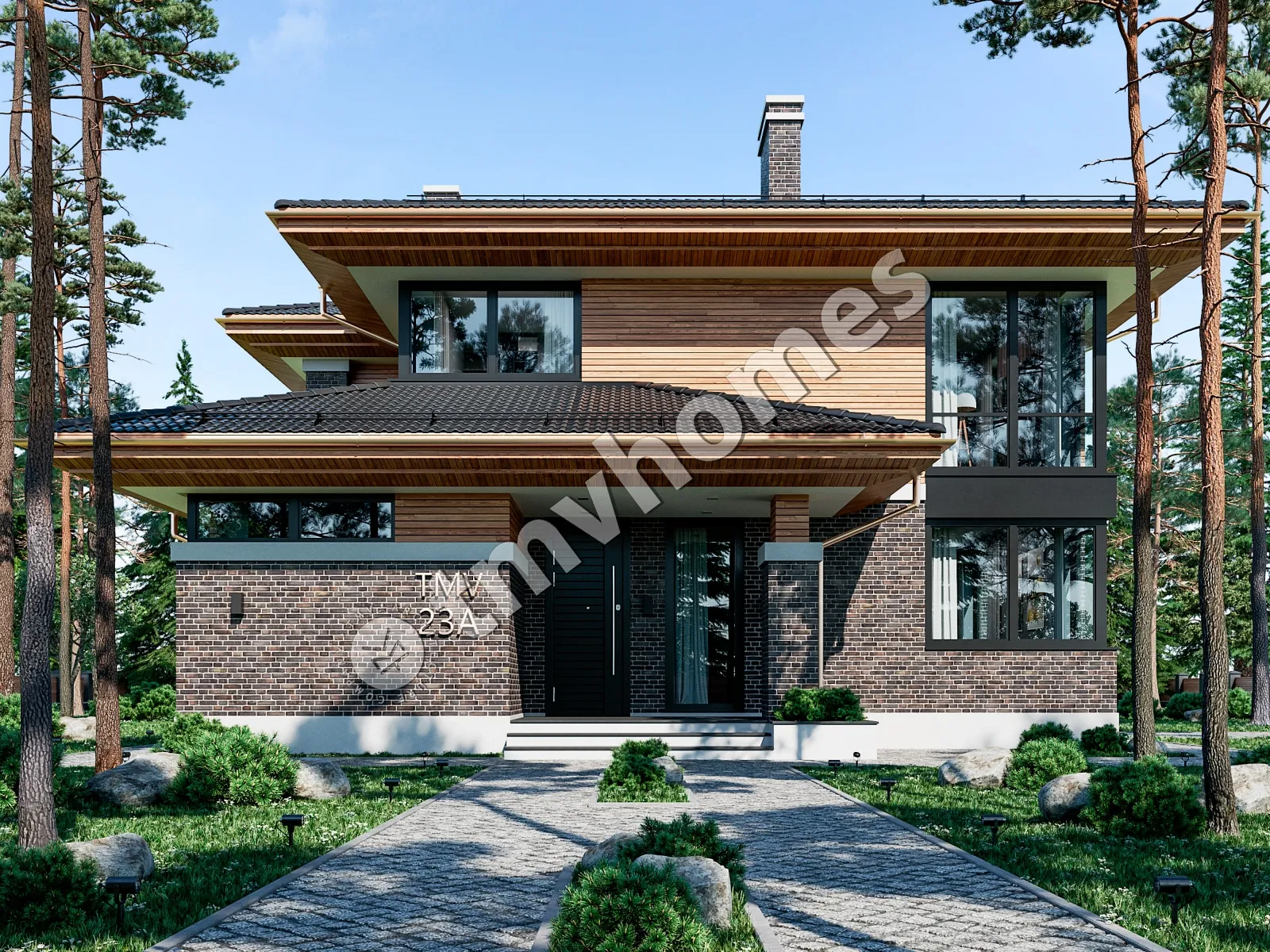

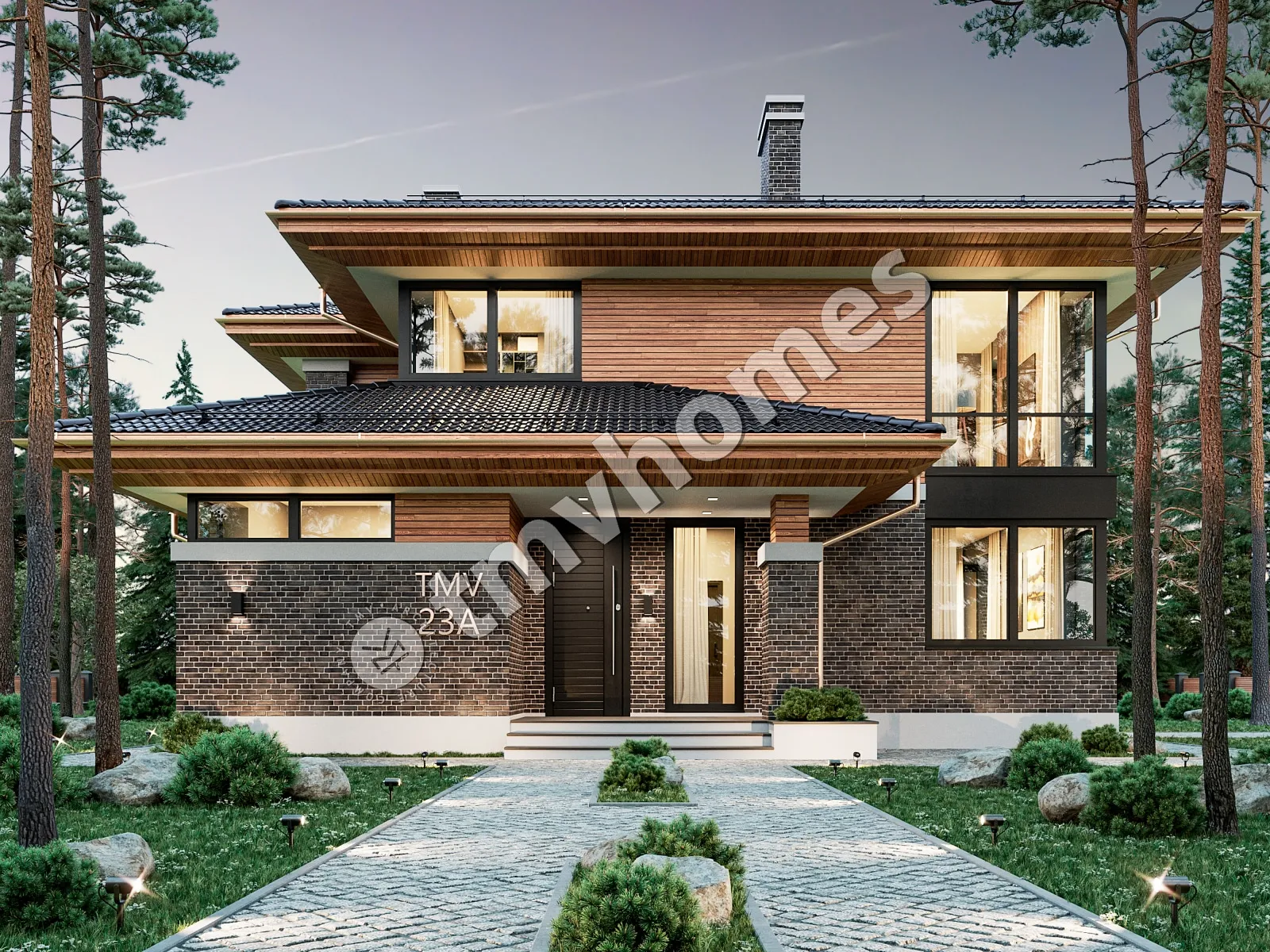

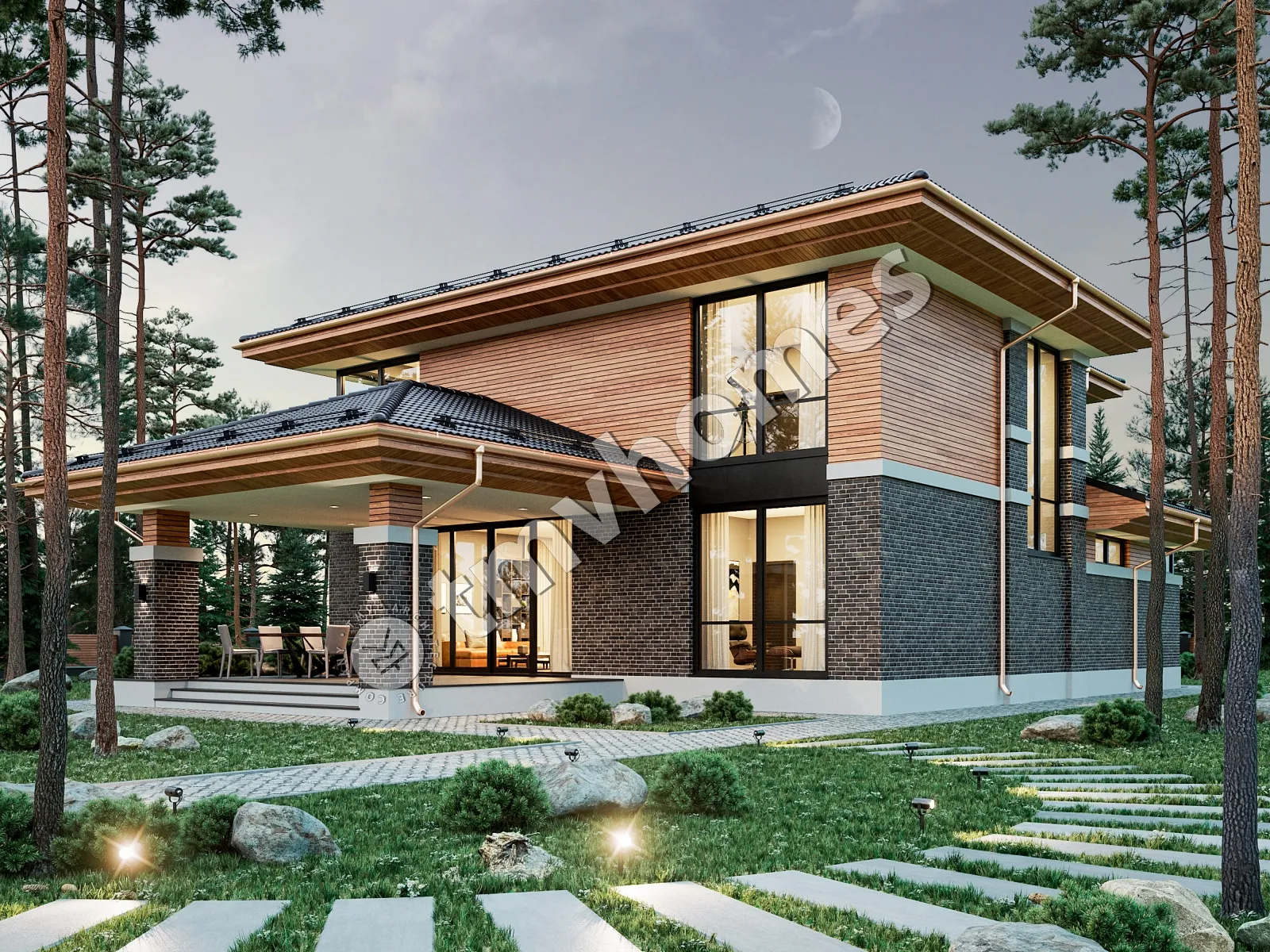

Renderings 2 – 2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 53150C

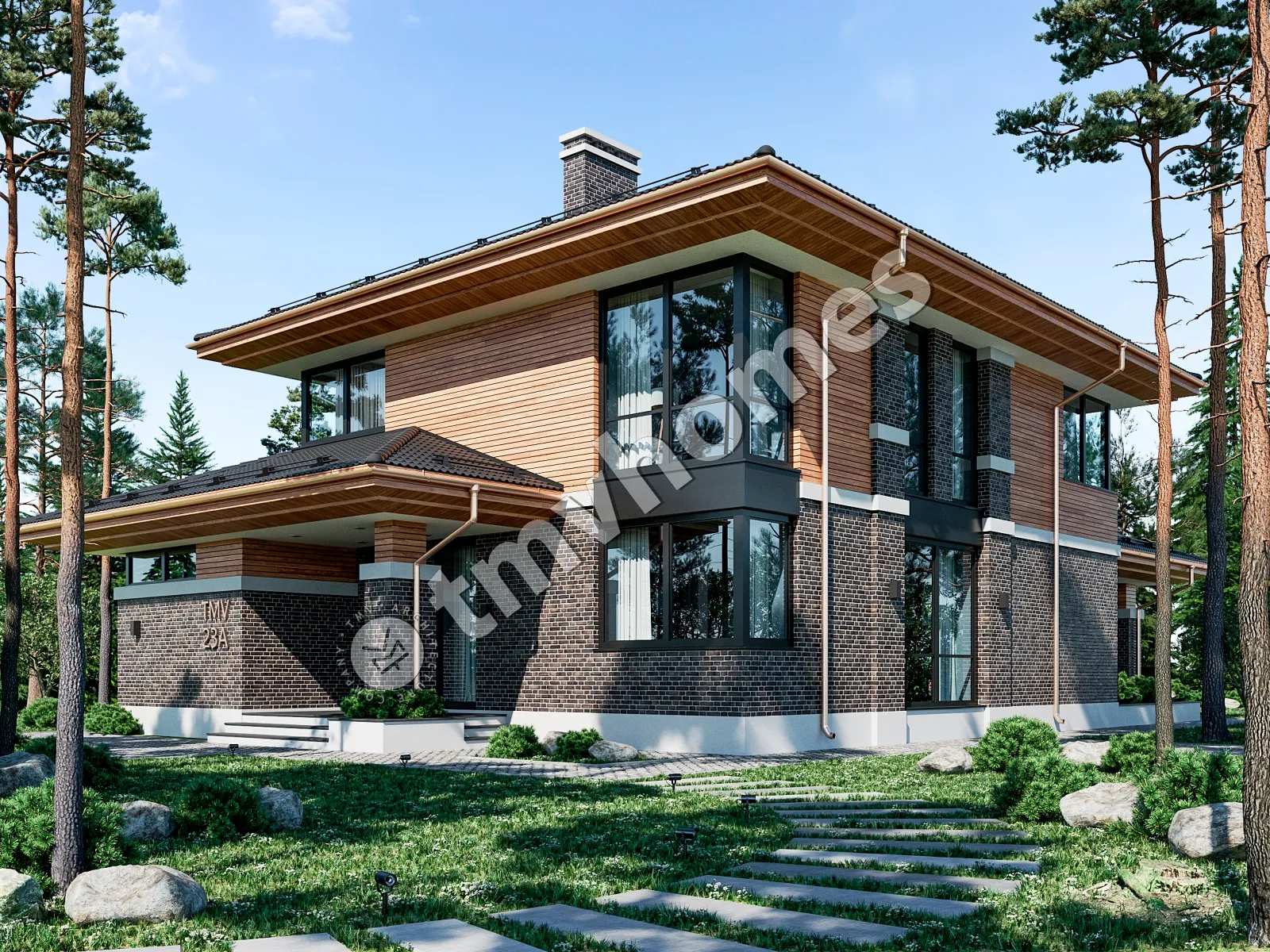

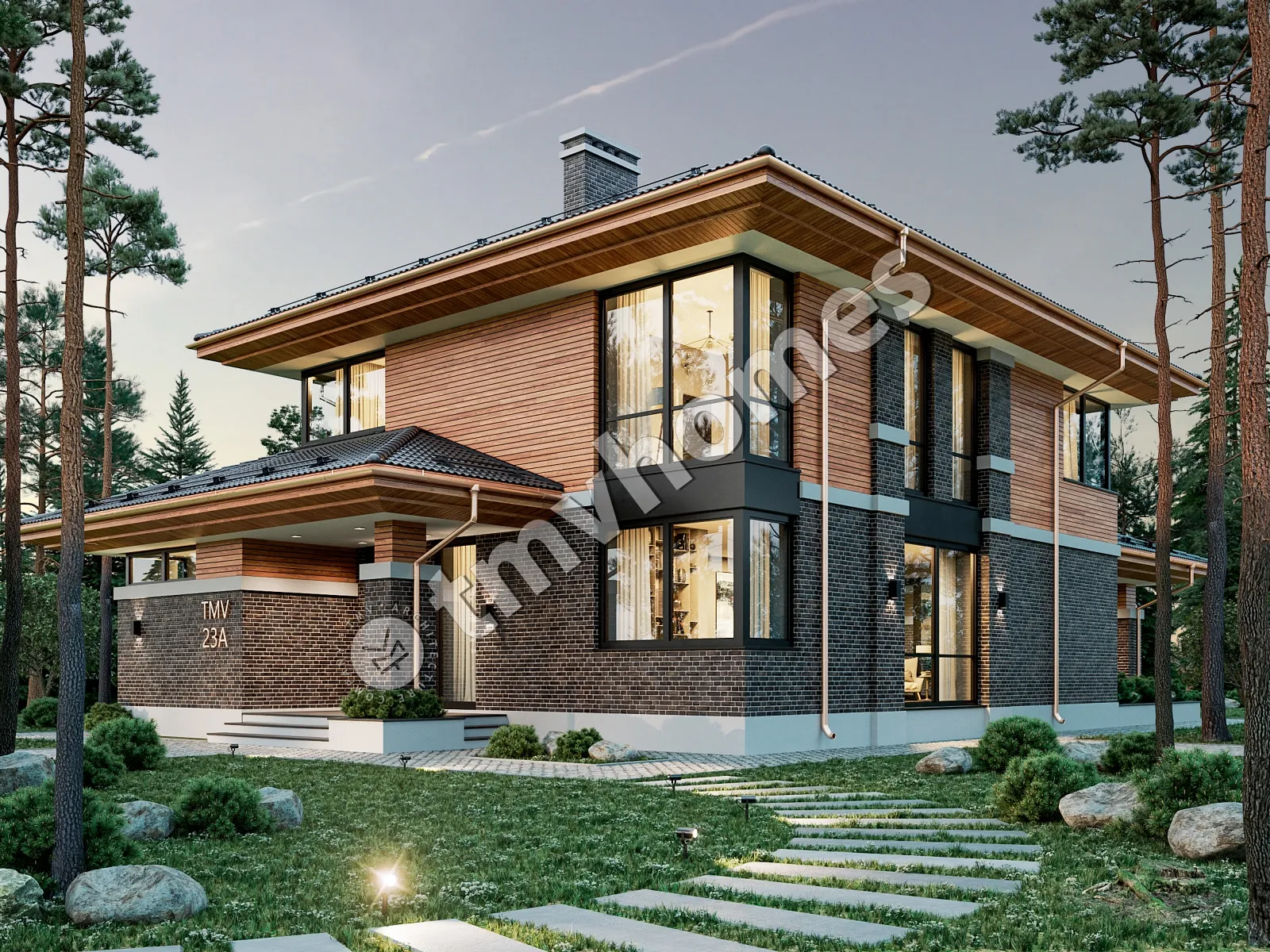

Renderings 3 – 2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 53150C Renderings 4 – 2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 53150C
8
Concept
Construction documents are prepared for the following countries:

2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms

Plan
53150C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2619
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

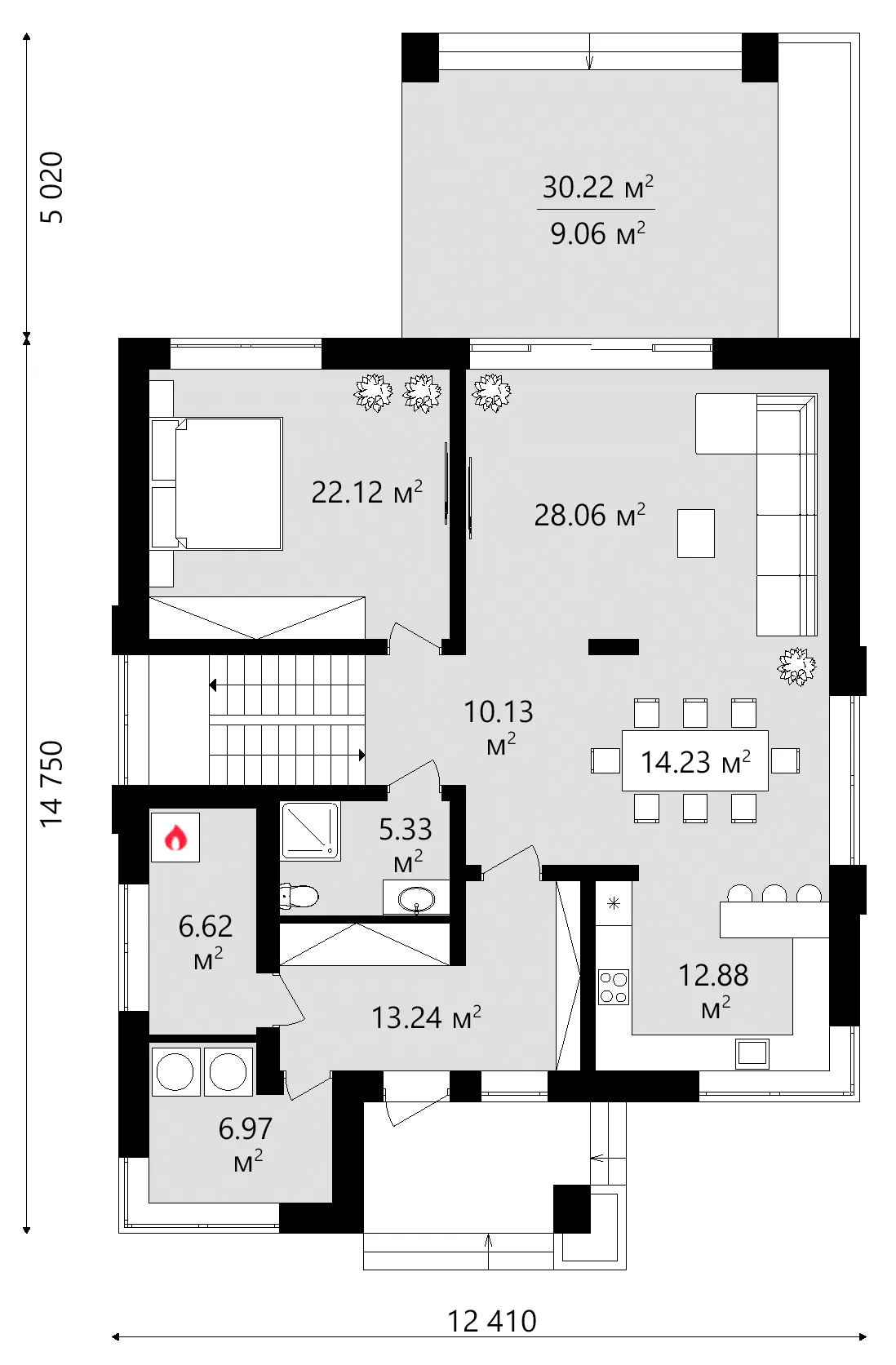

Main Floor
Main Floor 8 – 2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 53150C

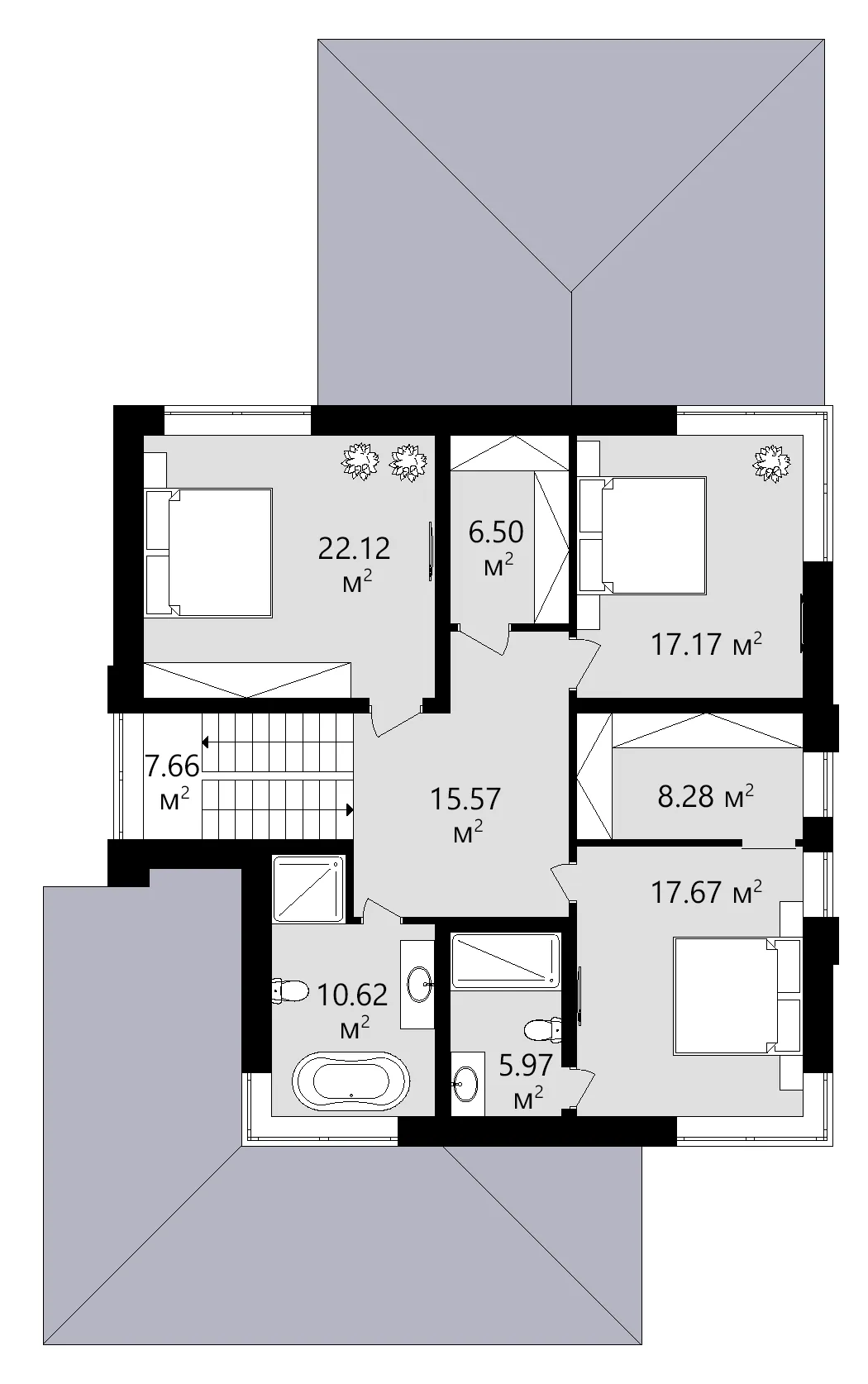

Second Floor
Second Floor 11 – 2,619 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 53150C
Full Specs & Features
Area
Total Heated: 2618.86 ft²
Dimensions
Depth: 60'3" ft
Width: 37'8" ft
Height: 28'7" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

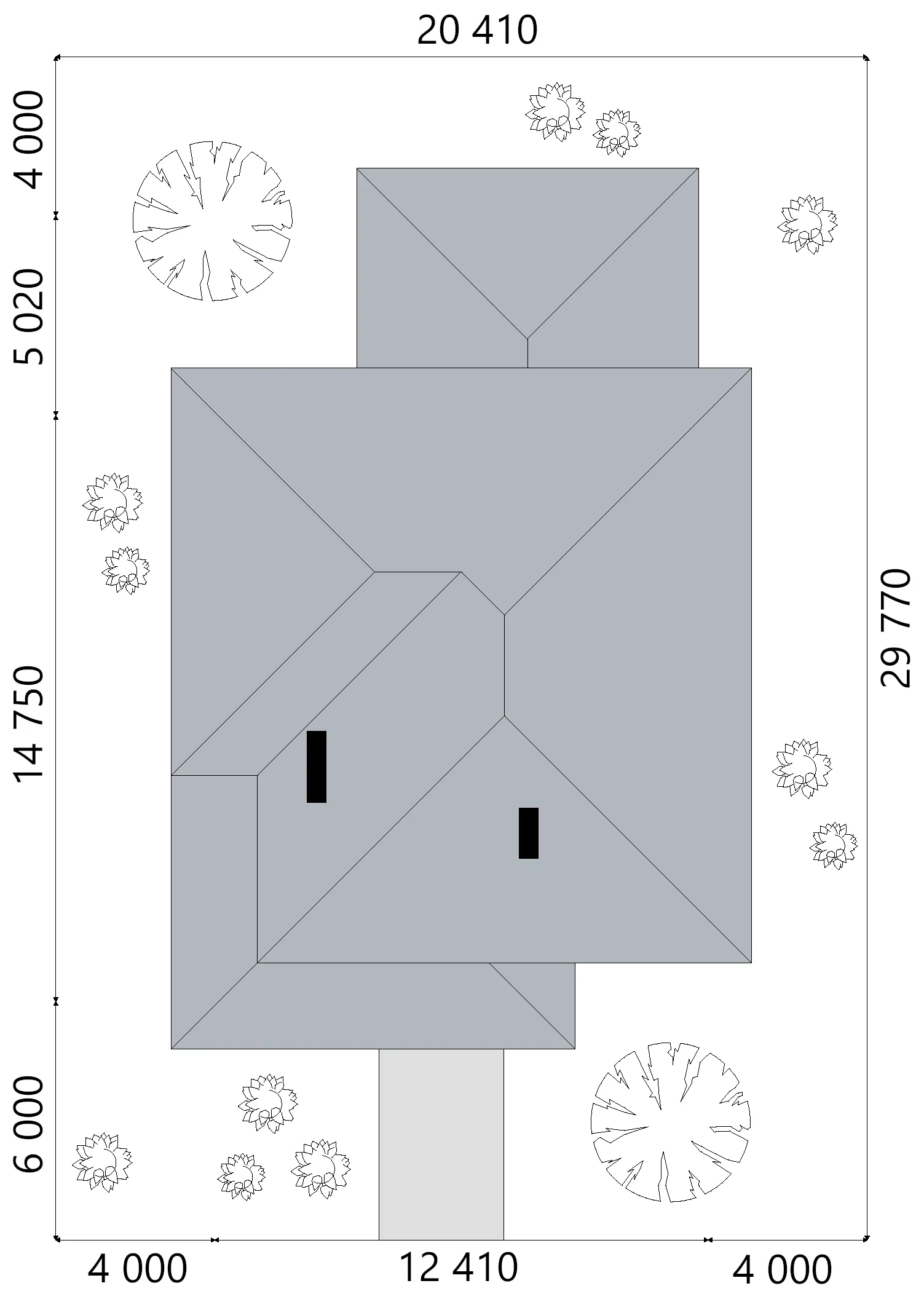

Roof
Roof Area: 3587.83 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

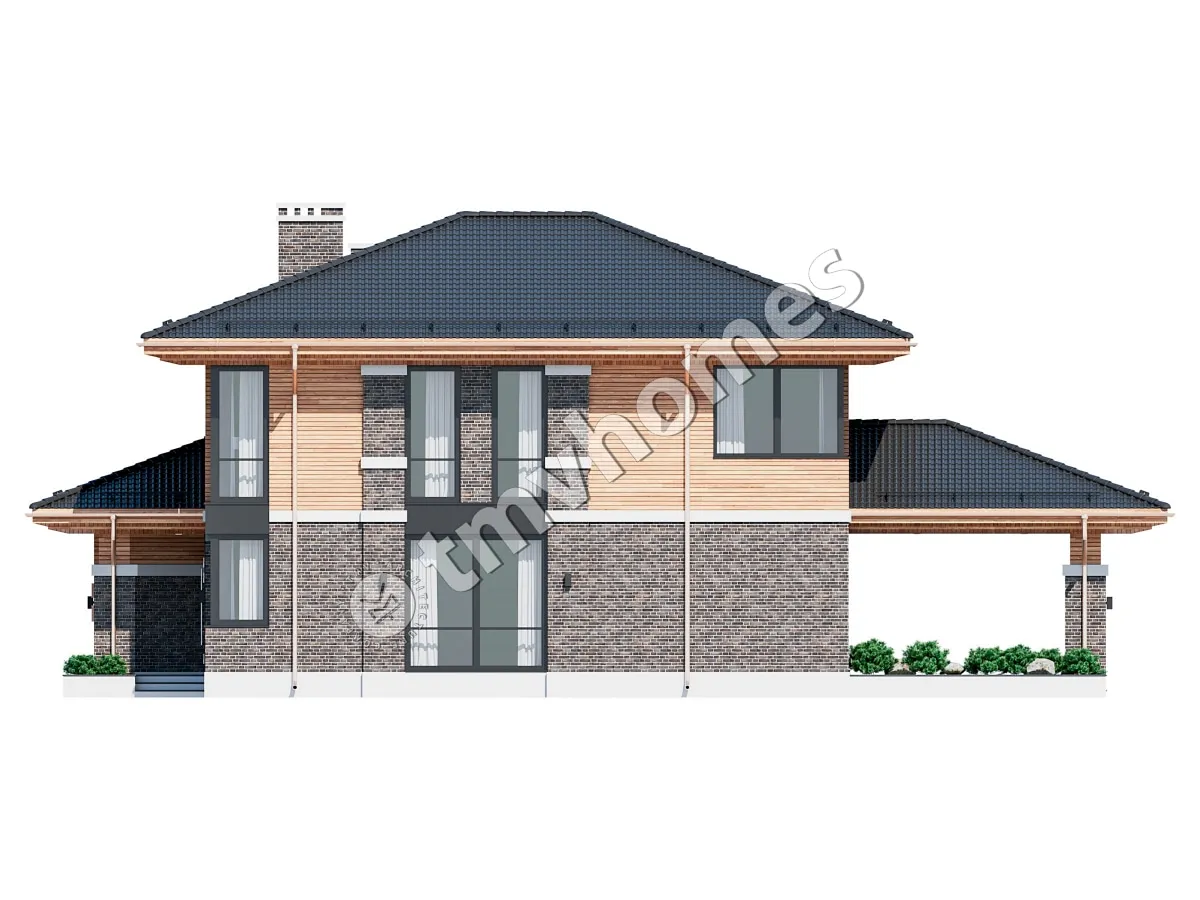

Spread over three storeys, Plan 53150C is a 4-bedroom 3-storey house plan offering 2,619 Sq Ft beneath a hip & valley roof, with a contemporary, European and modern character. The roof has a 5/12 (22°) pitch, and the facade pairs stone/brick veneer with wood, so the house looks solid at its base and warmer in its upper levels. Measuring 37'8" wide and 60'3" deep, with a height of 28'7", this single-family home design will appeal to anyone browsing house plans Canada for a layout that builds up rather than out.

The sleeping quarters come first in how this plan is organized. The master bedroom is on the second floor and has its own walk-in closet, while the other bedrooms are clustered close by, an arrangement that parents of young children tend to value, since everyone sleeps within a few steps of one another. Three full bathrooms serve the household, which gives this 4 bedroom house plan more than enough room for getting ready at the same time. Down on the main floor, the laundry shares space with a utility room and dedicated storage, so washing, cleaning supplies and household gear each have a proper place without anyone carrying baskets up and down the stairs.

Daily life gathers at the centre of the house. From the entry, the plan opens onto an open floor plan that joins a large family room with a large kitchen, keeping the cook part of every conversation. A breakfast bar handles quick lunches and homework sessions, and the breakfast nook, framed by a corner window, offers a quieter seat for a first coffee. Large windows and floor-to-ceiling windows carry daylight deep into the living area and keep the outdoors in view from the sofa and the table alike.

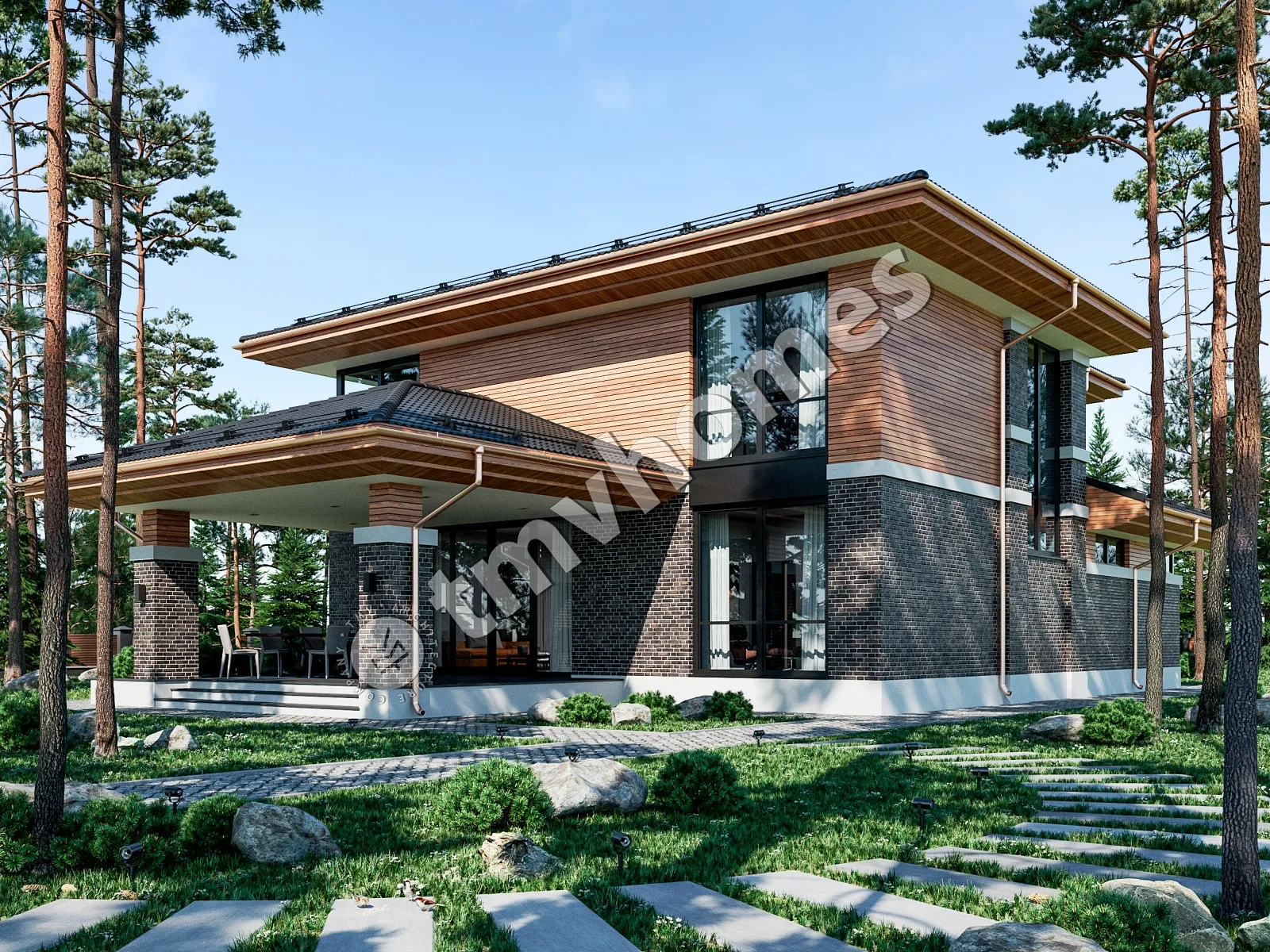

Outside, a covered rear porch gives the family a sheltered place to eat, read or watch the evening settle in. The house is set on strip footings, and a slab or a concrete block foundation can be specified on request. Walls are framed in aerated concrete as standard, with clay hollow block or calcium silicate block available as alternatives. This modern home design has neither a garage nor a basement, so the whole plan is given over to the rooms the family uses every day, wrapped in a refined exterior of stone, brick and wood.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1888
