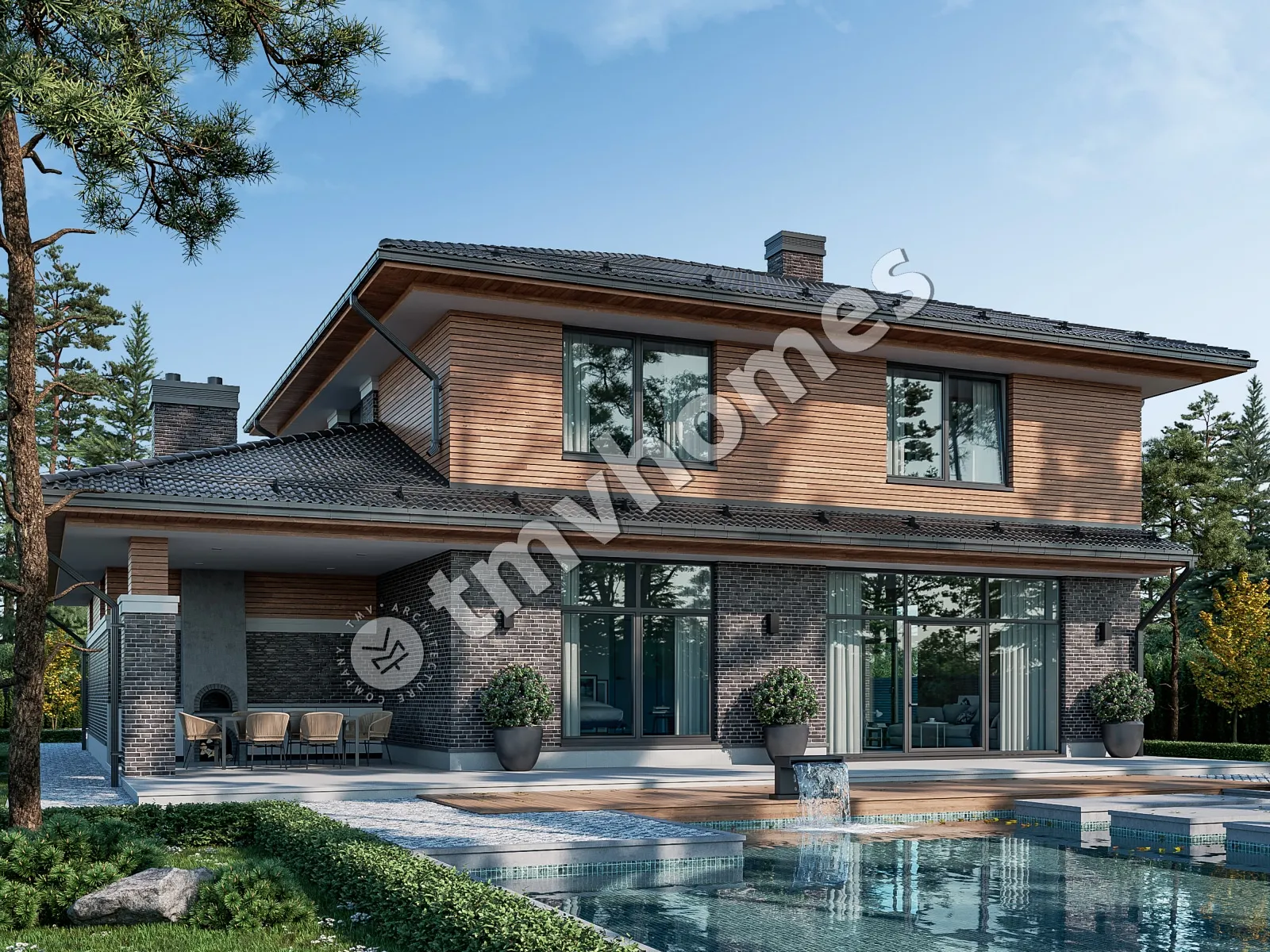

Renderings 2 – 2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 36726C

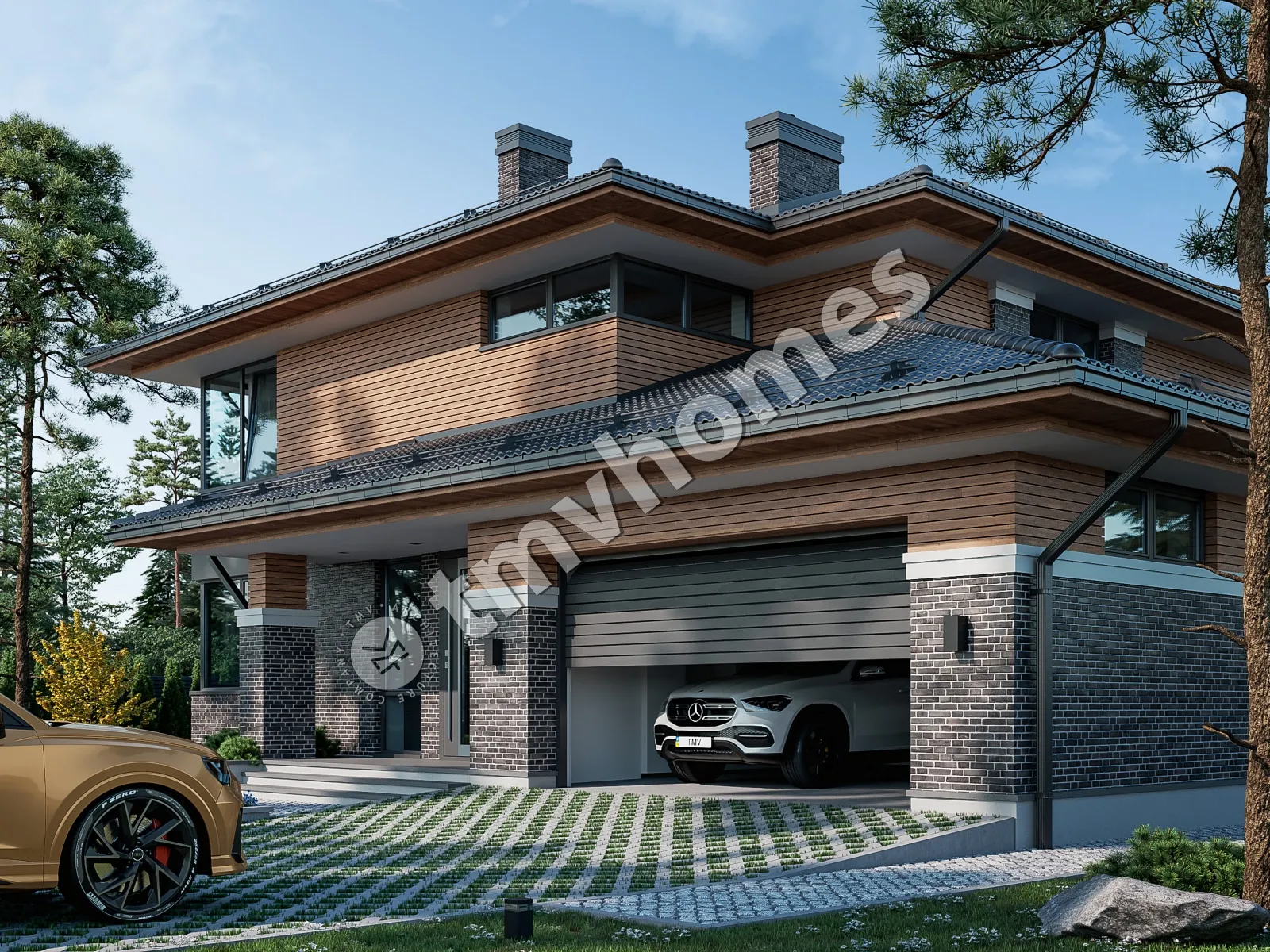

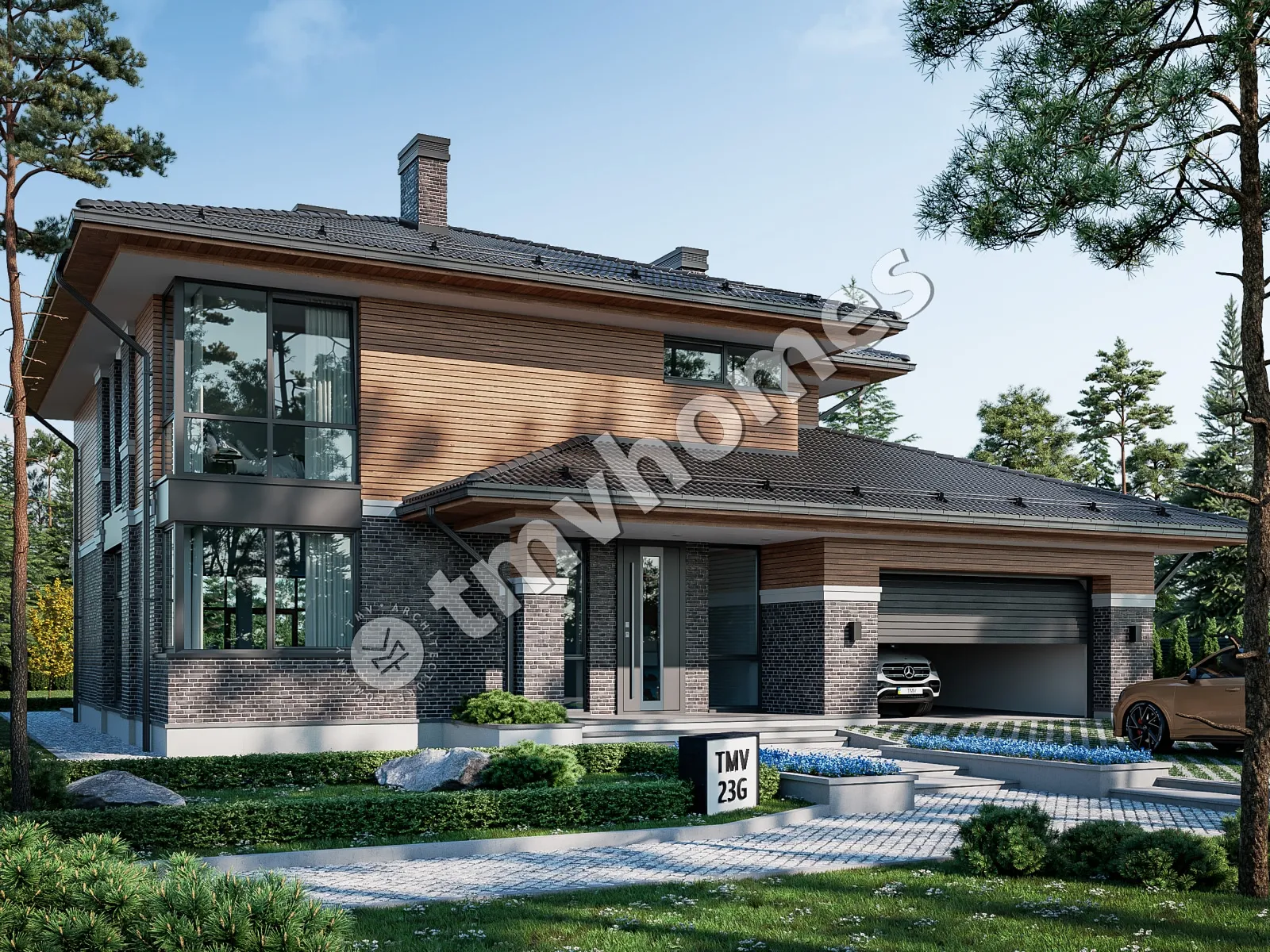

Renderings 3 – 2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 36726C Renderings 4 – 2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 36726C
9
Concept
Construction documents are prepared for the following countries:

2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
36726C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2717
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

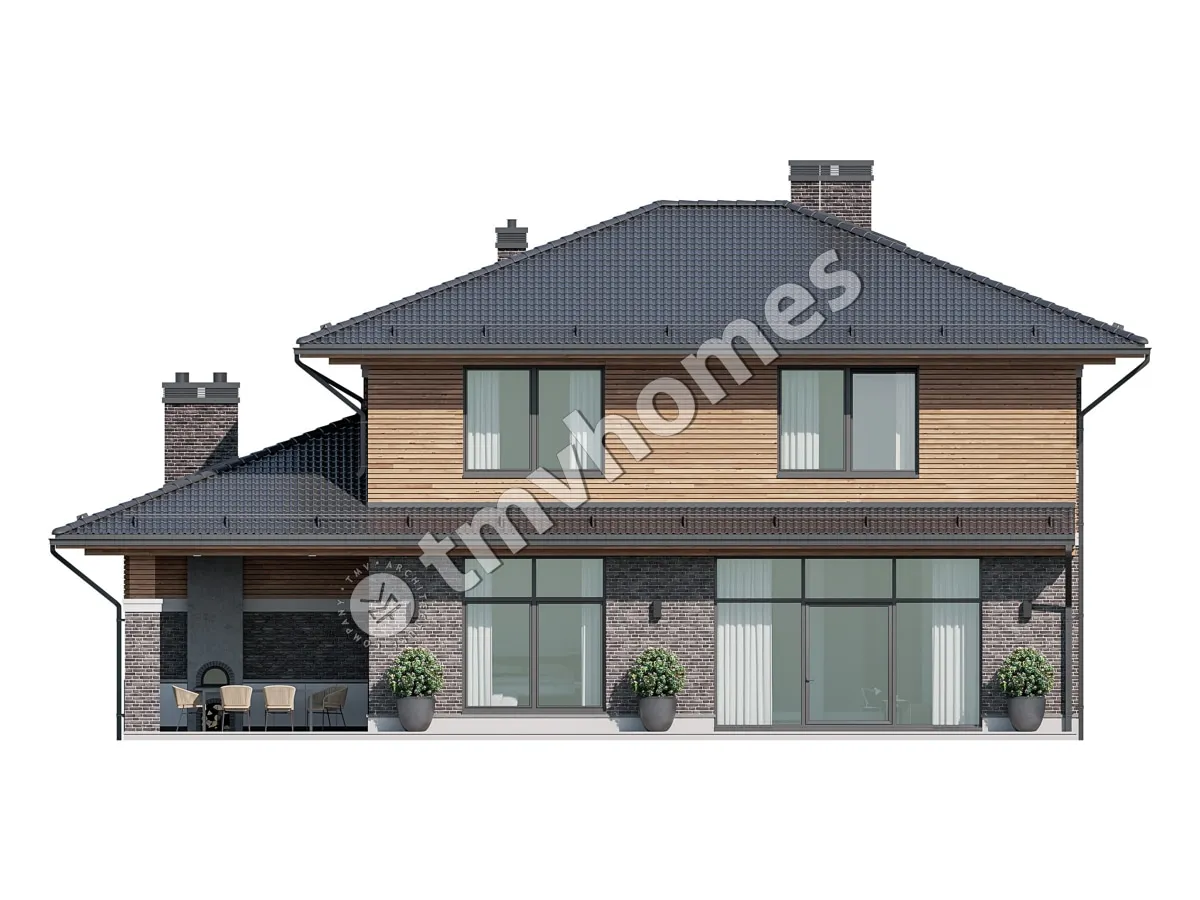

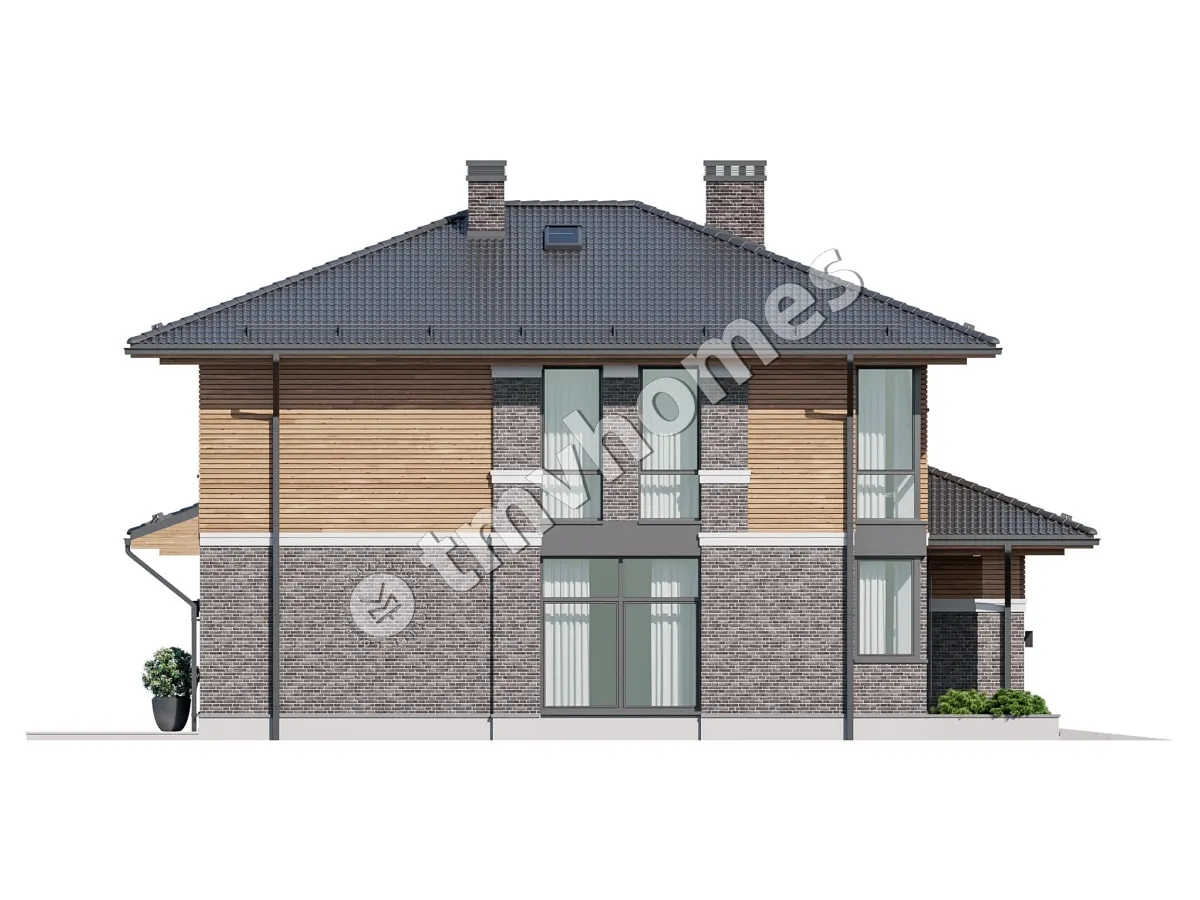

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

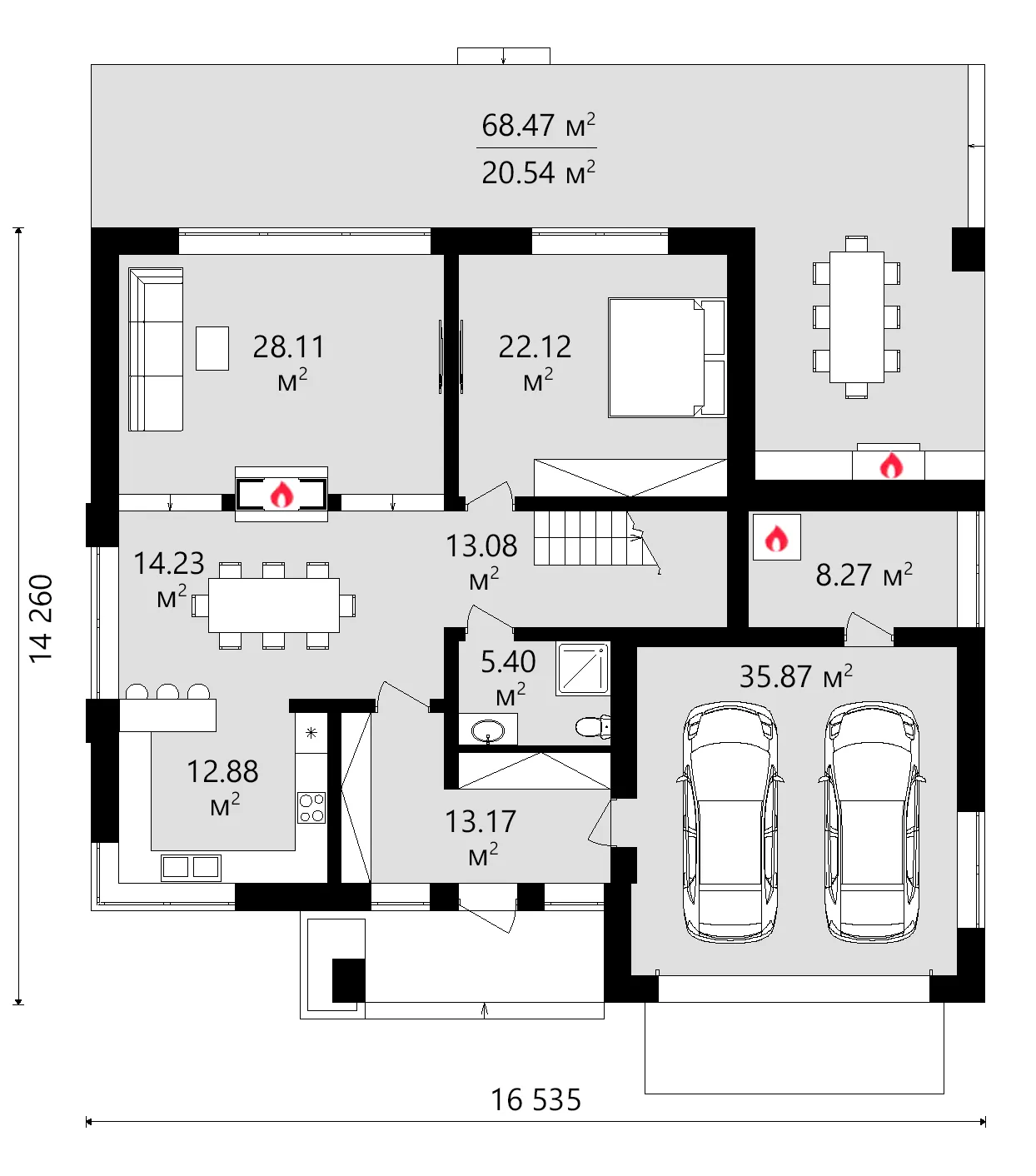

Main Floor
Main Floor 14 – 2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 36726C

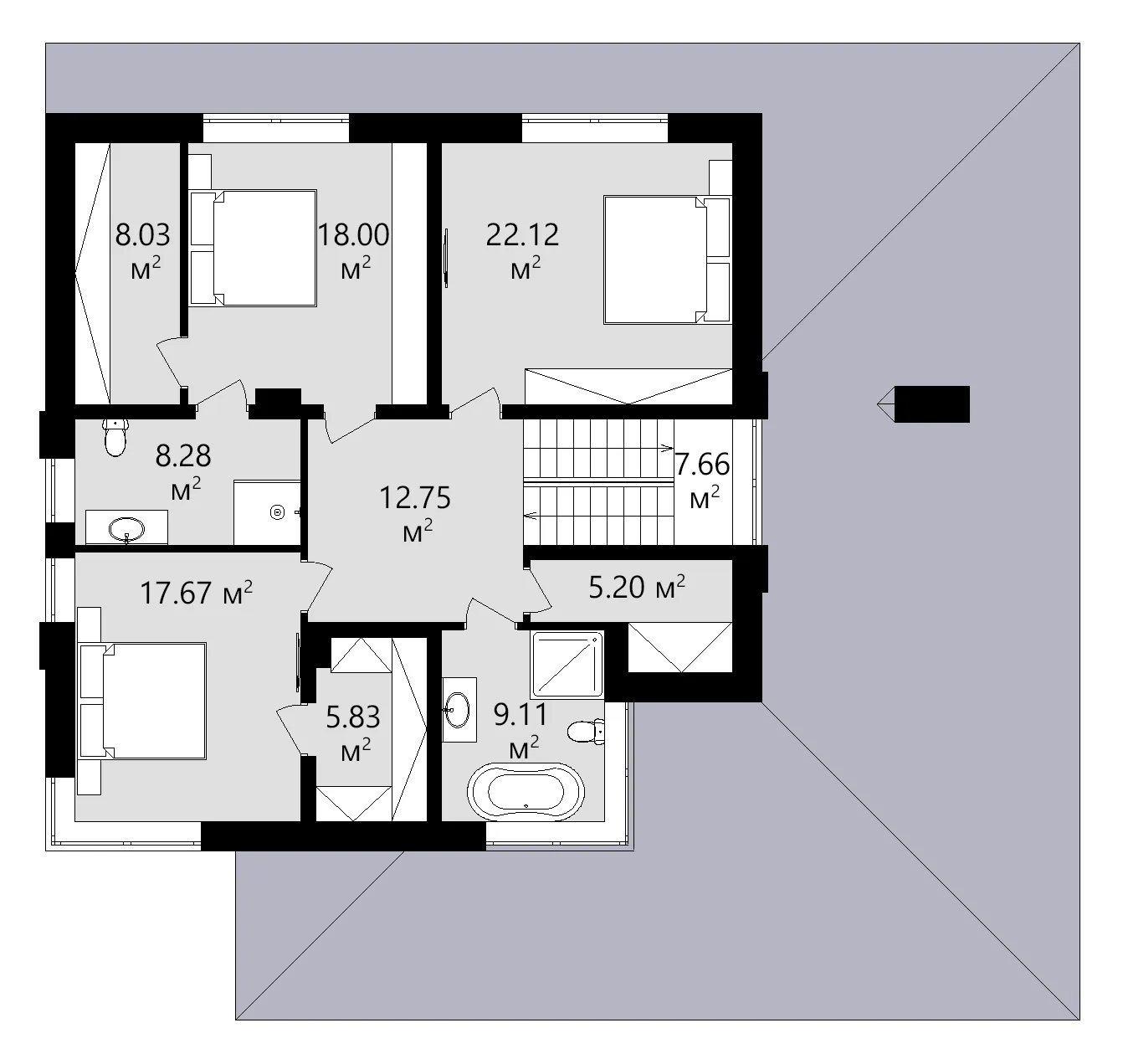

Second Floor
Second Floor 15 – 2,717 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 36726C
Full Specs & Features
Area
Total Unheated: 386.1 ft²
Total Heated: 2717.35 ft²
Dimensions
Depth: 43'5" ft
Width: 50'4" ft
Height: 27'8" ft
Garage
Area: 386 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Deck
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

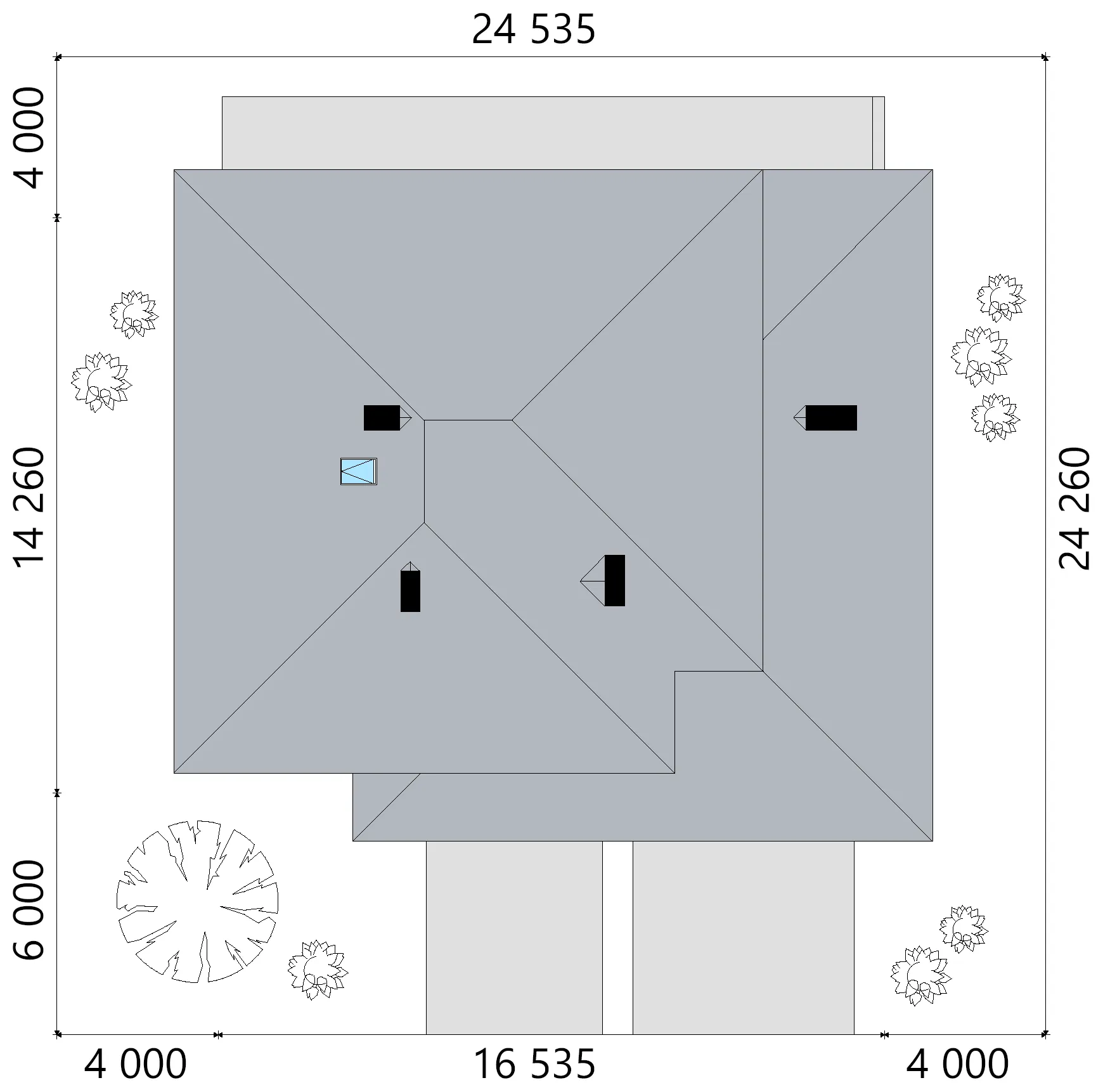

Roof
Roof Area: 4025.70 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Plan 36726C is a 4-bedroom 3-storey house plan with 2,717 Sq Ft of living space, a hip and valley roof at a 5/12 (22°) pitch, and a facade that blends Contemporary, European and Modern influences. The single family home design is 50'4" wide and 43'5" deep and rises to a height of 27'8". Stone/brick veneer is paired with wood on the exterior, and large windows, floor-to-ceiling windows and a corner window open the rooms to daylight. Aerated concrete forms the exterior wall framing, with clay hollow block or sand-lime block offered as alternatives on request.

Sleeping quarters are grouped so the family stays close. All four bedrooms are clustered together, and the master bedroom on the second floor has its own walk-in closet. Three full bathrooms serve the household, which eases the rush when everyone gets ready at the same time. Because the plan has no basement, the work of a lower level is handled upstairs: a utility room keeps laundry and mechanical equipment out of sight, and a storage room holds suitcases, holiday decorations and off-season gear.

On the main living level, an entry gives arrivals a proper place to set down bags and boots before stepping further in. The closed floor plan defines each room with walls, which suits families who prefer quiet corners to one open hall. The large family room centres on a fireplace, a warm spot to gather once the evenings grow dark. Nearby, the large kitchen offers room for serious cooking, with a breakfast bar for quick snacks and a breakfast nook where a corner window brings in the morning sun.

Outdoor living happens at the back of the house, where a covered rear porch provides a sheltered place to sit in any weather and a deck adds open space for barbecues and summer gatherings. A front-entry 2-car garage handles vehicles and bicycles. The home rests on strip footings, and a slab or a concrete block foundation can be chosen on request. For families comparing house plans Canada builders can adapt, this design combines a refined European exterior with practical, clearly separated rooms across three storeys.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2066
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
