2-Story House Plan 2872 ft²: 4 Beds, 4 Baths, Open Floor Plan, 1-Car Garage

Plan
66535C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2872
Total Heated ft²
4 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

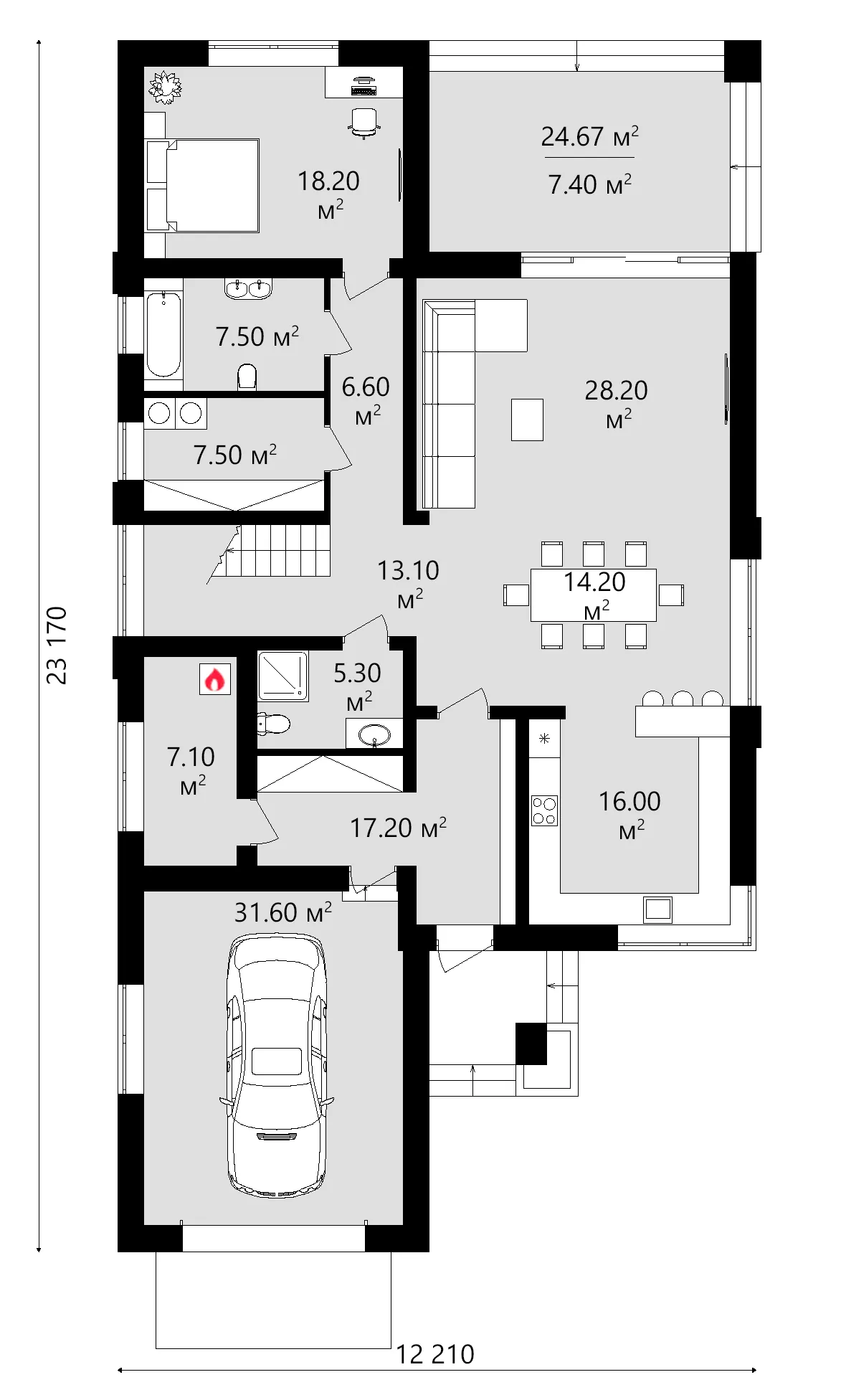

Main Floor
Main Floor 8 – 2-Story House Plan 2872 ft², 4 Beds — 66535C

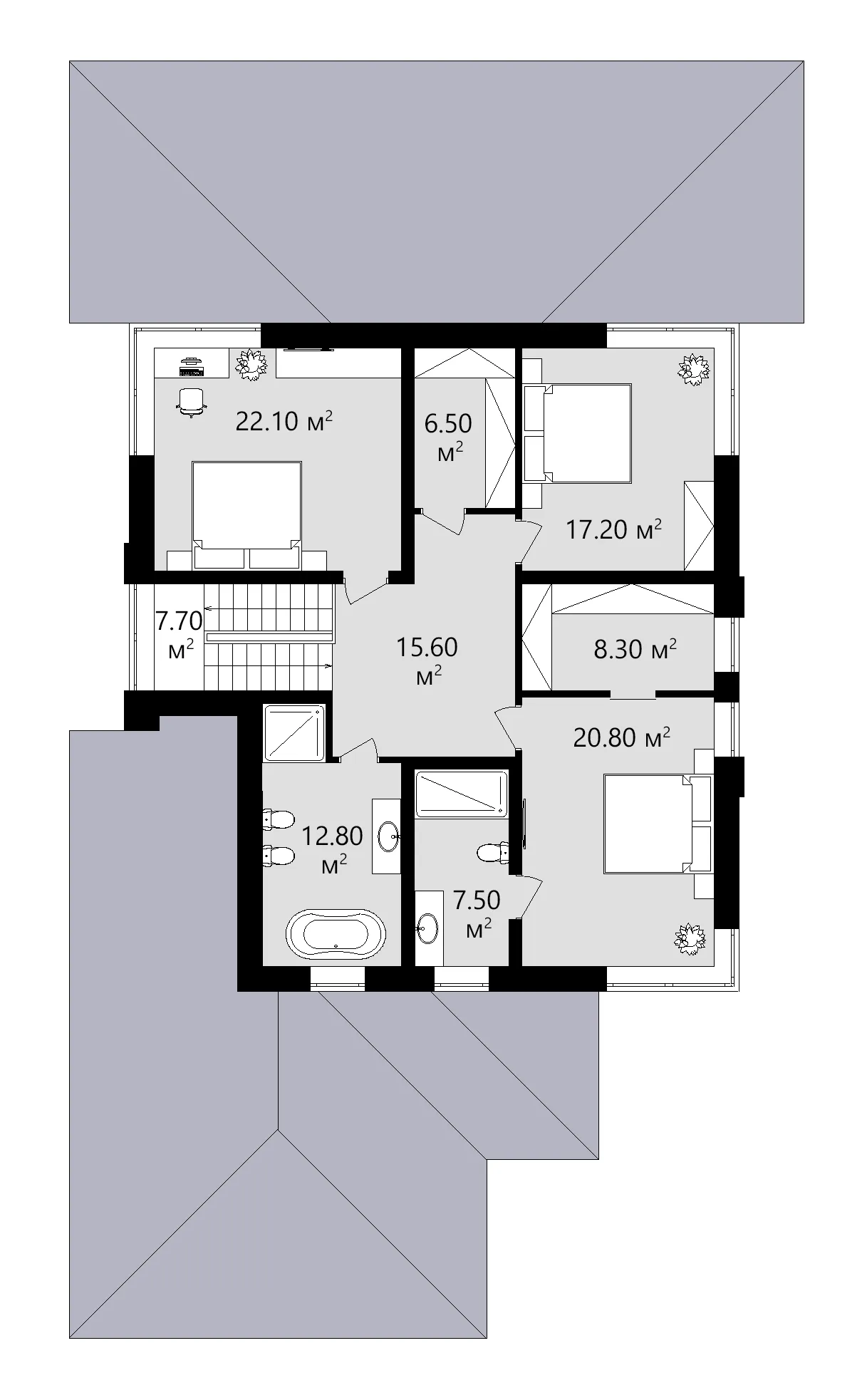

Second Floor
Second Floor 9 – 2-Story House Plan 2872 ft², 4 Beds — 66535C
Full Specs & Features
Area
Total Unheated: 340.14 ft²
Total Heated: 2871.81 ft²
Dimensions
Depth: 70'6" ft
Width: 37'2" ft
Height: 28'7" ft
Garage
Area: 340 ft²
Cars: 1
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 4
Bedrooms: 4
Utility room
Laundry
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Prairie
Roof
Roof Area: 4298.24 ft²
Hip & Valley
Roof Pitch: 3/12 (14°)

Plan 66535C is a 4-bedroom 3-storey house plan where Prairie calm meets modern lines, with 2872 ft² of living space beneath a low hip and valley roof pitched at 3/12 (14°). Contemporary and European details sharpen its T-shaped form, and the exterior walls pair stone/brick veneer with wood. At 37'2" wide and 70'6" deep, rising to a height of 28'7", this single family home design stays long and grounded in proportion, even across three storeys.
