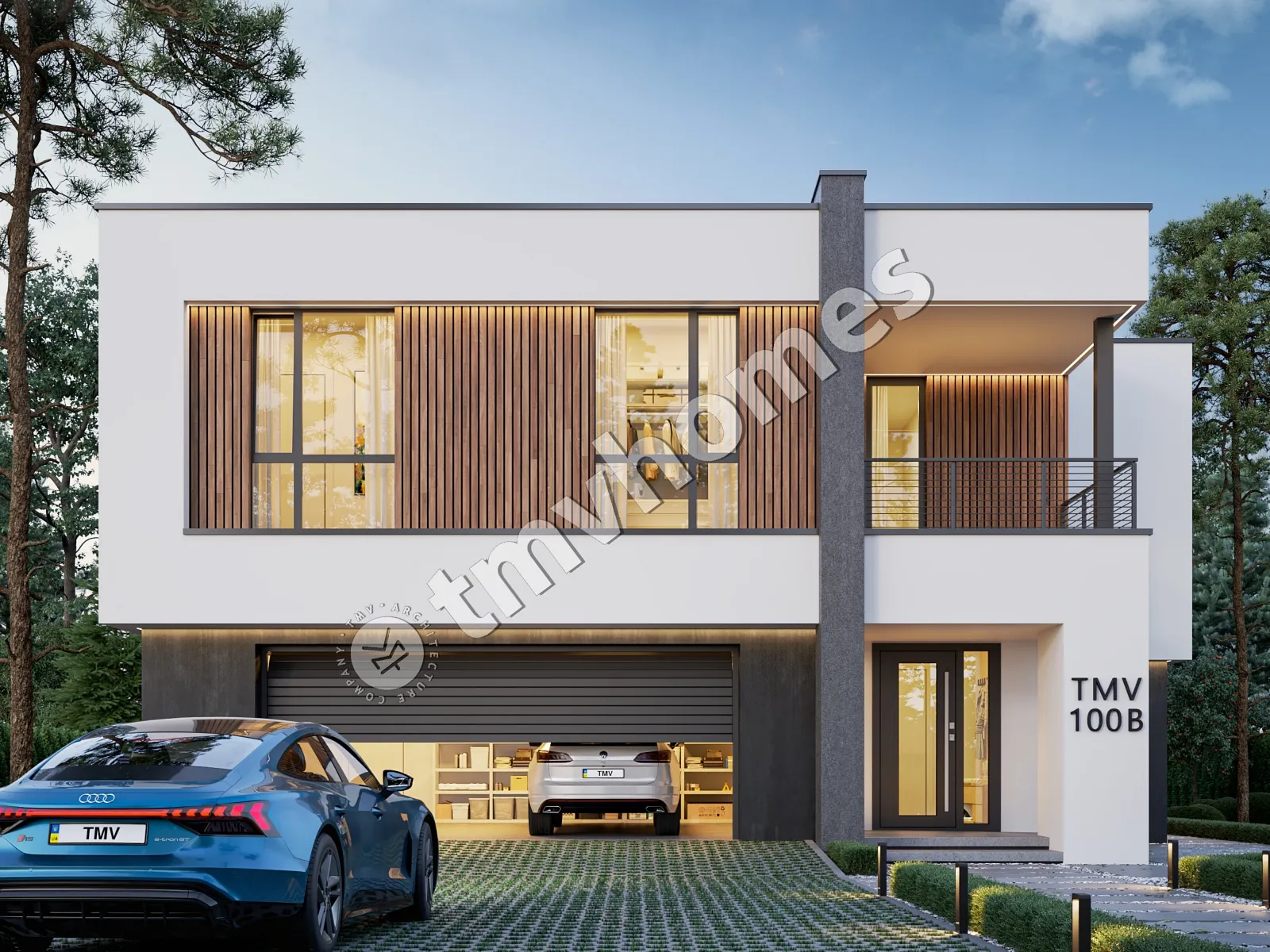

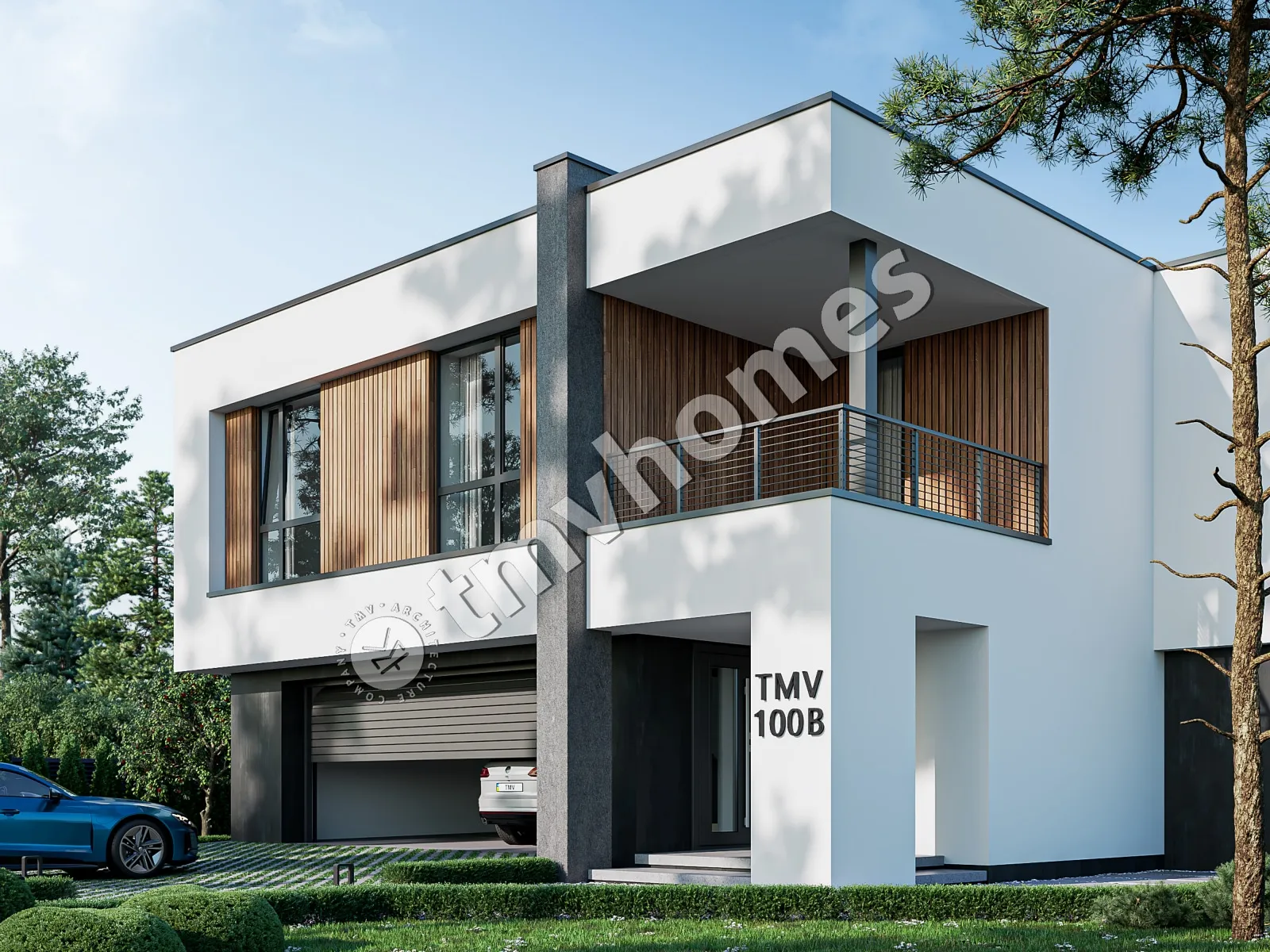

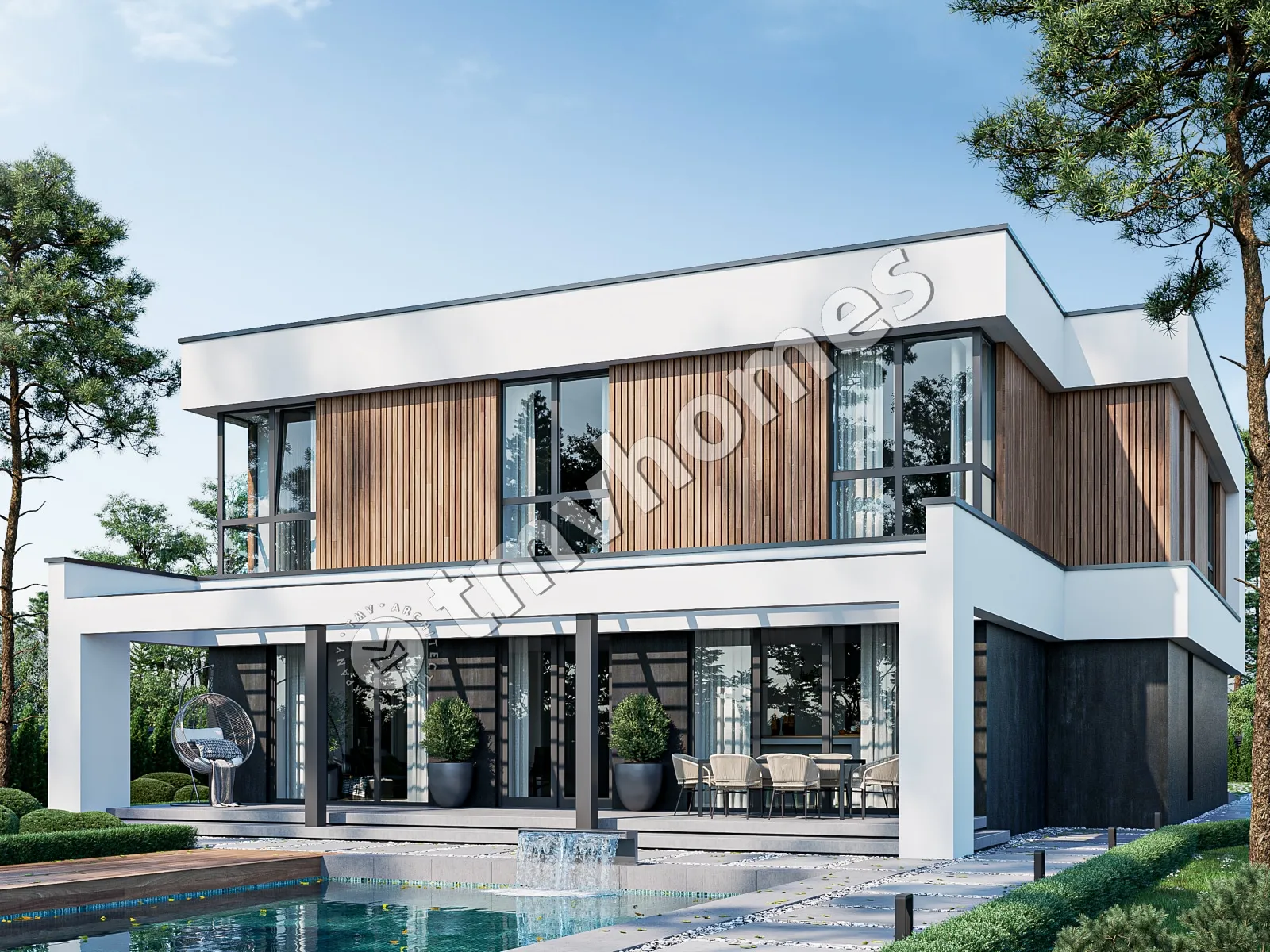

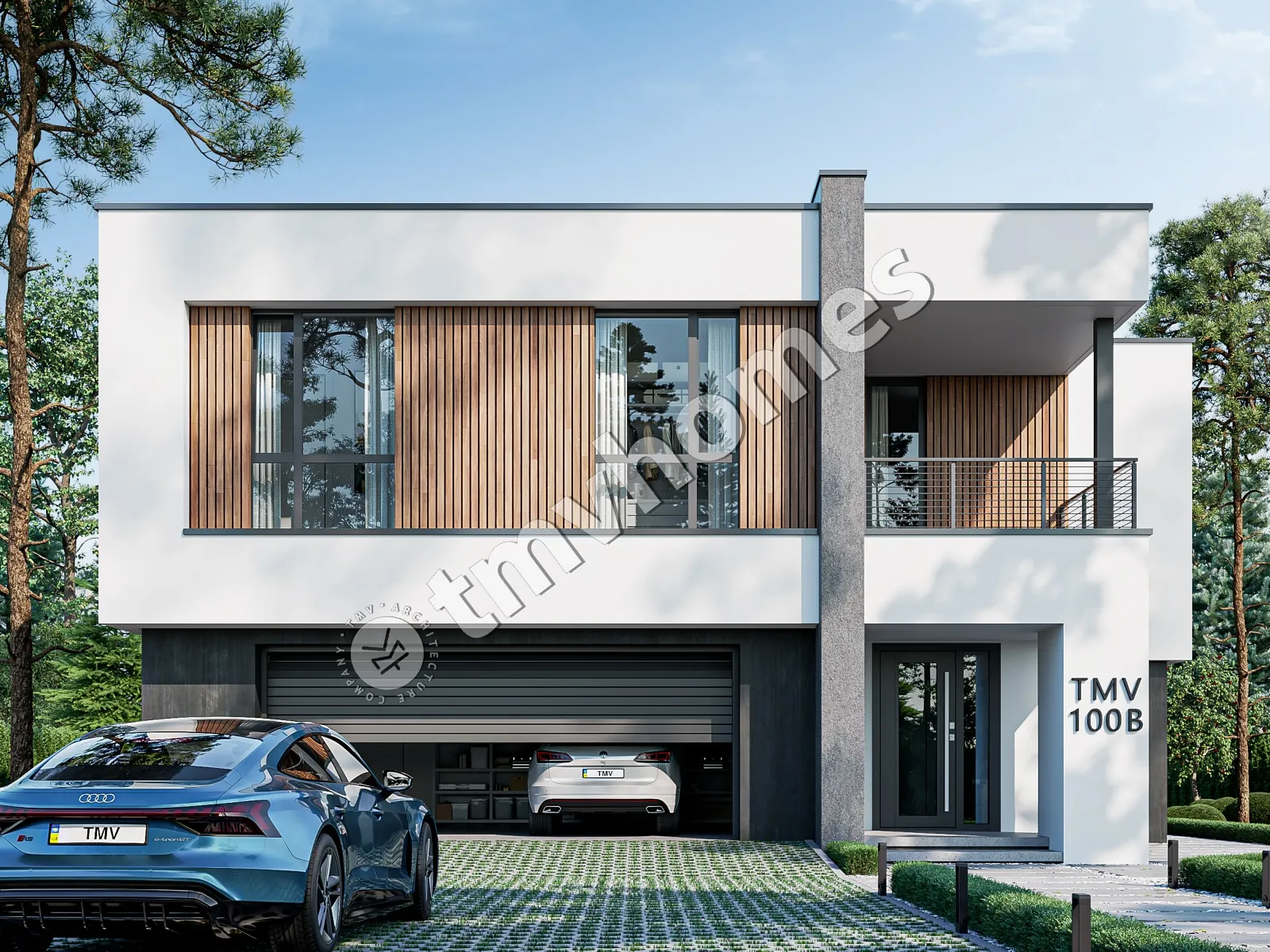

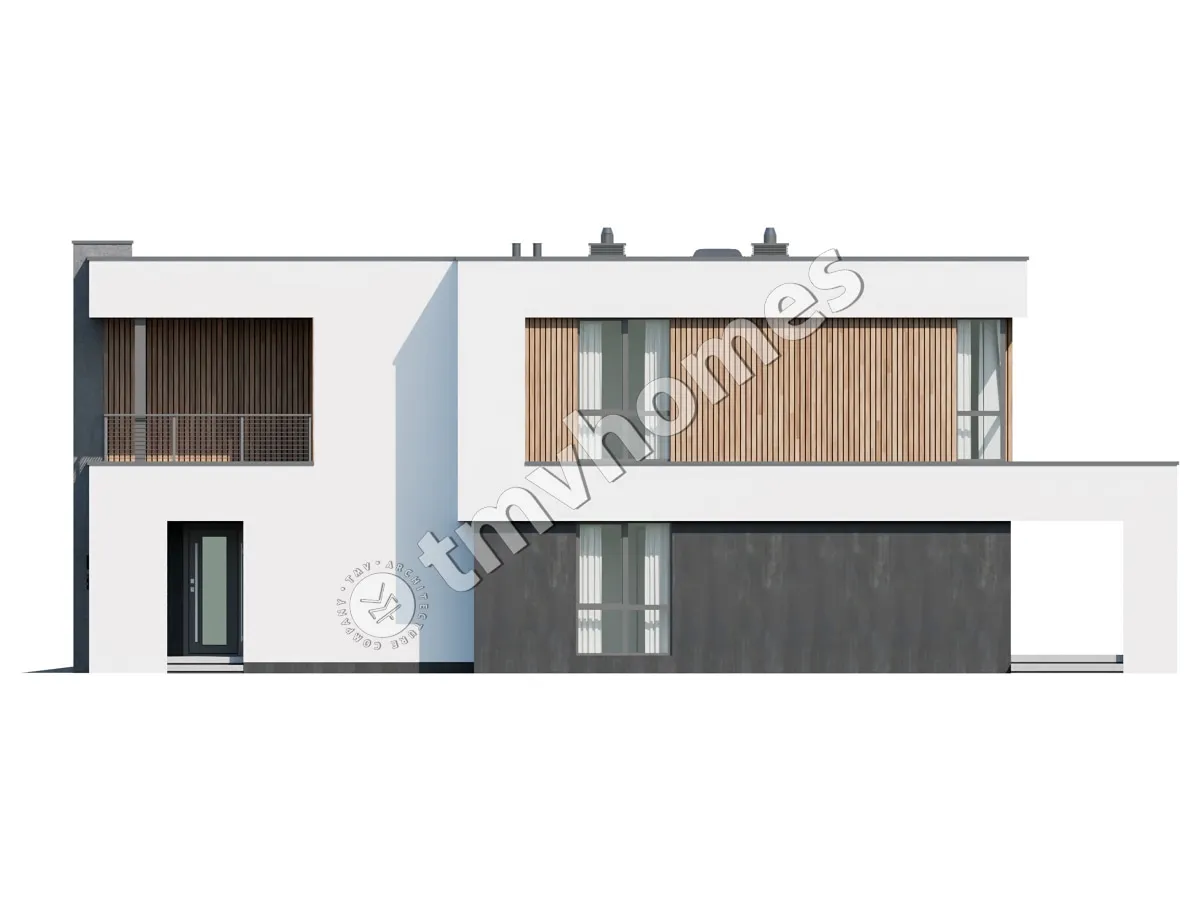

Renderings 2 – 2-Story House Plan 3133 ft², 4 Beds — 72952C
Renderings 6 – 2-Story House Plan 3133 ft², 4 Beds — 72952C Renderings 9 – 2-Story House Plan 3133 ft², 4 Beds — 72952C
8
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 3133 ft²: 4 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
72952C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
3133
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

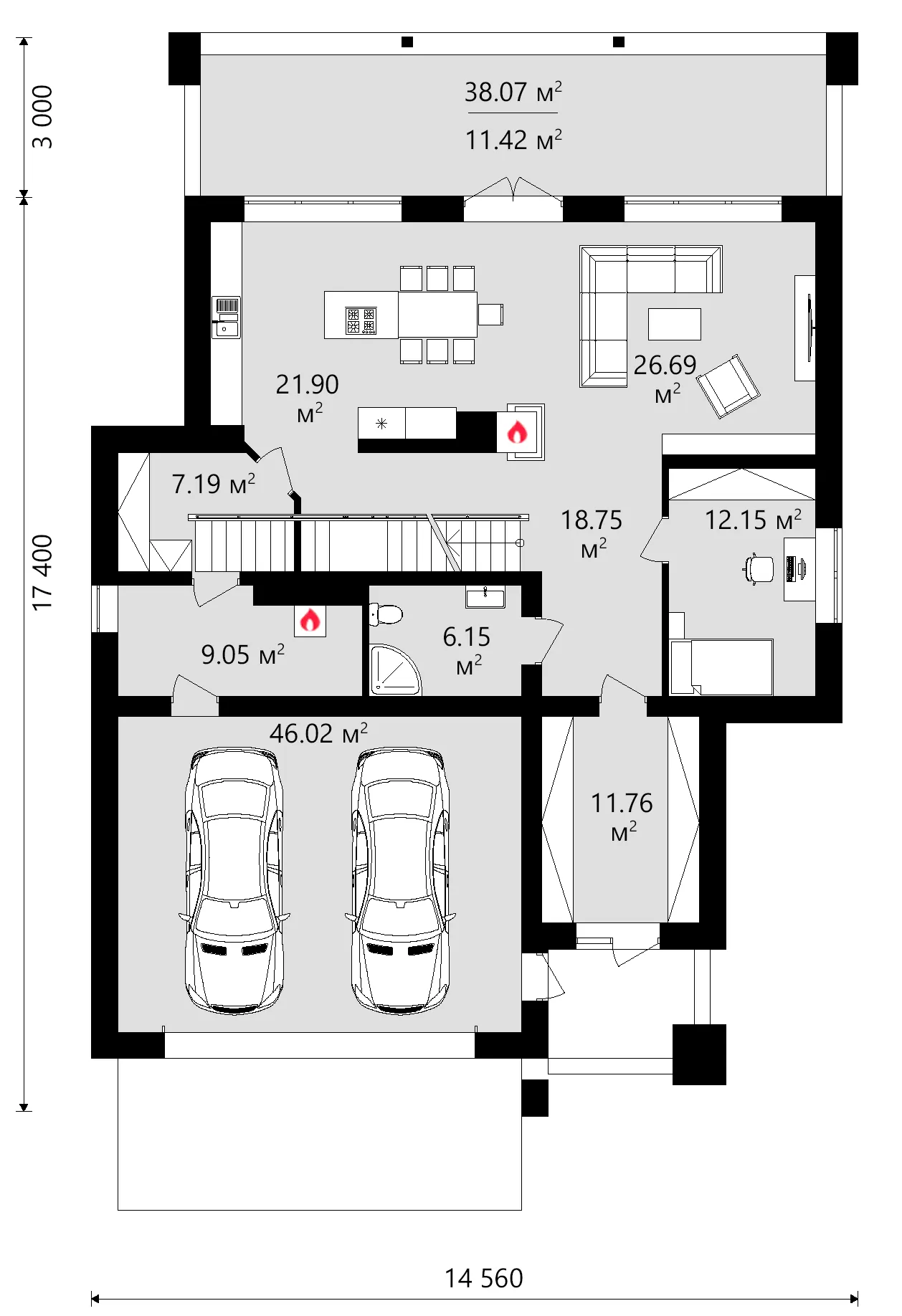

Main Floor
Main Floor 10 – 2-Story House Plan 3133 ft², 4 Beds — 72952C

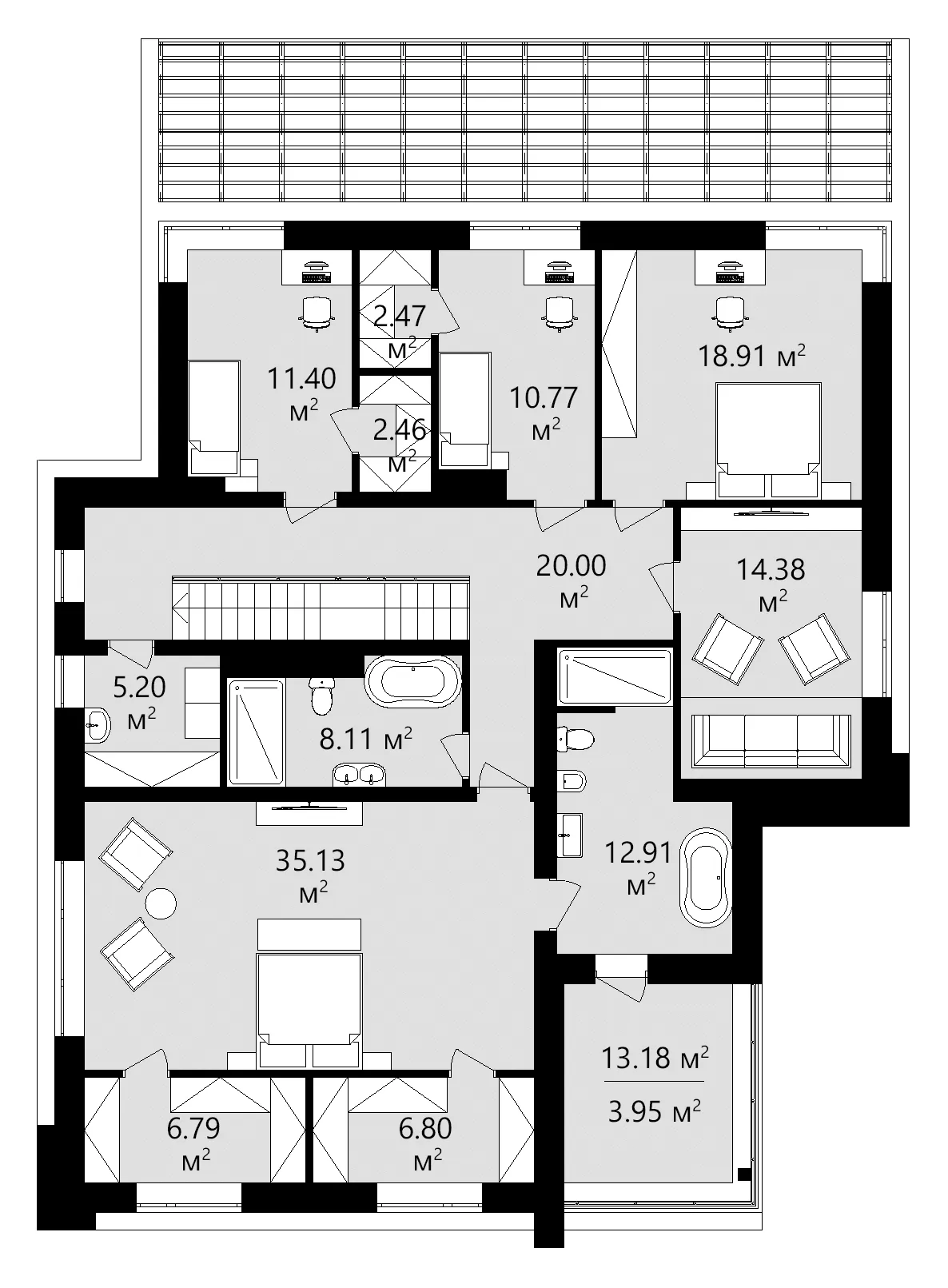

Second Floor
Second Floor 13 – 2-Story House Plan 3133 ft², 4 Beds — 72952C
Full Specs & Features
Area
Total Unheated: 495.36 ft²
Total Heated: 3133.27 ft²
Dimensions
Depth: 62'2" ft
Width: 44'4" ft
Height: 23'8" ft
Garage
Area: 495 ft²
Cars: 2
Room Above Garage
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Bonus/Flex Room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof

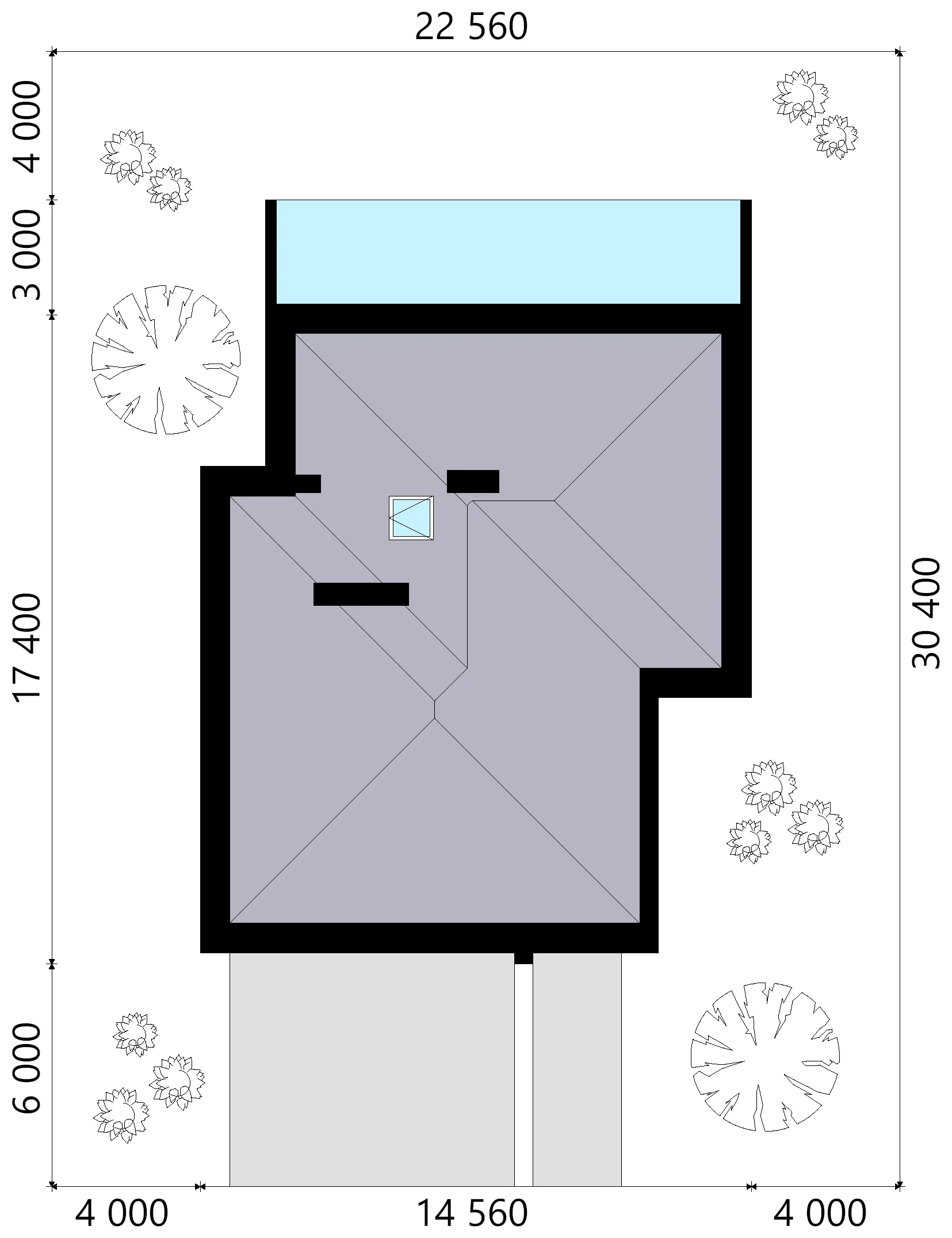

Roof Area: 2012.21 ft²
Flat

Designed as a 4-bedroom 3-storey house plan, 72952C offers 3133 ft² beneath a flat roof, wrapped in a contemporary exterior of stucco and wood. High-tech and modern details give this single family home its character: a corner window, large windows and floor-to-ceiling glazing that open the façade to daylight. The footprint measures 44'4" wide and 62'2" deep, rising to a height of 23'8", and the layout includes three full bathrooms and a two-car garage.

The sleeping quarters are planned with family routines in mind. The bedrooms are clustered together, keeping the private side of the house quiet and compact, and the master suite is located on the second floor. A walk-in closet adds generous storage for clothing and linens. With three full bathrooms, getting ready before school or work rarely means waiting in line. The laundry is on the second floor as well, right where clothes are worn and put away, while a separate utility room keeps mechanical equipment away from the living areas.

Open concept living brings the everyday spaces together. The large family room, with its fireplace as the natural focal point, gives everyone a comfortable place to settle in after a long day, and it makes this a true house plan with fireplace. Next to it, the large kitchen centres on an island for cooking, homework or casual conversation, backed by a walk-in pantry and a breakfast nook for the first coffee of the day. A defined entry greets visitors properly, a home office offers a door to close during video calls, and a bonus/flex room can become a playroom, a gym or a guest space as the family grows.

The exterior extends this modern home design outdoors. A covered rear porch shelters meals and quiet afternoons, and a balcony provides a private spot to step out for fresh air. The front-entry garage holds two cars and has a room above it, adding usable space without enlarging the footprint. The house has no basement and is built on strip footings, with a slab or a concrete block foundation also available. The exterior walls are framed in autoclaved aerated concrete, and ceramic hollow block or sand-lime block can be chosen as an alternative on request.
