2,774 Sq Ft Prairie H-Shaped Single-Story House Plan with 4 Bedrooms, 5 Bathrooms and 2-Car Garage

Plan
33083C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2774
Total Heated ft²
5 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

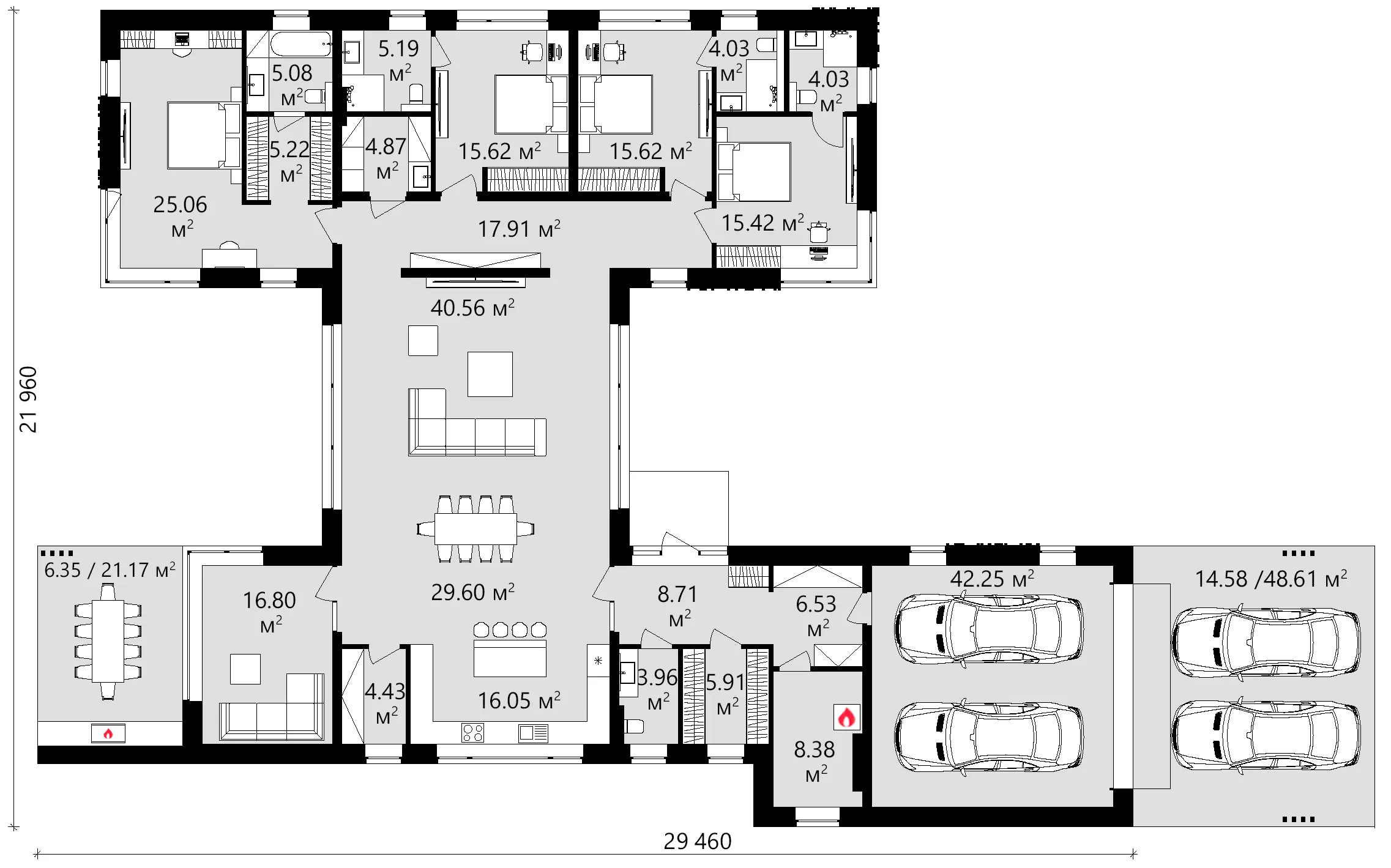

Main Floor
Main Floor 16 – 2,774 Sq Ft Prairie Single-Story House Plan with 4 Bedrooms and 2-Car Garage – 33083C

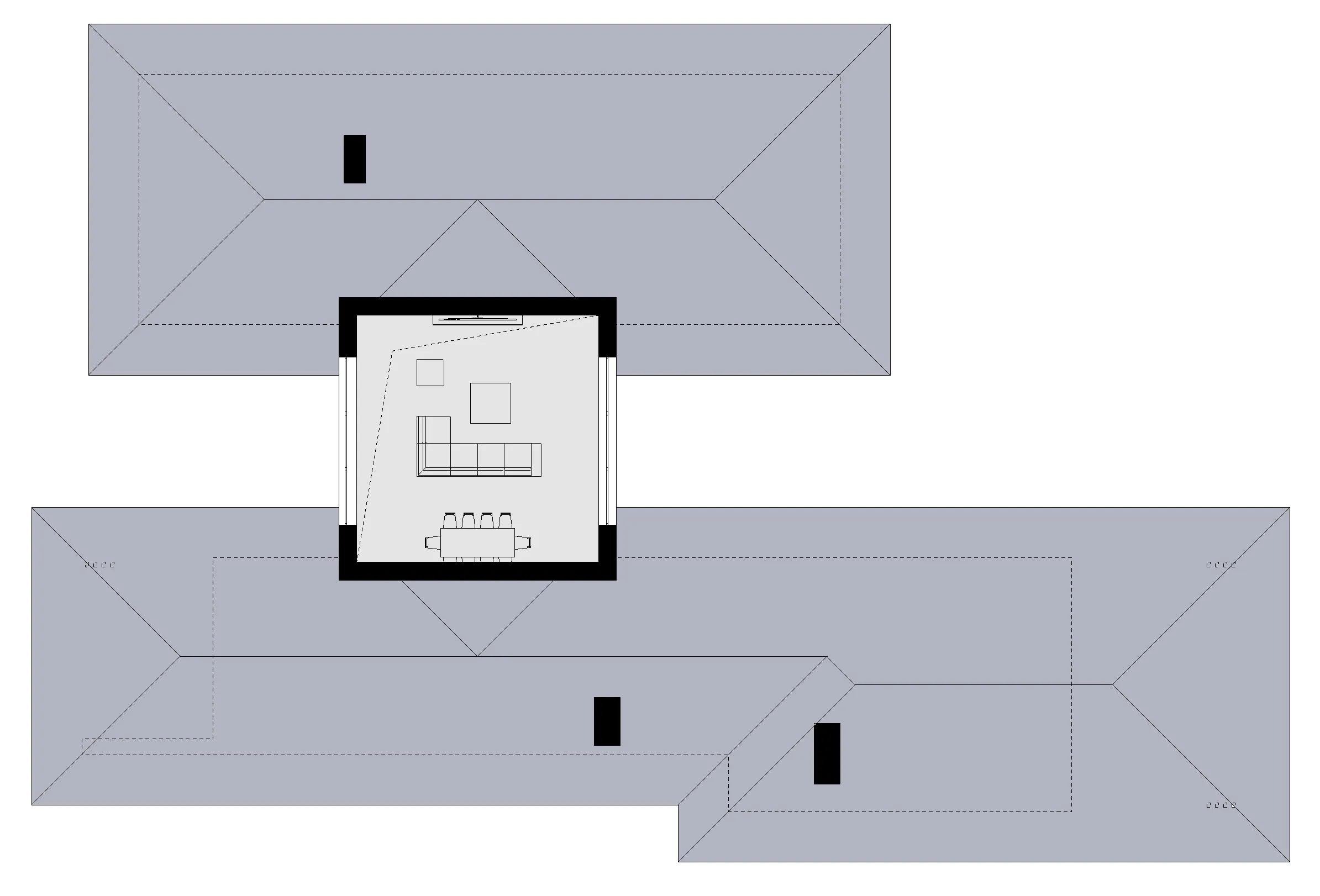

Second Floor
Second Floor 17 – 2,774 Sq Ft Prairie Single-Story House Plan with 4 Bedrooms and 2-Car Garage – 33083C
Full Specs & Features
Area
Total Unheated: 454.78 ft²
Total Heated: 2774.4 ft²
Dimensions
Depth: 104'3" ft
Width: 66'9" ft
Height: 21'9" ft
Garage
Area: 455 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Flexible Ceramic
Rooms
Full bathrooms: 5
Bedrooms: 4
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Outdoor Fireplace
Outdoor Kitchen
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Prairie
Roof

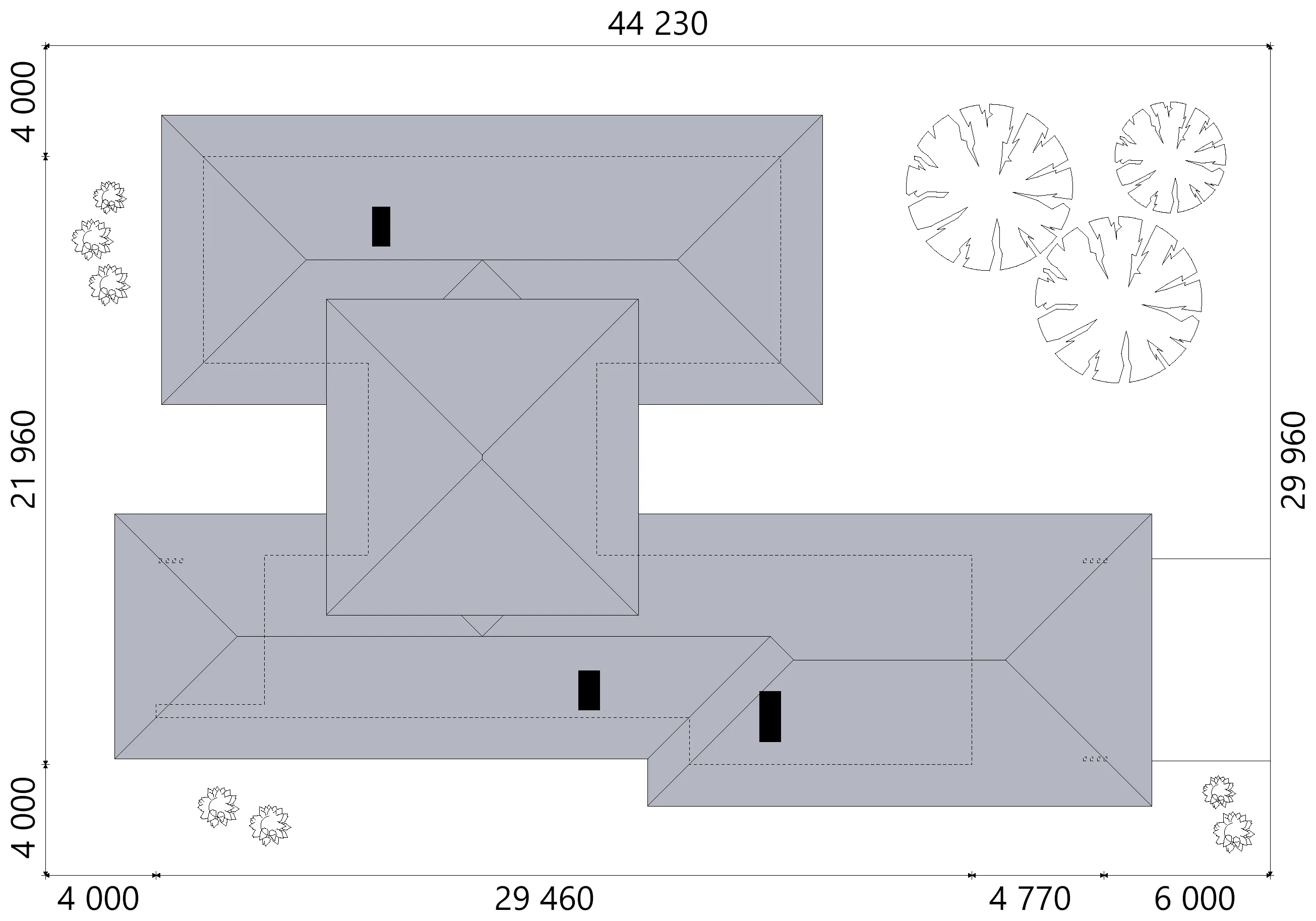

Roof Area: 7739.25 ft²
Hip
Hip & Valley
Roof Pitch: 3/12 (14°)

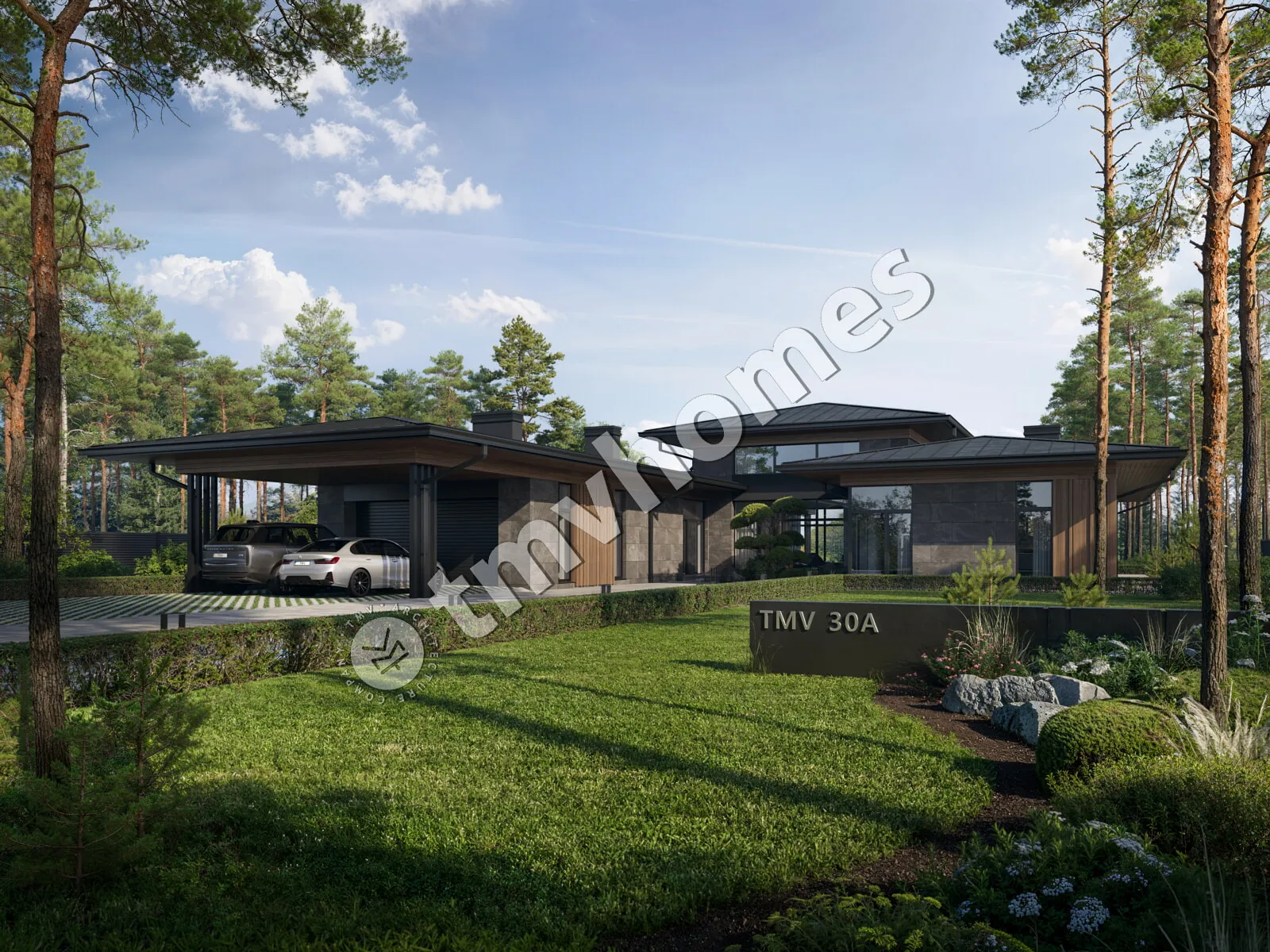

Plan 33083C is drawn up as a 4-bedroom bungalow house plan, and its Prairie roots show at first glance: a low hip and hip-and-valley roof with a 3/12 pitch, long horizontal lines and crisp Contemporary and Modern detailing. Everything sits on a single storey across 2,774 Sq Ft, in an H-shaped single-family layout that measures 66'9" wide and 104'3" deep, with a height of 21'9". Wood and flexible ceramic cladding dress the exterior, while the walls themselves are framed in aerated concrete.

Within the H-shaped footprint, the bedrooms are clustered together, with the master suite on the main floor and a walk-in closet of its own. Five full bathrooms serve the four bedrooms, so busy mornings run without a lineup at the door and overnight guests never have to share. A home office provides a room with a door for calls and paperwork. The utility room takes care of laundry, and dedicated storage absorbs sports gear, luggage and the things each season brings out of the cupboards.

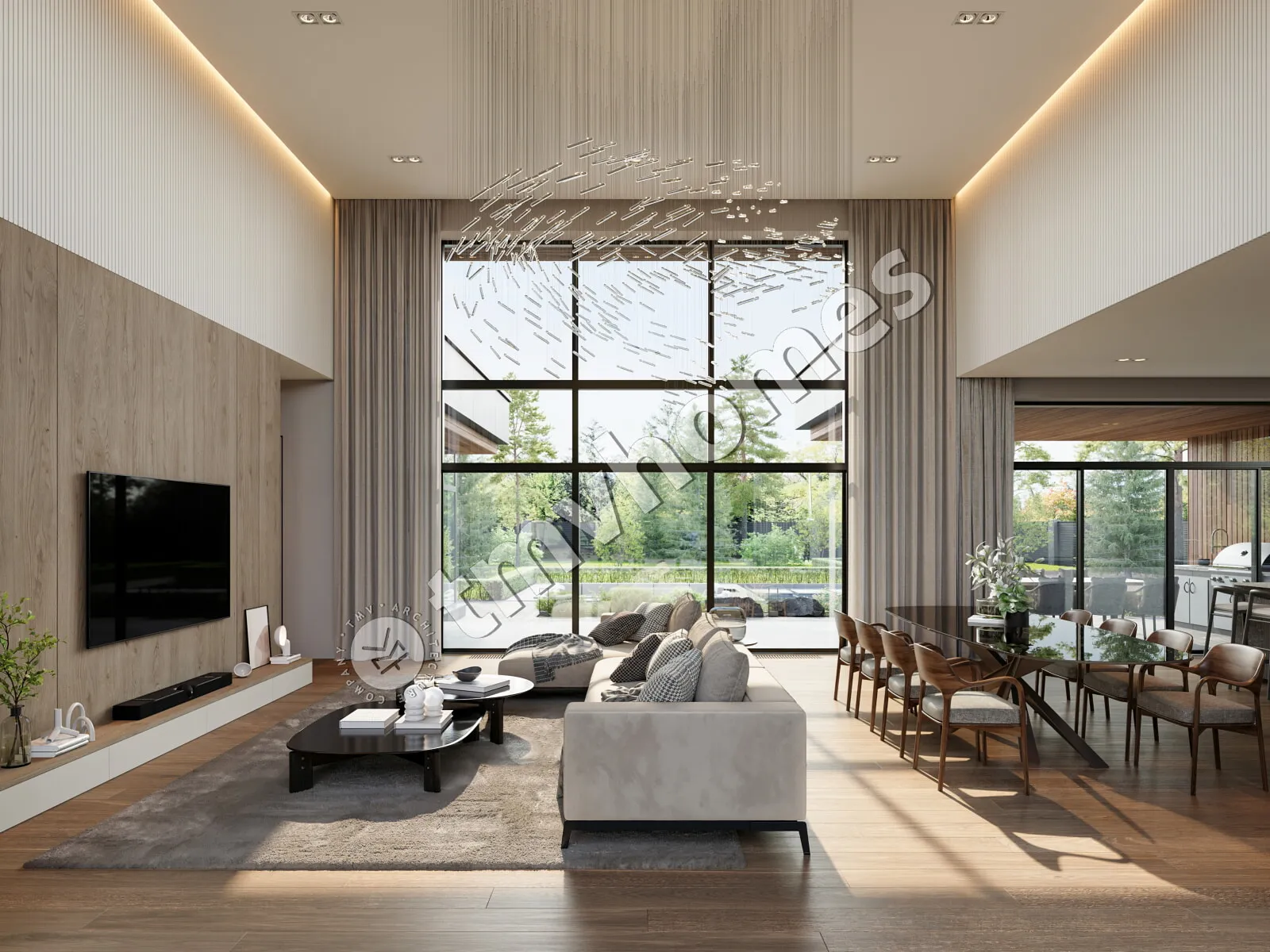

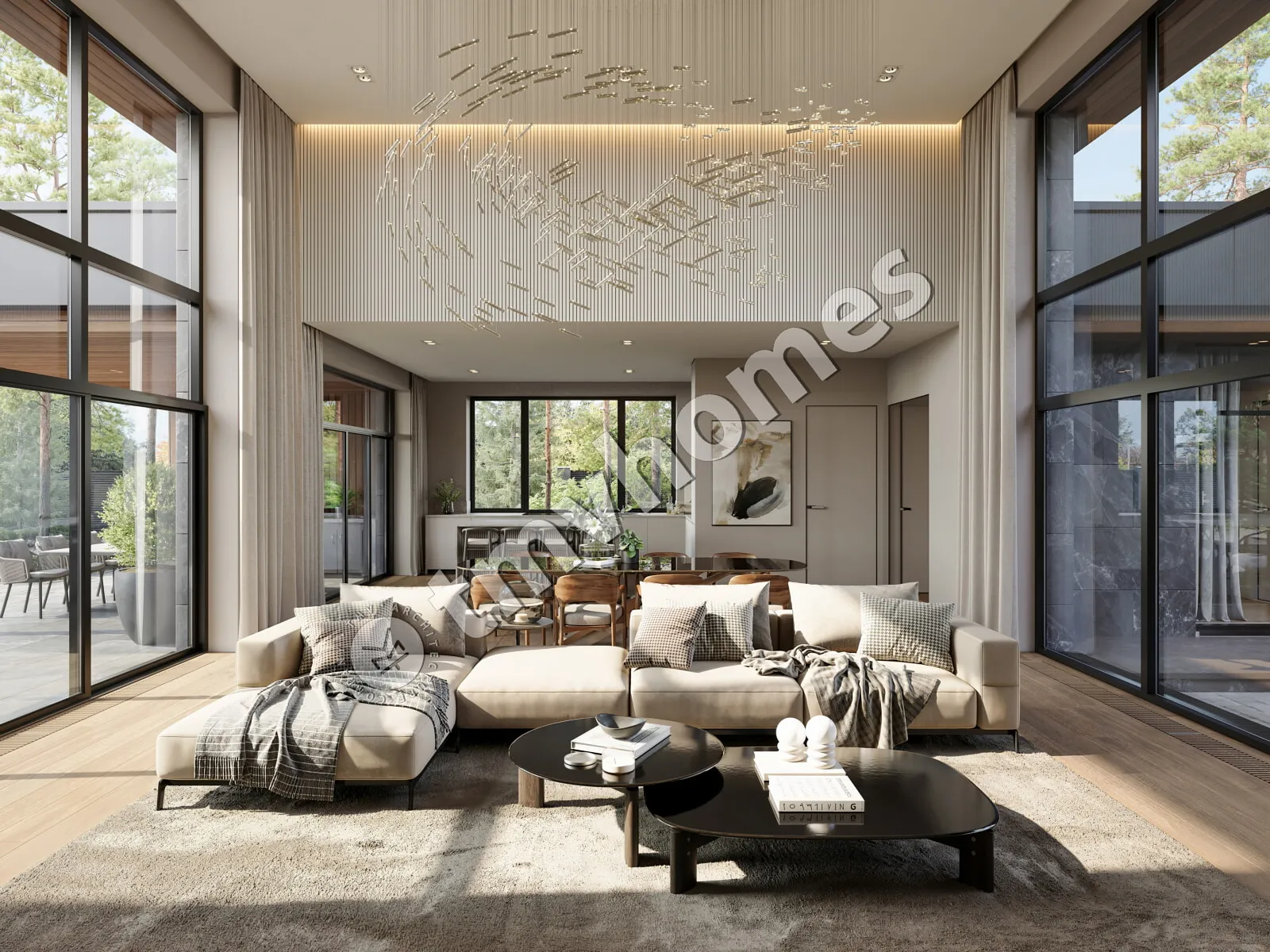

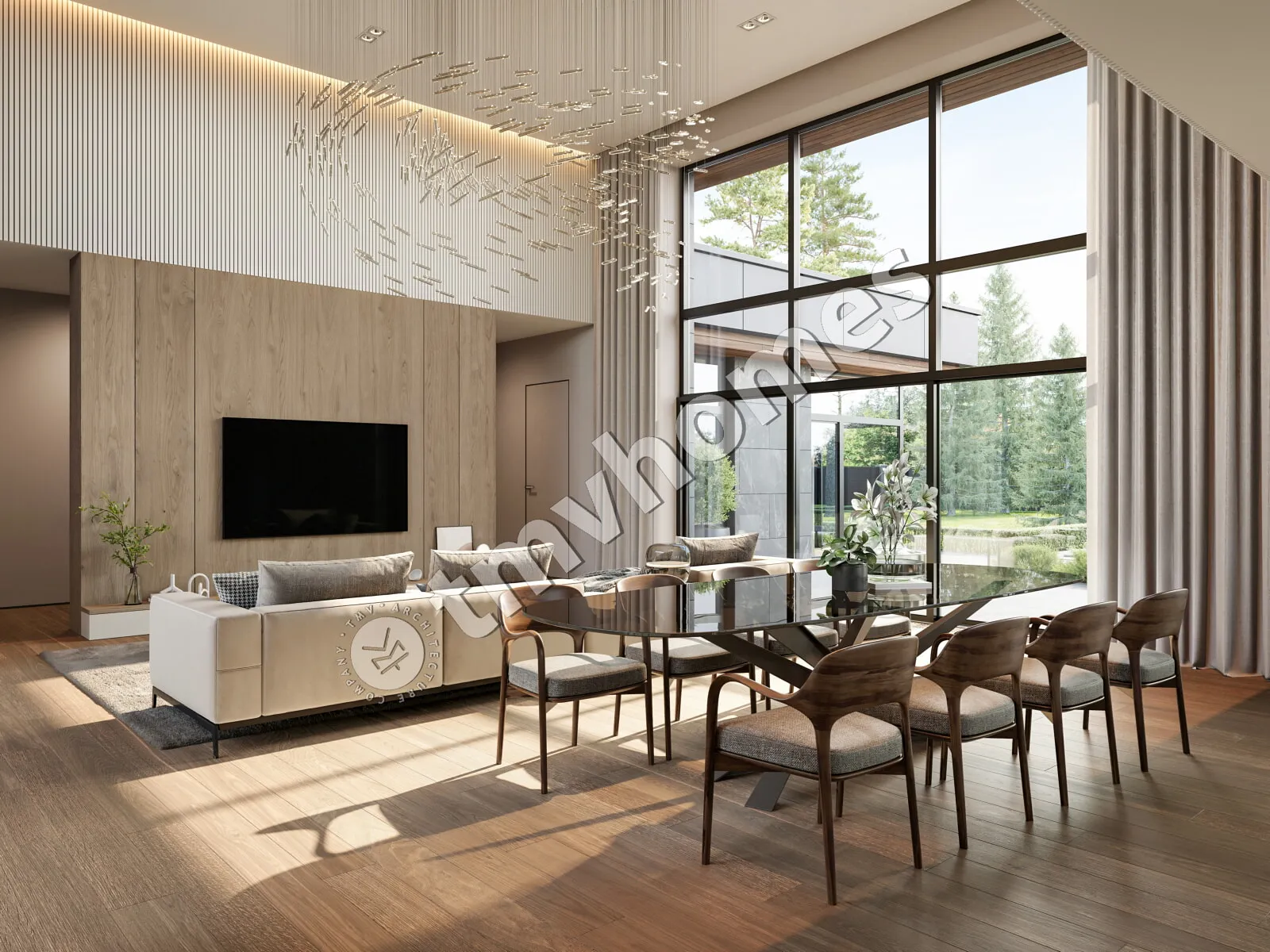

Past the entry, the open concept unfolds. The large family room is open to below, which gives it extra height, and it flows straight into a large kitchen planned for a household that cooks often. A centre island anchors the work area, a breakfast bar handles quick snacks and homework, and a breakfast nook invites the family to linger over coffee on a slow Sunday. Behind the scenes, a walk-in pantry holds bulk groceries and small appliances, leaving the counters clear. Large windows, panoramic glass and floor-to-ceiling panes draw daylight deep into these rooms, and a corner window opens the view in two directions at once.

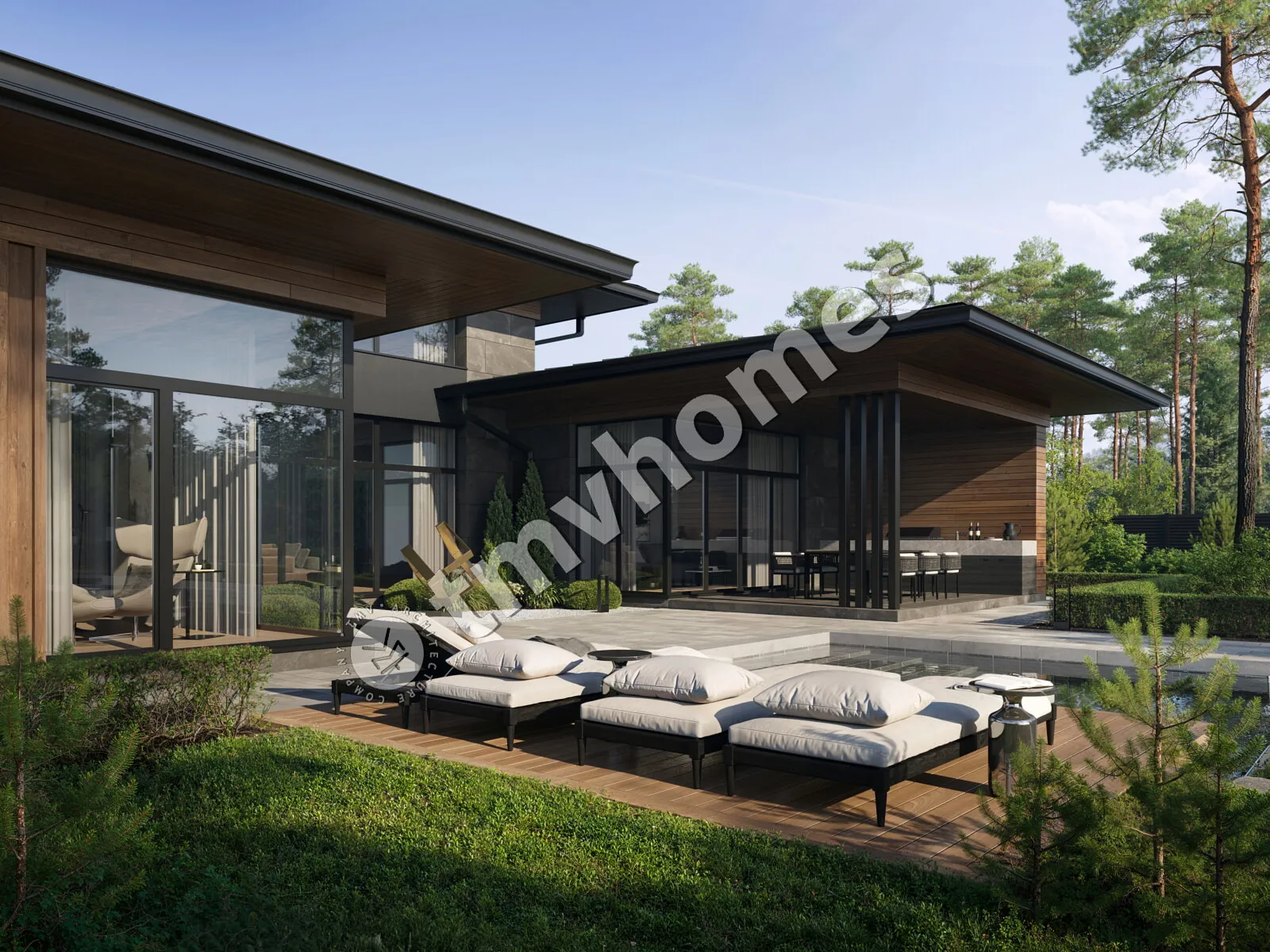

At the back, a covered rear porch becomes a true outdoor room, equipped with an outdoor kitchen for grilling and an outdoor fireplace that keeps the family outside long after sunset. The front-entry garage fits two cars. There is no basement: the house stands on strip footings, with a slab or a concrete block foundation available on request, and calcium silicate block or hollow ceramic block walls offered as alternatives to aerated concrete. For anyone comparing house plans Canada for a spacious 1-storey home design with a home office, generous glazing and real outdoor living, this plan brings all of it together on one level.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2850
