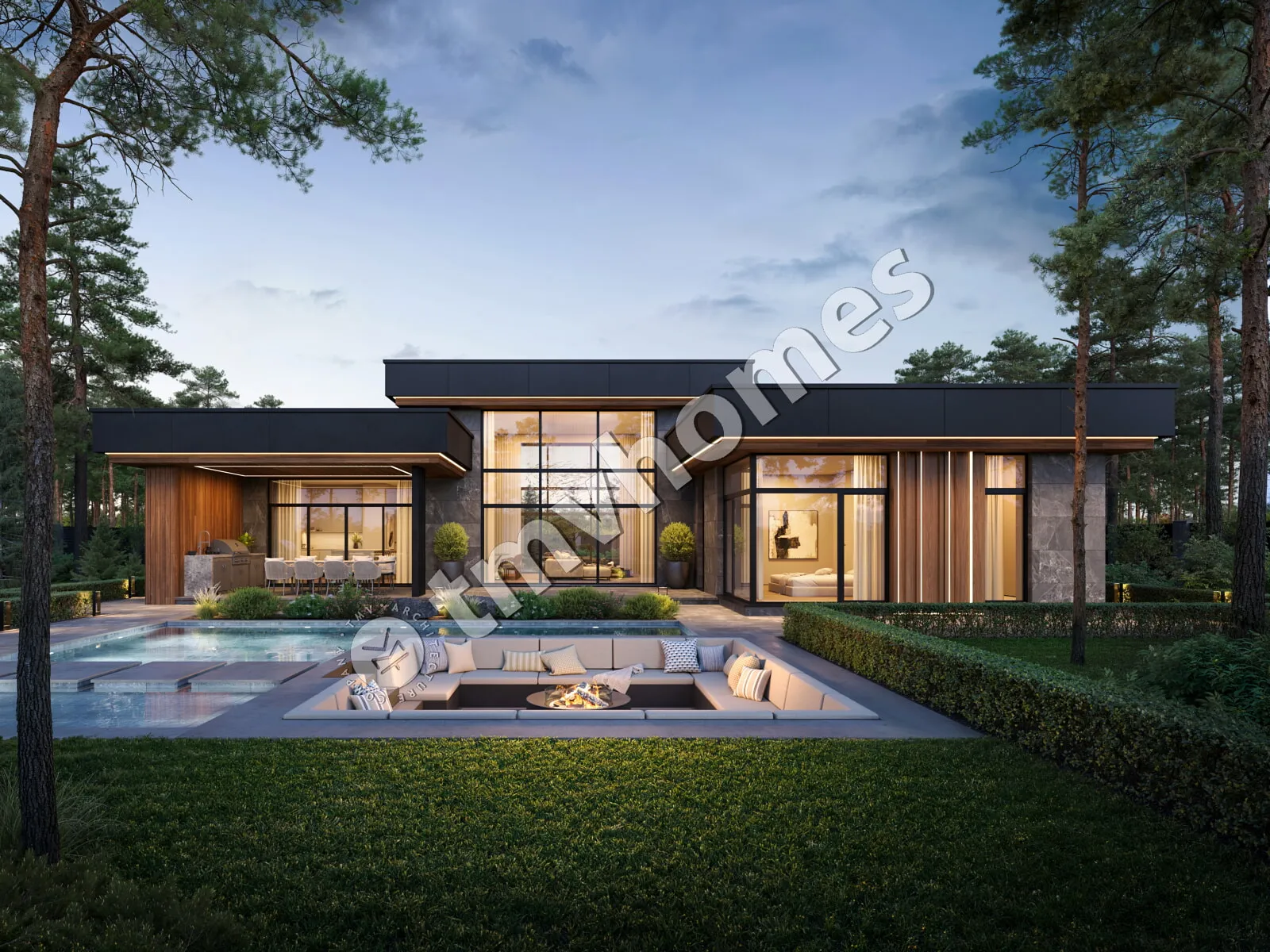

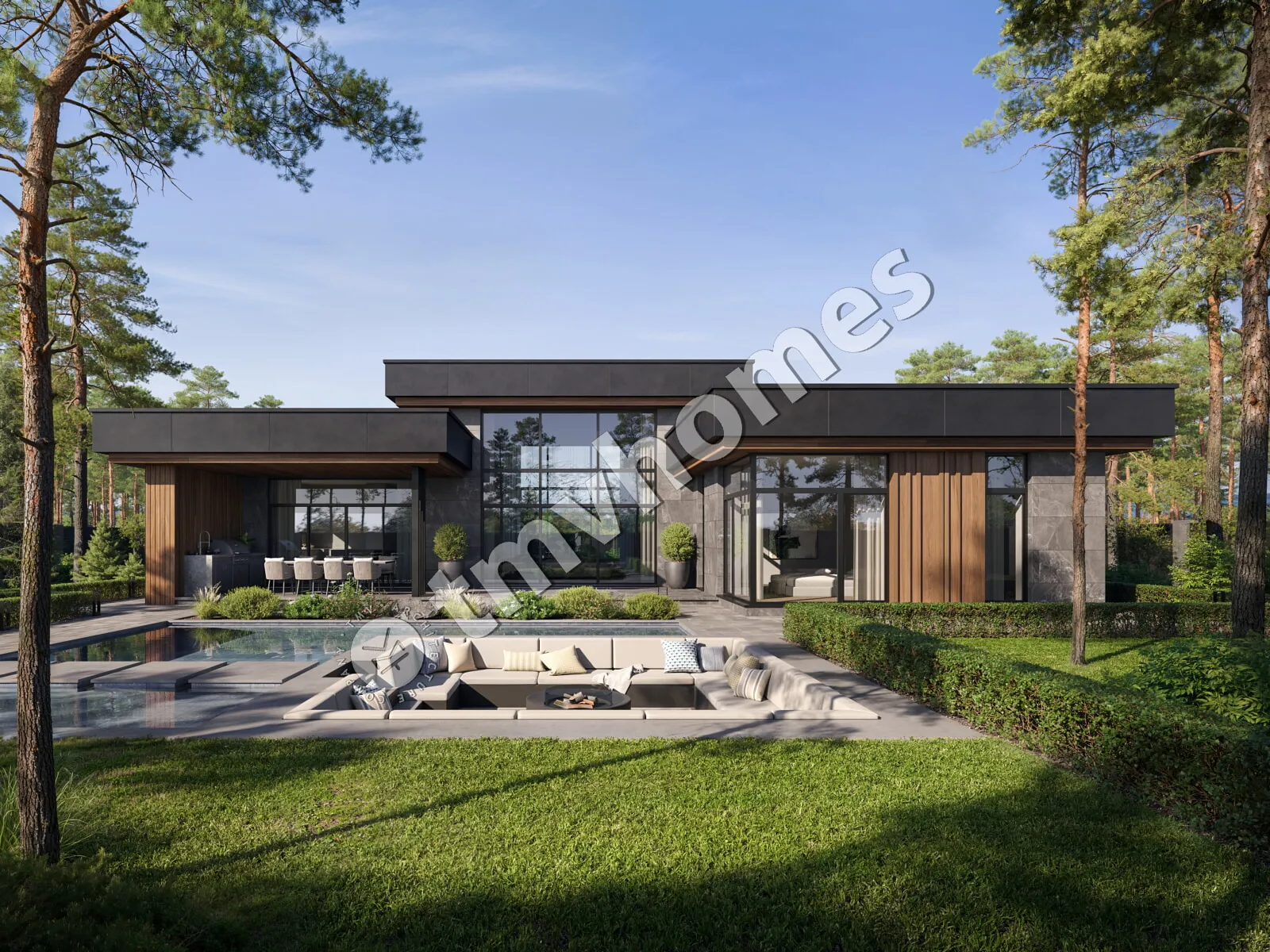

Renderings 2 – 2,231 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 15823C
Renderings 3 – 2,231 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 15823C Renderings 4 – 2,231 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 15823C
10
Concept
Construction documents are prepared for the following countries:

2,231 Sq Ft Prairie U-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
15823C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2231
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

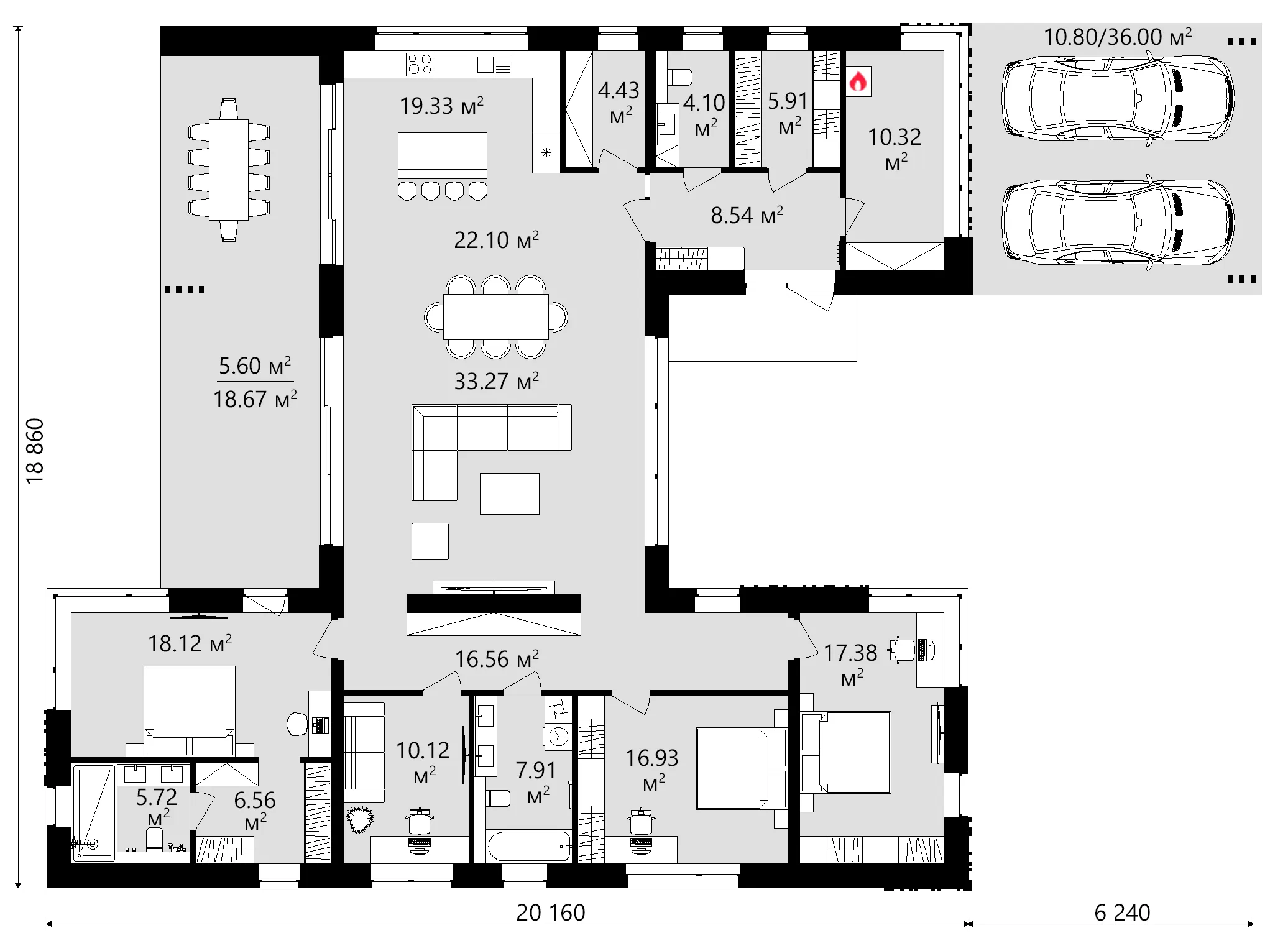

Main Floor
Main Floor 15 – 2,231 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 15823C
Second Floor
Second Floor 16 – 2,231 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 15823C
Full Specs & Features
Area
Total Heated: 2231.36 ft²
Dimensions
Depth: 80'5" ft
Width: 57'5" ft
Height: 17'7" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Tiles
Panels
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast bar
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
California Style
Contemporary
Florida Style
Luxury
Modern
Prairie
Roof
Roof Area: 3827.86 ft²
Flat

Designed as a 3-bedroom bungalow house plan, Plan 15823C offers 2,231 Sq Ft of 1-storey living under a flat roof, with a modern silhouette shaped by Prairie, California Style and Contemporary influences. Its U-shaped and H-shaped layout spreads the home across 57'5" wide and 80'5" deep, rising to a height of 17'7". Wood, tiles and panels clad the exterior walls, which are framed in aerated concrete, and ceramic hollow block or calcium silicate block can be chosen instead on request. Touches of Florida Style and high-tech detailing give this single family residence a luxury character that sets it apart among house plans Canada buyers compare for contemporary architecture.

The sleeping rooms are grouped in their own part of the house. The master suite sits on the main floor next to the other two bedrooms, and this clustered arrangement gives the night zone a calm of its own, well away from the daily activity of the living areas. With three full bathrooms, there is rarely a queue in the morning, and visiting relatives get comfortable facilities without sharing with the whole family. A walk-in closet takes care of wardrobes, a home office provides a door to close during video calls or exam preparation, and the utility room keeps laundry and cleaning gear out of the shared spaces.

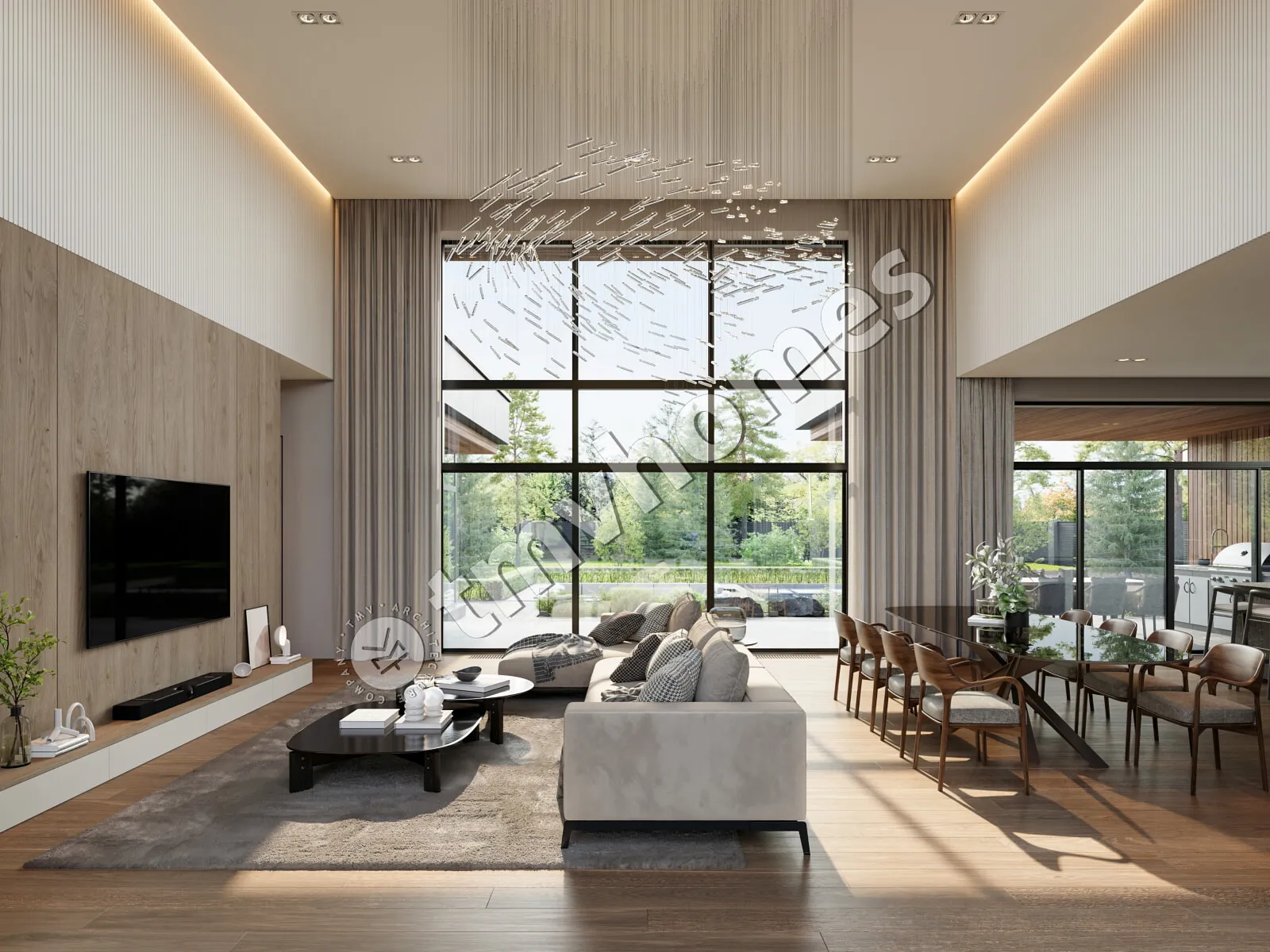

Past the entry, an open floor plan joins the large family room and the large kitchen in one continuous space. Floor-to-ceiling windows, panoramic windows and a corner window pull daylight across the room, and late in the day the low sun reaches far across the floor. The kitchen centres on an island, while a breakfast bar handles quick meals and casual chats, so whoever is cooking stays part of the conversation. Large windows throughout keep the day zone bright, with few walls to interrupt the sightlines from one end to the other.

Outside, a 2-car carport shelters the vehicles within the same clean, flat-roofed lines as the house. A covered rear porch extends the living space outdoors for long summer suppers and shaded reading in the afternoon. The home rests on strip footings, with a slab or a concrete block foundation also available, and there is no basement. For a family looking for a modern bungalow with generous glazing, a clear split between day and night areas and every room on one level, this home design brings refined architecture and easy everyday living together.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2387
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
