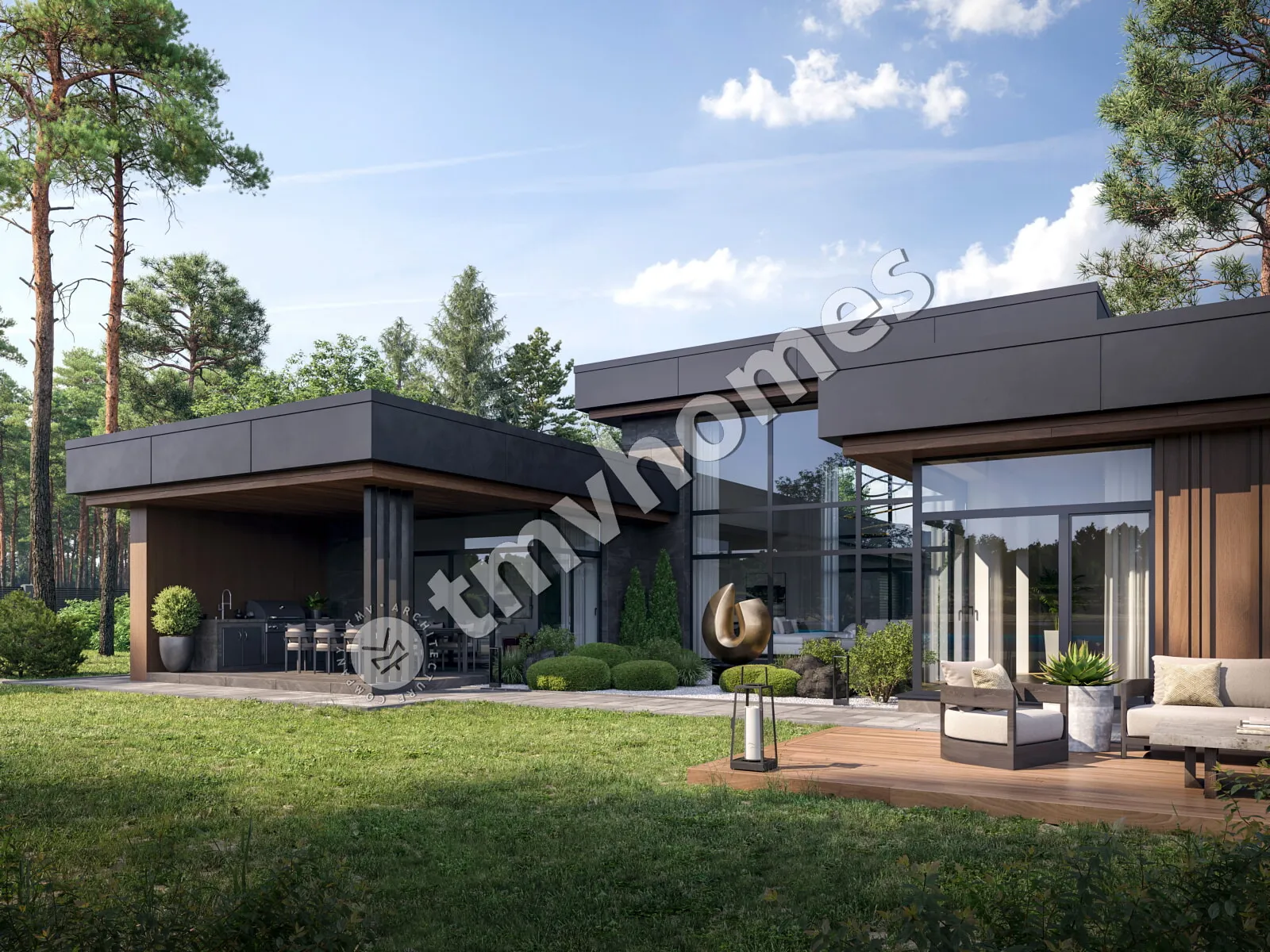

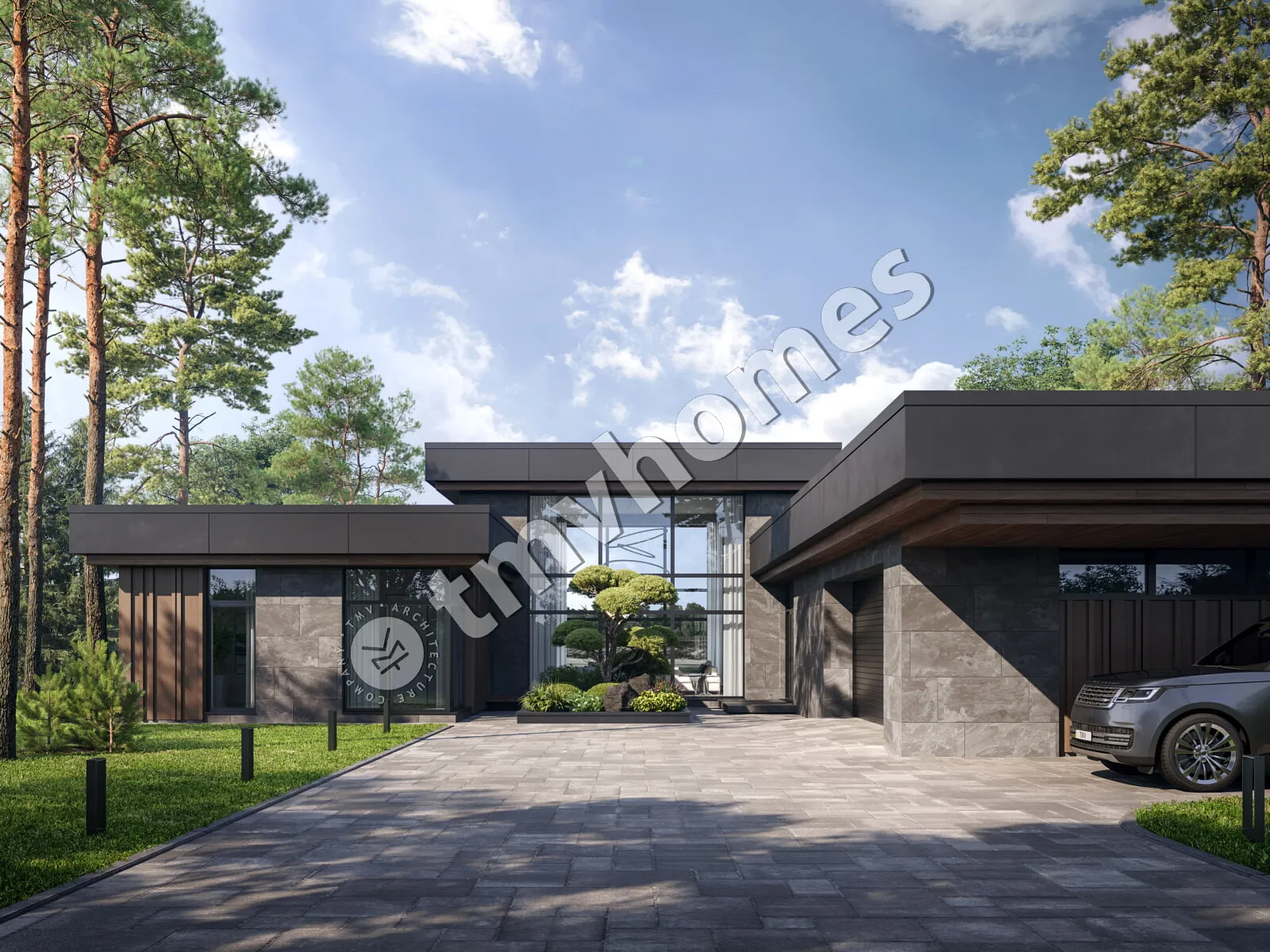

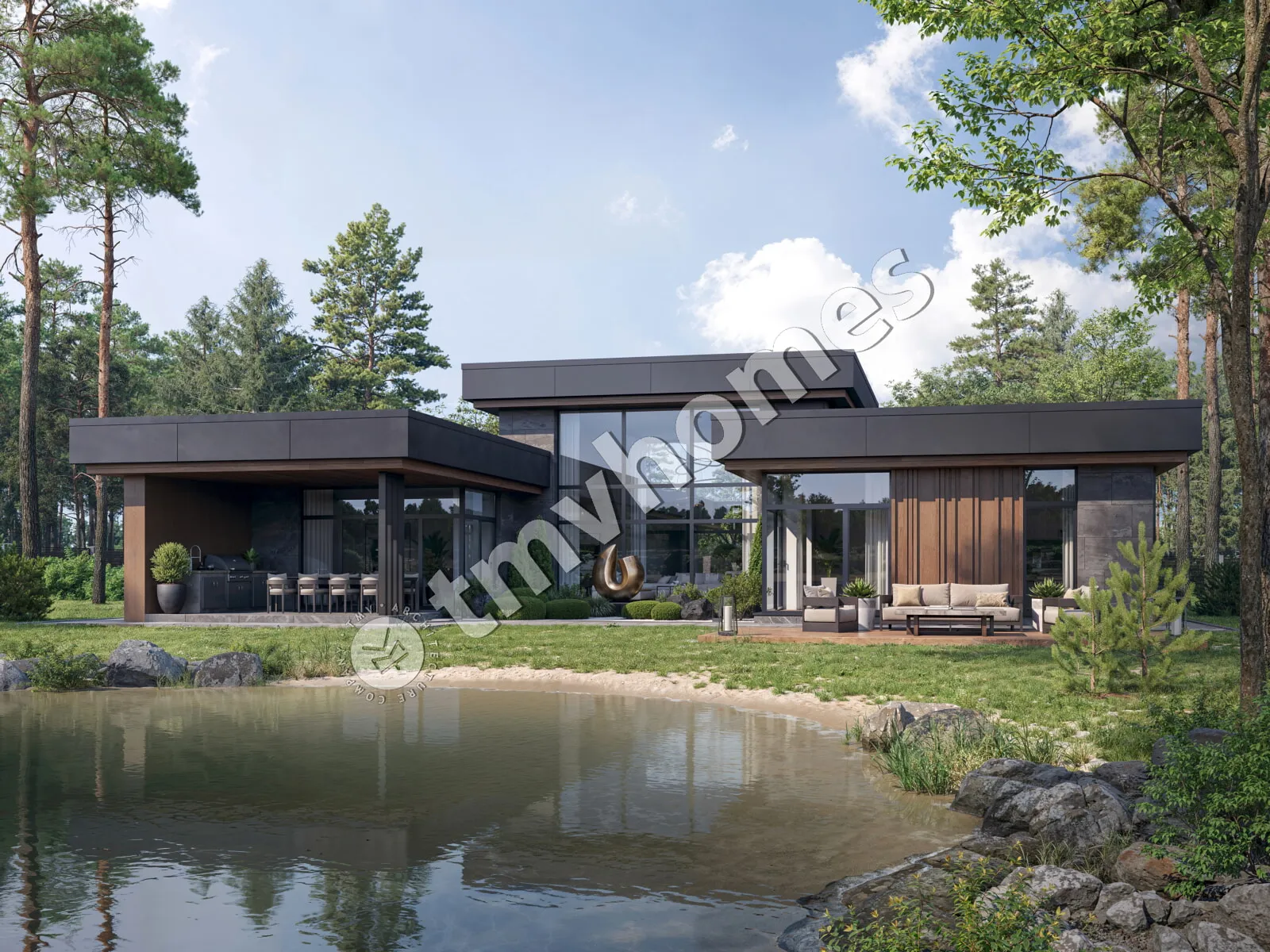

Renderings 3 – 2,633 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 11806C
Renderings 7 – 2,633 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 11806C Renderings 12 – 2,633 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 11806C
11
Concept
Construction documents are prepared for the following countries:

2,633 Sq Ft Modern H-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
11806C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2633
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

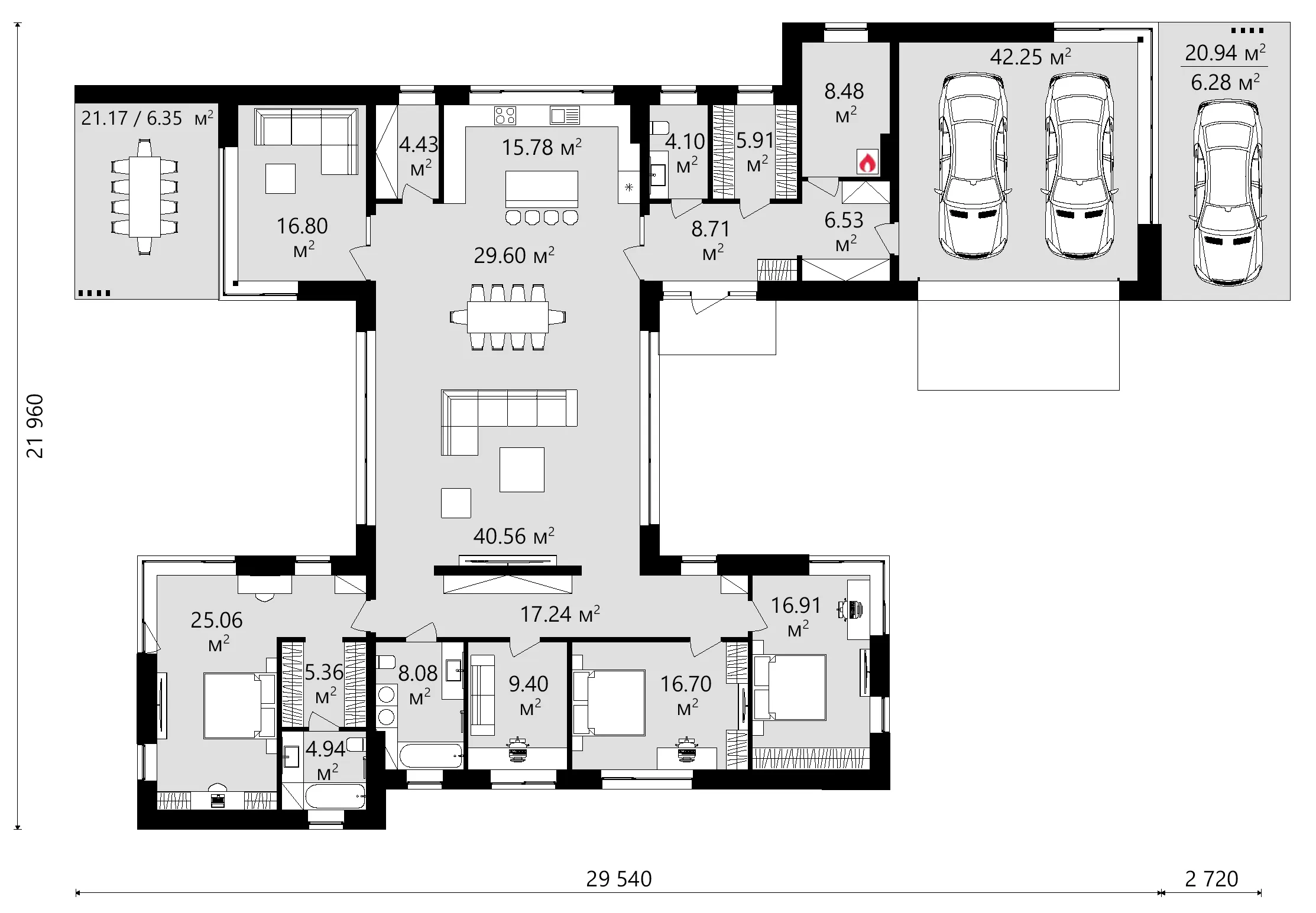

Floor Plans
Main Floor
Main Floor 10 – 2,633 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 11806C
Full Specs & Features
Area
Total Unheated: 454.78 ft²
Total Heated: 2632.74 ft²
Dimensions
Depth: 98'5" ft
Width: 66'9" ft
Height: 19'2" ft
Garage
Area: 455 ft²
Cars: 2
Carport
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Panels
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Bonus/Flex Room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Corner Window
Panoramic Windows
Window Walls
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern

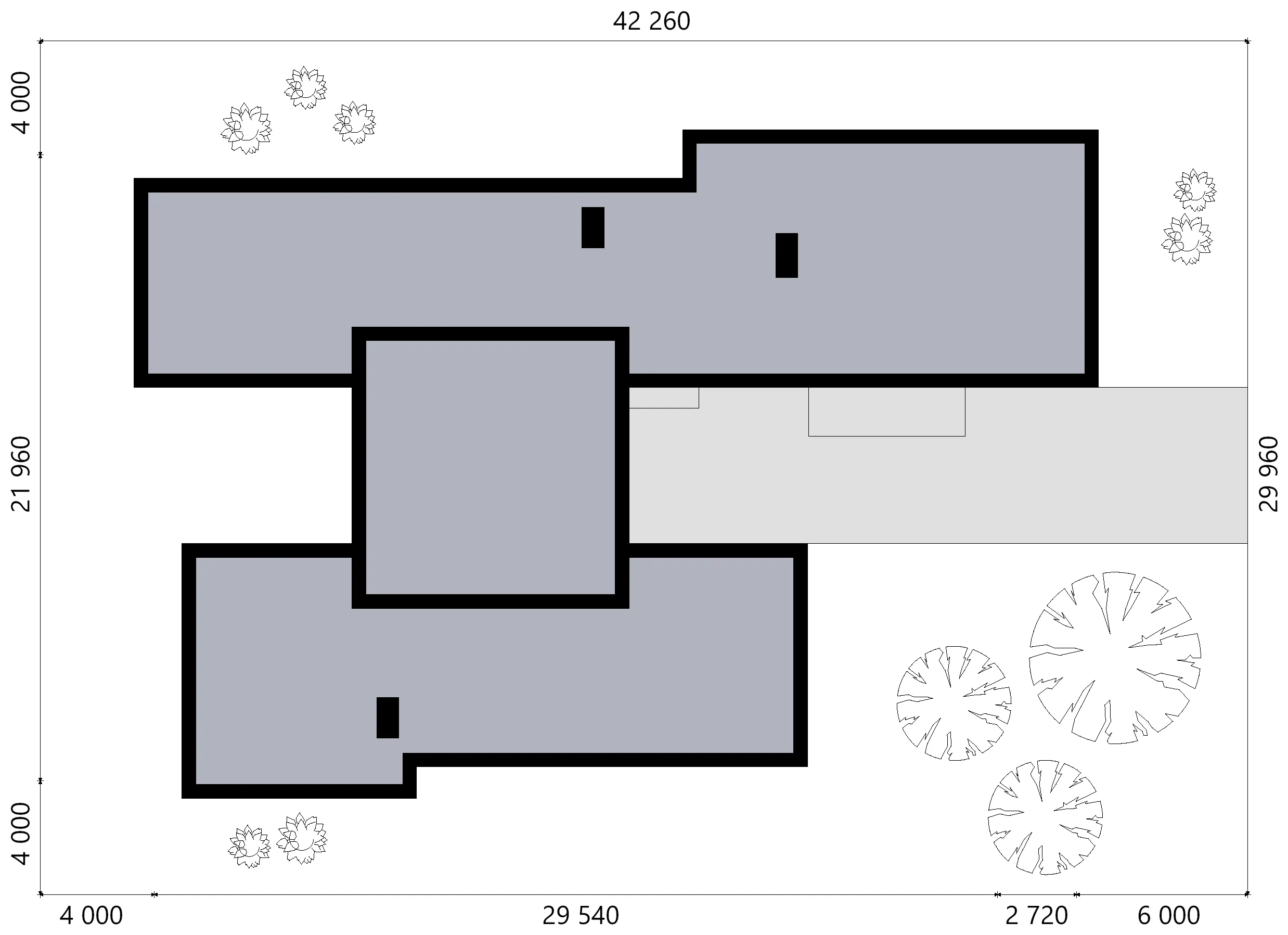

Roof
Roof Area: 4800.70 ft²
Flat

Designed as a 3-bedroom bungalow house plan, 11806C places 2,633 Sq Ft on a single storey beneath a flat roof, wrapped in a contemporary, high-tech design with clean modern lines. Its H-shaped layout measures 66'9" wide and 98'5" deep and rises to a height of 19'2", a form that gives this single family home clearly defined wings. Wood, panels and flexible ceramic dress the facades, while the exterior walls are built of aerated concrete; framing in ceramic hollow block or sand-lime block can be requested instead.

Privacy begins in the bedroom wing. All three bedrooms are grouped in one cluster, and the master suite sits on the main floor with a walk-in closet of its own. Three full bathrooms serve the household comfortably, so guests and family members each have easy access to a bath. A home office sets work apart from the rest of the day, and a bonus/flex room adapts to hobbies, exercise or visiting relatives. Close to the entry, laundry on the main floor, a utility room and dedicated storage keep coats, linens and household supplies organized without a single flight of stairs.

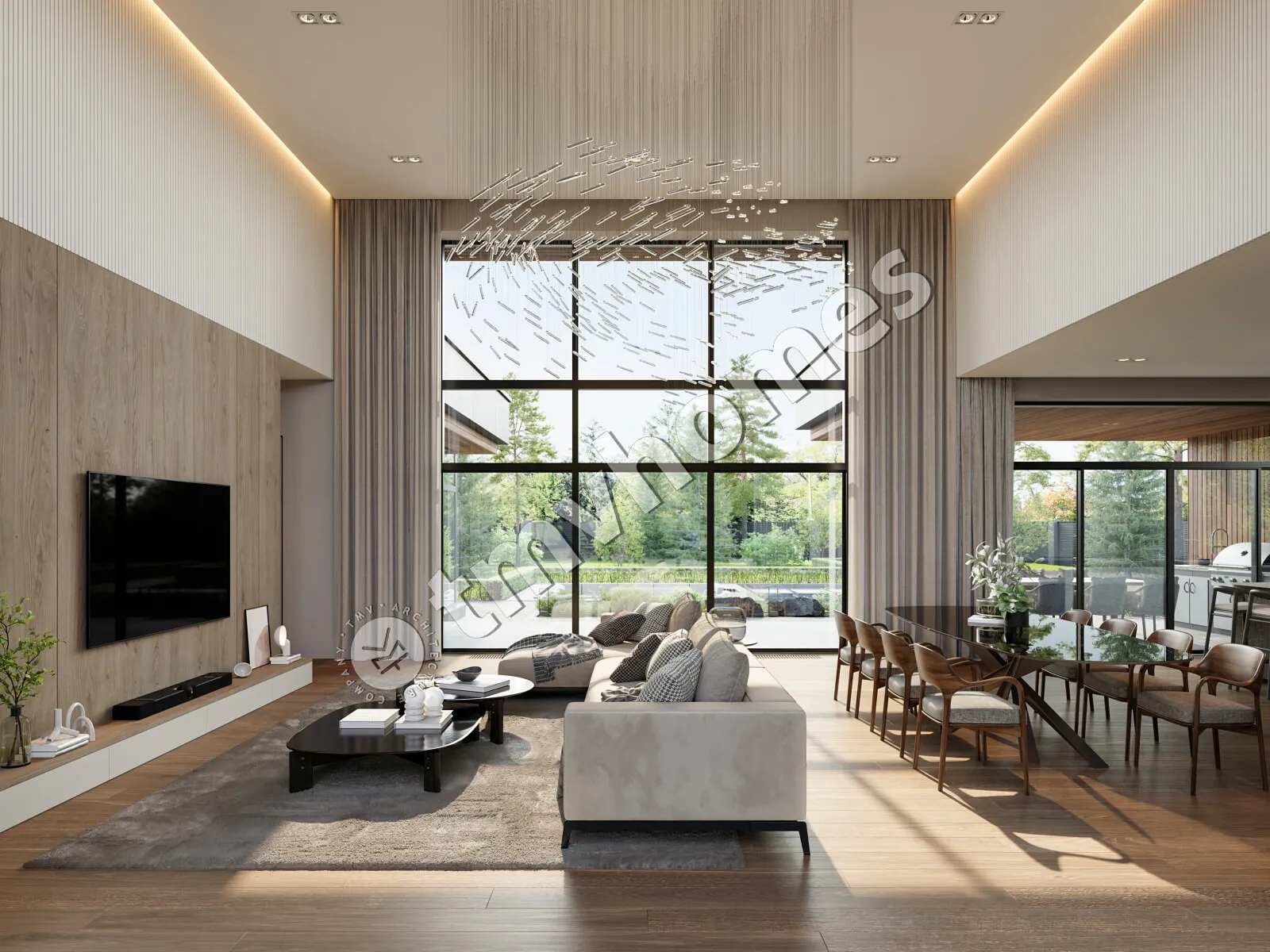

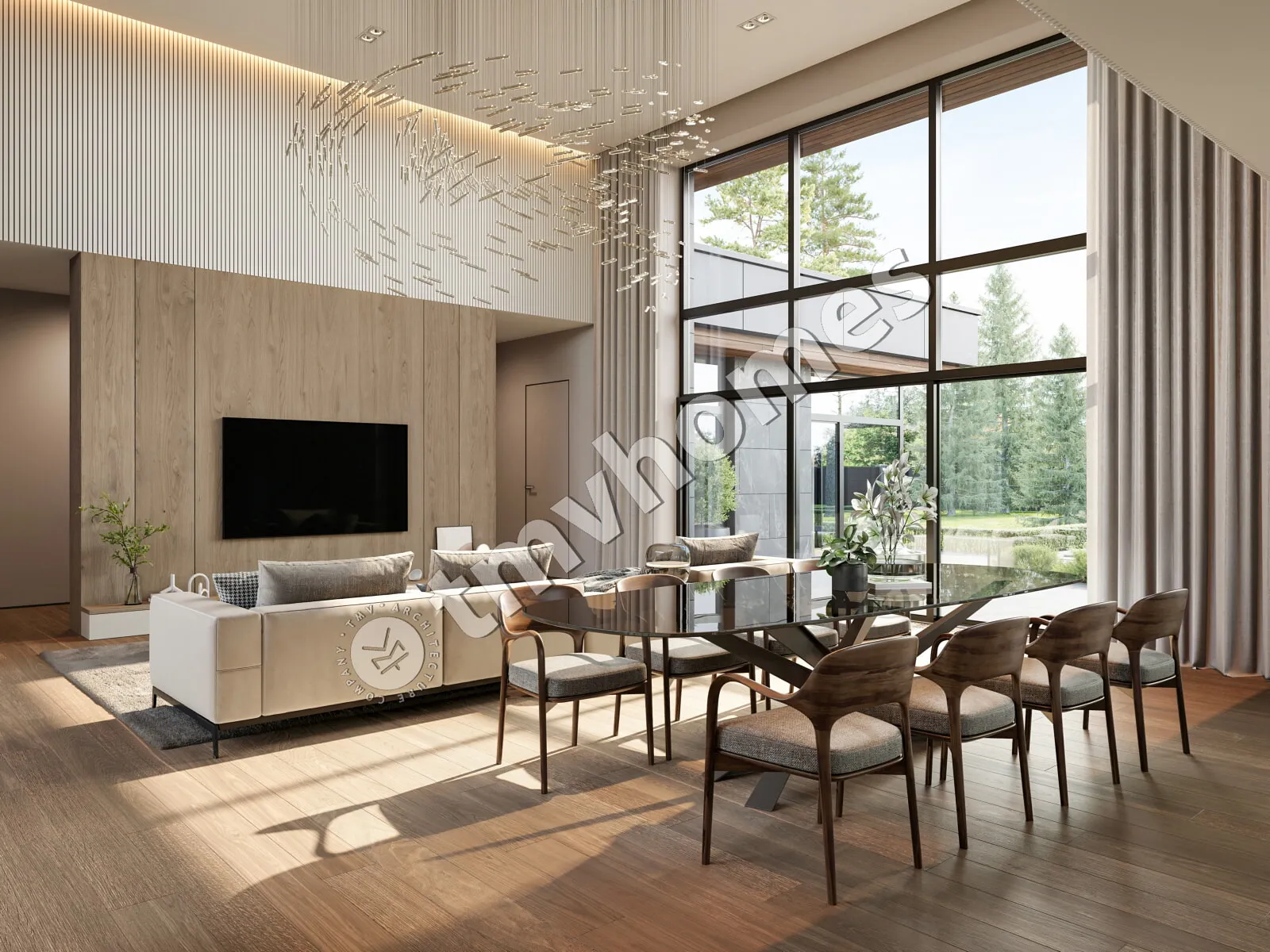

At the centre of this 1-storey home design, an open floor plan unites a large family room with a large kitchen. The island anchors the workspace and gives everyone a place to perch while dinner comes together. For casual meals there is a breakfast nook, and the walk-in pantry holds bulk groceries and small appliances out of view. Window walls and floor-to-ceiling glass frame the outdoors from the open concept living area, while a corner window opens the view in two directions at once. On long summer evenings, daylight lingers across these shared rooms well after supper.

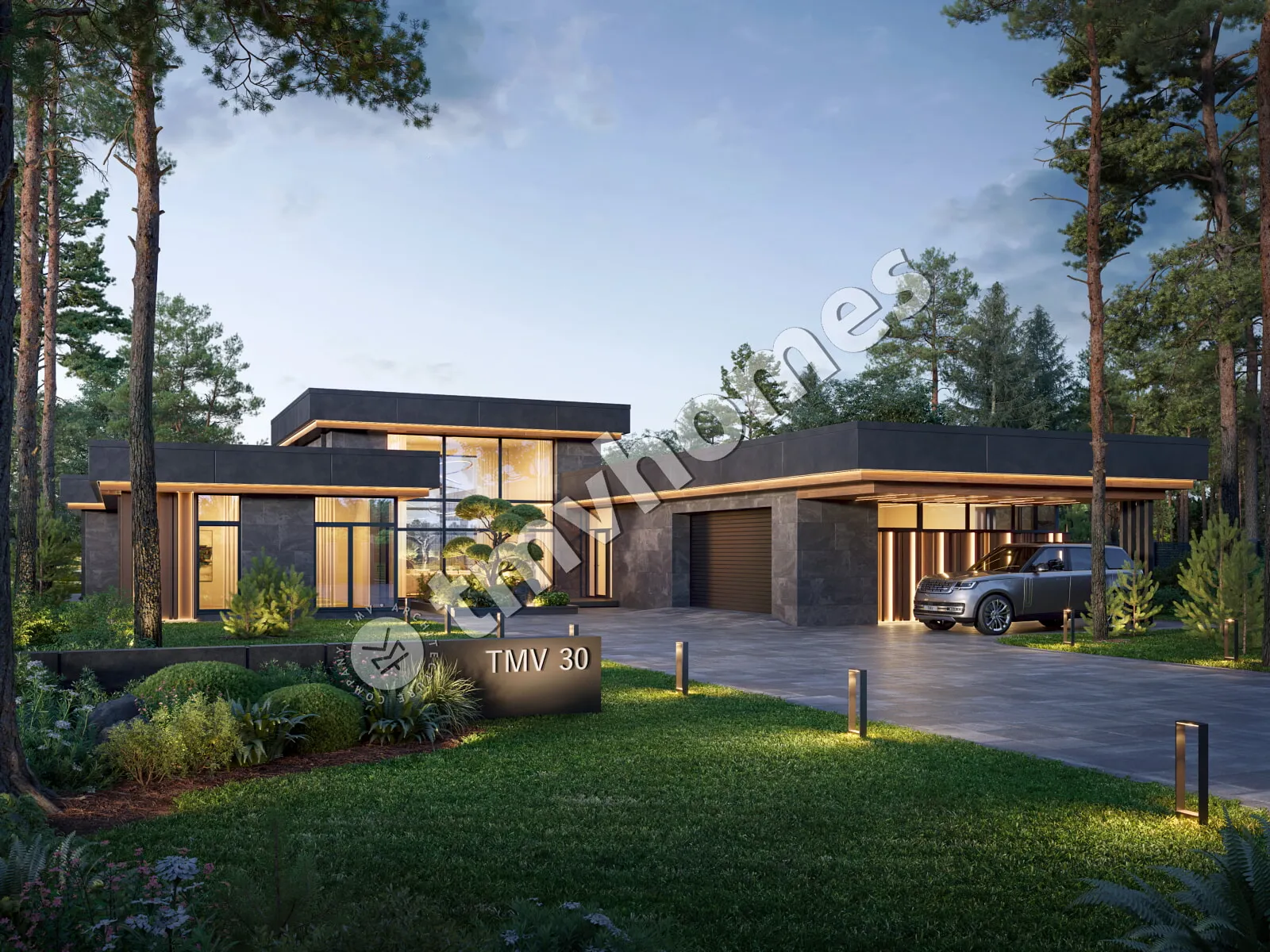

Outside, a two-car front-entry carport provides covered parking, and a covered side porch offers a sheltered spot to sit outdoors in any season. Panoramic windows and large windows across the elevations carry the modern character around the whole house. The home rests on strip footings with no basement, and slab or concrete block foundations are available as alternatives. For families comparing house plans Canada for a modern bungalow that keeps bright, flexible rooms on one level, plan 11806C offers a confident, well-organized choice.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
