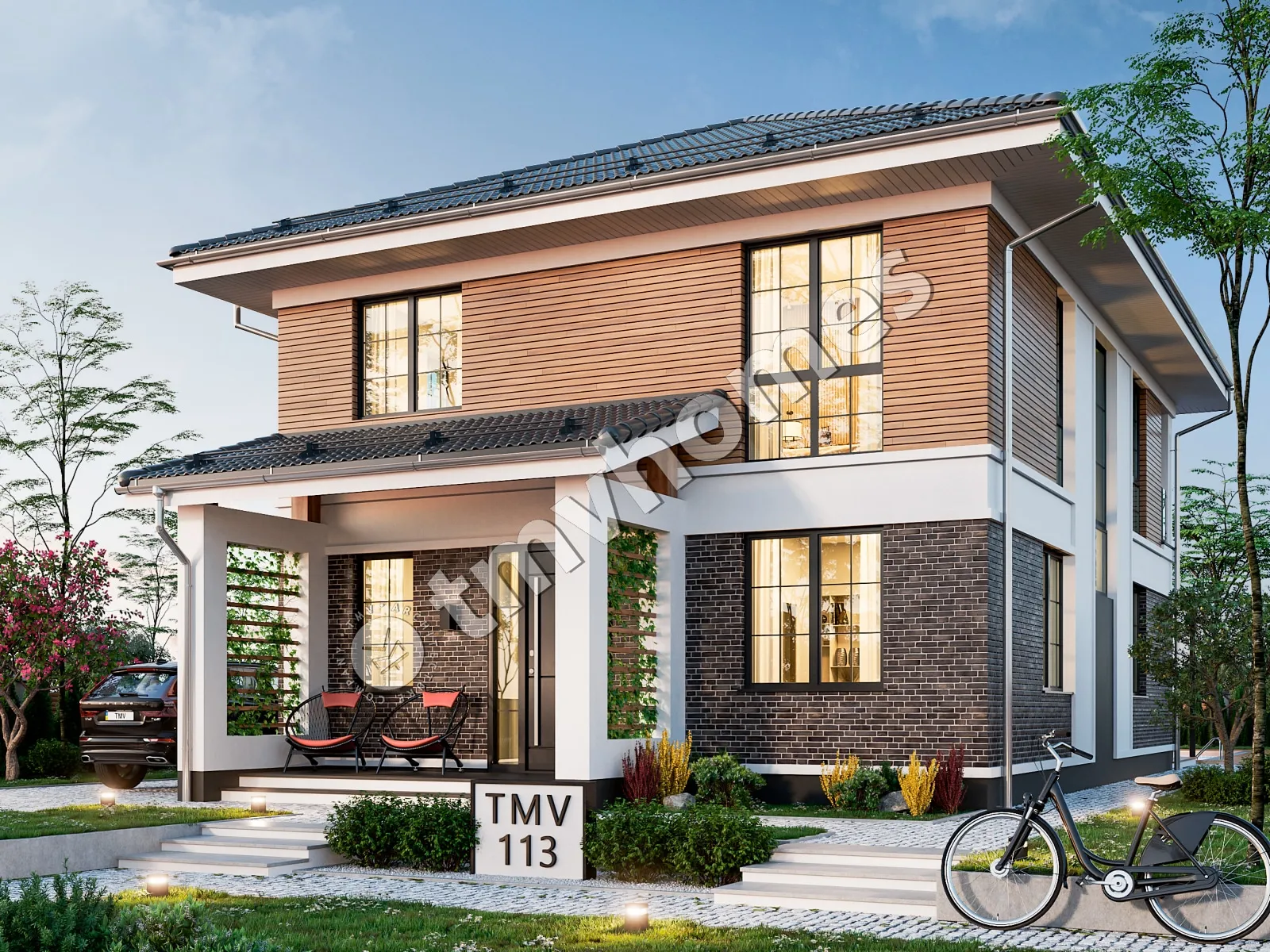

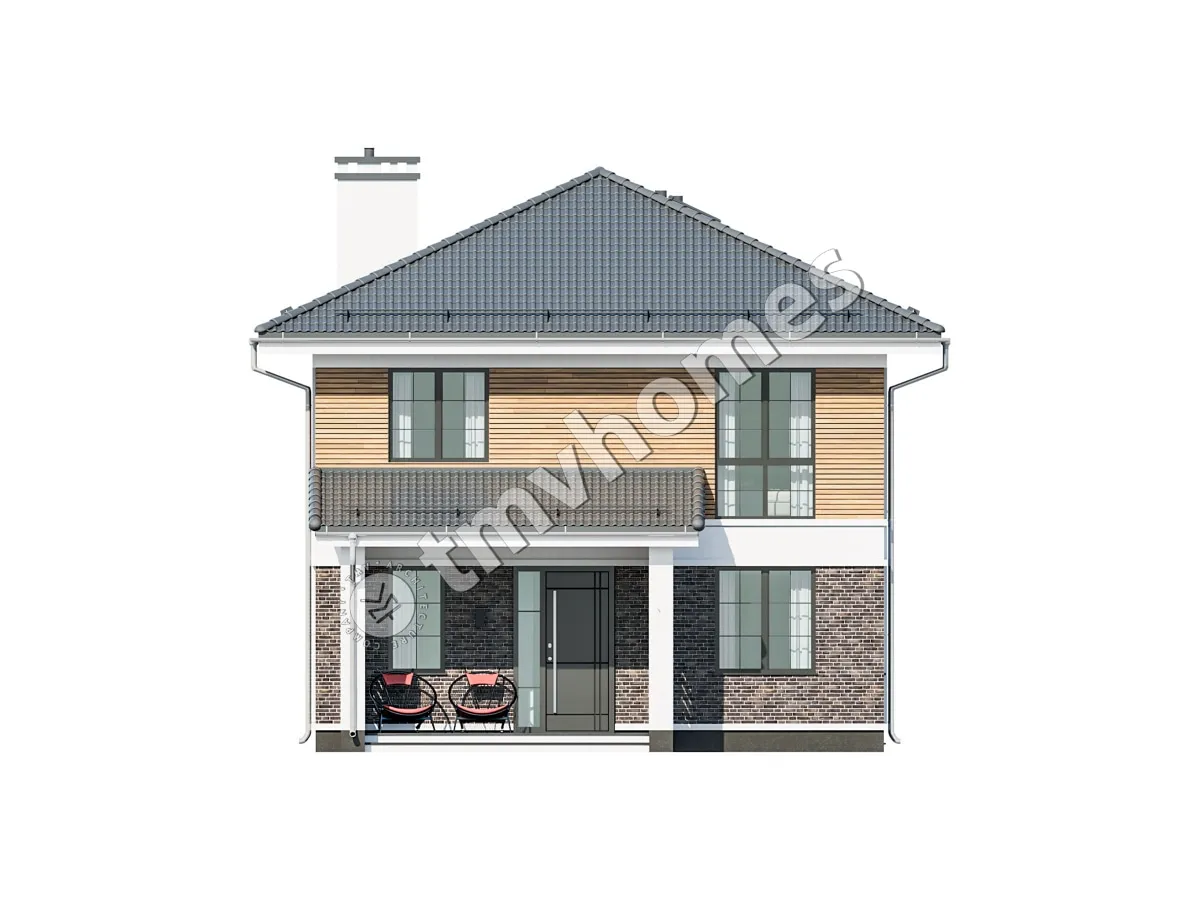

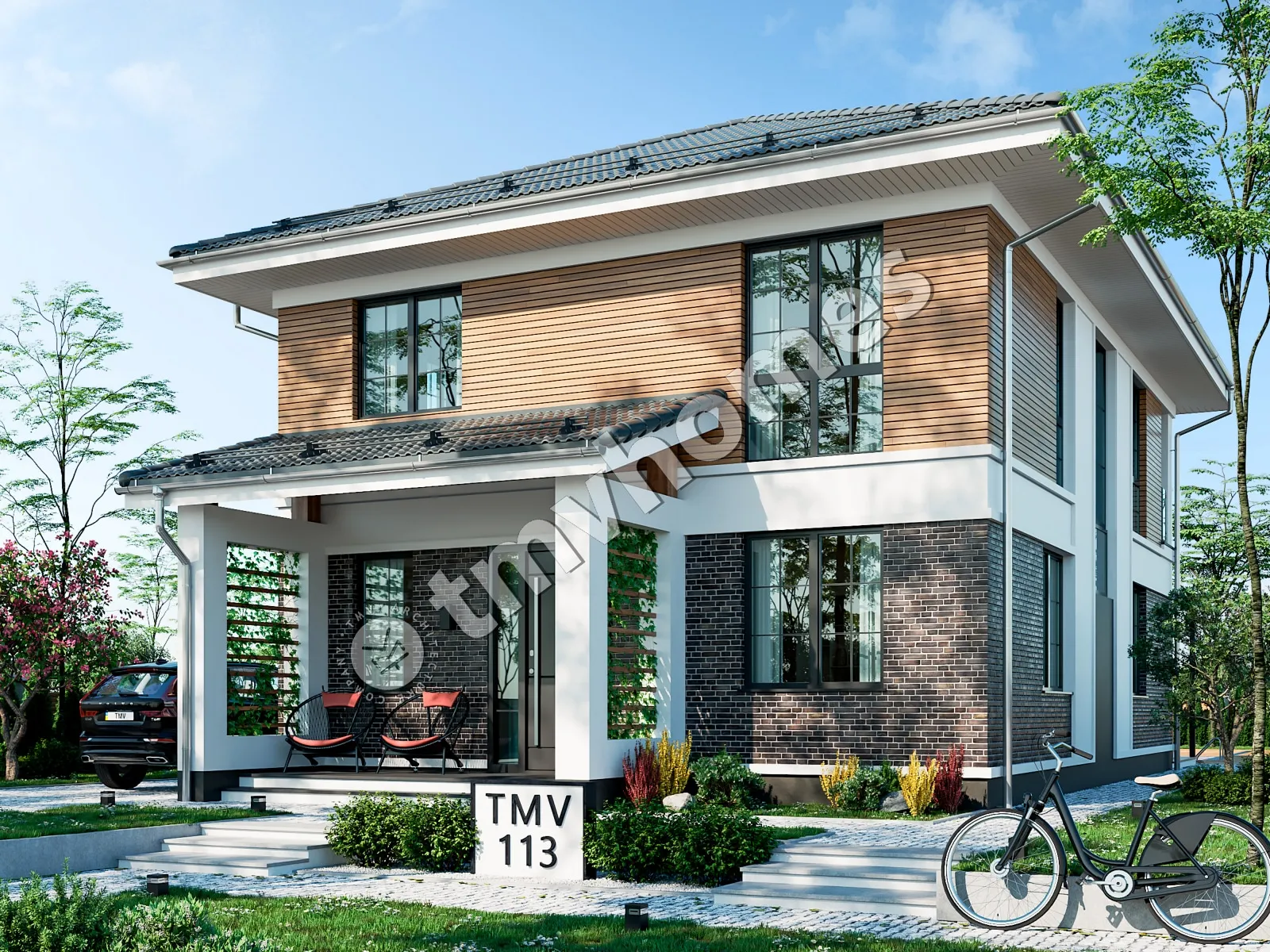

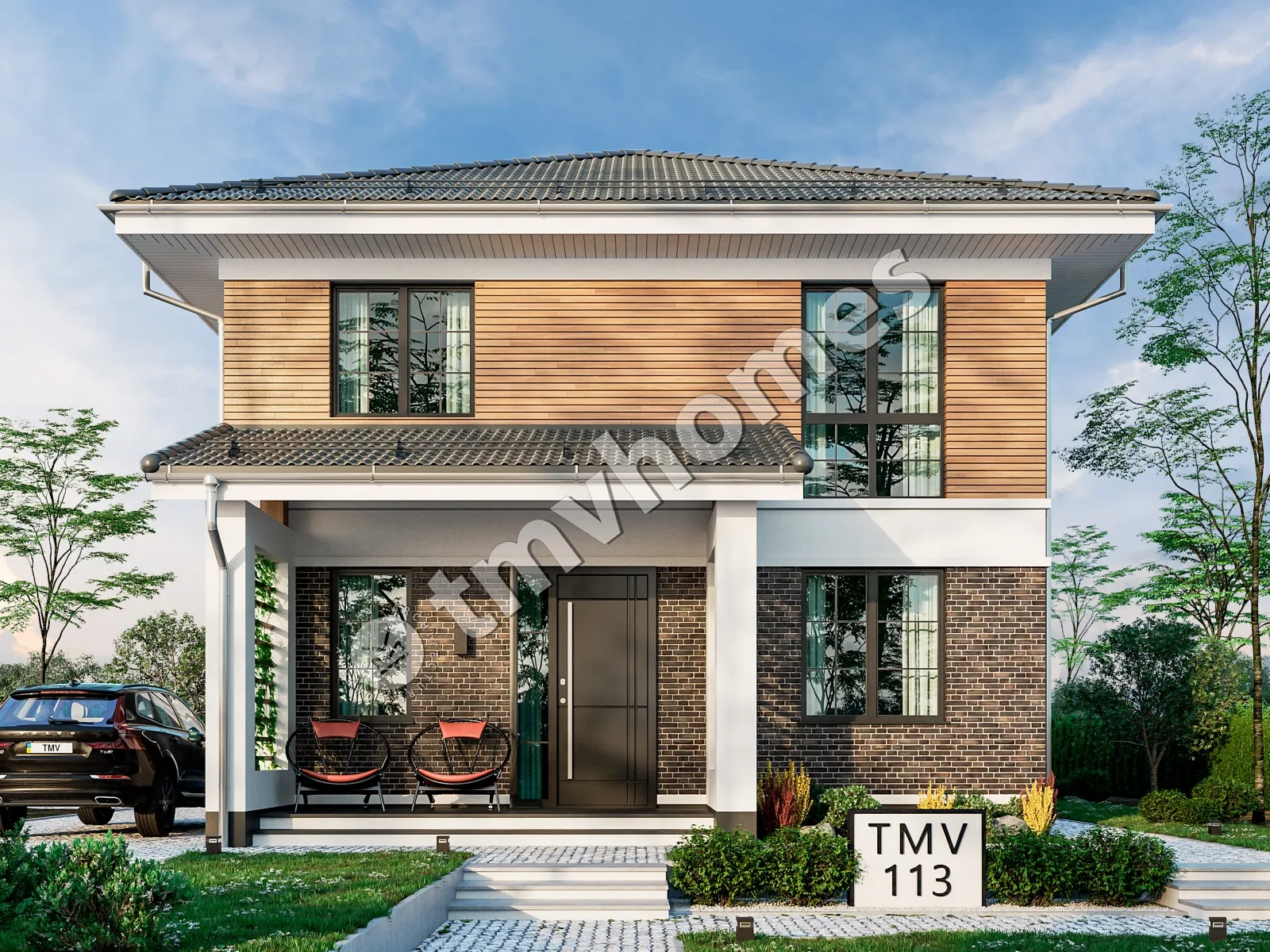

Renderings 2 – 2-Story House Plan 1958 ft², 5 Beds — 89804C
Renderings 3 – 2-Story House Plan 1958 ft², 5 Beds — 89804C Renderings 4 – 2-Story House Plan 1958 ft², 5 Beds — 89804C
12
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 1958 ft²: 5 Beds, 2 Baths, Open Floor Plan, without Garage

Plan
89804C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1958
Total Heated ft²
2 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

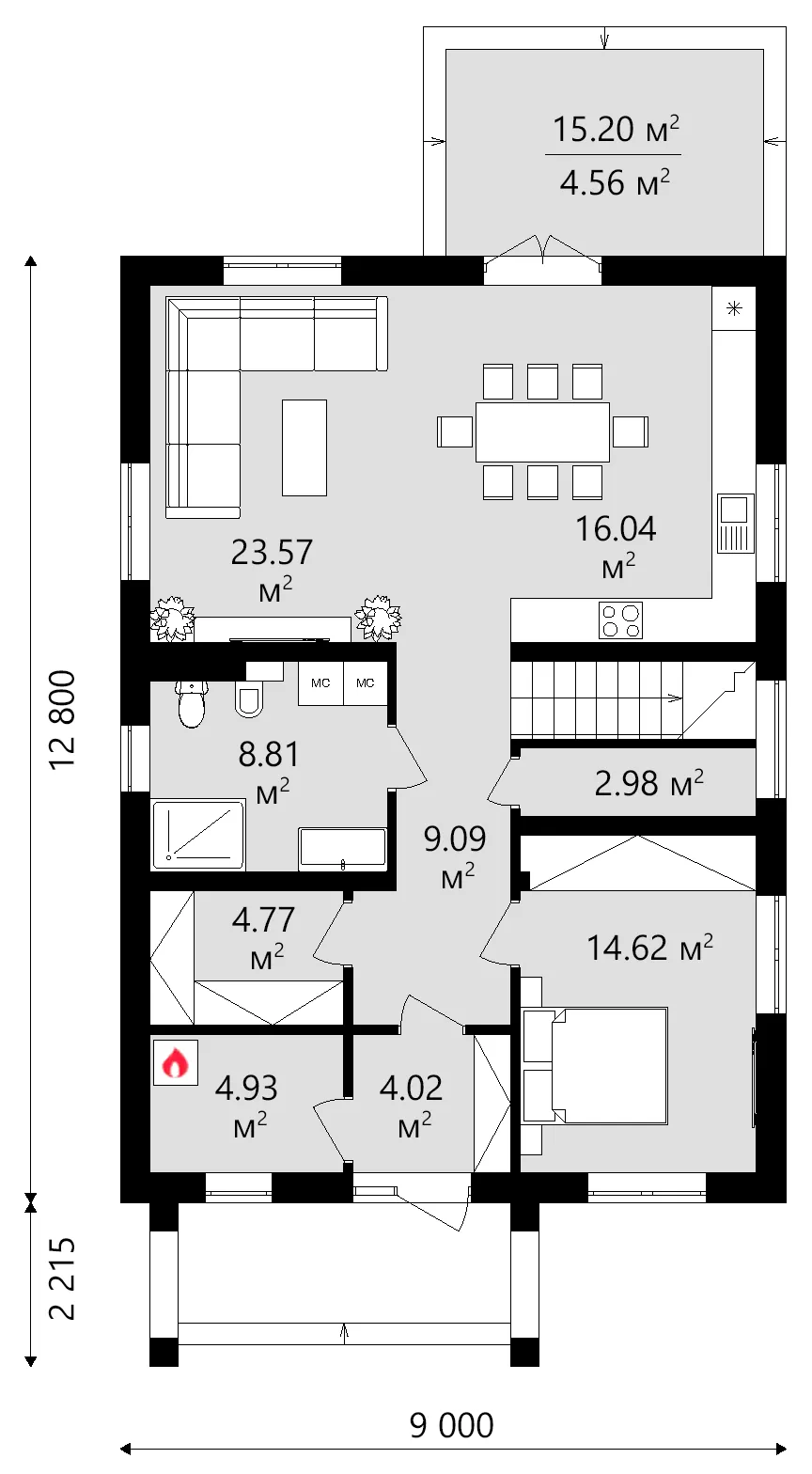

Main Floor
Main Floor 17 – 2-Story House Plan 1958 ft², 5 Beds — 89804C

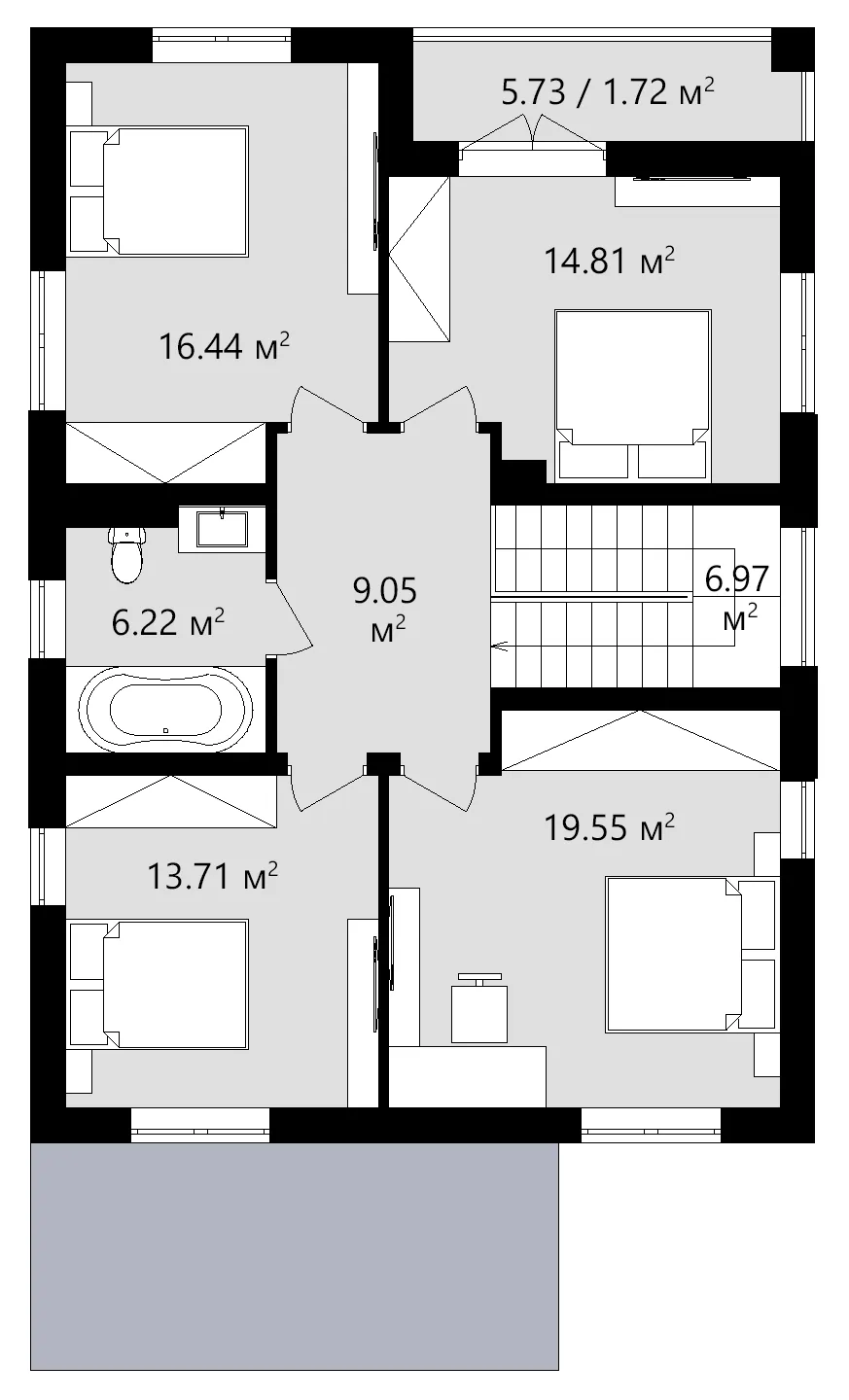

Second Floor
Second Floor 18 – 2-Story House Plan 1958 ft², 5 Beds — 89804C
Full Specs & Features
Area
Total Heated: 1957.52 ft²
Dimensions
Depth: 45'8" ft
Width: 27'4" ft
Height: 28'0" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2046.33 ft²
Hip
Roof Pitch: 6/12 (26°)

With three storeys, five bedrooms and 1958 ft² under a hip roof pitched at 6/12 (26°), plan 89804C is a 5-bedroom 3-storey house plan in a modern European vein with a contemporary edge. Built as a single-family home, it measures 27'4" wide and 45'8" deep and reaches 28'0" in height, so the rooms are arranged vertically rather than spread out on one level. Stone/brick veneer, wood and stucco share the facade, a combination that gives every elevation depth and a crafted, layered character.

Sleeping quarters are the strength of this home design. The master bedroom sits on the second floor alongside clustered bedrooms, which keeps parents within a few steps of the children at night. Five bedrooms in total leave room for a guest room, a nursery or a quiet study as the family changes, and two full bathrooms take on the morning rush. The practical side is covered by a utility room, a separate storage room and a laundry on the main floor, so baskets of washing never have to be carried up from a lower level.

Downstairs, a defined entry leads into an open floor plan that links the living and dining areas with the kitchen. The kitchen is generously sized and comes with a breakfast nook, a natural spot for weekday cereal and slow weekend pancakes. Floor-to-ceiling windows and other large windows pull daylight across the shared space, and in the late afternoon that light makes the main level feel wider than its footprint suggests. For families comparing house plans Canada-wide for an open concept layout with a kitchen that can handle real cooking, this plan delivers both.

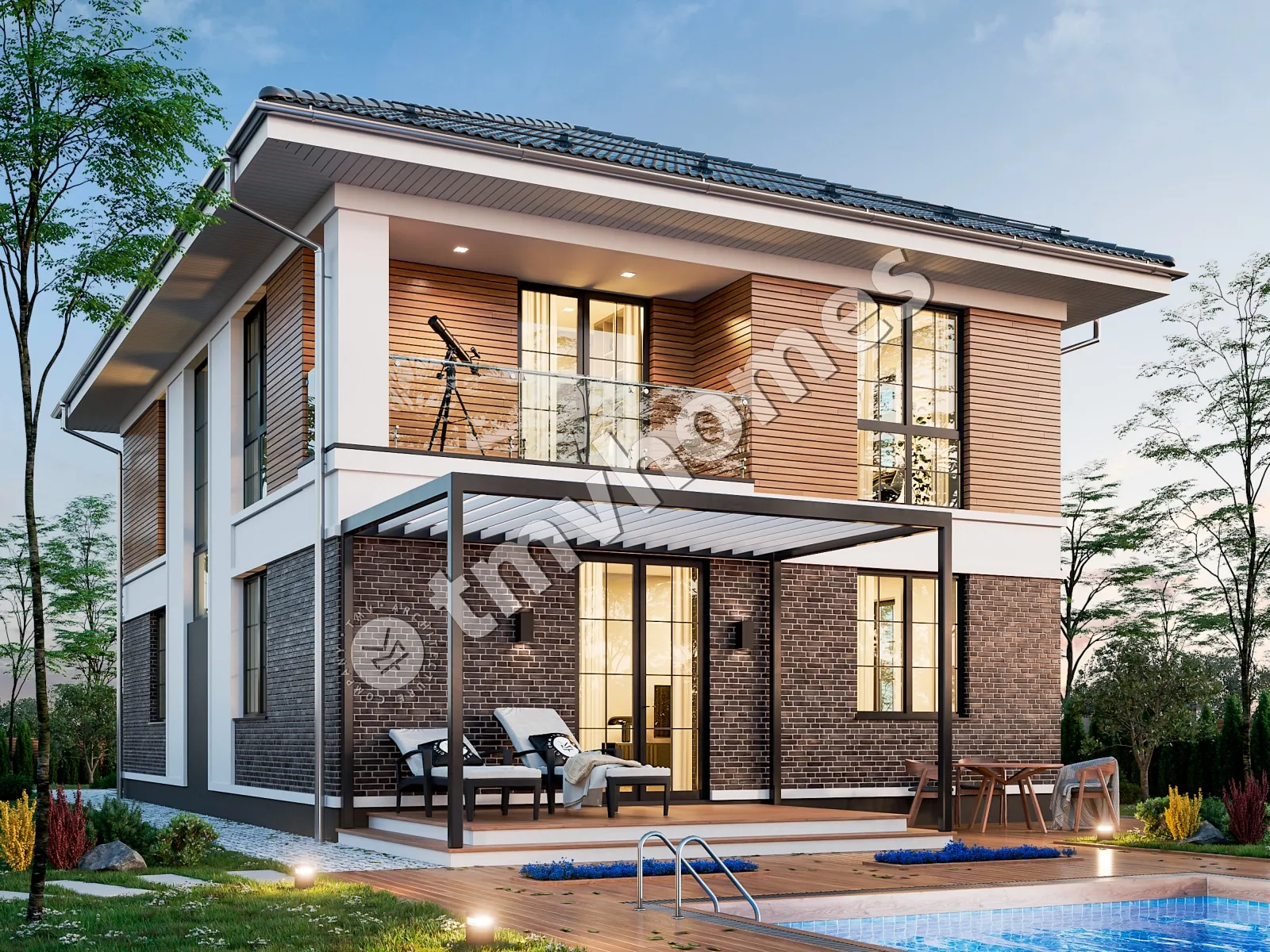

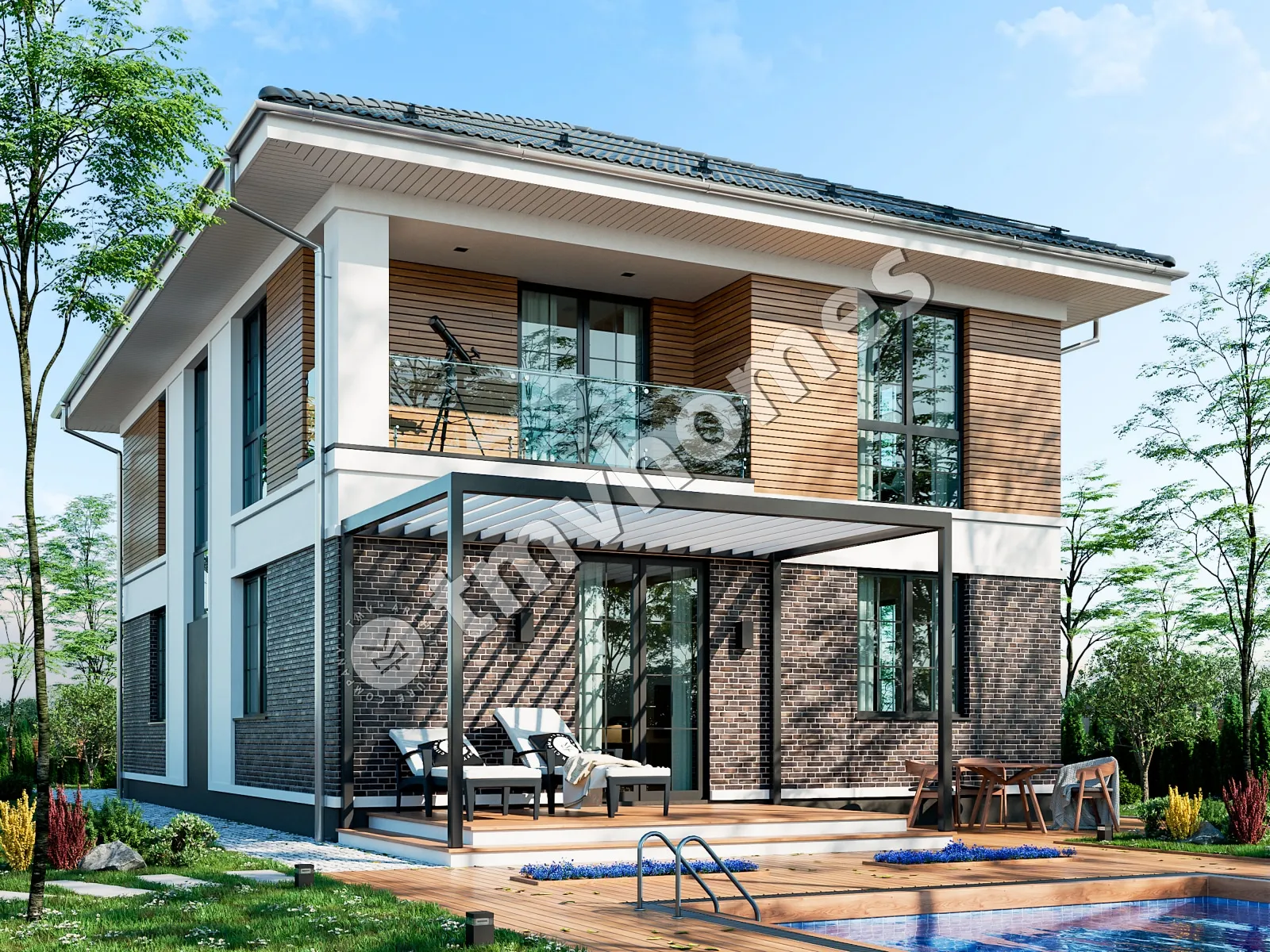

A deck and a balcony carry daily life outdoors: the deck for meals in the fresh air and the balcony as a quieter perch upstairs. The house rests on strip footings and is designed without a basement or garage; a slab or a concrete block foundation is also available. Exterior walls are built from autoclaved aerated concrete, with hollow clay block or sand-lime block offered on request. For a household that needs five bedrooms, two full bathrooms and a crisp hip-roofed silhouette without a sprawling footprint, this 3-storey house makes efficient use of every level.
