Renderings 2 – 2,002 Sq Ft Traditional 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms – 60636C
Renderings 3 – 2,002 Sq Ft Traditional 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms – 60636C Renderings 4 – 2,002 Sq Ft Traditional 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms – 60636C
12
Concept
Construction documents are prepared for the following countries:

2,002 Sq Ft Traditional Narrow Lot 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms

Plan
60636C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2002
Total Heated ft²
2 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

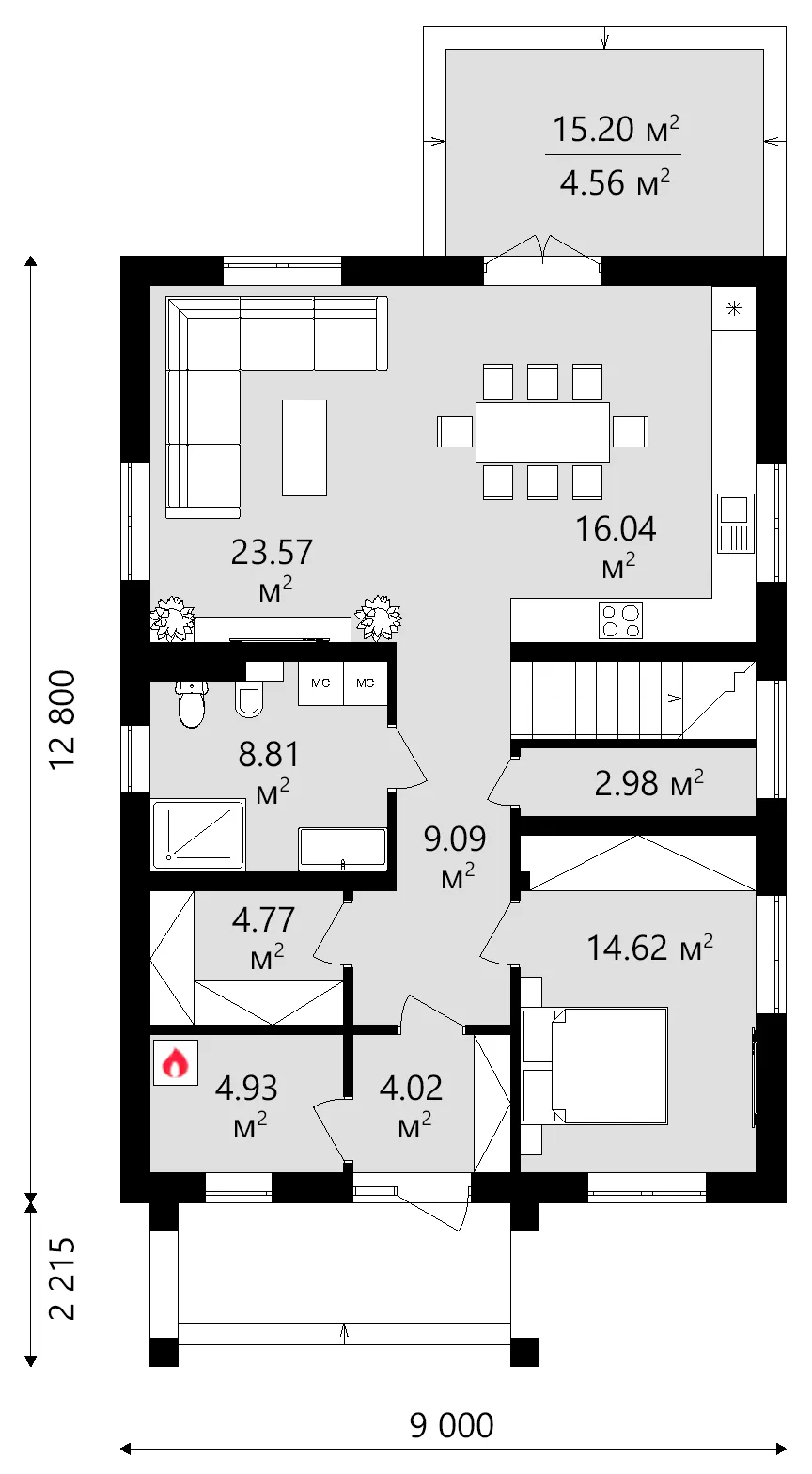

Main Floor
Main Floor 18 – 2,002 Sq Ft Traditional 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms – 60636C

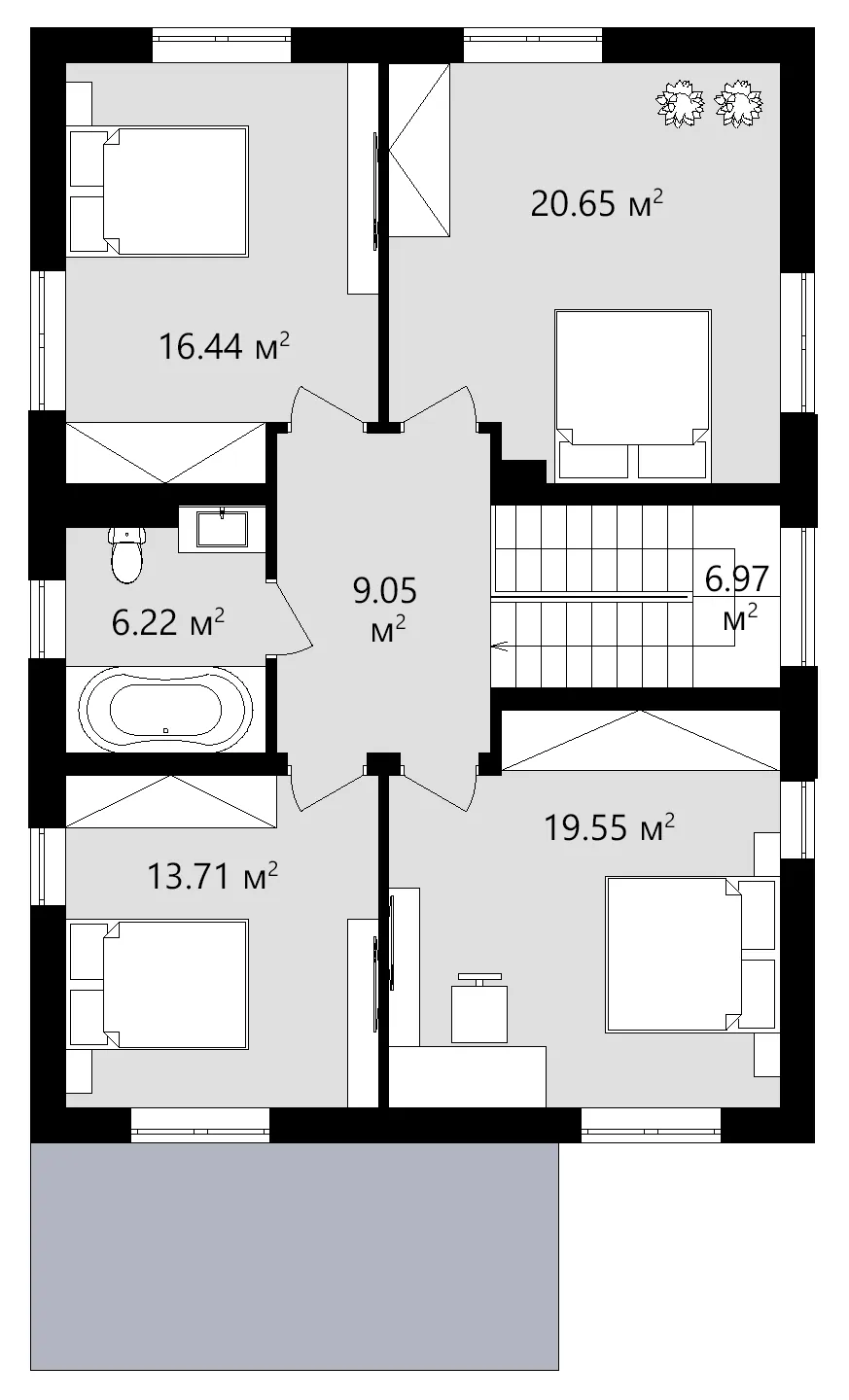

Second Floor
Second Floor 17 – 2,002 Sq Ft Traditional 2-Story Family House Plan with 5 Bedrooms and 2 Bathrooms – 60636C
Full Specs & Features
Area
Total Heated: 2001.87 ft²
Dimensions
Depth: 45'8" ft
Width: 27'4" ft
Height: 28'0" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 2
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Second Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Roof
Roof Area: 2046.33 ft²
Hip
Skylight
Roof Pitch: 6/12 (26°)

Built around the needs of a large household, home design 60636C is a 5-bedroom 3-storey house plan offering 2,002 Sq Ft of European and Traditional character beneath a hip roof with skylights. The narrow footprint is 27'4" wide and 45'8" deep, and the house rises to a height of 28'0" under a 6/12 (26°) roof pitch. Stone/brick veneer and wood share the facade, giving the elevation both weight and warmth. The exterior walls are framed in aerated concrete, and framing in clay block or calcium silicate block can be requested instead.

Bedrooms come first in this layout, and there are five of them, clustered together so that sleeping rooms stay grouped apart from the shared living space. Two master suites set the plan apart: the main one is on the second floor, and the other works well for visiting parents, an older teenager who wants more independence or a guest staying for weeks rather than days. Two full bathrooms serve the household. A utility room, a laundry room and dedicated storage take care of the less glamorous side of family life, keeping laundry baskets, cleaning supplies and seasonal gear out of the main rooms.

From the entry, an open floor plan connects the kitchen with the everyday living area, so whoever is cooking stays part of the conversation. The large kitchen is backed by a walk-in pantry with room for bulk groceries and small appliances, while a breakfast nook offers an easy spot for weekday breakfasts and after-school snacks. Large windows and floor-to-ceiling windows pull daylight across the rooms, and the skylights in the hip roof add light from above on grey winter afternoons.

A covered front porch shelters the front door and gives you a dry place to greet neighbours or shake off a wet umbrella. A deck adds outdoor room for barbecues and open-air dinners with friends. The house has no basement and stands on strip footings, with a slab or concrete block foundation offered as an option. No garage is included, which leaves the whole 2,002 Sq Ft devoted to rooms for living. Among house plans Canada families compare, this 3-storey design stands out for its two master suites, walk-in pantry and bright, open main living area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
