Renderings 2 – 2,041 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 73942C
Renderings 3 – 2,041 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 73942C Renderings 10 – 2,041 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 73942C
11
Concept
Construction documents are prepared for the following countries:

2,041 Sq Ft Traditional Narrow Lot 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms

Plan
73942C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2041
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

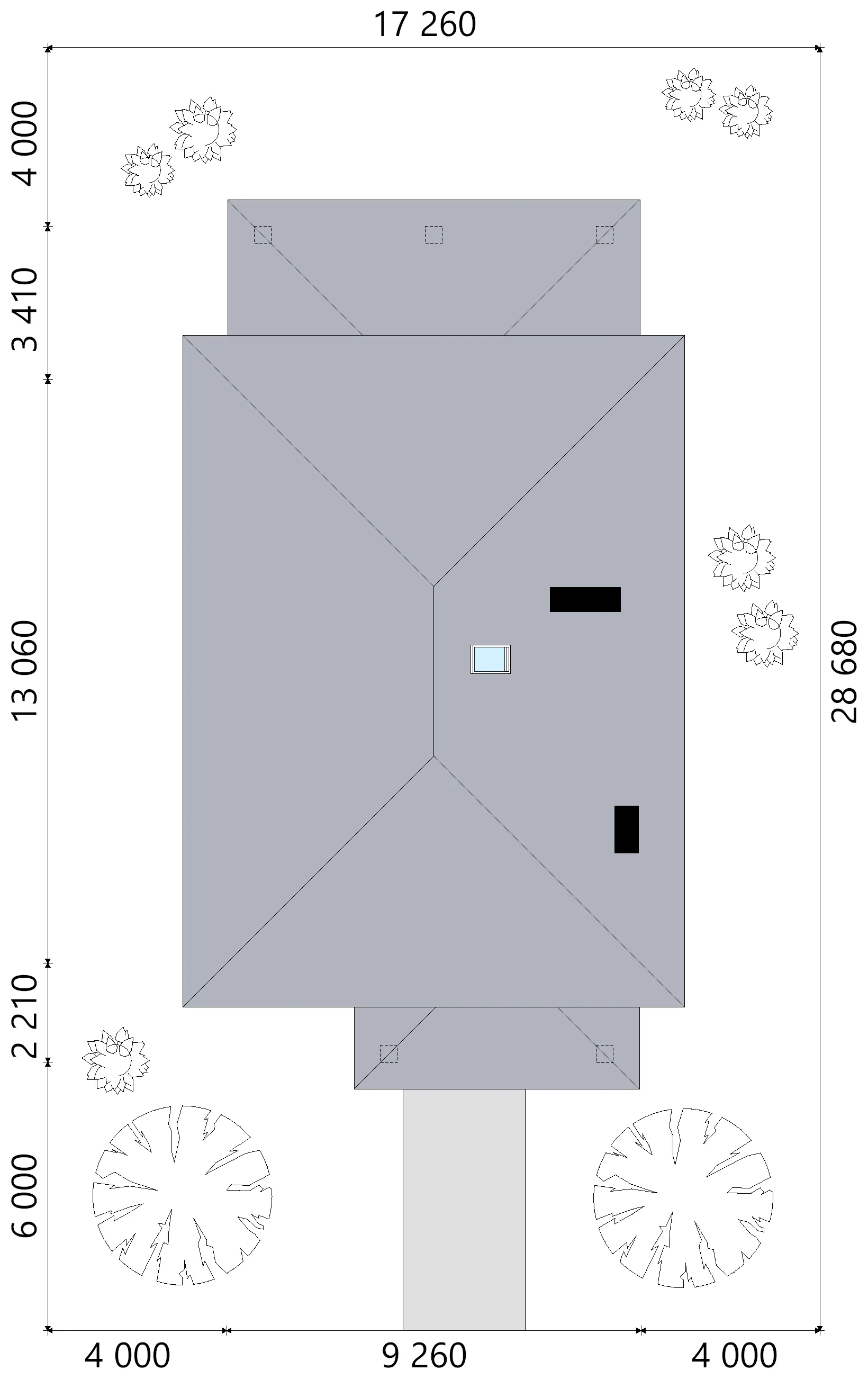

Rzut dachu

Przekroje

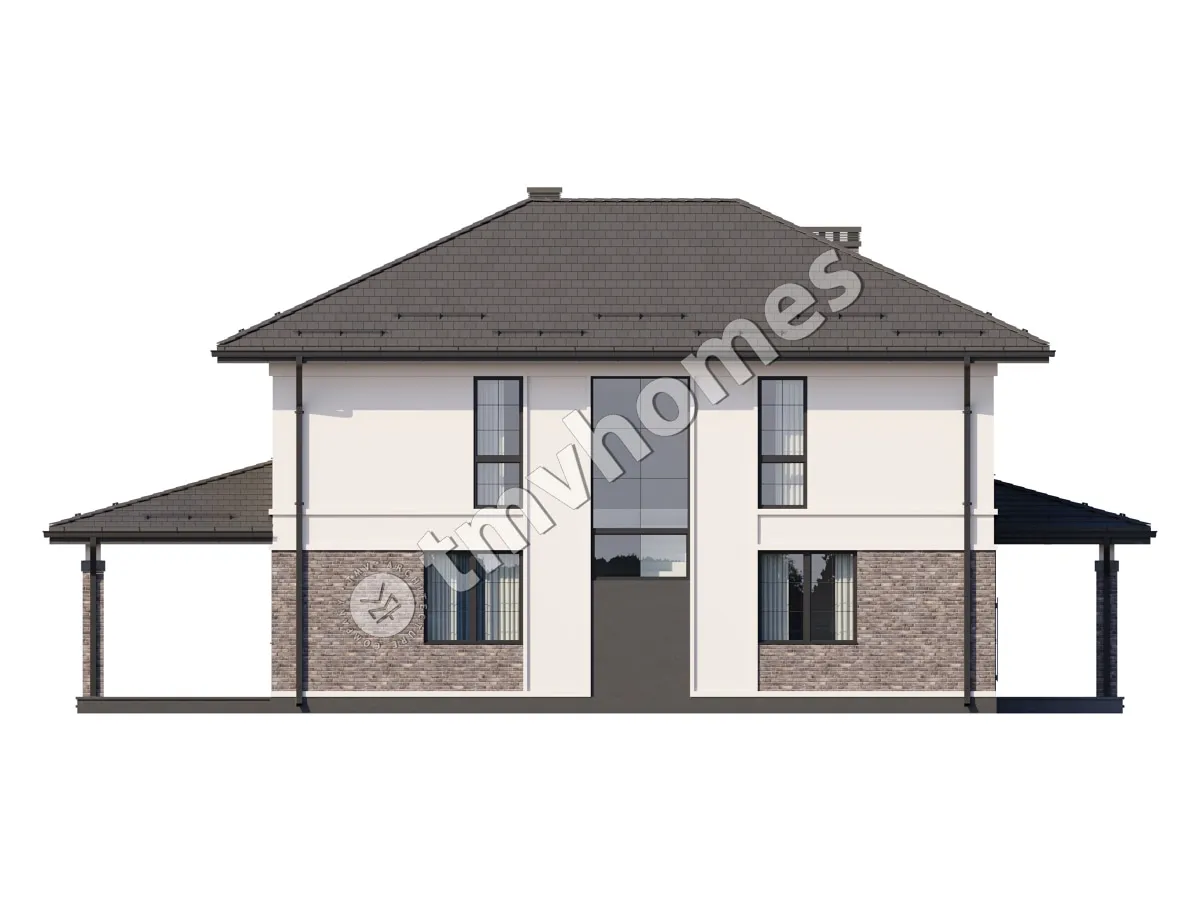

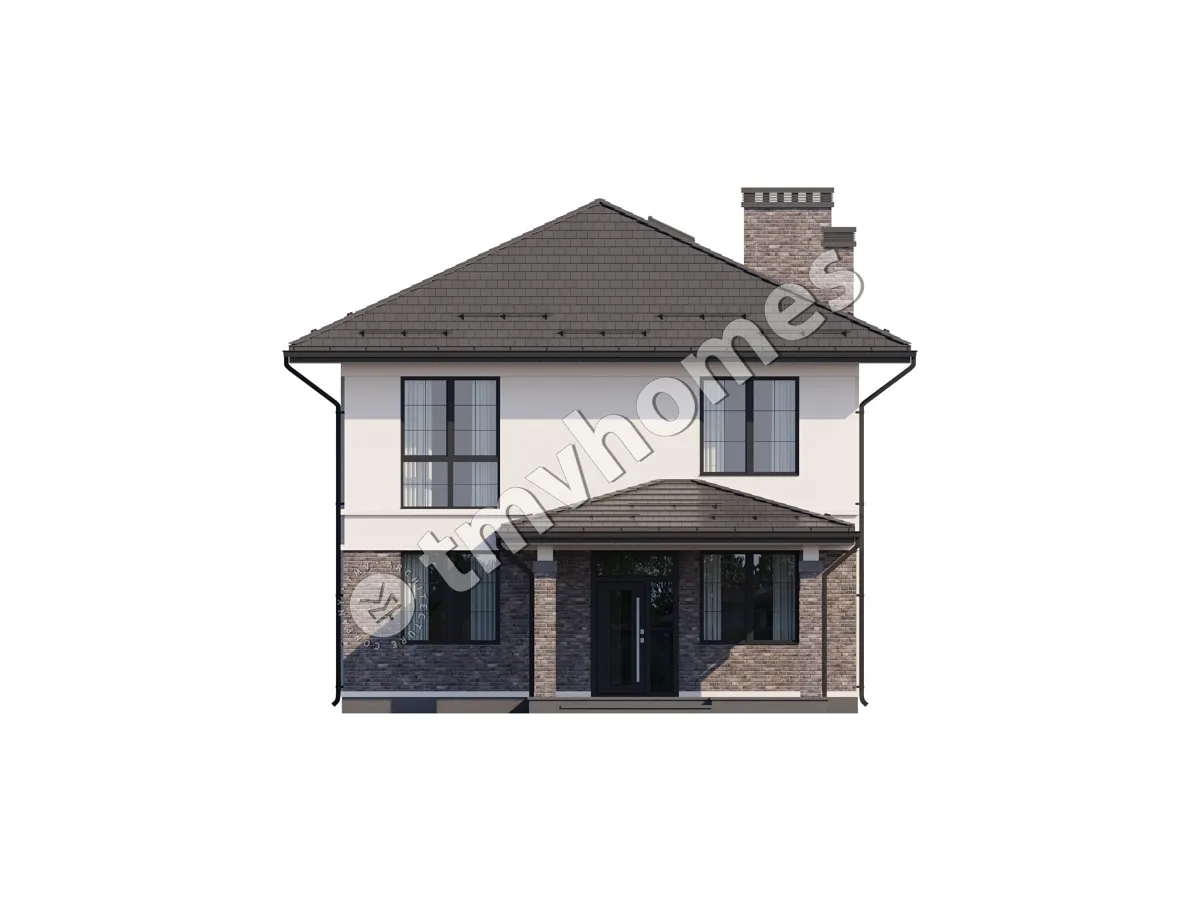

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

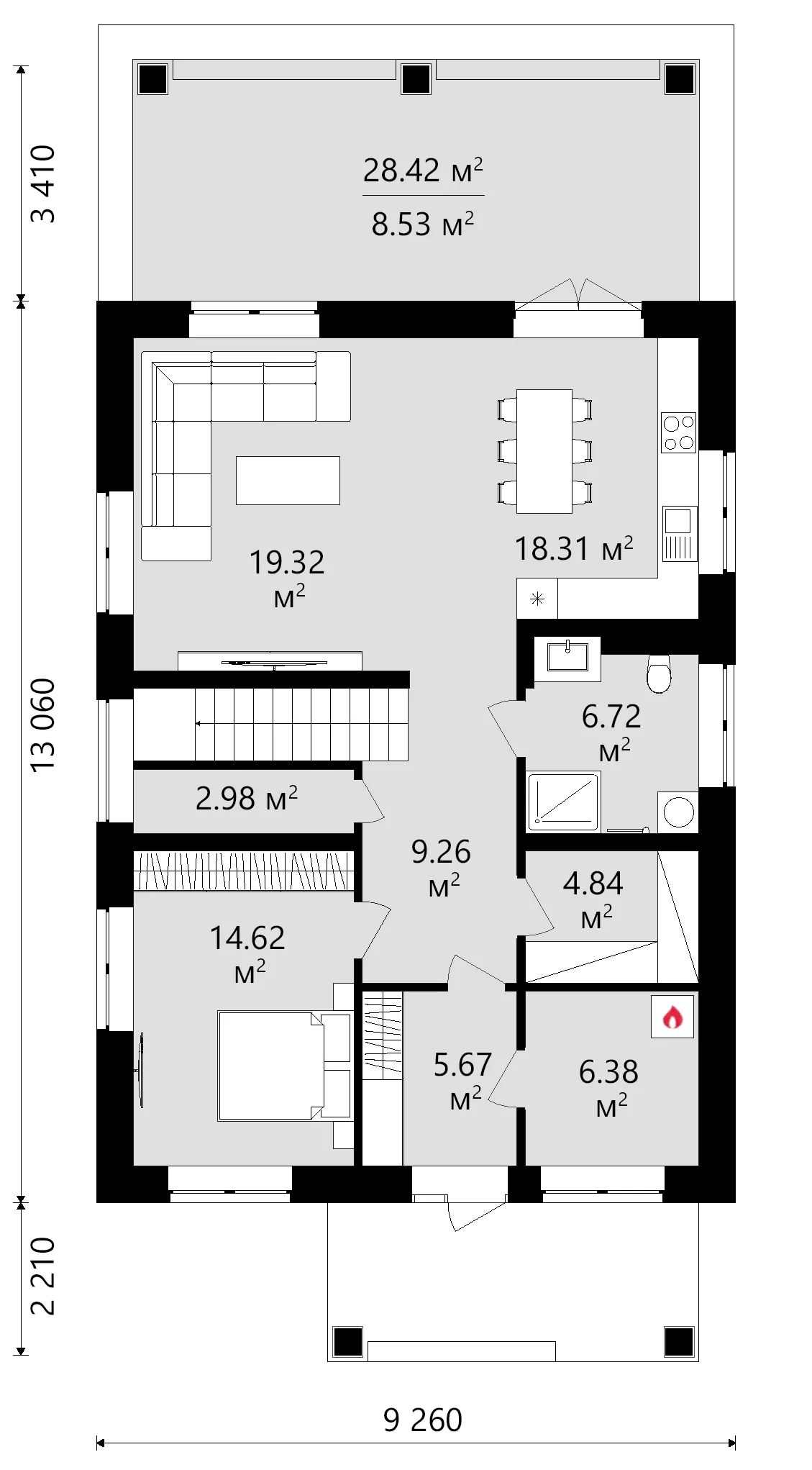

Main Floor
Main Floor 9 – 2,041 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 73942C

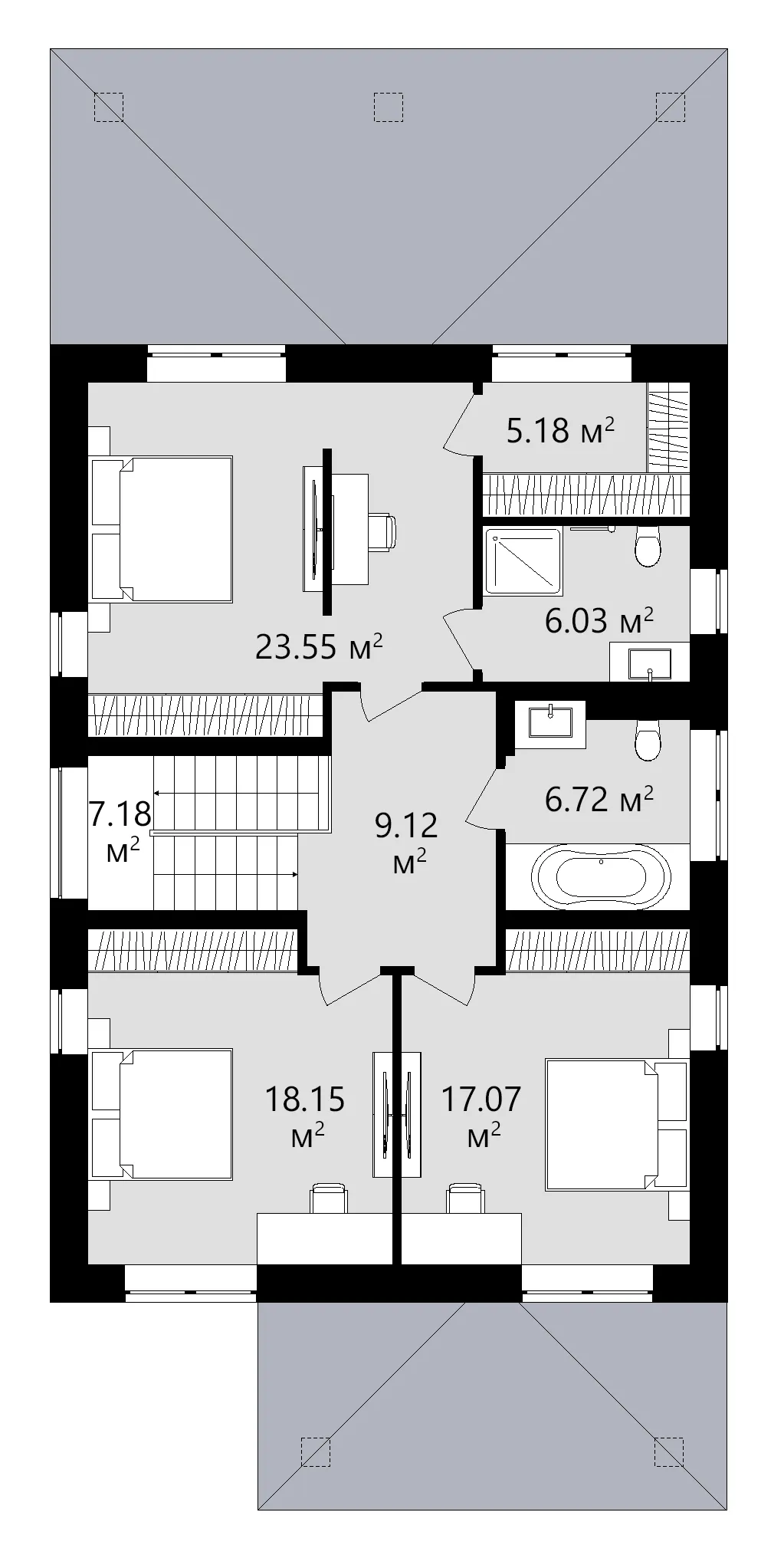

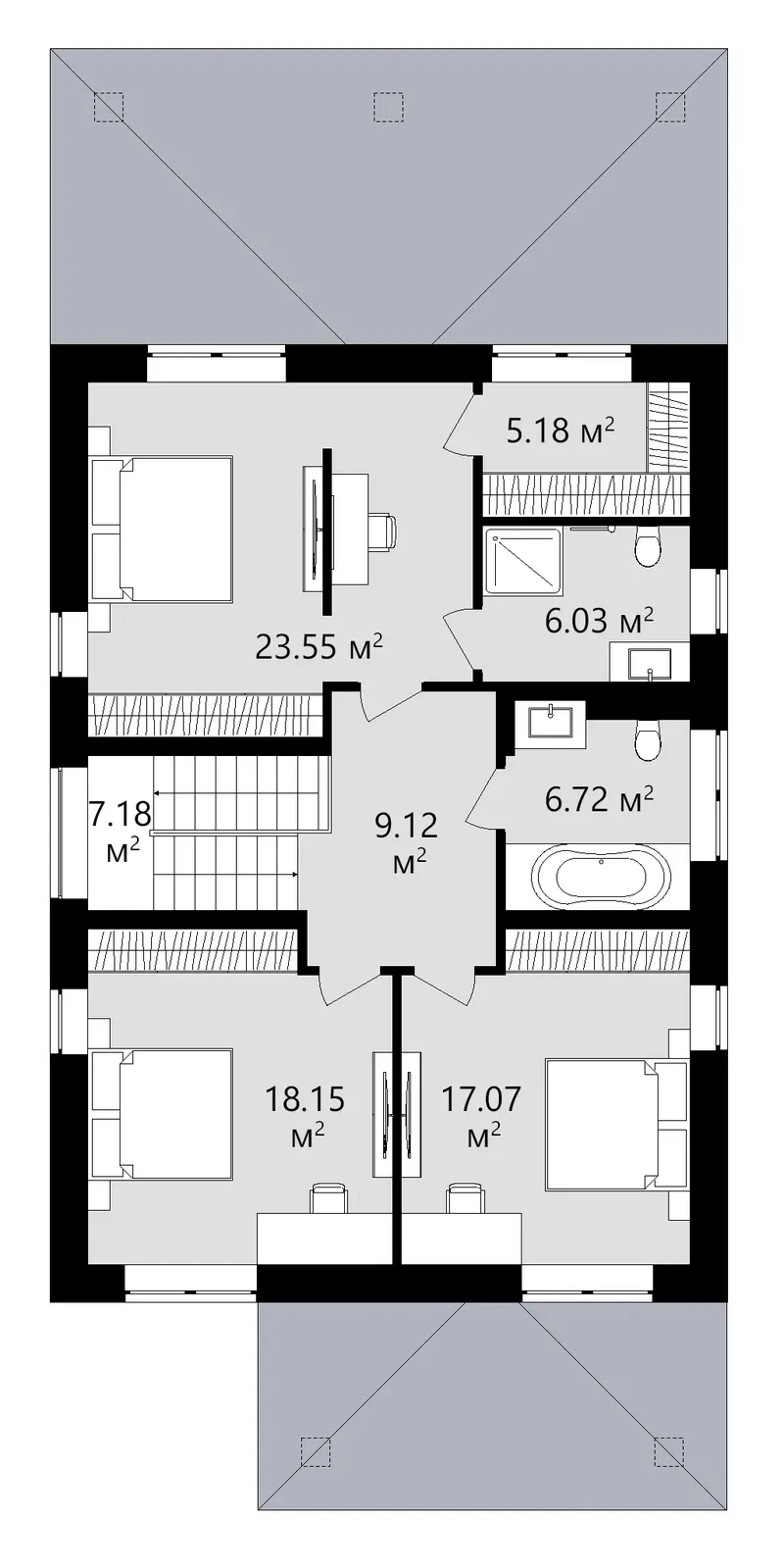

Second Floor
Second Floor 14 – 2,041 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 73942C
Full Specs & Features
Area
Total Heated: 2041.16 ft²
Dimensions
Depth: 56'9" ft
Width: 28'2" ft
Height: 28'2" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Architectural Style
European
Traditional
Roof
Roof Area: 2612.51 ft²
Hip
Skylight
Roof Pitch: 6/12 (26°)

Three storeys of living space and four bedrooms come together in plan 73942C, a 4-bedroom 3-storey house plan of 2,041 Sq Ft with European and traditional styling under a hip roof. Pitched at 6/12 and fitted with skylights, that roof tops a narrow home design measuring 28'2" wide, 56'9" deep and 28'2" high. Stone/brick veneer and stucco share the facade, giving the exterior a solid, classic presence. The walls are framed in aerated concrete, and ceramic hollow block or sand-lime block can be specified on request.

The private side of the home is built around clustered bedrooms, so the whole family sleeps close together rather than scattered across the floors. The master bedroom is on the second floor and comes with a walk-in closet for clothing and seasonal wardrobes. Three full bathrooms share the daily load, a generous count that eases the morning rush in a household of four bedrooms. Practical rooms are kept where they are needed most: the laundry is on the main floor, a separate utility room houses the mechanical equipment, and a storage room gives sports gear, holiday decorations and spare linens a place of their own.

Daily life on the main floor begins at the entry, where guests are welcomed and outdoor shoes stay put before anyone steps into the open floor plan. Living and kitchen areas flow together without dividing walls, so whoever is cooking remains part of the conversation. The kitchen is a large one, with plenty of room for two or three people to work at once, and its breakfast nook adds a casual table for weekday breakfasts and after-school homework. Skylights bring natural light deeper into the house, a quiet pleasure on grey mornings.

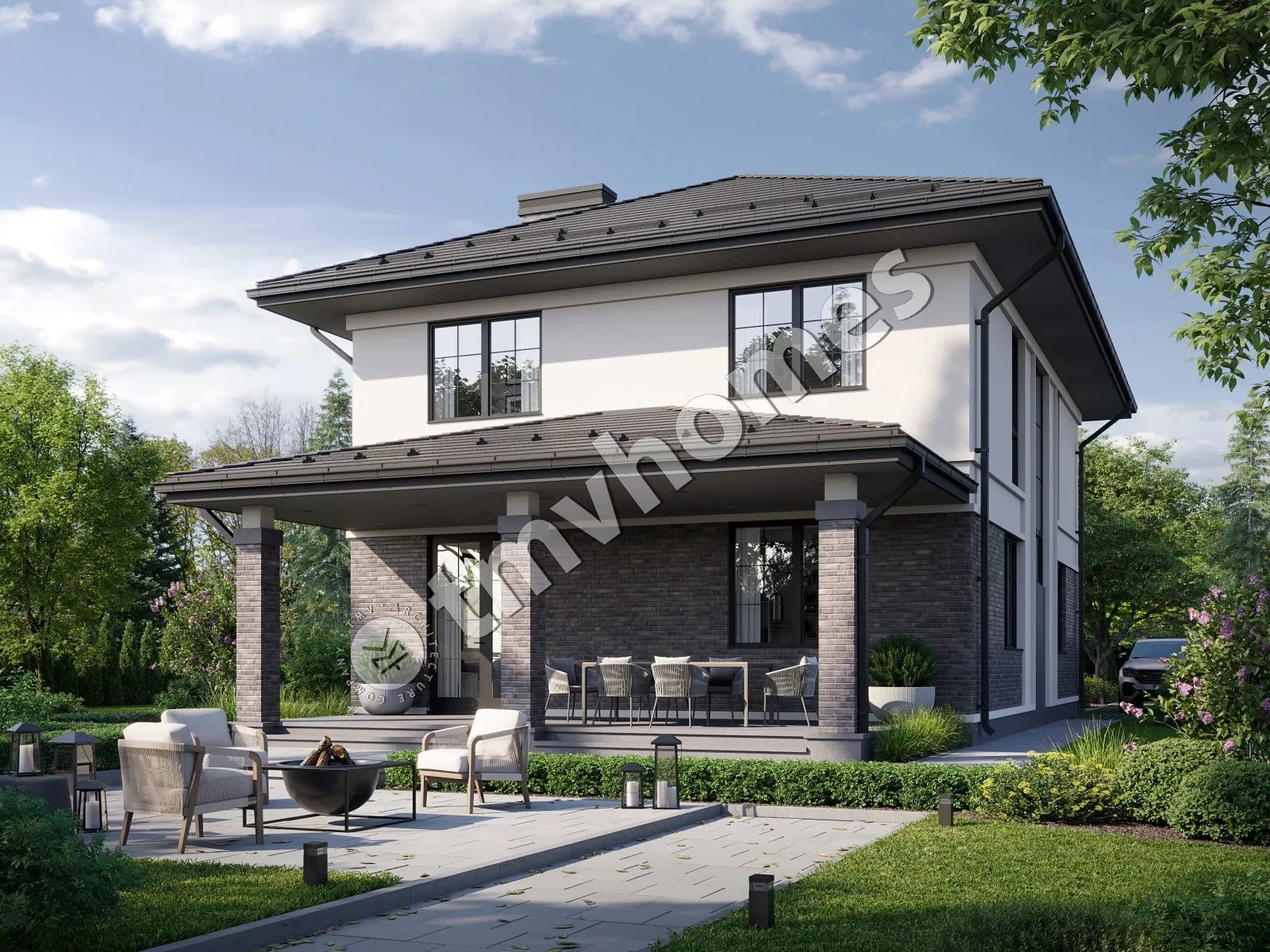

A covered front porch frames the entrance, while a covered rear porch offers a sheltered spot for outdoor meals and long summer evenings with family and neighbours. The house rests on strip footings, with a slab or a concrete block foundation offered as an option. There is no basement and no garage, which leaves the full footprint devoted to rooms for living. For families comparing house plans in Canada with a traditional, European-inspired look, plan 73942C pairs masonry character and a hip roof with an open, well-organized interior meant for year-round family life.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
