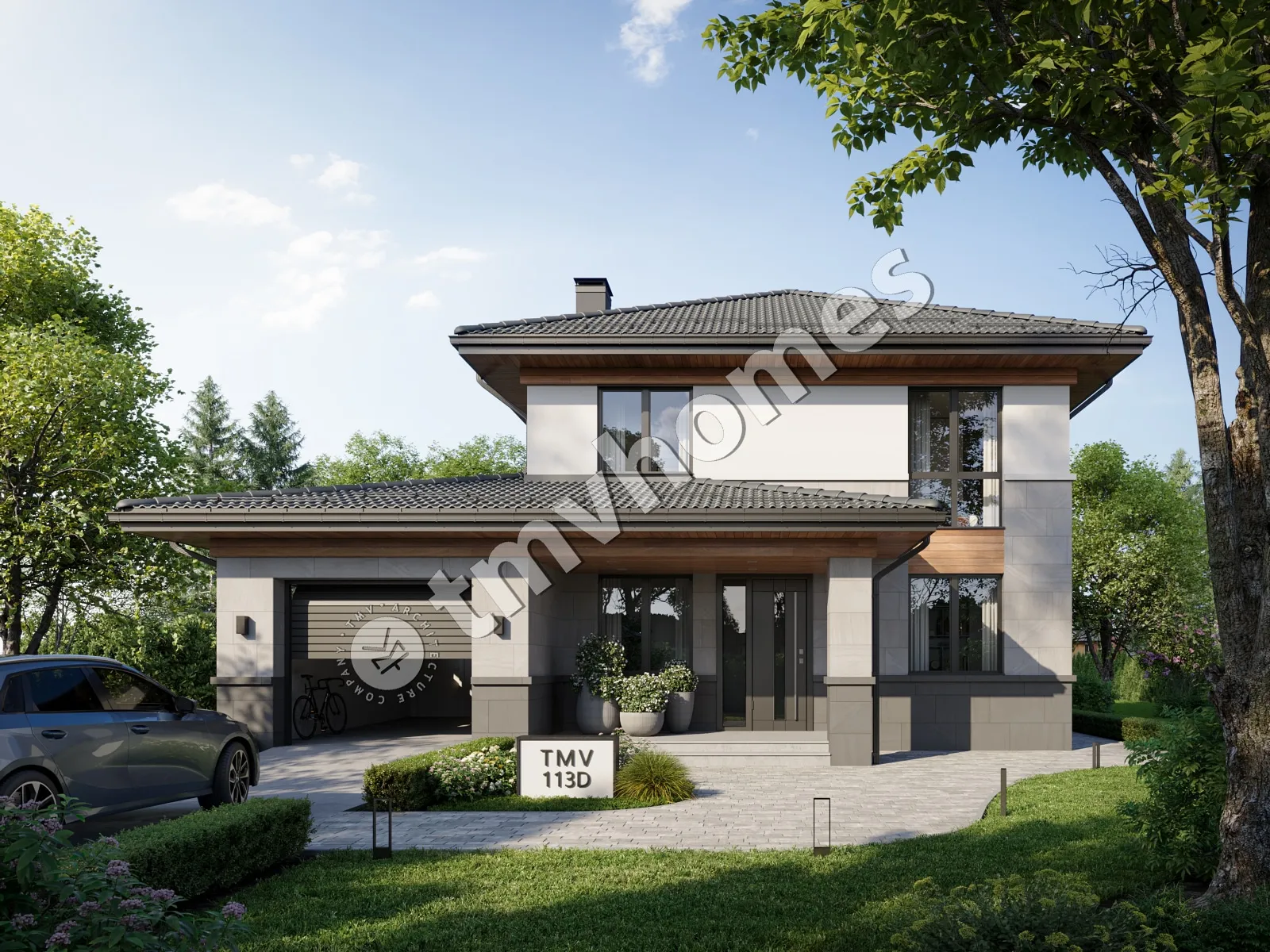

Renderings 2 – 2-Story House Plan 2137 ft², 4 Beds — 78917C

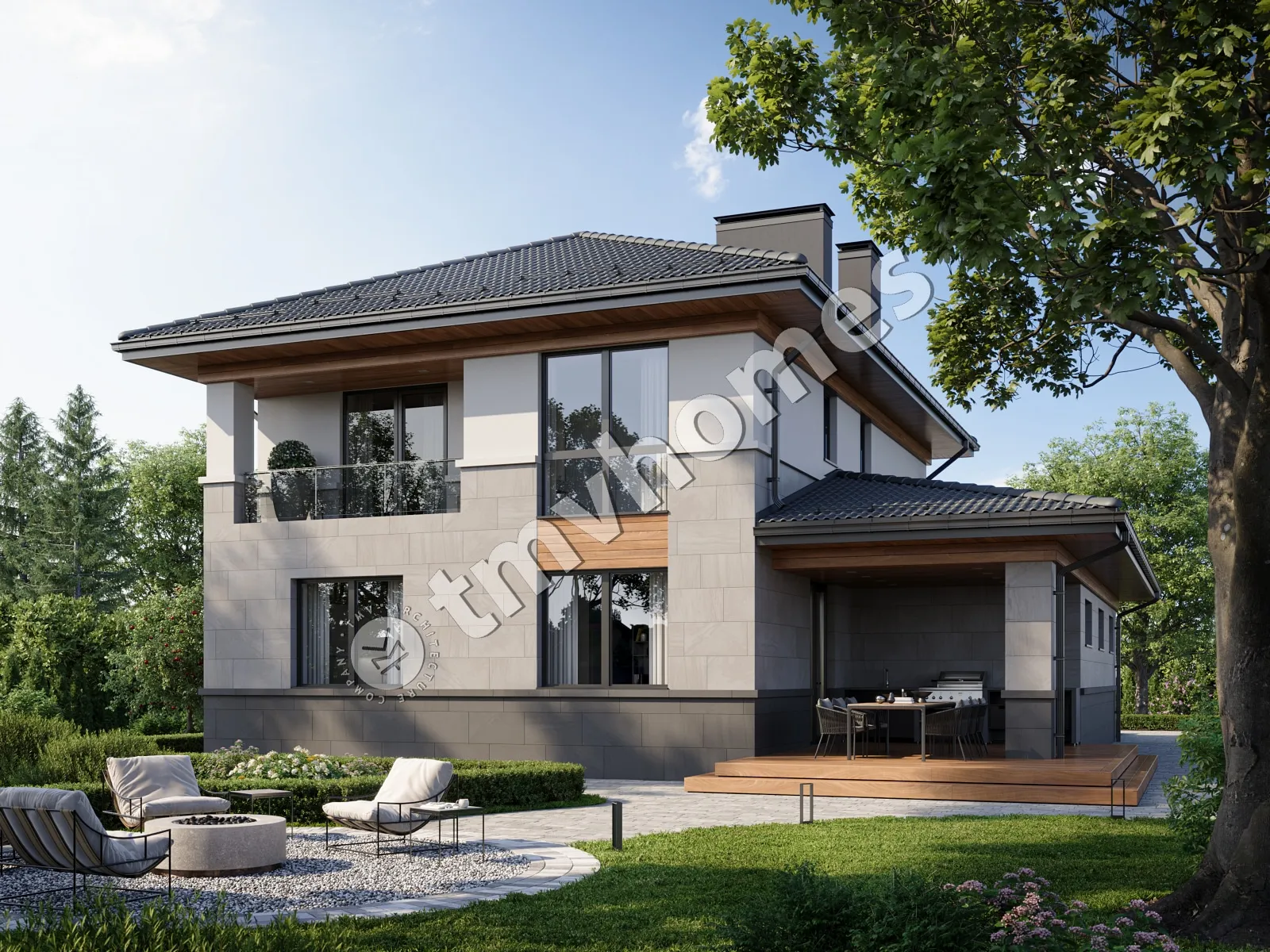

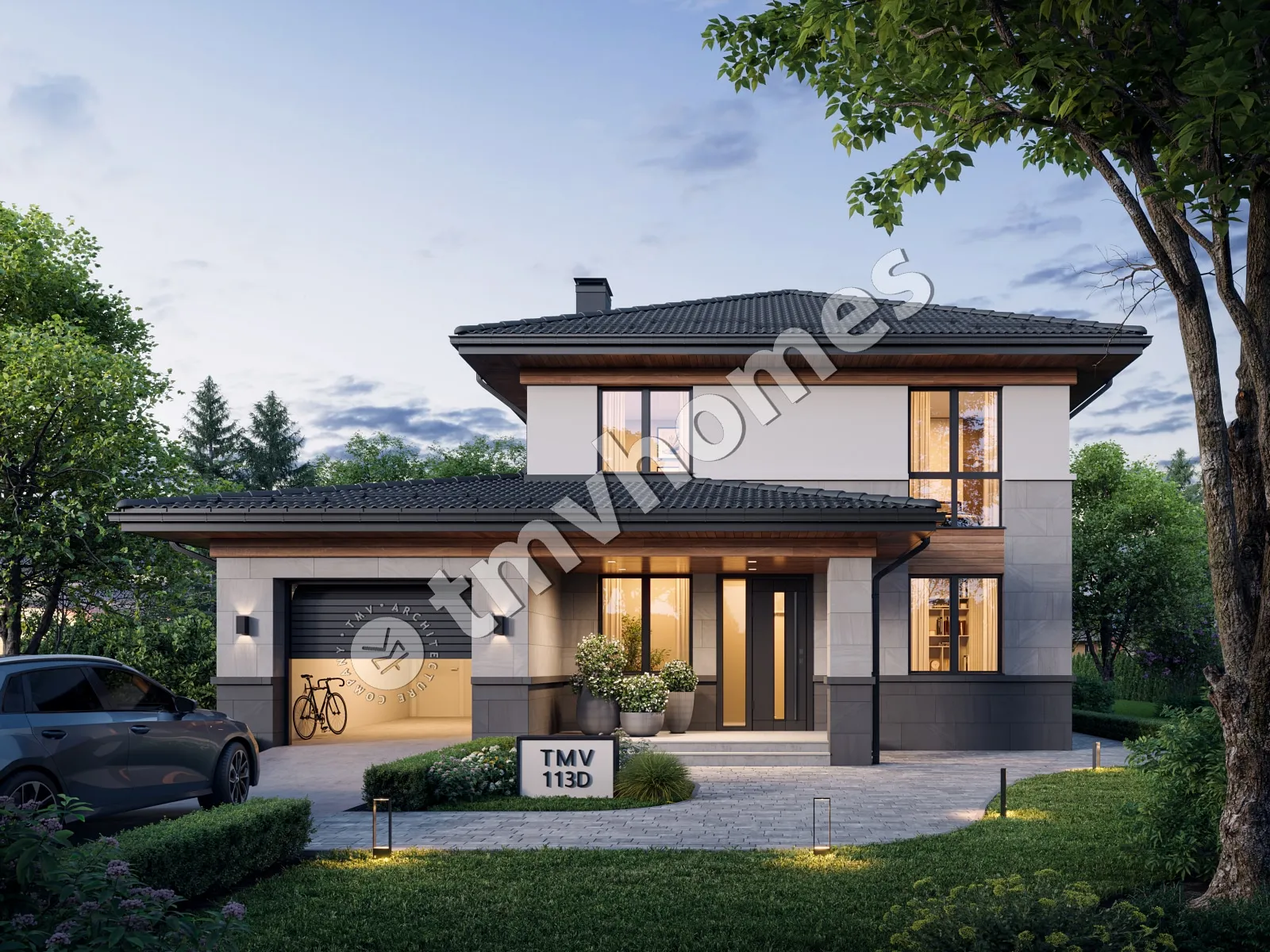

Renderings 10 – 2-Story House Plan 2137 ft², 4 Beds — 78917C Renderings 11 – 2-Story House Plan 2137 ft², 4 Beds — 78917C
5
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2137 ft²: 4 Beds, 3 Baths, Open Floor Plan, 1-Car Garage

Plan
78917C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2137
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

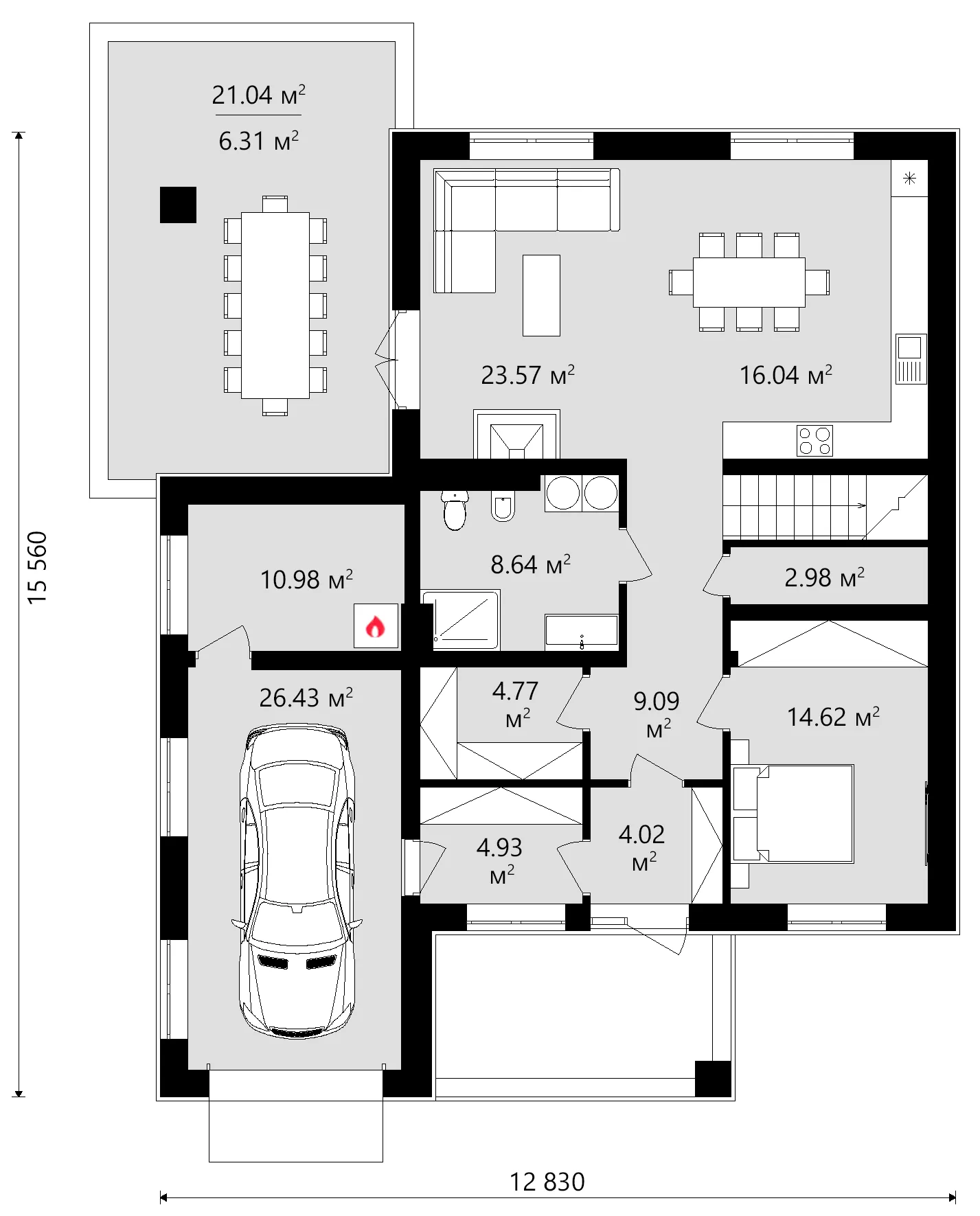

Main Floor
Main Floor 6 – 2-Story House Plan 2137 ft², 4 Beds — 78917C

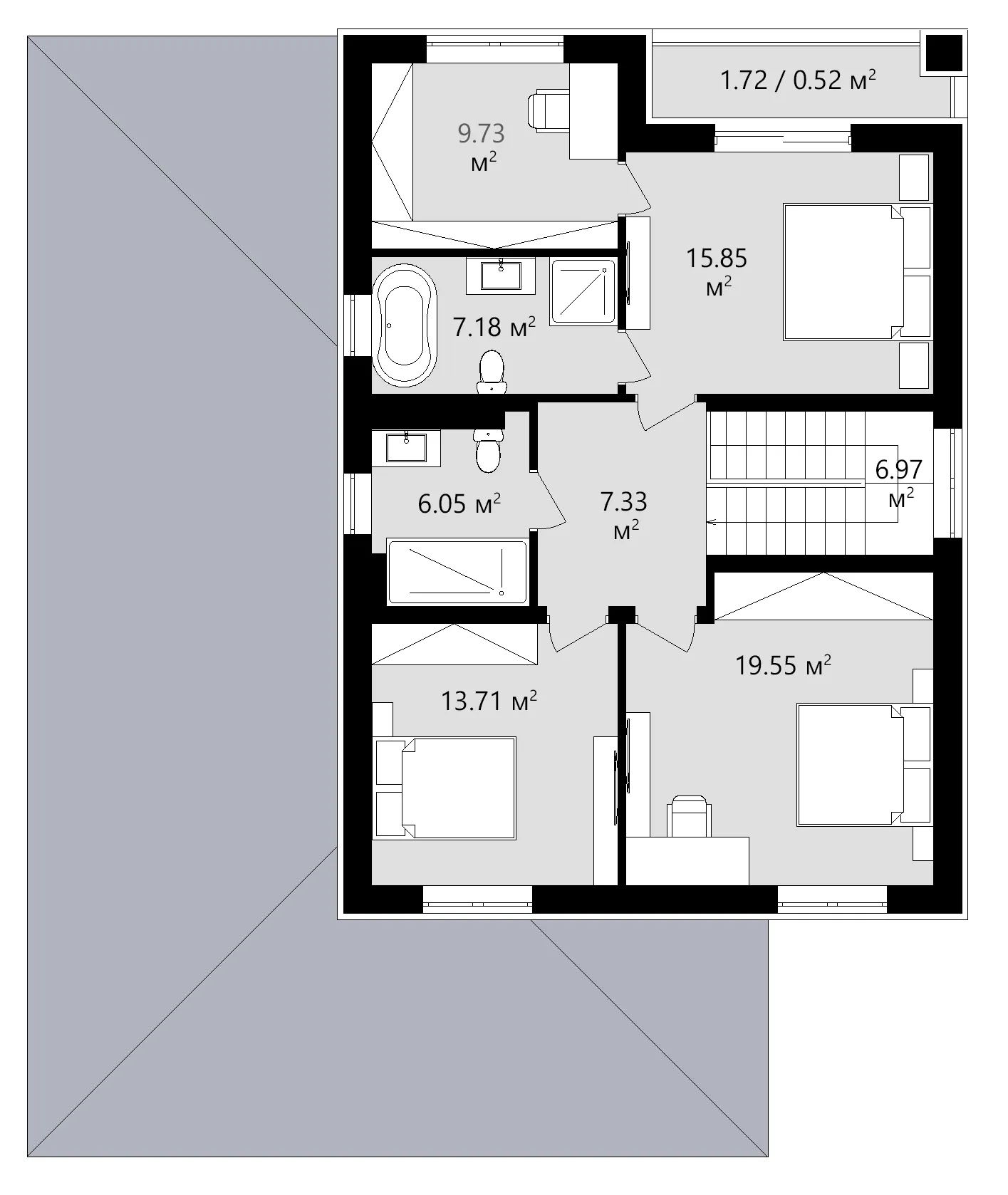

Second Floor
Second Floor 8 – 2-Story House Plan 2137 ft², 4 Beds — 78917C
Full Specs & Features
Area
Total Unheated: 284.49 ft²
Total Heated: 2136.96 ft²
Dimensions
Depth: 47'4" ft
Width: 39'1" ft
Height: 26'9" ft
Garage
Area: 284 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Large Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2623.38 ft²
Hip
Roof Pitch: 6/12 (26°)

Under a hip roof pitched at 6/12 (26°), the 4-bedroom 3-storey house plan 78917C spreads 2137 ft² across three levels in a contemporary European design with clean, modern lines. Stucco and flexible ceramic cover the exterior walls, and large windows break up the facade with generous glazing. The footprint is 39'1" wide and 47'4" deep, and the home rises to a height of 26'9". Aerated concrete forms the wall structure, with ceramic hollow block and sand-lime block offered as alternatives on request. For anyone comparing house plans Canada families can build as a single family home, this design brings a lot of living into a vertical layout.

Arrival is sheltered from the start. A covered front porch leads up to the door, and the attached front-entry garage holds one car right beside it. Inside, a dedicated entry creates a proper threshold between the outdoors and the rooms beyond. At the back, a covered rear porch gives the household a shaded place for outdoor meals and long summer evenings. The home sits on strip footings without a basement, and the plan can also be adapted to a slab or a concrete block foundation.

The main living area follows an open floor plan that joins the family room, the kitchen and the breakfast nook into one connected space. The family room is arranged around its fireplace, which makes this a house plan with fireplace where the hearth sets the mood of the whole level. The large kitchen leaves room to move and to work side by side, and the breakfast nook next to it handles weekday breakfasts and casual meals without anyone heading to a formal table. Laundry on the main floor keeps washing within easy reach of daily life rather than tucked away on another storey.

The four bedrooms are clustered together, so parents stay close to the children's rooms and the sleeping areas remain calm. The master bedroom is on the second floor and comes with a walk-in closet for clothing and accessories. Three full bathrooms serve the household, cutting down on queues when everyone gets ready at the same time. A utility room keeps the mechanical equipment out of sight, and a separate storage room takes care of luggage, seasonal décor and bulk supplies. Altogether, this contemporary home design pairs 2137 ft² with four bedrooms, three bathrooms and two covered porches in a well-ordered 3-storey plan.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1430
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
