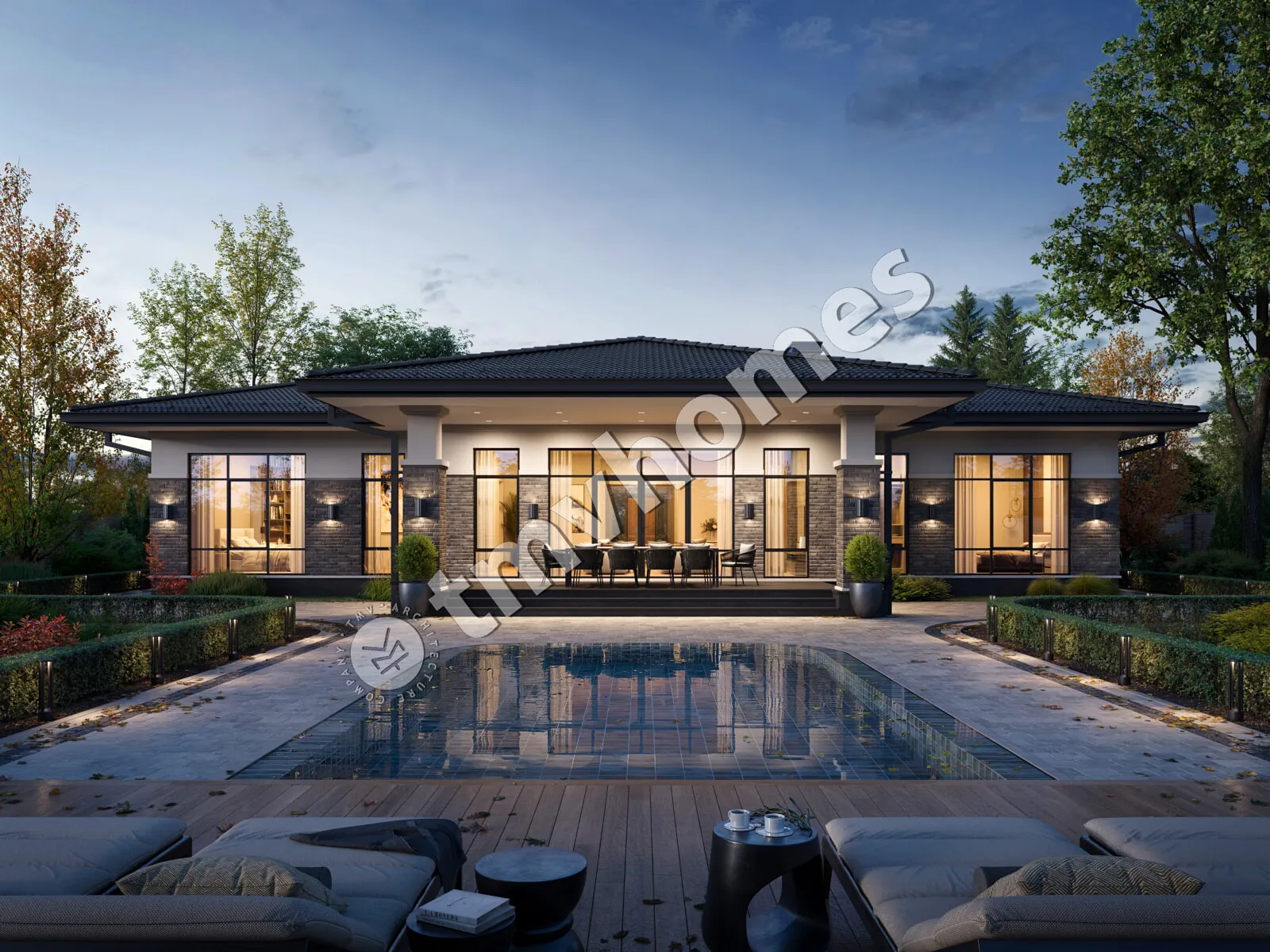

Renderings 2 – 2,277 Sq Ft Prairie Single-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 16713C

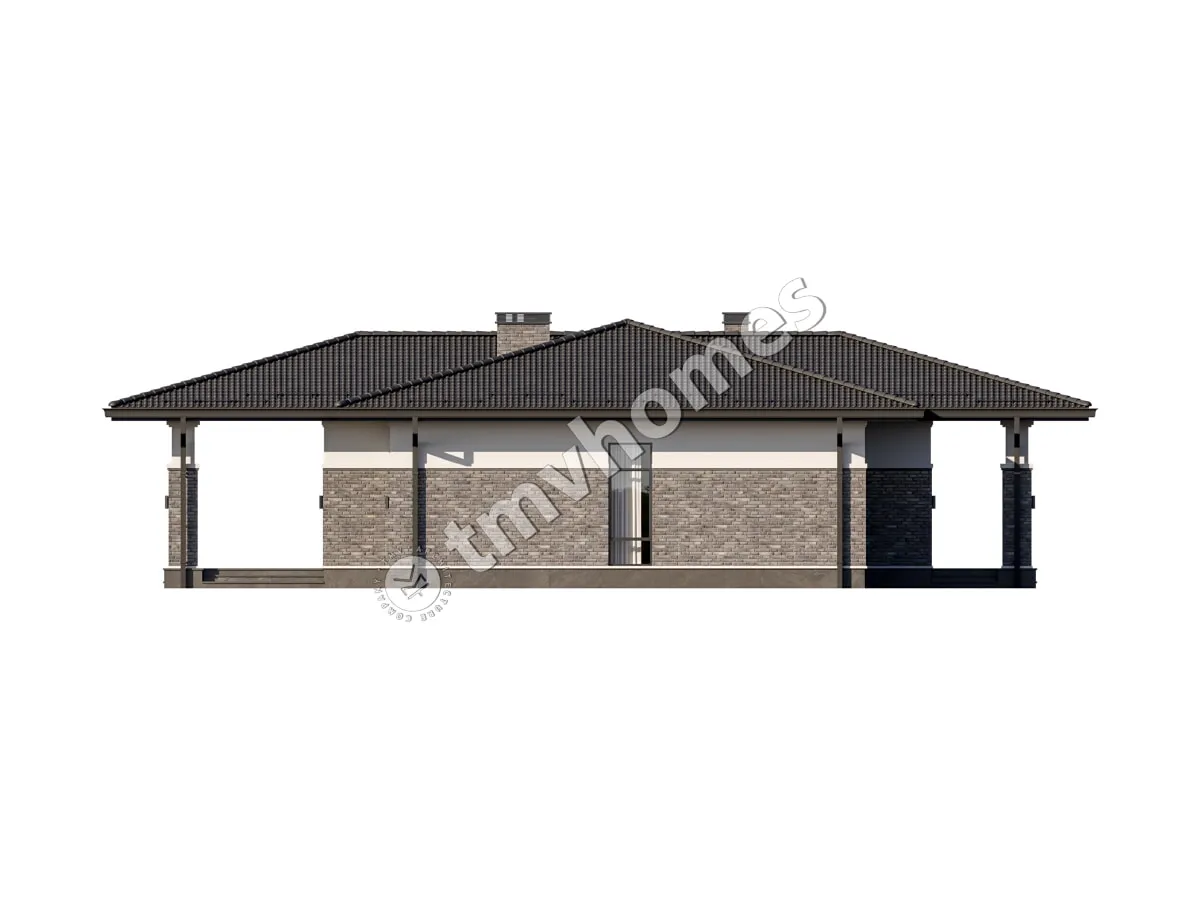

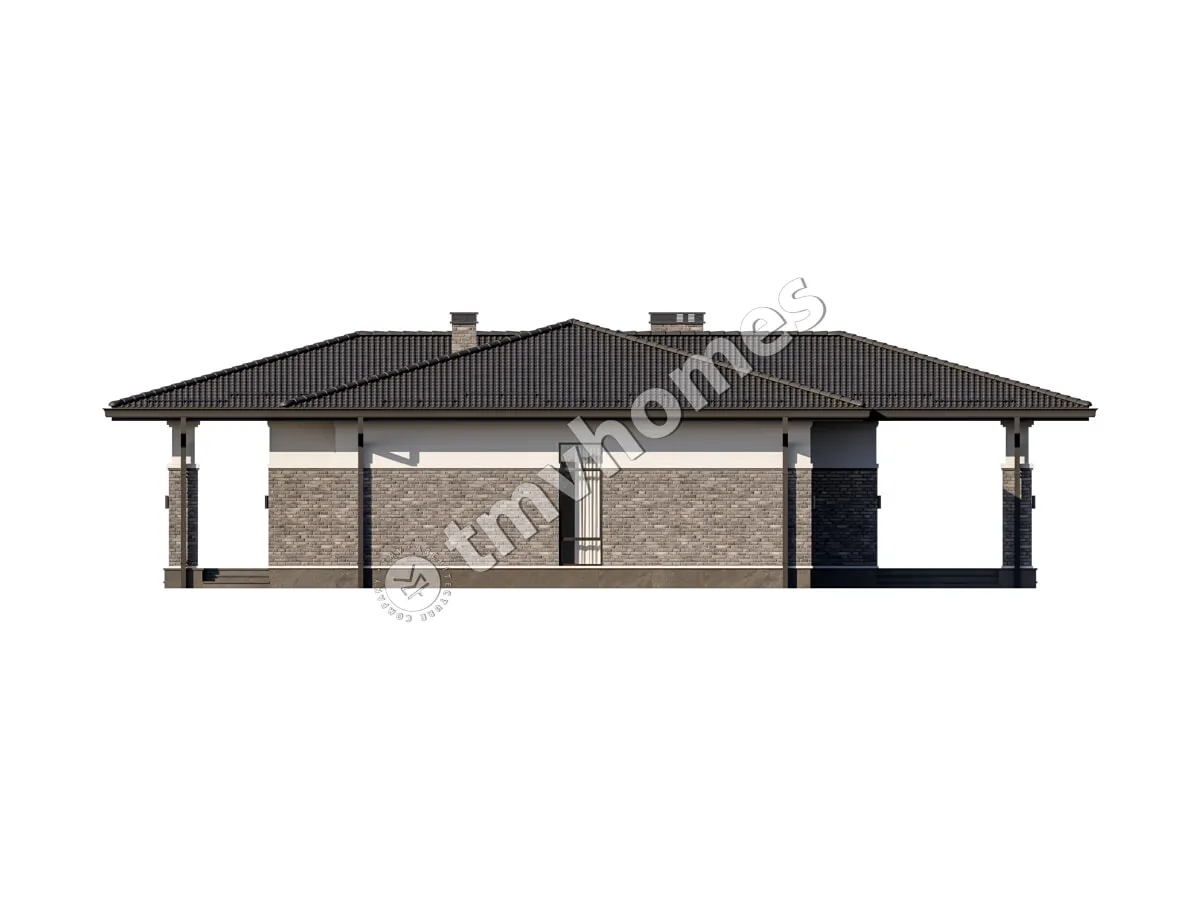

Renderings 3 – 2,277 Sq Ft Prairie Single-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 16713C Renderings 4 – 2,277 Sq Ft Prairie Single-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 16713C
6
Concept
Construction documents are prepared for the following countries:

2,277 Sq Ft Prairie Single-Story Family House Plan with 3 Bedrooms and 3 Bathrooms

Plan
16713C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2277
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

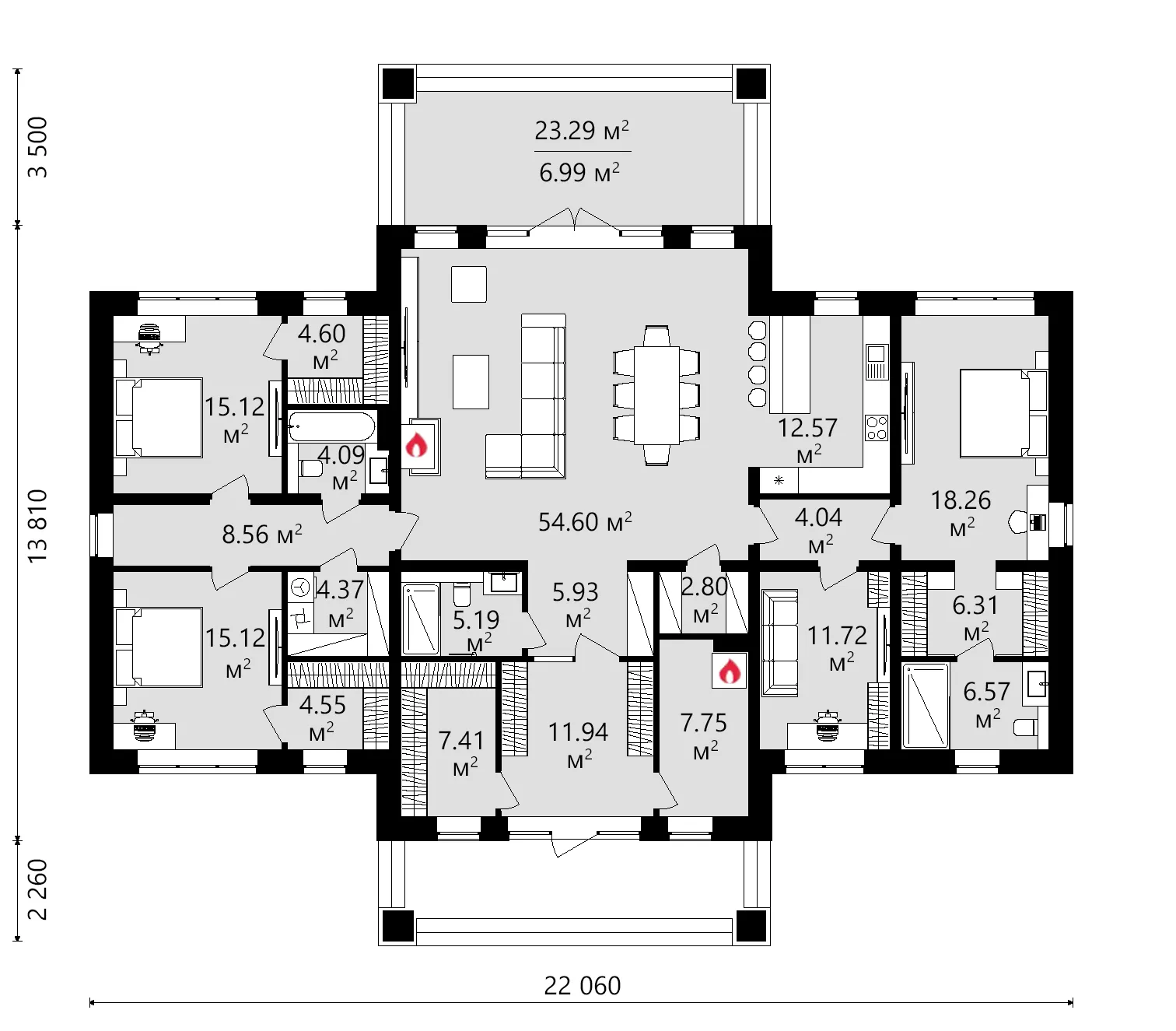

Floor Plans
Main Floor
Main Floor 12 – 2,277 Sq Ft Prairie Single-Story Family House Plan with 3 Bedrooms and 3 Bathrooms – 16713C
Full Specs & Features
Area
Total Heated: 2276.57 ft²
Dimensions
Depth: 59'5" ft
Width: 67'1" ft
Height: 18'4" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Prairie

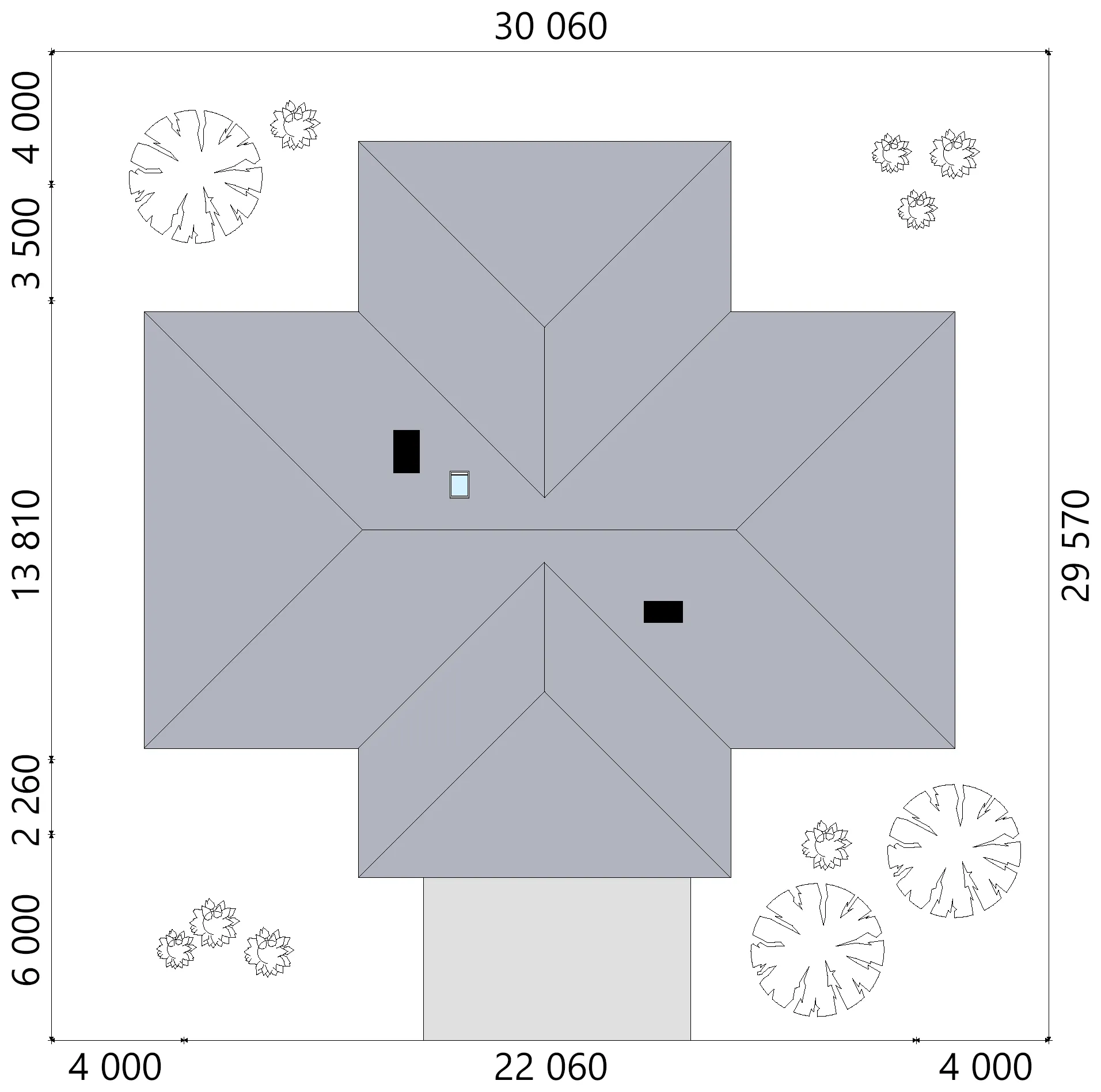

Roof
Roof Area: 4719.54 ft²
Hip & Valley
Roof Pitch: 4/12 (18°)

Home design 16713C is a 3-bedroom bungalow house plan with clean Prairie lines, offering 2,277 Sq Ft on a single storey beneath a hip & valley roof set at a gentle 4/12 (18°) pitch. Stone/brick veneer paired with stucco keeps the facade low and grounded, true to the Prairie style. The footprint is 67'1" wide and 59'5" deep, and the house reaches a height of 18'4". Three bedrooms and three full bathrooms all sit on one level, a layout that works equally well for young families and for owners planning to stay put for decades.

Sleeping quarters follow a split bedrooms arrangement. One wing belongs to the main floor master, finished with a walk-in closet, while the two remaining bedrooms occupy the opposite side of the home, so early risers and night owls rarely disturb one another. Three full bathrooms and no half baths mean nobody waits their turn on a busy weekday. A home office gives remote workers a room with a door they can close. Laundry on the main floor, a utility room and dedicated storage take care of the less glamorous side of family life without borrowing space from the living areas.

Step in through the entry and the house opens up. The large family room serves as the centre of daily life, and the fireplace in the family room makes it the natural gathering place on dark evenings. Floor-to-ceiling windows and other large windows brighten the space throughout the day. This open floor plan flows straight into a large kitchen organized around an island. A breakfast bar handles casual meals and after-school snacks, and the walk-in pantry holds groceries and small appliances so the counters stay clear.

A covered front porch shelters guests as they arrive, and a covered rear porch offers a shaded spot for morning coffee or an unhurried meal outdoors. The design includes neither a basement nor a garage. The house rests on strip footings with walls of aerated concrete; a slab or concrete block foundation can be supplied on request, and the walls can also be specified in ceramic hollow block or calcium silicate block. For families browsing house plans Canada for a 1-storey Prairie bungalow house plan with a fireplace and a split bedroom layout, 16713C delivers 2,277 Sq Ft of easy, well-planned living.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1496
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
