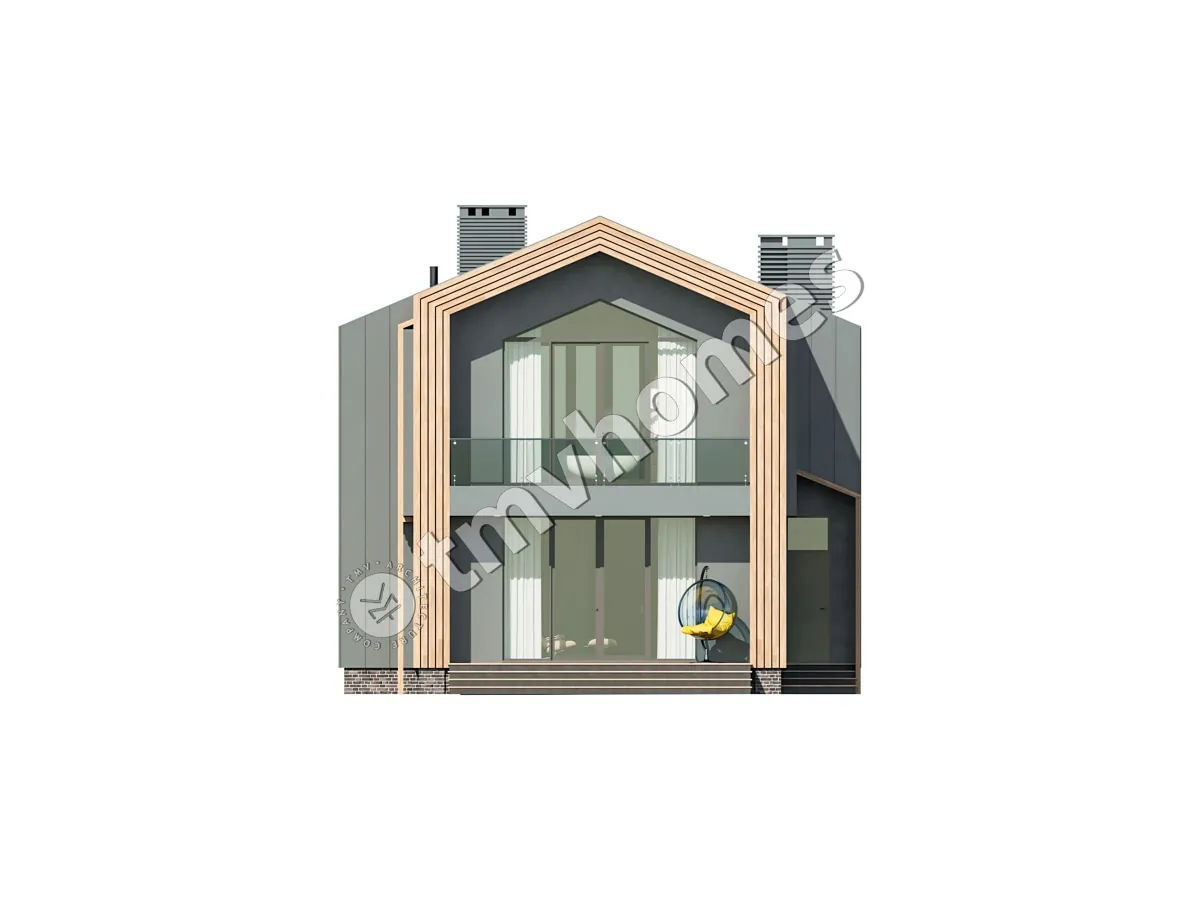

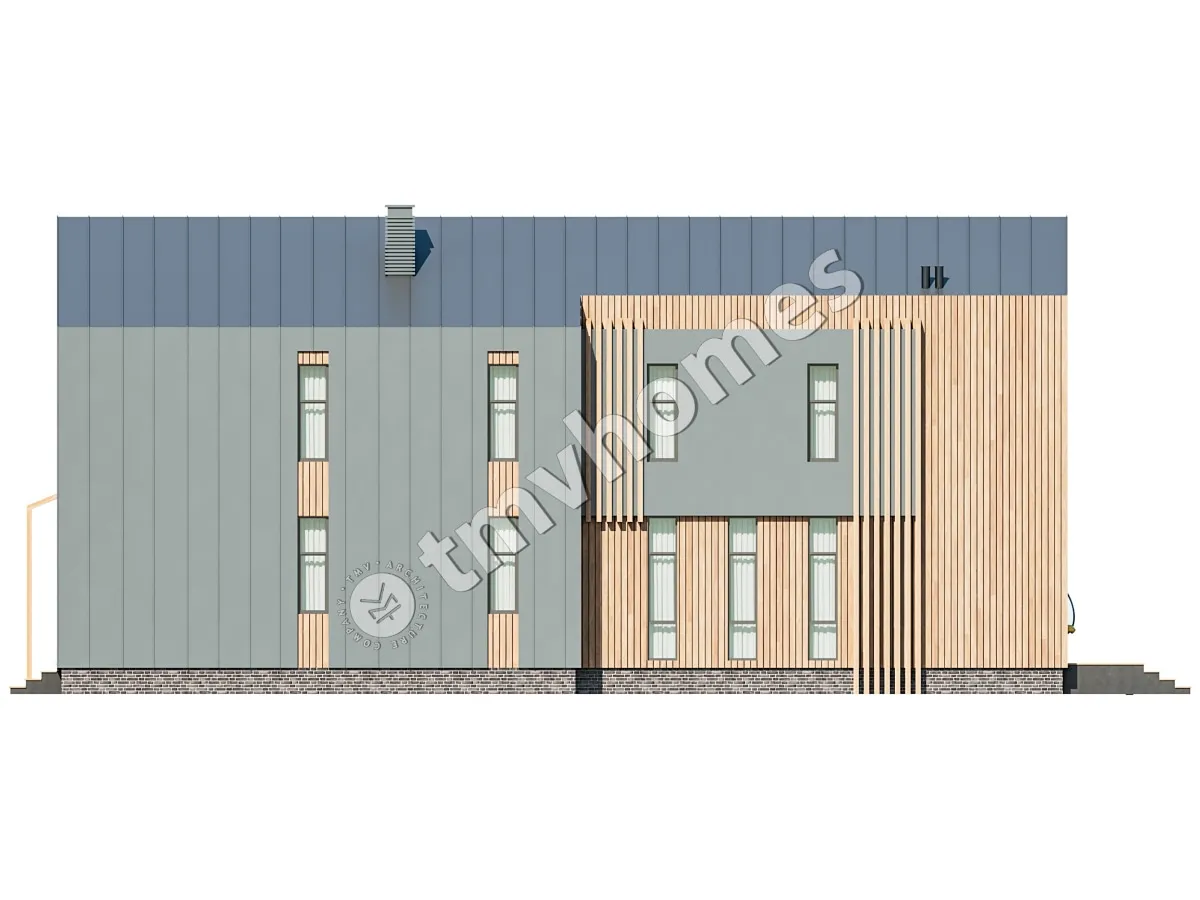

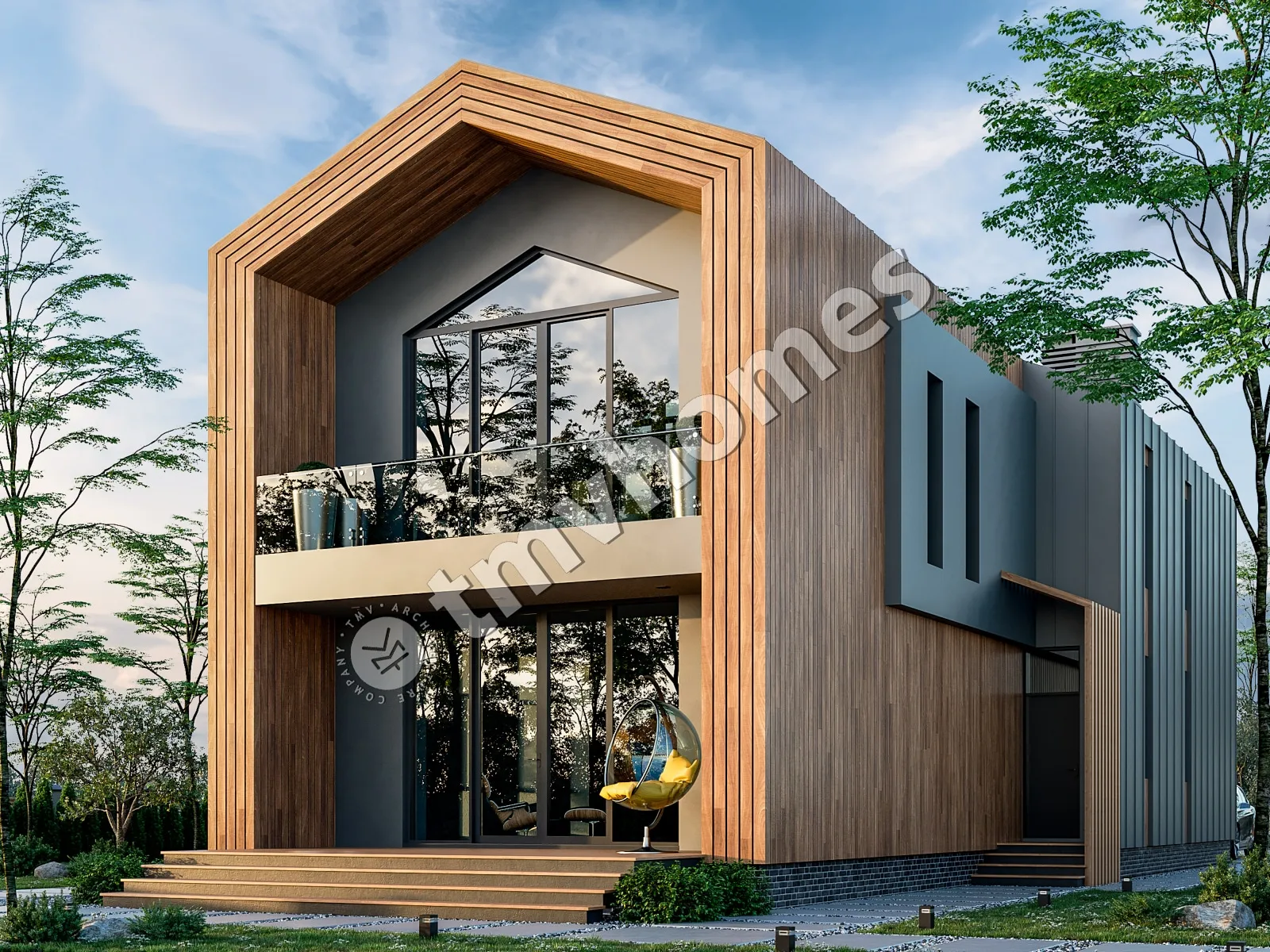

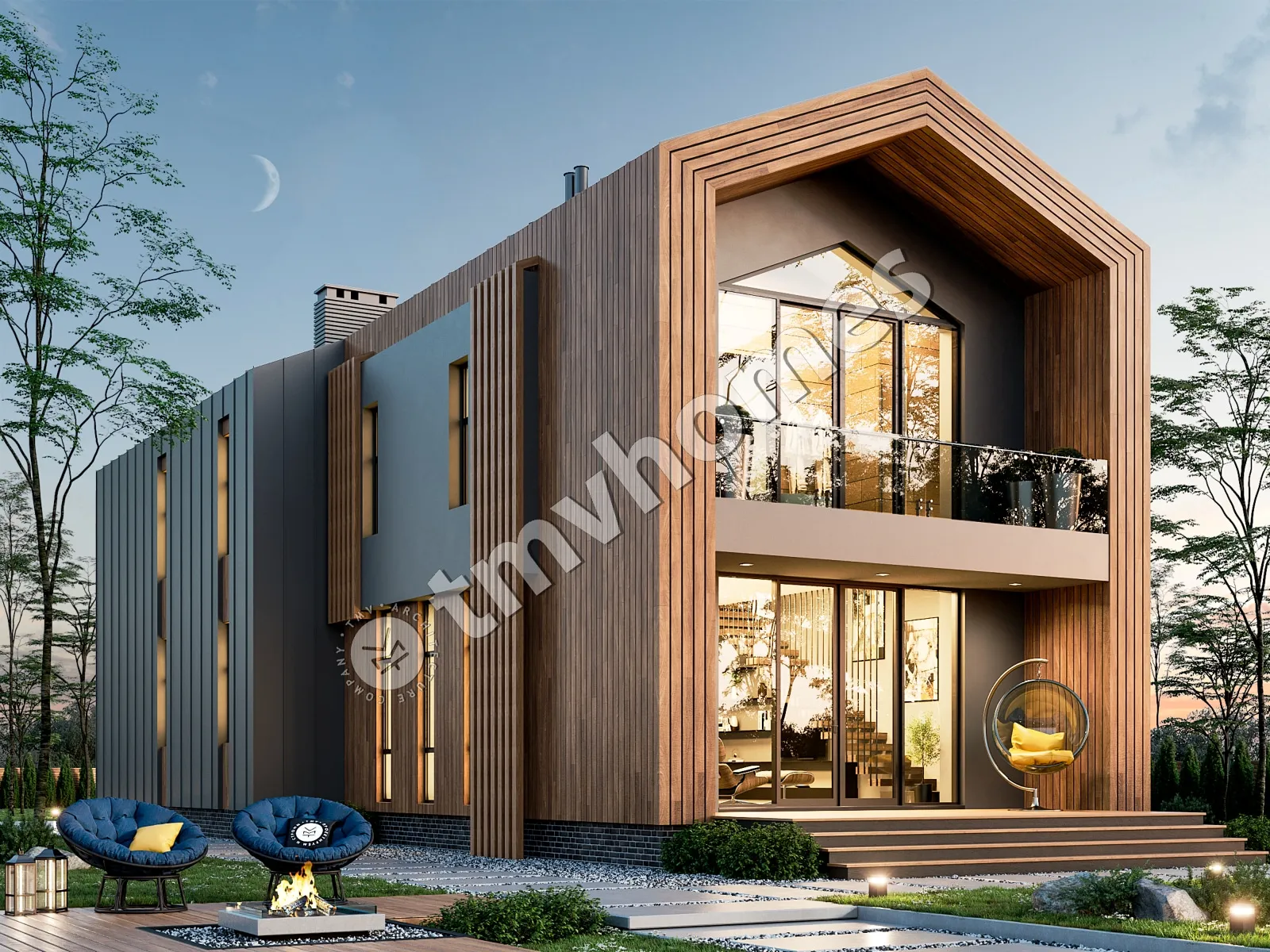

Renderings 2 – 1.5-Story House Plan 2411 ft², 3 Beds — 27952C

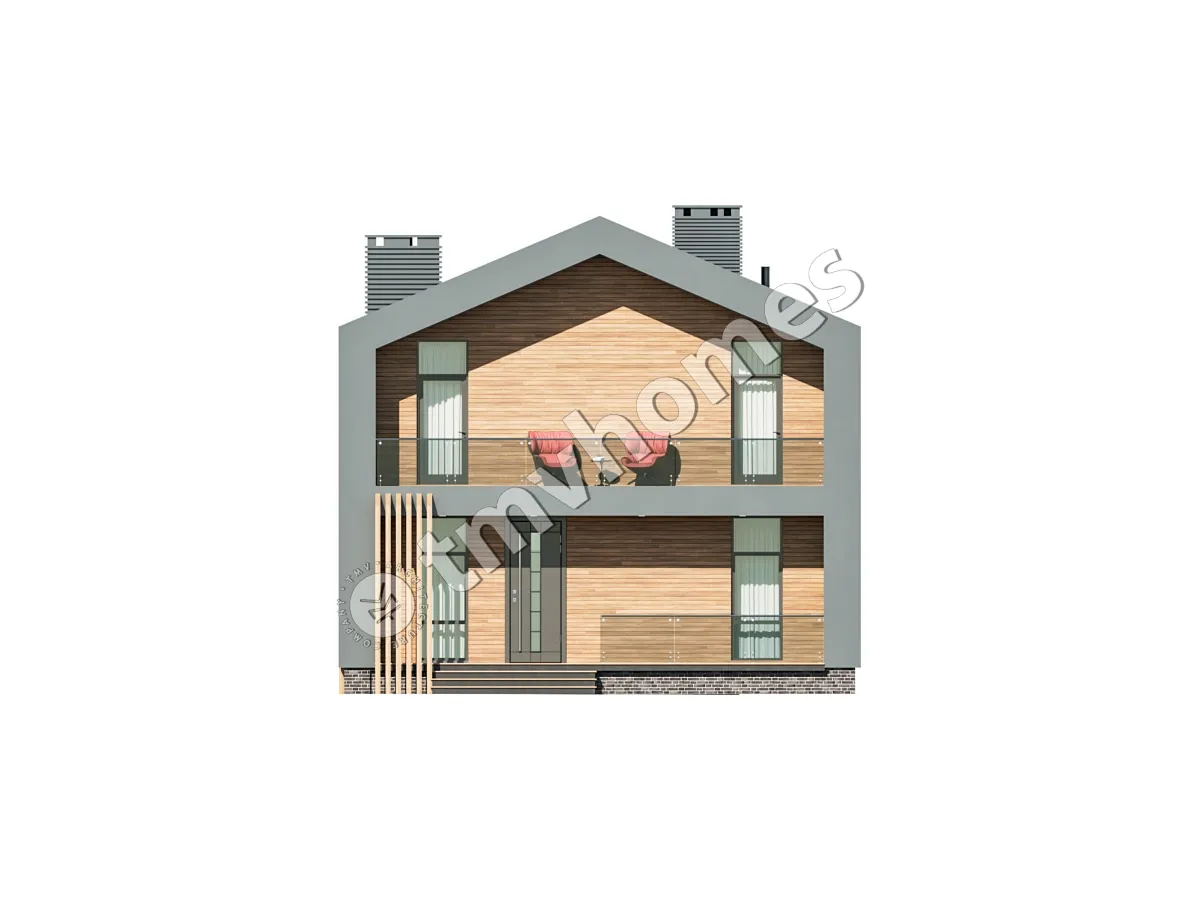

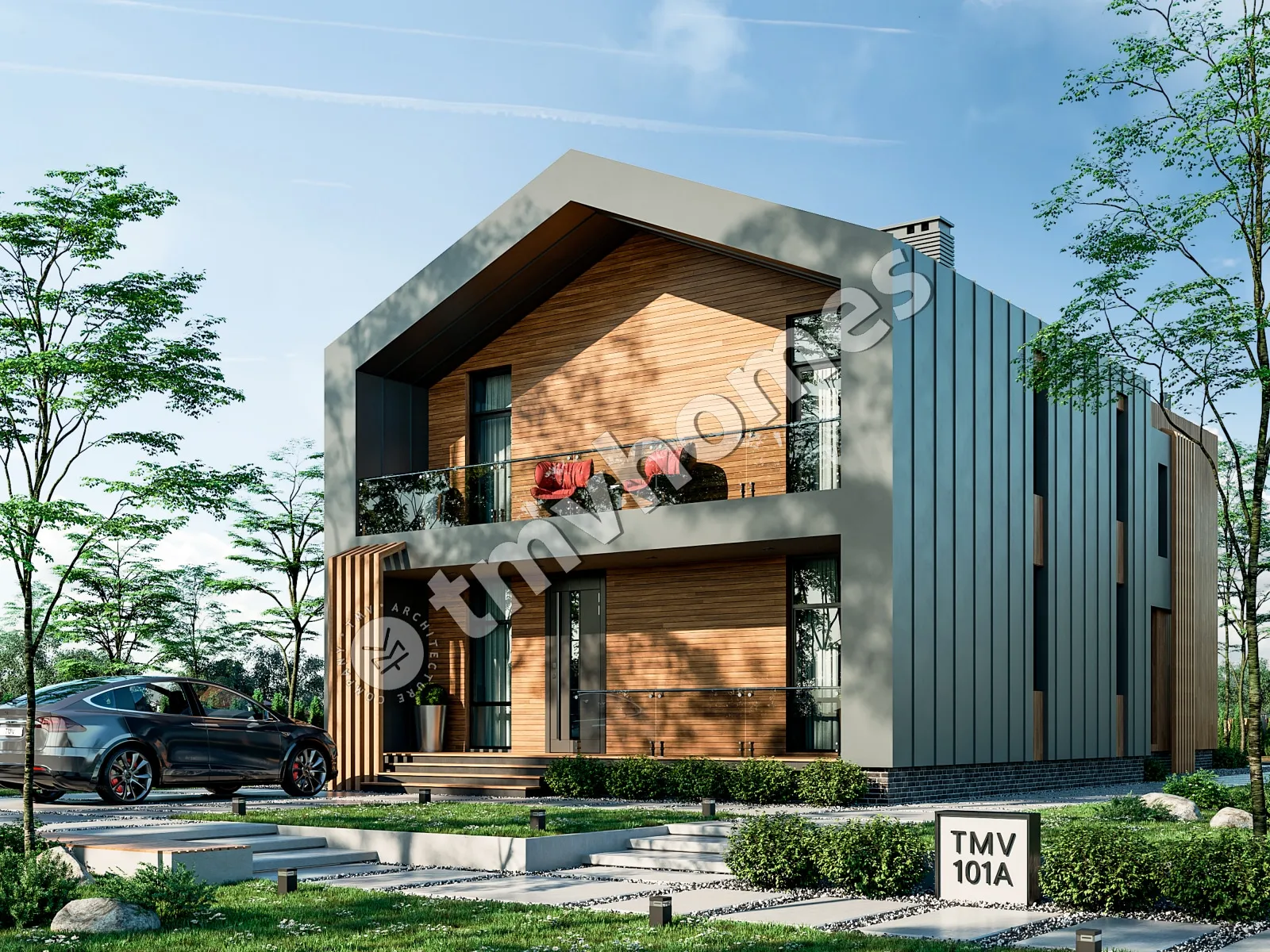

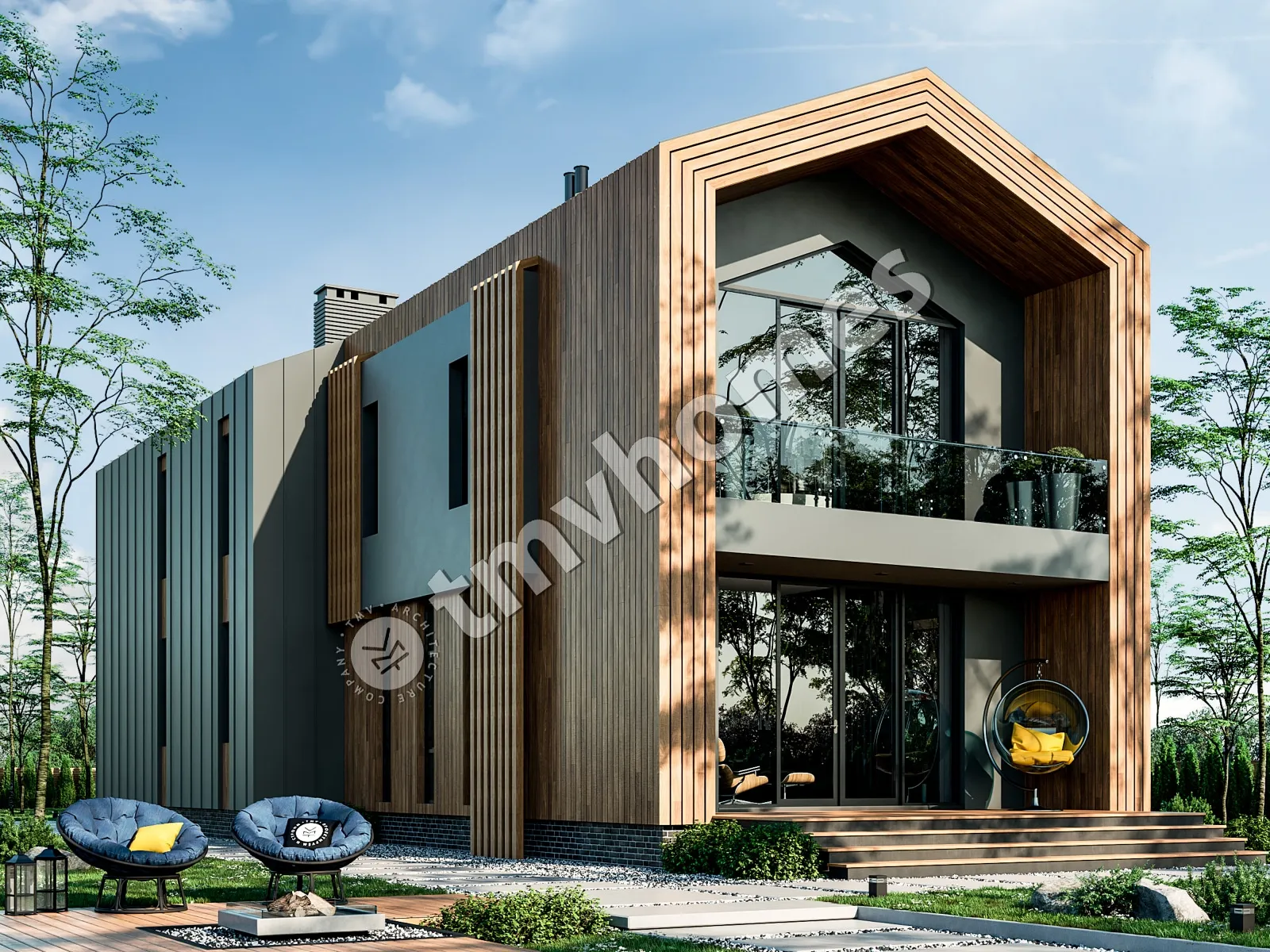

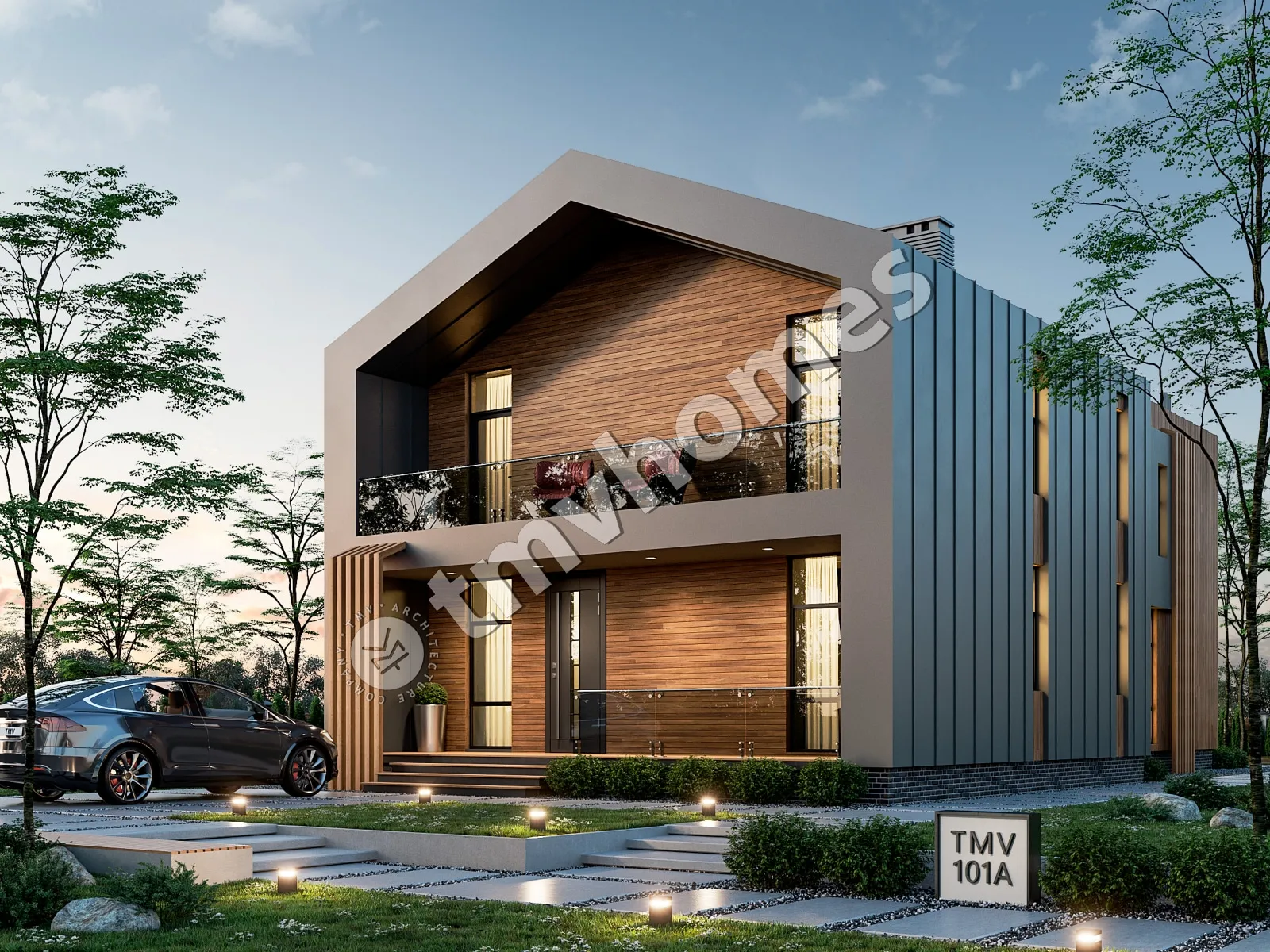

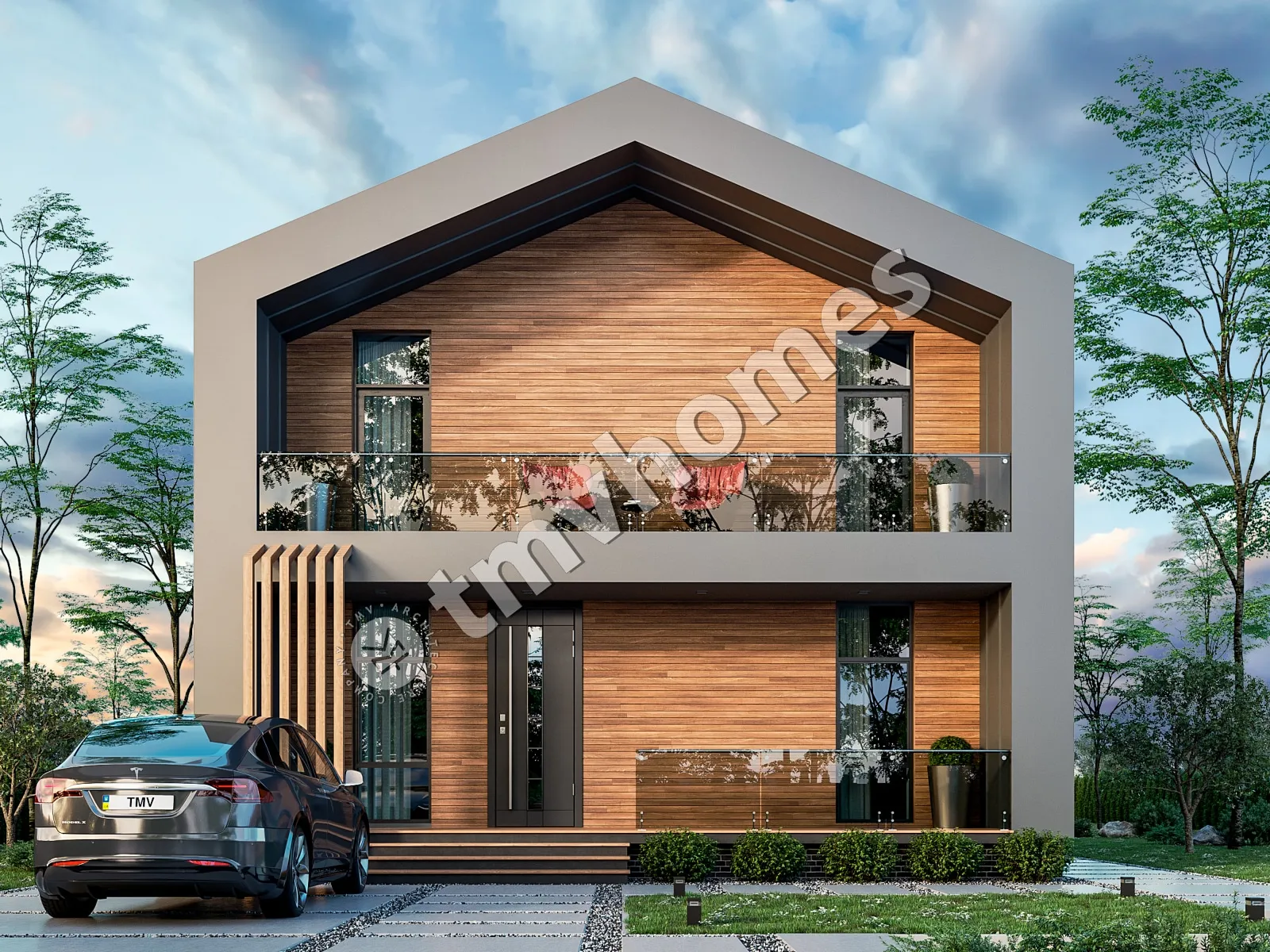

Renderings 3 – 1.5-Story House Plan 2411 ft², 3 Beds — 27952C Renderings 4 – 1.5-Story House Plan 2411 ft², 3 Beds — 27952C
8
Concept
Construction documents are prepared for the following countries:

1.5-Story House Plan 2411 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
27952C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2411
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

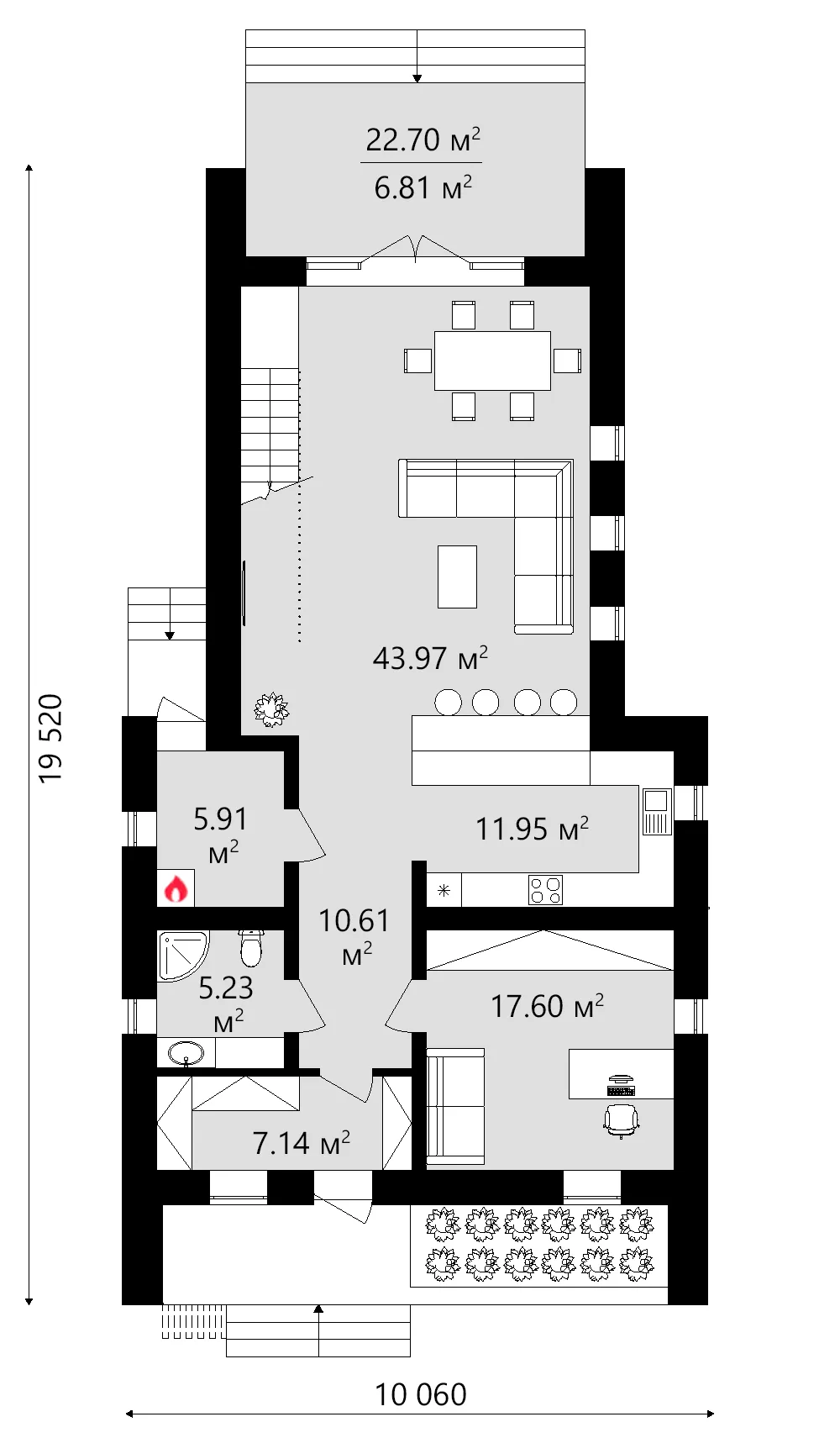

Main Floor

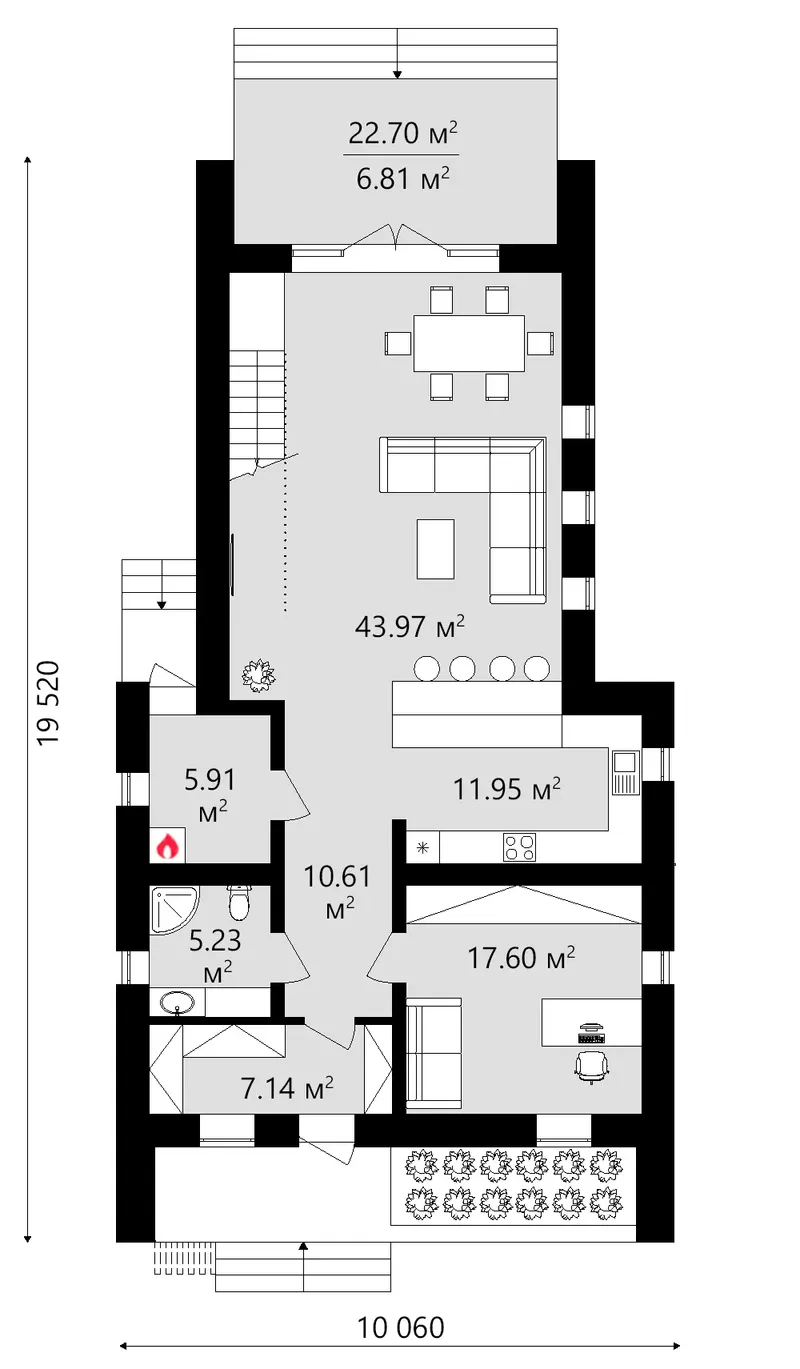

Main Floor 13 – 1.5-Story House Plan 2411 ft², 3 Beds — 27952C

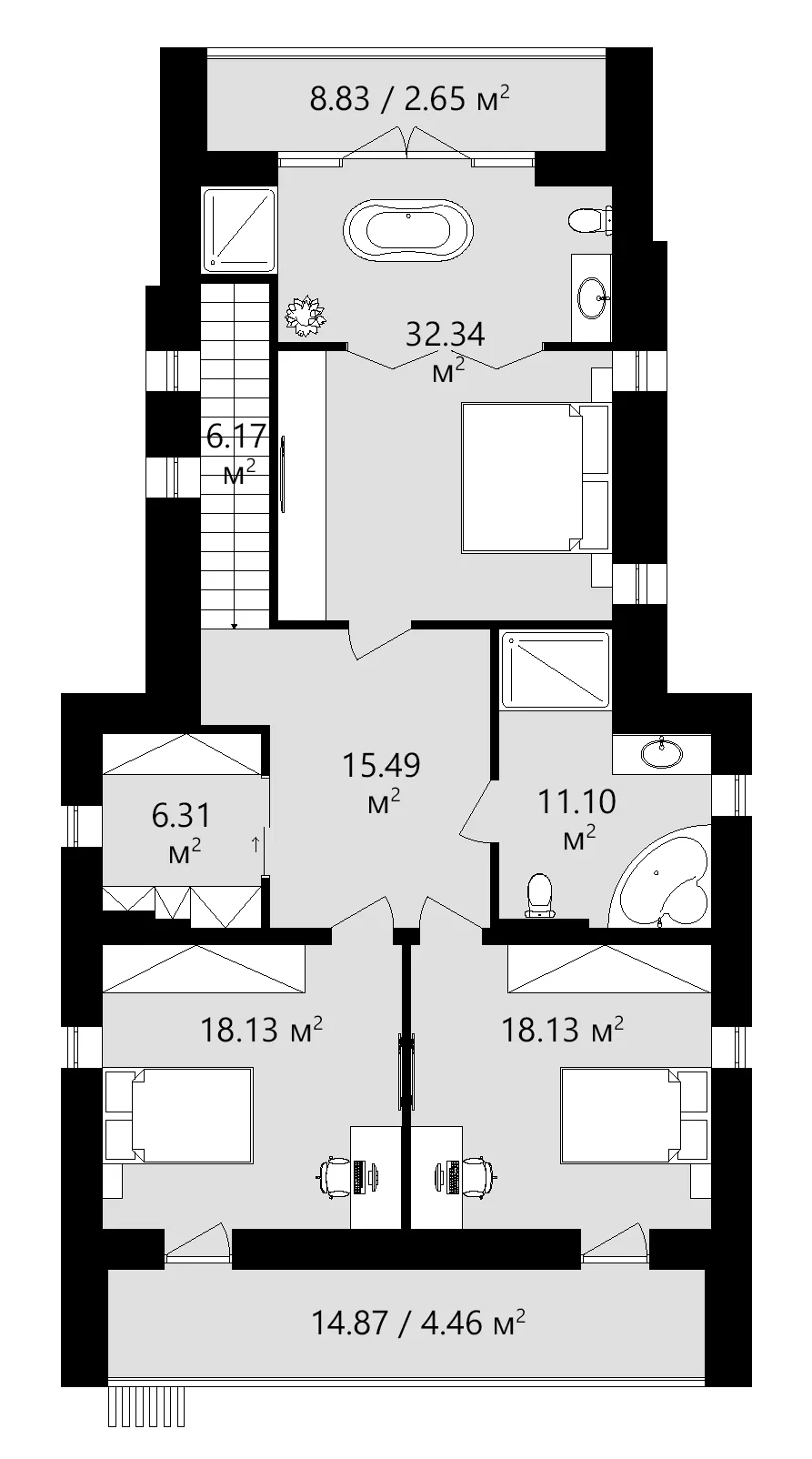

Second Floor

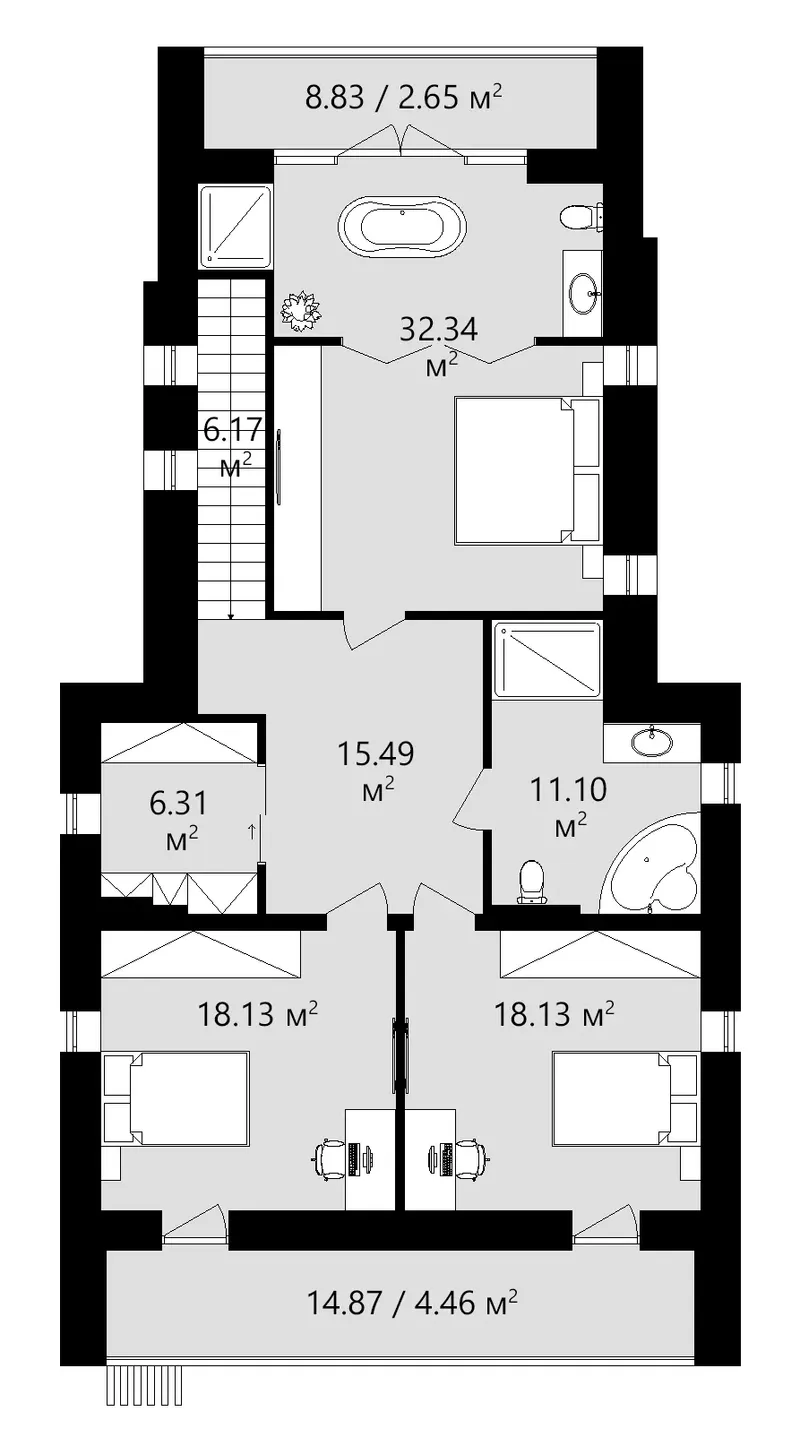

Second Floor 14 – 1.5-Story House Plan 2411 ft², 3 Beds — 27952C
Full Specs & Features
Area
Total Heated: 2411.22 ft²
Dimensions
Depth: 59'5" ft
Width: 30'7" ft
Height: 28'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Metal Panels
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Kitchen and Dining
Breakfast bar
Island
Interior Features
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Exterior Features
Balcony
Stacked Porches
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern
Roof
Roof Area: 1979.27 ft²
Gable
Ridge perpendicular to street
Roof Pitch: 5/12 (22°)

Plan 27952C is a 3-bedroom 2-storey house plan with 2411 ft² of living space, a contemporary and European character with a light modern farmhouse touch, and a gable roof set at a 5/12 (22°) pitch. Because the ridge runs perpendicular to the street, the tall gable end becomes the face of the home and gives it a clean, sculptural silhouette. Wood and metal panels on the exterior walls pair natural texture with a sleek, modern finish. This narrow single-family home design is 30'7" wide and 59'5" deep, and it rises to a height of 28'1".

The private side of the home is planned with care. The master bedroom sits on the second floor, and a split bedroom layout keeps it apart from the other two bedrooms, so parents and children each have their own quiet zone. Three full bathrooms serve three bedrooms, which shortens the morning queue and makes overnight guests feel at ease. A home office gives remote work or homework a room with a door, and a utility room gathers household equipment and chores in one practical spot, away from the rooms where the family relaxes.

On arrival, a proper entry receives coats, boots and visitors before the open floor plan takes over. At its centre is a large family room, over 270 square feet, where vaulted ceilings lift the space and floor-to-ceiling windows bring in generous daylight. Large windows continue throughout the main living areas, so the outdoors stays in view from almost every seat. The large kitchen, over 130 square feet, is made for real cooking: a central island holds the prep work, and a breakfast bar invites someone to sit with a coffee and keep the cook company. On a snowy weekend morning, this connected kitchen and family room is where everyone naturally gathers.

Outdoor living happens on several levels. Stacked porches give covered space both upstairs and down, a balcony opens the upper floor to fresh air, and a deck offers room for a table and evening meals outside. The home is designed without a basement and without a garage, and it stands on strip footings, with a slab or a concrete block foundation available on request. The walls are framed in autoclaved aerated concrete; clay hollow block and sand-lime block are offered as alternatives. With its vaulted interiors, rustic warmth and modern lines, it stands out among narrow house plans Canada families are comparing for a contemporary home.
