Renderings 2 – 1.5-Story House Plan 2230 ft², 2 Beds — 72449C
Renderings 3 – 1.5-Story House Plan 2230 ft², 2 Beds — 72449C Renderings 4 – 1.5-Story House Plan 2230 ft², 2 Beds — 72449C
7
Concept
Construction documents are prepared for the following countries:

1.5-Story House Plan 2230 ft²: 2 Beds, Home Office, 2 Baths, Open Floor Plan, without Garage

Plan
72449C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2230
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

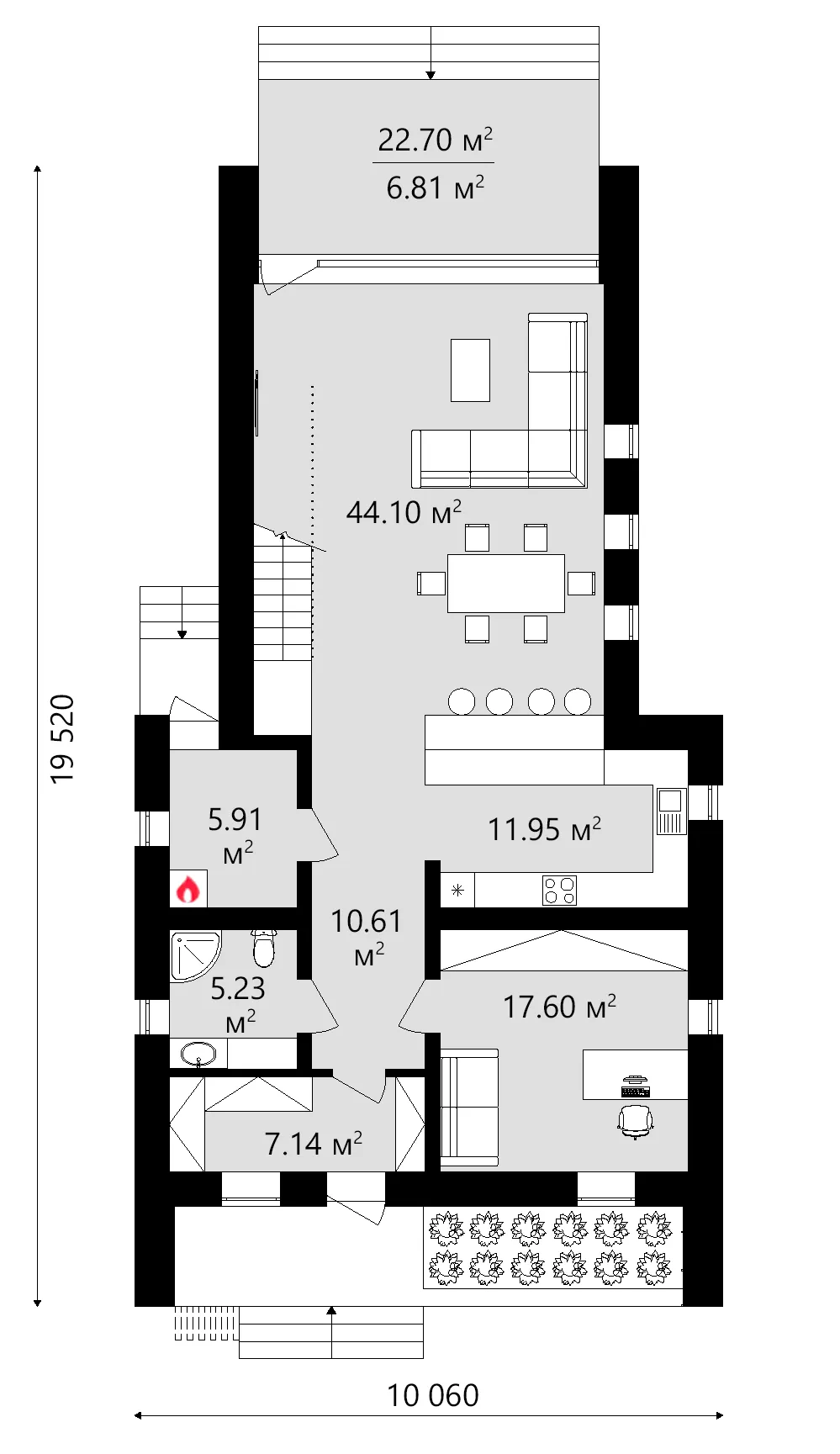

Main Floor
Main Floor 12 – 1.5-Story House Plan 2230 ft², 2 Beds — 72449C

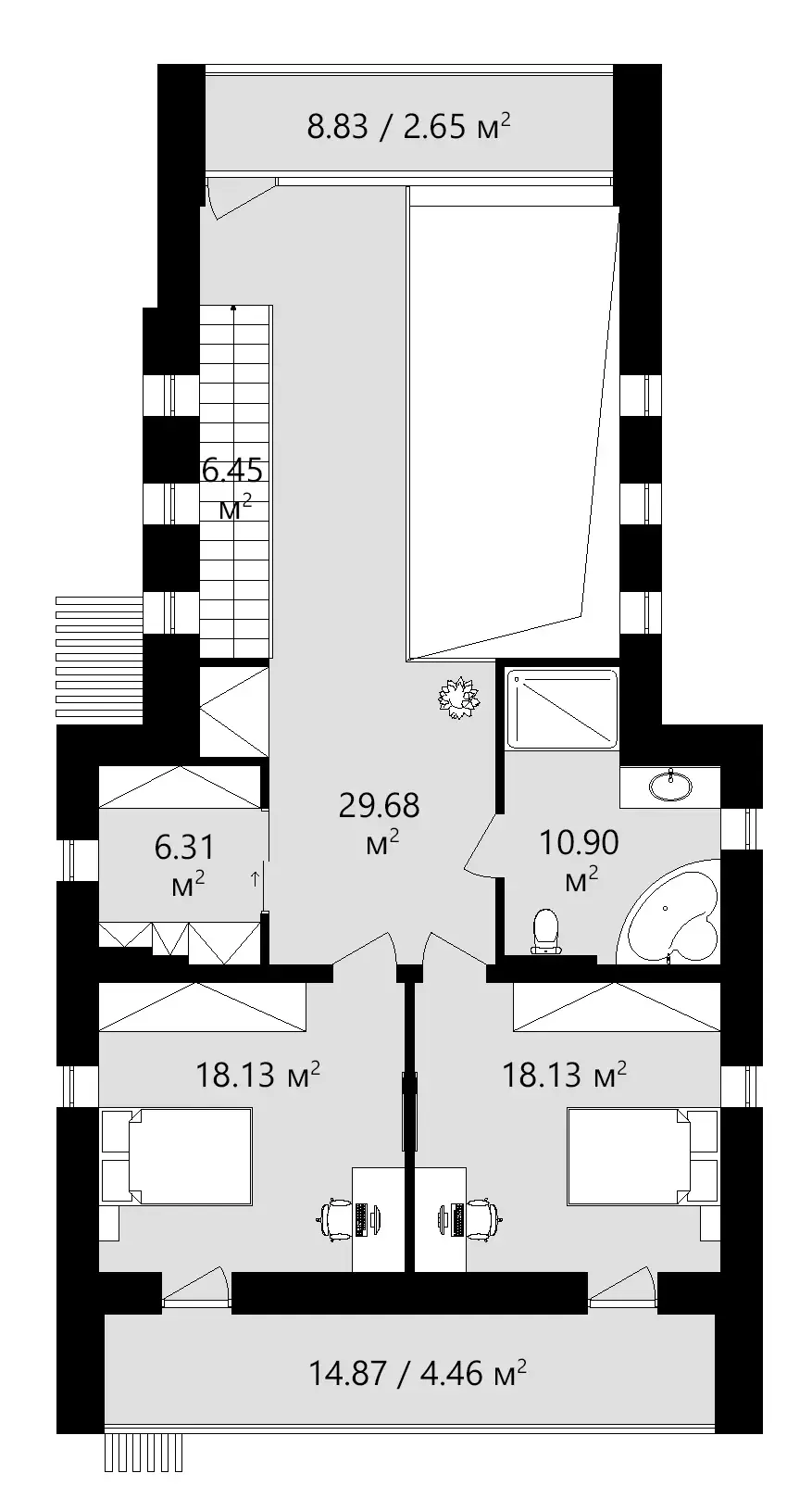

Second Floor
Second Floor 13 – 1.5-Story House Plan 2230 ft², 2 Beds — 72449C
Full Specs & Features
Area
Total Heated: 2230.07 ft²
Dimensions
Depth: 59'5" ft
Width: 30'7" ft
Height: 28'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)

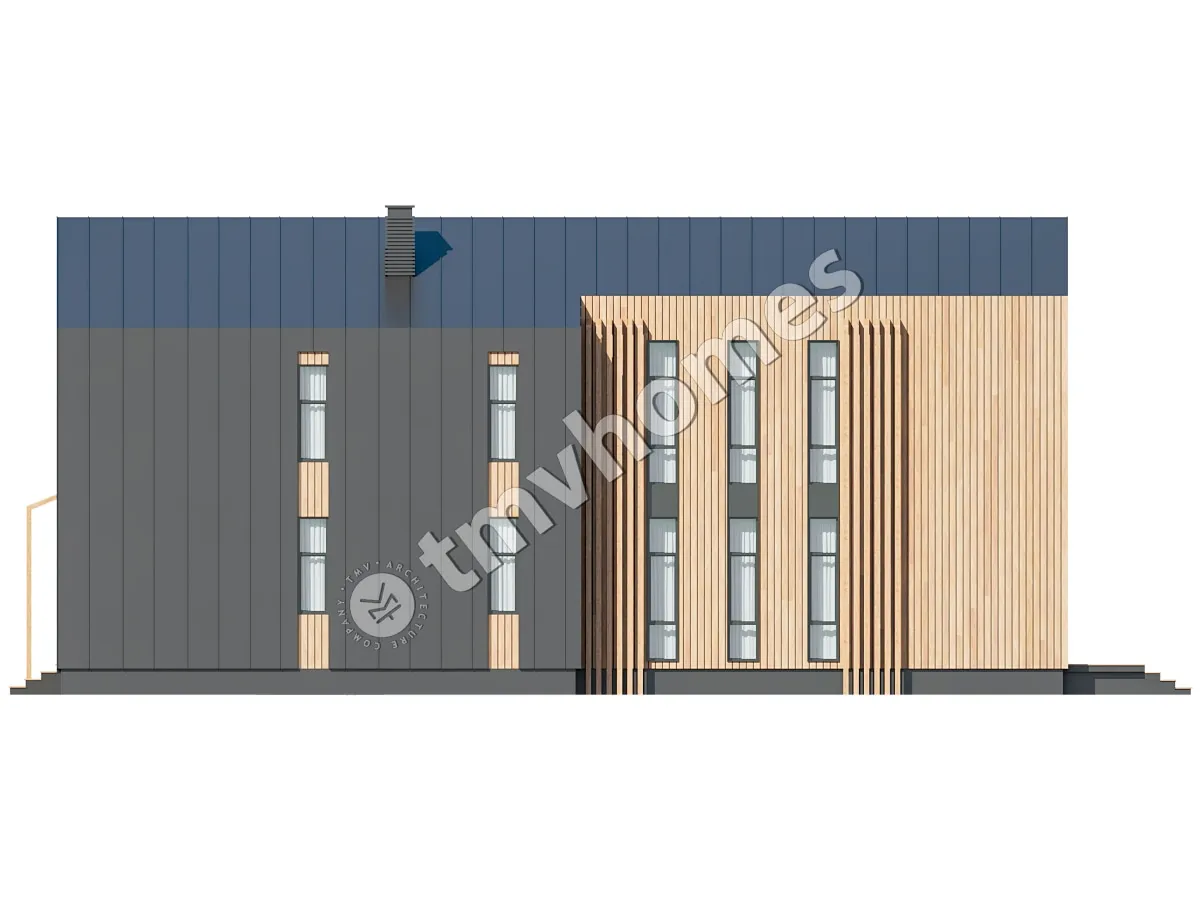

Exterior Wall Materials
Wood
Metal Panels
Rooms
Full bathrooms: 2
Bedrooms: 2
Utility room
Entry
Home Office
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Interior Features
Clustered Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Deck
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern

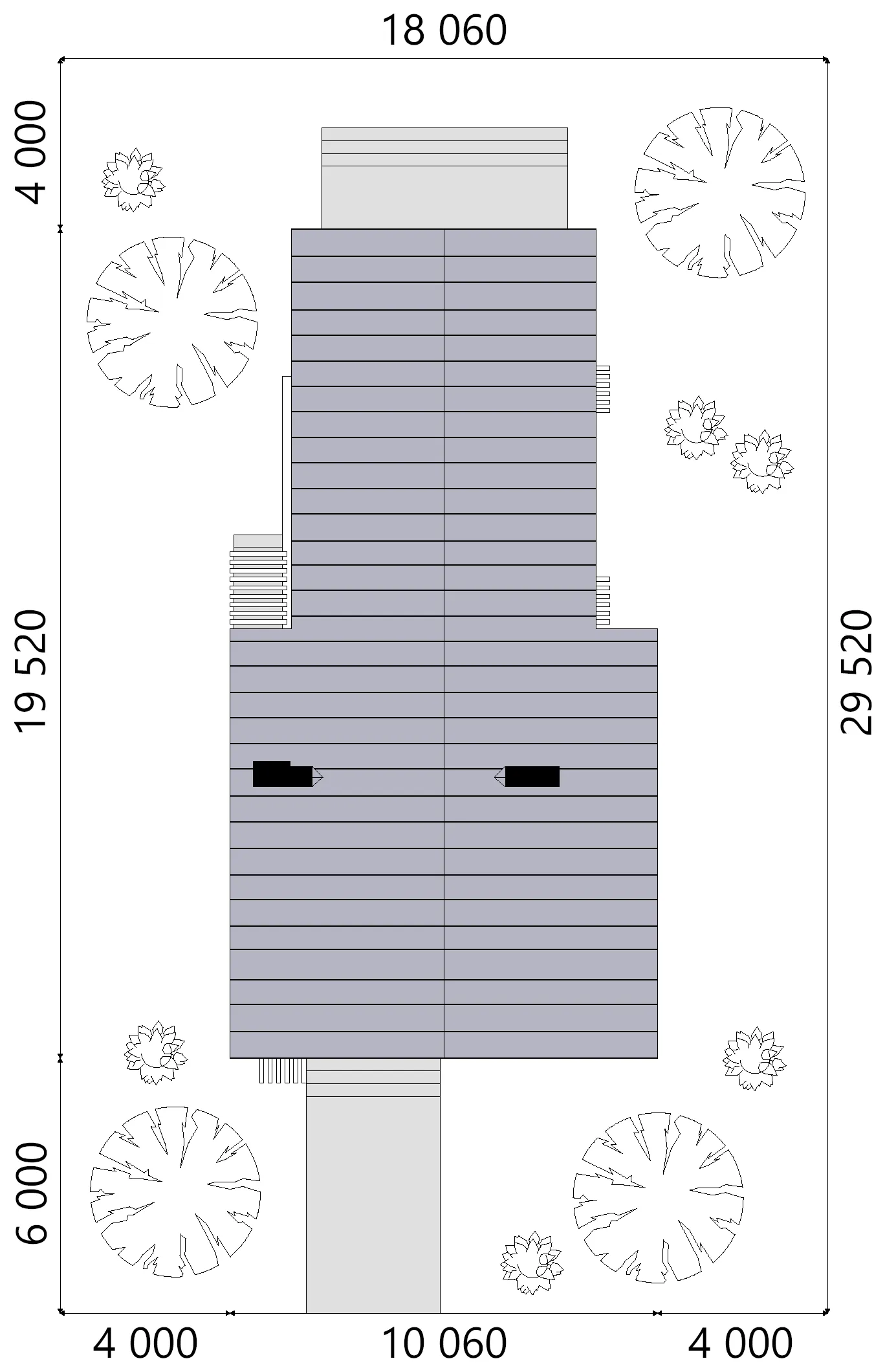

Roof
Roof Area: 1979.27 ft²
Gable
Ridge perpendicular to street
Roof Pitch: 5/12 (22°)

Plan 72449C is a 2-bedroom, 2-storey home design of 2230 ft² with a modern, contemporary profile, a gable roof set at a 5/12 (22°) pitch and a refined European take on the modern farmhouse look. The ridge is perpendicular to the street, so the tall gable greets visitors while the long body of the house stretches back behind it. Wood and metal panels clad the exterior walls, pairing natural texture with a sleek, durable finish. For anyone comparing house plans Canada has to offer in a slim footprint, this single-family home measures 30'7" wide and 59'5" deep and rises to a height of 28'1".

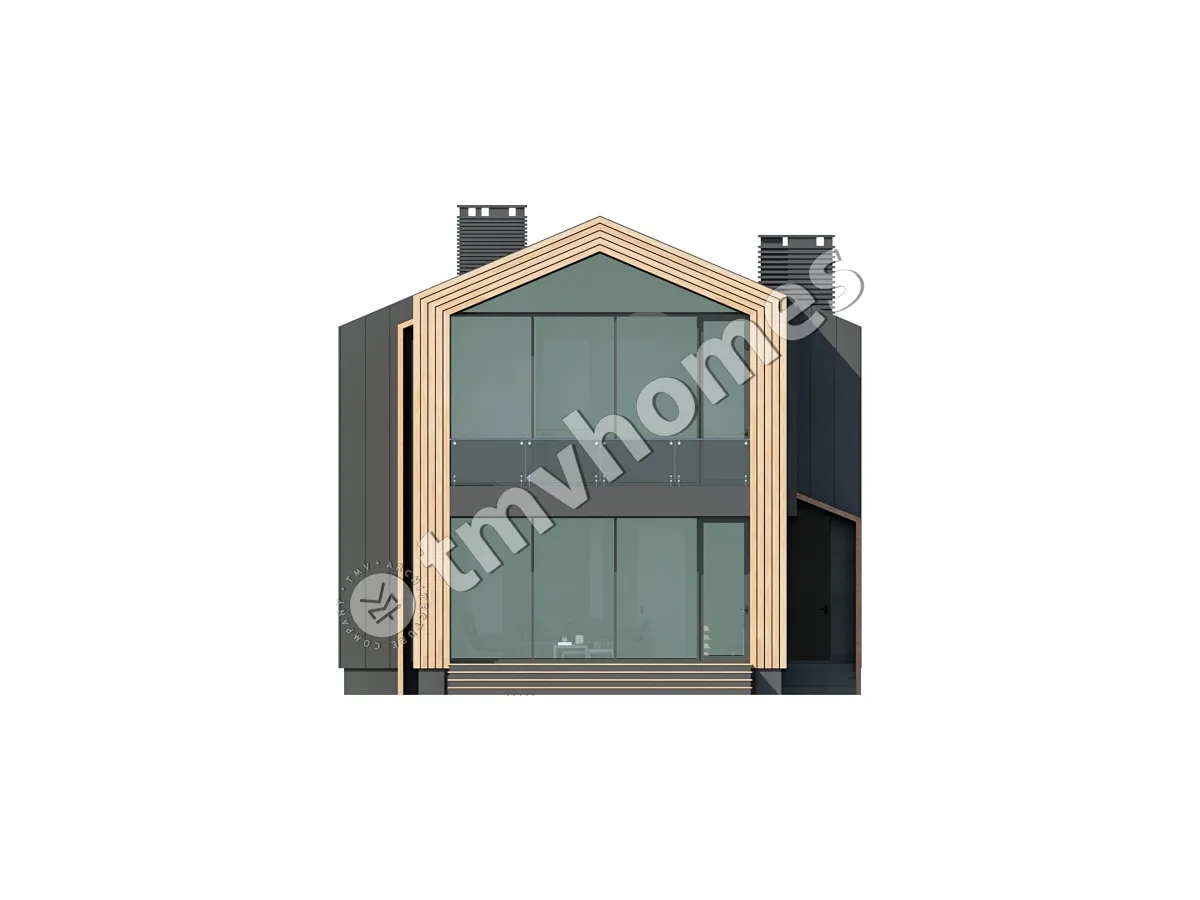

Glass defines the outside of the house as much as the cladding does. Floor-to-ceiling windows, window walls, panoramic windows and other large windows open the interior to the outdoors and let the seasons become part of the décor. Stacked porches create covered outdoor rooms on both storeys, a balcony gives the upper level its own spot for fresh air, and a deck is ready for barbecues and summer suppers. Strip footings form the foundation, and a slab or a concrete block foundation can be ordered instead. The walls are framed in autoclaved aerated concrete, with clay block or sand-lime block offered as alternatives. There is no garage and no basement, which keeps the whole design focused on everyday living.

Past the entry, an open floor plan unfolds around a large family room where part of the ceiling is open to below. Above it, a loft looks down into the space, so conversations and daylight move freely between the two levels. The large kitchen is planned for real cooking and real gatherings: an island sits at the centre of the work area, a breakfast bar handles quick lunches and homework sessions, and a breakfast nook offers a quieter corner for a slow Sunday morning.

The two bedrooms are clustered together for a calm, private sleeping zone, and two full bathrooms serve family and overnight guests with ease. A dedicated home office gives remote workers a door they can close, while the loft remains a flexible extra space for reading, crafts or a play area. A utility room keeps laundry, storage and mechanical equipment out of sight, completing a practical open concept house plan with loft that feels generous without wasting a single room.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
