2-Story House Plan 2695 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

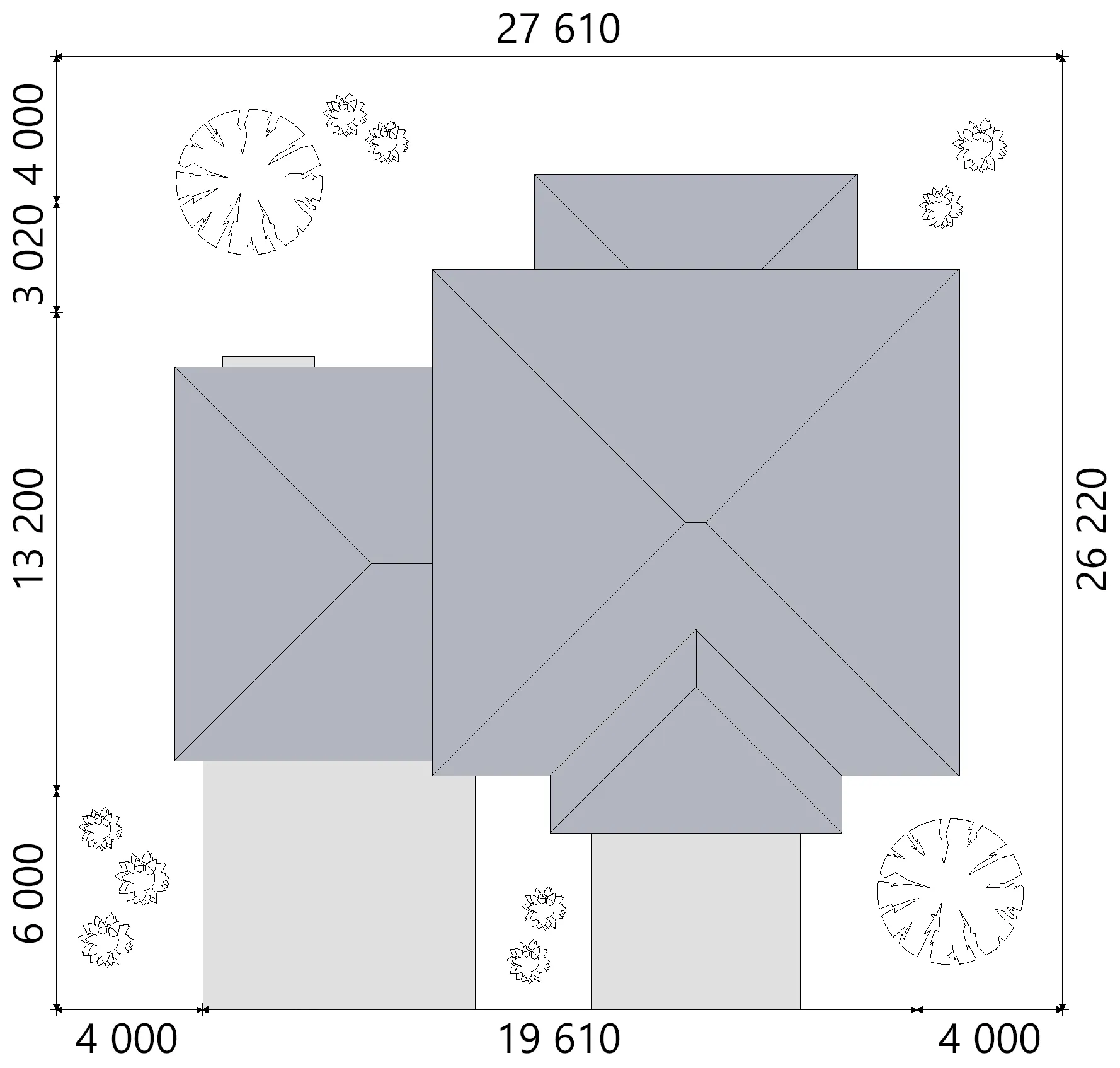

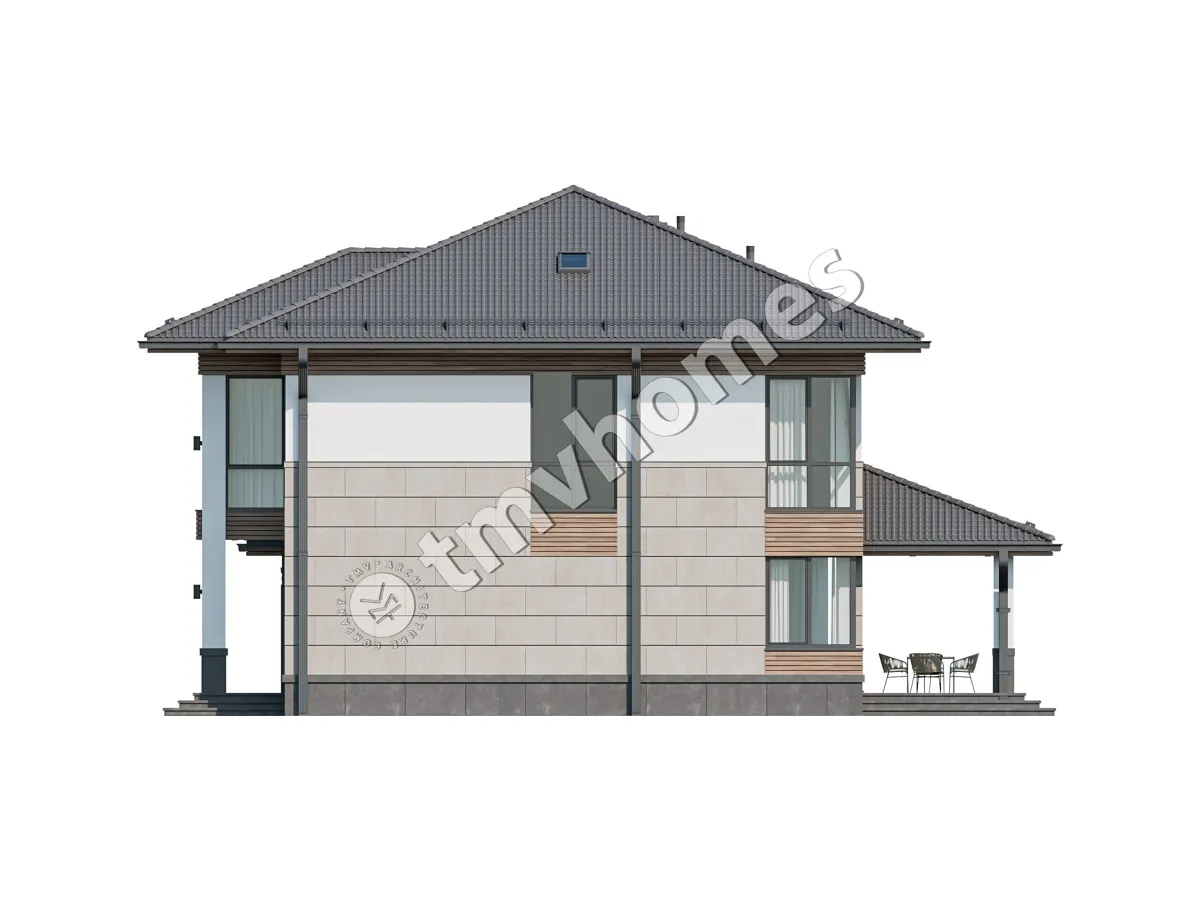

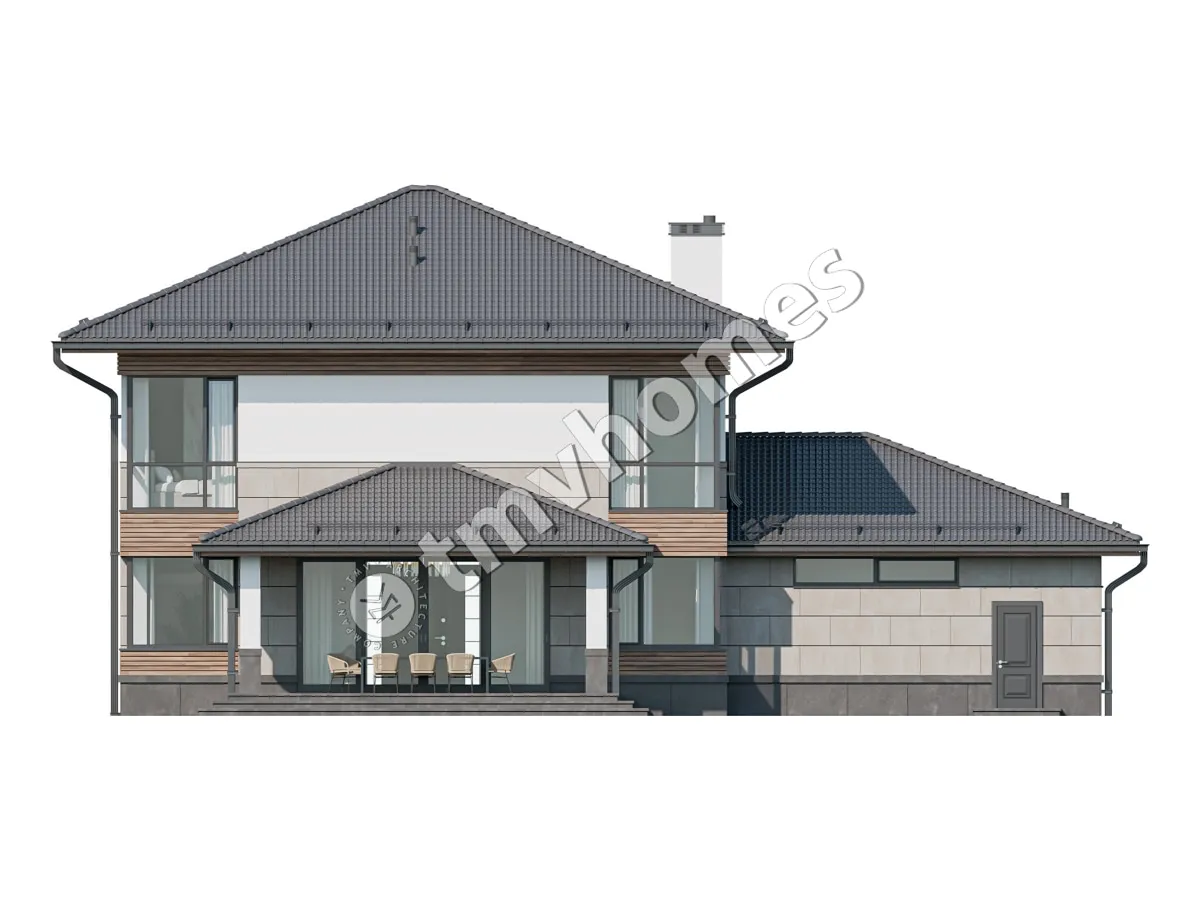

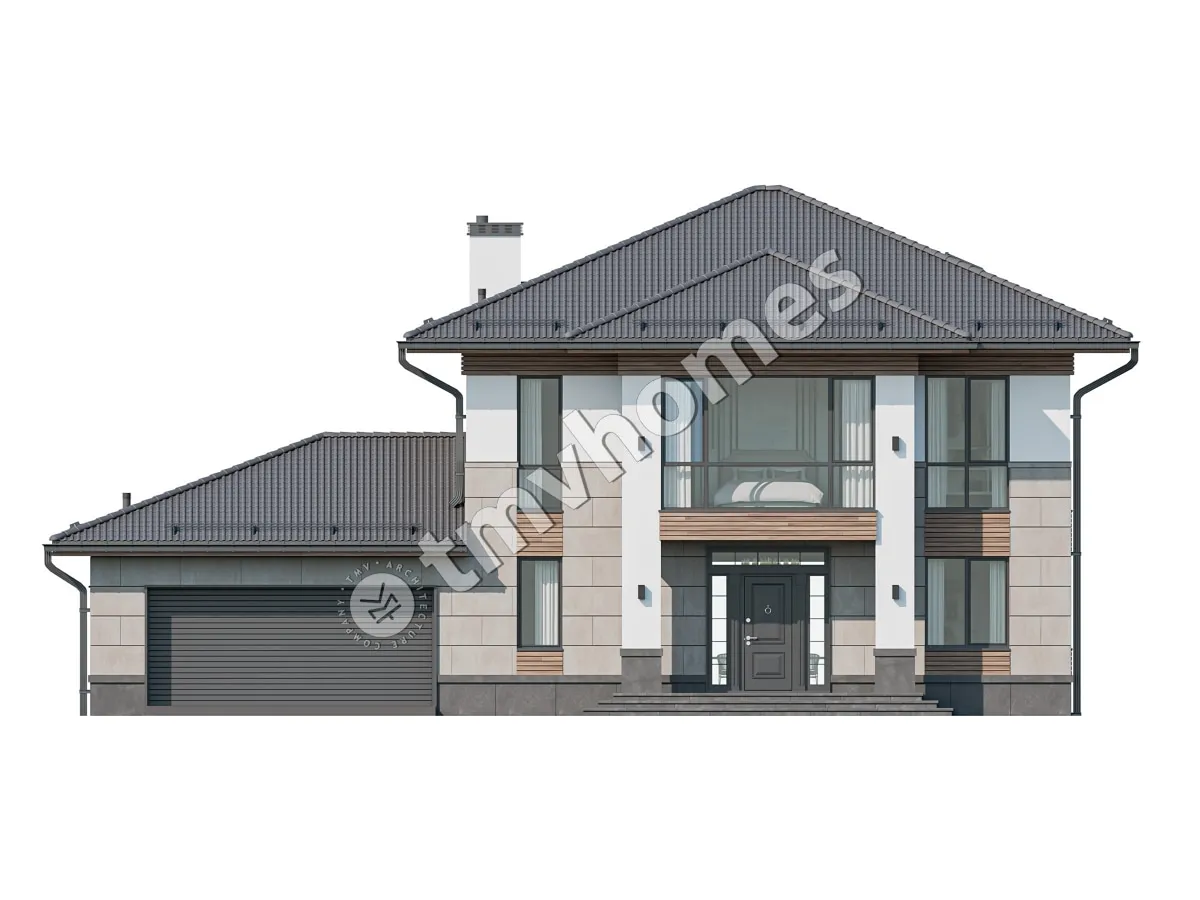

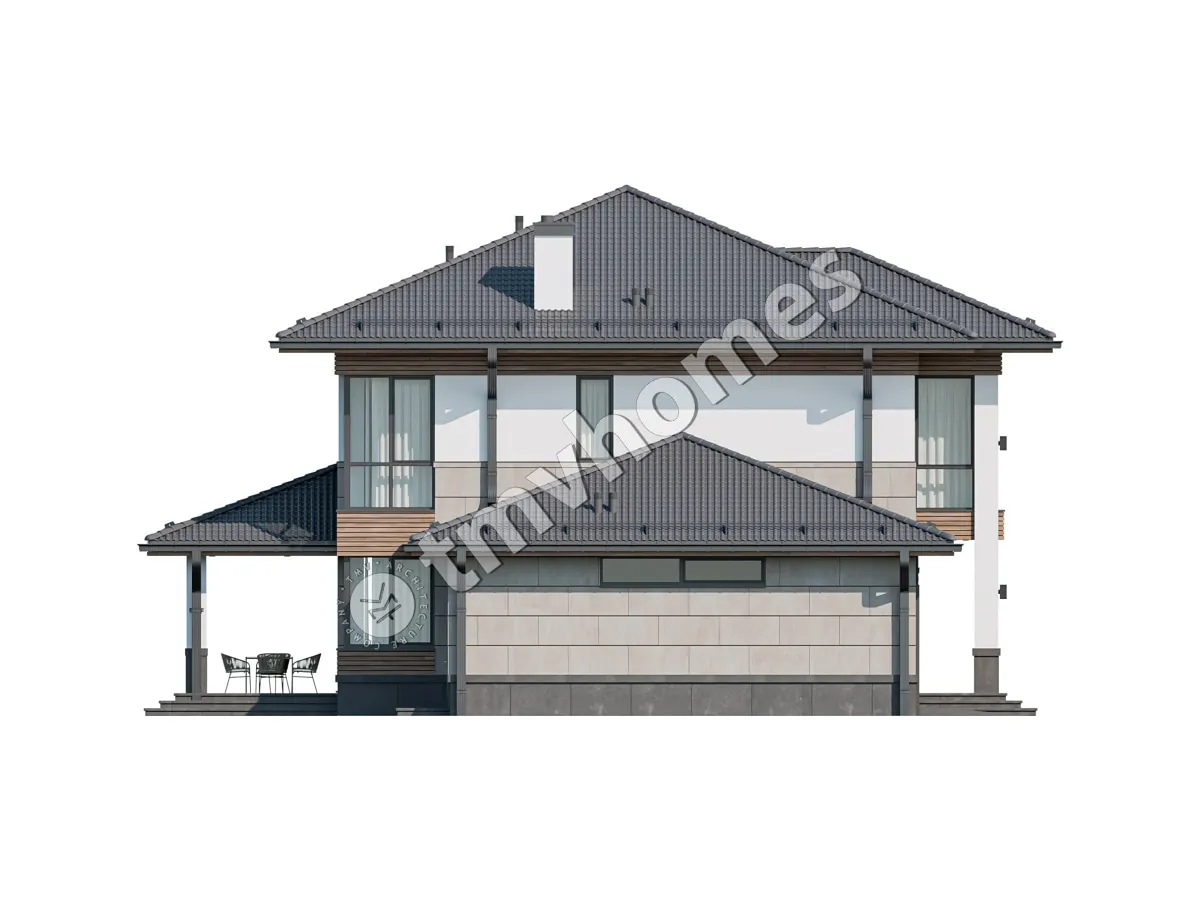

Designed as a 3-bedroom, 3-storey house plan, 45195C brings Modern, Contemporary and European influences together in a single-family home of 2695 ft², sheltered by a hip & valley roof. The 5/12 (22°) pitch keeps the silhouette calm and well proportioned. The exterior walls mix stucco, wood and flexible ceramic, giving the facade both crisp surfaces and natural texture. Overall, the house is 59'8" wide and 49'4" deep and rises to a height of 32'0". Its walls are built in aerated concrete, and ceramic hollow block or sand-lime block framing can be chosen as an alternative on request.

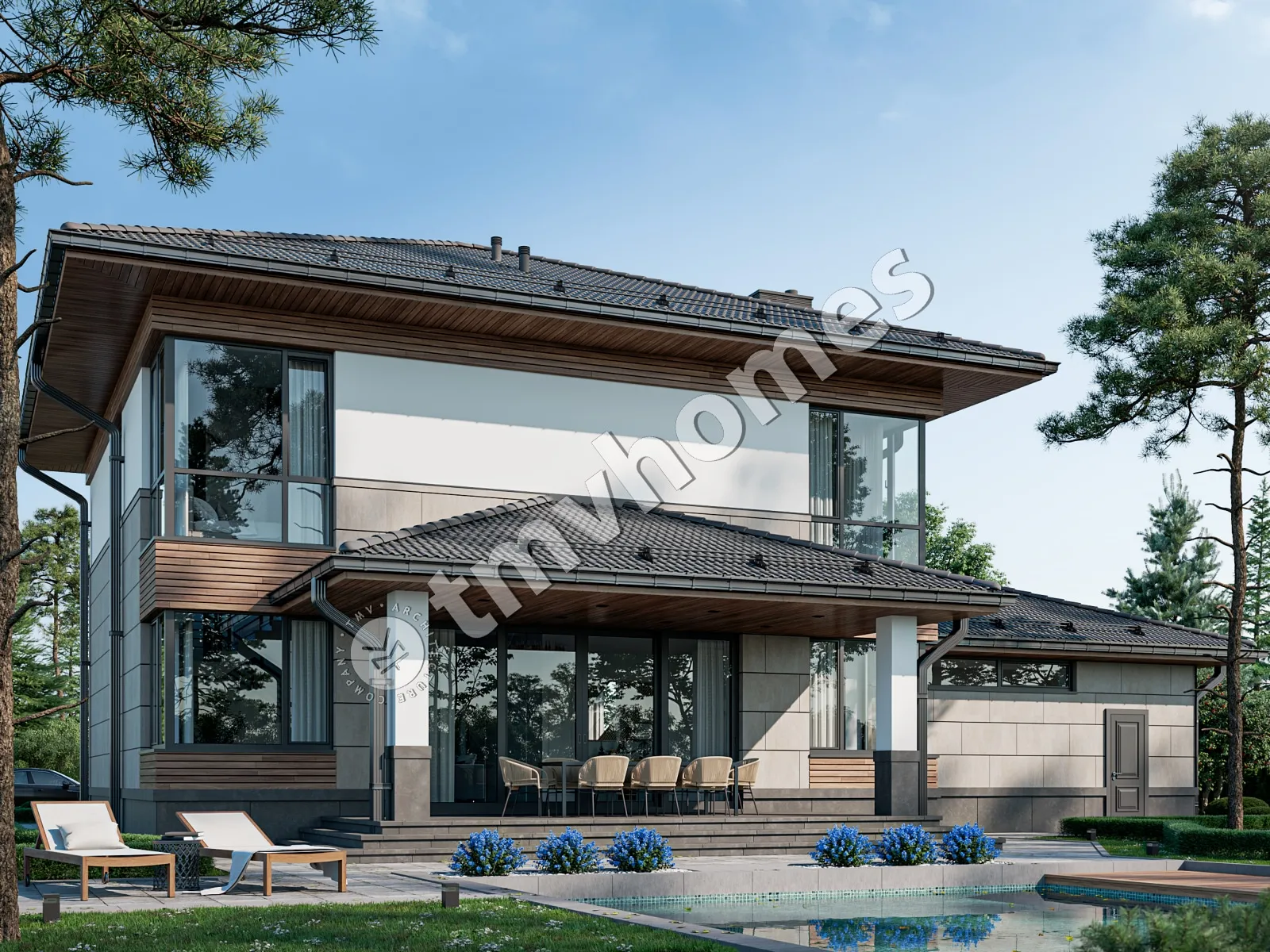

The approach begins under a portico that leads to a covered front porch, a sheltered spot to pause before stepping inside. Next to it, an attached 2-car garage with front entry lets the family move from the car straight into the house. Behind the home, a covered rear porch serves as an outdoor room for shared meals and unhurried conversation. This home design has no basement and rests on strip footings, while a slab or a block foundation is offered as an option.

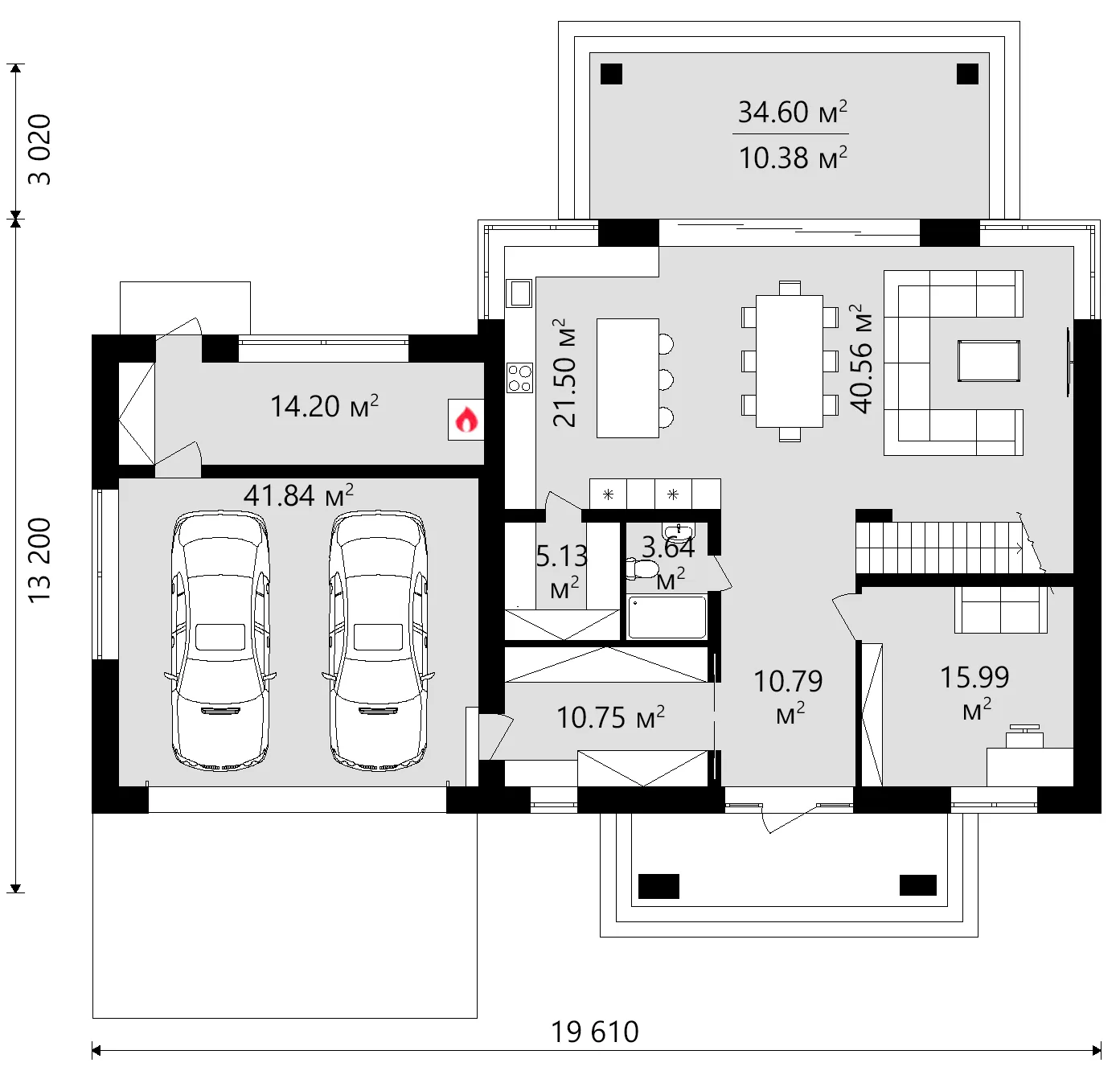

Inside, an open floor plan joins a large family room and a large kitchen into one connected living area, so whoever is cooking remains part of the evening. The kitchen centres on an island, with a breakfast bar for casual meals and a separate breakfast nook set beside a corner window. A walk-in pantry provides generous storage within a few steps of the work zone, keeping counters clear. Large windows, floor-to-ceiling windows and a bay window carry daylight deep into the living spaces, and mornings here start in soft natural light.

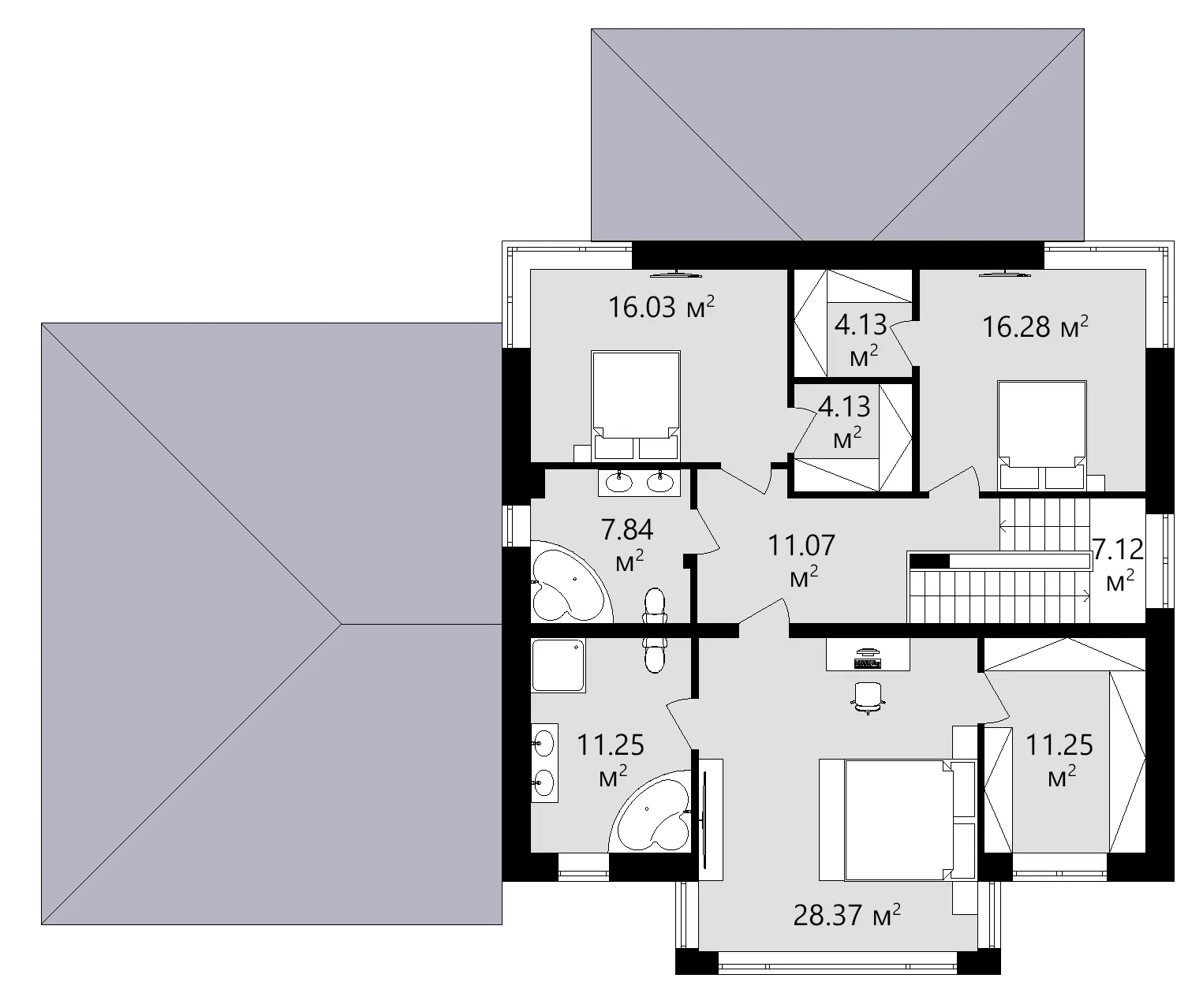

The three bedrooms are grouped together, apart from the busier rooms of the house. On the second floor, the master suite enjoys a walk-in closet for organized storage. Three full bathrooms mean family members and overnight guests rarely have to wait their turn. A home office offers a quiet, dedicated room for remote work or study, and a utility room keeps household equipment and chores out of the way. For families exploring house plans Canada for a three-storey home with space to work, entertain and grow, 45195C balances refined architecture with an easy daily routine.
Exciting Home Plans Vancouver CA$ 21,564
