2-Story House Plan 2481 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

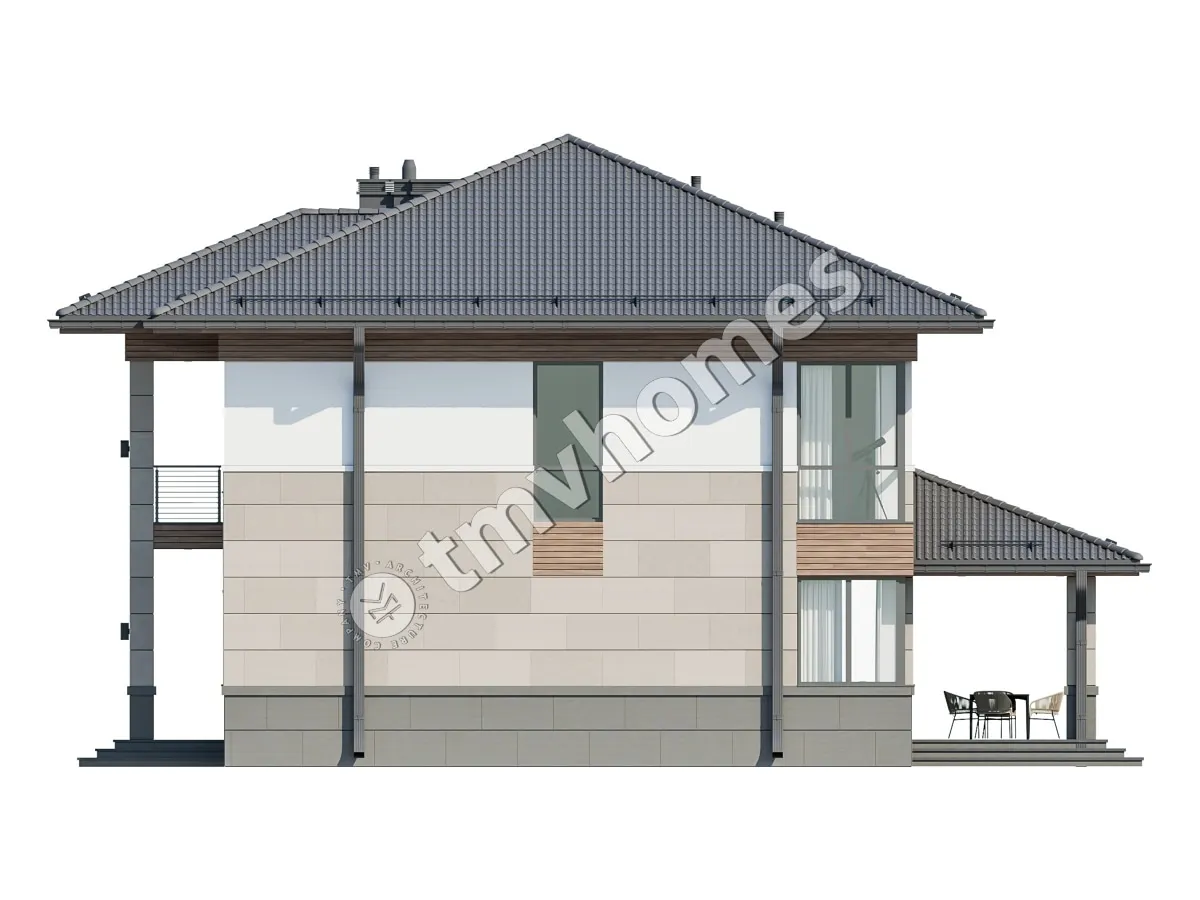

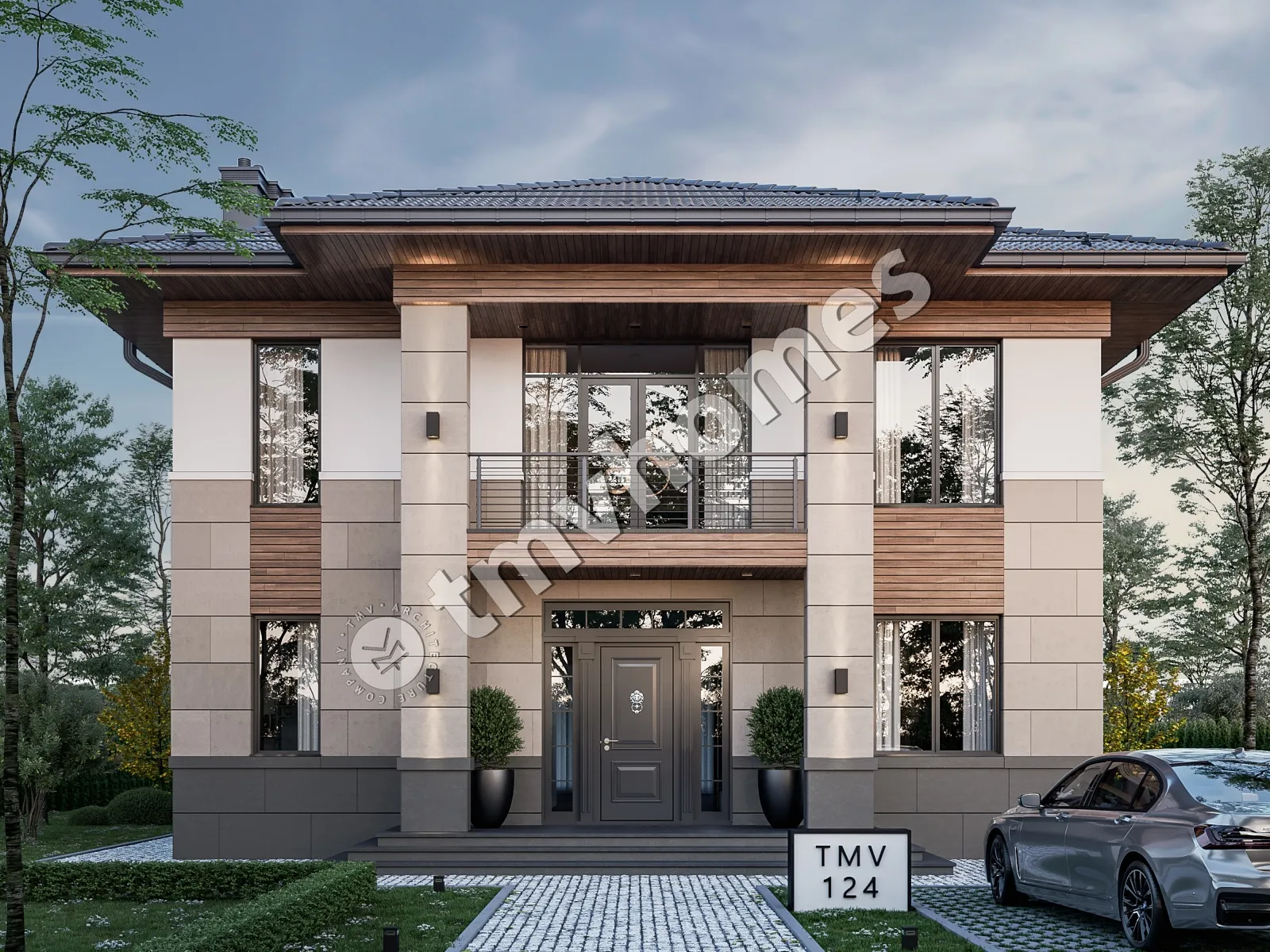

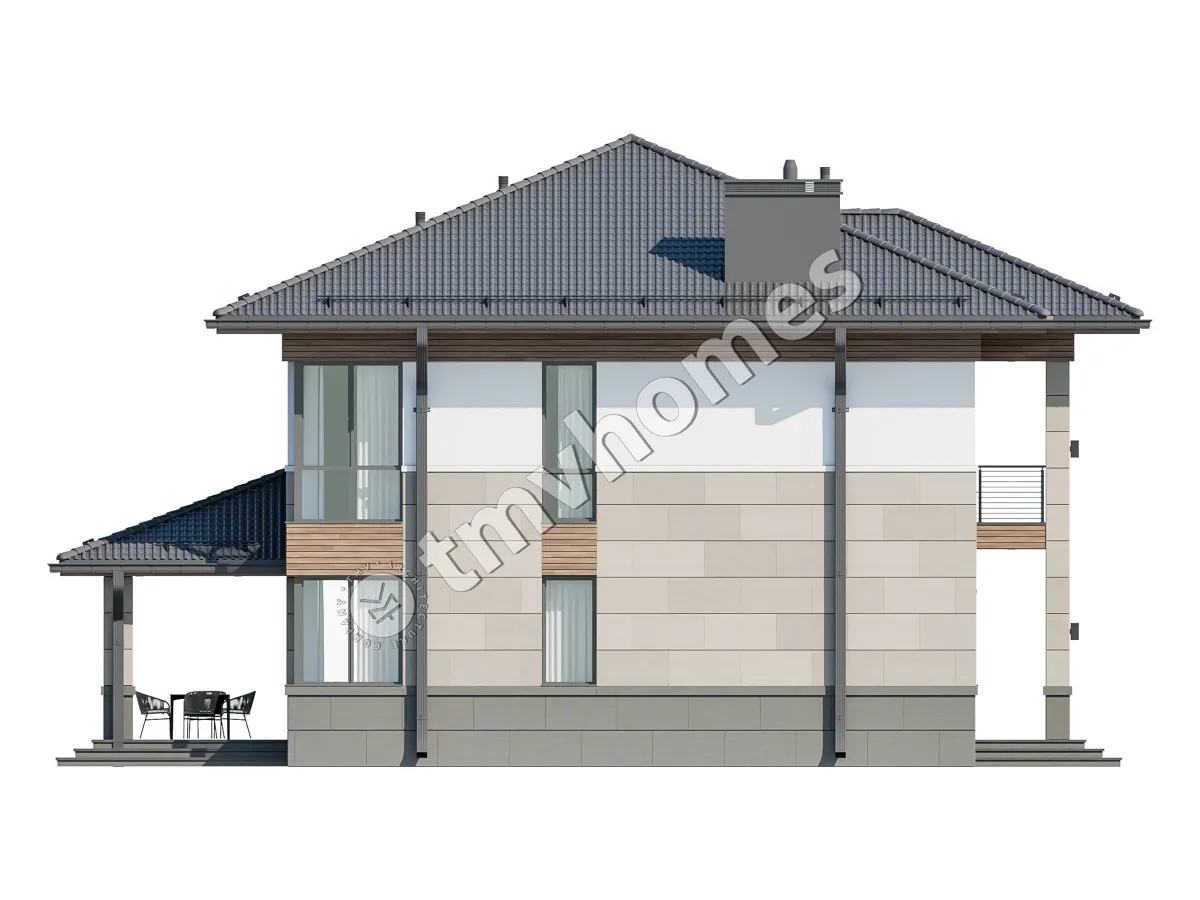

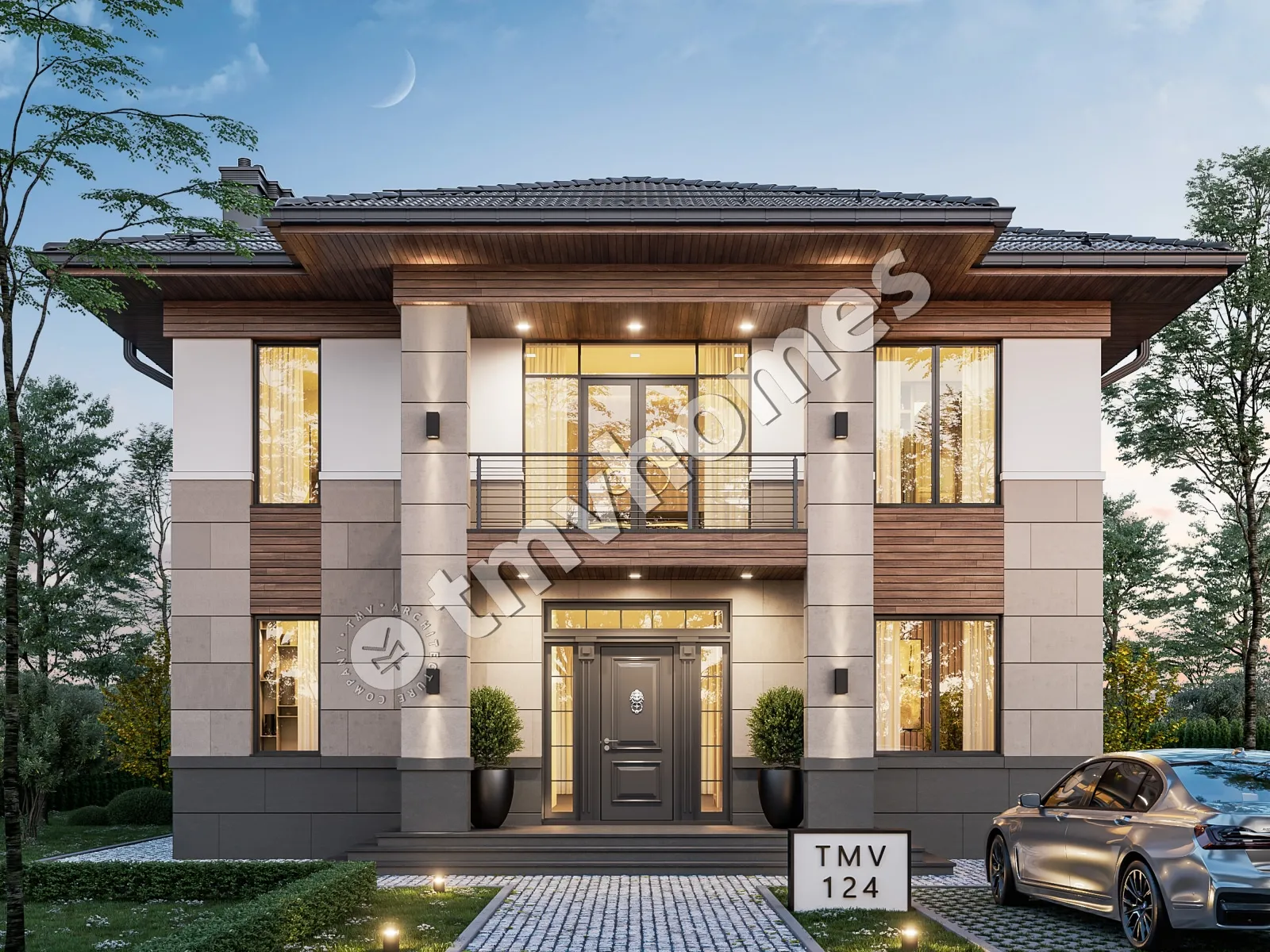

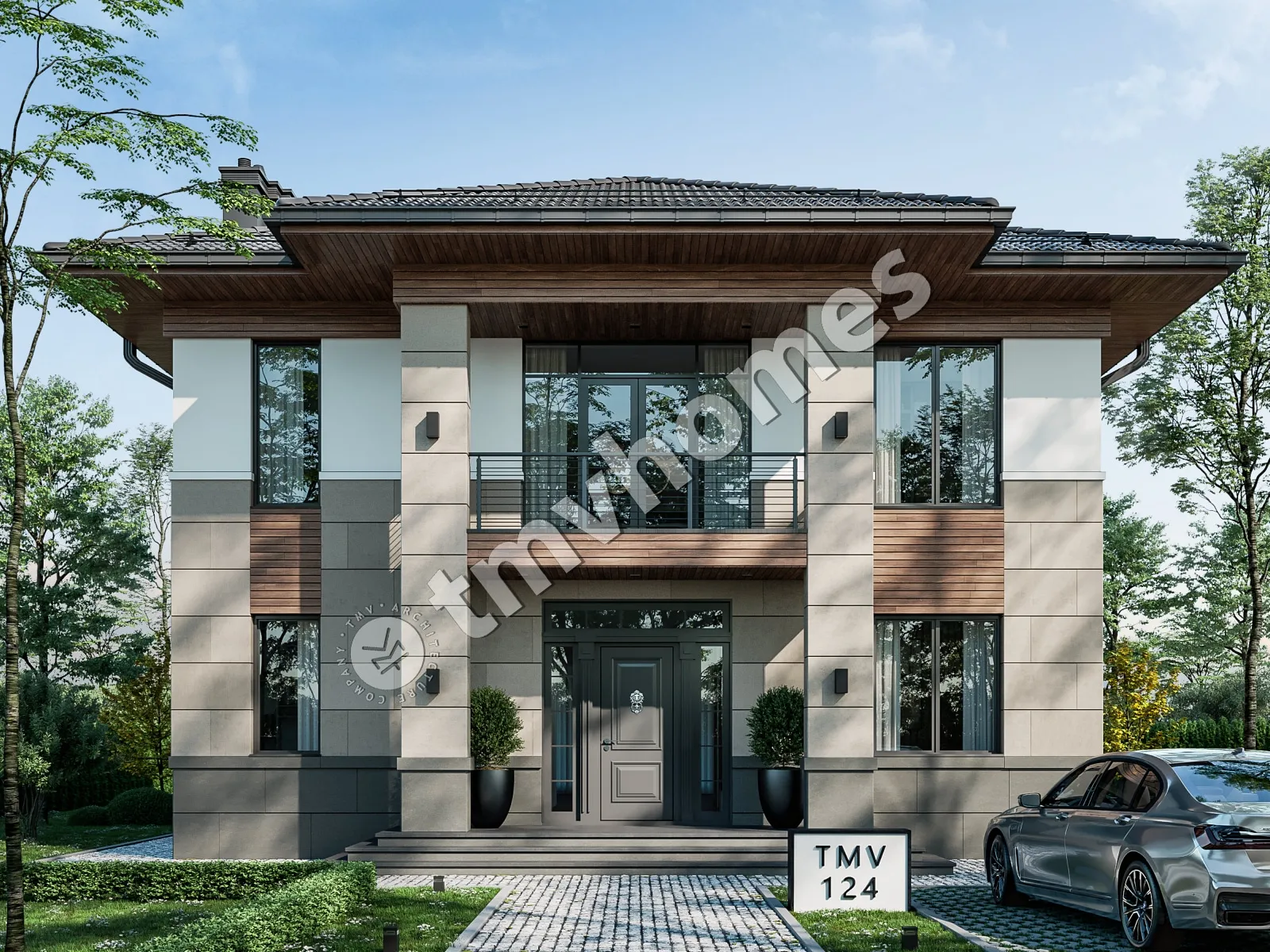

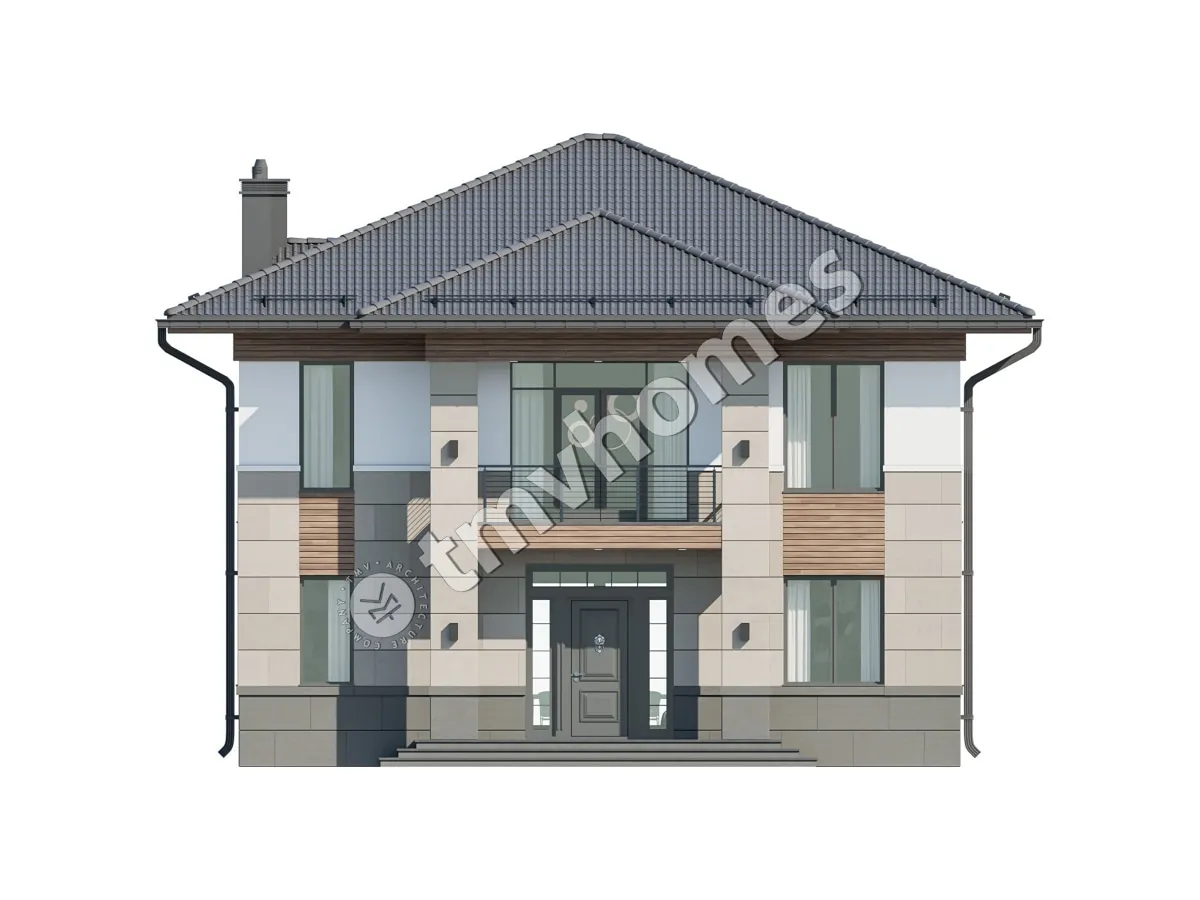

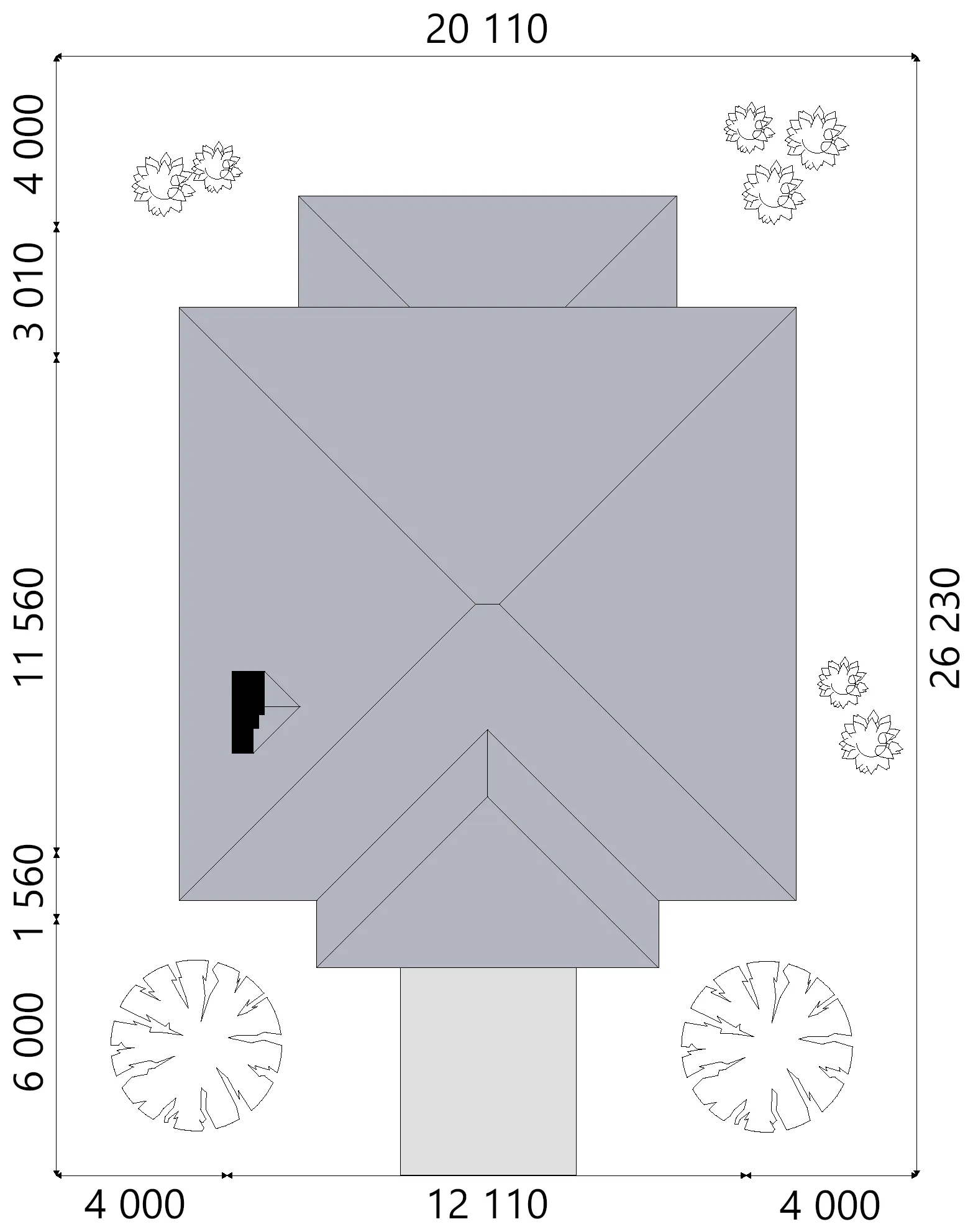

Set on a square footprint and finished with a hip & valley roof, plan 62207C is a 3-bedroom 3-storey house plan that brings together Contemporary, European and Modern influences across 2481 ft² of living space. The roof is pitched at 5/12 (22°), and the house measures 36'9" wide and 49'2" deep, rising to a height of 32'0". Wood, stucco and flexible ceramic share the facade, giving this single-family home design a clean, textured exterior that reads well from every side.

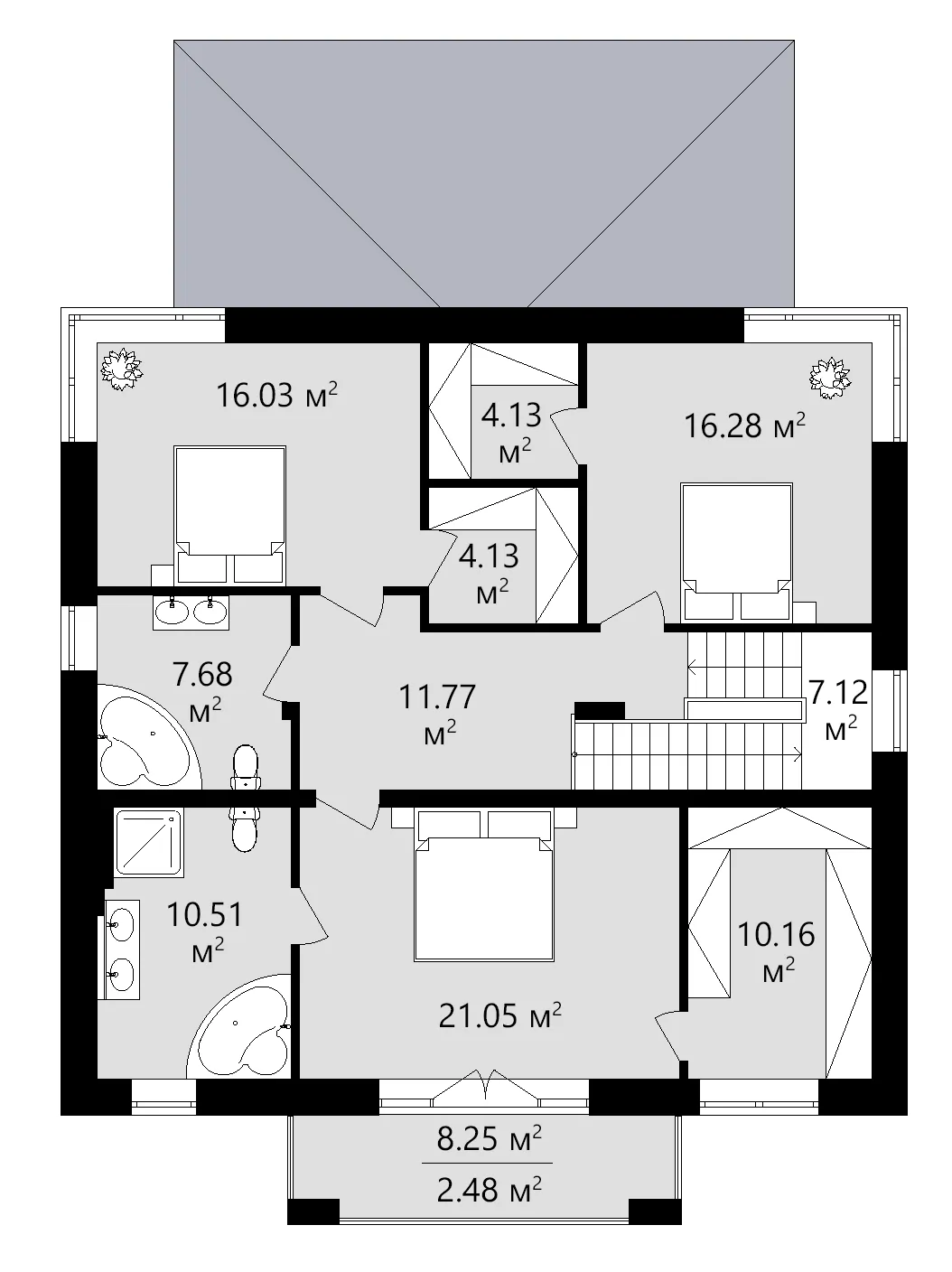

Private life is organized around clustered bedrooms, so all three sleep in one calm part of the house rather than being scattered between levels. Each bedroom can count on a full bathroom, since the plan includes three of them, which makes busy weekday mornings far easier for a growing family. A walk-in closet adds generous storage for clothing and linens. For anyone who works or studies from home, a dedicated home office keeps the desk separate from the bedrooms and the kitchen, and a utility room takes care of laundry and household equipment out of sight.

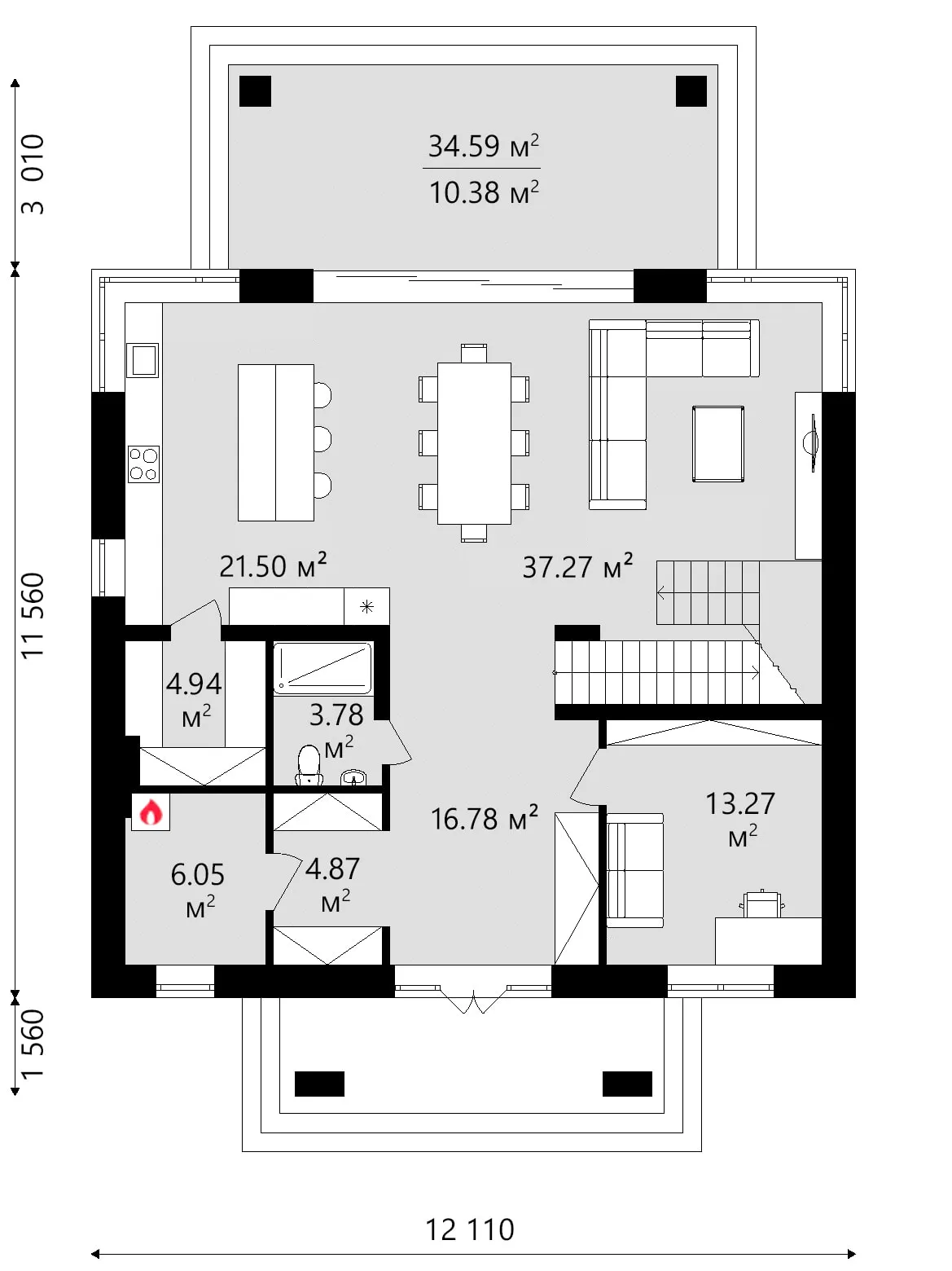

The shared rooms follow an open floor plan, joining a large family room and a large kitchen into one connected living area. In the kitchen, an island offers prep space and a natural spot for conversation, while a breakfast bar handles quick meals and morning coffee. A walk-in pantry holds groceries and small appliances, keeping the counters clear. A corner window opens the cooking area to daylight from two sides, and floor-to-ceiling windows give the family room a bright, airy feel, especially pleasant on a sunny Sunday afternoon.

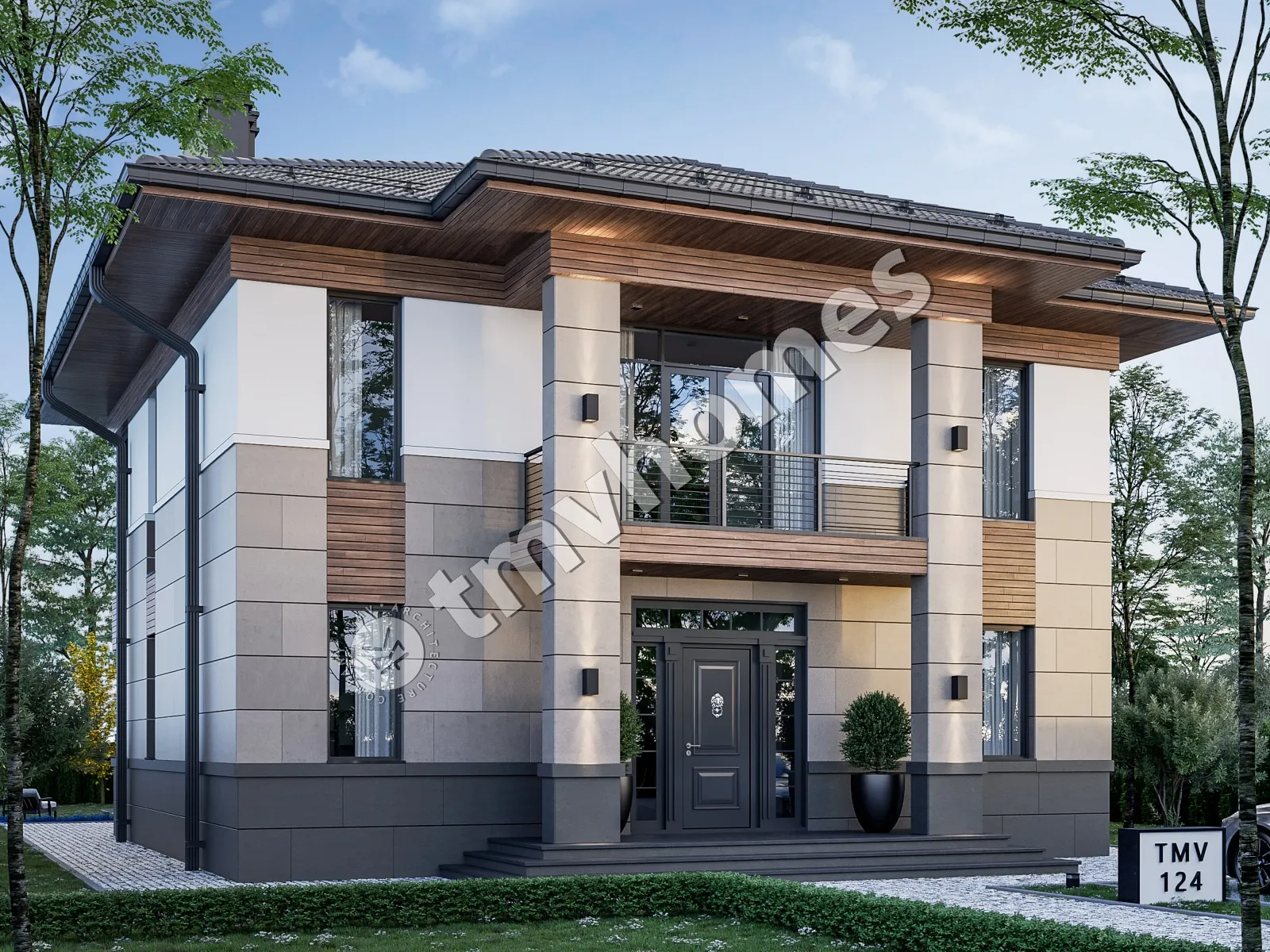

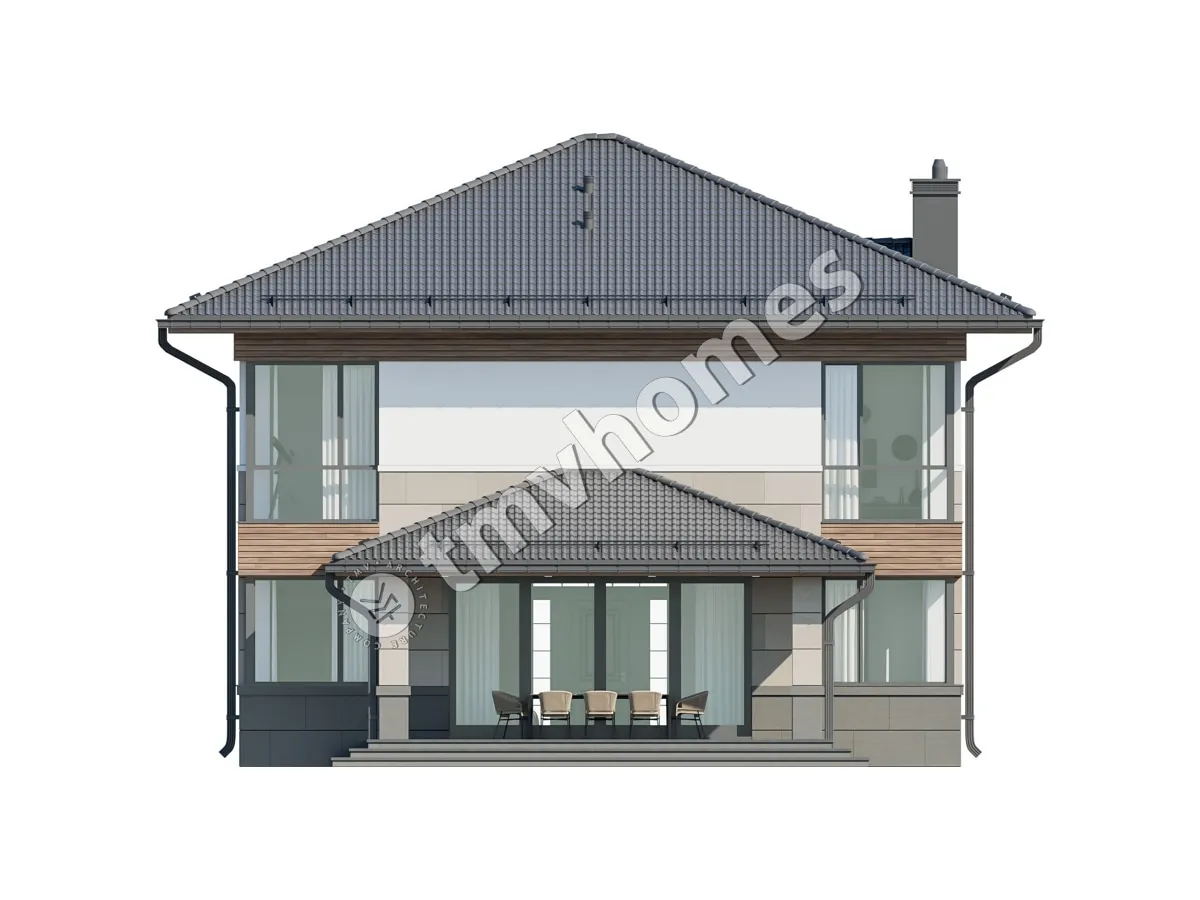

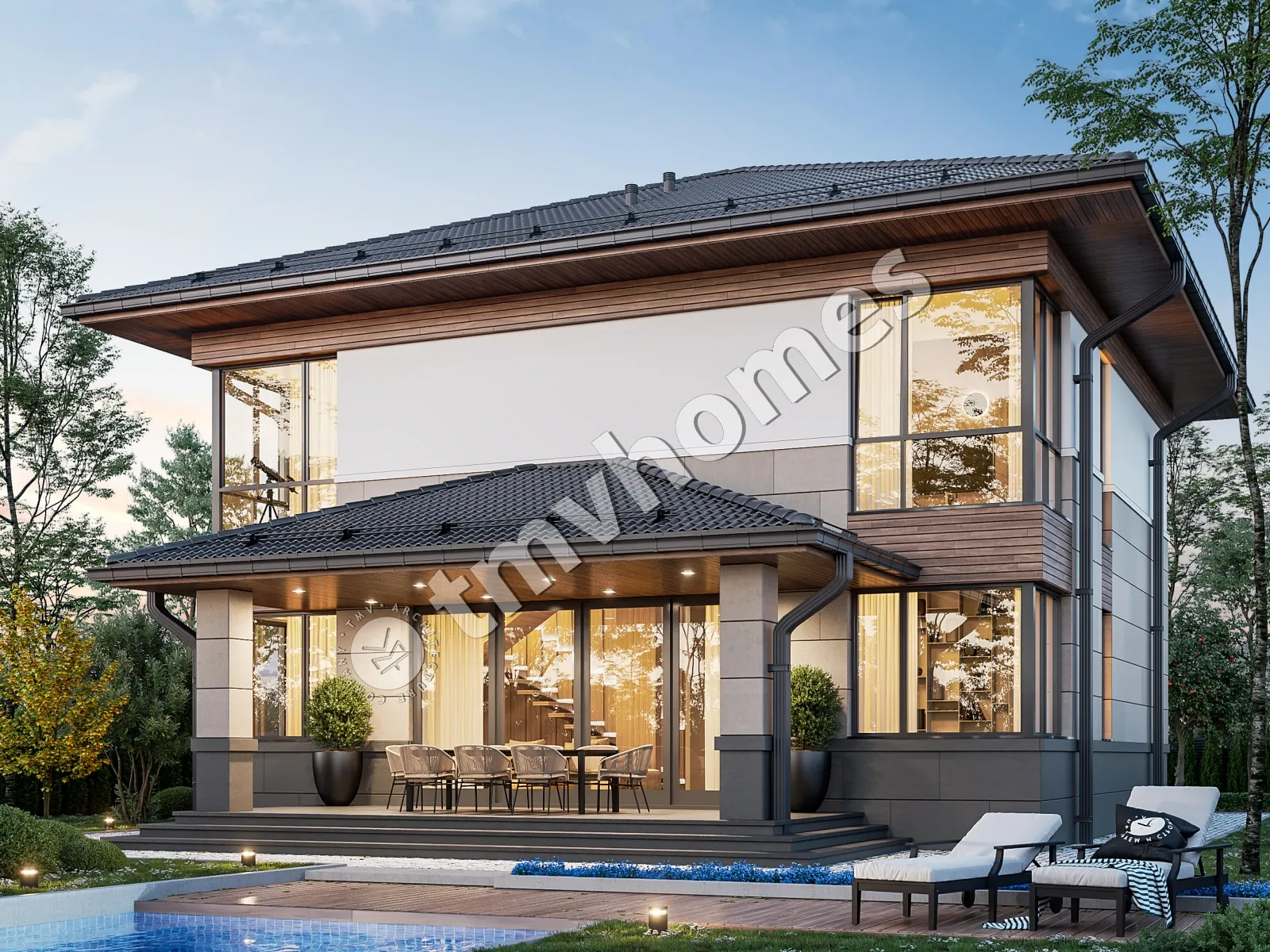

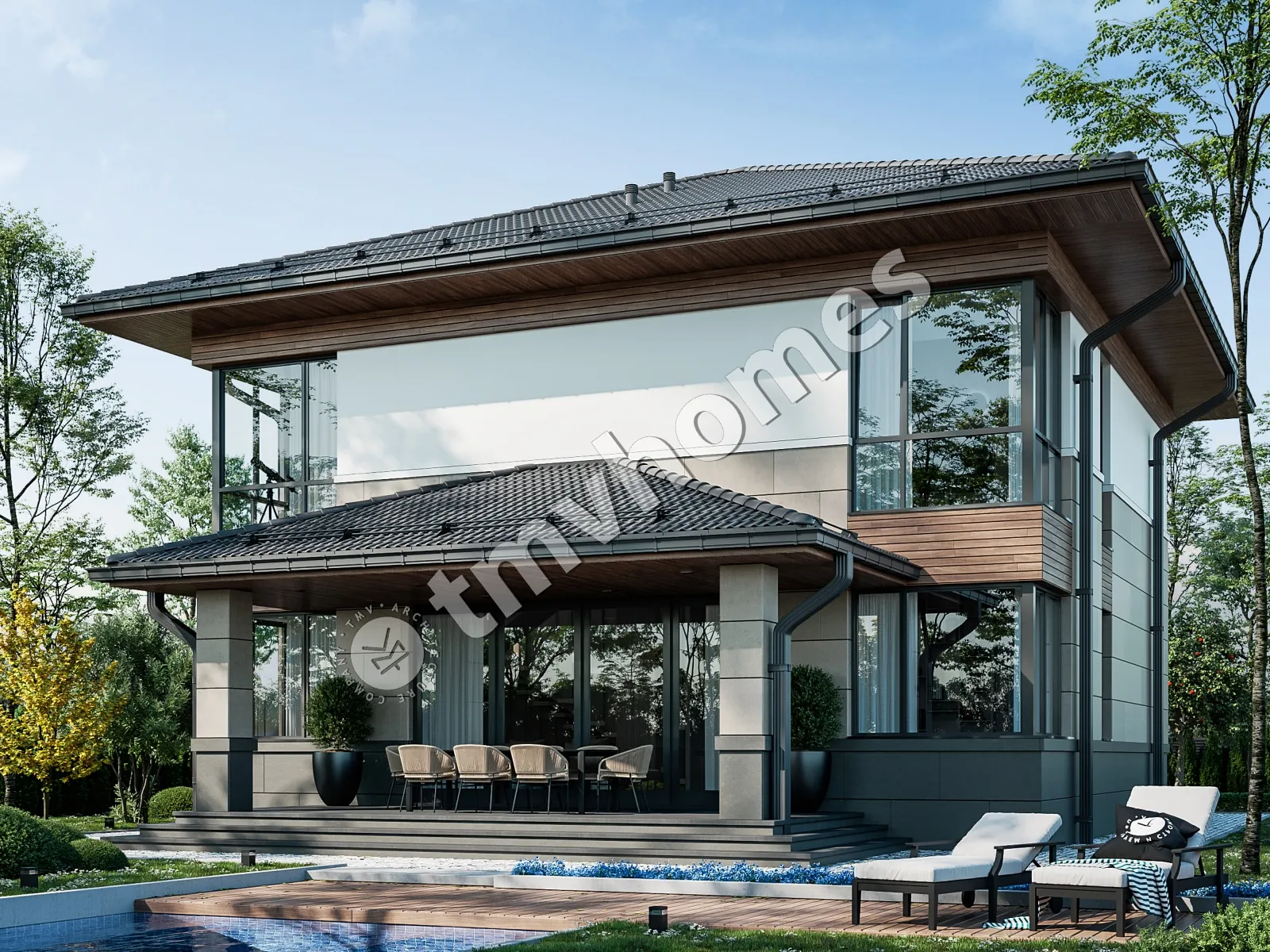

A portico shelters the front door and gives the entrance a defined, welcoming presence. At the back, a covered rear porch extends living outdoors, and a balcony adds another private place to enjoy fresh air. Large windows and corner windows define the modern profile of the exterior. The house is built on strip footings, with a slab or a concrete block foundation available on request, and its exterior walls are framed in aerated concrete, with ceramic hollow block or sand-lime block offered as alternatives. For buyers browsing house plans Canada, this modern house plan with a home office and three full bathrooms puts its space into rooms a family will use every day.
