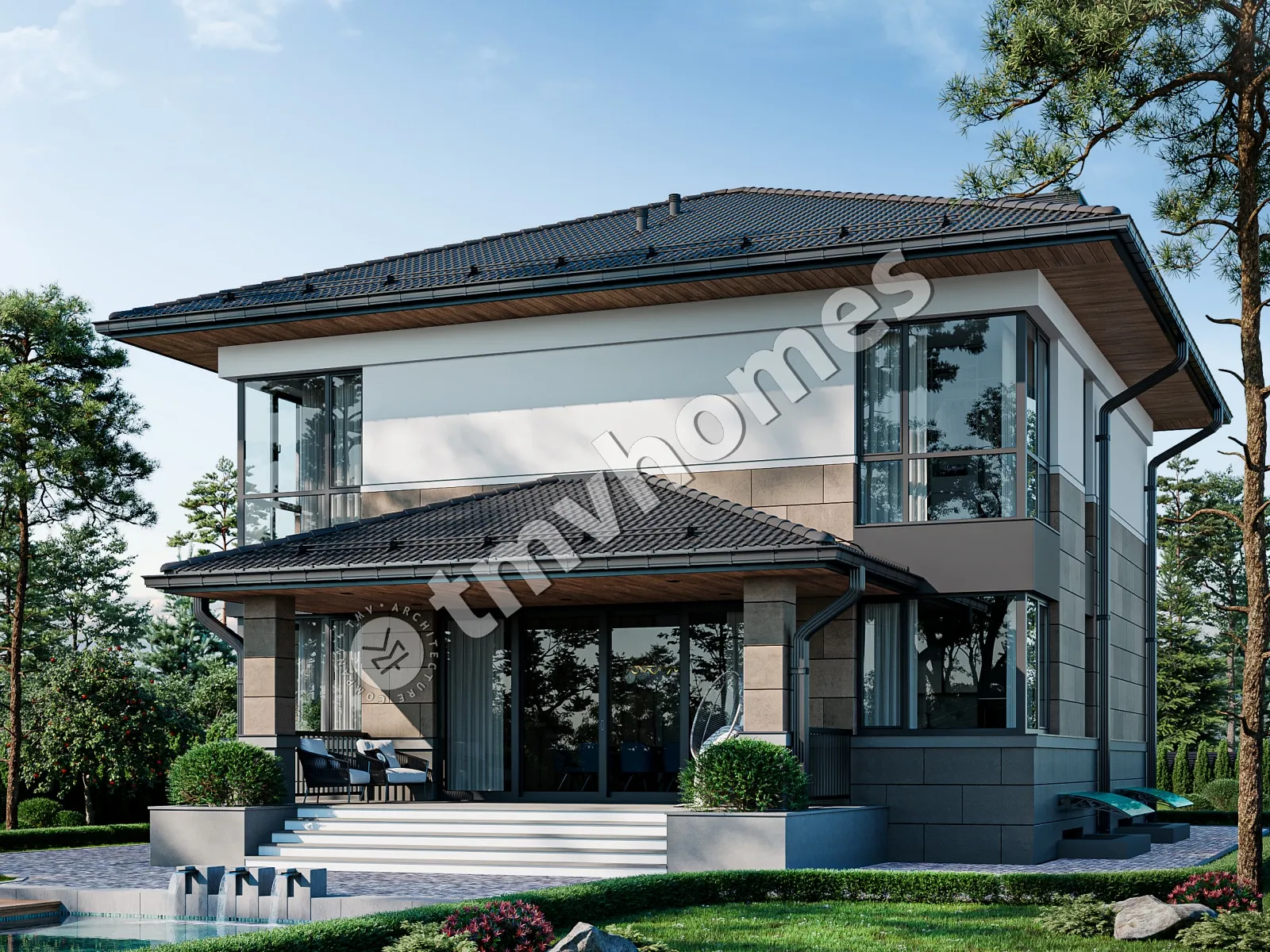

Renderings 2 – 2-Story House Plan 2482 ft², 3 Beds — 14977C
Renderings 3 – 2-Story House Plan 2482 ft², 3 Beds — 14977C Renderings 4 – 2-Story House Plan 2482 ft², 3 Beds — 14977C
9
Concept
Construction documents are prepared for the following countries:

2-Story House Plan with Basement 2482 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
14977C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2482
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

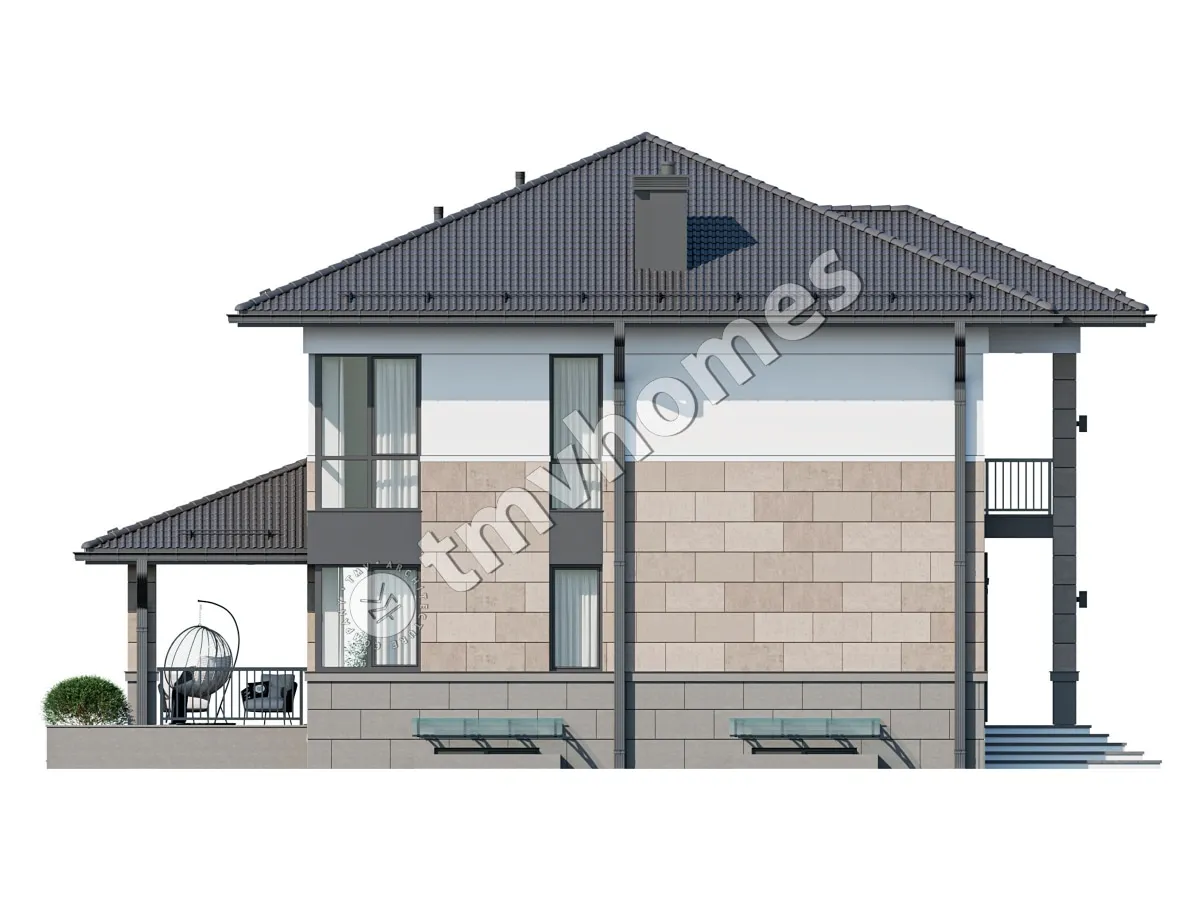

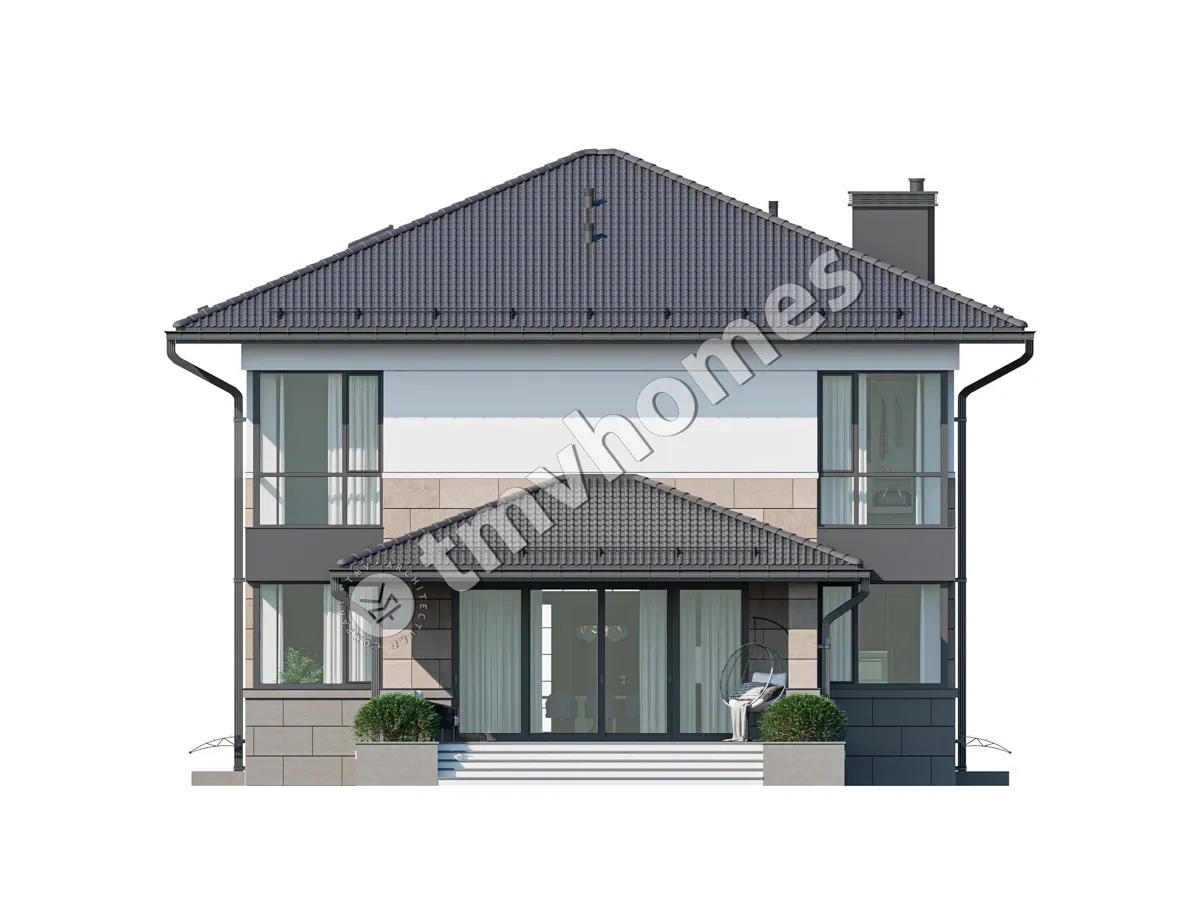

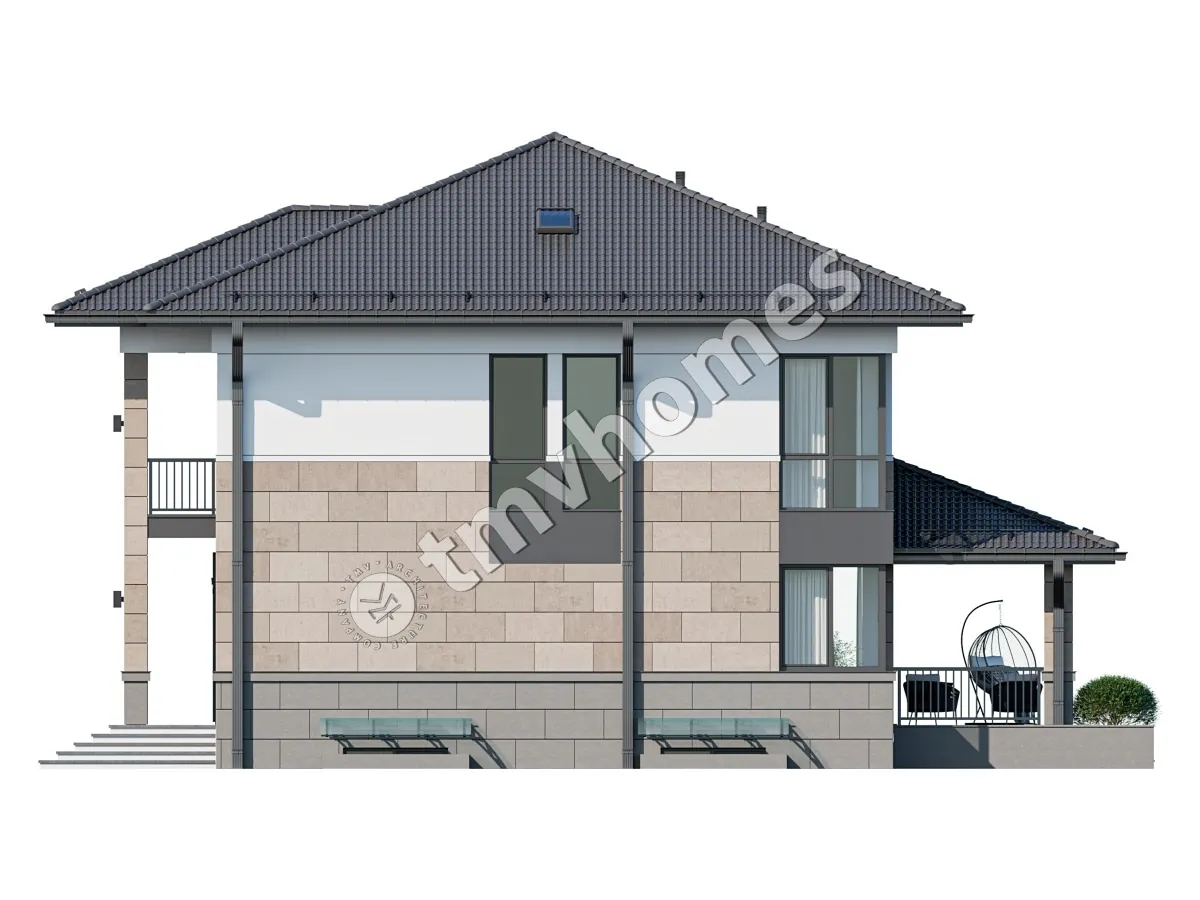

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

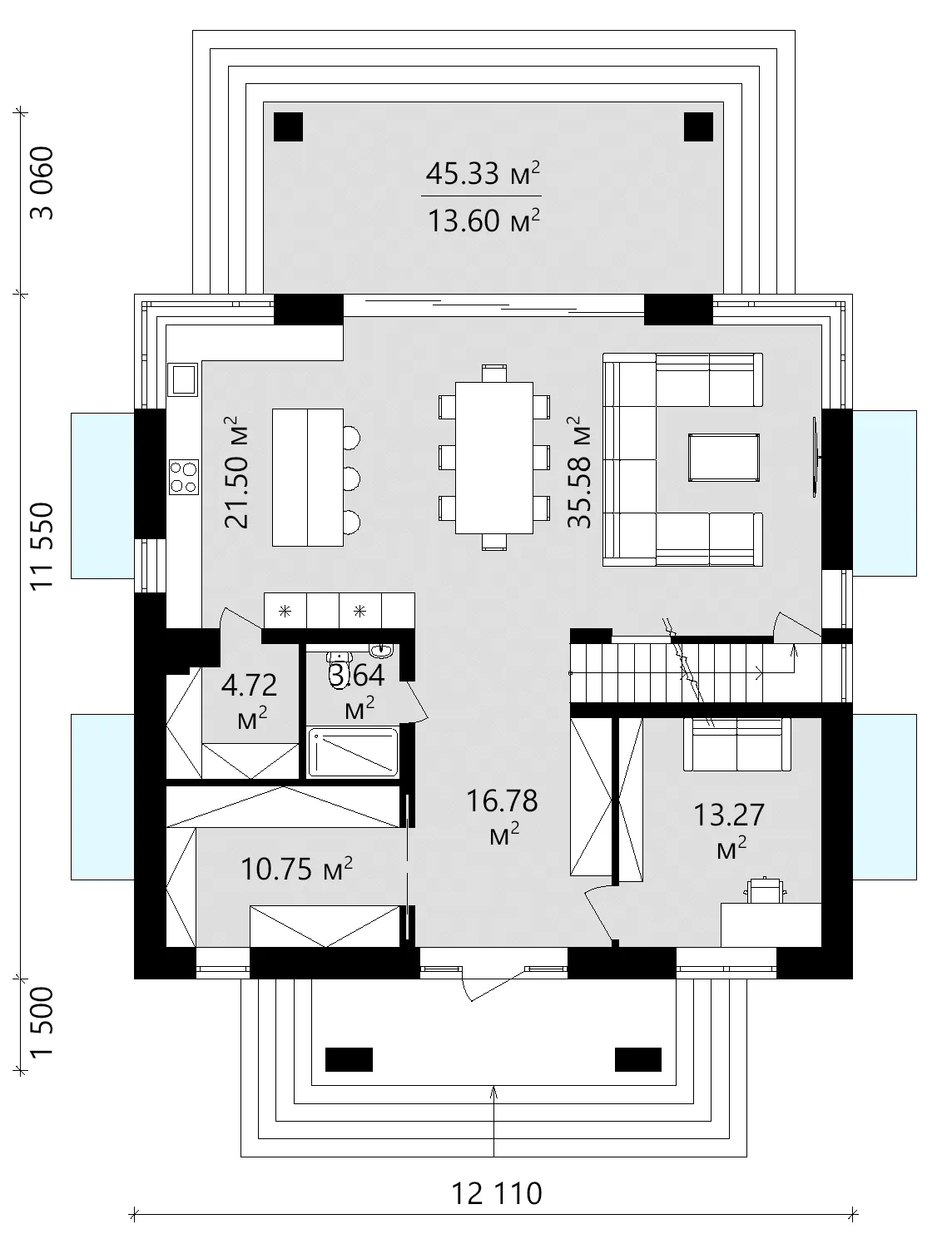

Main Floor
Main Floor 13 – 2-Story House Plan 2482 ft², 3 Beds — 14977C

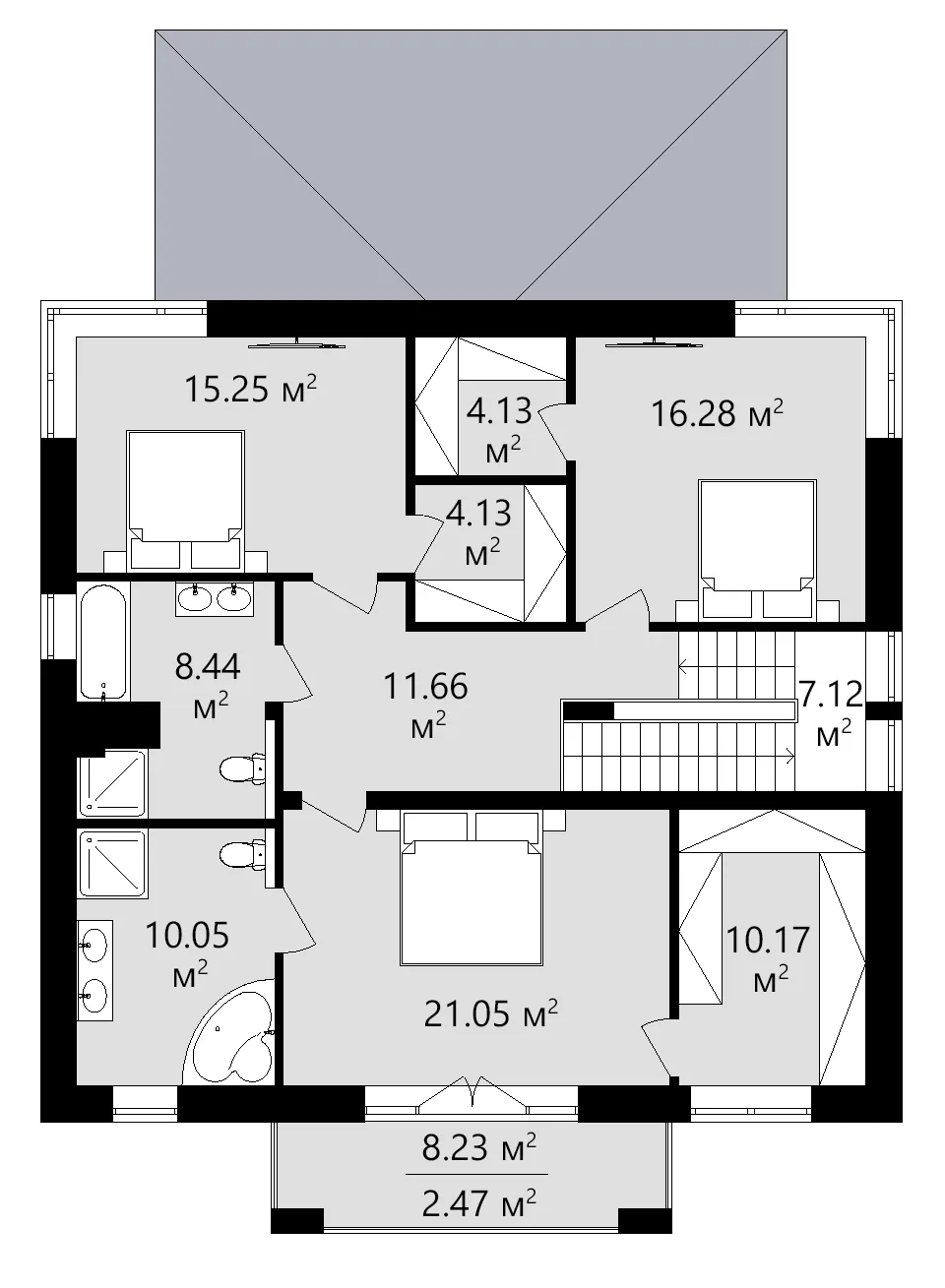

Second Floor
Second Floor 15 – 2-Story House Plan 2482 ft², 3 Beds — 14977C

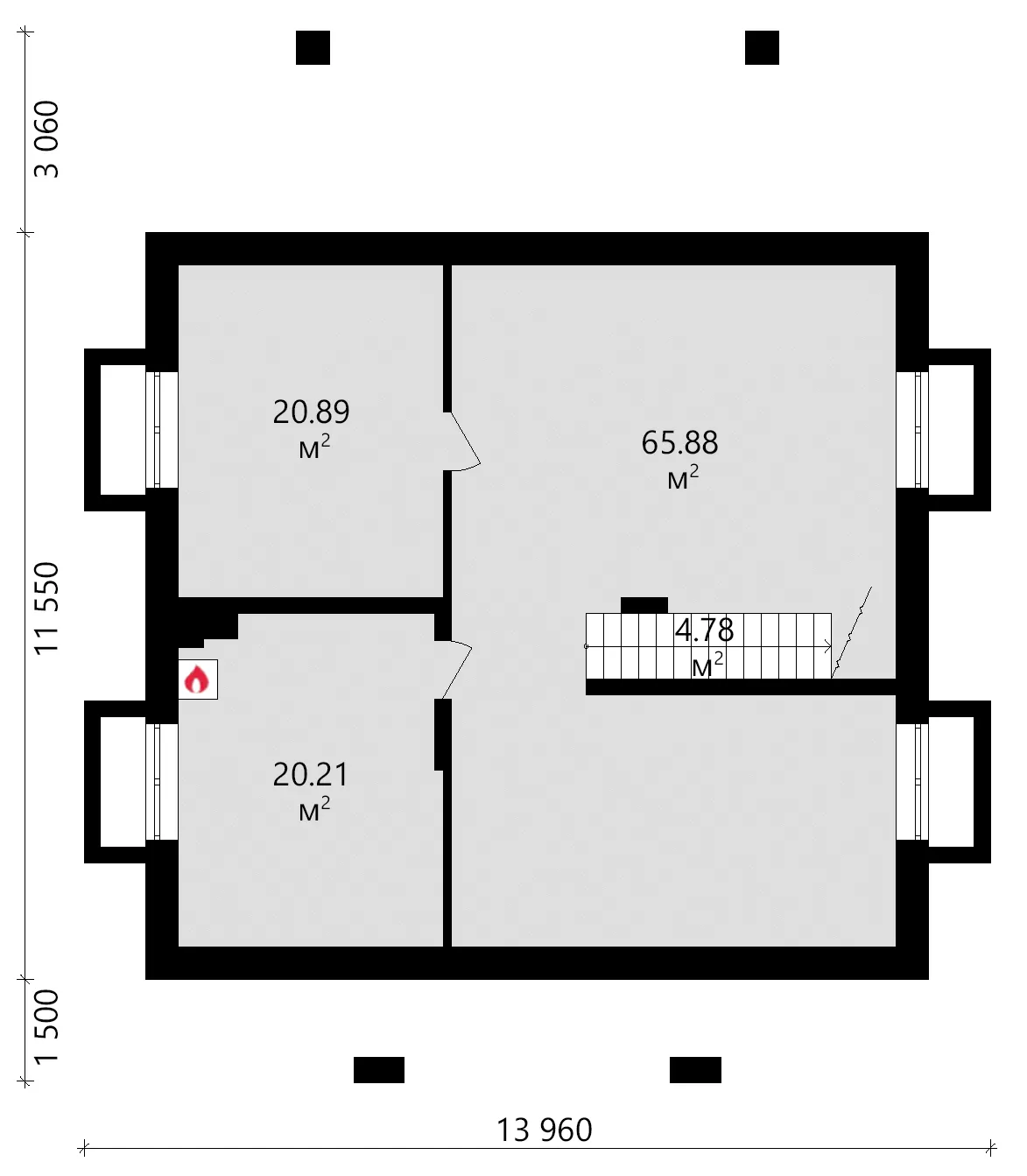

Basement
Basement 14 – 2-Story House Plan 2482 ft², 3 Beds — 14977C
Full Specs & Features
Area
Basement: 1192 ft²
Total Unheated: 1192 ft²
Total Heated: 2482.05 ft²
Dimensions
Depth: 49'1" ft
Width: 42'6" ft
Height: 32'9" ft
Foundation
Full Basement
Slab (Optional)
Block Stem Wall (Optional)
Concrete Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Laundry Lower Level
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Portico
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

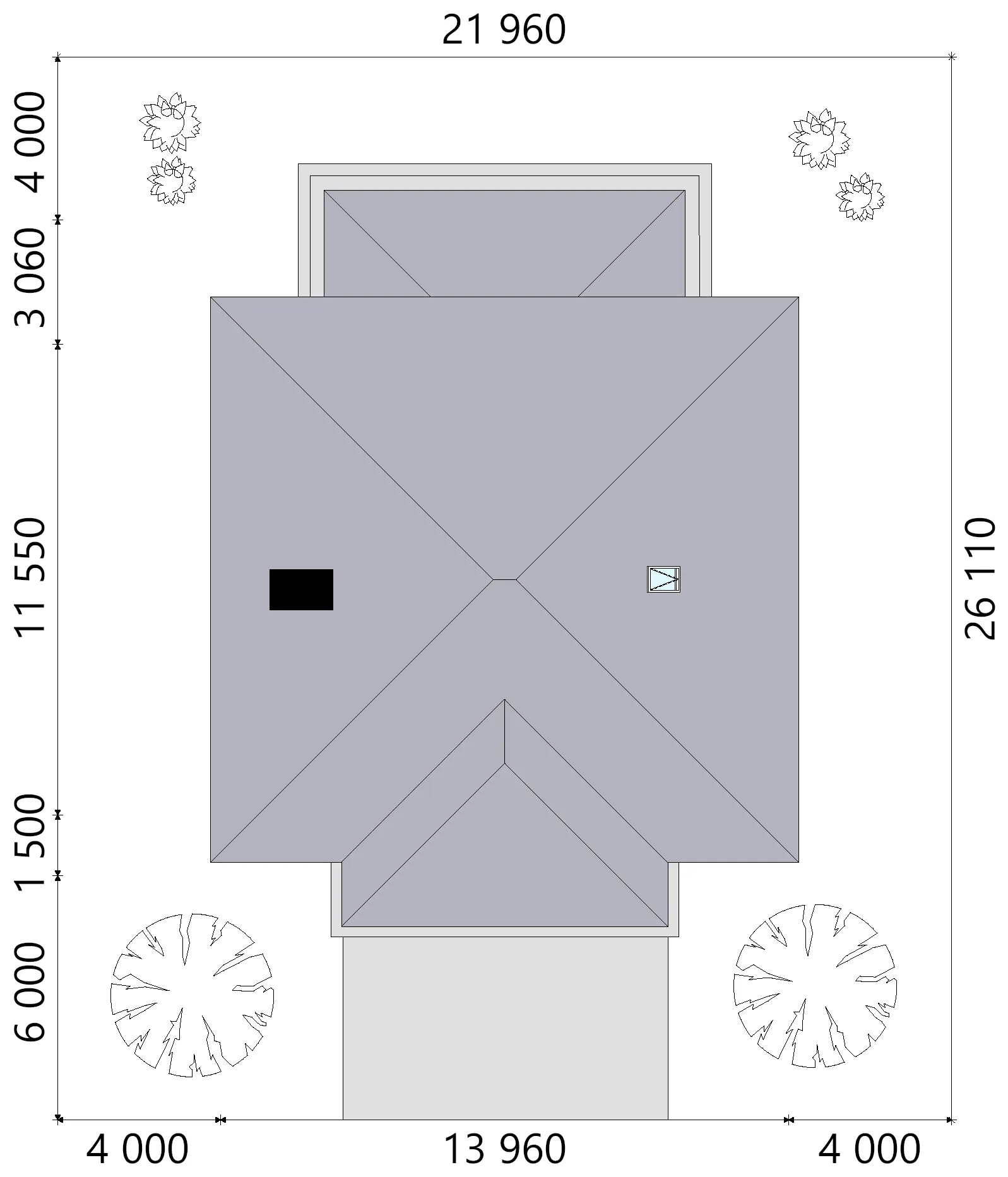

Roof
Roof Area: 2879.35 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Plan 14977C is a 3-bedroom 3-storey house plan with 2482 ft² of contemporary living space, designed in a European modern style and topped by a hip and valley roof at a 5/12 (22°) pitch. Three full bathrooms, a basement and a square footprint complete the main features of this home design. The house measures 42'6" wide and 49'1" deep and rises to 32'9" in height. Among house plans Canada families compare, it is a good choice for anyone who wants generous space on a tidy, vertical outline rather than a sprawling one.

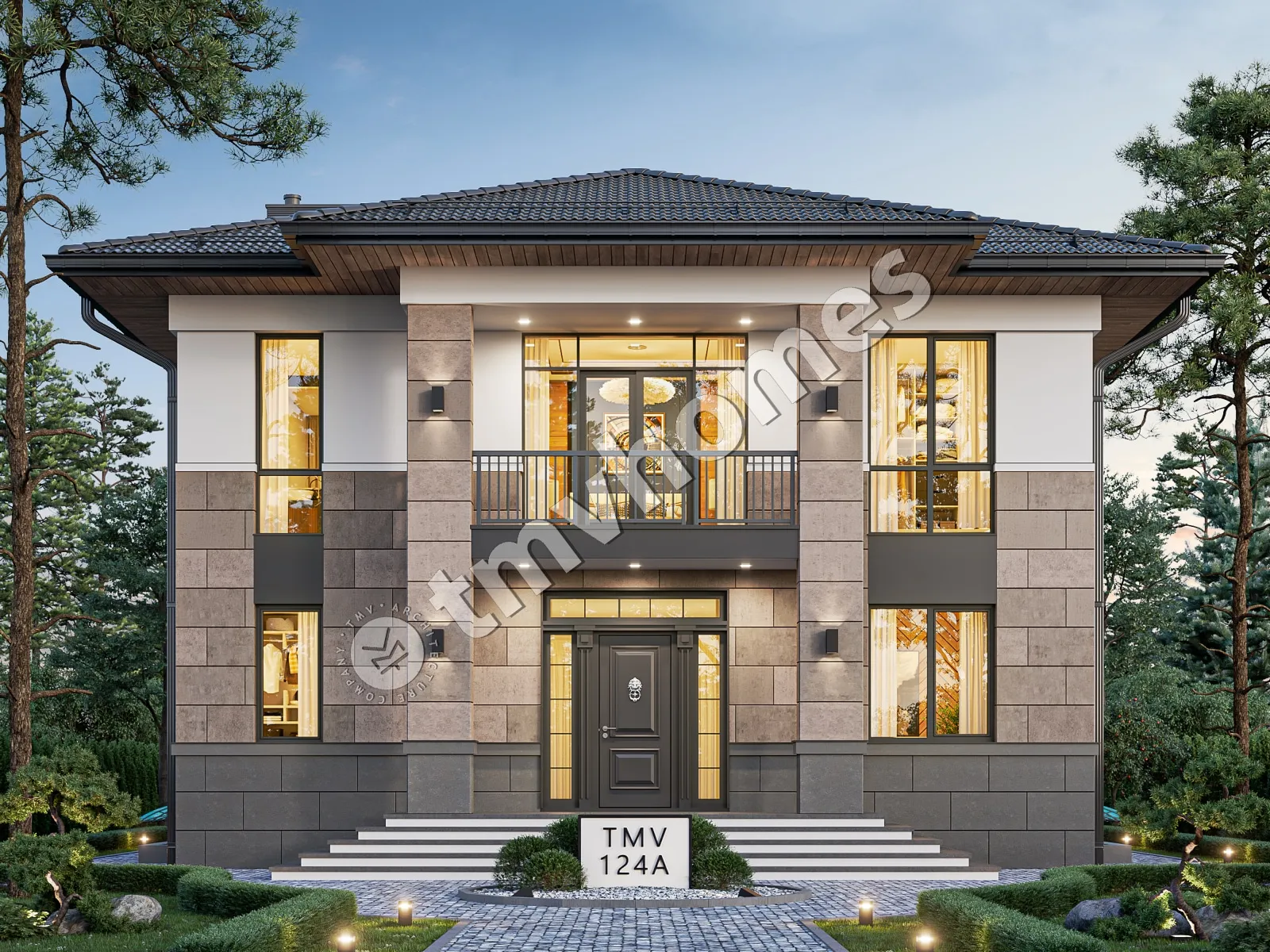

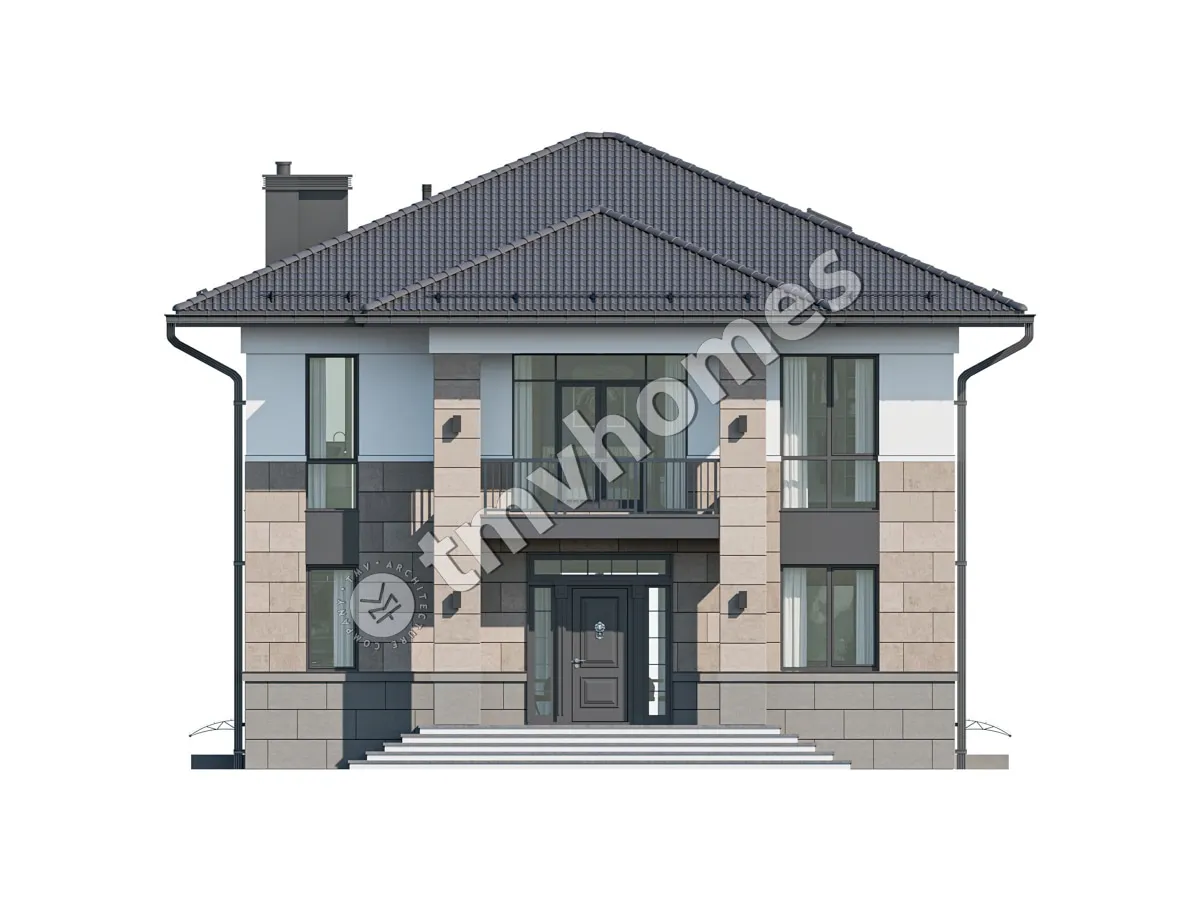

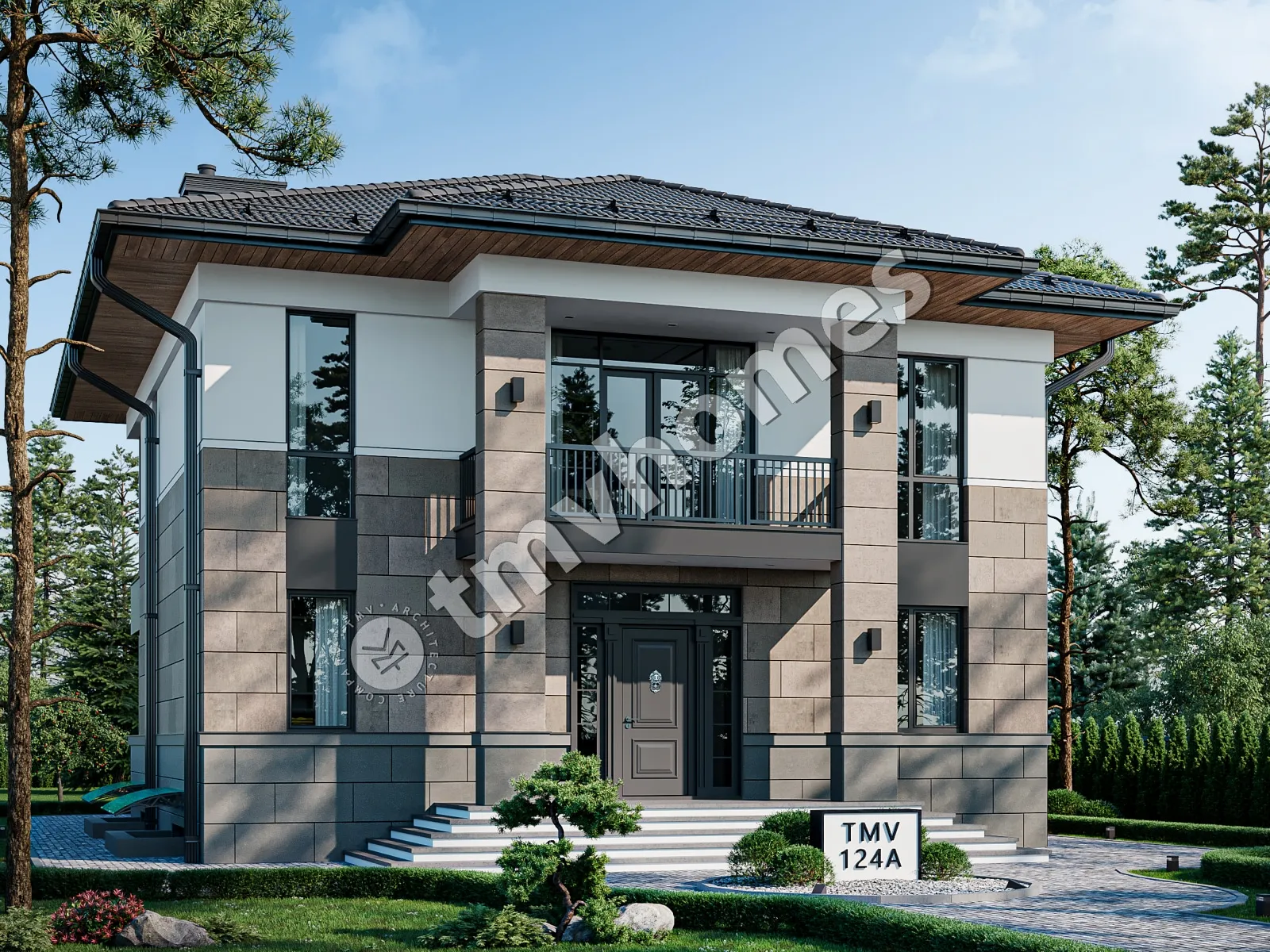

The front entry sits under a portico, which shelters the door and gives the home a composed, formal arrival. Stucco and flexible ceramic cover the facade, and the walls are built of aerated concrete, with ceramic hollow block or sand-lime block offered as alternatives. Large windows, floor-to-ceiling windows and a corner window break up the volume and draw daylight deep into the rooms. A balcony opens from the upper level, and a covered rear porch extends everyday living outdoors at the back. There is no garage in this design. The home stands on a full basement, and slab, block or strip footing foundations can also be supplied on request.

Inside, an open floor plan joins a large family room with a large kitchen, so the daily centre of the house reads as one generous space. An island anchors the kitchen alongside a breakfast bar, while a breakfast nook beside a corner window offers a bright corner for slow weekend mornings. A walk-in pantry holds bulk groceries and small appliances behind a door, which keeps the counters clear. For anyone who works from home, a dedicated home office separates calls and paperwork from the household routine.

The second-floor master shares its level with the two other bedrooms in a clustered arrangement, keeping young children within easy reach at night. The owner's bedroom has a walk-in closet, and three full bathrooms mean no lineup at the sink before school. The laundry is placed on the lower level, so the washer and dryer stay well away from the bedrooms. The plan also includes a utility room and dedicated storage for seasonal gear, sports equipment and everything else a busy household collects, making it a practical house plan with basement space as well as a modern one.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
