2,119 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

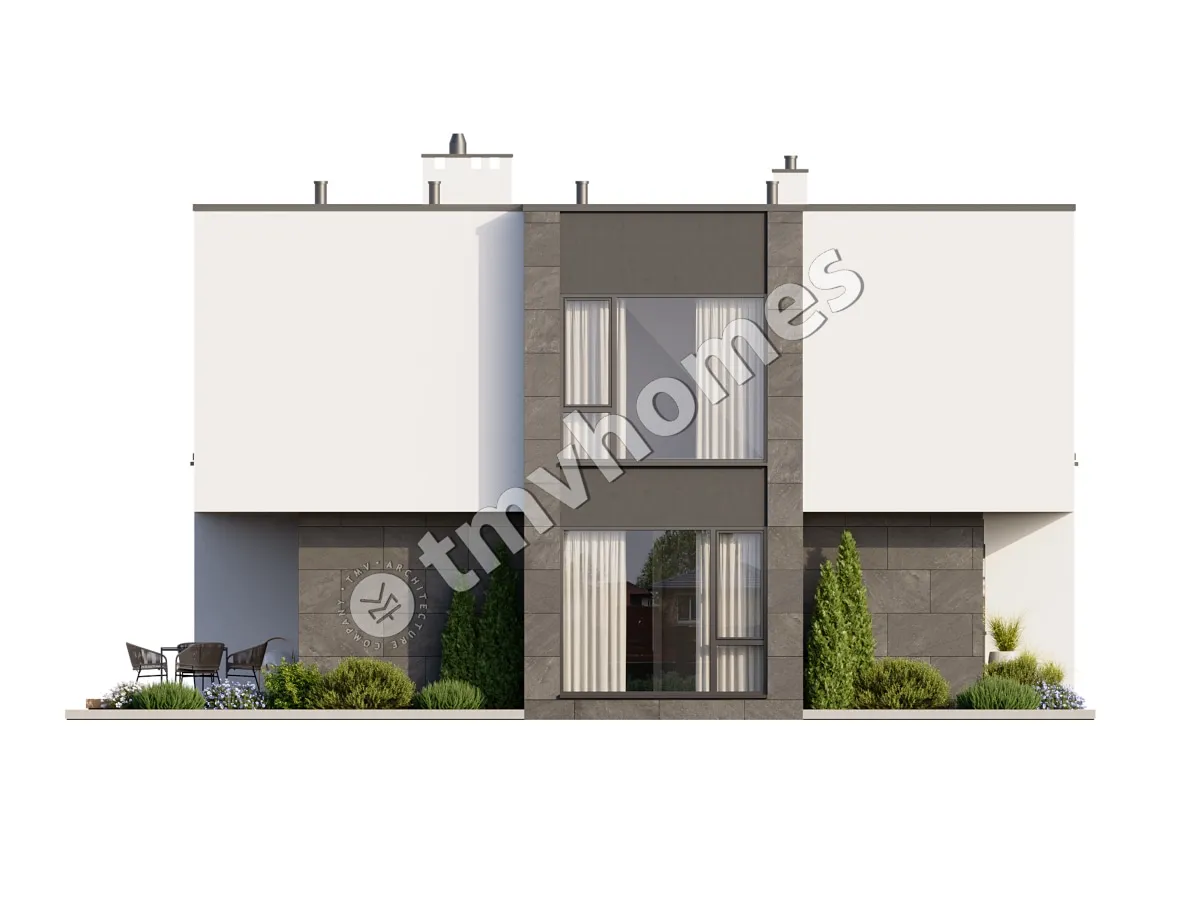

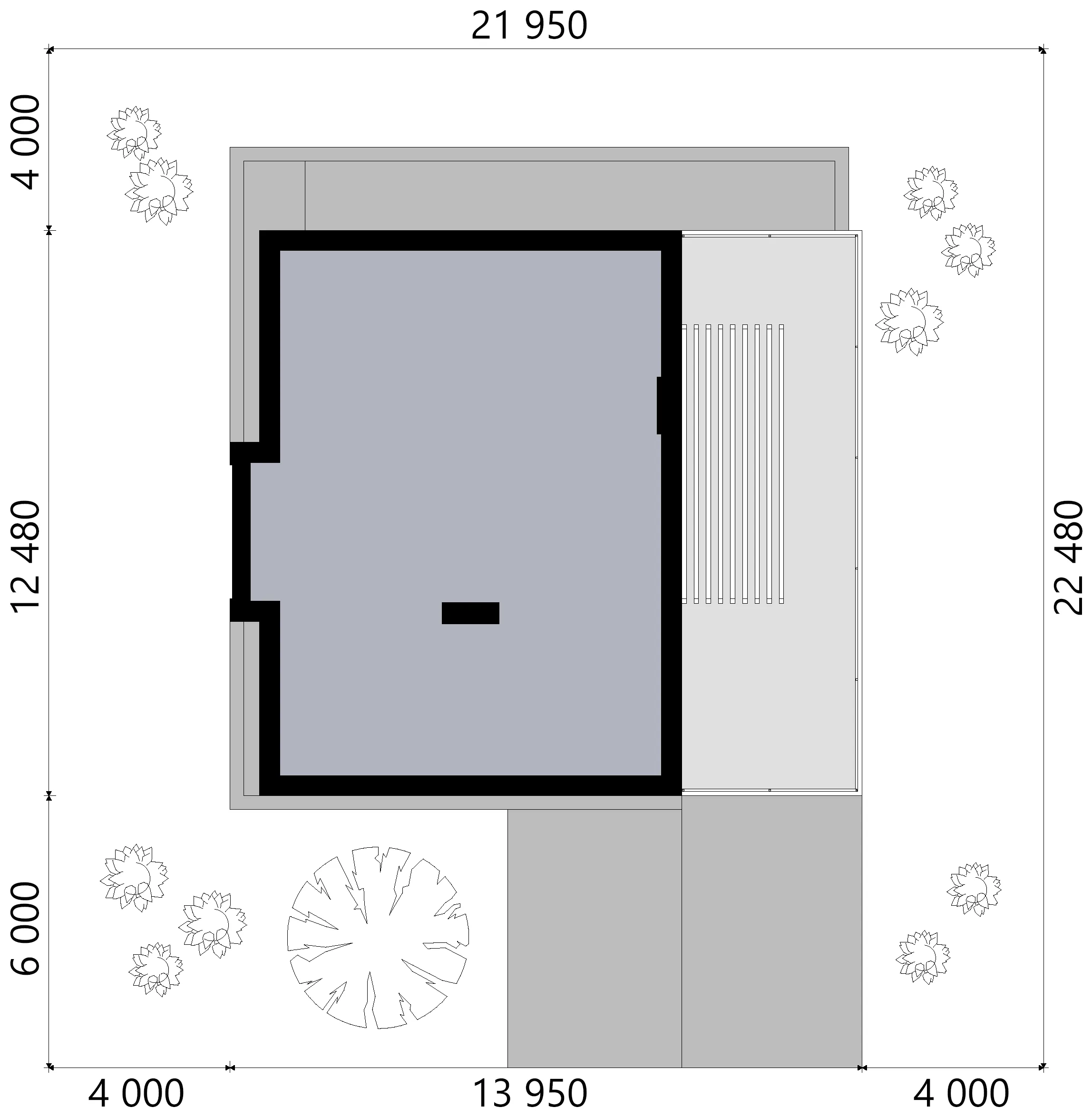

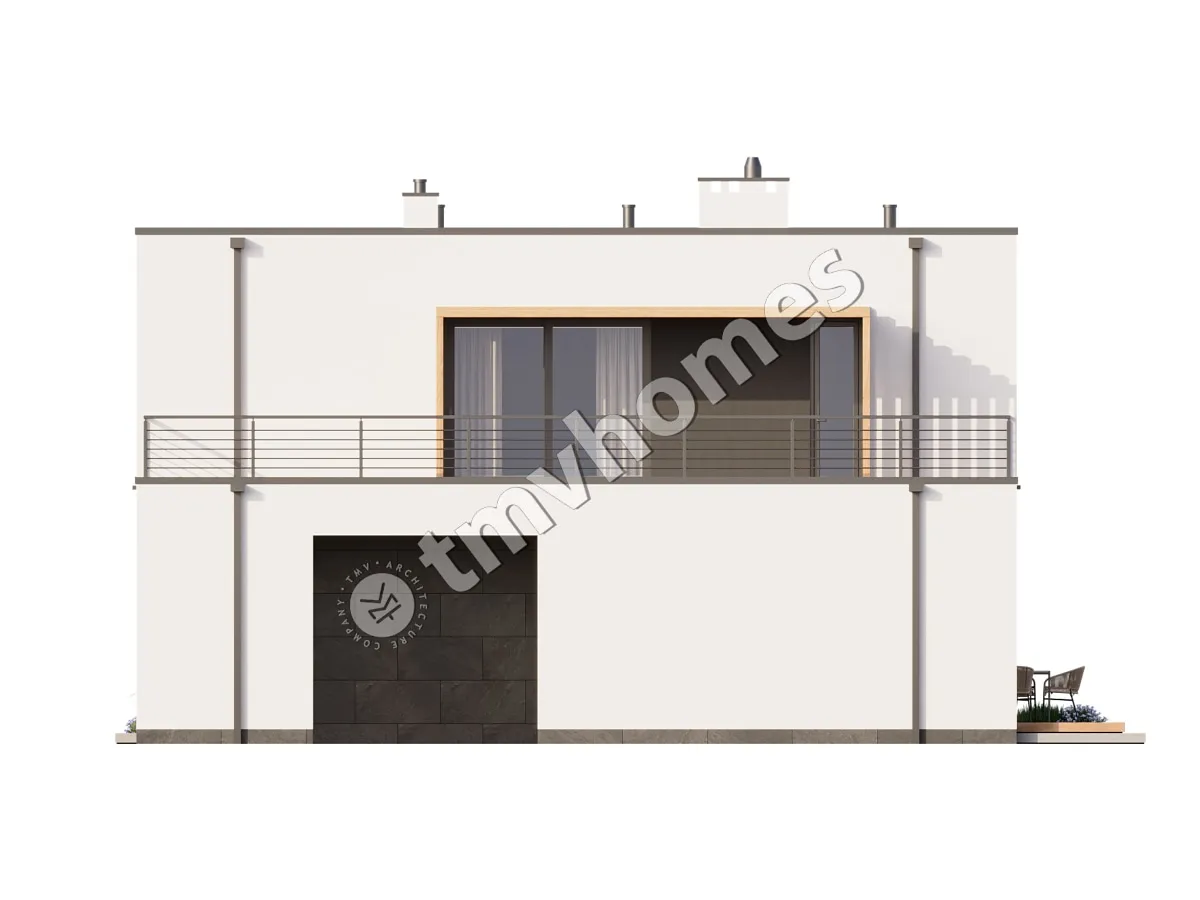

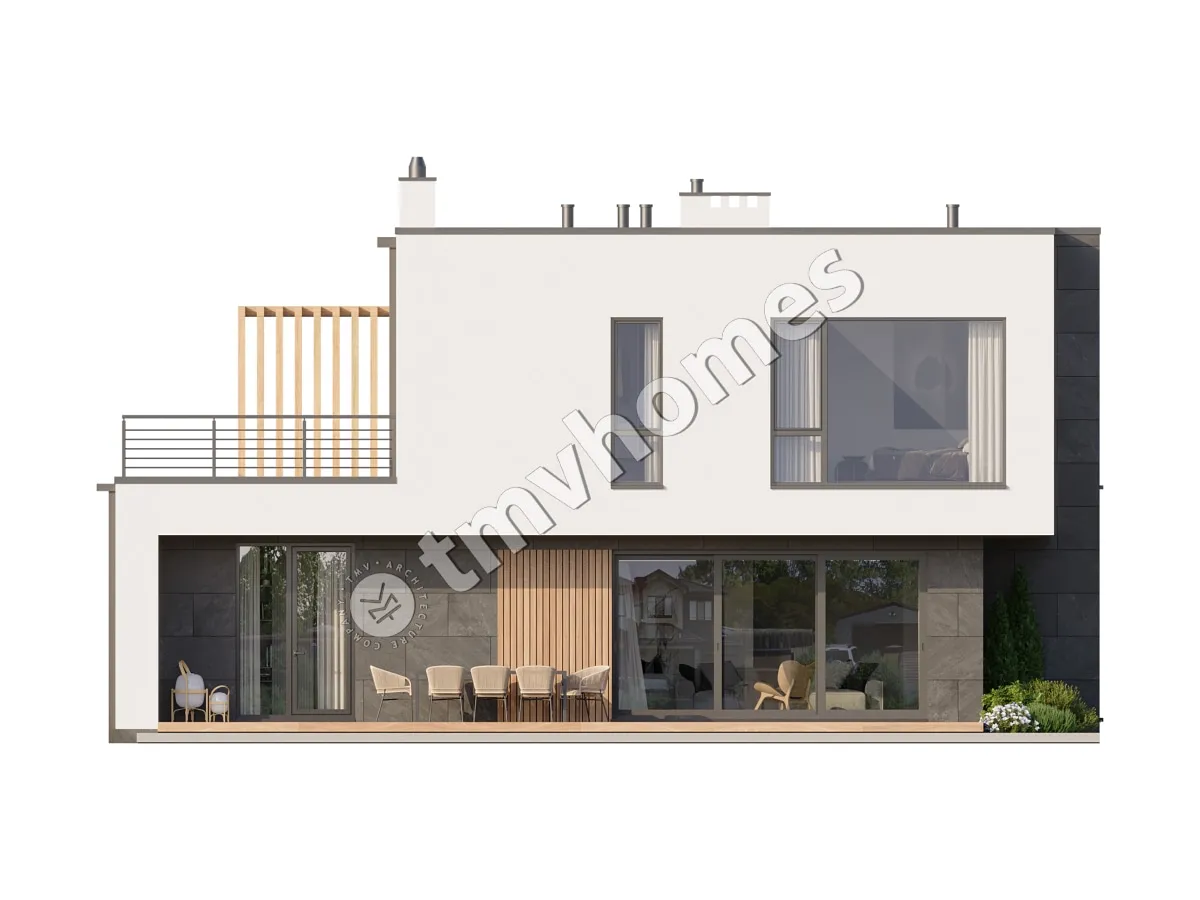

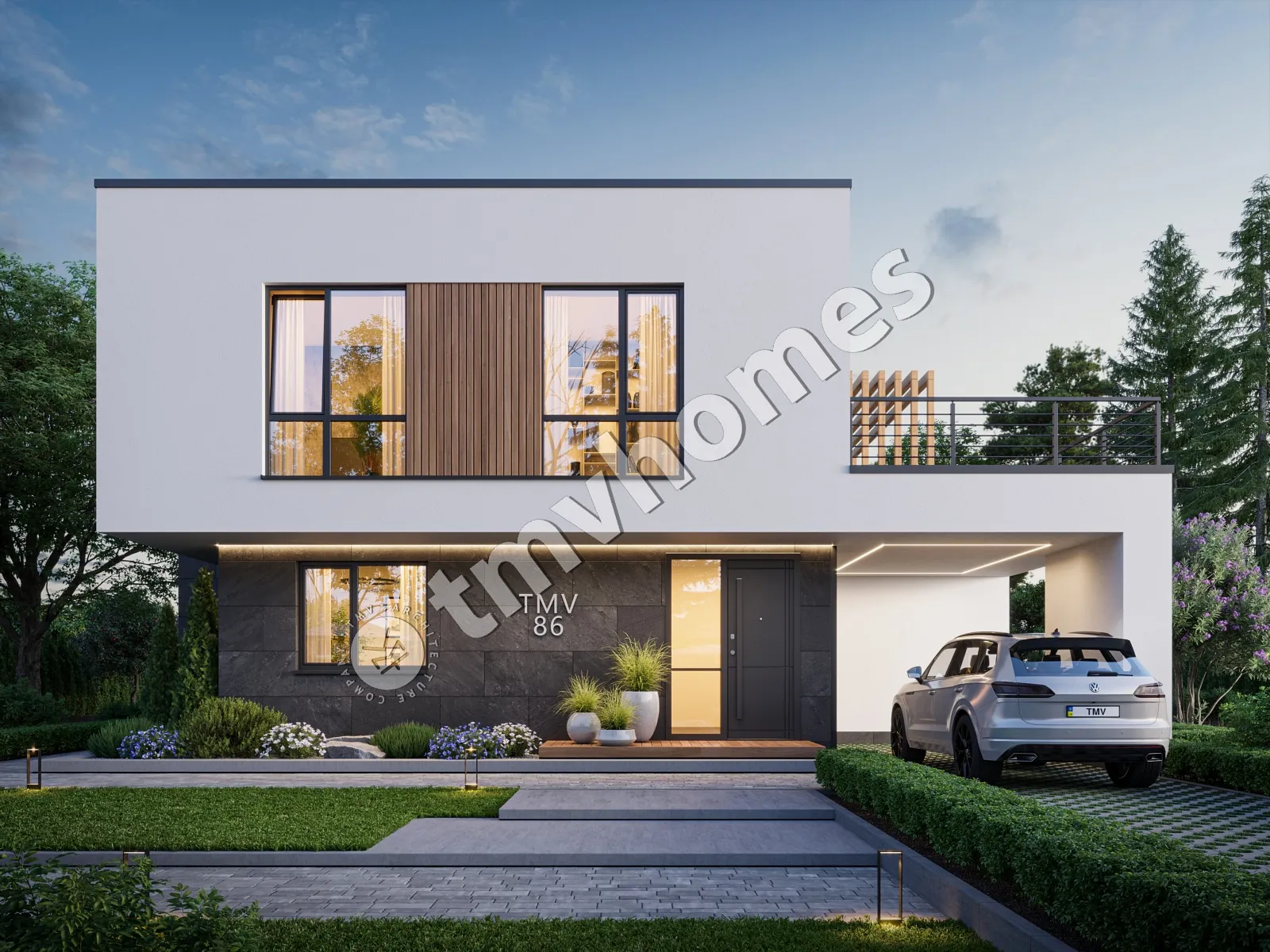

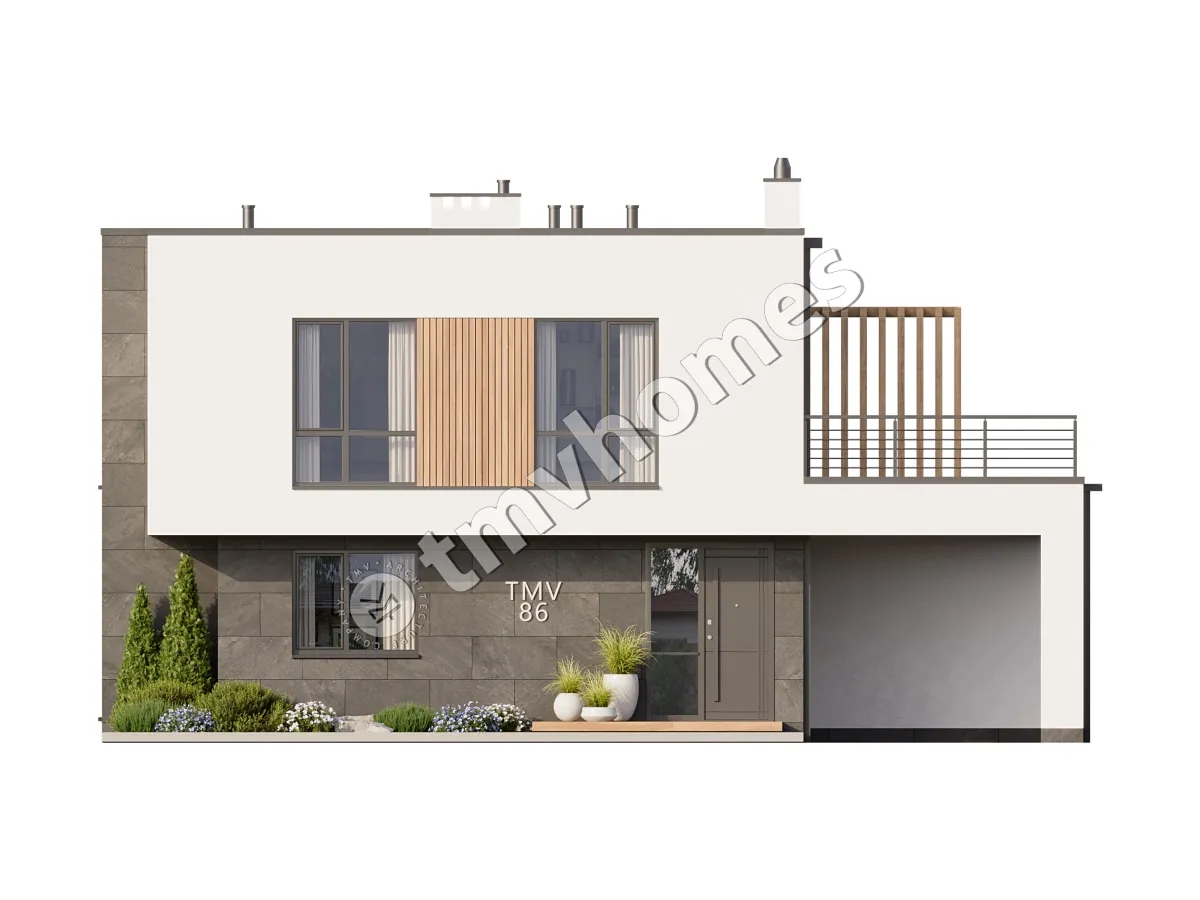

Plan 91457C is a 3-bedroom 3-storey house plan for a single family, wrapping 2,119 Sq Ft in a Modern, Contemporary and High-tech shell beneath a flat roof. Stone/brick veneer, stucco and tiles share the facade, and floor-to-ceiling windows join the other large windows to give each volume a light, glassy edge. The home design measures 42'5" wide and 38'0" deep, rising to a height of 24'3", and its sharp geometry reads clearly from the street.

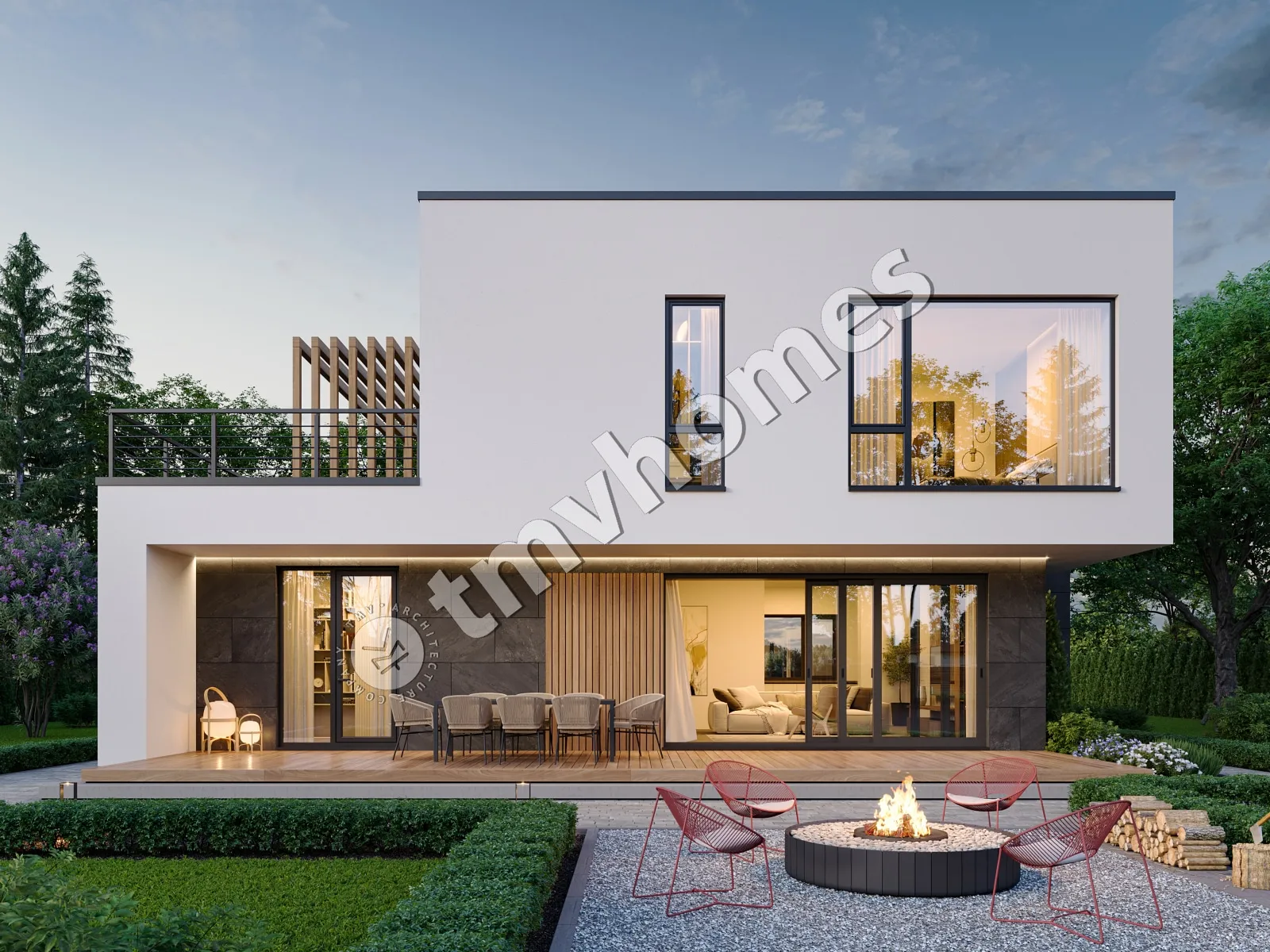

Outdoor living here is spread across several levels rather than kept to one yard. A deck offers room for long dinners and lazy weekend afternoons, a balcony opens the upper floor to the air, and a garage rooftop deck turns the top of the single-car carport into a private terrace of its own. There is no basement: the house sits on strip footings, with a slab or a concrete block foundation available on request. Its walls are framed in autoclaved aerated concrete, while clay hollow block and calcium silicate block can be chosen as alternatives.

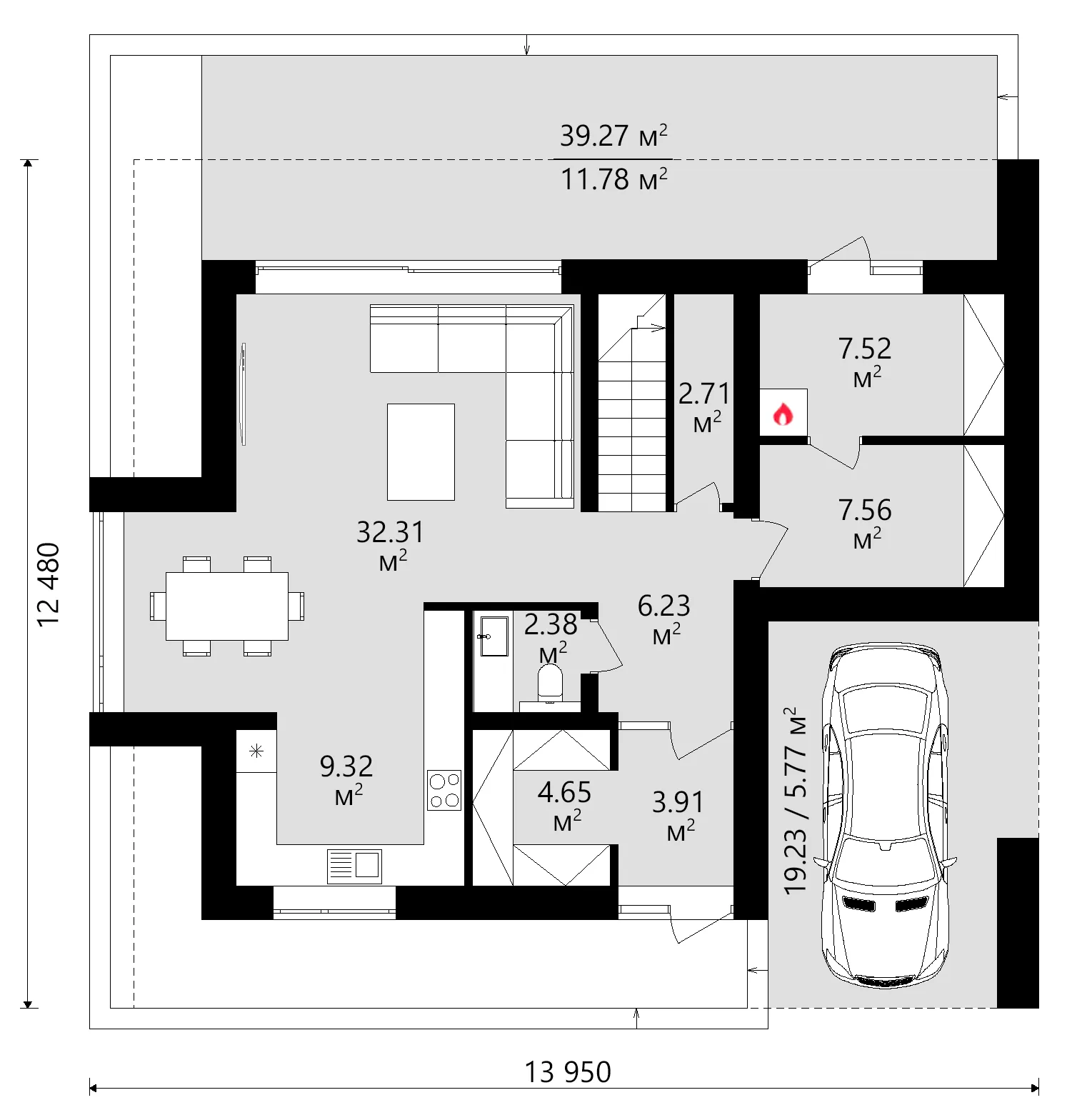

Inside, a proper entry gives coats, shoes and bags a place to land before you reach the main living area. From there an open floor plan unfolds, anchored by a large family room that easily holds a full seating group and still leaves space for guests to gather. The kitchen comes with a breakfast nook, so quick morning meals and after-school snacks happen right beside the cook, and the tall glazing keeps the whole open space bright from early in the day.

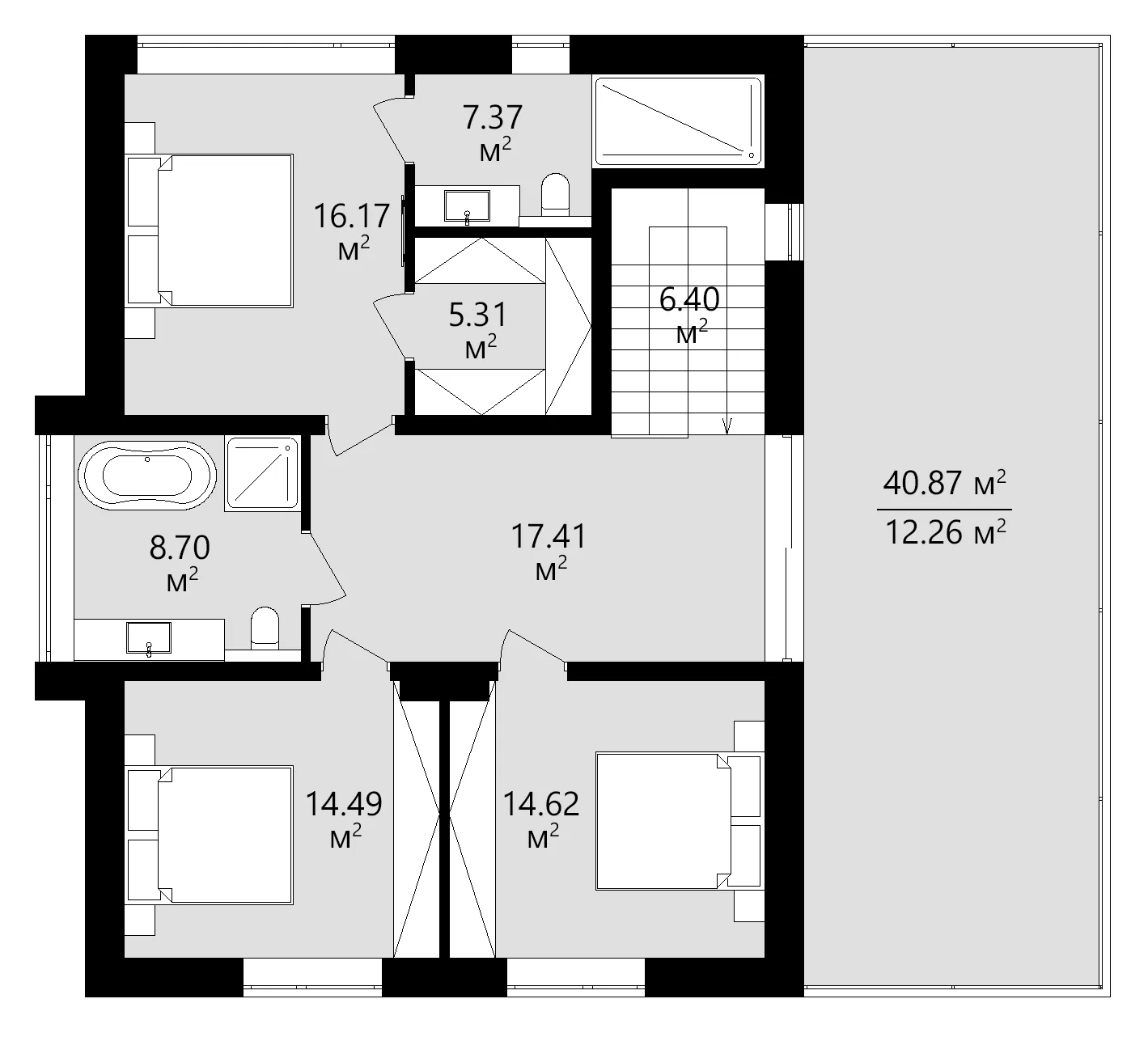

The three bedrooms are clustered together, which keeps sleeping quarters calm and family members within easy reach of one another. On the second floor, the master bedroom includes a walk-in closet for organized, clutter-free storage. Two full bathrooms and a half bath give the household 2.5 baths in total, so busy mornings and visiting friends are both easy to handle. A utility room, a separate laundry and a dedicated storage room take care of the everyday work of the house, leaving the living areas clean and uncluttered. For anyone browsing house plans Canada for a modern home with a flat roof and multi-level outdoor space, this design offers a confident, practical layout.
