2-Story House Plan 1642 ft²: 3 Beds, 2.5 Baths, 1-Car Garage

Plan
46872C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1642
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans
Main Floor

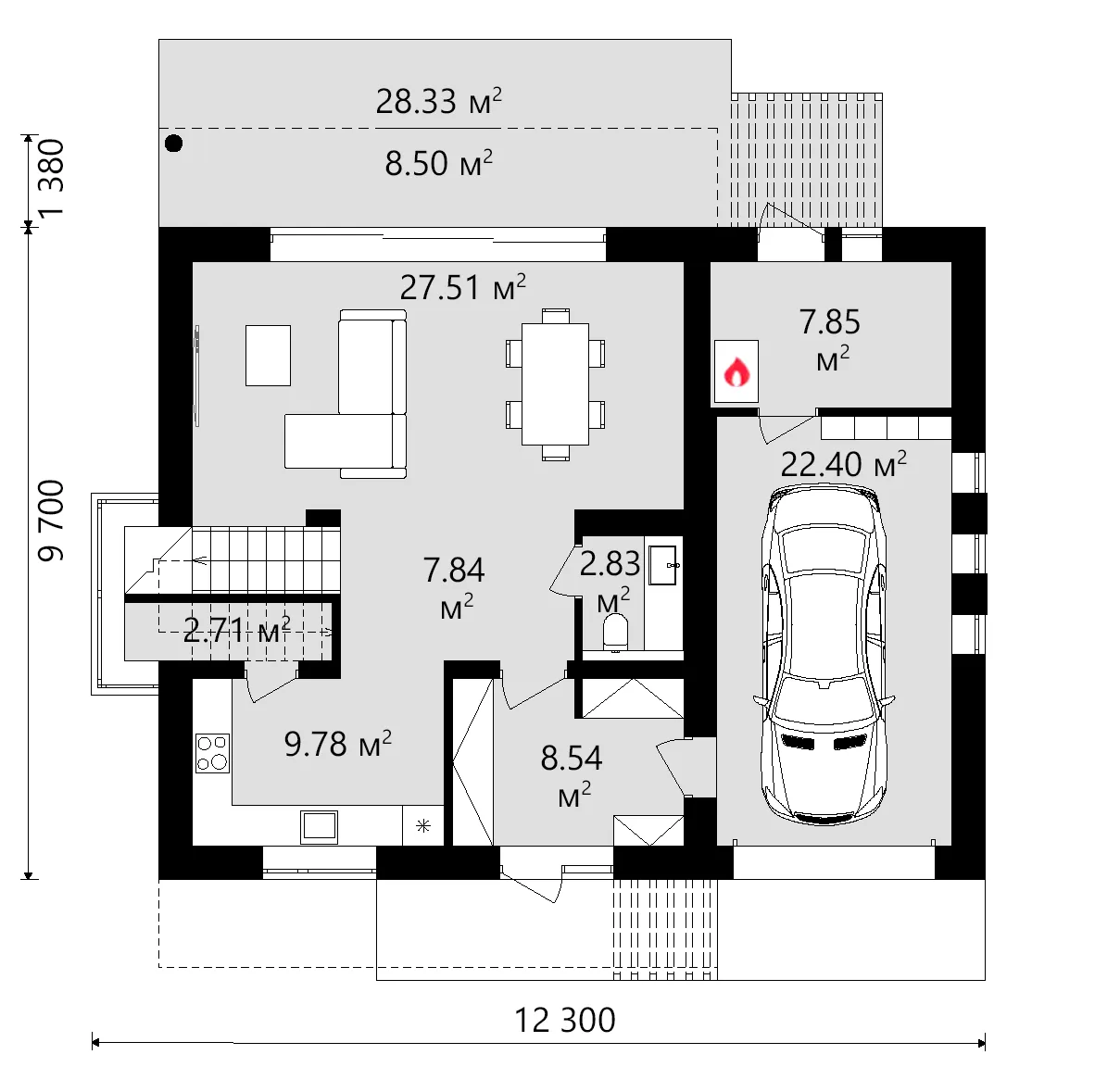

Main Floor 11 – 2-Story House Plan 1642 ft², 3 Beds — 46872C
Second Floor

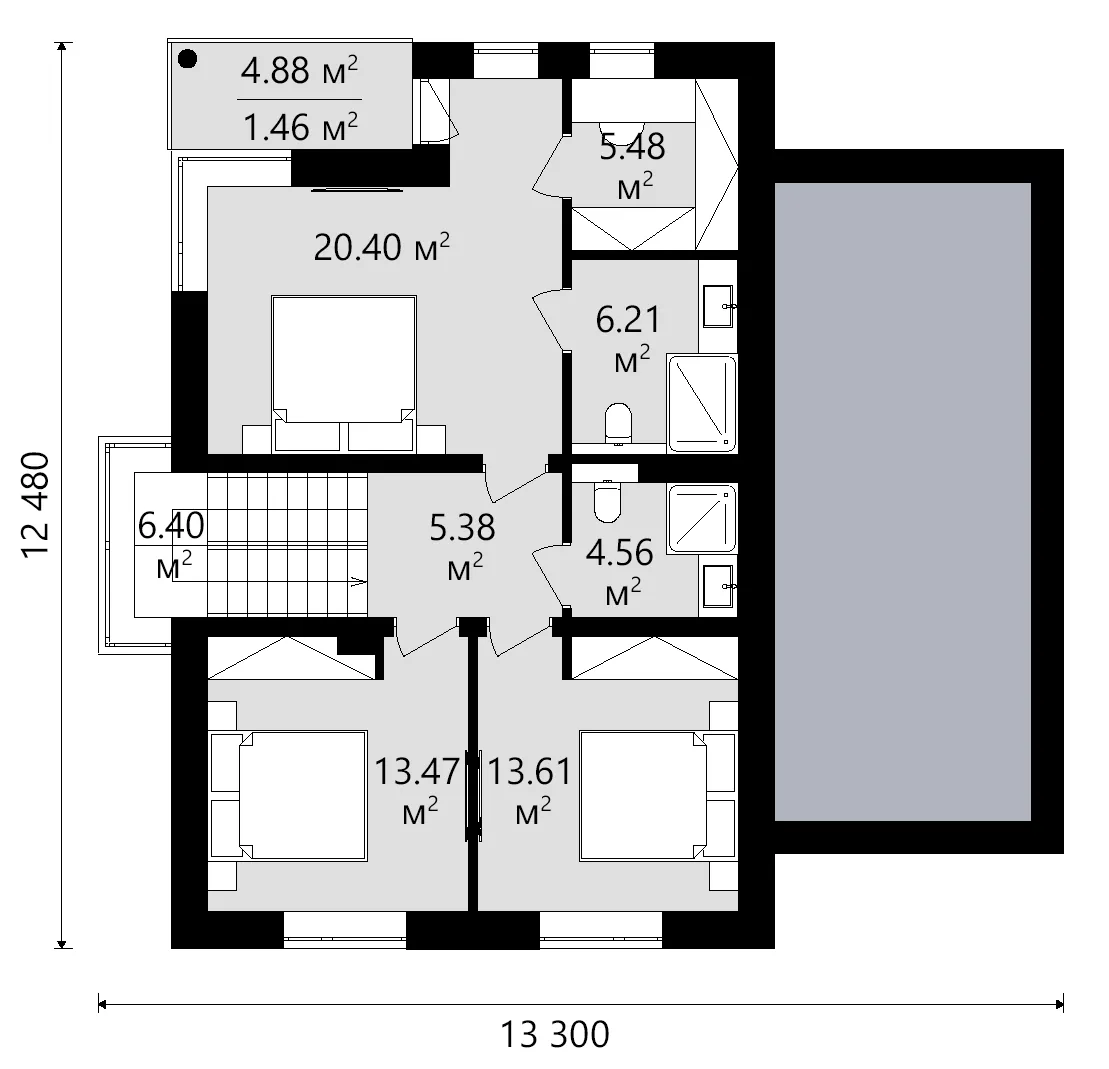

Second Floor 12 – 2-Story House Plan 1642 ft², 3 Beds — 46872C
Full Specs & Features
Area
Total Unheated: 241.11 ft²
Total Heated: 1641.82 ft²
Dimensions
Depth: 38'0" ft
Width: 40'5" ft
Height: 21'7" ft
Garage
Area: 241 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Interior Features
Second Floor Master
Closed Floor Plan
Exterior Features
Balcony
Covered Rear Porch
Deck
Bay Window
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
High-tech
Modern
Roof
Roof Area: 1264.76 ft²
Flat

Designed around clean geometry, house plan 46872C is a 3-bedroom 3-storey home design with 1642 ft² of living space, a flat roof and a modern, high-tech character. Its contemporary façade combines three exterior finishes, wood, stucco and flexible ceramic, so the texture and colour of the walls change from one volume to the next. The house measures 40'5" wide and 38'0" deep and rises to a height of 21'7". This single-family home is framed in aerated concrete, and clay block or sand-lime block framing can be requested instead.

The private side of the house is well organized for a family. Three bedrooms share two full bathrooms, and a half bathroom serves guests without sending them upstairs. The master bedroom sits on the second floor, and a walk-in closet keeps clothing and linens neatly stored. A dedicated utility room takes care of laundry, cleaning supplies and household equipment, and a proper entry gives everyone a place to drop boots, bags and keys before stepping inside.

Rather than one large open space, this plan follows a closed floor plan, where each room has walls, a purpose and a sense of calm. The kitchen is the working centre of the home, and its walk-in pantry holds bulk groceries, baking supplies and appliances that would otherwise crowd the counters. Glass is used generously throughout: floor-to-ceiling windows, large windows, a corner window and a bay window bring in daylight from several directions. On a short winter afternoon, that light carries well into the rooms.

Outdoor living is spread across several levels. A covered rear porch offers a sheltered spot for morning coffee, the deck suits barbecues and summer dinners, and a balcony adds a private outdoor corner on an upper storey. This house plan with an attached garage includes a front-entry, one-car garage connected to the house. There is no basement; the home stands on strip footings, with a slab or a concrete block foundation also available. For families comparing modern house plans in Canada, 46872C is a flat roof house plan that fits three storeys of practical, light-filled living into a compact footprint.
