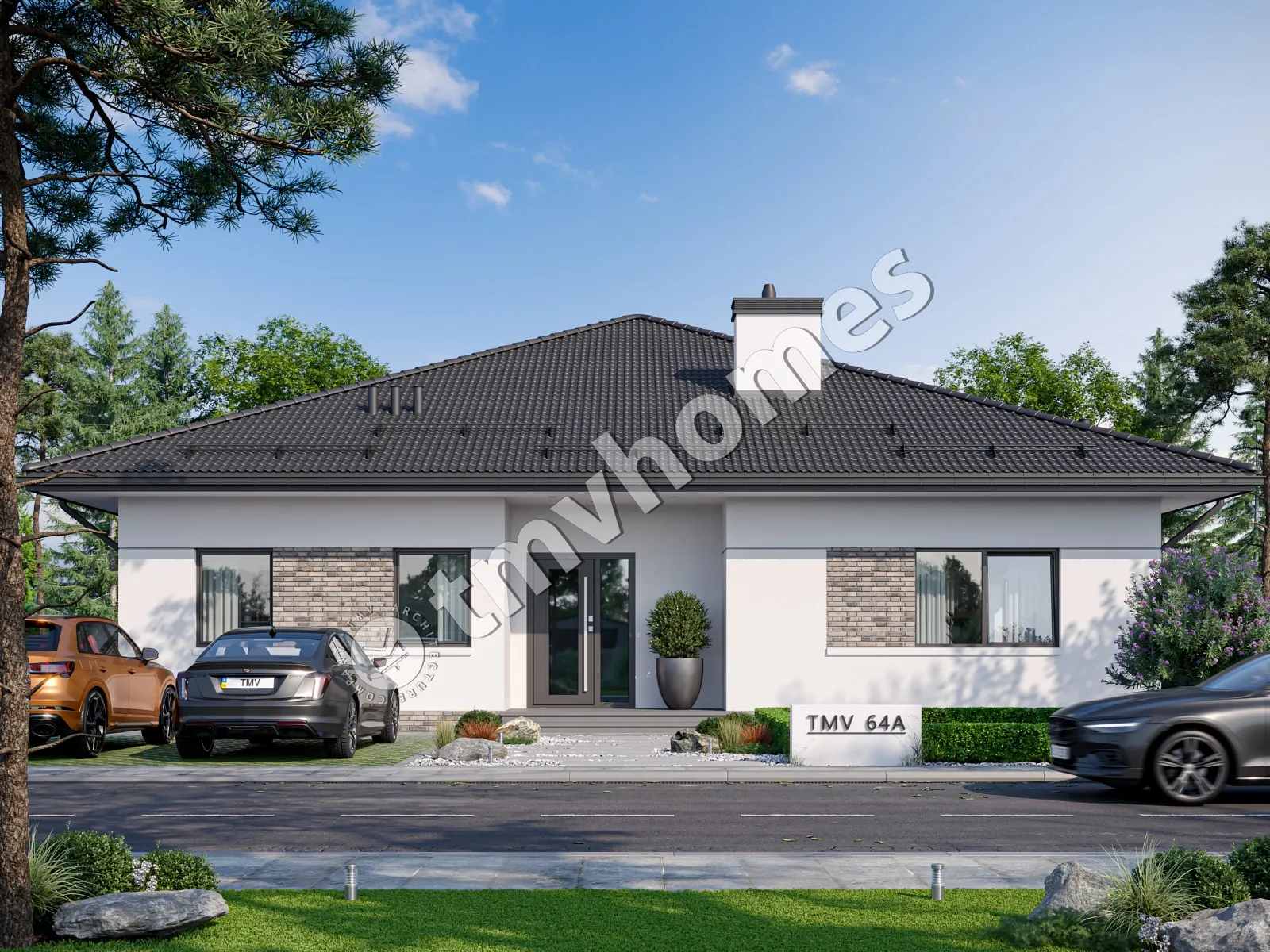

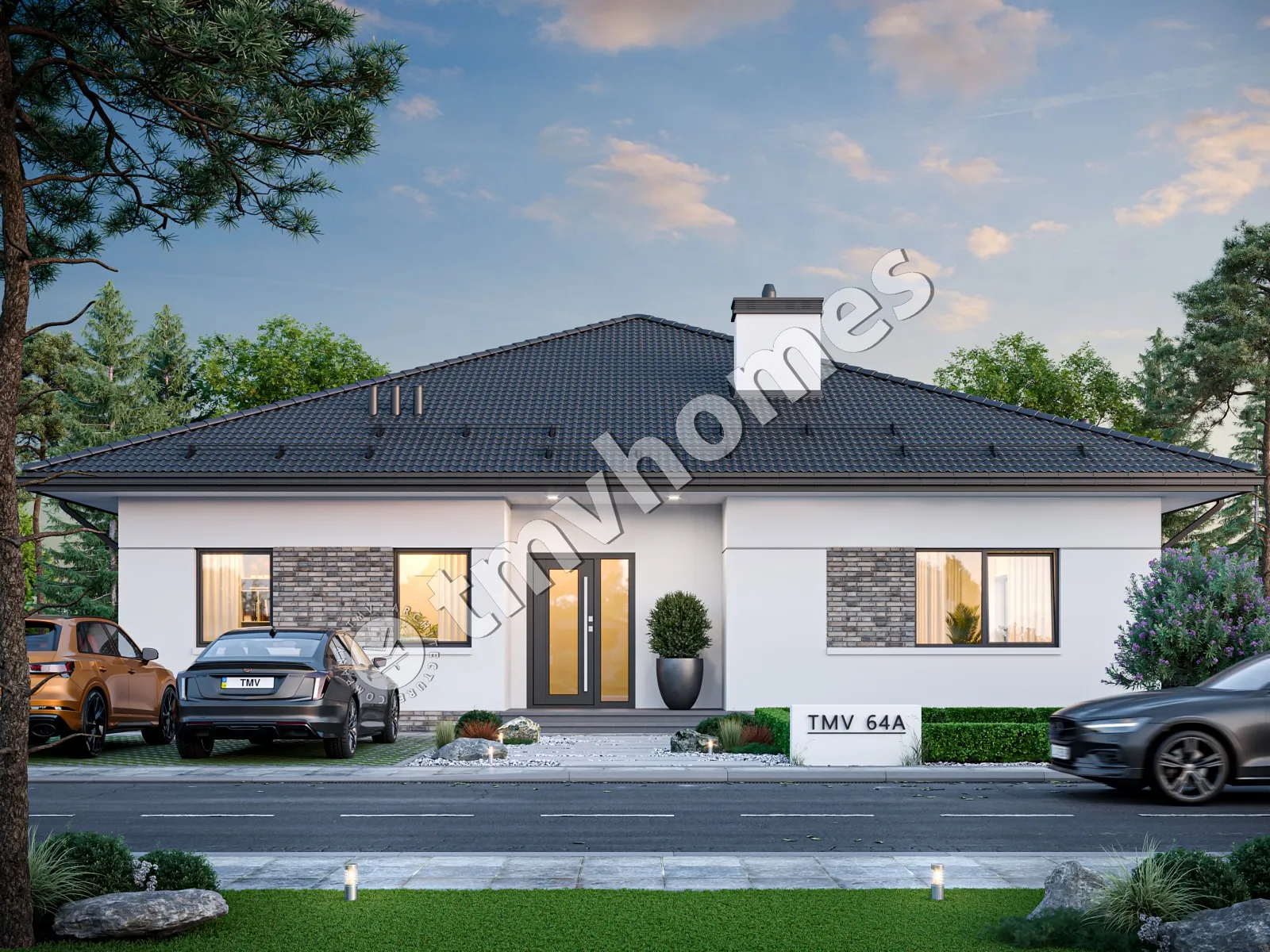

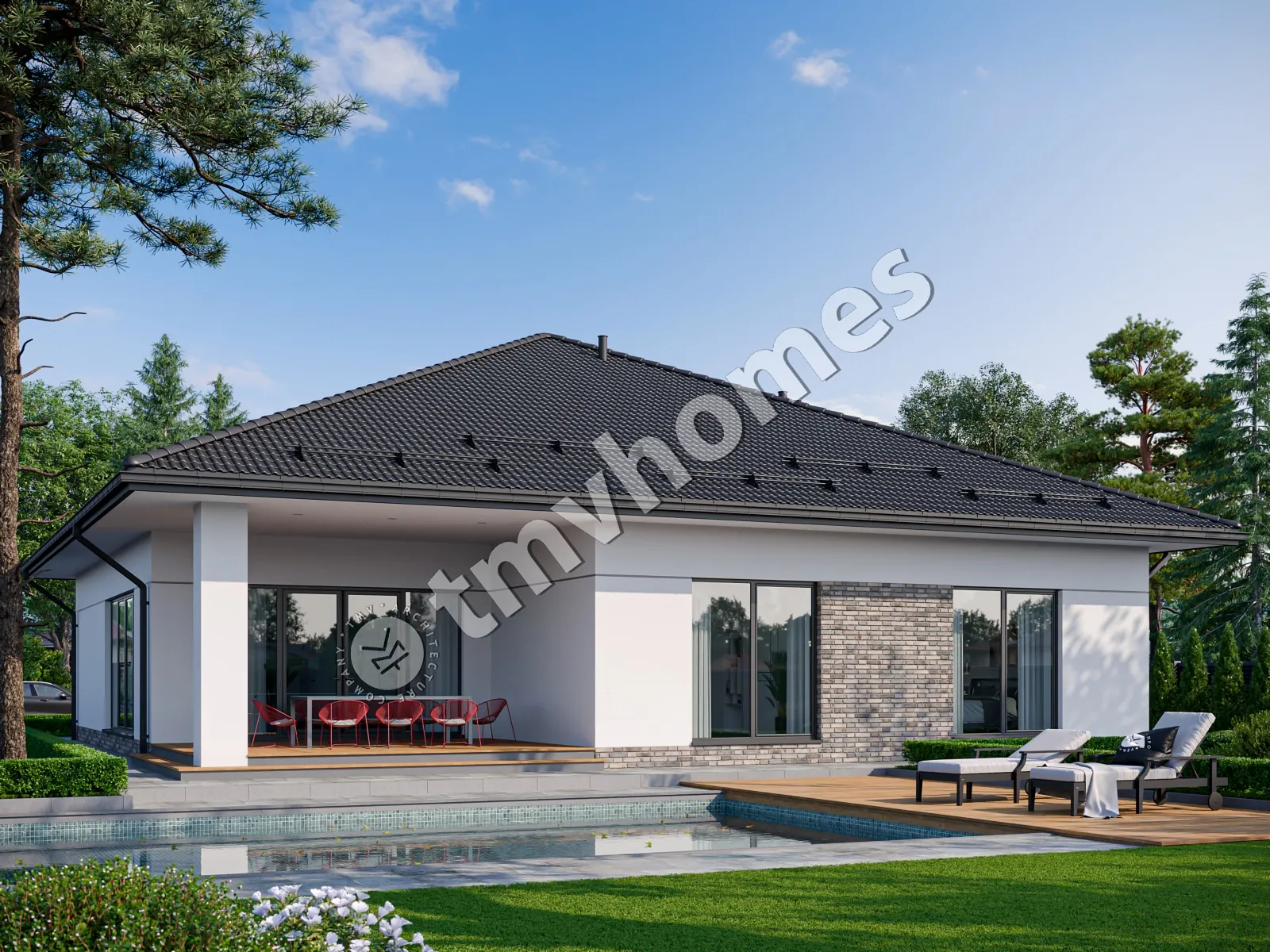

Renderings 2 – 1-Story House Plan 1958 ft², 2 Beds — 23072C

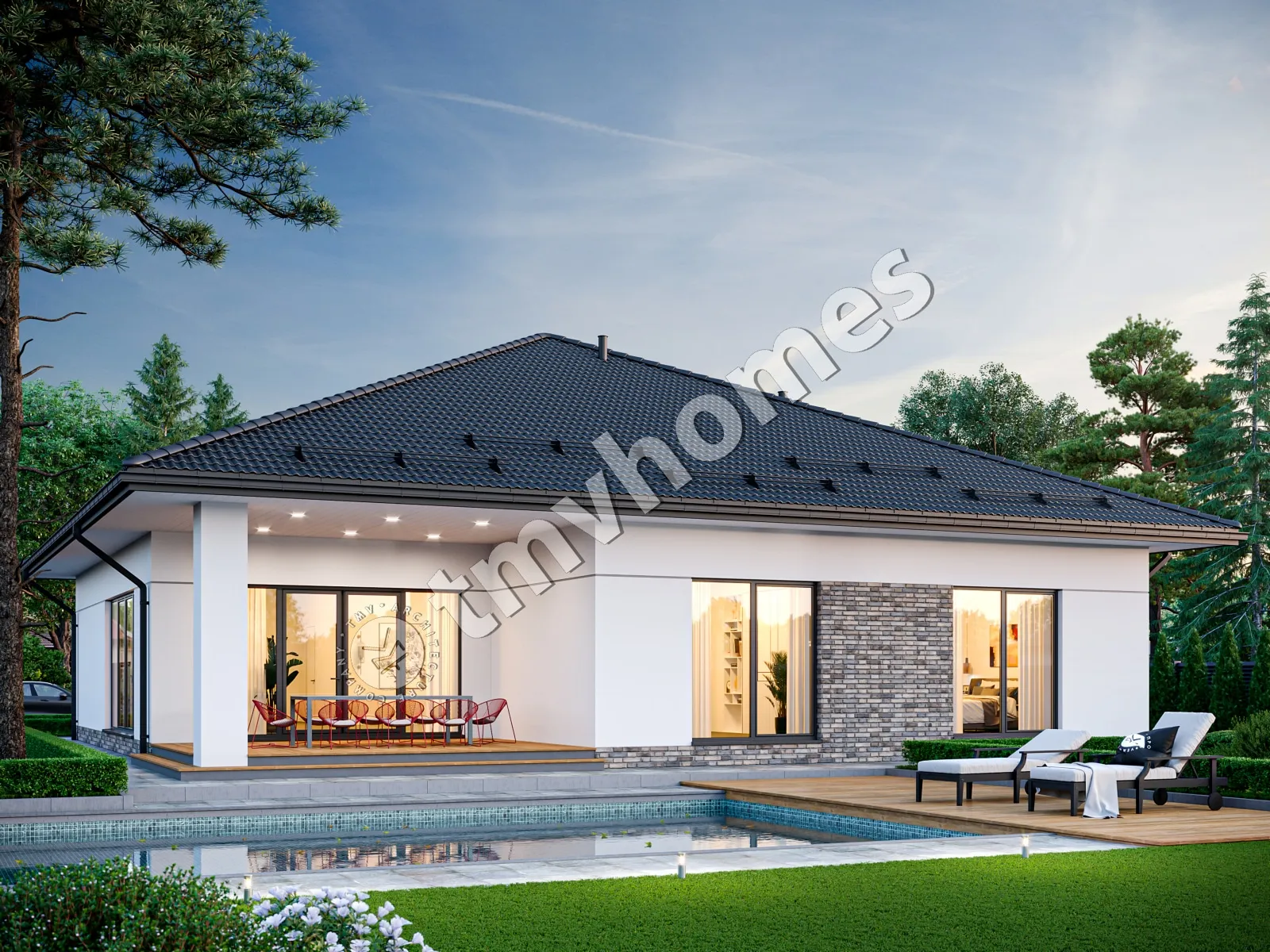

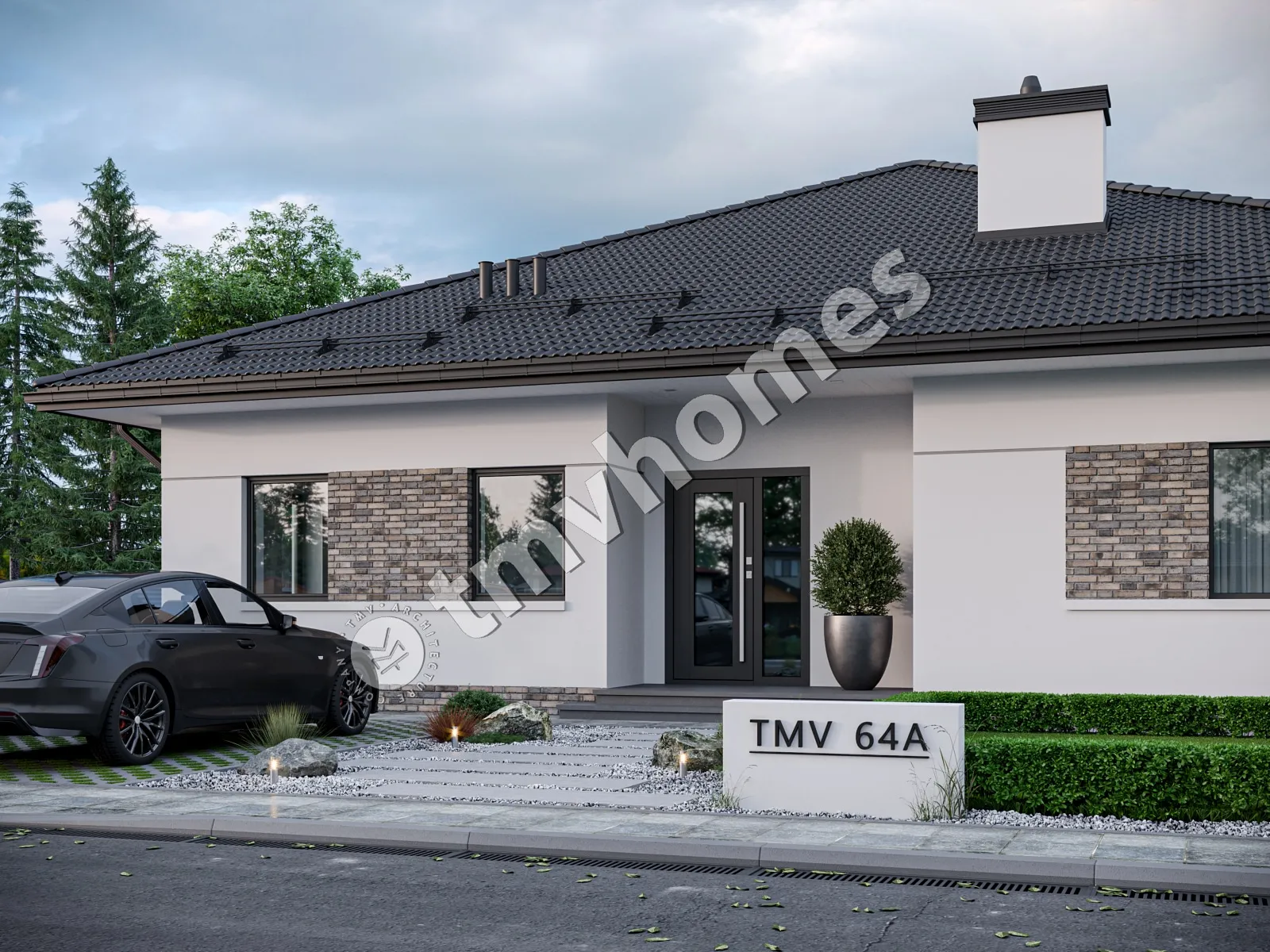

Renderings 3 – 1-Story House Plan 1958 ft², 2 Beds — 23072C Renderings 4 – 1-Story House Plan 1958 ft², 2 Beds — 23072C
6
Concept
Construction documents are prepared for the following countries:

1-Story House Plan 1958 ft²: 2 Beds, Home Office, 2 Baths, Open Floor Plan, without Garage

Plan
23072C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1958
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

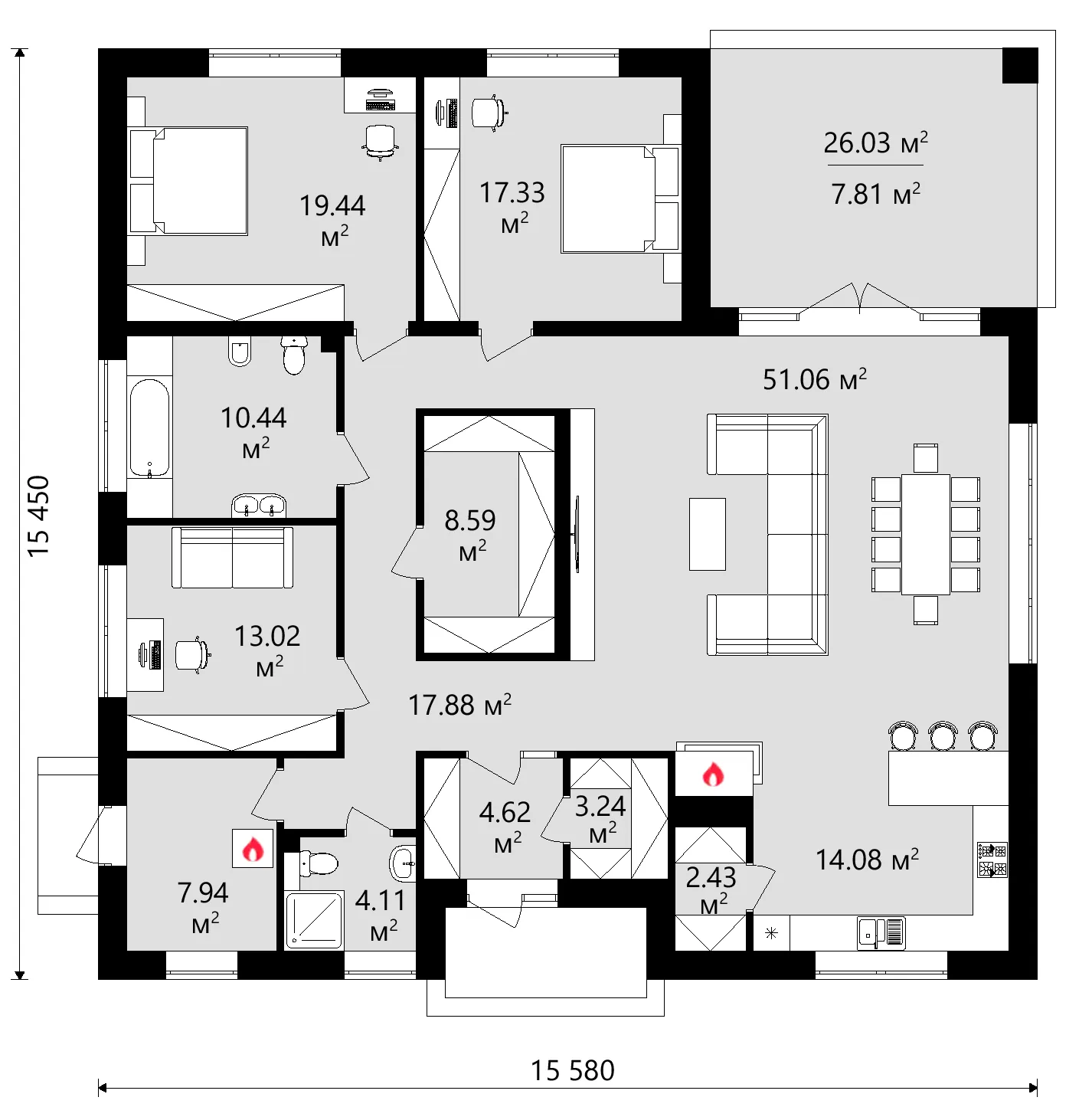

Main Floor
Main Floor 12 – 1-Story House Plan 1958 ft², 2 Beds — 23072C
Full Specs & Features
Area
Total Heated: 1957.96 ft²
Dimensions
Depth: 47'1" ft
Width: 47'5" ft
Height: 22'8" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 2
Utility room
Entry
Home Office
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 3641.32 ft²
Pyramid
Roof Pitch: 6/12 (26°)

With its pyramid roof and walls of stone/brick veneer and stucco, plan 23072C is a 2-bedroom bungalow house plan that places 1958 ft² of living space on a single storey. European and Traditional influences shape its balanced, almost square form: the home is 47'5" wide and 47'1" deep, with a height of 22'8", and the roof is set at a 6/12 (26°) pitch. For anyone comparing house plans Canada buyers can build as a single family residence on one level, this design pairs a calm, grounded exterior with an interior that is easy to live in every day.

Privacy comes first in the layout. The clustered bedrooms sit together, away from the daytime rooms, and two full bathrooms keep mornings unhurried for the whole household. A home office gives a separate place for remote work, studies or household paperwork, so the living area stays free for family time. The practical side is handled just as carefully: a utility room takes care of laundry and chores, a storage room keeps seasonal things out of the way, and a proper entry offers a spot to set down coats and bags before you step inside.

Beyond the entry, an open concept plan joins the large family room with the large kitchen. A fireplace in the family room makes it the centre of the house, and as a house plan with fireplace it suits quiet evenings and gatherings alike. Large windows and floor-to-ceiling windows draw daylight across the shared space. In the kitchen, a breakfast bar handles quick meals and conversation with the cook, a breakfast nook provides a relaxed table for longer breakfasts, and a walk-in pantry keeps groceries and small appliances neatly organized.

At the back, a covered rear porch adds a sheltered outdoor room for summer dinners or a slow start to the weekend. The house rests on strip footings, and its walls are built from aerated concrete; a slab or concrete block foundation, as well as clay block or calcium silicate block walls, are available on request. This 1-storey home design has no basement and no garage, a simplicity that keeps every room of the floor plan on one convenient level.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1214
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
