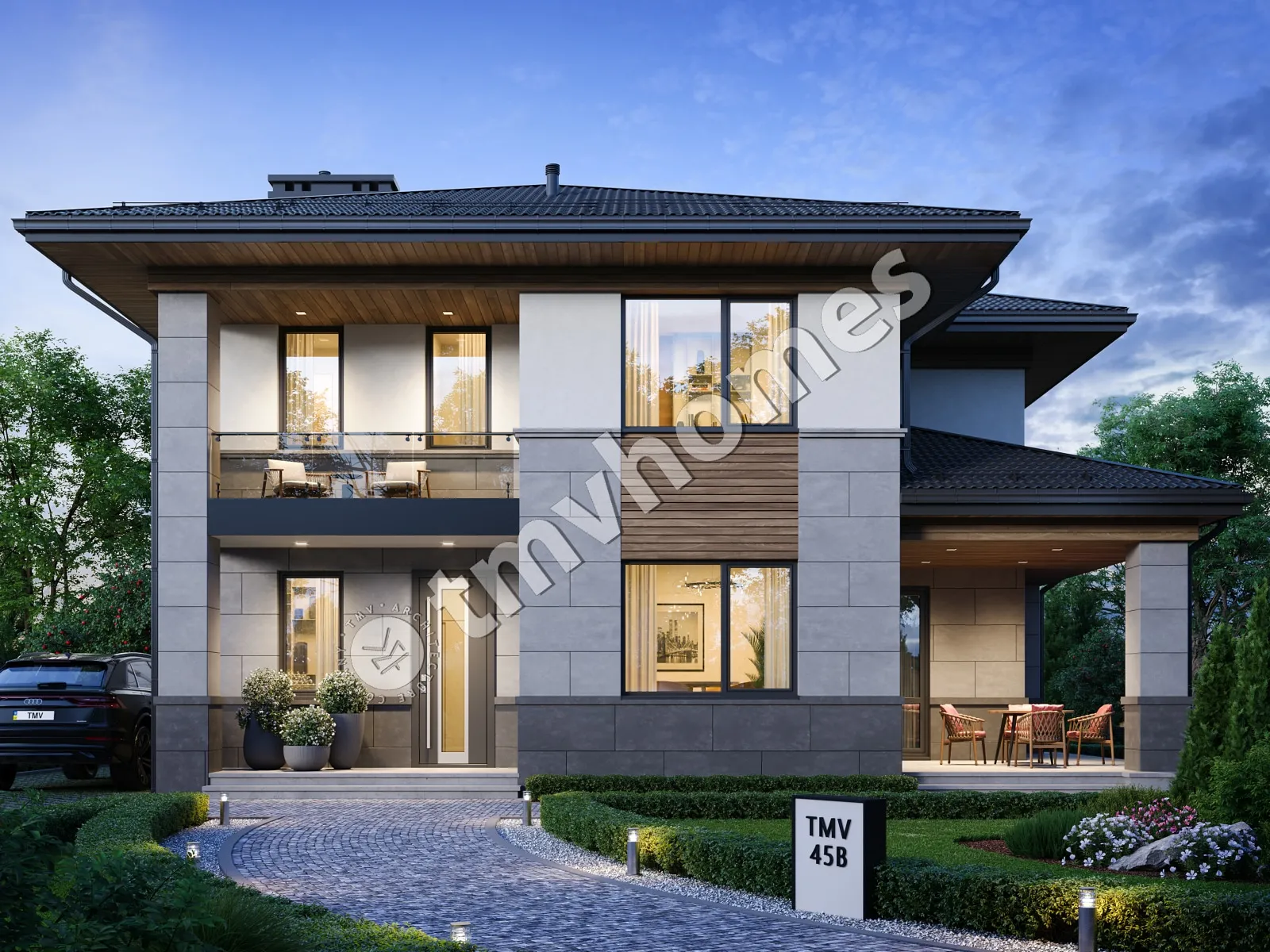

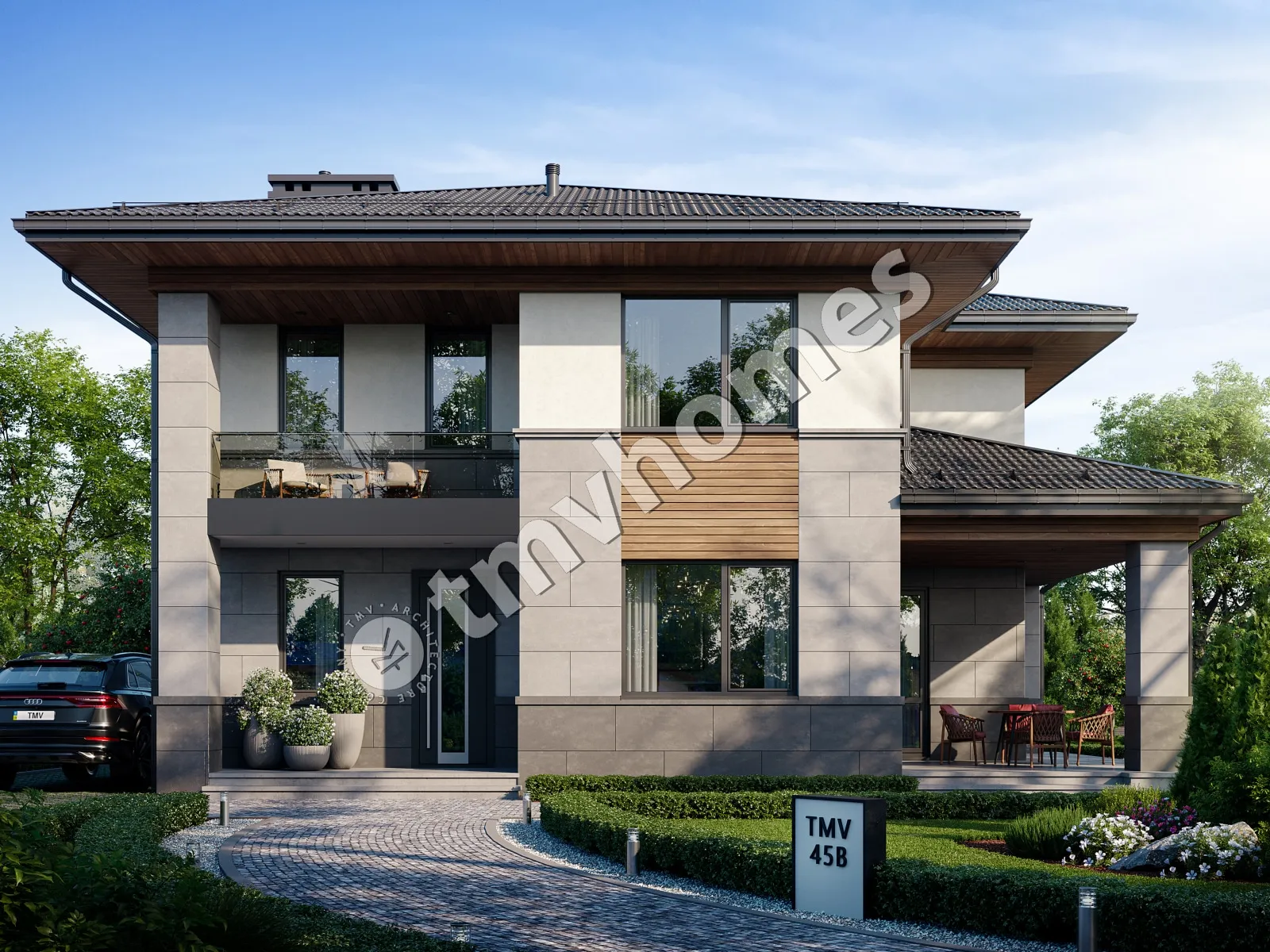

Renderings 2 – 2-Story House Plan 1858 ft², 3 Beds — 83853C

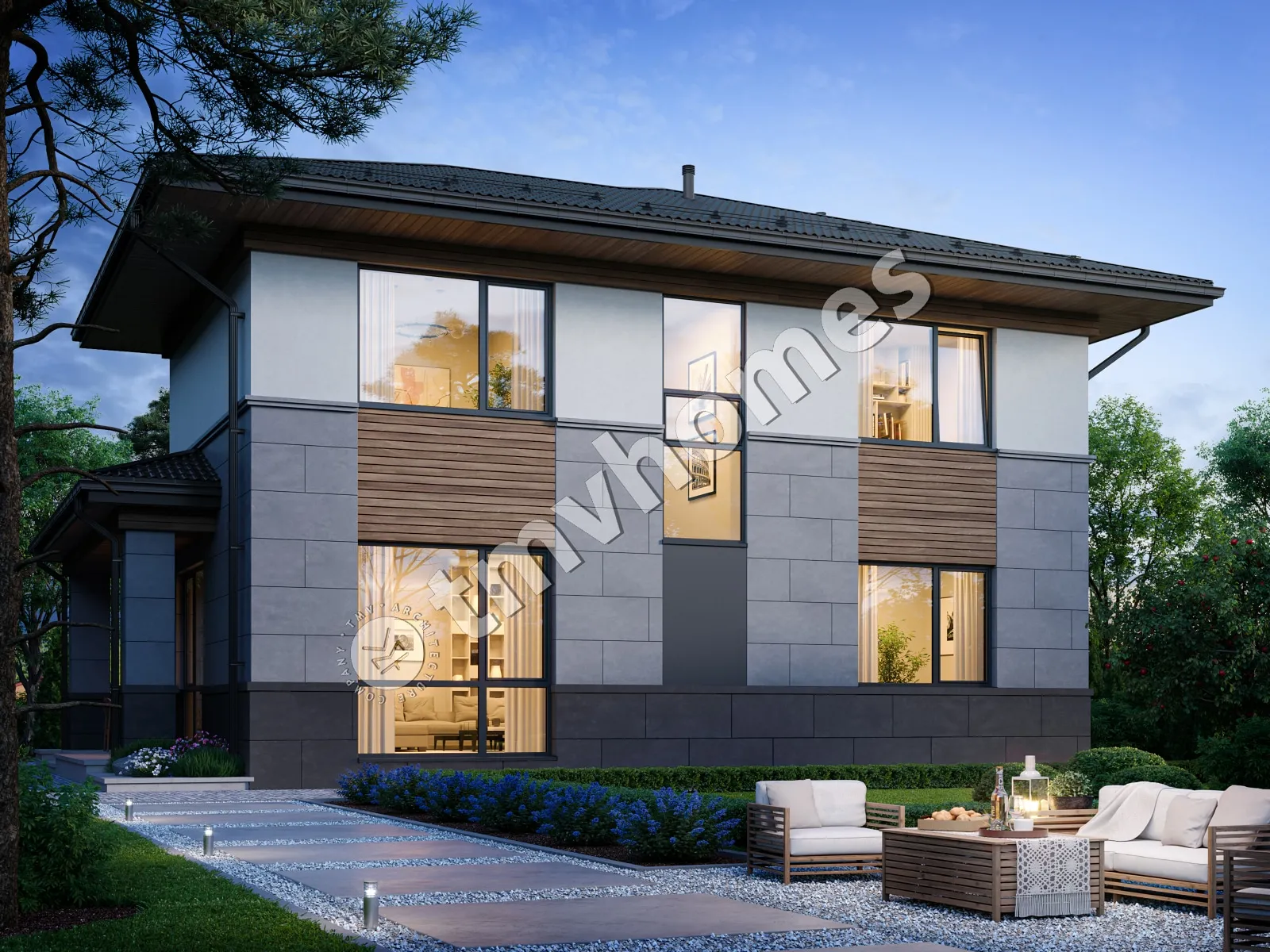

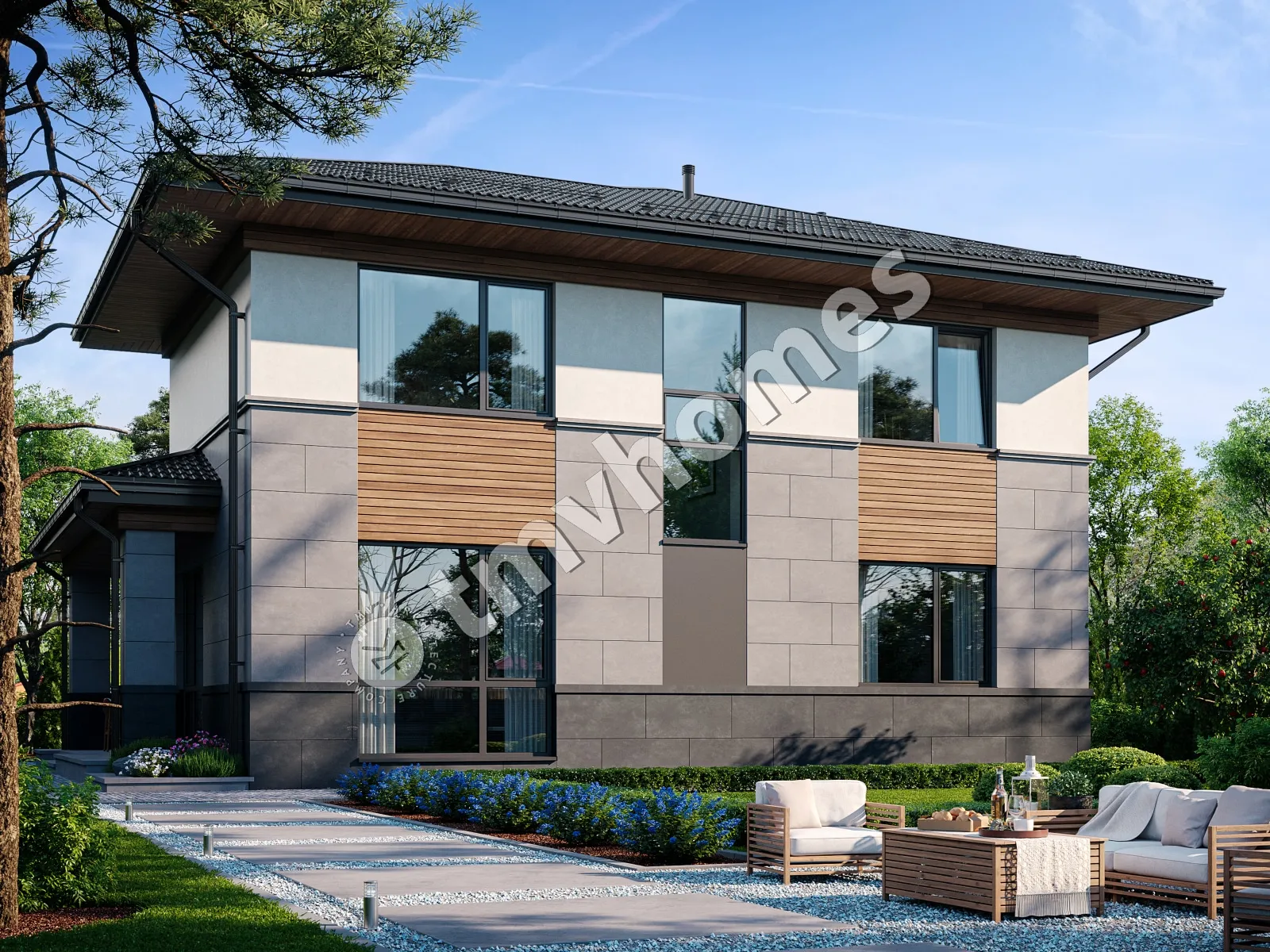

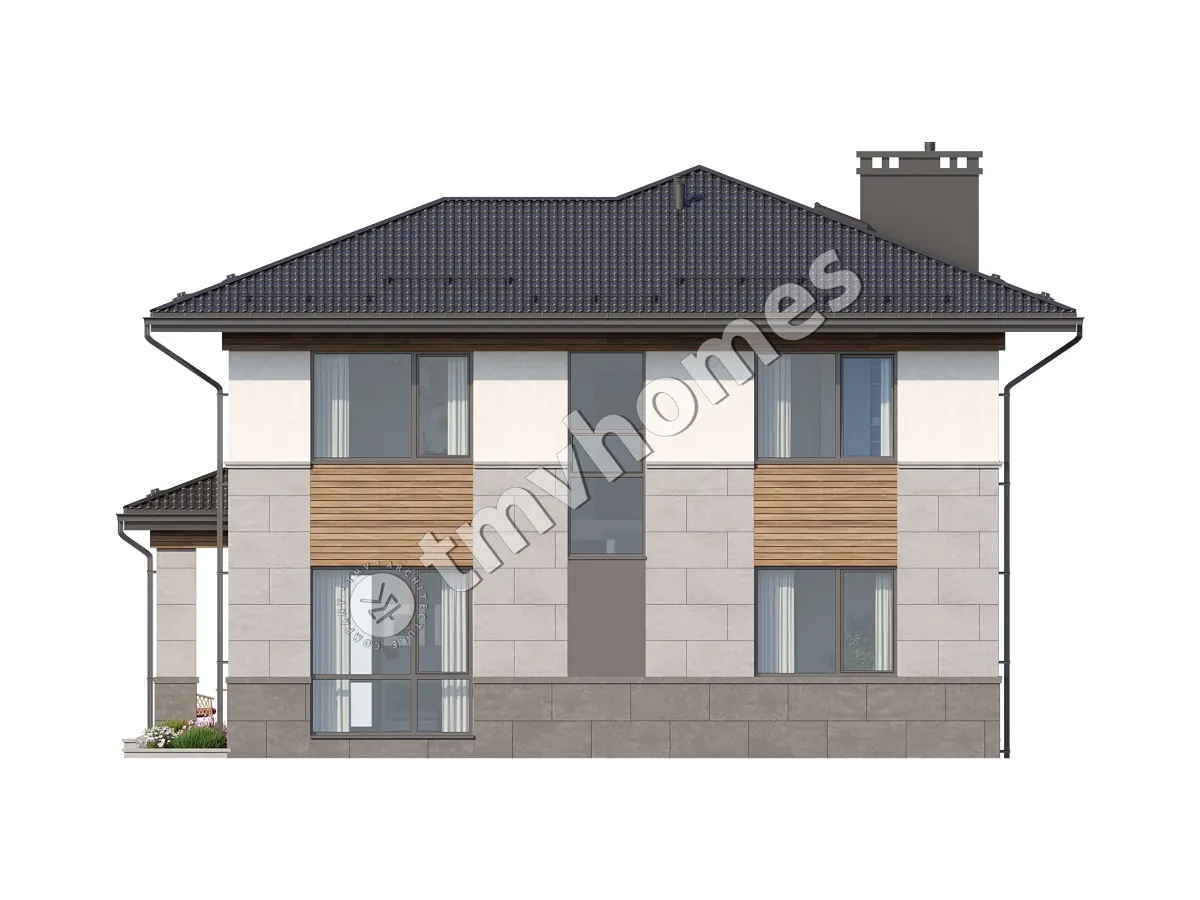

Renderings 3 – 2-Story House Plan 1858 ft², 3 Beds — 83853C Renderings 4 – 2-Story House Plan 1858 ft², 3 Beds — 83853C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 1858 ft²: 3 Beds, Home Office, 3 Baths, without Garage

Plan
83853C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1858
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

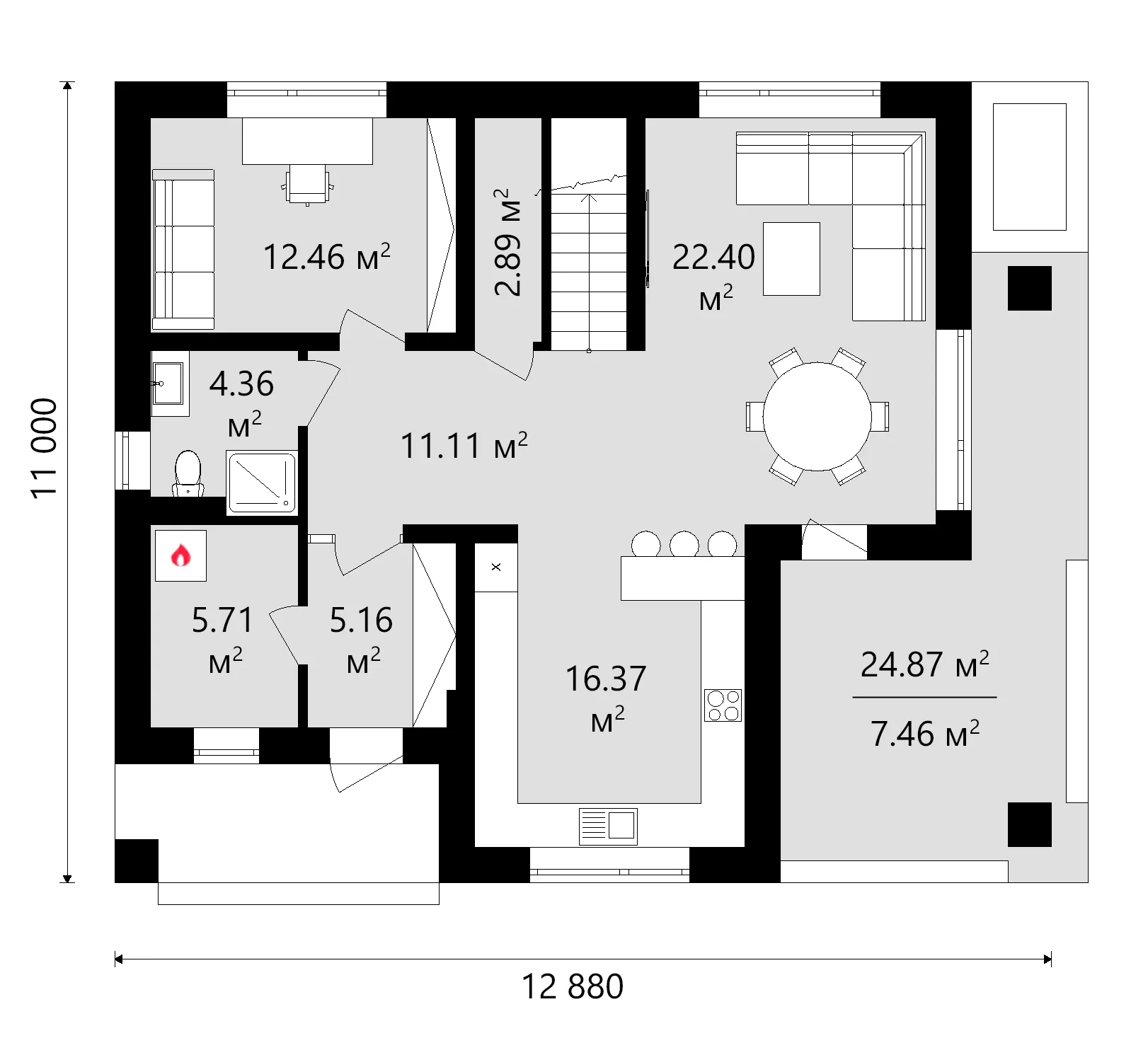

Main Floor
Main Floor 11 – 2-Story House Plan 1858 ft², 3 Beds — 83853C

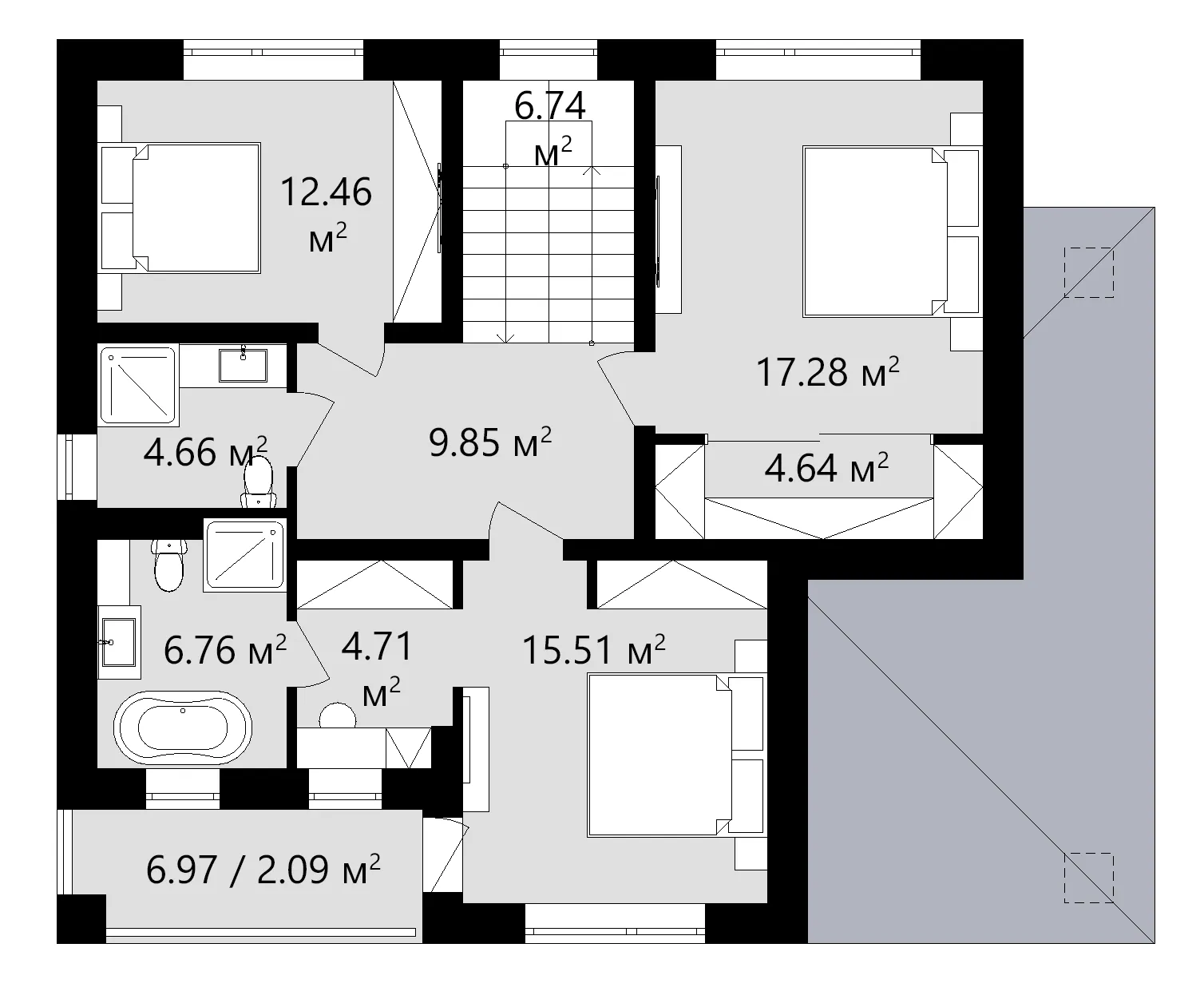

Second Floor
Second Floor 12 – 2-Story House Plan 1858 ft², 3 Beds — 83853C
Full Specs & Features
Area
Total Heated: 1858.07 ft²
Dimensions
Depth: 33'5" ft
Width: 39'3" ft
Height: 27'6" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Interior Features
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Side Porch
Large Windows
Architectural Style
Contemporary
European
Modern

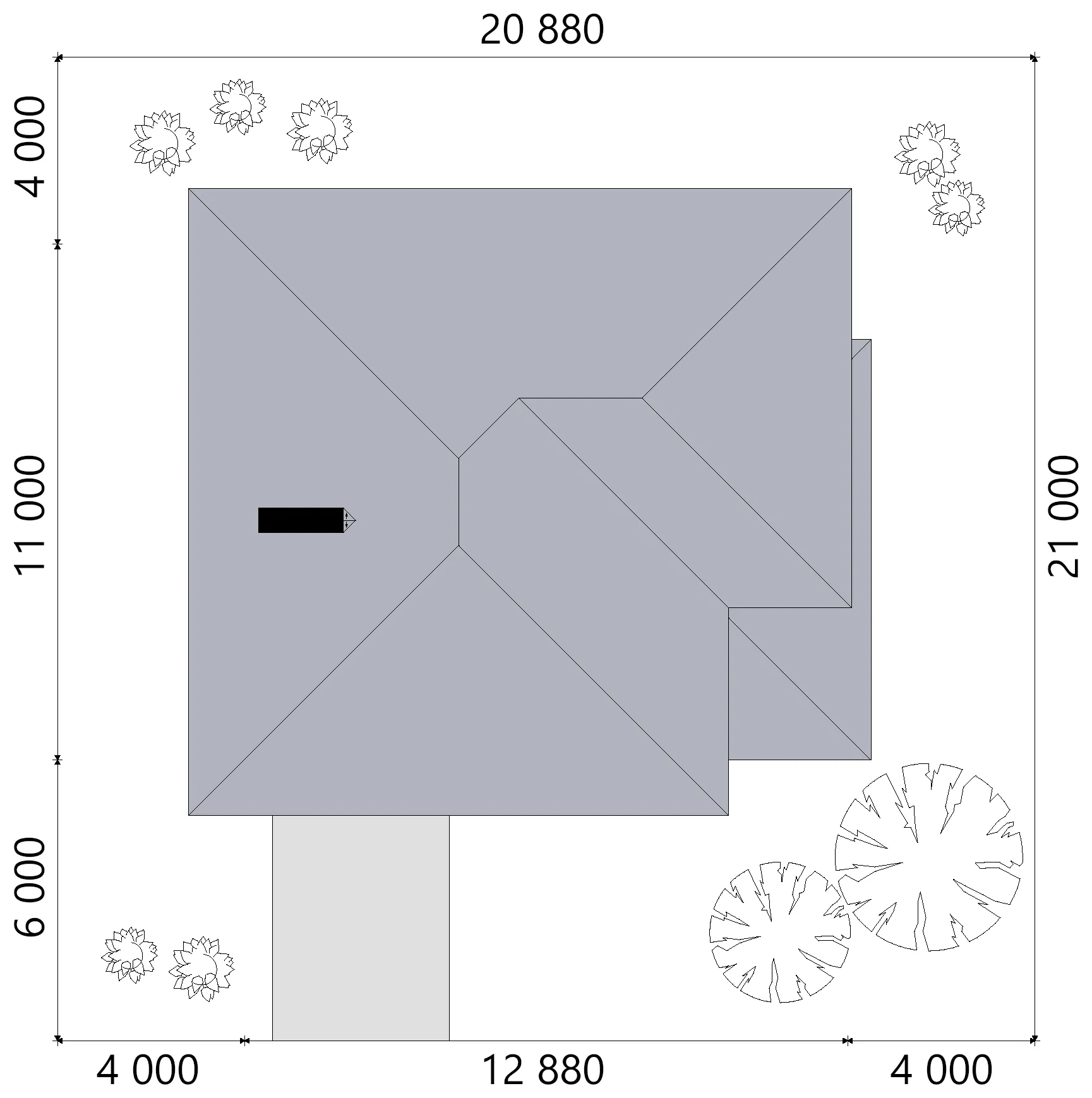

Roof
Roof Area: 2349.44 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Designed over three levels, plan 83853C is a 3-bedroom 3-storey house plan that fits 1858 ft² of living space beneath a hip & valley roof, with a contemporary European character throughout. The roof is set at a 5/12 (22°) pitch, and the elevations mix wood, stucco and flexible ceramic for a modern, finely balanced facade. Among house plans Canada families compare for a single family home, this one keeps a neat footprint of 39'3" wide and 33'5" deep, with a height of 27'6". Large windows open the walls on every side and bring generous daylight to each storey.

The private side of the home is well organized. The bedrooms are clustered together, which keeps the sleeping zone close-knit and easy to manage with young children. The master bedroom sits on the second floor and has its own walk-in closet. Three full bathrooms serve the household, so every bedroom has easy access to a bath and overnight guests never have to share in a rush. A utility room takes care of laundry and household equipment, and a dedicated storage room holds sports gear, seasonal decorations and everything else that should stay out of sight.

On the main level, the entry gives arriving guests a proper welcome and a place to leave boots and coats. The closed floor plan gives each room clear walls and a defined purpose, an approach many owners prefer when cooking smells and conversation should stay where they belong. The kitchen is large by any measure, with room for several cooks, and a breakfast bar where the family can gather for a quick bite before school. A home office offers a quiet, separate room for remote work, video calls or paperwork. On grey winter afternoons, the large windows make these rooms feel lighter.

Outdoors, a covered side porch shelters the door and makes a pleasant spot for a chair on a summer evening, while a balcony gives the upper level a private outdoor corner. The house is built on strip footings, with a slab or a concrete block foundation available on request. Its exterior walls are framed in aerated concrete, and clay block or calcium silicate block can be chosen as an alternative. There is no basement and no garage in this modern home design, so the plan stays straightforward and leaves space in the budget for the features that matter most to your family.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
