2-Story House Plan 1903 ft²: 3 Beds, 3 Baths, Open Floor Plan, without Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

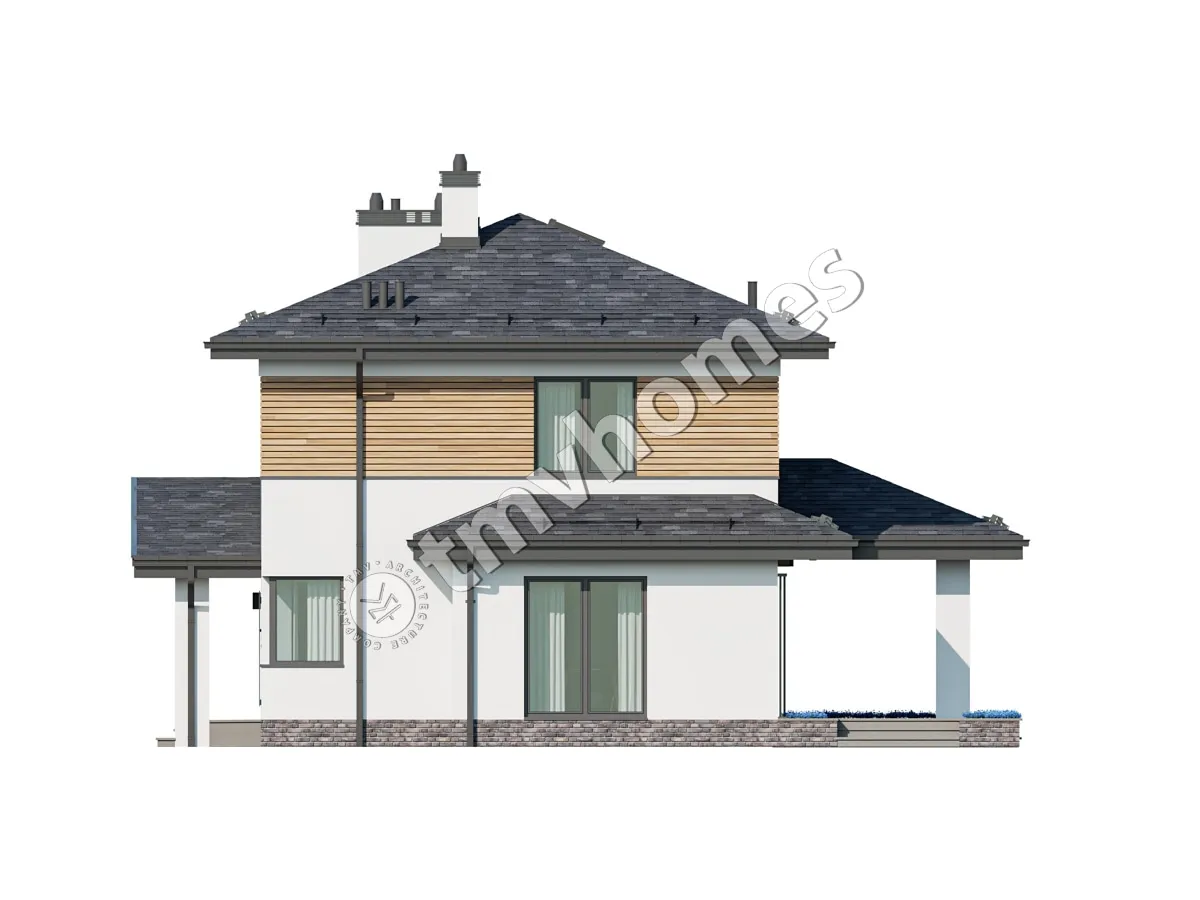

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

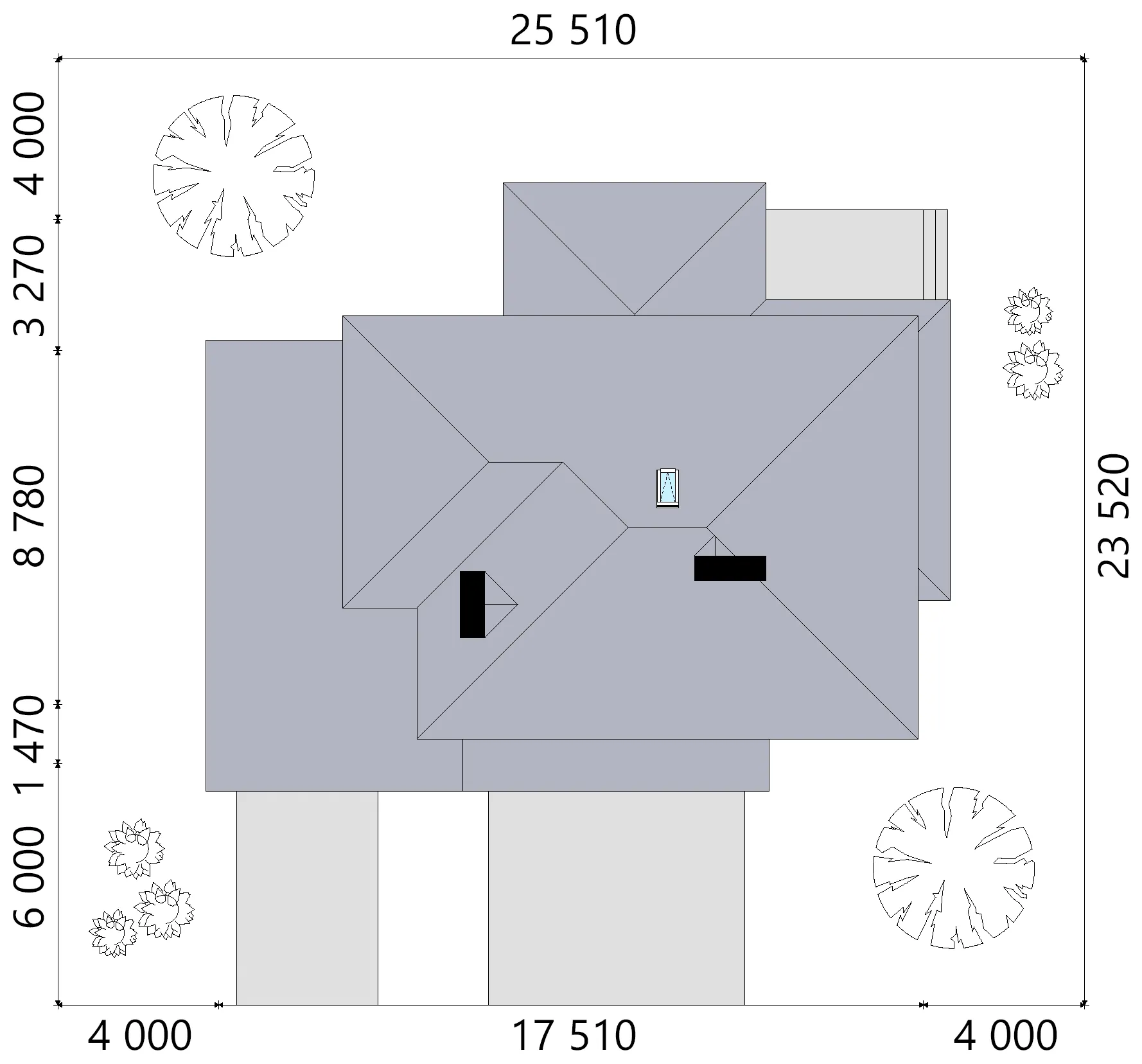

Designed over three storeys, plan 44407C is a 3-bedroom 3-storey house plan with 1903 ft² of living space, a hip and valley roof at a 5/12 pitch, and a character that draws on contemporary, European and modern design. Wood and stucco clad the exterior, while large windows and floor-to-ceiling glazing open the facades to daylight. This single-family home is 53'4" wide and 41'2" deep, rising to a height of 27'6", and it is built without a basement.

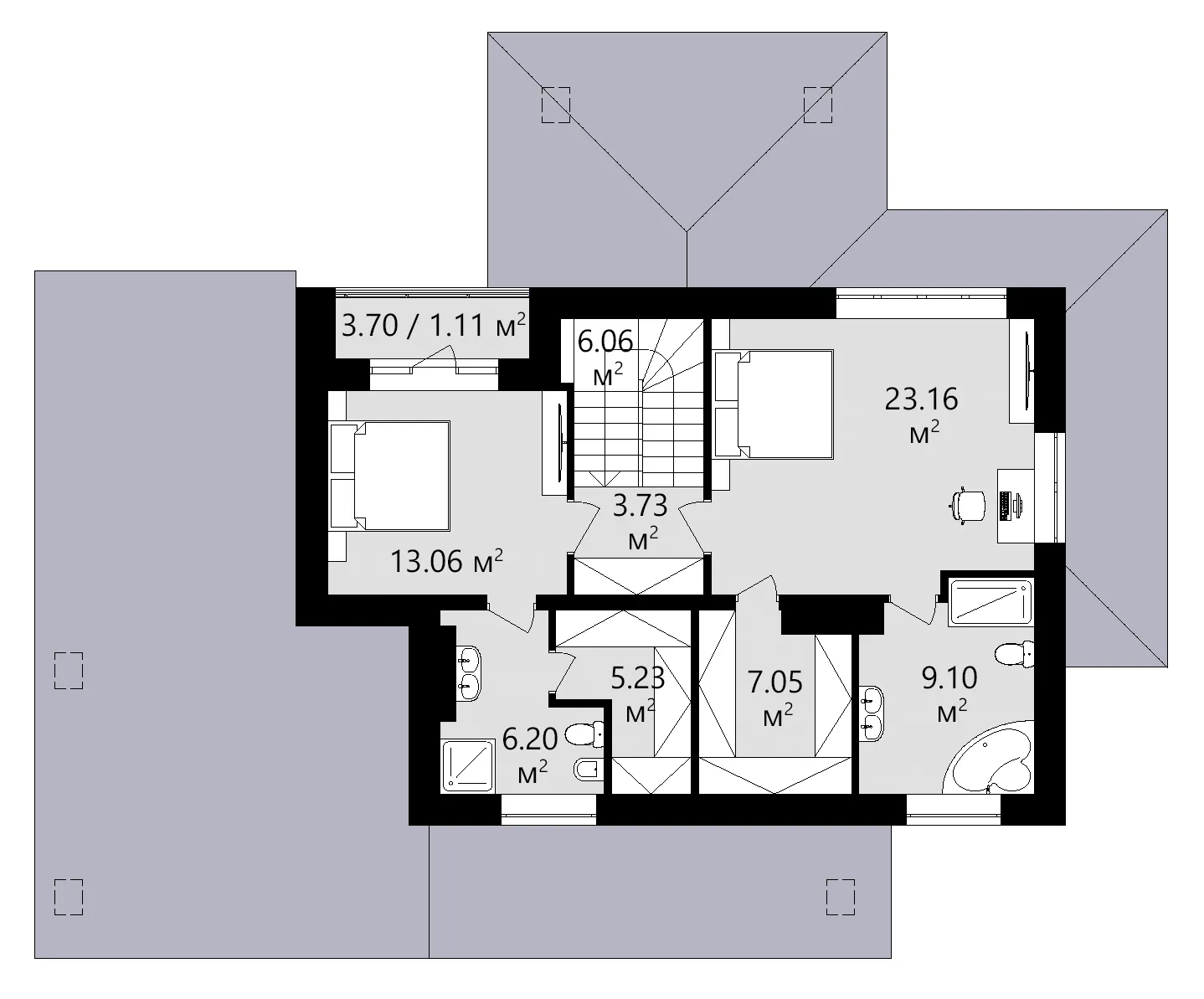

The private side of this home design is organized with care. All three bedrooms are clustered together, which keeps the sleeping area apart from the busier rooms, and the master suite sits on the second floor with its own walk-in closet. The plan includes three full bathrooms and no half baths, so each one has complete fixtures, a real advantage when the whole family is getting ready at the same time or relatives come to stay. A utility room takes care of laundry and household chores, and a dedicated storage room holds luggage, holiday decorations and off-season gear, leaving closets and hallways free.

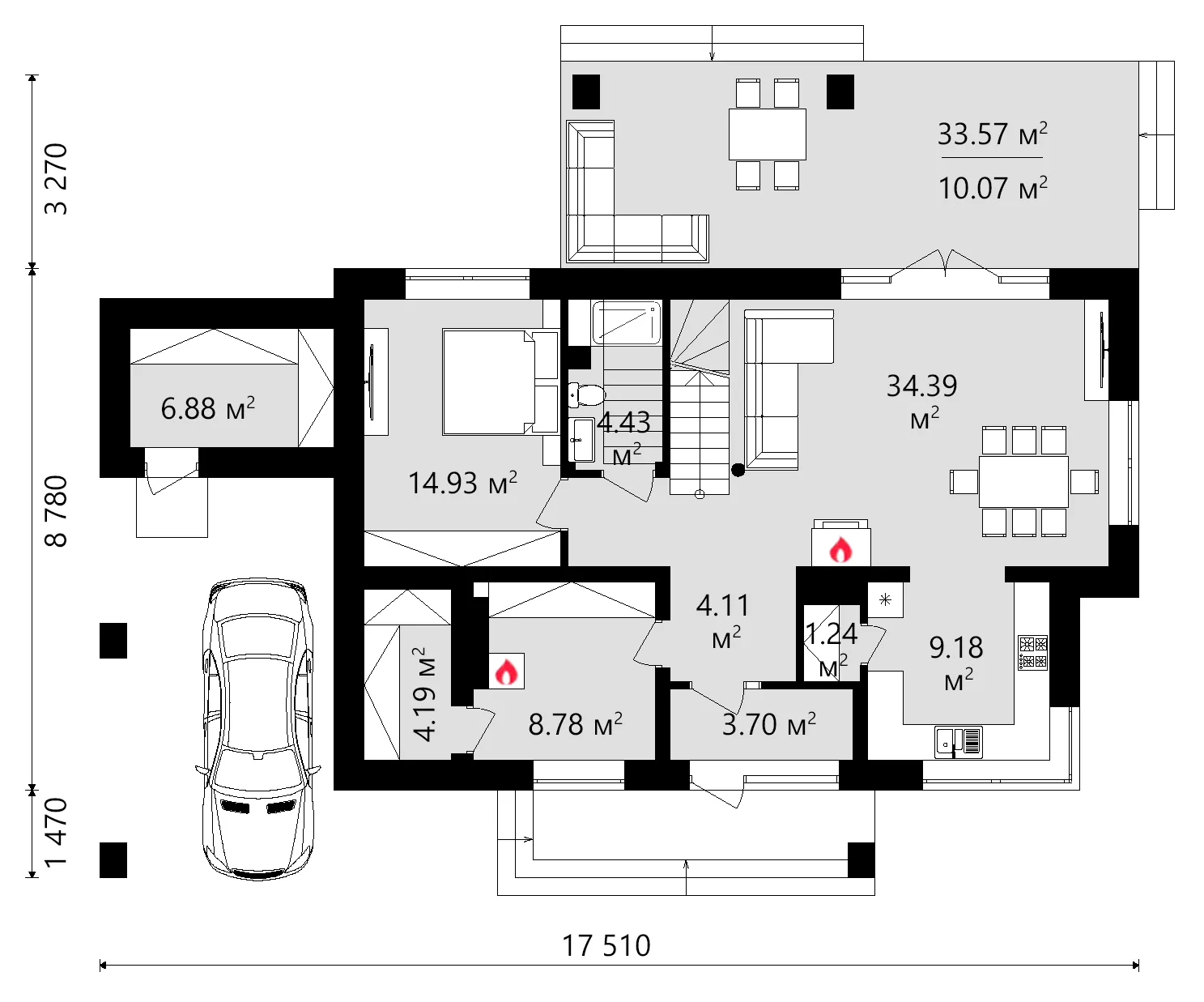

Arriving through the entry, the family steps into an open floor plan where the kitchen and the large family room share one generous space. A fireplace anchors the family room, making this a house plan with fireplace that naturally draws everyone together after dinner. In the kitchen, a walk-in pantry frees the counters and cabinets from bulk supplies, and the breakfast nook gathers around a corner window that brightens the start of the day. With the cook, the table and the sofa all within sight of one another, the main living area suits a quiet family supper as easily as an evening with neighbours.

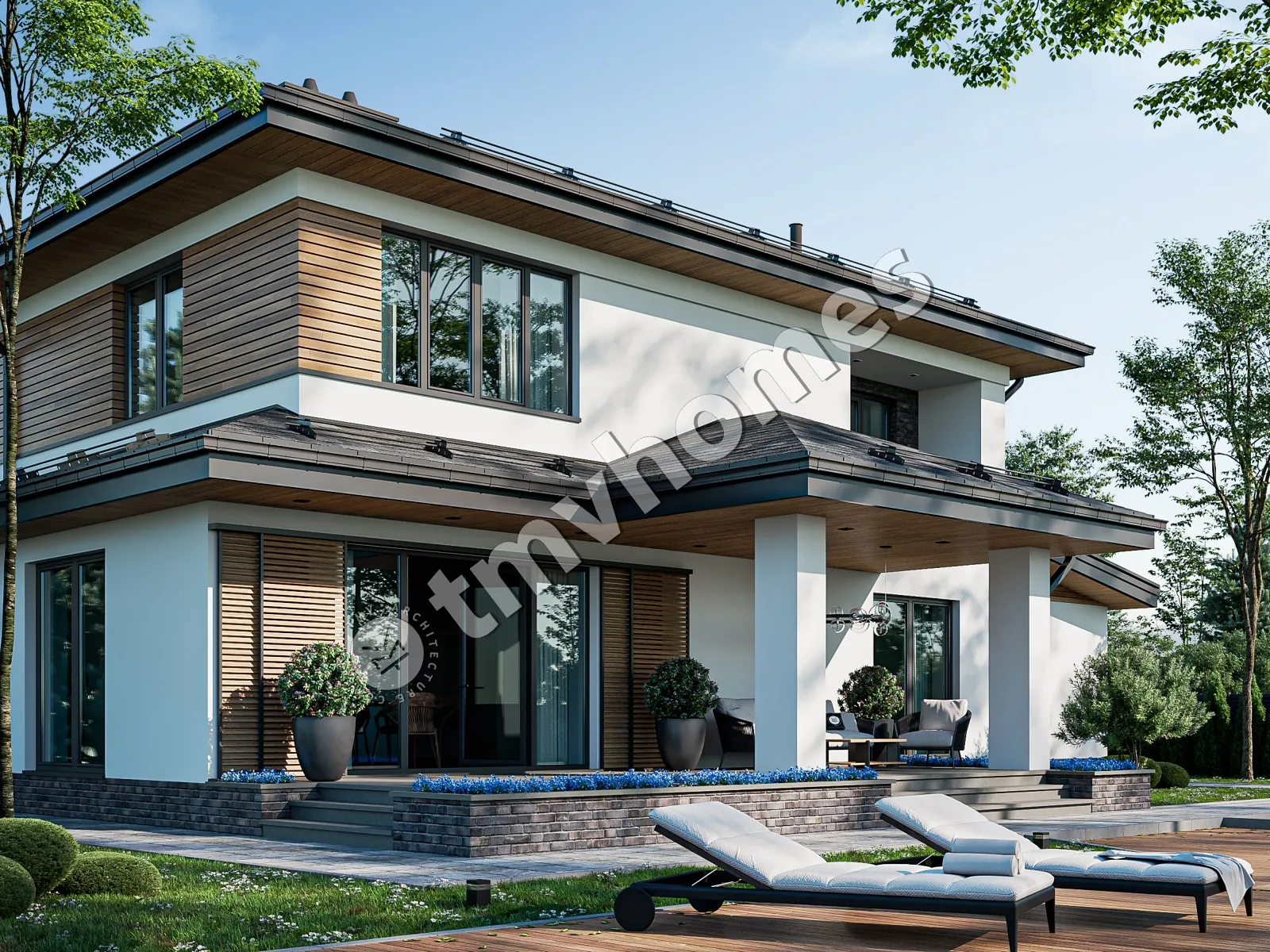

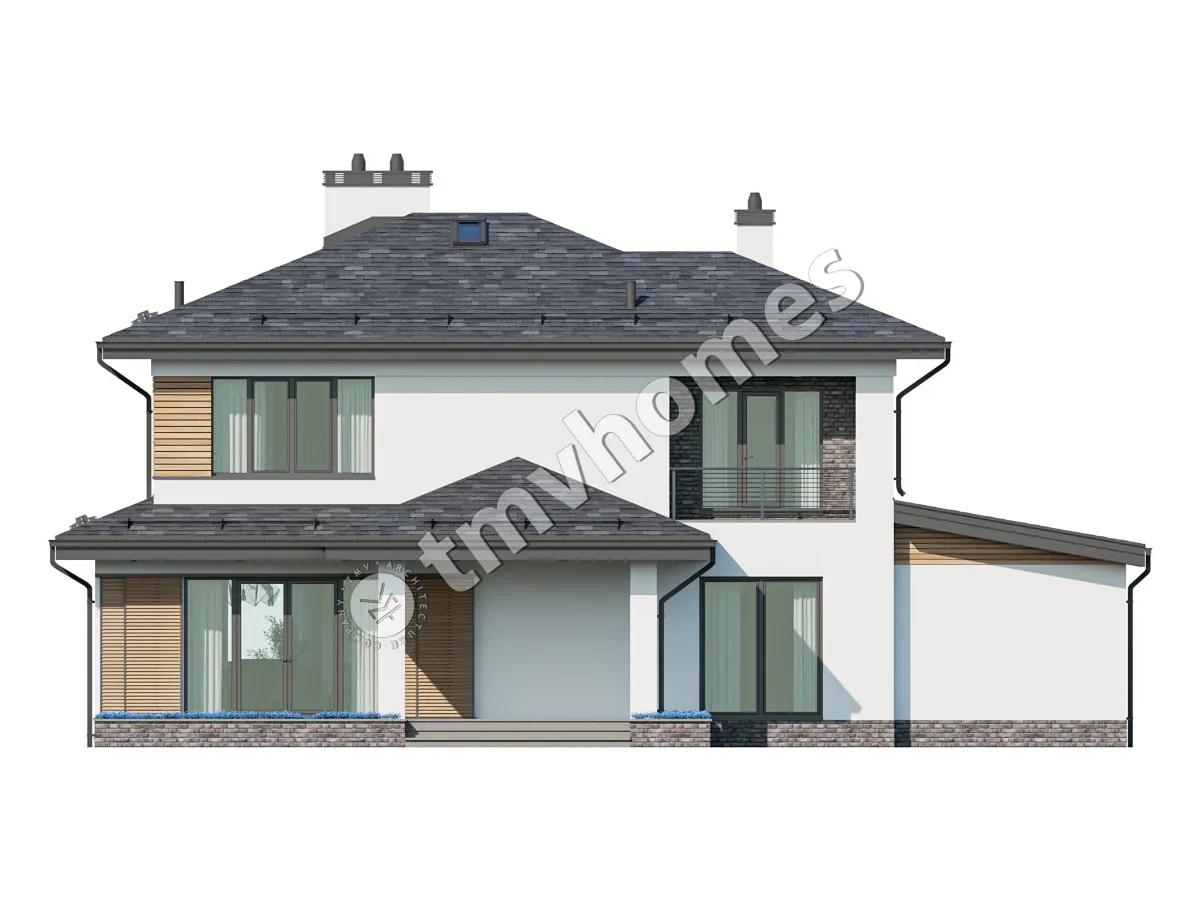

Outside, a covered rear porch offers a sheltered place for meals and reading in the open air, and a balcony adds a private outlook from above. A one-car carport protects the vehicle from the weather without enclosing a full garage. The house rests on strip footings, with a slab or a concrete block foundation also available. Its walls are framed in aerated concrete blocks, and ceramic hollow block or sand-lime block framing can be chosen instead on request. For anyone comparing house plans Canada has to offer, this contemporary house plan pairs European proportions with a modern, livable layout across three levels.
Exciting Home Plans Vancouver CA$ 15,227
