1,792 Sq Ft Modern T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

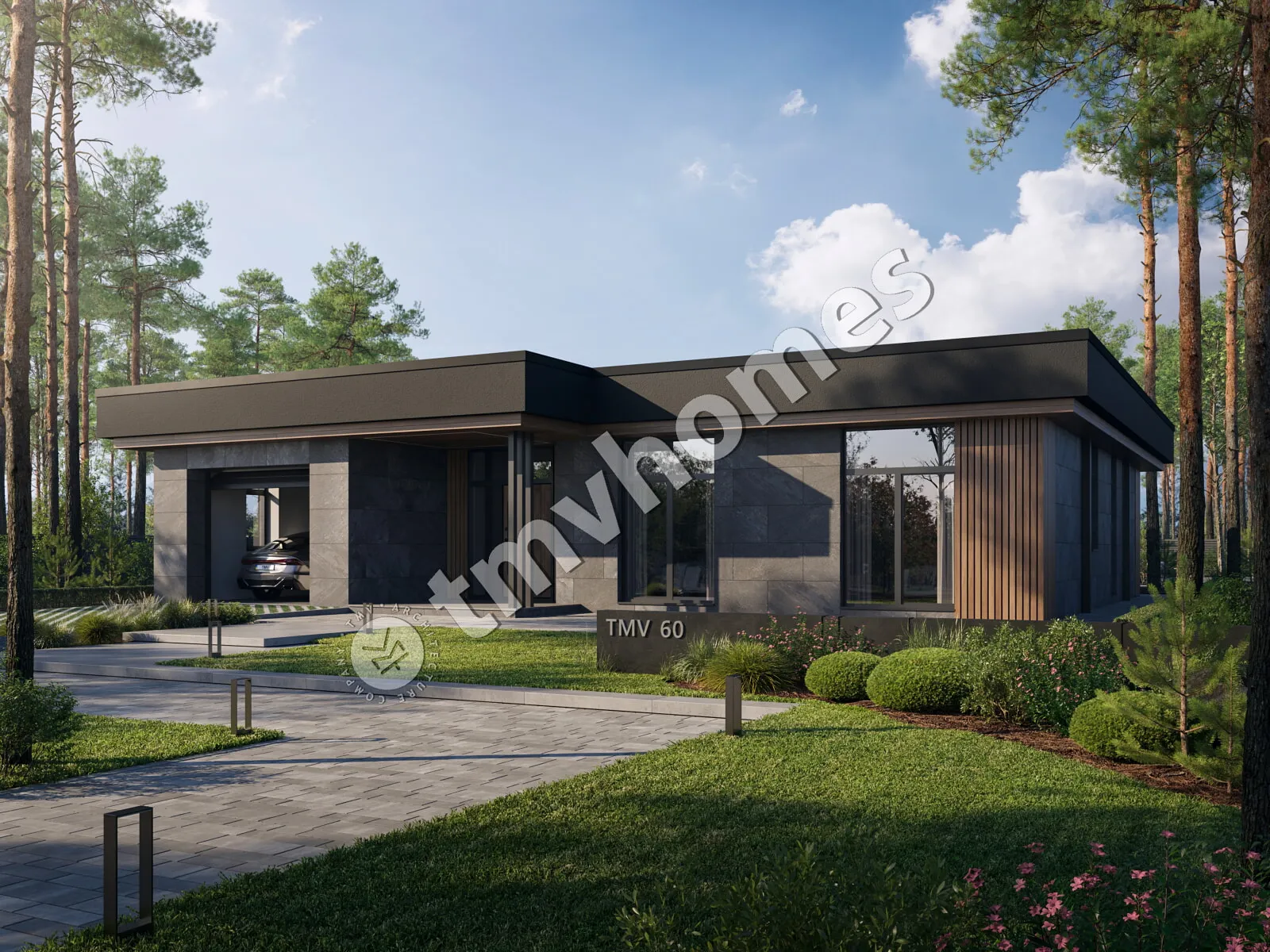

34023C is a Modern single-story house design concept, available for purchase in digital form, with a T-shaped footprint, Total Heated 1,792 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage. Designed as a single-family home for 3-4 people, the house keeps every room on one level under a flat roof, so daily life runs without stairs.

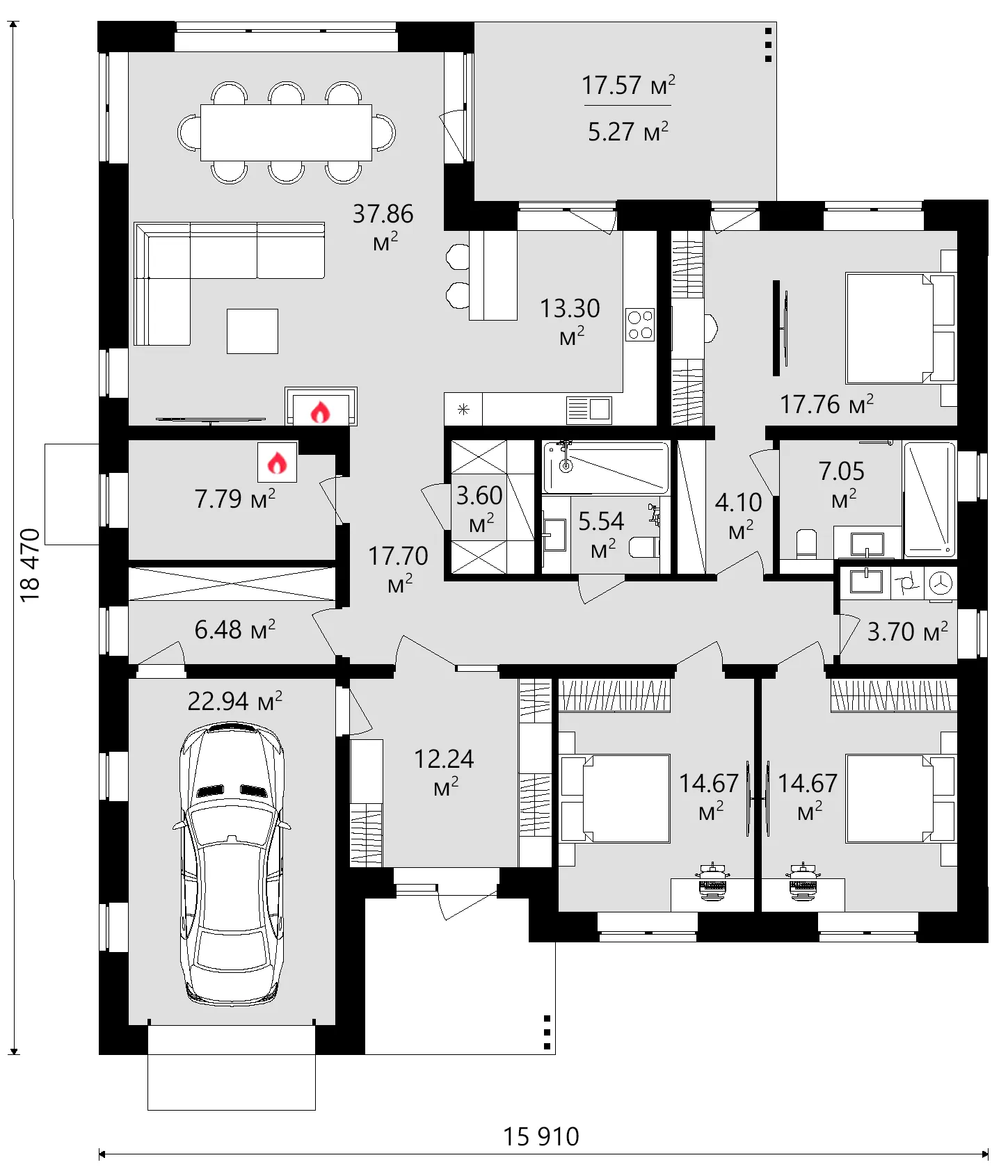

The entry leads into an open floor plan where the great room and the kitchen share one space, keeping the family together. A fireplace anchors the spacious great room, while large and floor-to-ceiling windows bring daylight deep into the living area. The large kitchen pairs a breakfast bar for quick meals with a walk-in pantry that keeps supplies out of sight.
The three bedrooms are clustered in one wing, which keeps the sleeping area quiet. The primary bedroom sits on the main floor next to the secondary bedrooms, and two full bathrooms shorten the morning rush. The laundry, a utility room and a storage room on the same floor keep household chores close at hand.

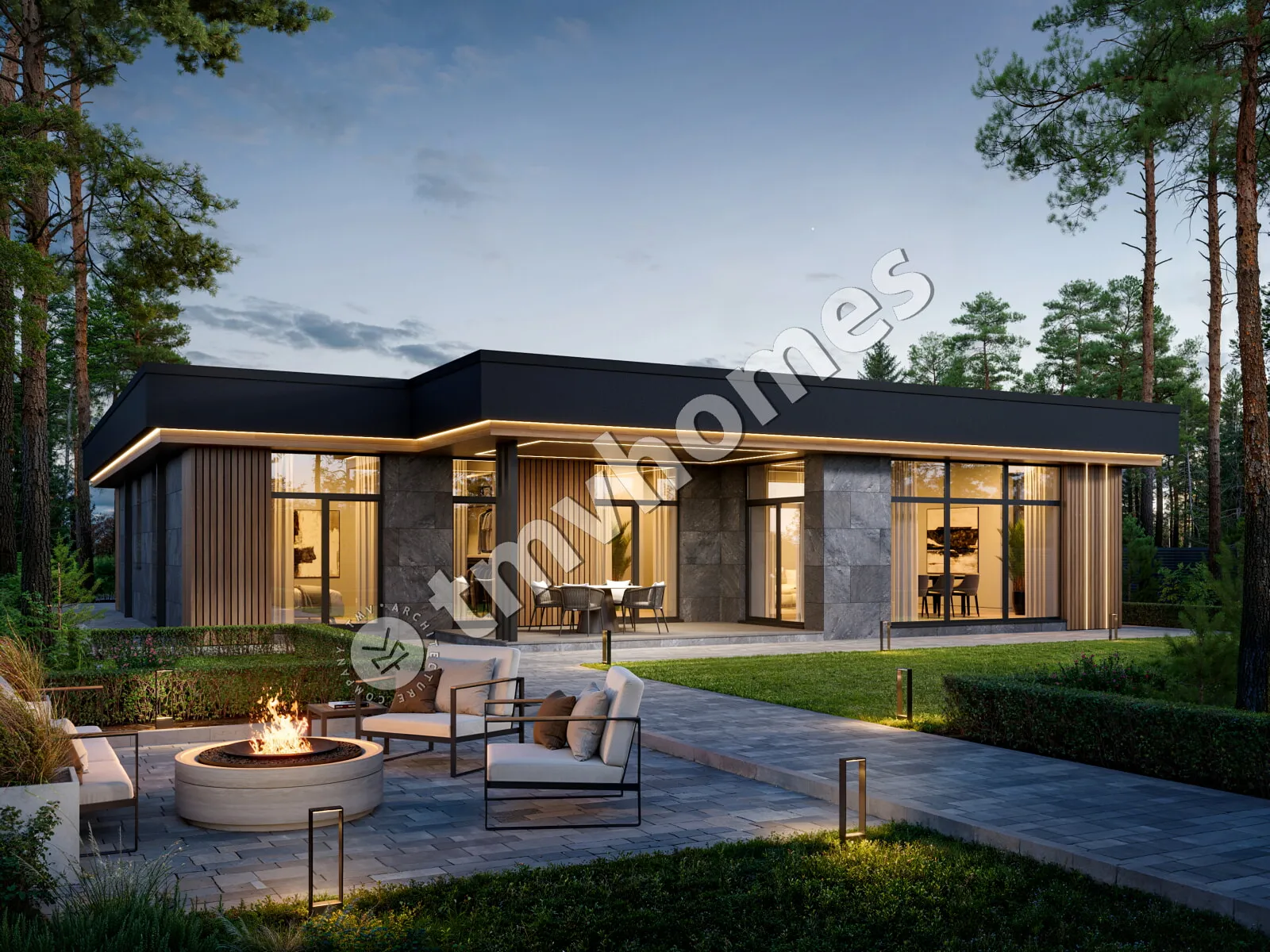

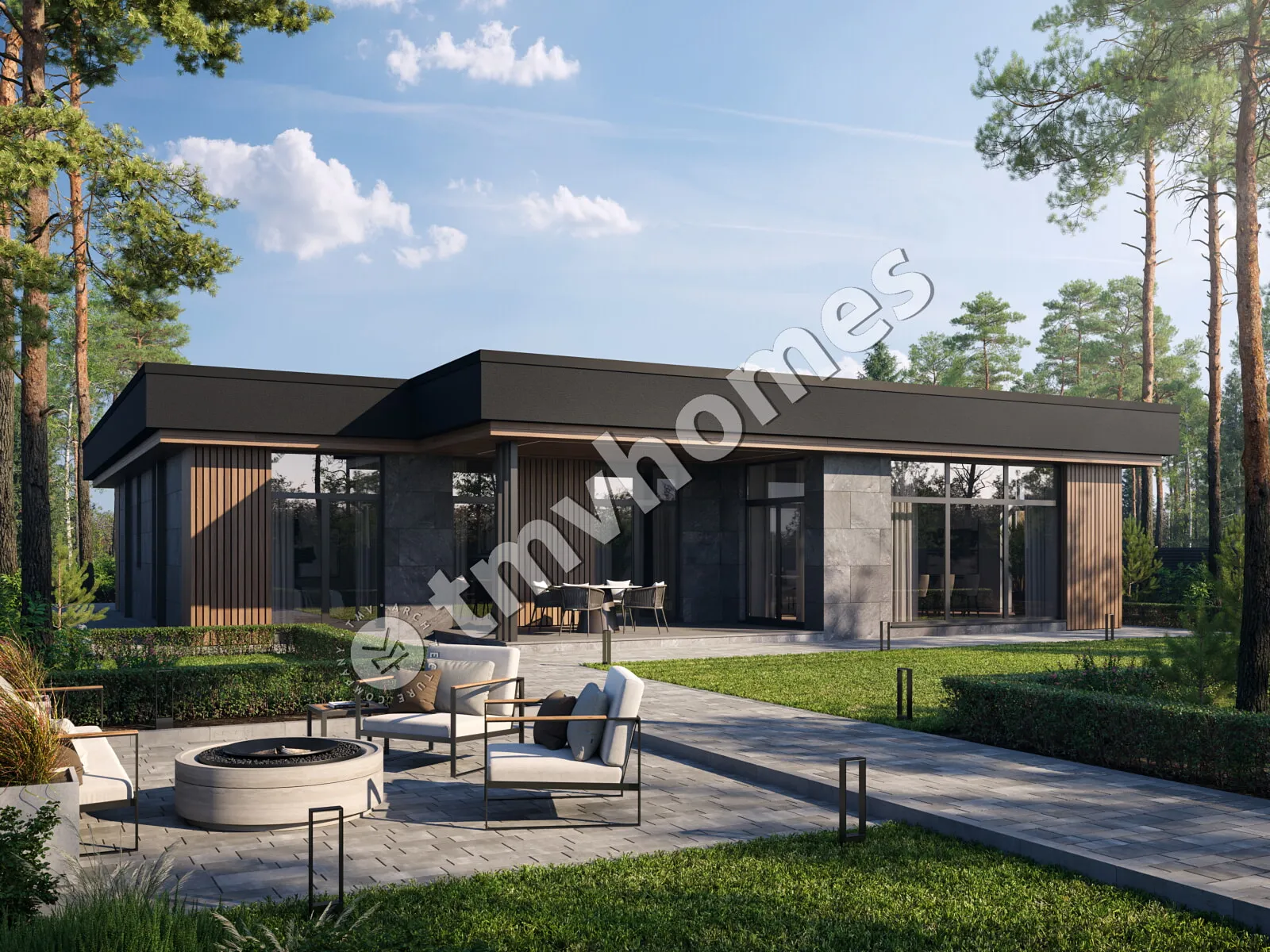

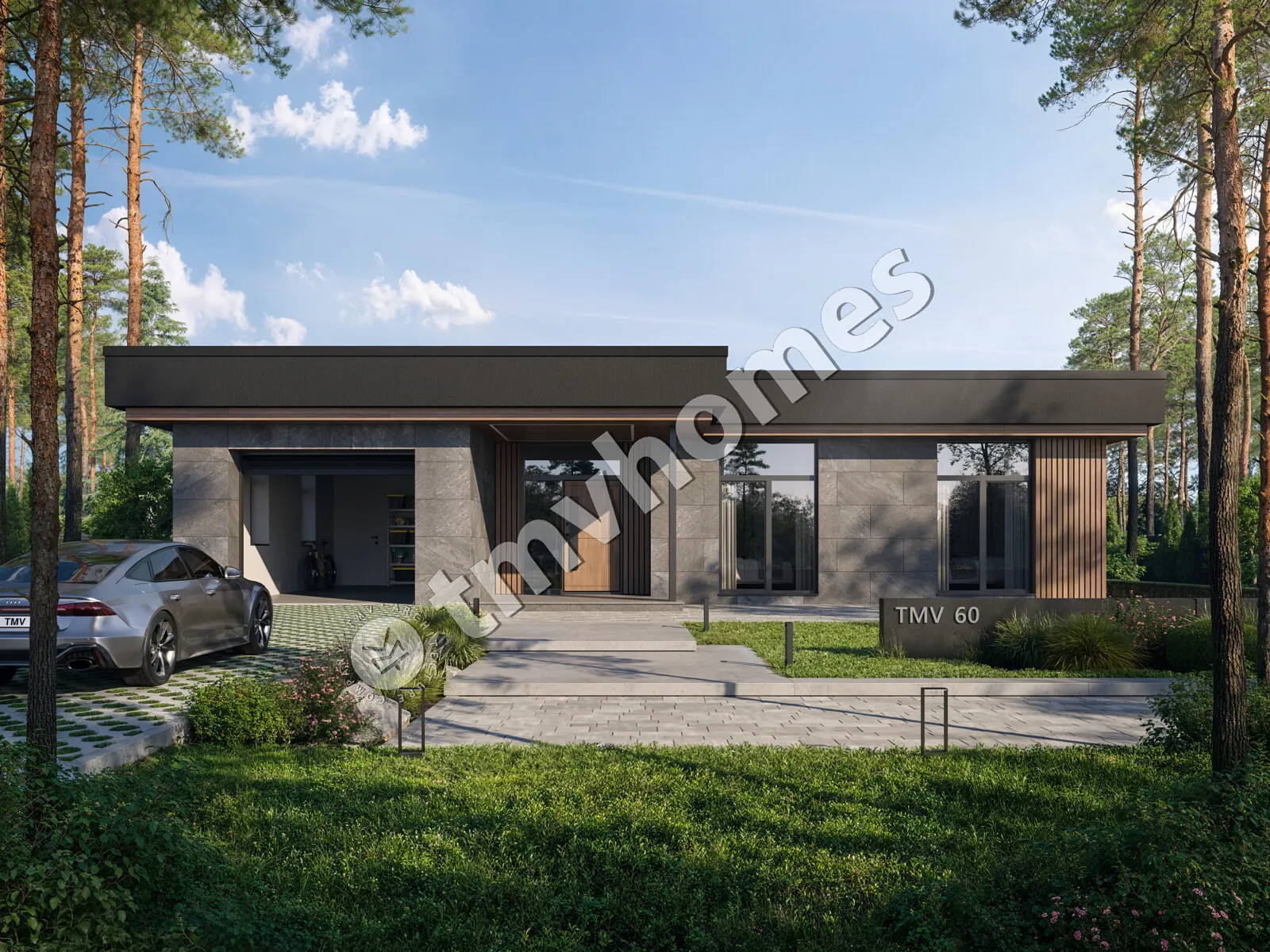

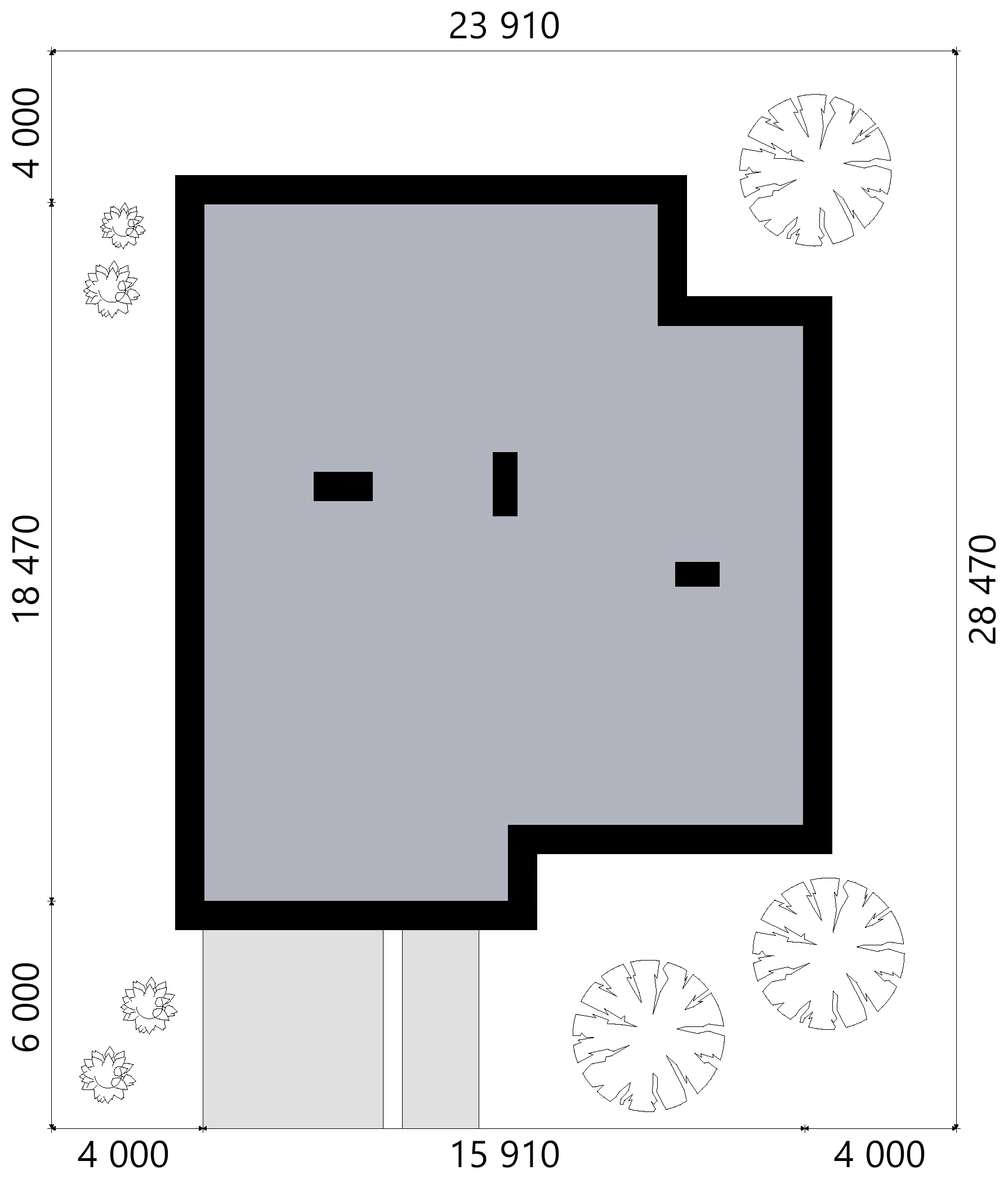

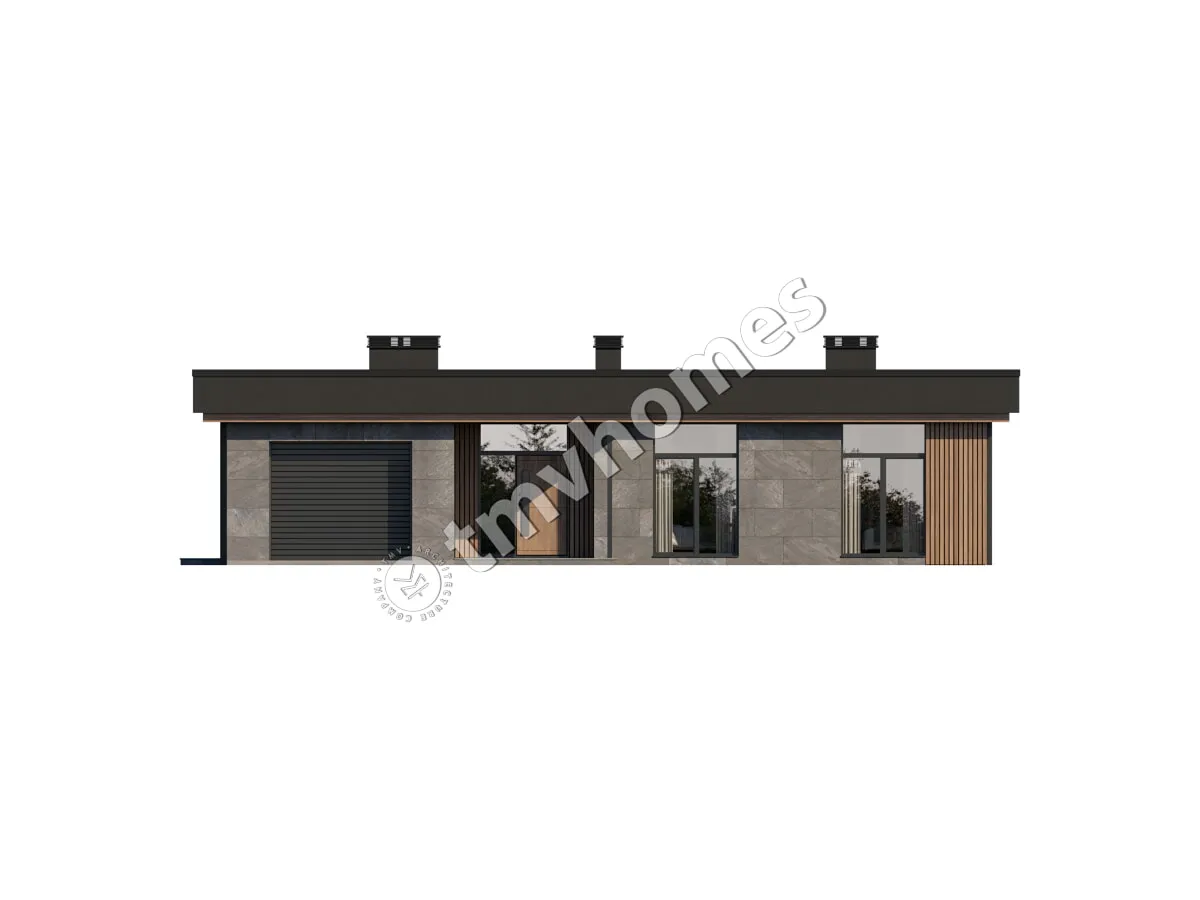

Outside, a deck extends the living space into the open air. The front-entry 1-car garage gives direct access from the street. Aerated concrete exterior walls, with ceramic hollow block or sand-lime block as alternatives, are clad in wood, panels and flexible ceramic. The house rests on strip footings, with a slab or a concrete block foundation offered as options. The footprint measures 48'5" wide and 56'3" deep. In short: Total Heated 1,792 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Exciting Home Plans Vancouver CA$ 14,335
