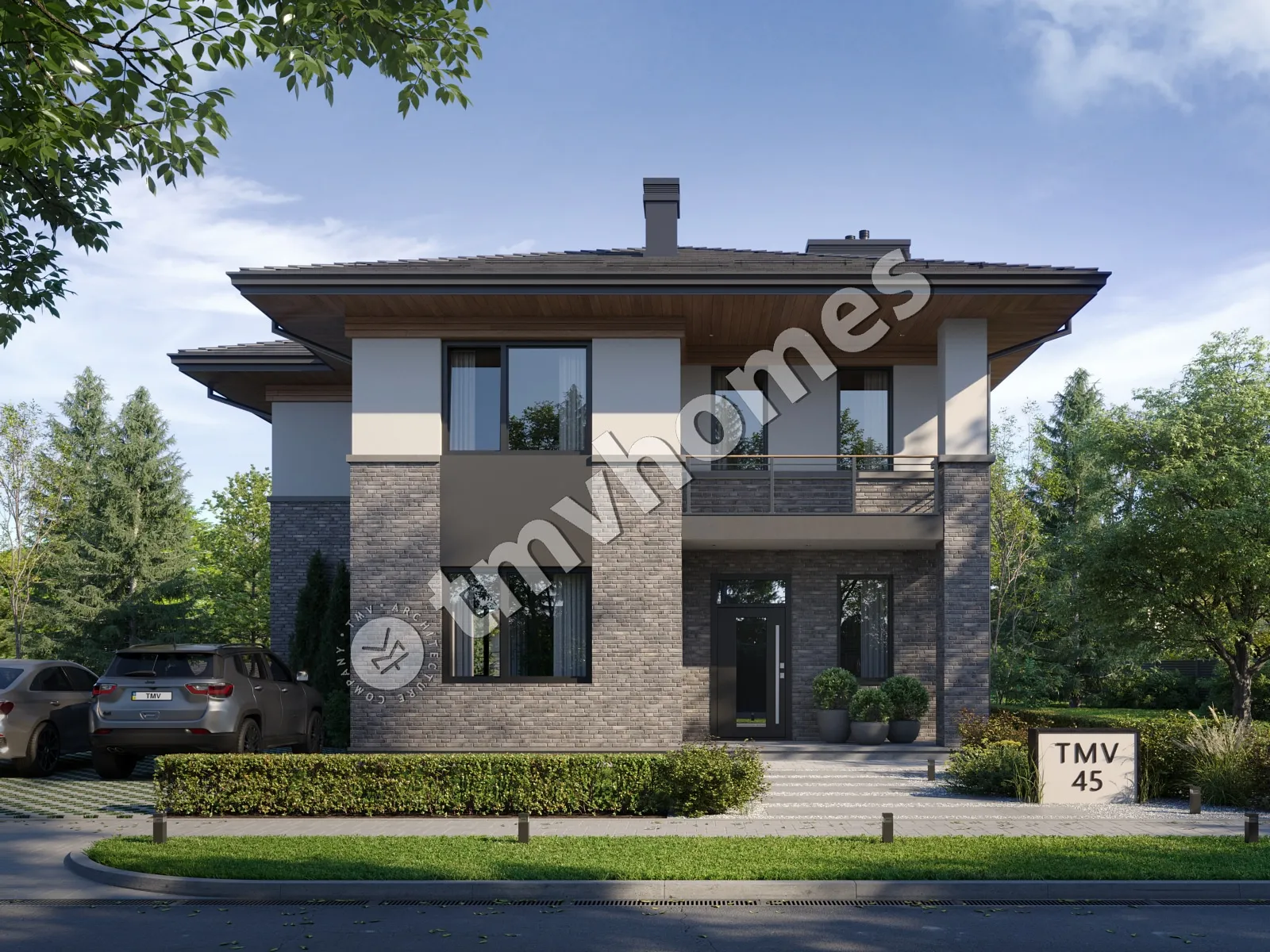

Renderings 2 – 2-Story House Plan 1886 ft², 3 Beds — 71796C

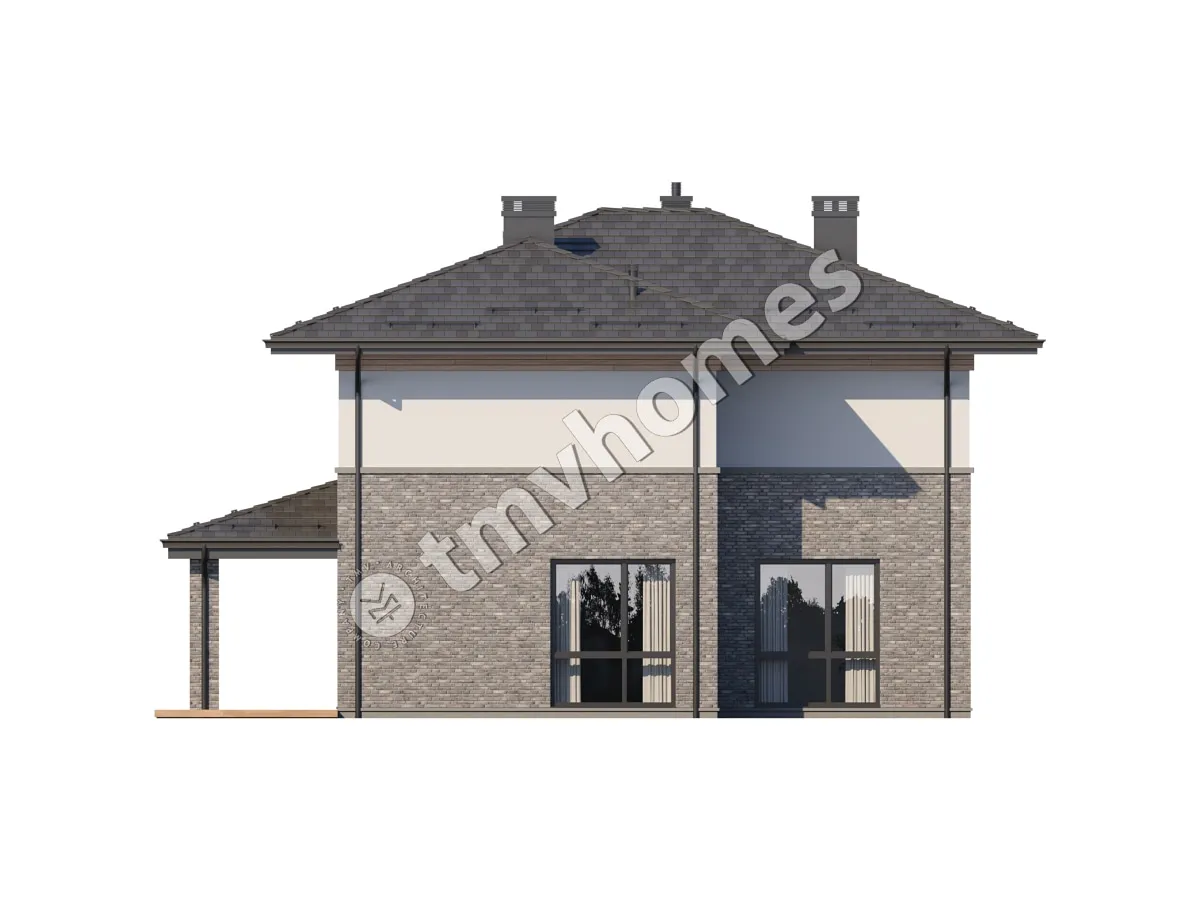

Renderings 5 – 2-Story House Plan 1886 ft², 3 Beds — 71796C Renderings 11 – 2-Story House Plan 1886 ft², 3 Beds — 71796C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 1886 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
71796C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1886
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

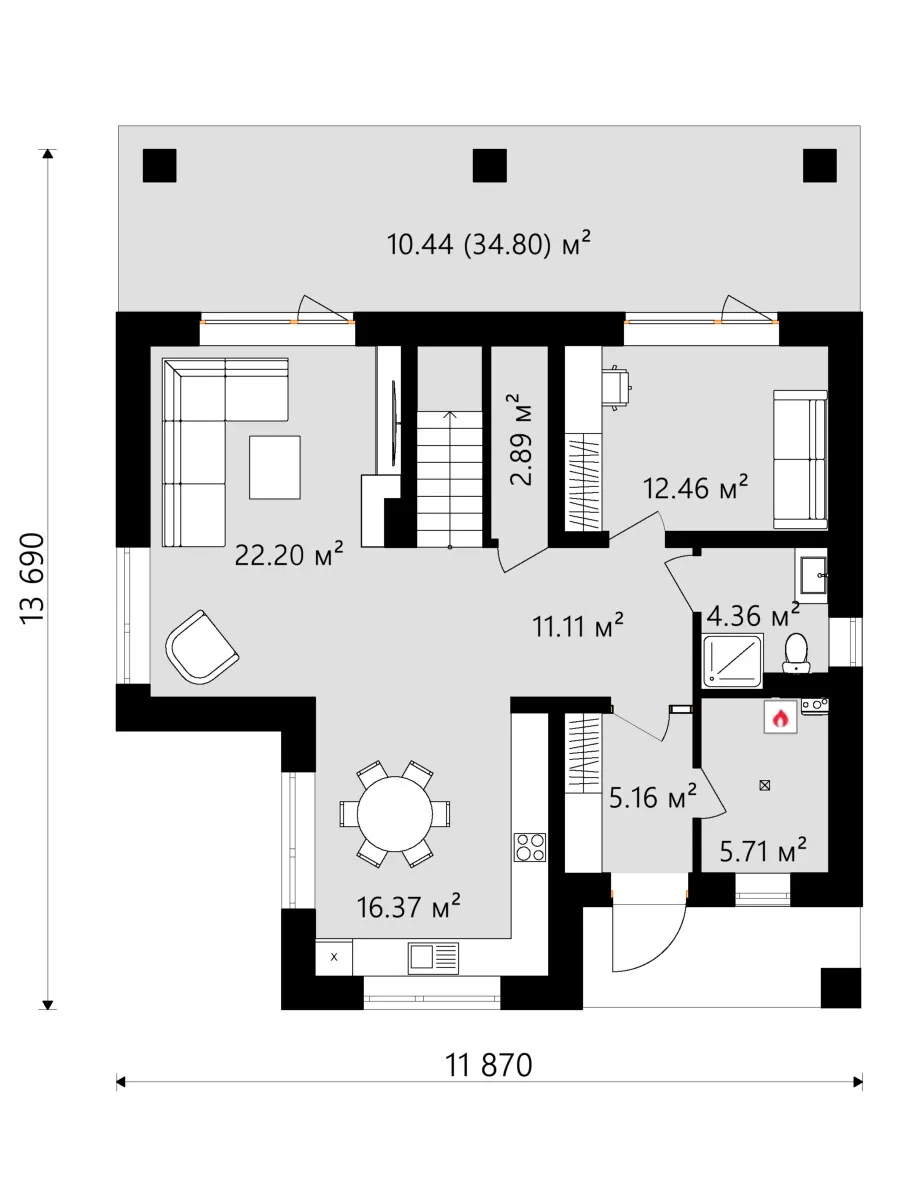

Main Floor
Main Floor 7 – 2-Story House Plan 1886 ft², 3 Beds — 71796C

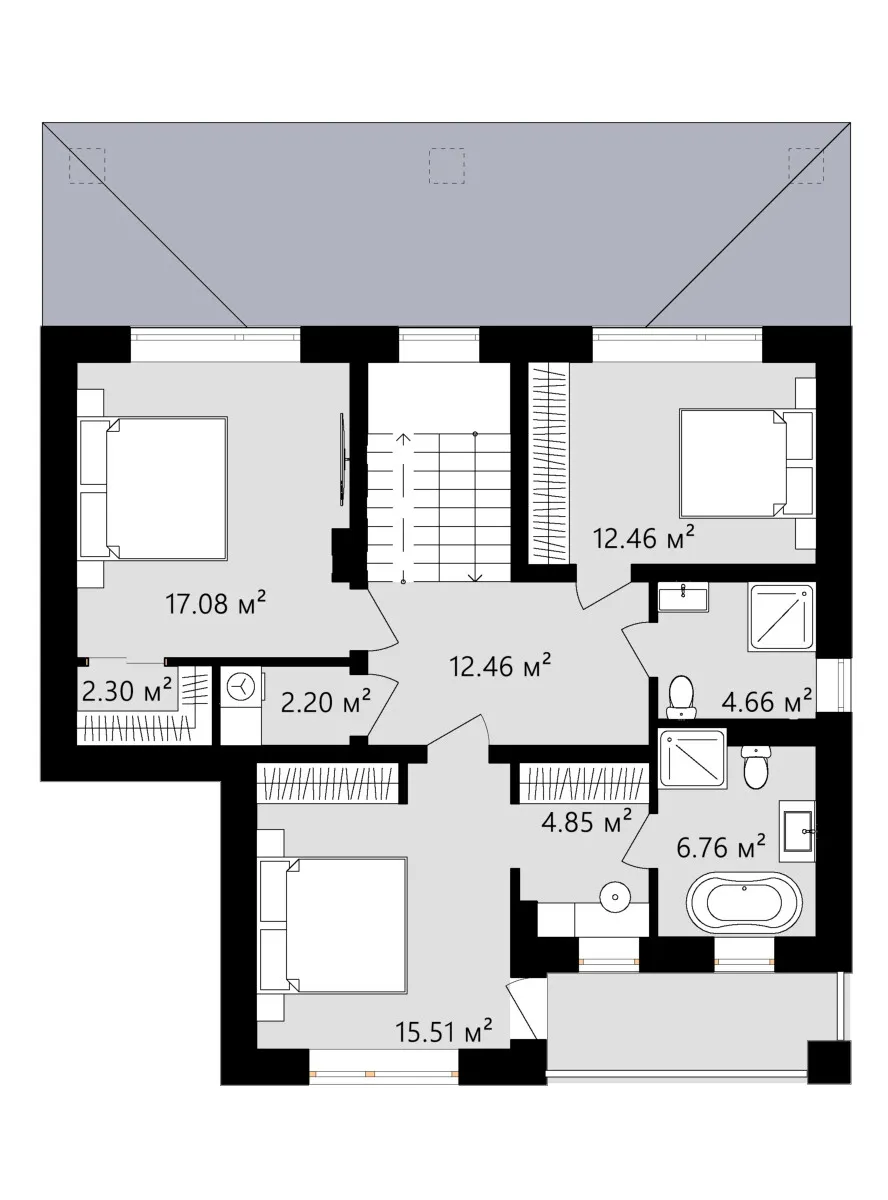

Second Floor
Second Floor 10 – 2-Story House Plan 1886 ft², 3 Beds — 71796C
Full Specs & Features
Area
Total Heated: 1885.73 ft²
Dimensions
Depth: 41'7" ft
Width: 36'2" ft
Height: 27'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Laundry
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional

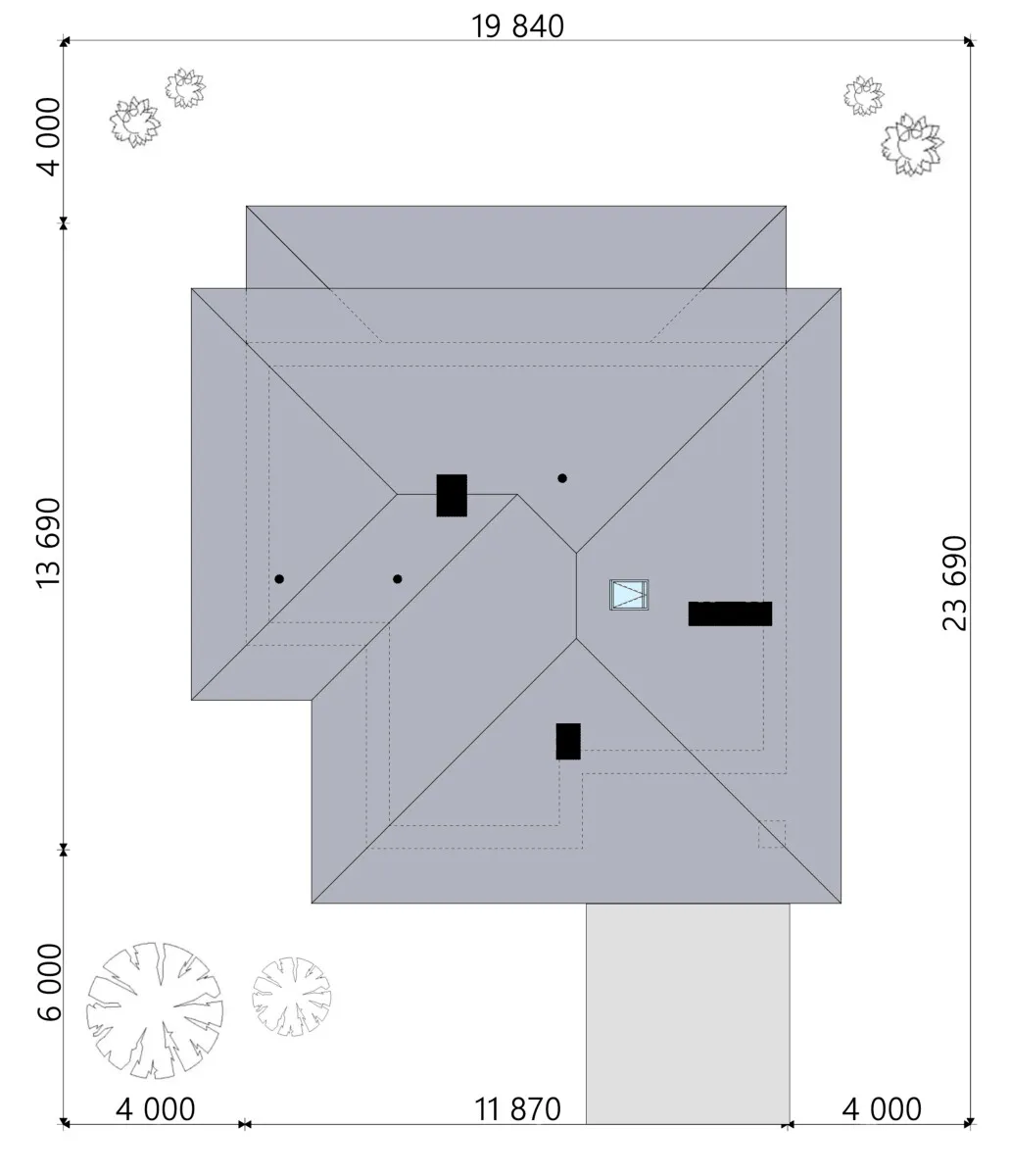

Roof
Roof Area: 2462.78 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

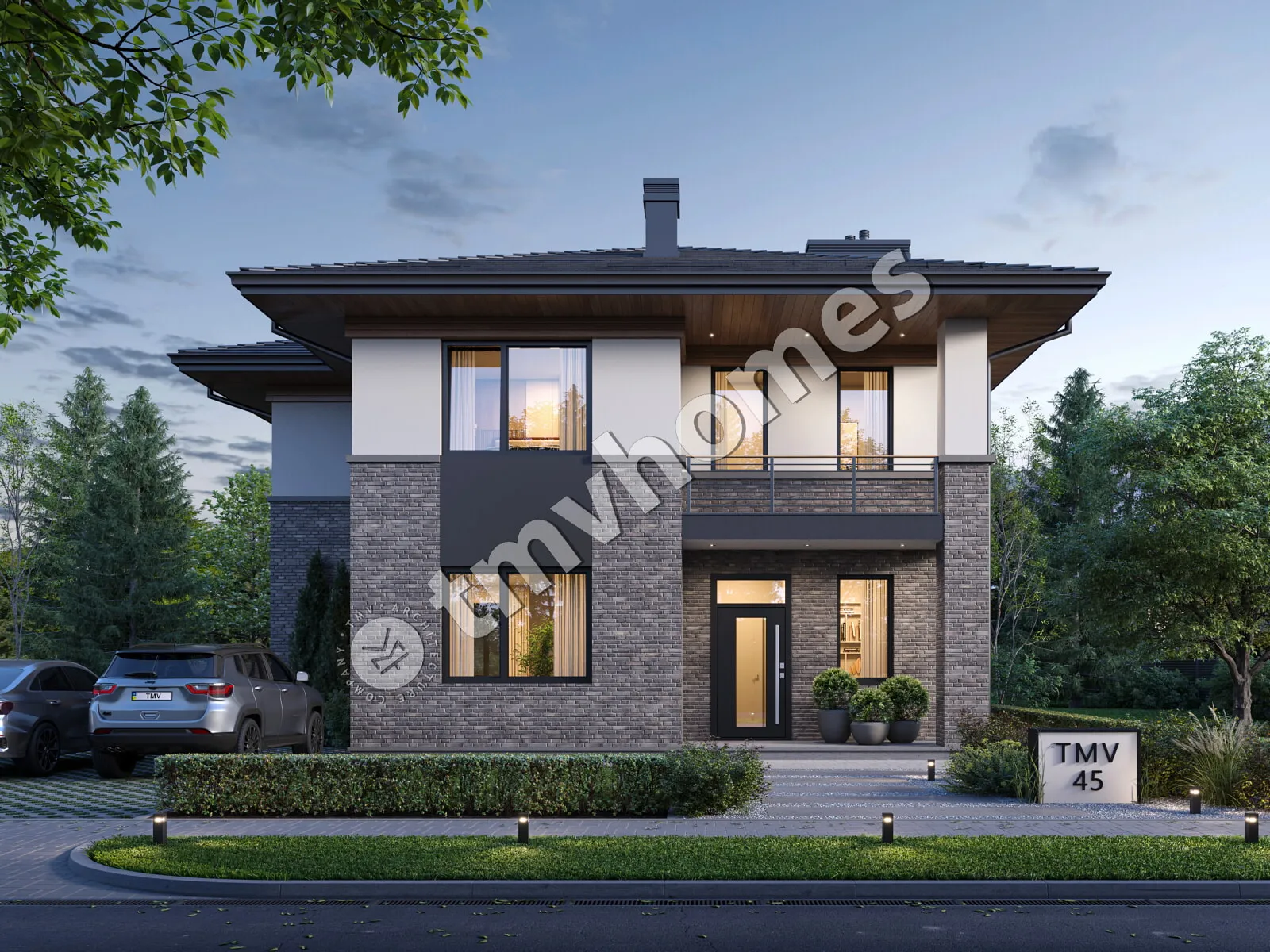

Plan 71796C is a 3-bedroom 3-storey house plan that arranges 1886 ft² of family living in a European and Traditional design, sheltered by a hip and valley roof with a 5/12 (22°) pitch. Stone/brick veneer and stucco dress the exterior walls and give this single family home a composed, timeless face toward the street. The house is 36'2" wide and 41'7" deep and rises to a height of 27'1". Three full bathrooms serve the three bedrooms, a comfortable ratio for a household with children, teenagers or frequent guests.

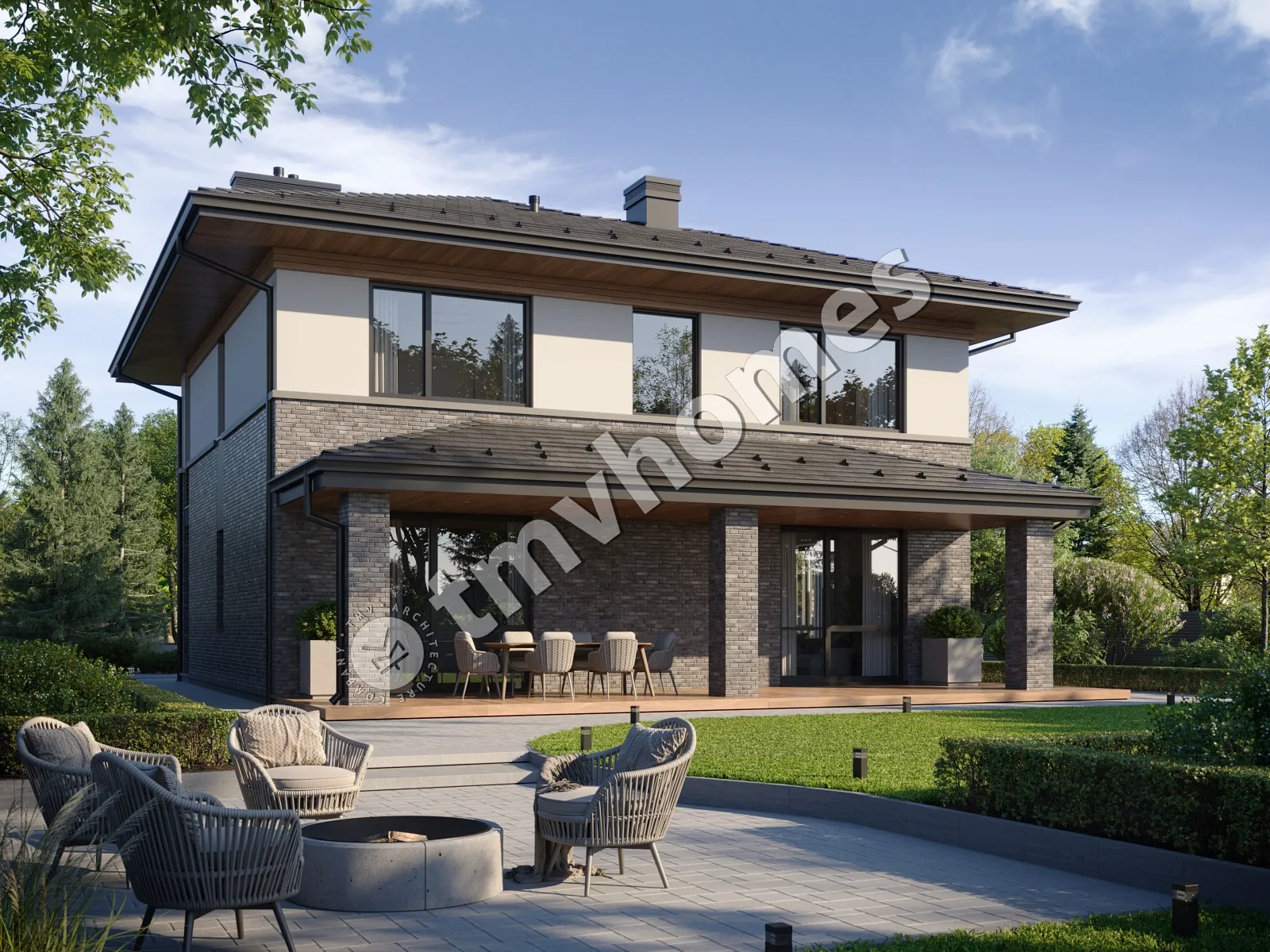

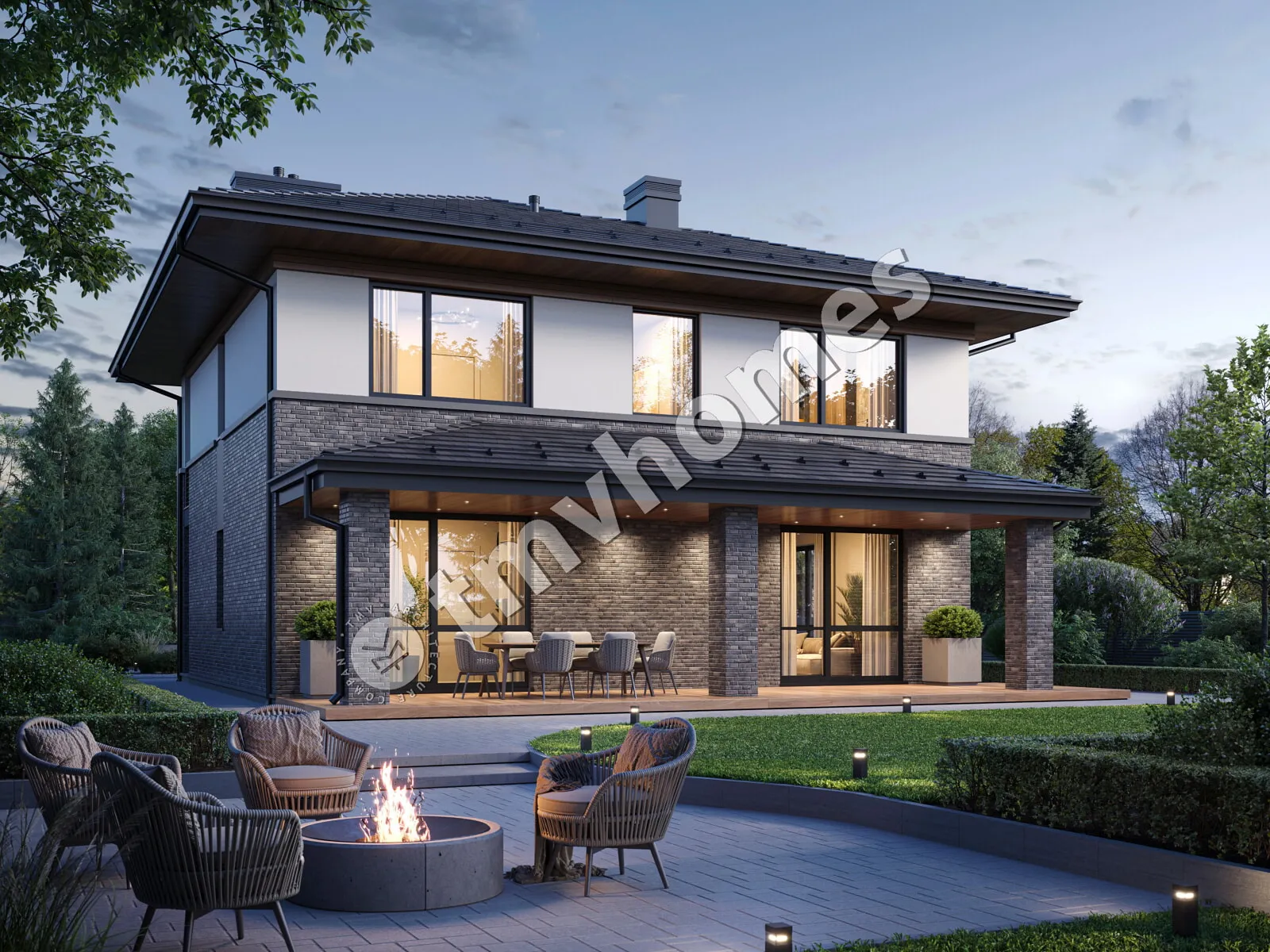

The outdoor spaces work hard for a home of this footprint. A covered rear porch offers sheltered seating for summer suppers and long conversations after dark, while a balcony on an upper level gives the family a private spot for morning air. Large windows and floor-to-ceiling windows open the elevations to daylight and connect the rooms with the yard. The walls are framed in autoclaved aerated concrete, with ceramic hollow block or sand-lime block offered as alternatives. Strip footings carry the house, which has no basement, and a slab or concrete block foundation can be requested. The plan does not include a garage, so the full area is devoted to rooms for living.

A welcoming entry leads into an open concept layout where the kitchen and the living areas share one continuous, well-lit space. The large kitchen gives whoever is cooking plenty of counter and cabinet room, and the breakfast nook naturally becomes the centre of weekday mornings, from a quick bowl of cereal to homework over hot chocolate. Set apart from this lively core, a home office provides a door to close for video calls, bookkeeping or quiet reading.

The bedrooms are clustered together, keeping parents and children close, and the master suite occupies the second floor along with a walk-in closet that keeps clothing organized. Laundry on the second floor puts the washer and dryer steps from the bedrooms, ending the habit of hauling baskets between levels. A utility room and a dedicated storage room hold equipment, sports gear and seasonal decorations out of sight. For families exploring house plans Canada buyers appreciate for their classic lines, this home design pairs European character with an efficient, practical layout across three storeys.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
