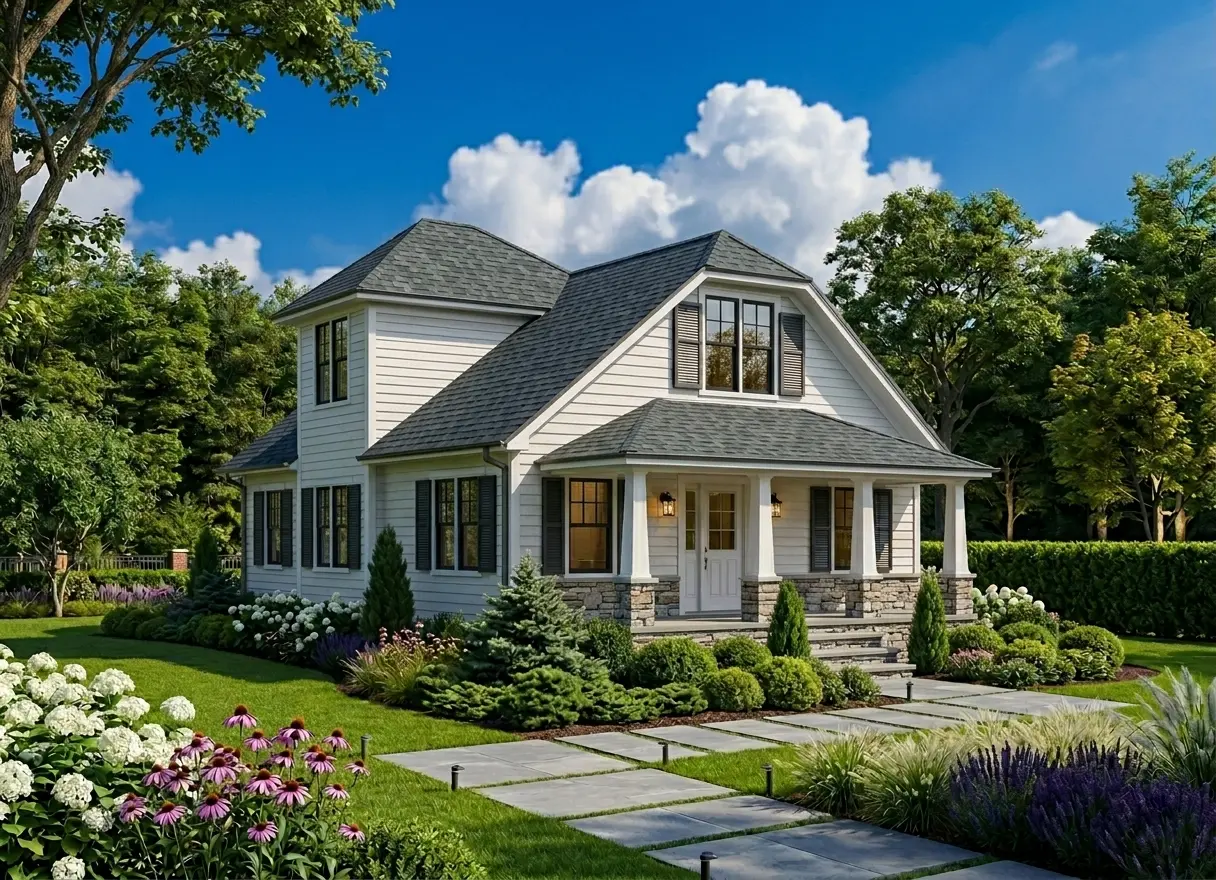

Main Images 2 – 1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage — 78852R

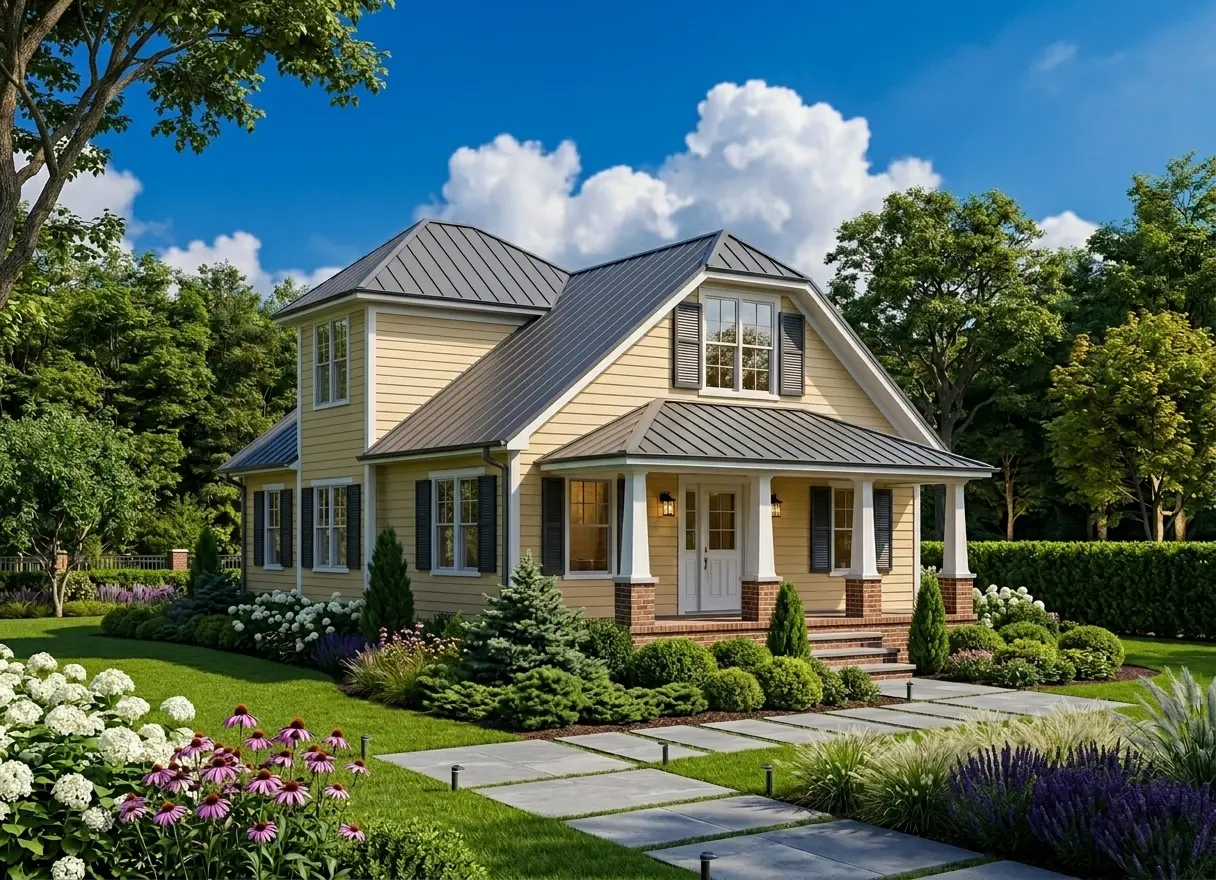

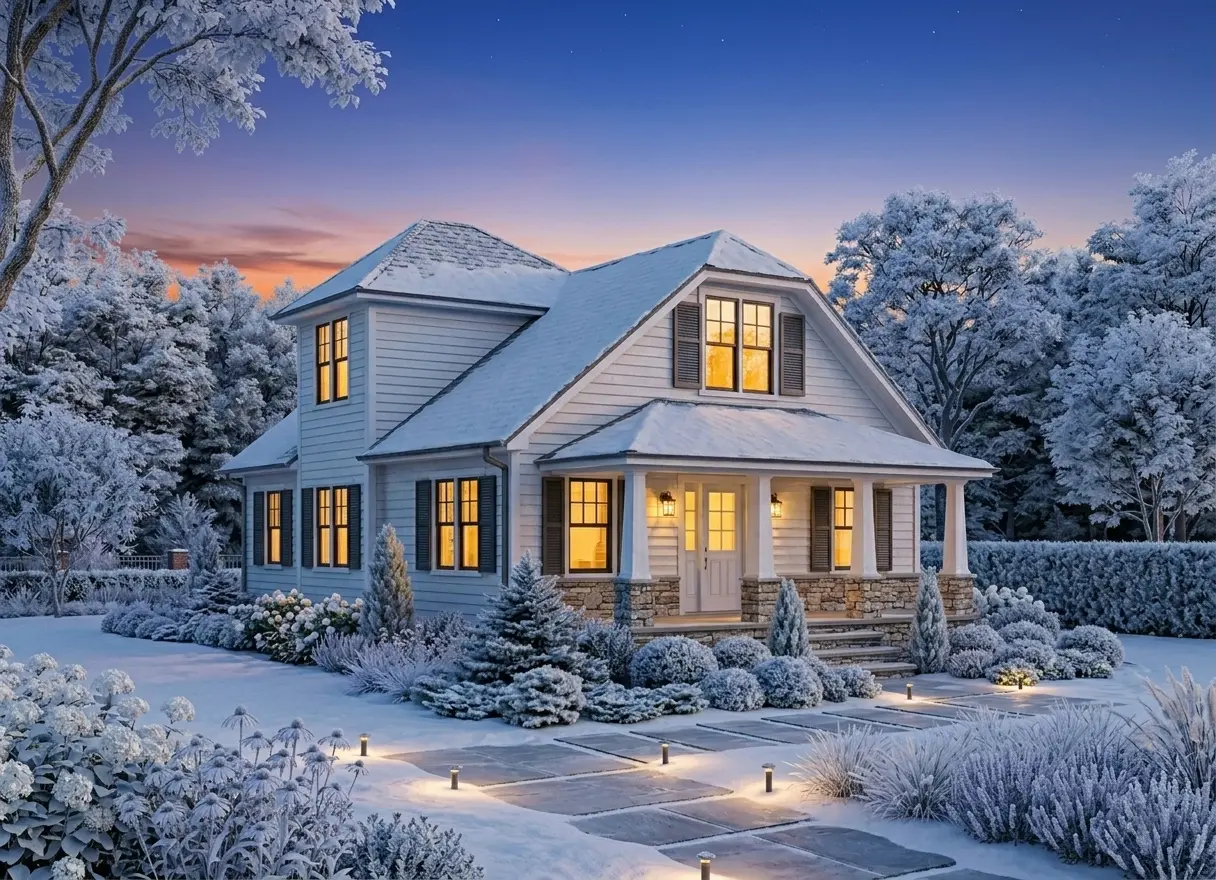

Main Images 3 – 1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage — 78852R Main Images 4 – 1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage — 78852R
5
Construction documents are prepared for the following countries:

1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage

Plan
78852R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1616
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Canada United States
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

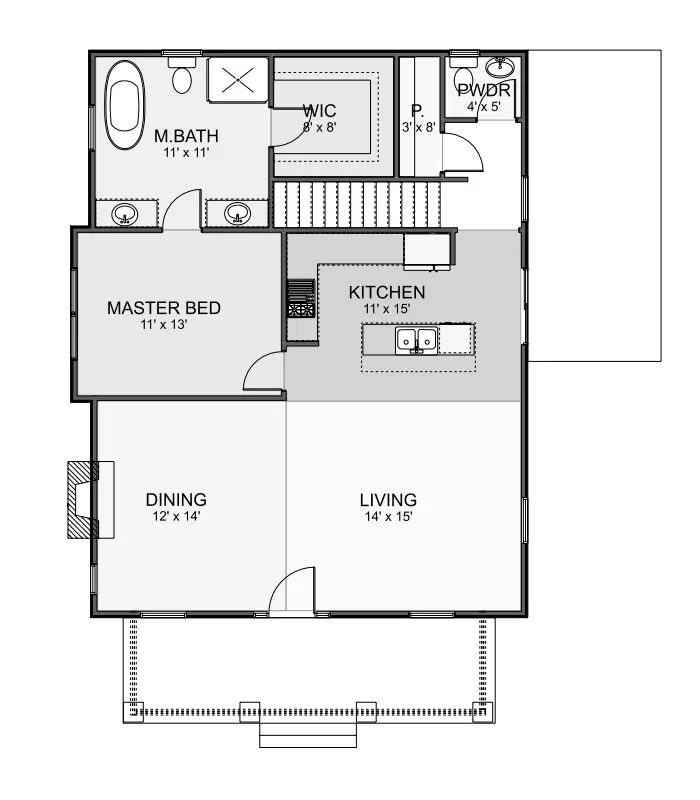

Main Floor
Main Floor 9 – 1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage — 78852R

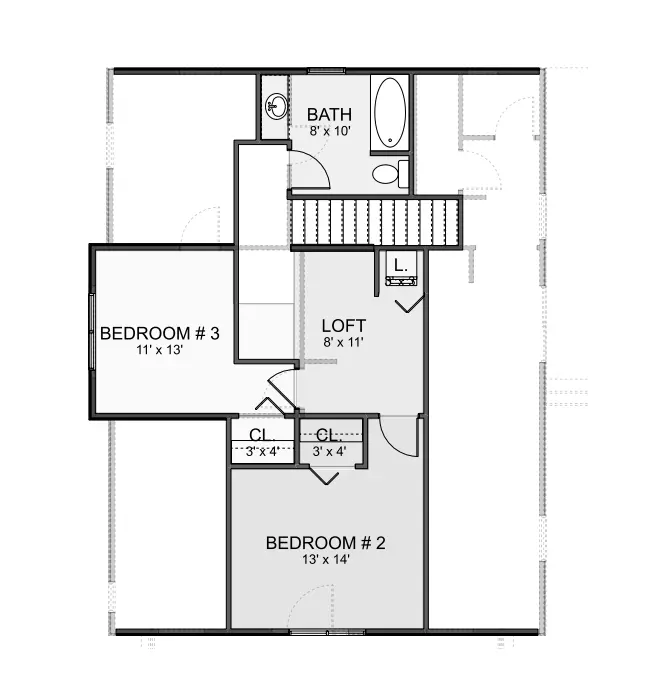

Second Floor
Second Floor 10 – 1.5-Story House Plan 1616 ft²: 3 Beds, 2.5 Baths, Open Floor Plan, without Garage — 78852R
Full Specs & Features
Area
Main Floor: 1071 ft²
Second Floor: 545 ft²
Porch: 343 ft²
Total Heated: 1616 ft²
Dimensions
Depth: 36'9" ft
Width: 29'7" ft
Height: 28'3" ft
Foundation
Slab (Optional)
Walkout Basement (Optional)
Crawl Space
Exterior Wall Framing
Wood 2x6 (Optional)
Wood 2x4
Exterior Wall Materials
Siding
Brick
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Laundry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Loft
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Architectural Style
Craftsman
Traditional
American
Roof
Hip & Valley
Roof Pitch: 10/12 (40°)
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept (Imperial system)
C$277
Printed Plan Set
C$1918
Digital Plan Set
C$1132
C$1559
C$3077
C$3409
C$3740
Foundation
C$483
C$745
C$0
Exterior Walls
C$483
C$0
Additional Options
C$1132
C$414
C$76
C$152
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
