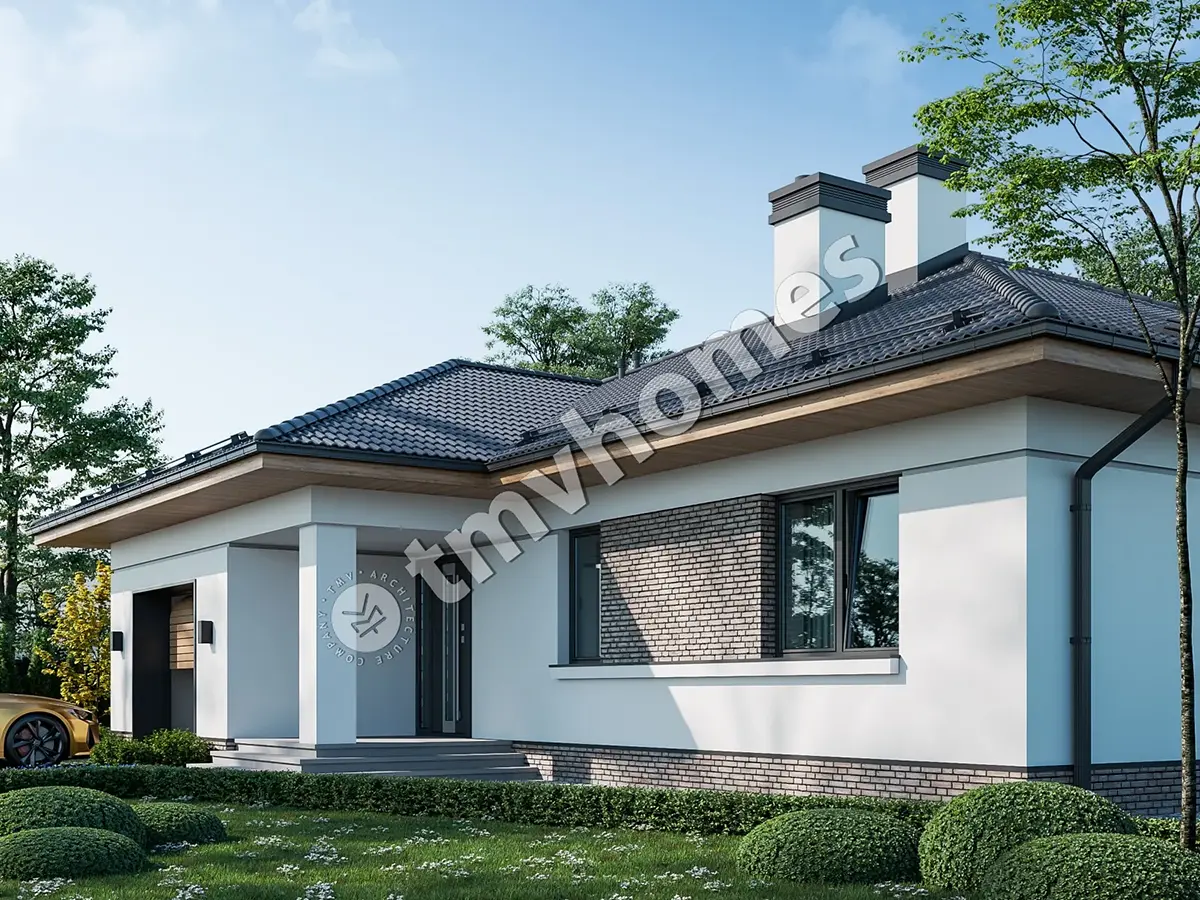

Renderings 2 – 1,490 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 27824C

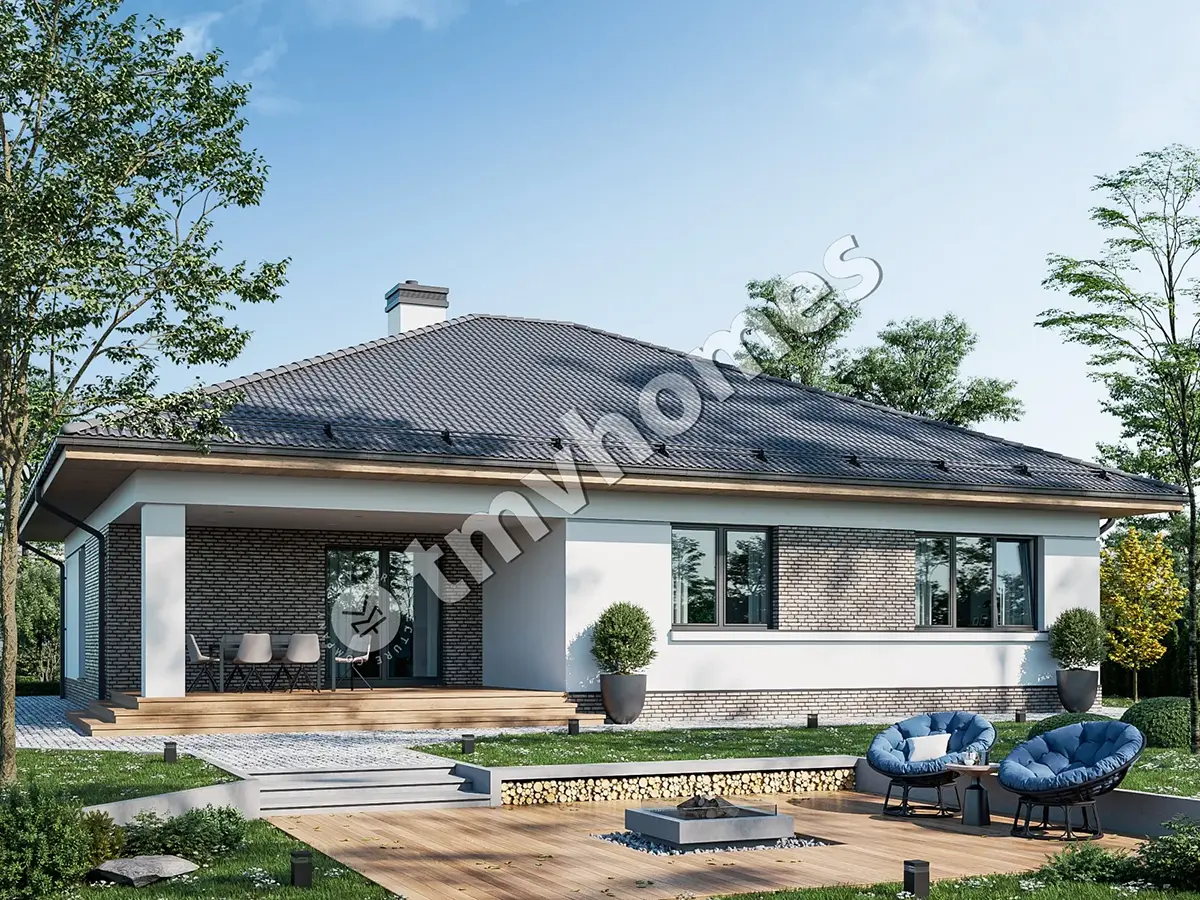

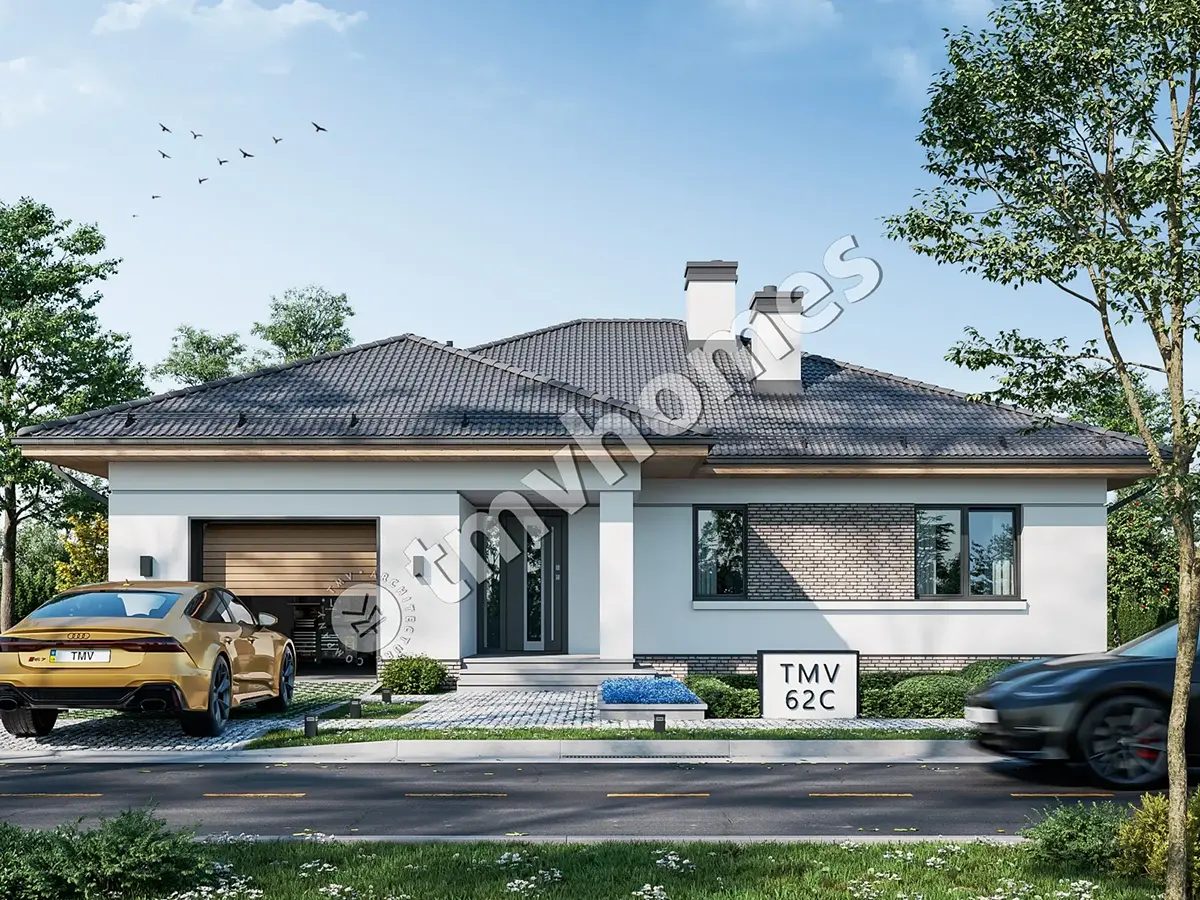

Renderings 3 – 1,490 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 27824C Renderings 4 – 1,490 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 27824C
6
Concept
Construction documents are prepared for the following countries:

1,490 Sq Ft Traditional T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage

Plan
27824C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1490
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

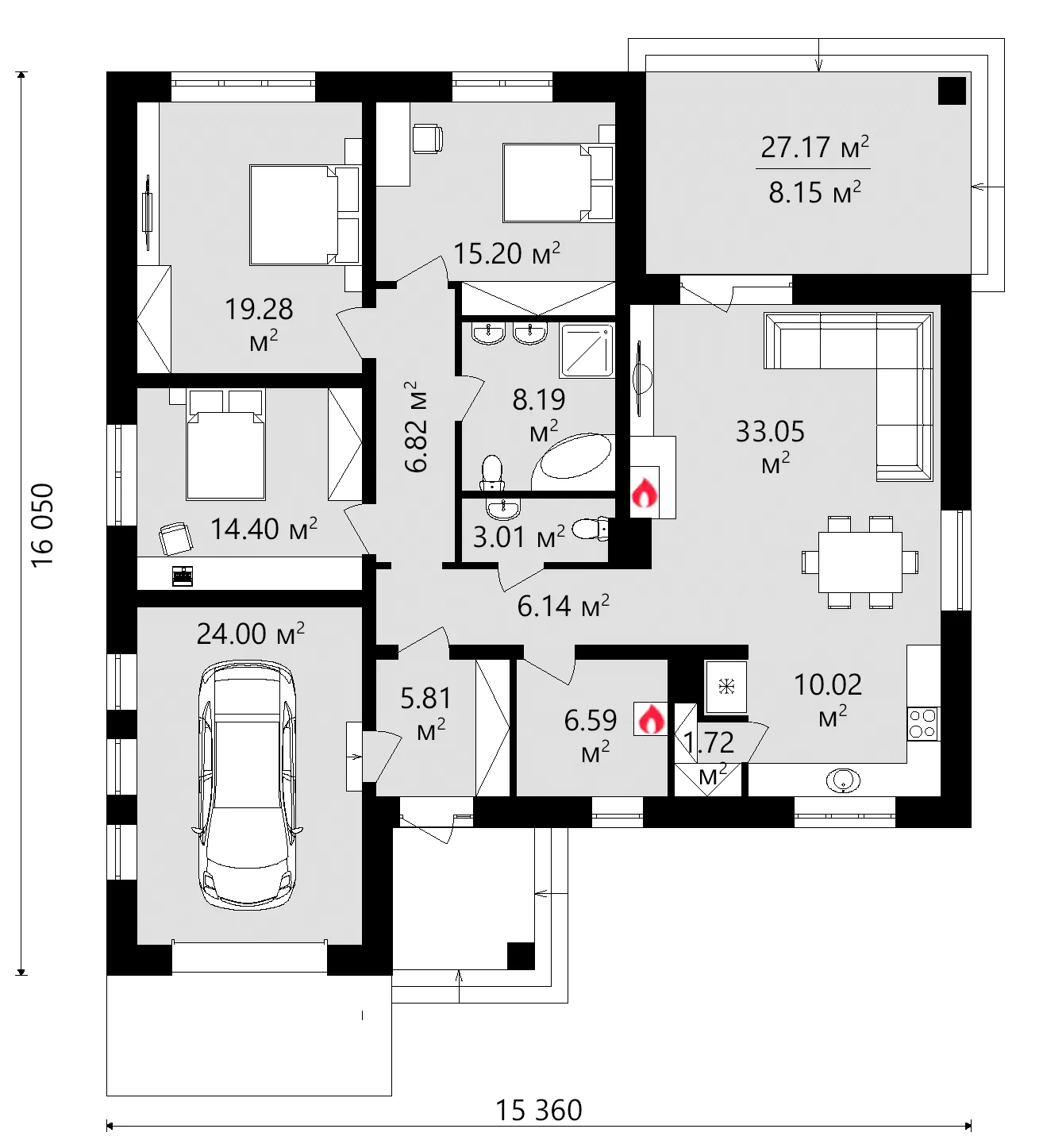

Floor Plans
Main Floor
Main Floor 12 – 1,490 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 27824C
Full Specs & Features
Area
Total Unheated: 258.33 ft²
Total Heated: 1489.51 ft²
Dimensions
Depth: 48'9" ft
Width: 46'8" ft
Height: 21'9" ft
Garage
Area: 258 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Rear Porch
Architectural Style
Bungalow
European
Traditional

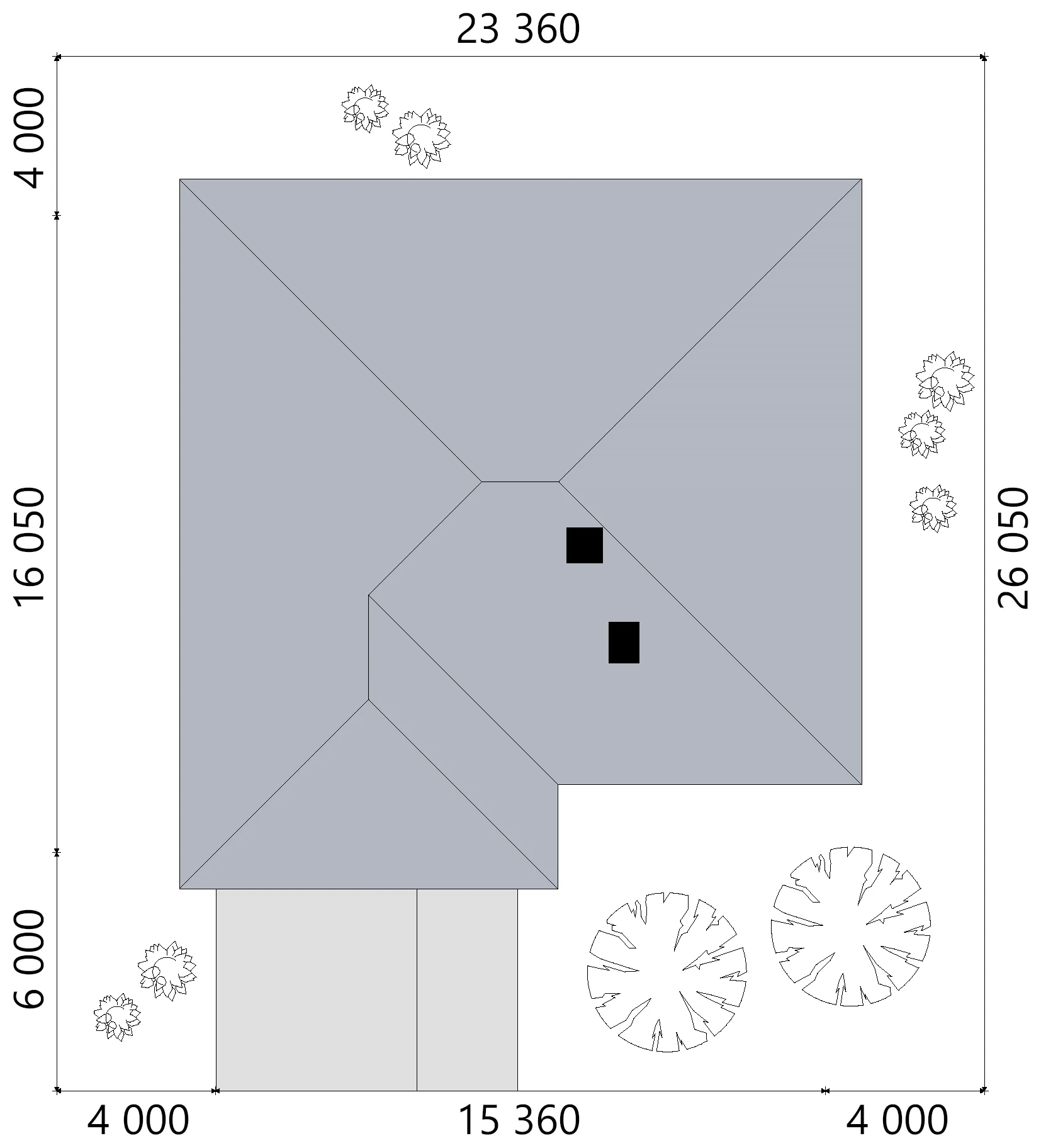

Roof
Roof Area: 3261.46 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

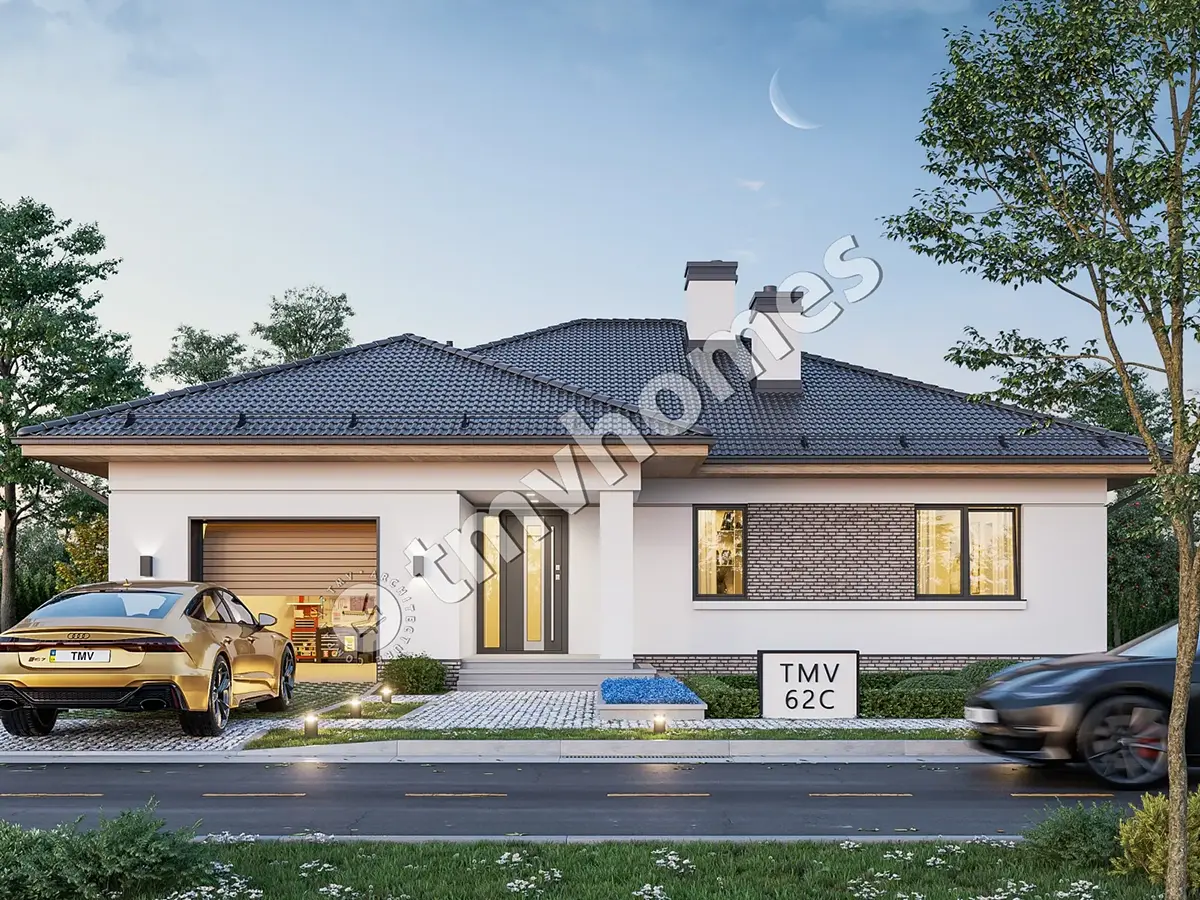

Among the single-level house plans Canada families browse, plan 27824C is a 3-bedroom bungalow house plan of 1,490 Sq Ft, shaped with European and traditional lines and finished with a hip & valley roof at a 6/12 pitch. Its T-shaped footprint measures 46'8" wide and 48'9" deep and rises to a height of 21'9", while the facade pairs stone/brick veneer with stucco. As a 1-storey single-family home design, it keeps everyday life on one floor, from the front entry through to the last bedroom.

The layout gives the sleeping quarters careful thought. The three bedrooms are clustered together, set back from the shared rooms so that an early bedtime and a late film in the family room never compete. Two full bathrooms divide the morning routine, which means shorter waits at the door on school and work days. A separate utility room gives the laundry and the household supplies a place of their own, so the practical side of running a home stays out of the living areas.

At the centre of the house, an open floor plan revolves around a large family room with enough space for a sectional, a reading chair and the whole family on a holiday afternoon. A fireplace makes it a true house plan with fireplace, the natural focus of the room when the evenings draw in early. The kitchen opens onto this space and includes a breakfast nook, a cosy corner for weekend pancakes or homework after school. A walk-in pantry adds the kind of storage cooks appreciate, with shelves for bulk supplies, baking pans and the appliances used only now and then.

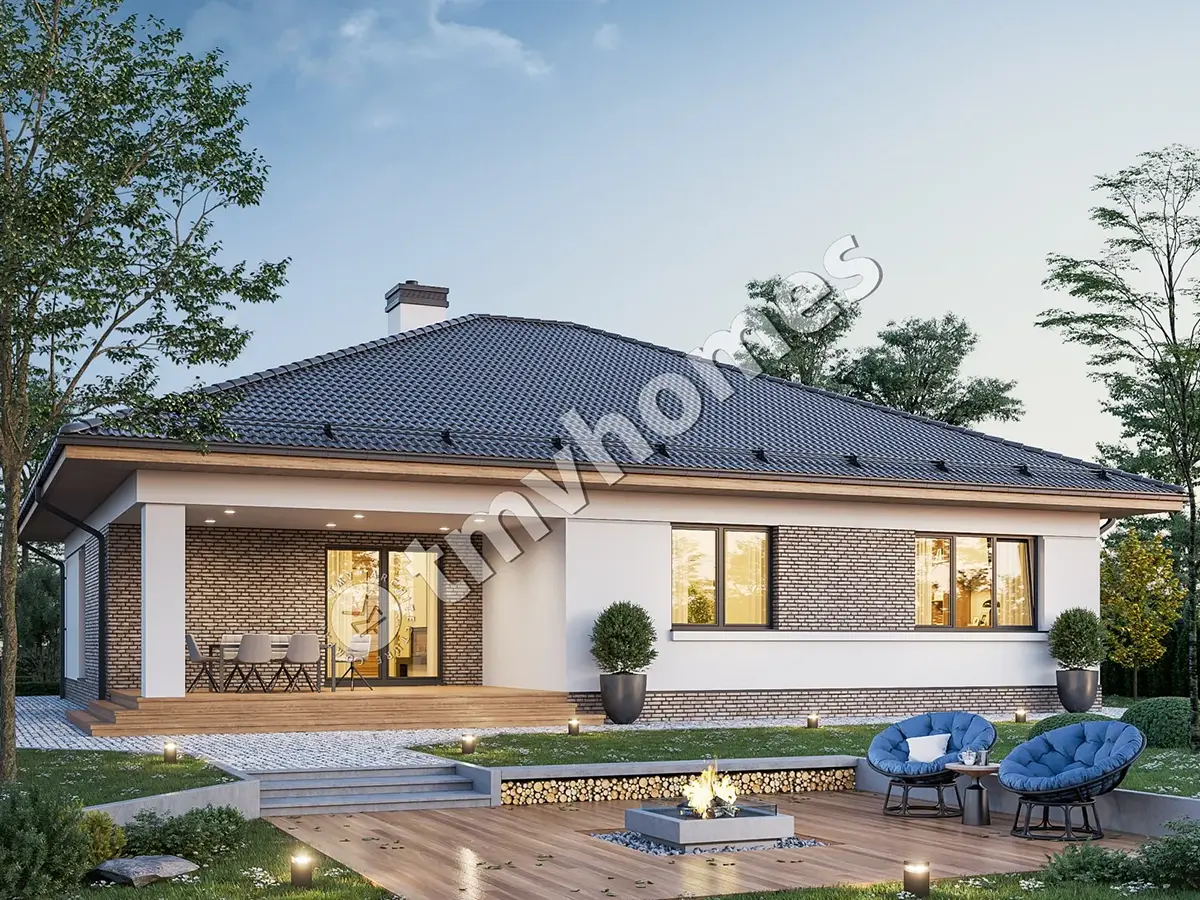

Through the back of the home, a covered rear porch offers shelter for barbecues, slow Sunday mornings or watching children play outside. The front-entry garage fits one car and keeps the approach to the house neat and simple. Strip footings carry the structure, and there is no basement; a slab or a concrete block foundation is also available. The exterior walls are framed in aerated concrete, with ceramic hollow block or sand-lime block offered on request. For a household that wants a 3 bedroom bungalow with refined European character, this plan delivers a calm, well-organized way to live on one level.
