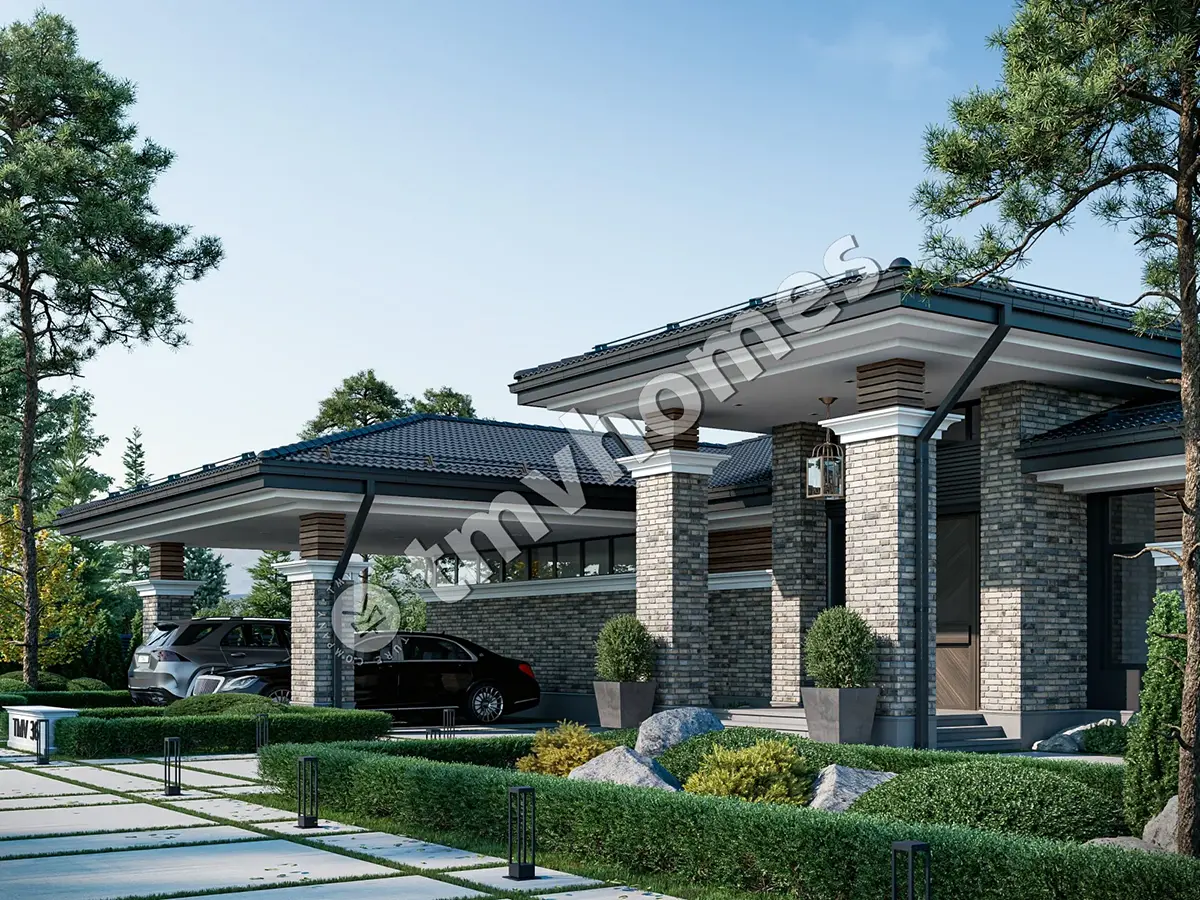

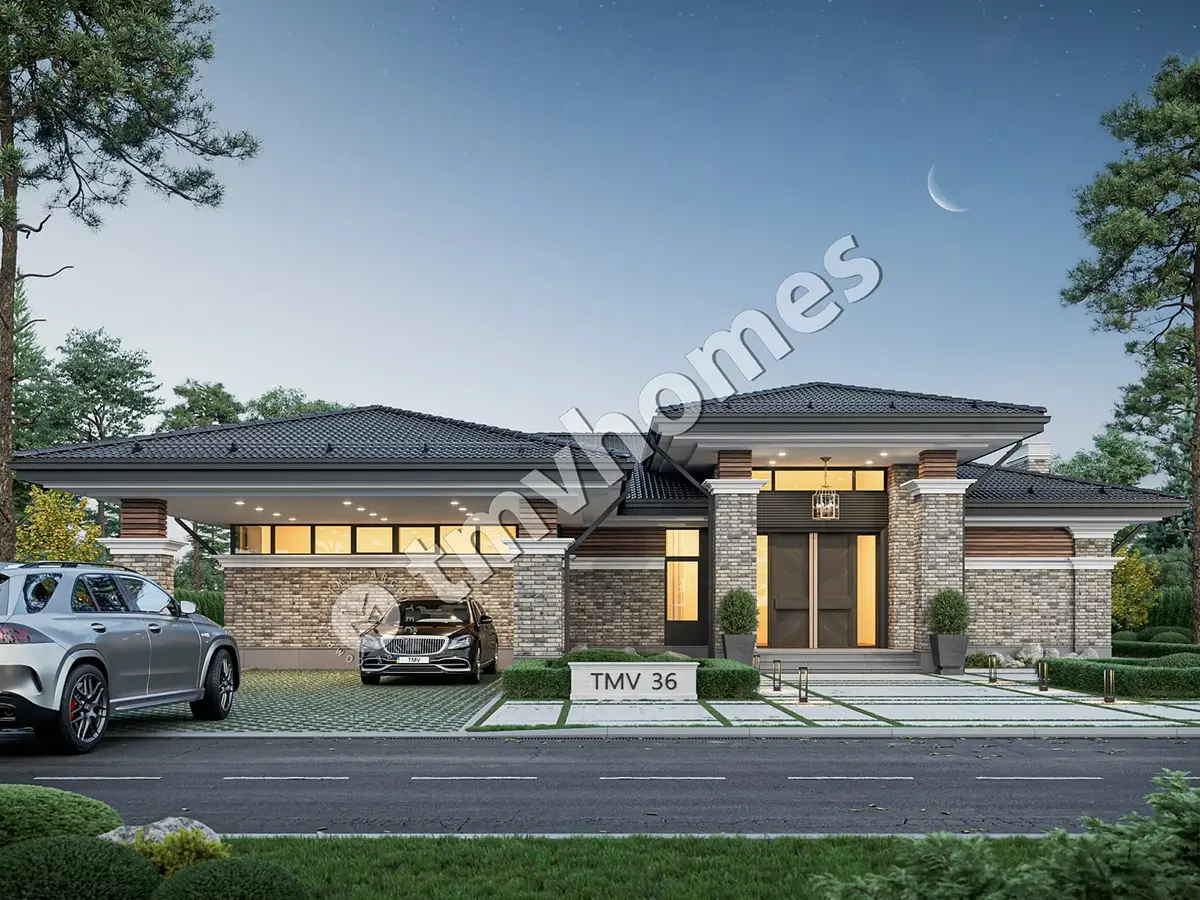

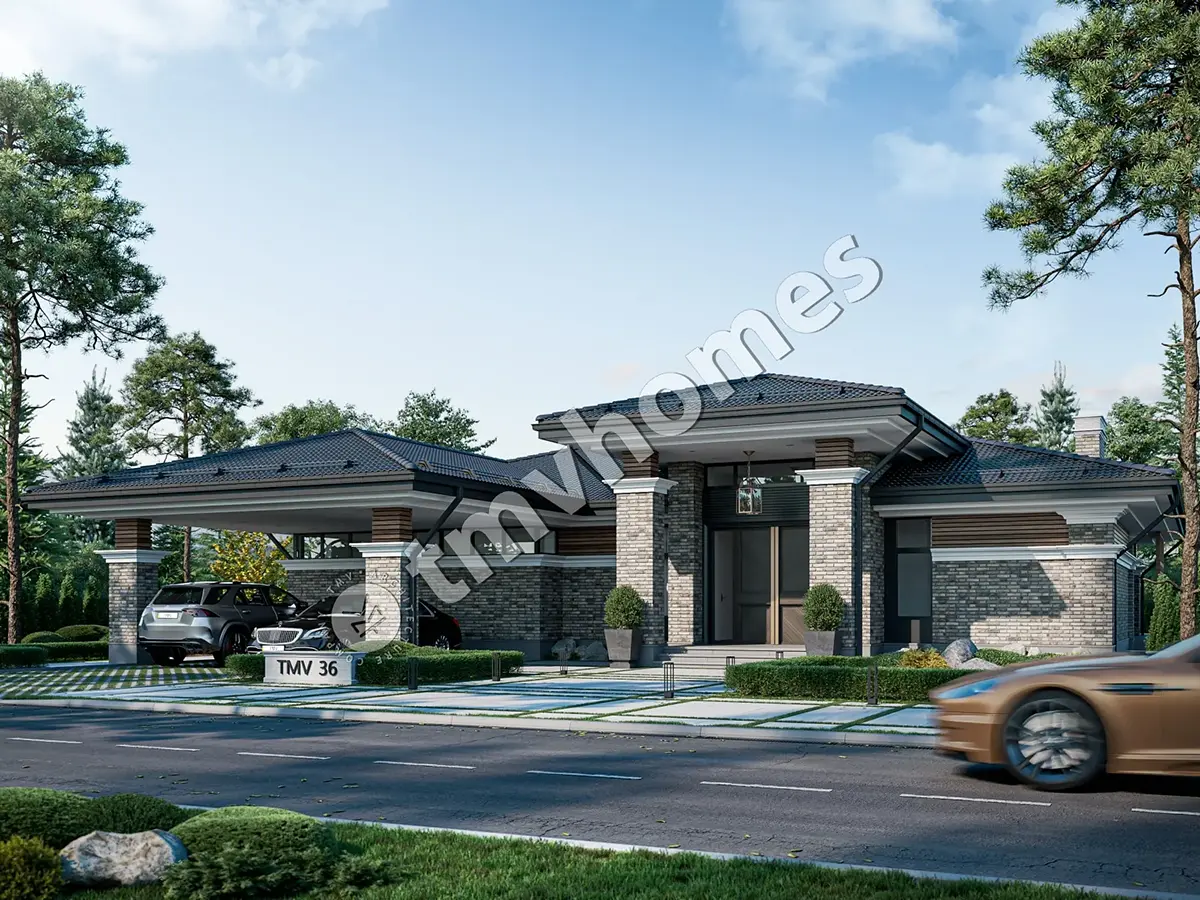

Renderings 2 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
Renderings 3 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C Renderings 4 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
11
Concept
Construction documents are prepared for the following countries:

2,330 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
74397C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2330
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

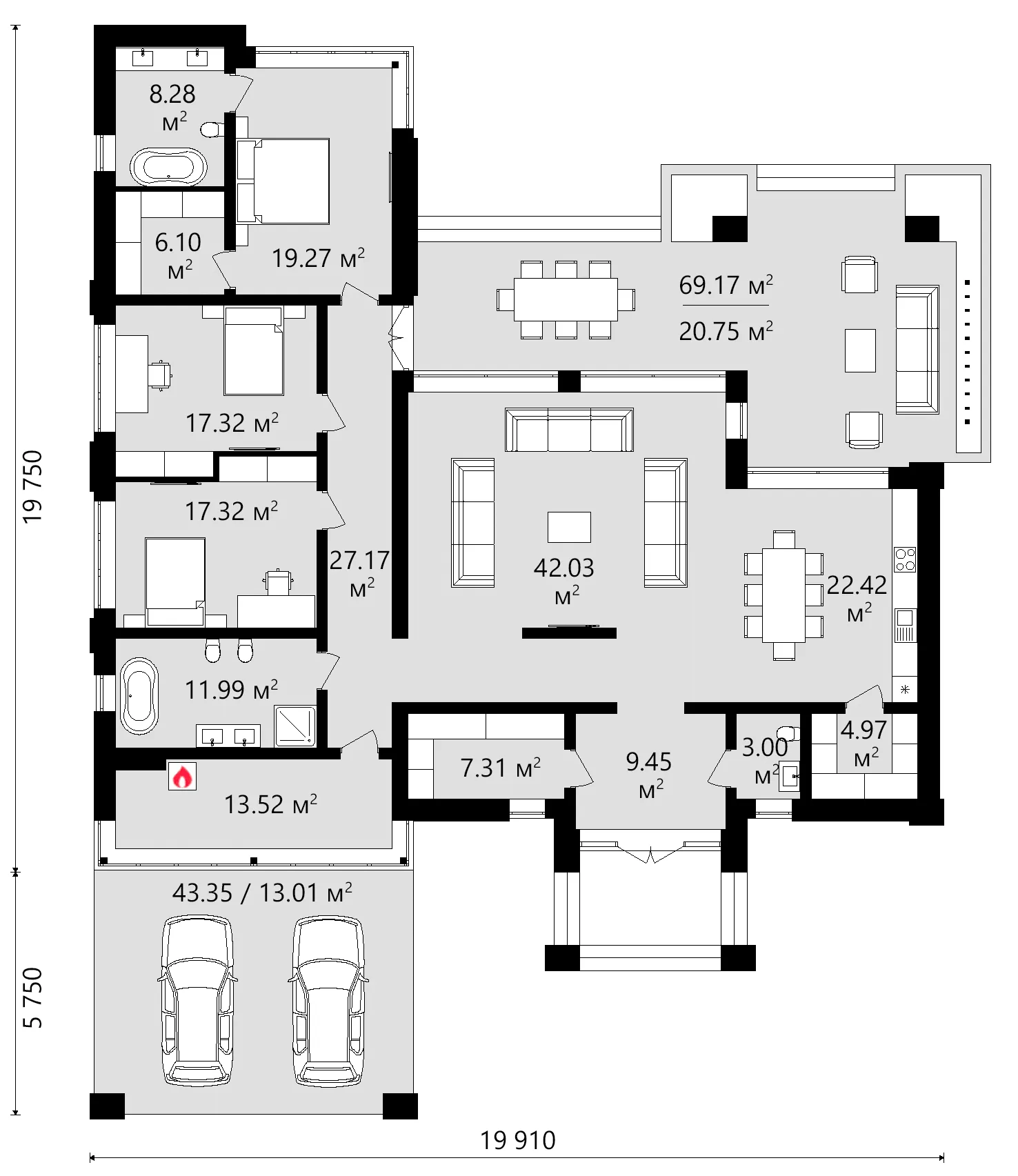

Floor Plans
Main Floor
Main Floor 17 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
Full Specs & Features
Area
Total Heated: 2329.63 ft²
Dimensions
Depth: 77'7" ft
Width: 60'7" ft
Height: 17'6" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

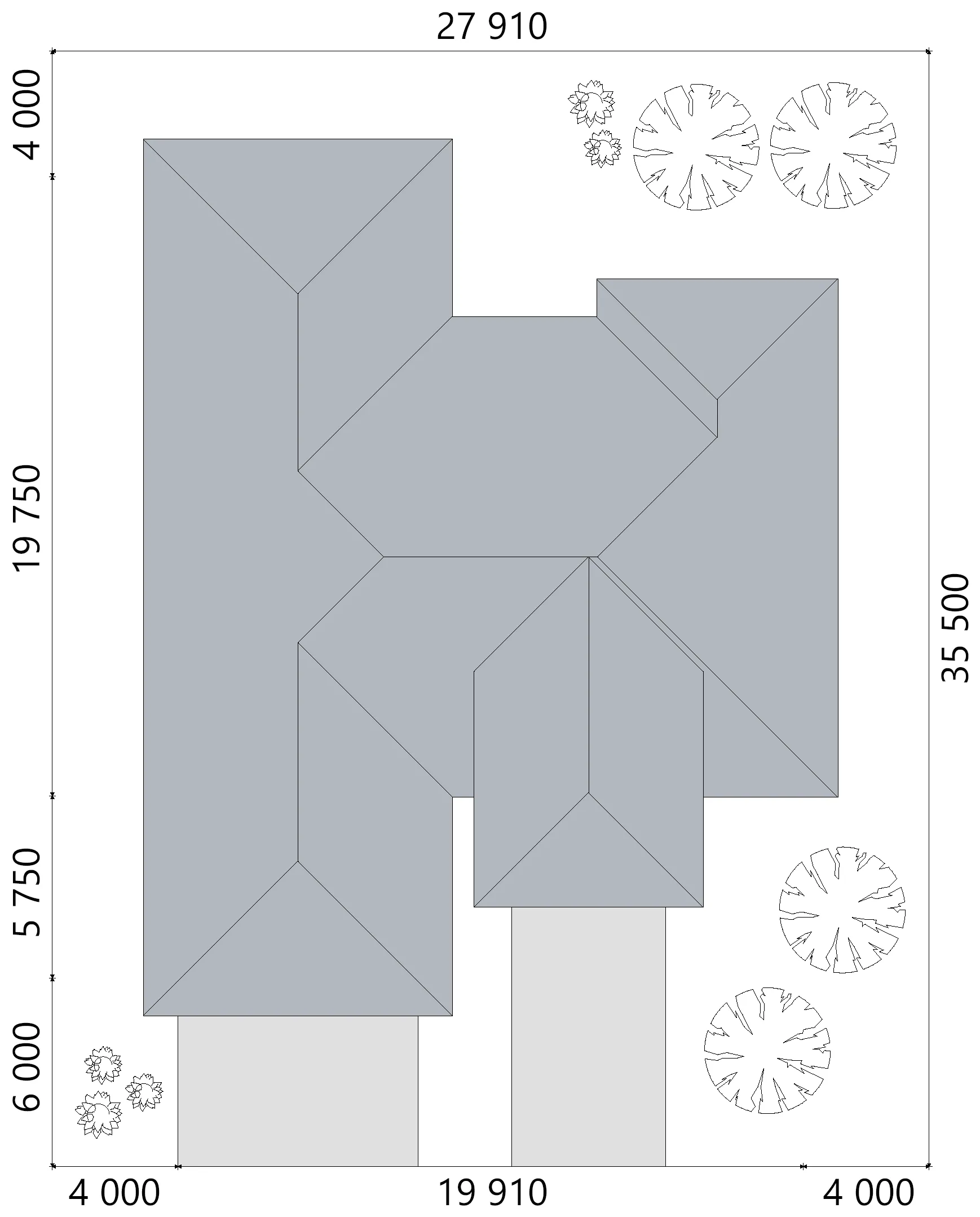

Roof
Roof Area: 4999.51 ft²
Hip & Valley
Roof Pitch: 4/12 (18°)

Designed as a 3-bedroom bungalow house plan, 74397C keeps the whole household on a single storey within 2,330 Sq Ft, sheltered by a hip and valley roof with a gentle 4/12 (18°) pitch. European, Prairie and Traditional influences shape this home design, and its T-shaped footprint gives the single family residence a broad façade finished in brick and wood. The house measures 60'7" wide, 77'7" deep and 17'6" high, and since there is no basement, daily life unfolds without a single flight of stairs.

Private rooms come first in this layout's logic. The three bedrooms are clustered in one wing, so the sleeping area feels like a quiet retreat set apart from the activity of the main rooms. The main-floor master suite includes a walk-in closet, giving the owners proper storage for clothing and seasonal wear. With three full bathrooms for three bedrooms, each person can have a washroom close at hand, a welcome arrangement for teenagers, visiting grandparents or overnight guests. A separate utility room gathers laundry and household equipment in one practical spot, and a defined entry gives arrivals a place to drop coats and boots before stepping inside.

Beyond the entry, an open floor plan joins the living areas into one generous zone. The large family room serves as the centre of the house, with plenty of space for a sectional, a game table or a long evening of conversation. Next to it, the large kitchen offers ample counter room and a walk-in pantry that holds provisions and small appliances neatly out of view. A breakfast nook beside the kitchen suits morning coffee and casual suppers. Glazing is a defining feature here: large windows, panoramic windows, a corner window and floor-to-ceiling windows bring abundant daylight and a strong connection to the outdoors, so even grey days feel bright.

At the back, a covered rear porch adds an outdoor room for barbecues, reading or watching the yard, protected from sun and rain alike. A carport for two cars provides sheltered parking while keeping the exterior open and uncluttered. The home rests on strip footings, with a slab or a concrete block foundation also available on request. Exterior walls are framed in autoclaved aerated concrete, and clay hollow block or sand-lime block framing can be chosen instead. For families comparing house plans Canada-wide in search of a one-level layout with a main-floor master and three full baths, this bungalow pairs classic curb appeal with an easy, open way of living.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1888
Subtotal
