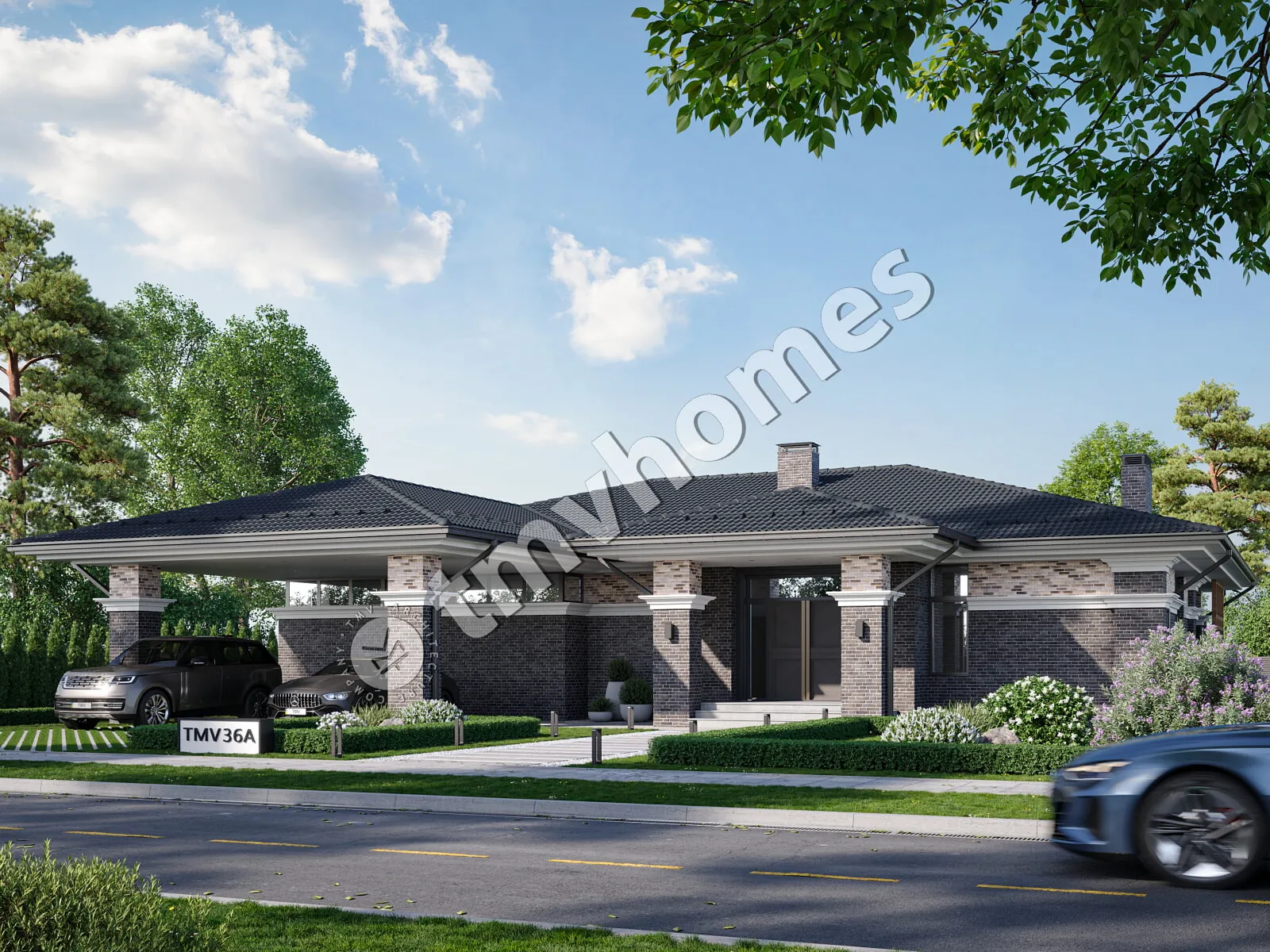

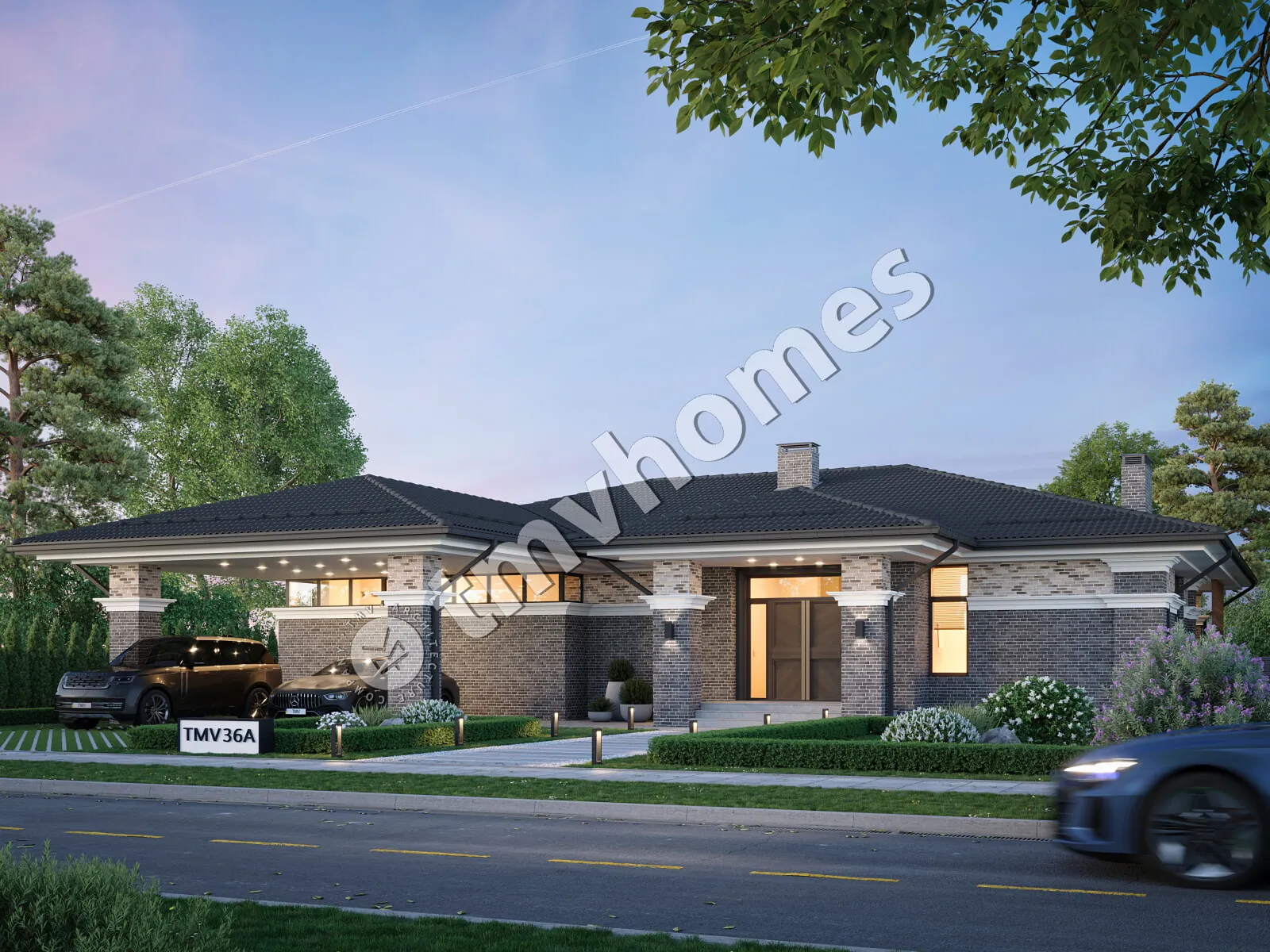

Renderings 3 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C

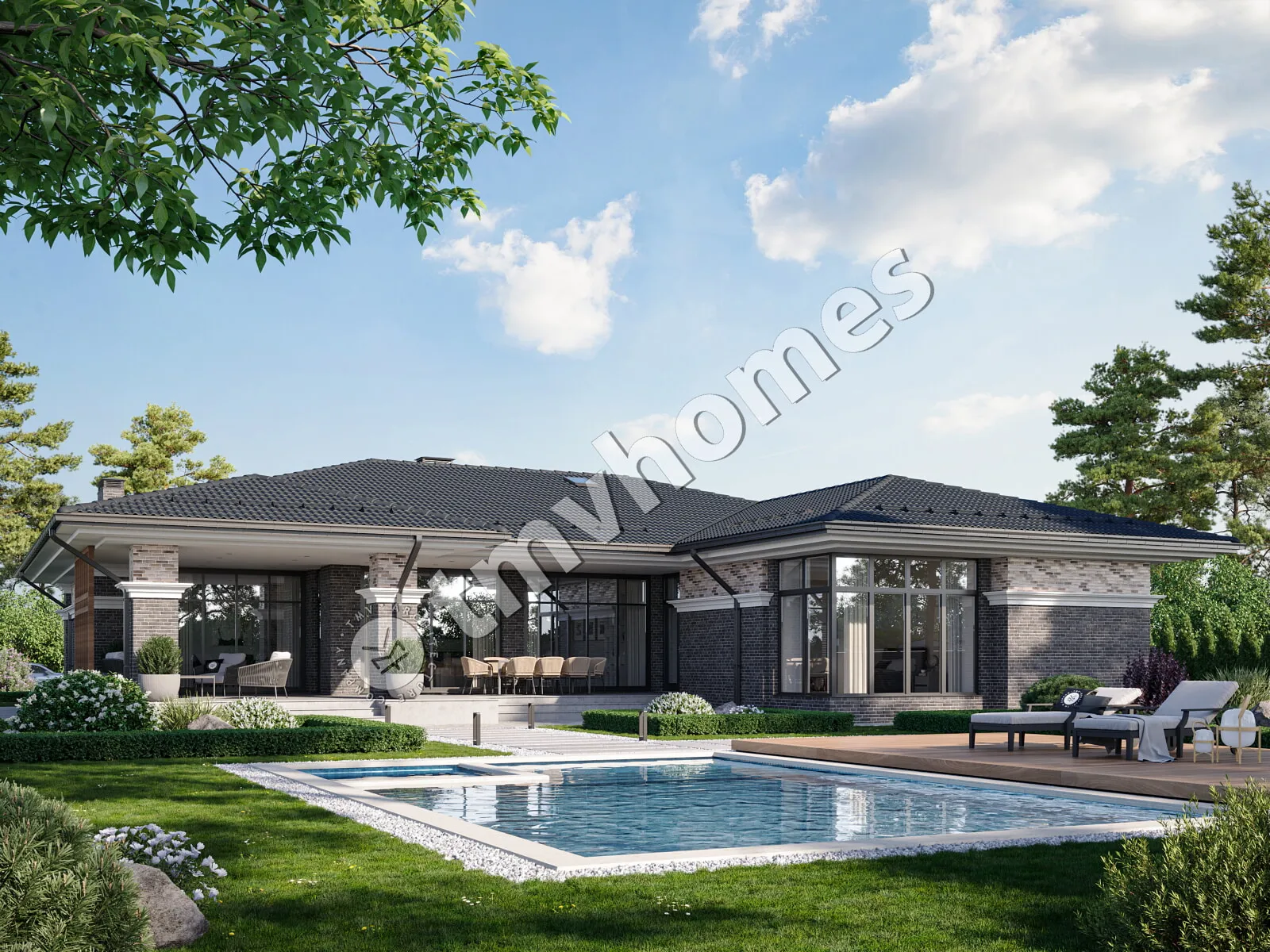

Renderings 9 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C Renderings 10 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C
4
Concept
Construction documents are prepared for the following countries:

2,613 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
40614C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2613
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

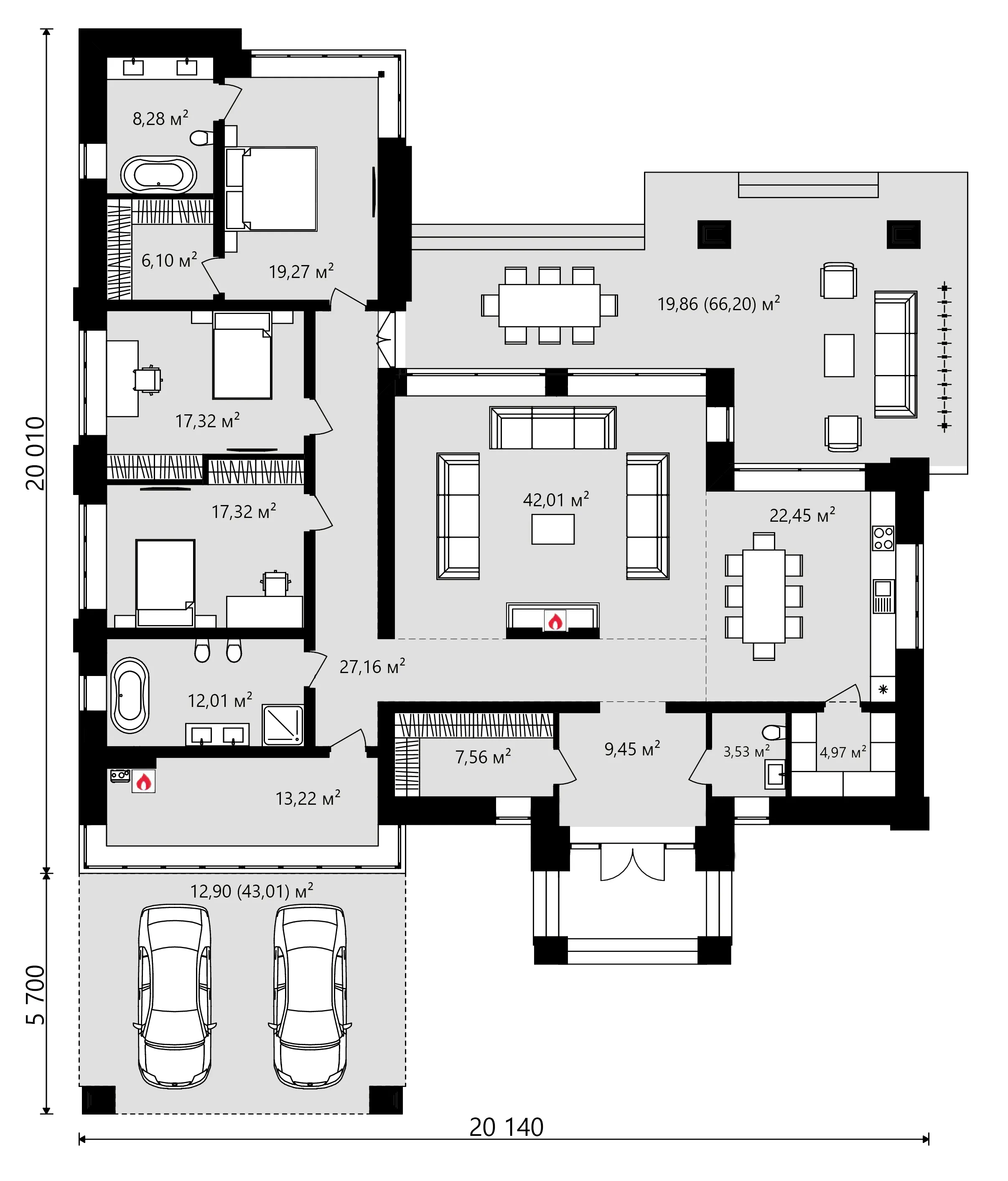

Floor Plans
Main Floor
Main Floor 5 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C
Full Specs & Features
Area
Total Heated: 2613.05 ft²
Dimensions
Depth: 78'4" ft
Width: 61'4" ft
Height: 17'6" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Prairie
Roof

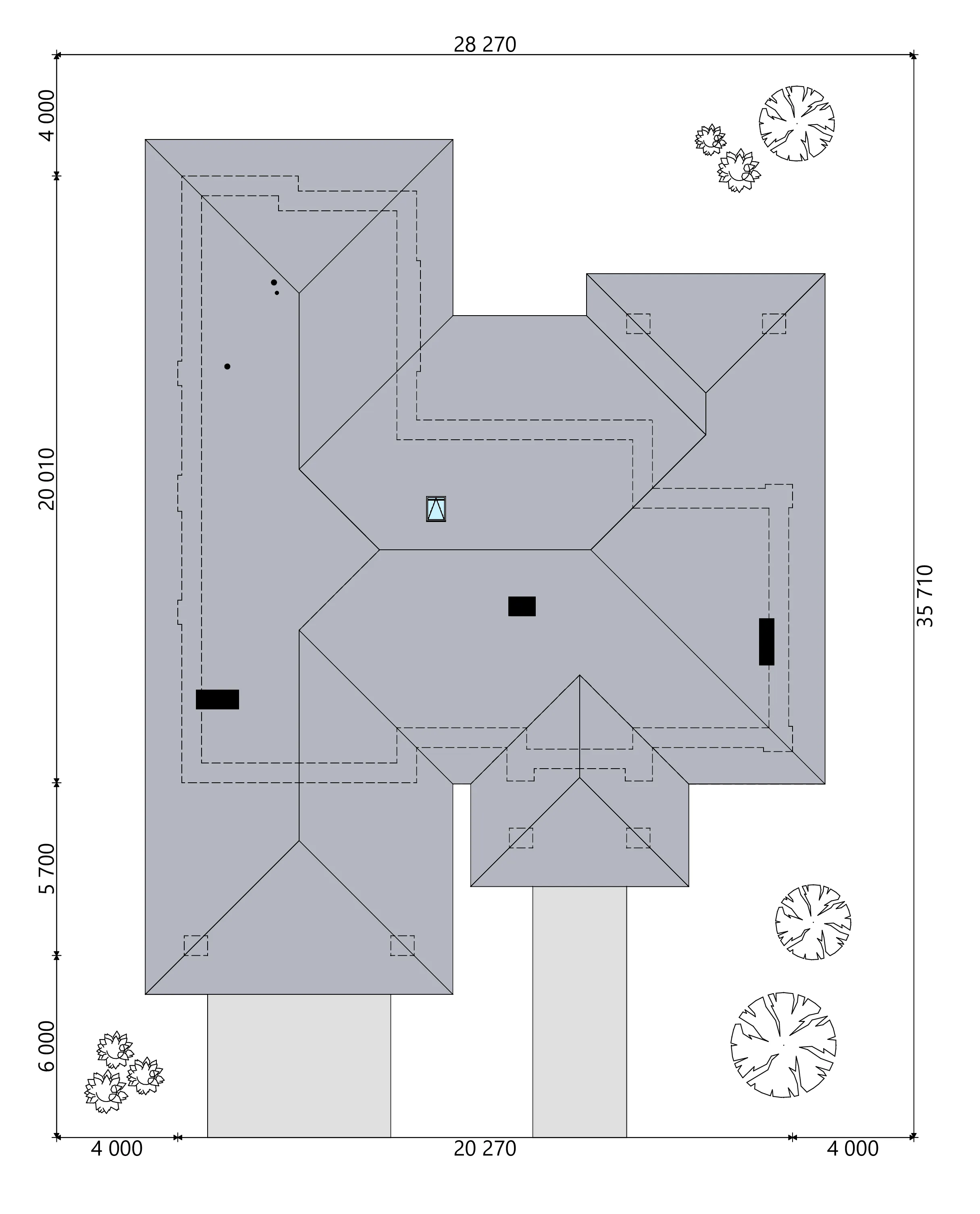

Roof Area: 5782.05 ft²
Hip & Valley

Plan 40614C is a 3-bedroom bungalow house plan that spreads 2,613 Sq Ft across a single storey, with Prairie and Contemporary character set beneath a hip & valley roof. European and Modern influences keep the details clean, while stone/brick veneer cladding and a T-shaped footprint give this single family home a calm, horizontal presence. The home design measures 61'4" wide and 78'4" deep and rises to a height of 17'6". Three bedrooms, three full bathrooms and a carport for two cars round out a layout made for everyday family life on one level.

The sleeping quarters are grouped in one wing, so the clustered bedrooms stay close to one another and away from the busier rooms. The master bedroom sits on the main floor, as everything does in this 1-storey plan, and comes with a walk-in closet for clothes and seasonal storage. With three full bathrooms and no half bath, every bedroom has easy access to a shower and tub, which makes busy school mornings far smoother. A utility room handles laundry and household equipment, and a defined entry gives coats, boots and bags a place to land before anyone steps further inside.

At the heart of the house, an open floor plan joins the family room, kitchen and dining area into one bright, connected space. The family room is generously sized and anchored by a fireplace, a natural centre for the household when the evenings grow long. Next to it, the large kitchen offers room for several cooks at once, backed by a walk-in pantry that keeps groceries and small appliances tidy. A breakfast nook provides a casual table for weekday meals. Floor-to-ceiling windows, panoramic windows, a corner window and other large windows let daylight reach deep into this open-concept bungalow.

Two covered porches frame the outdoor life of the home: one at the front to greet visitors, and one at the rear for shaded meals and slow weekend afternoons. The two-car carport keeps vehicles sheltered close to the house. Among house plans Canada families compare, this one rests on strip footings, with a slab or a block foundation available on request; it has no basement. The exterior walls are framed in autoclaved aerated concrete, and clay hollow block or sand-lime block can be chosen as alternatives.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1817
