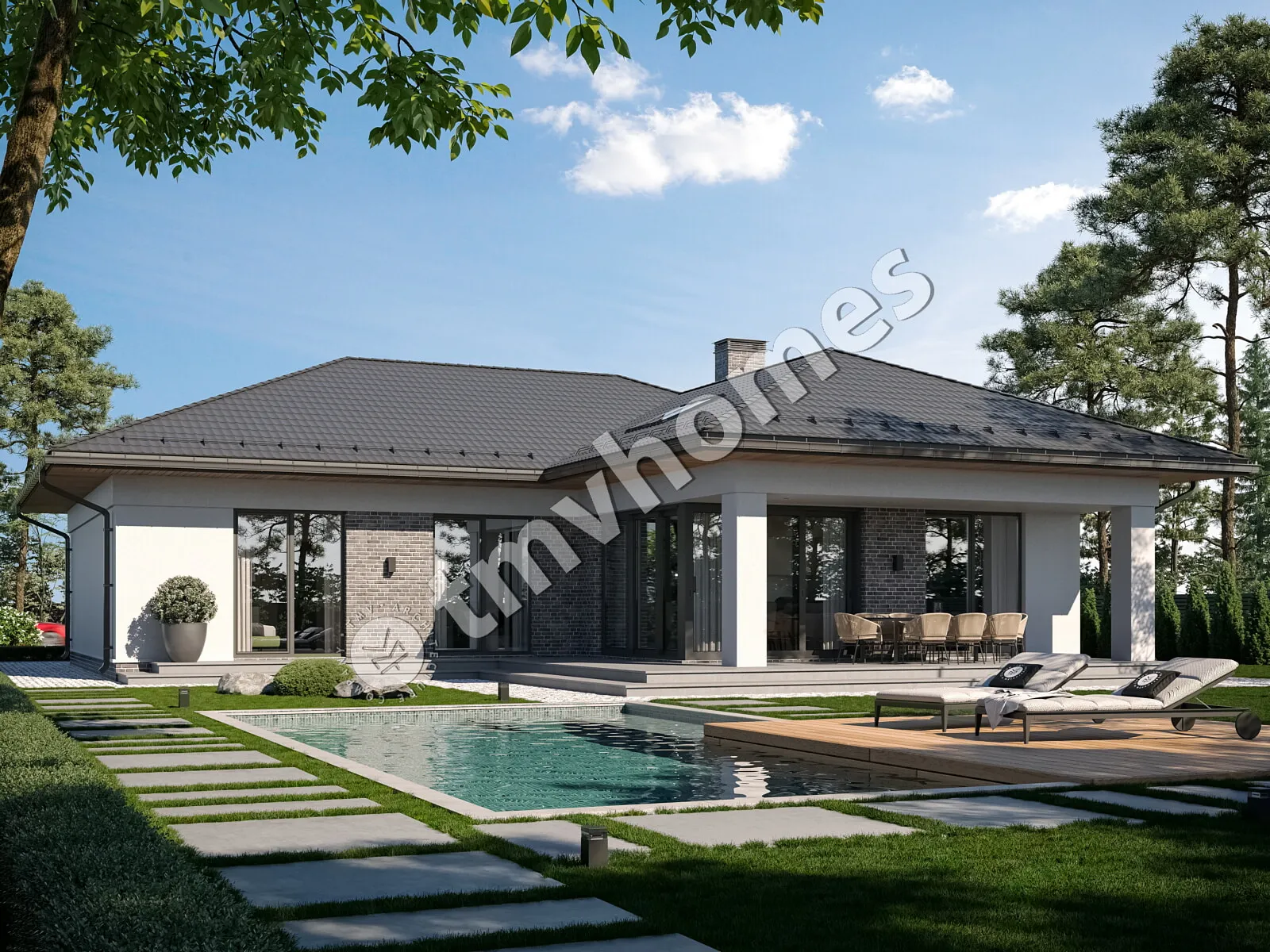

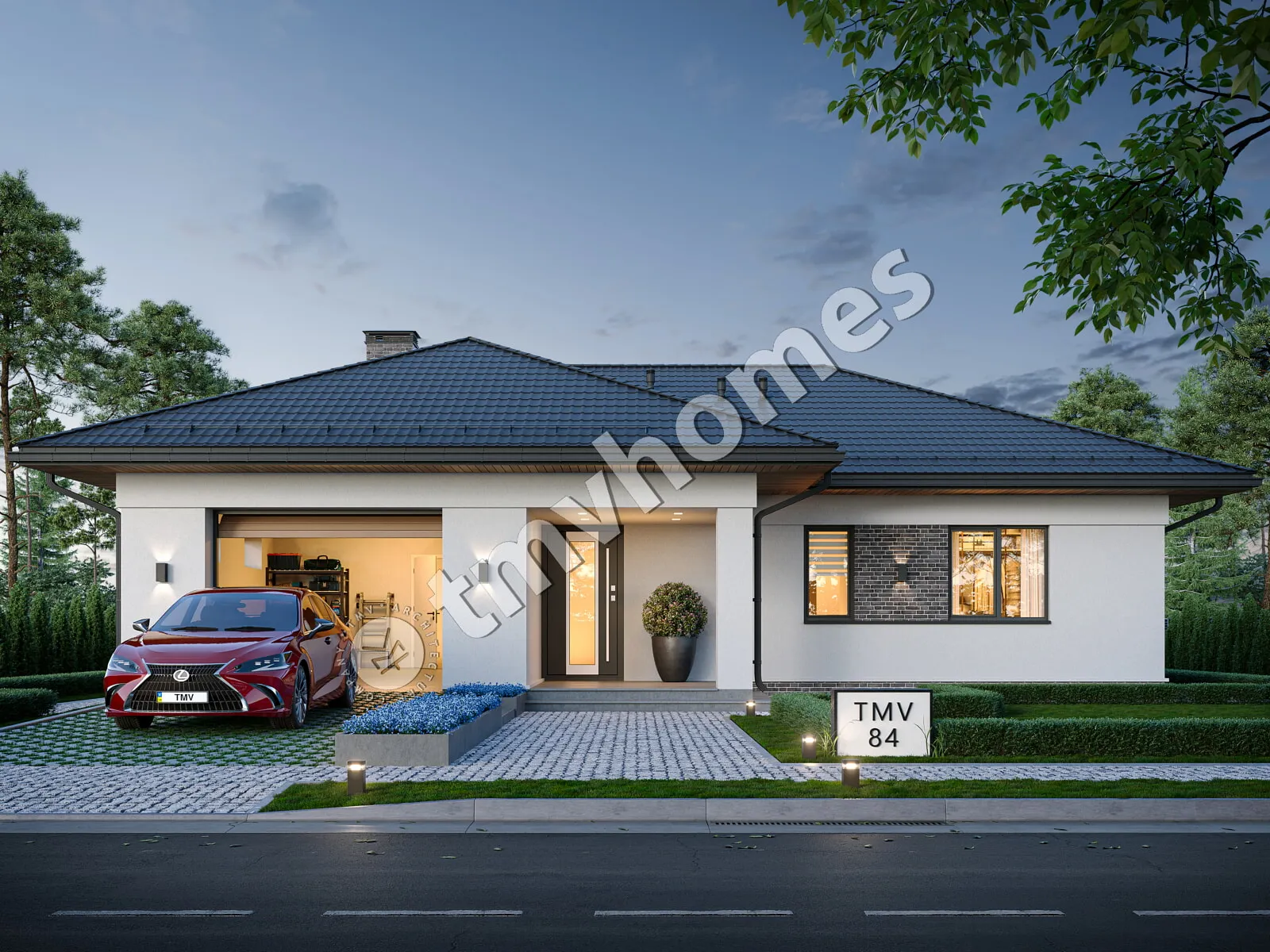

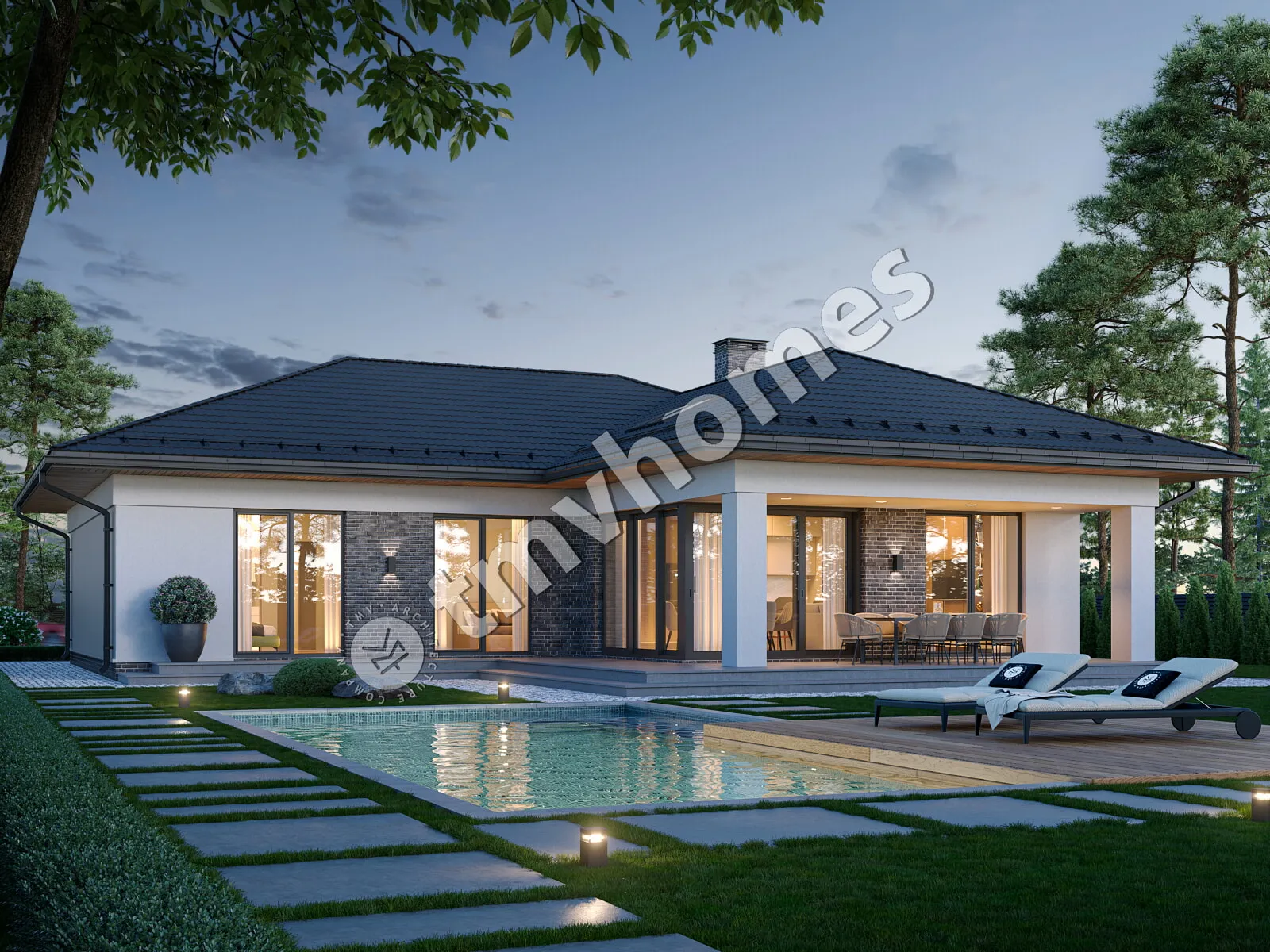

Renderings 2 – 1-Story House Plan 1474 ft², 3 Beds — 72446C
Renderings 3 – 1-Story House Plan 1474 ft², 3 Beds — 72446C Renderings 4 – 1-Story House Plan 1474 ft², 3 Beds — 72446C
6
Concept
Construction documents are prepared for the following countries:

1-Story House Plan 1474 ft²: 3 Beds, 1.5 Baths, Open Floor Plan, 1-Car Garage

Plan
72446C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1474
Total Heated ft²
1 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

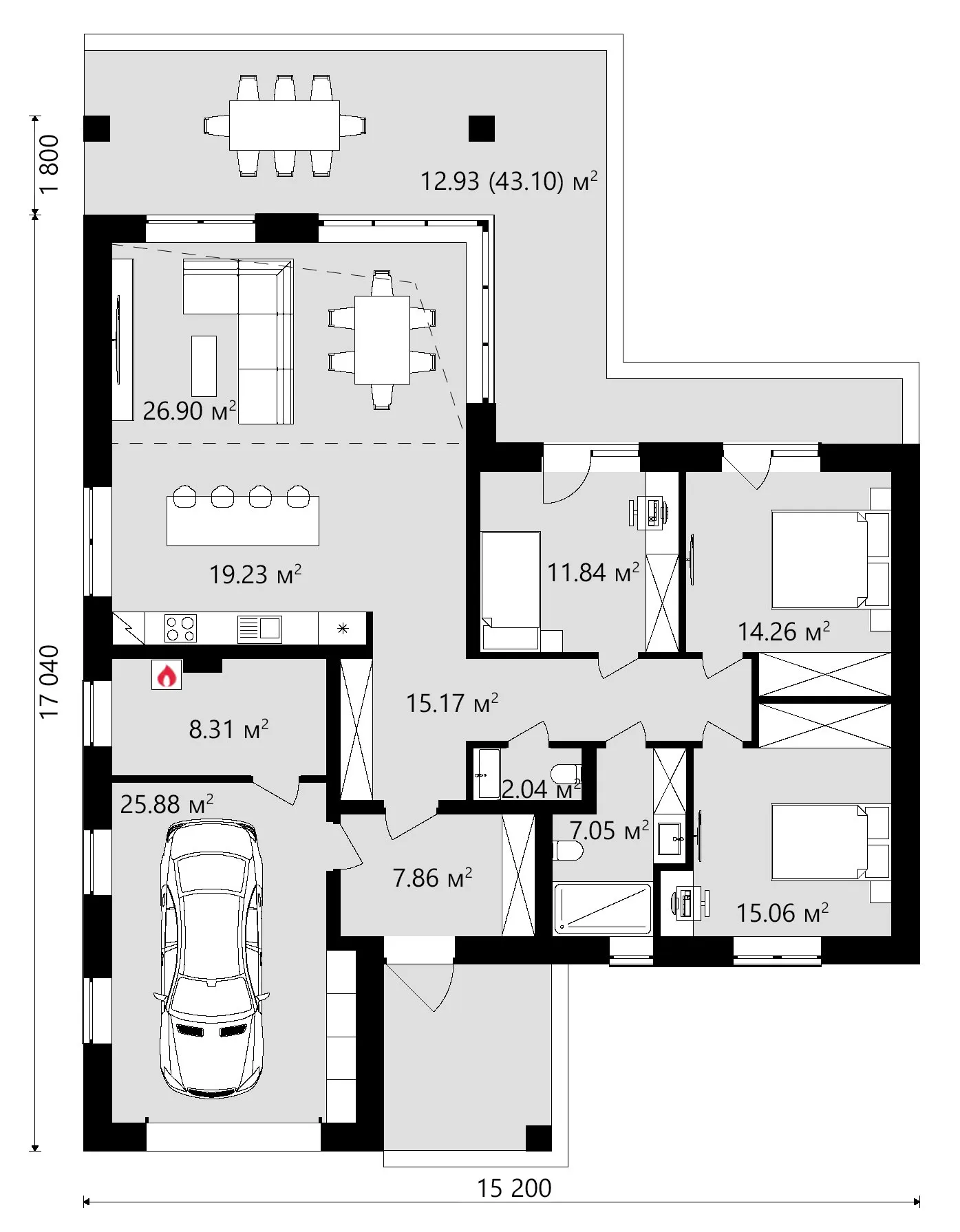

Floor Plans
Main Floor
Main Floor 12 – 1-Story House Plan 1474 ft², 3 Beds — 72446C
Full Specs & Features
Area
Total Unheated: 278.57 ft²
Total Heated: 1473.9 ft²
Dimensions
Depth: 57'4" ft
Width: 46'3" ft
Height: 18'6" ft
Garage
Area: 279 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 1
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Island
Interior Features
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional

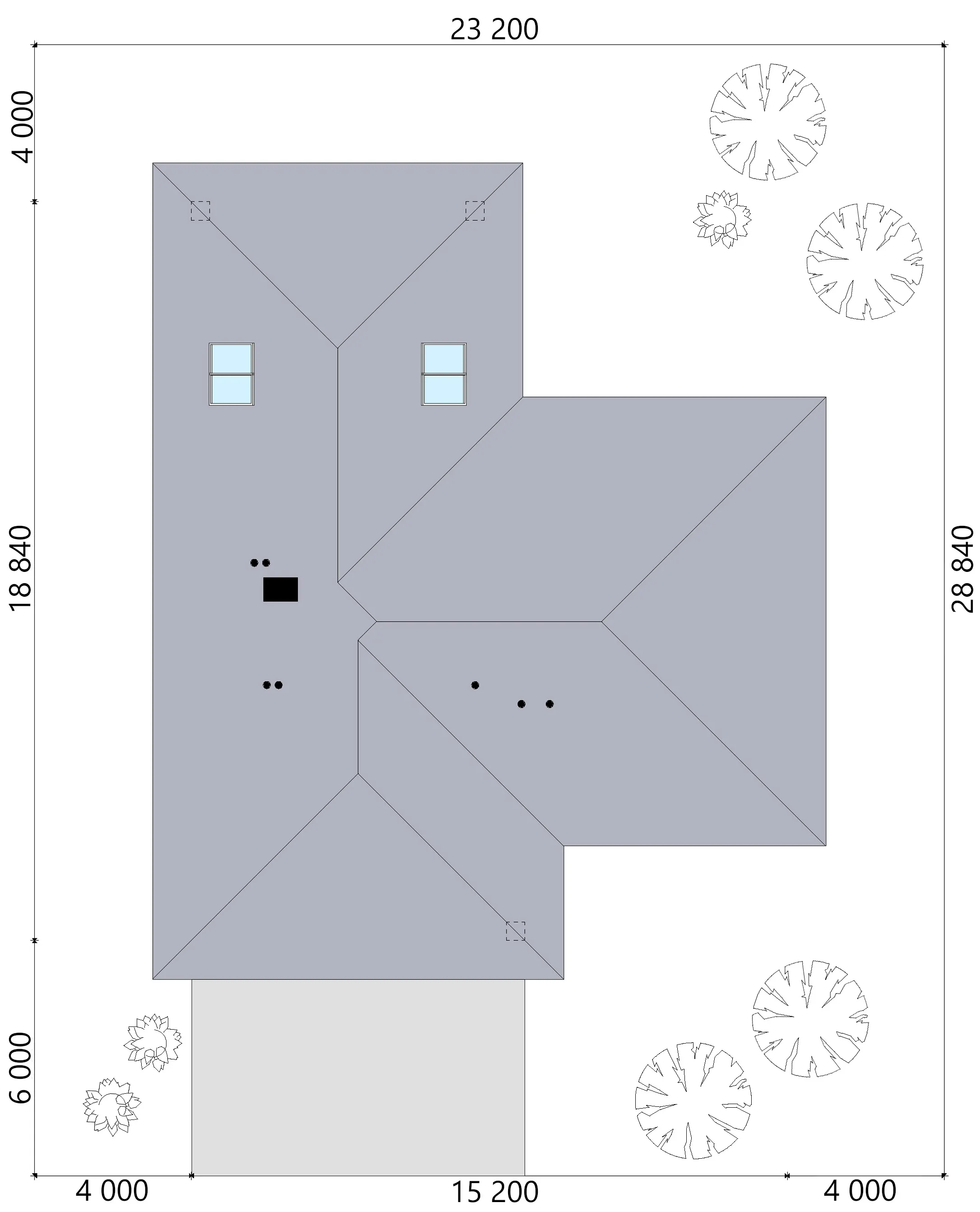

Roof
Roof Area: 3363.08 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Designed for living on one level, plan 72446C is a 3-bedroom bungalow house plan with European and Traditional character, a hip and valley roof and 1474 ft² arranged on a single storey. Its T-shaped footprint measures 46'3" wide and 57'4" deep and rises to a height of 18'6" under a 5/12 roof pitch. Stone/brick veneer is set against stucco on the exterior walls, giving this single family home a facade with depth and texture. For anyone comparing house plans Canada families can live in for decades, this 1-storey home design keeps the bedrooms, the kitchen and the main living areas on the same floor.

Privacy begins with the sleeping quarters. The three bedrooms are clustered together and kept apart from the shared rooms, so an early bedtime and a late film in the family room don't compete with each other. One full bathroom serves the bedrooms, while a half bathroom gives visitors a powder room of their own. A dedicated utility room collects household equipment and everyday chores in one place, which leaves the rest of the house free for family life.

From the covered front porch, the entry opens onto an open concept layout that links the large family room with the large kitchen. The family room has space for a deep sofa, a reading chair and a games table at the same time, so everyone can share the evening without crowding. In the kitchen, the island anchors the cooking zone: there is room to spread out ingredients, set out snacks for friends or keep the children company while supper simmers. Floor-to-ceiling windows, a corner window and other large windows draw daylight toward the centre of the home, and the morning sun makes the open space feel even wider.

Outside, the 1-car front-entry garage shelters the car and leaves room for bicycles and seasonal gear. A covered rear porch mirrors the one at the front, offering a shaded spot for weekend breakfasts or a quiet chat with neighbours who drop by. The house is built on strip footings with exterior walls of aerated concrete block; on request, the plan is also offered with a slab or a concrete block foundation, and with clay hollow block or sand-lime block walls. There is no basement, so the full 1474 ft² sits at ground level, where every room is simple to reach and to look after.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1216
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
