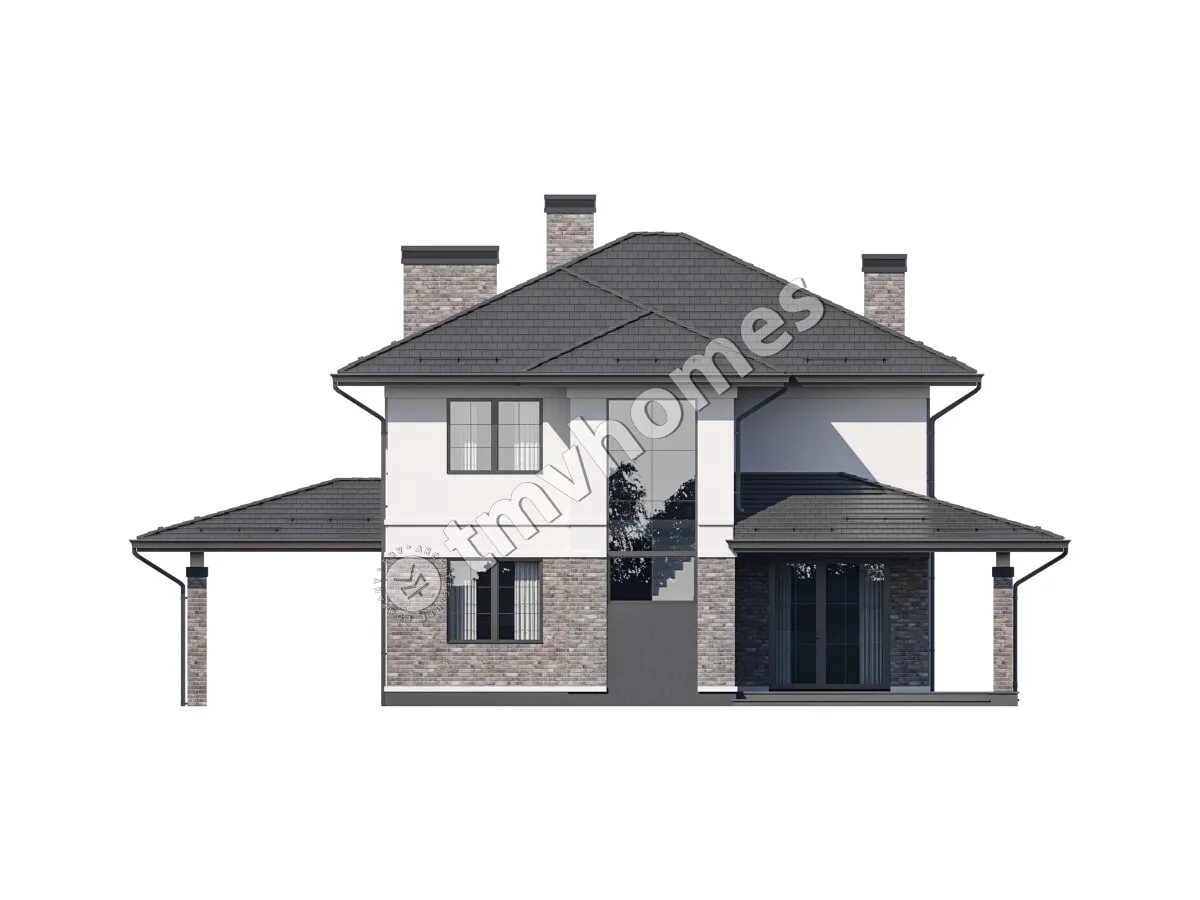

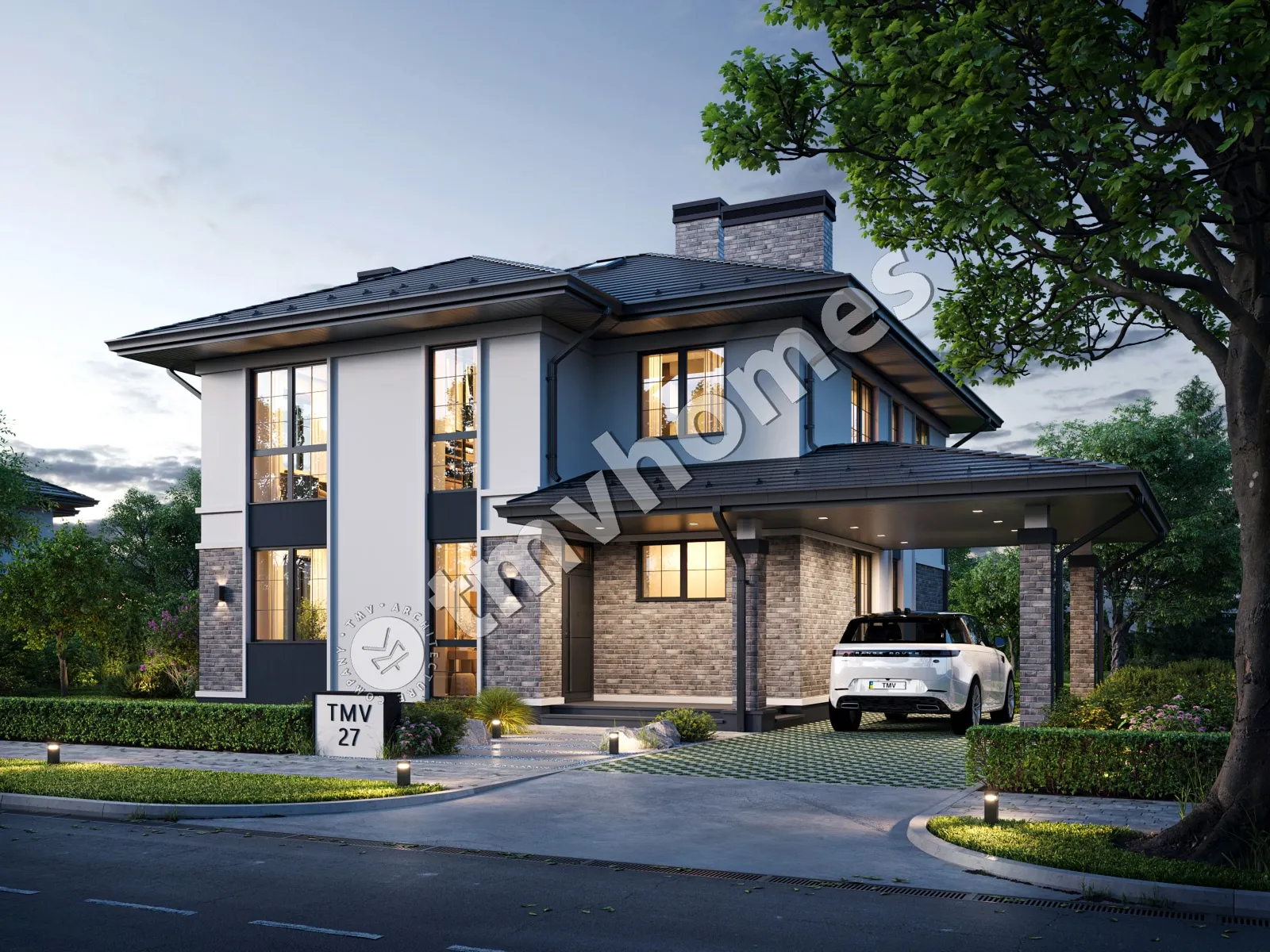

Renderings 2 – 2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 70404C

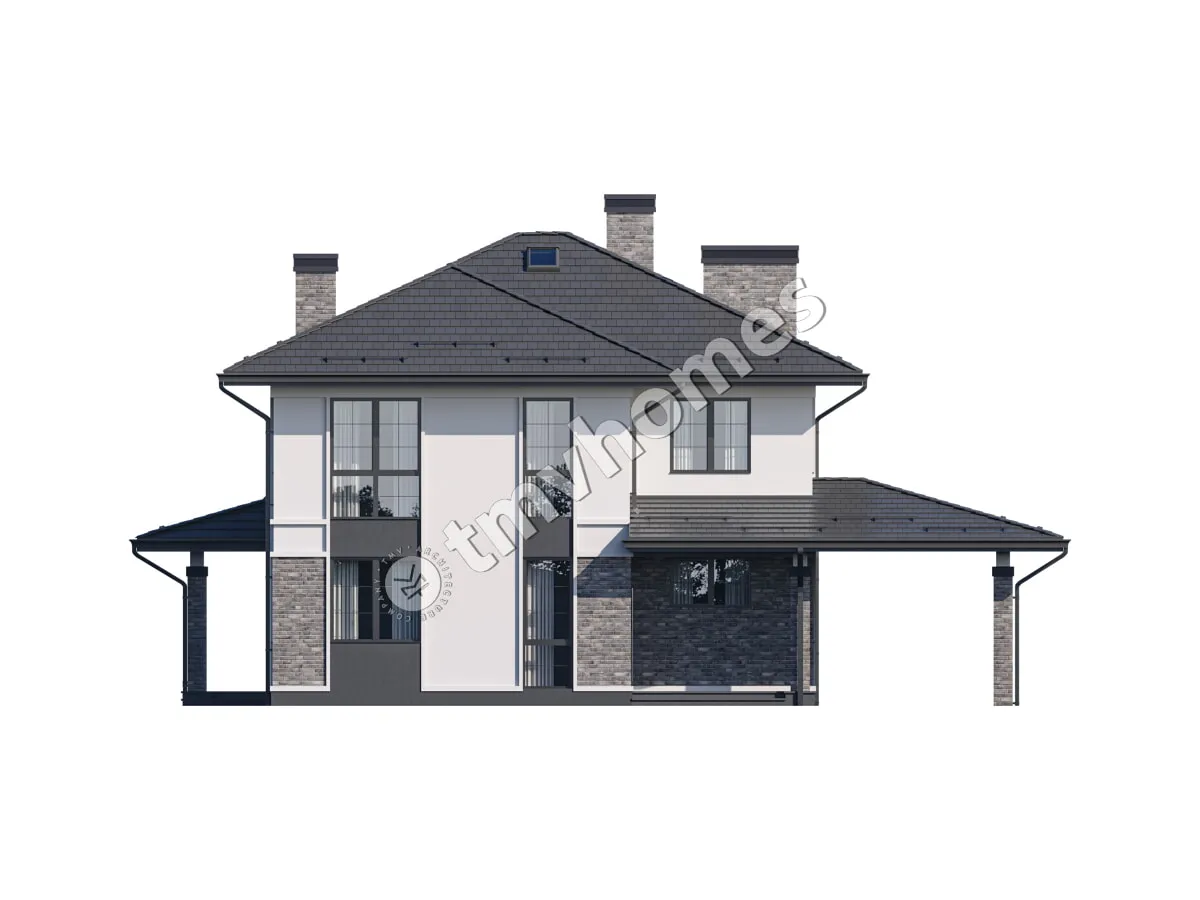

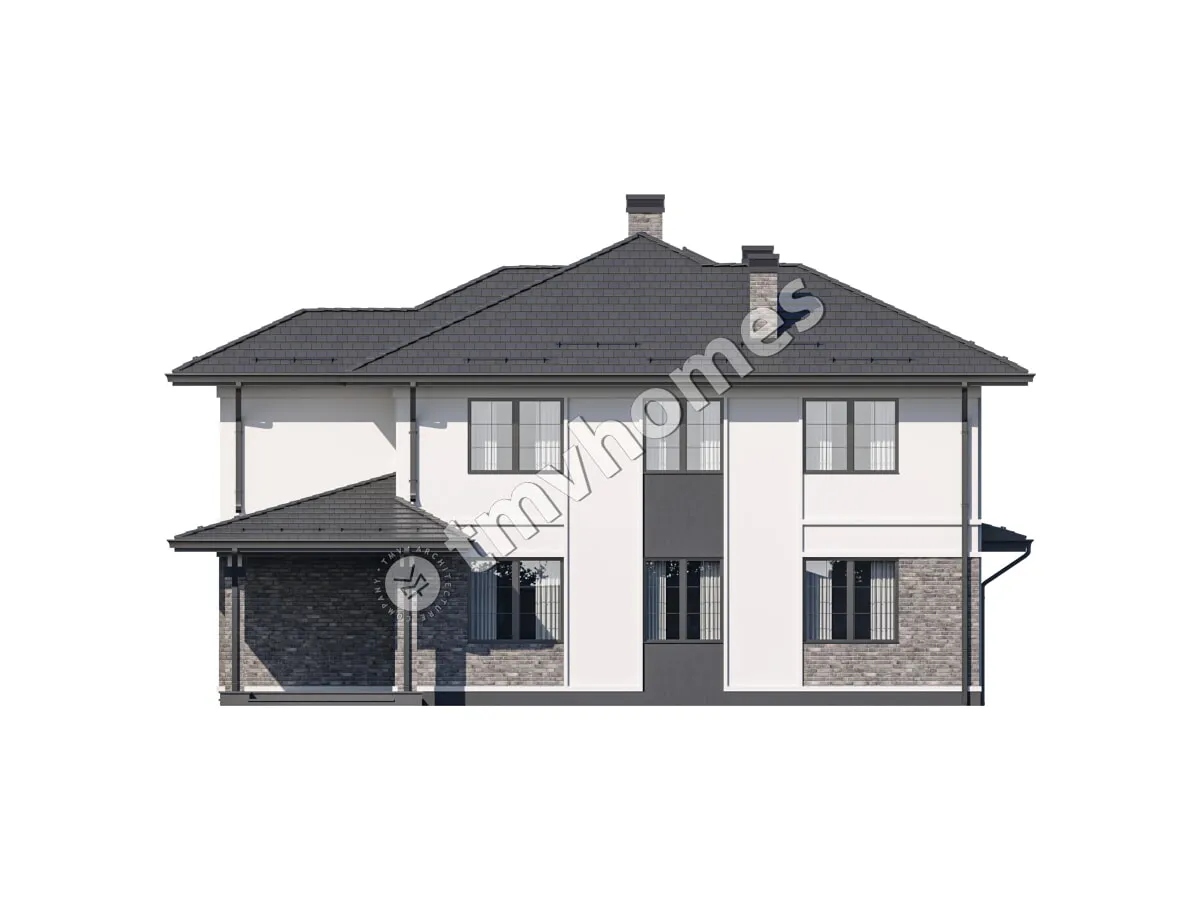

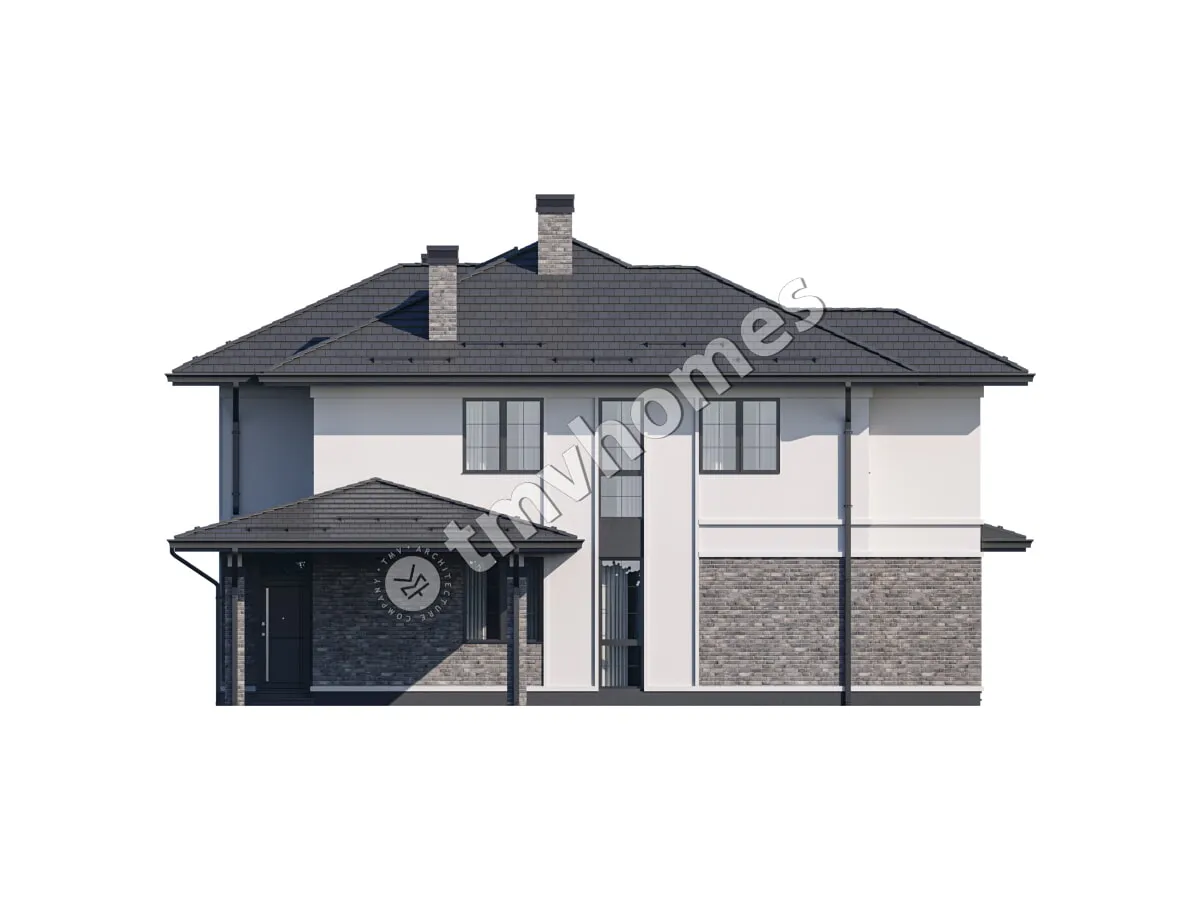

Renderings 3 – 2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 70404C Renderings 5 – 2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 70404C
7
Concept
Construction documents are prepared for the following countries:

2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and Carport

Plan
70404C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2206
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

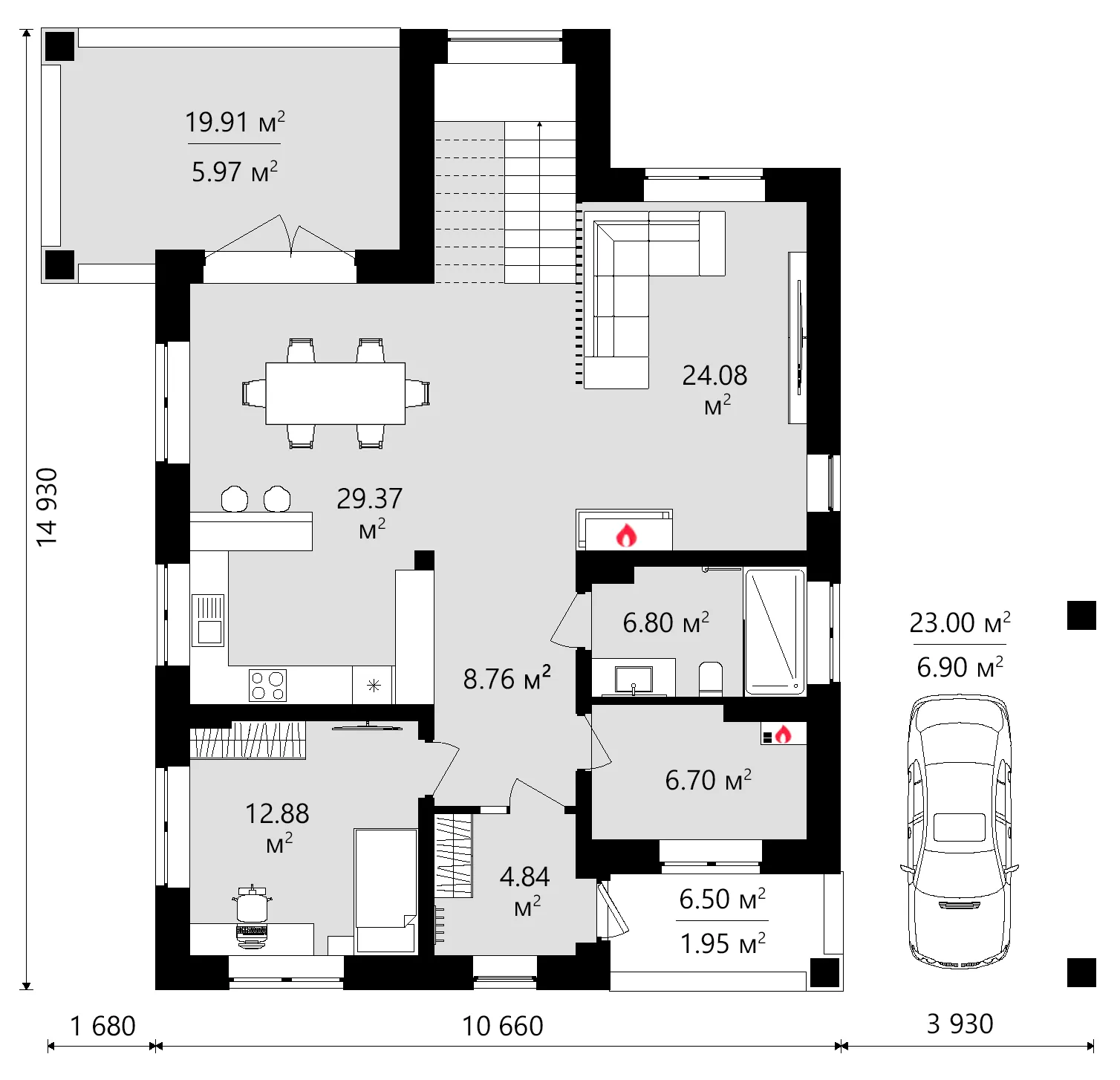

Main Floor
Main Floor 9 – 2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 70404C

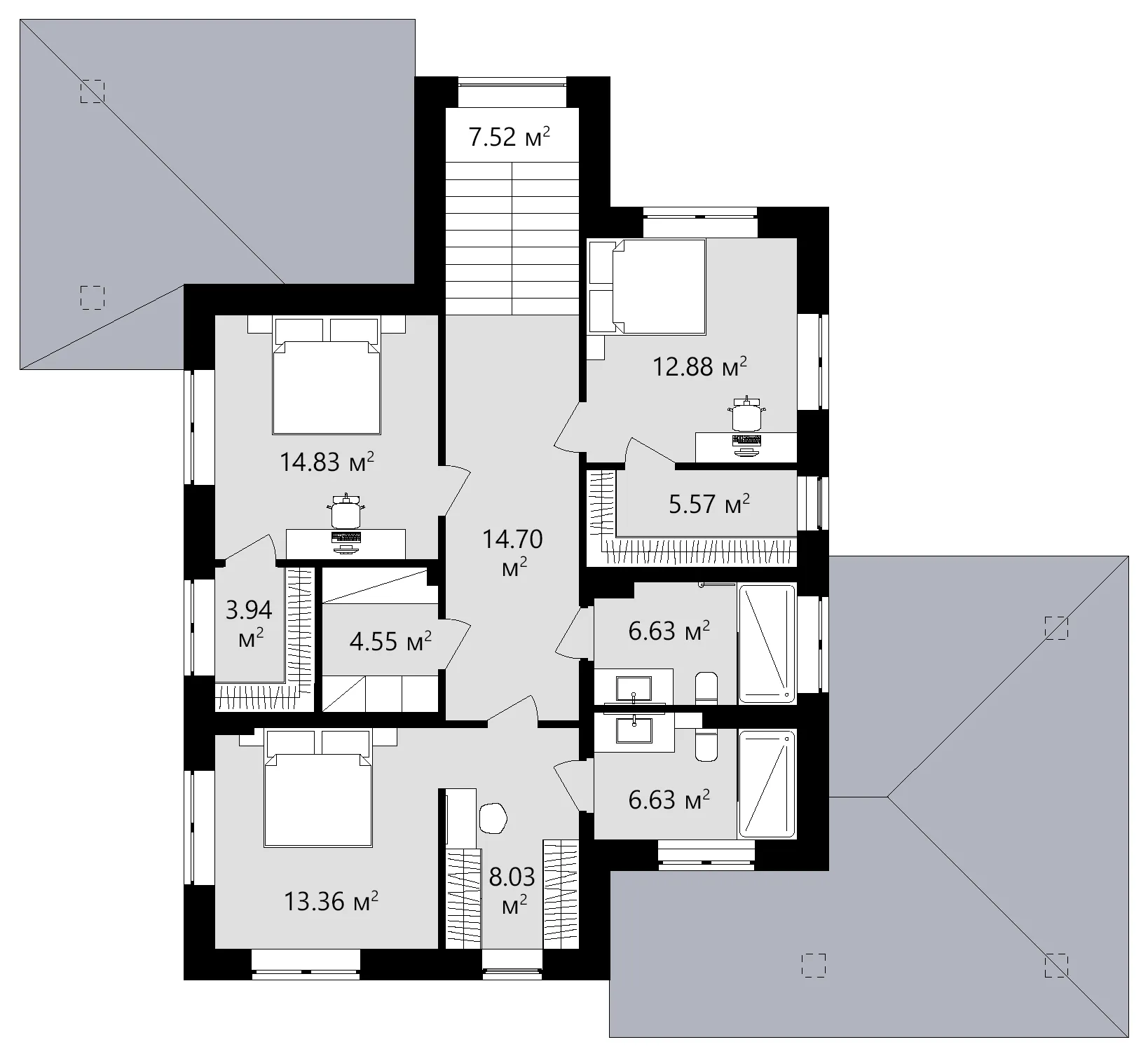

Second Floor
Second Floor 11 – 2,206 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 70404C
Full Specs & Features
Area
Total Heated: 2205.85 ft²
Dimensions
Depth: 45'5" ft
Width: 49'6" ft
Height: 28'5" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Floor-to-Ceiling Windows
Architectural Style
European
Traditional

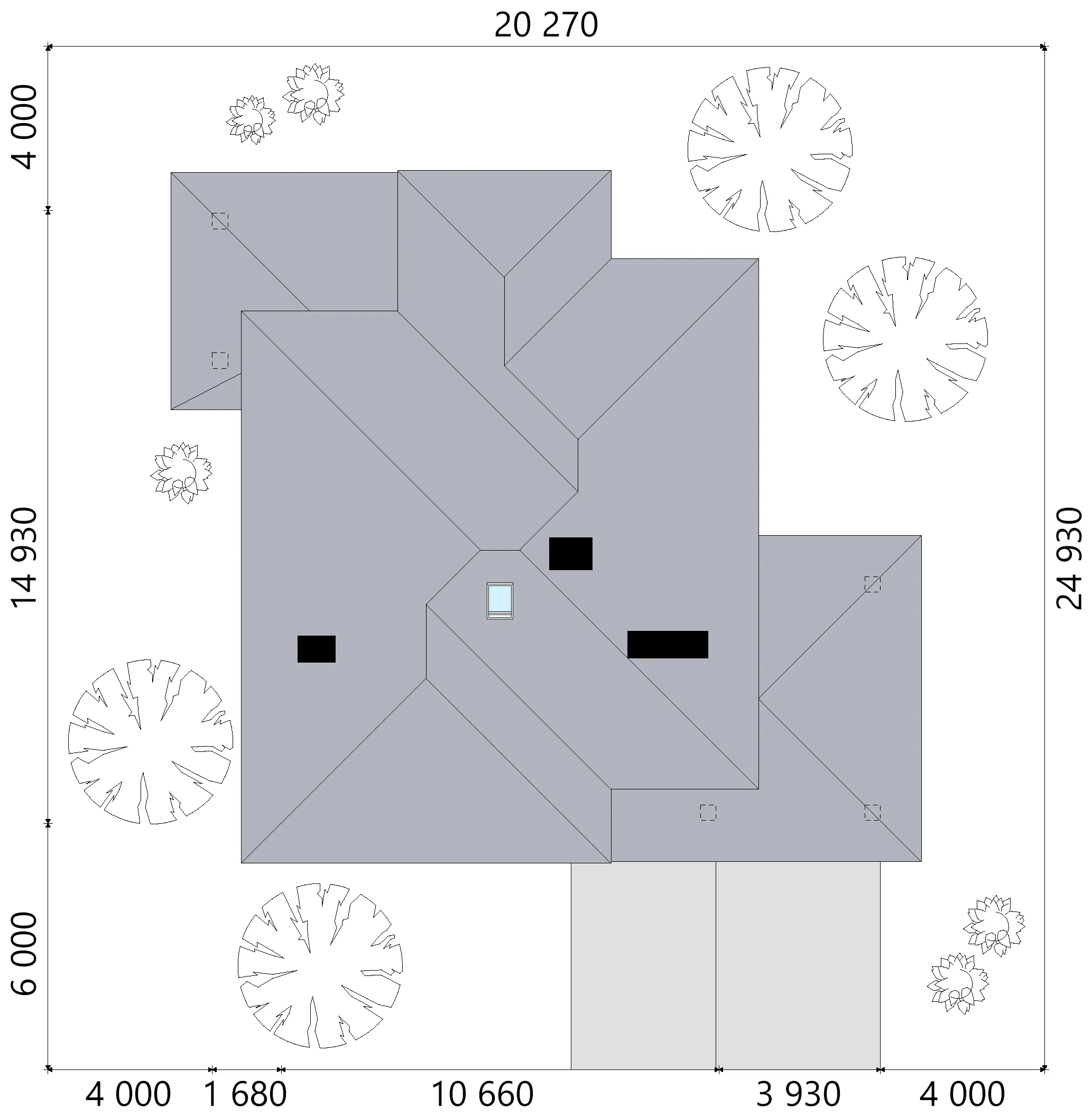

Roof
Roof Area: 3110.12 ft²
Hip
Roof Pitch: 6/12 (26°)

Plan 70404C is a 4-bedroom 3-storey house plan that wraps 2,206 Sq Ft of living space in a European and Traditional exterior, all beneath a hip roof pitched at 6/12 (26°). Stone/brick veneer meets stucco on the facade, a pairing that gives the home a solid, well-proportioned presence. The footprint measures 49'6" wide and 45'5" deep, and the house rises to a height of 28'5". Its walls are built of aerated concrete, with ceramic block or silicate block framing offered on request.

Sleeping areas are clustered rather than scattered, so the bedrooms stay close to one another and apart from the daytime rooms. The master suite occupies the second storey and comes with a walk-in closet, giving the owners their own space to dress and unwind. Three full bathrooms share the load of a busy household, and no one waits long at the start of the day. A dedicated utility room takes on the laundry, cleaning supplies and everyday gear.

Daily life begins at a proper entry, where coats and boots can be dealt with before anyone steps further in. From there, an open floor plan links the family room with the kitchen, so whoever is cooking stays part of the conversation. A fireplace anchors the family room and gives the household a natural place to gather on cold nights. The large kitchen offers plenty of room to work, with a breakfast bar for quick bites and a breakfast nook where the family can linger on weekends. Floor-to-ceiling windows pull generous daylight indoors and frame the outdoors from inside.

At the back, a covered rear porch provides a sheltered spot for meals outside or a quiet hour after work. A carport protects one car without the bulk of an enclosed garage. There is no basement: the home rests on strip footings, and a slab or concrete block foundation can be specified instead. For families comparing house plans in Canada, this traditional home design balances a stately, masonry-clad exterior with an easygoing, connected layout spread over three levels.
