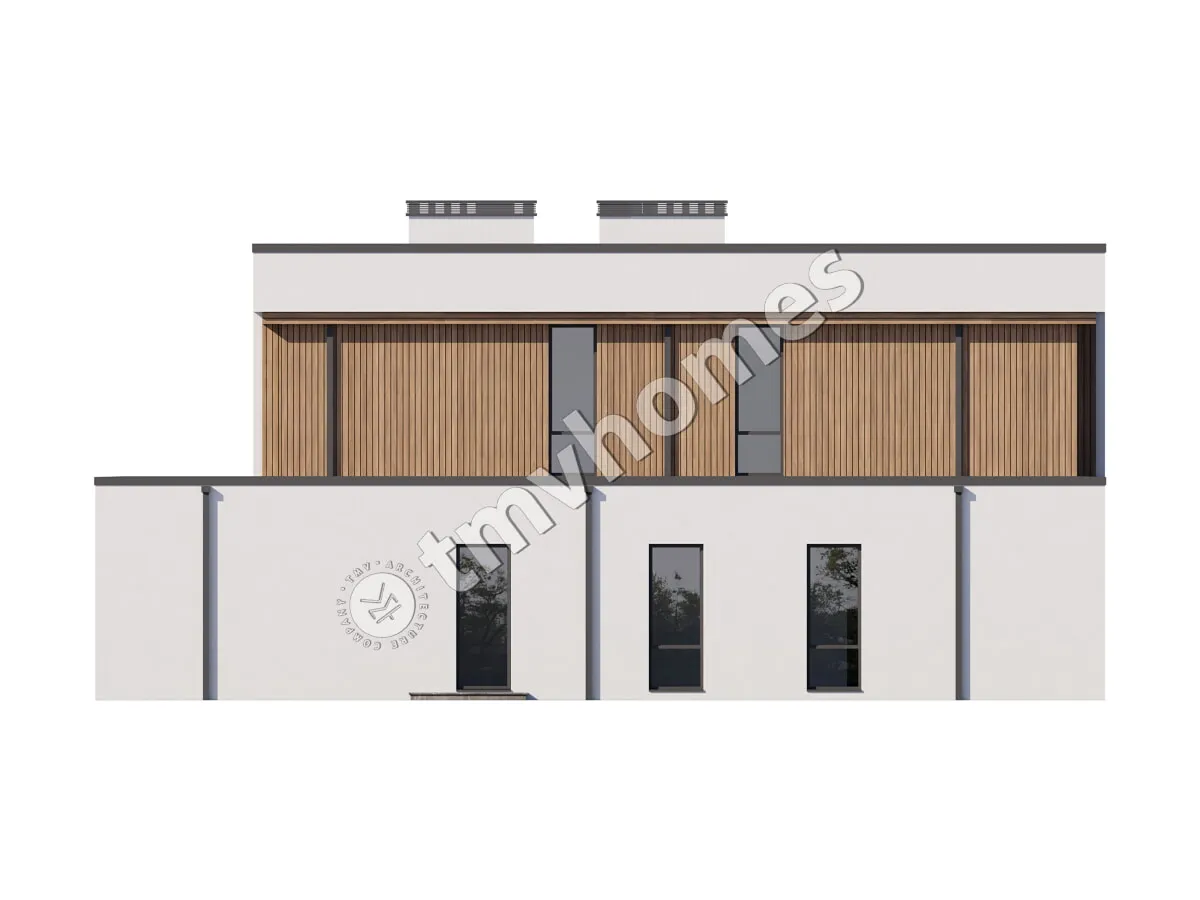

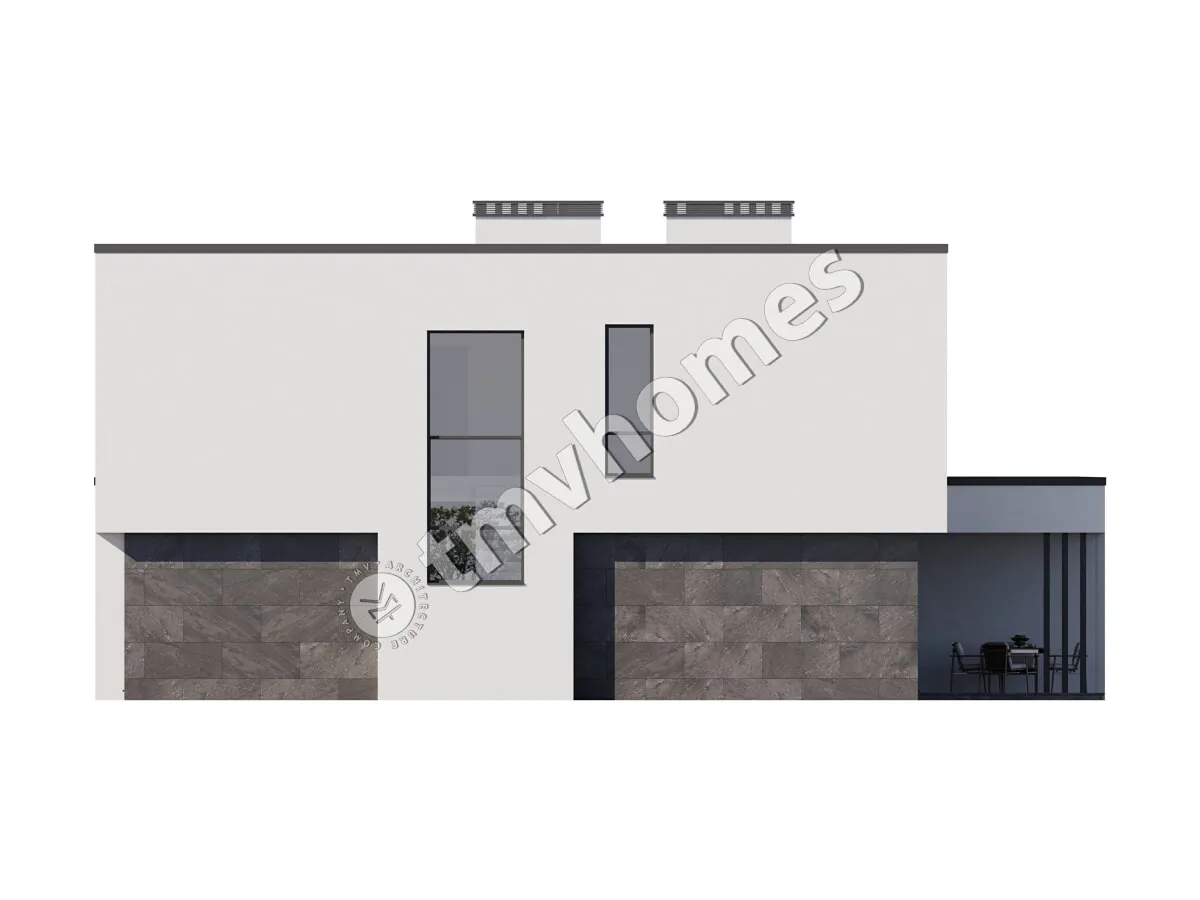

Renderings 2 – 2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 85517C
Renderings 3 – 2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 85517C Renderings 4 – 2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 85517C
7
Concept
Construction documents are prepared for the following countries:

2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
85517C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2260
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

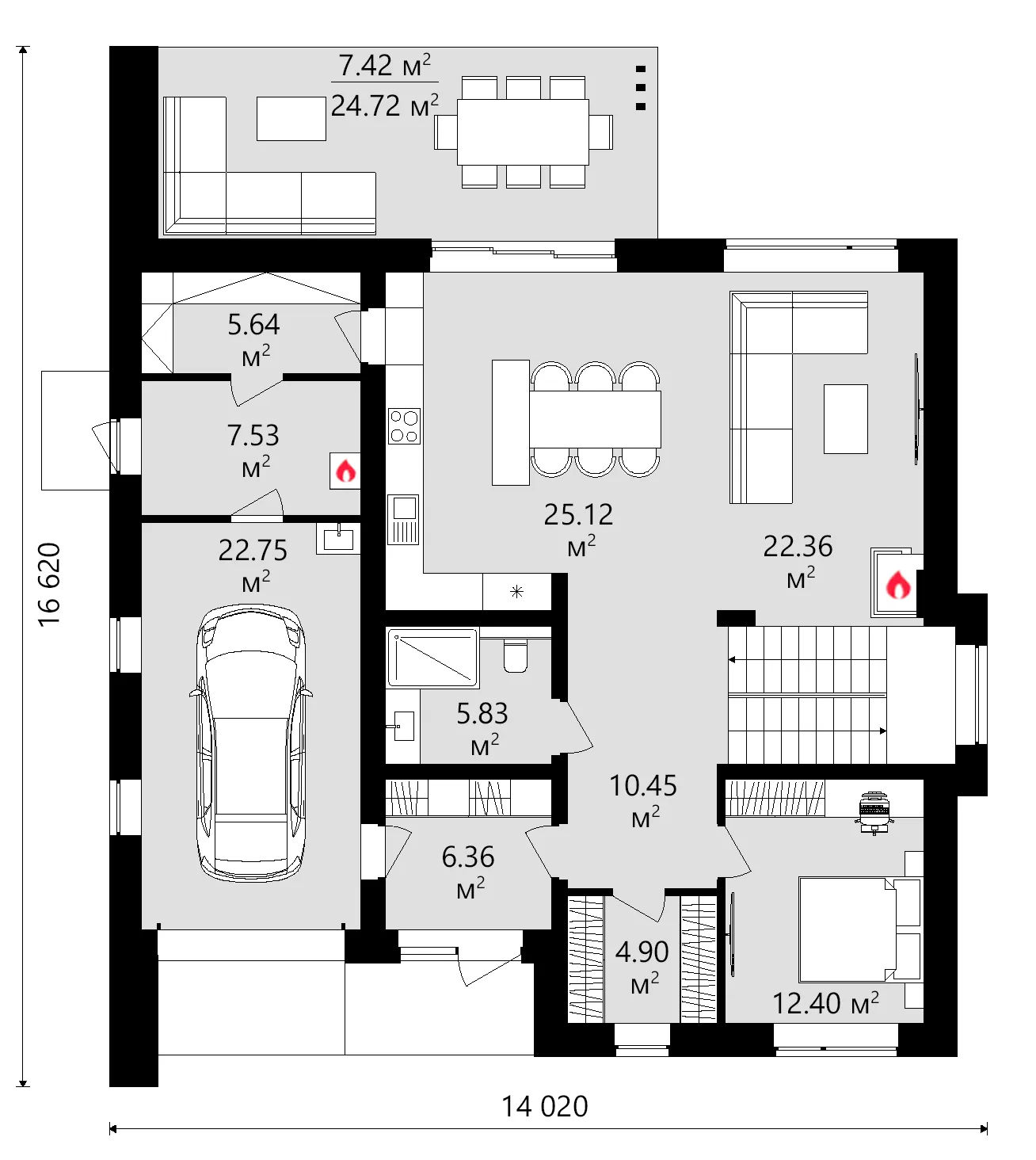

Main Floor
Main Floor 12 – 2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 85517C

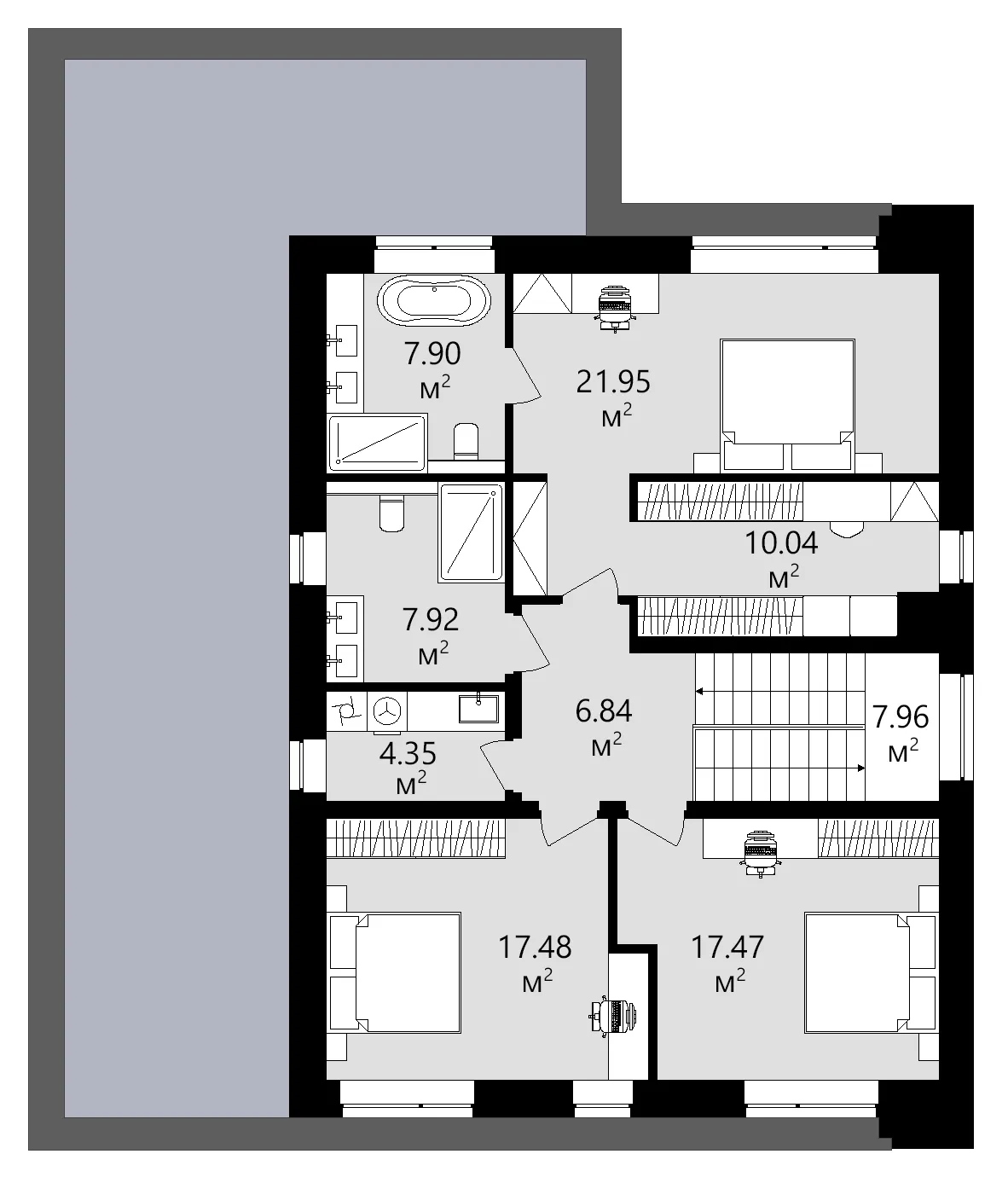

Second Floor
Second Floor 13 – 2,260 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 85517C
Full Specs & Features
Area
Total Unheated: 244.88 ft²
Total Heated: 2259.56 ft²
Dimensions
Depth: 50'7" ft
Width: 42'7" ft
Height: 22'9" ft
Garage
Area: 245 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 2088.20 ft²
Flat

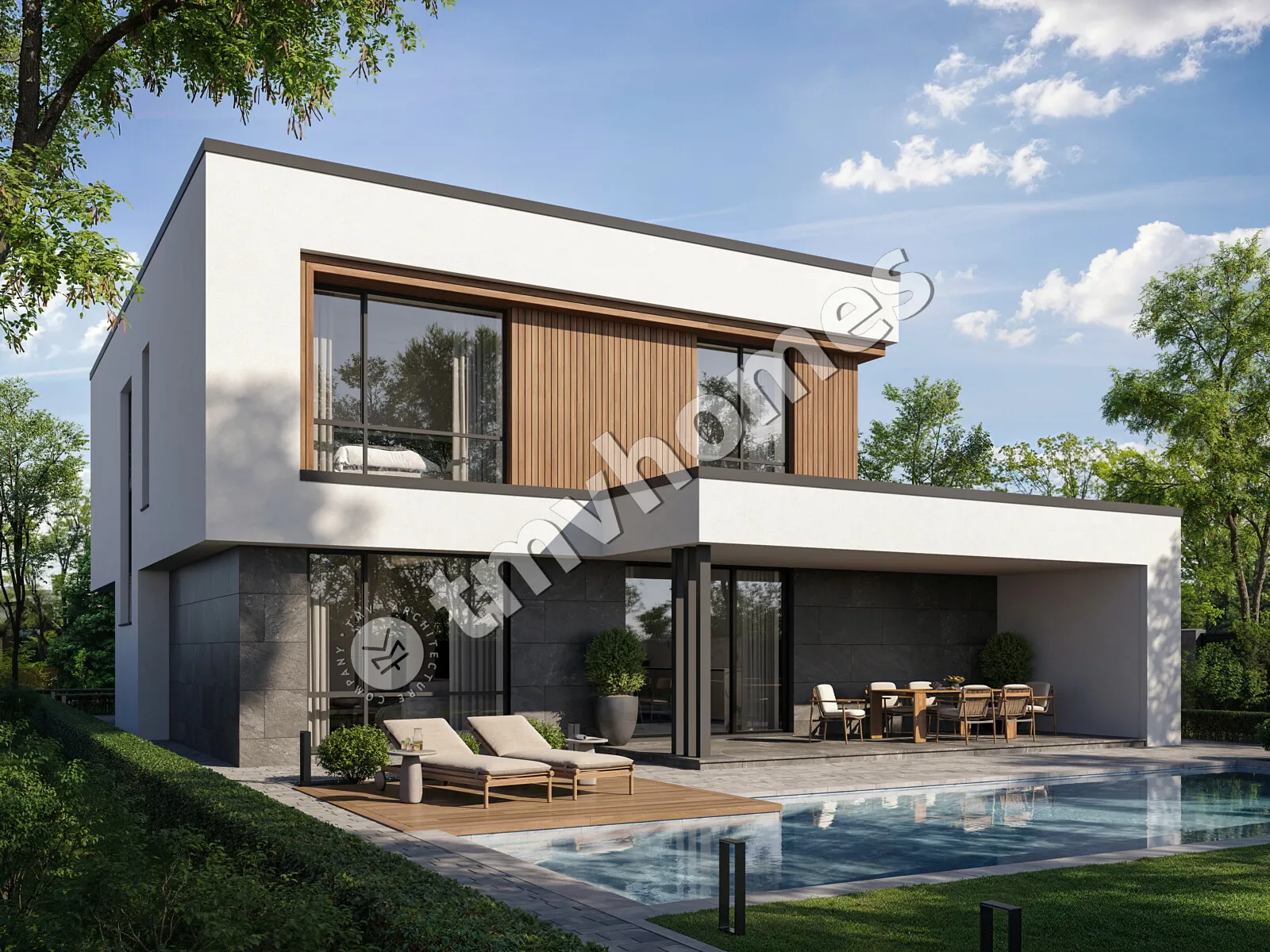

Designed in a modern, high-tech spirit, Plan 85517C is a 4-bedroom 3-storey house plan offering 2,260 Sq Ft beneath a flat roof. This single-family home design measures 42'7" wide and 50'7" deep and rises to a height of 22'9", its sharp, contemporary volumes clad in wood, stucco and flexible ceramic. Rows of large windows and floor-to-ceiling glass give the facades their character and keep the rooms bright from morning onward.

Privacy is built into the layout. A split bedrooms arrangement sets the master suite on the second floor apart from the three remaining bedrooms, and its walk-in closet keeps clothing neatly organized. With three full bathrooms, morning routines rarely collide, even in a busy household. The laundry also sits on the second floor, right where most of the washing begins, while a utility room and separate storage give equipment and everyday clutter a place out of sight.

On arrival, a defined entry gives coats and boots their own zone before the open floor plan unfolds. The family room becomes the centre of the home, warmed by a fireplace that draws everyone together once the evenings grow long. The large kitchen suits both hurried and leisurely days: guests can sit at the breakfast bar while dinner comes together, and the breakfast nook offers a calmer corner for coffee or homework. Floor-to-ceiling windows open the living areas to the outdoors and let daylight reach far into the plan.

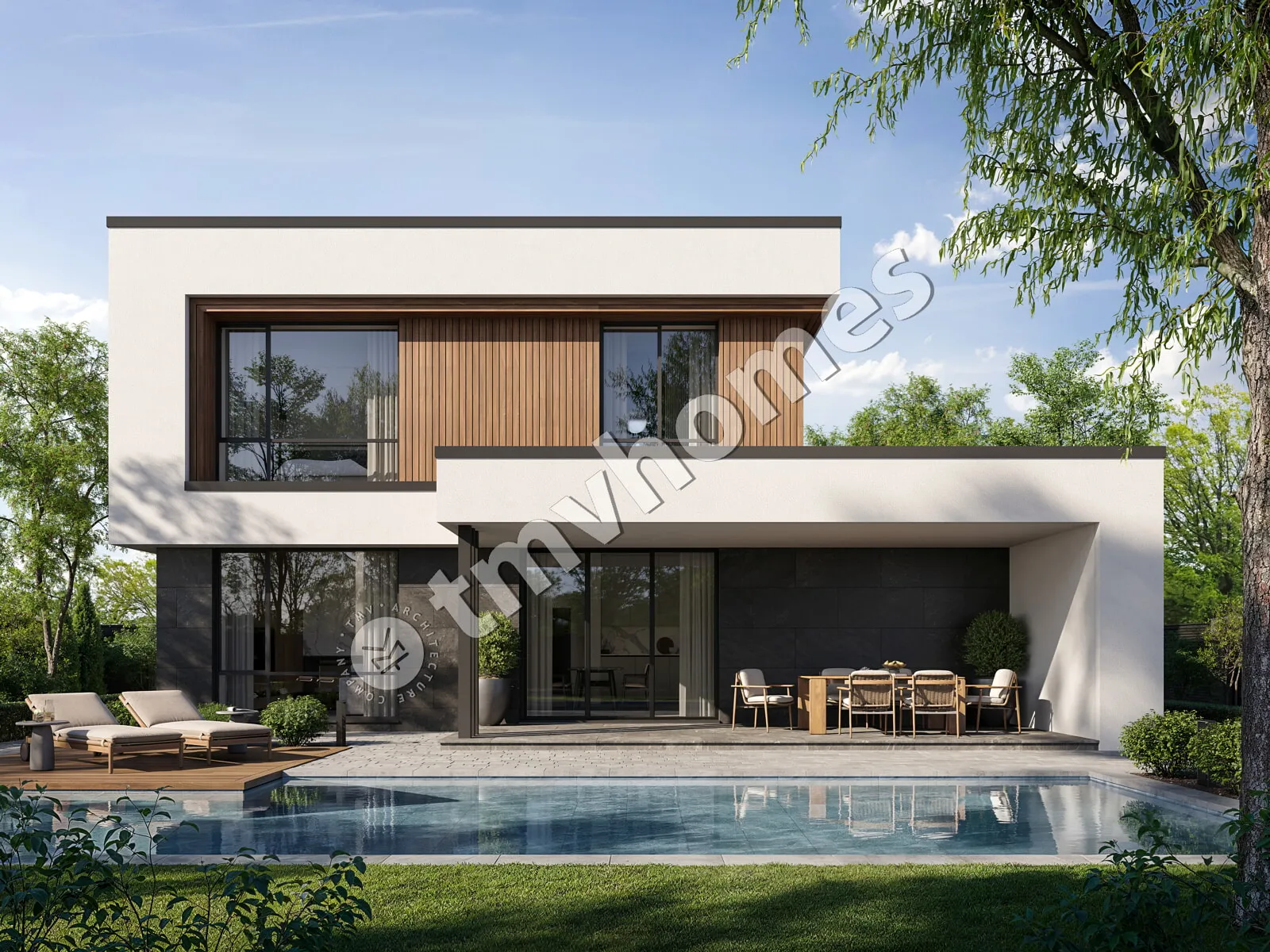

A covered rear porch carries daily life outside, sheltered for summer meals and rainy afternoons alike. The attached one-car garage has a front entry, so the car is parked within the main volume of the house. There is no basement; the home rests on strip footings, and a slab or a concrete block foundation can be supplied on request. The exterior walls are framed in aerated concrete, with ceramic hollow block or calcium silicate block available as alternatives. For families browsing house plans Canada wide for a modern house plan with a fireplace, a flat roof and generous glazing, this three-storey layout delivers 2,260 Sq Ft of thoughtfully arranged living space.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
