1-Story House Plan 1676 ft²: 3 Beds, 2 Baths, Open Floor Plan, 1-Car Garage
1-Story House Plan 1676 ft²: 3 Beds, 2 Baths, Open Floor Plan, 1-Car Garage 1-Story House Plan 1676 ft²: 3 Beds, 2 Baths, Open Floor Plan, 1-Car Garage
5
Construction documents are prepared for the following countries:

1-Story House Plan 1676 ft²: 3 Beds, 2 Baths, Open Floor Plan, 1-Car Garage

Plan
66596R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1676
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Canada United States
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

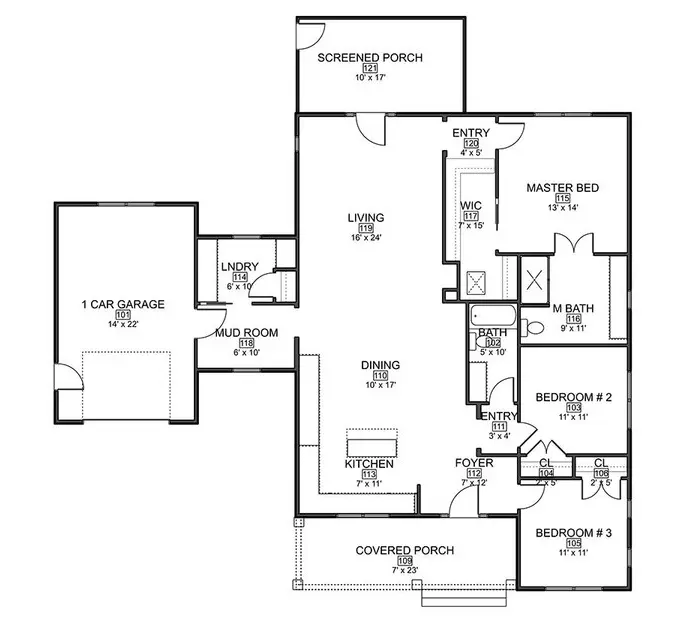

66596R - Main Floor
Full Specs & Features
Area
Main Floor: 1676 ft²
Second Floor: 0 ft²
Third Floor: 0 ft²
Basement: 0 ft²
Bonus: 0 ft²
Porch: 337 ft²
Total Heated: 1676 ft²
Dimensions
Depth: 59'0" ft
Width: 59'0" ft
Height: 26'0" ft
Exterior Wall Framing
Wood-framed
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 2
Bedrooms: 3
Laundry
Entry
Walk In Closet
Foundation
Basement
Crawl Space
Slab
Architectural Style
Country
Craftsman
Farmhouse
Southern
Traditional
American
Exterior Features
Covered Front Porch
Covered Rear Porch
Screened Porch
Interior Features
Laundry On Main Floor
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Garage
Area: 337 ft²
Cars: 1
Attached
Side Entry
Roof
Gable
Hip & Valley
Ridge parallel to street
Roof Pitch: 12/12 (45°)
Ceiling
Main Floor Ceiling Height: 9'10" ft
Second Floor Ceiling Height: 0'0" ft
Third Floor Ceiling Height: 0'0" ft
Basement Ceiling Height: 0'0" ft
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept plan_plan_cad_owner_country_desc
C$420
Printed Plan Set
C$1918
Digital Plan Set
C$1132
C$1559
C$3077
C$3409
C$3740
Foundation
C$0
C$635
C$483
Exterior Walls
C$483
C$0
Additional Options
C$1132
C$414
C$76
C$152
Subtotal
