1-Story House Plan 2620 ft²: 4 Beds, 5 Baths, Open Floor Plan, without Garage

Plan
24770C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2620
Total Heated ft²
5 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

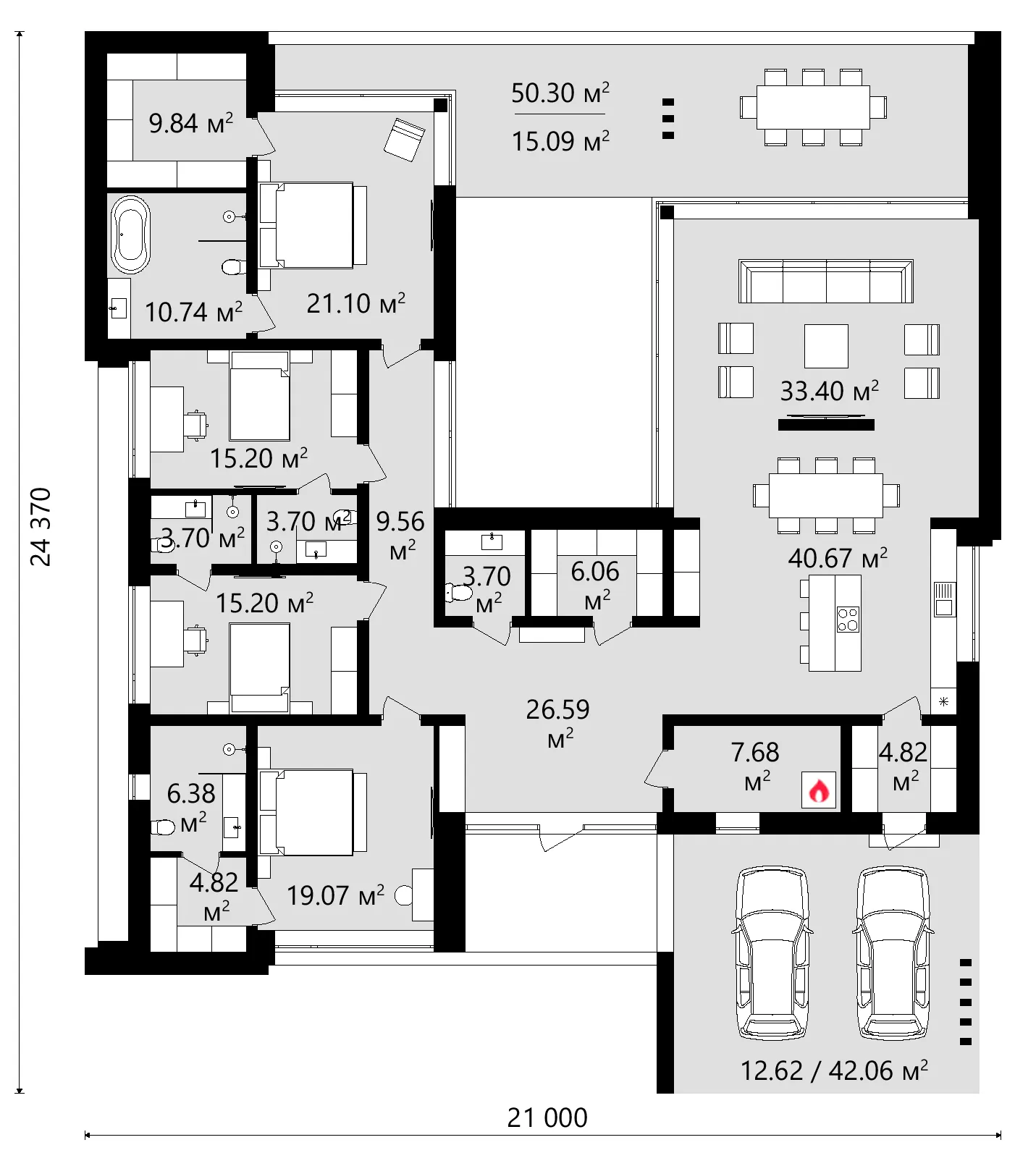

Floor Plans
Main Floor
Main Floor 13 – 1-Story House Plan 2620 ft², 4 Beds — 24770C
Full Specs & Features
Area
Total Heated: 2620.37 ft²
Dimensions
Depth: 74'3" ft
Width: 64'0" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 5
Bedrooms: 4
Utility room
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Main Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Courtyard
Covered Rear Porch
Corner Window
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 4226.45 ft²
Flat

Designed for one-level living, plan 24770C is a 4-bedroom bungalow house plan with a contemporary, high-tech look, a flat roof and 2620 ft² spread across a single storey. Its H-shaped footprint measures 64'0" wide and 74'3" deep, with wood and stucco cladding on the exterior. Behind those finishes, the walls are framed in aerated concrete block, and ceramic hollow block or sand-lime block framing can be requested instead. For families browsing house plans Canada, this modern single family home offers a rare pairing of four bedrooms and five full bathrooms without a single staircase.

Privacy shapes the sleeping quarters. The bedrooms are clustered together, and two of them are full master suites, one of them the main floor master. That arrangement suits a household with in-laws, adult children or frequent overnight guests, since each suite can work on its own. With five full bathrooms in total, no one waits for a shower in the morning, and a walk-in closet gives a busy family the wardrobe space it needs. A separate utility room takes care of laundry, cleaning supplies and household equipment, keeping that work out of sight.

Where the household gathers, an open floor plan joins a large family room with an equally generous kitchen. The island anchors the cooking zone and doubles as a spot for quick lunches or homework, while the walk-in pantry holds bulk groceries and small appliances. A breakfast nook offers a quieter corner for the first coffee of the day. Glass defines this part of the home design: floor-to-ceiling windows, window walls, panoramic windows, large windows and a corner window draw daylight deep into the rooms.

The courtyard is the signature of the plan. Framed by the arms of the H, it forms a private outdoor room at the centre of the house, while a covered rear porch adds another place to dine outside or linger through a long evening. A carport for two cars shelters the vehicles. The bungalow has no basement and rests on strip footings, with a slab or a concrete block foundation available as alternatives. Crisp lines and the flat roof give this contemporary 2620 ft² home a calm, confident silhouette from every side.
