Home / House plans / 14862R
Main Images 2 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R
Main Images 3 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R Main Images 4 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R
6
Construction documents are prepared for the following countries:

1.5-Story House Plan with Basement 3590 ft²: 4 Beds, 4.5 Baths, Open Floor Plan, 3-Car Garage

Plan
14862R
Complete
Unsigned & Unsealed
DC Available
Key Specs
3590
Total Heated ft²
4 + 1
Baths + 1/2 Baths
4 + 0
Beds + Home Office
3
Cars
Canada United States
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

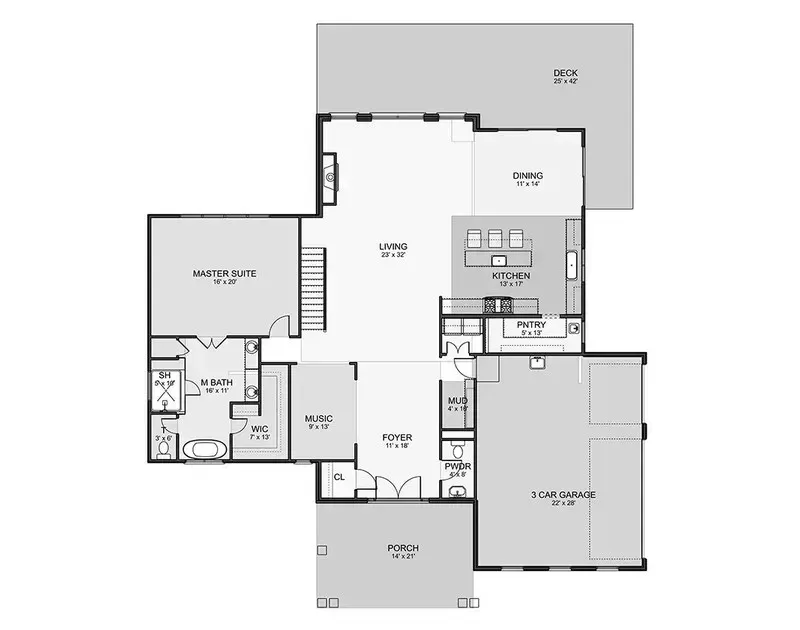

Main Floor
Main Floor 10 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R

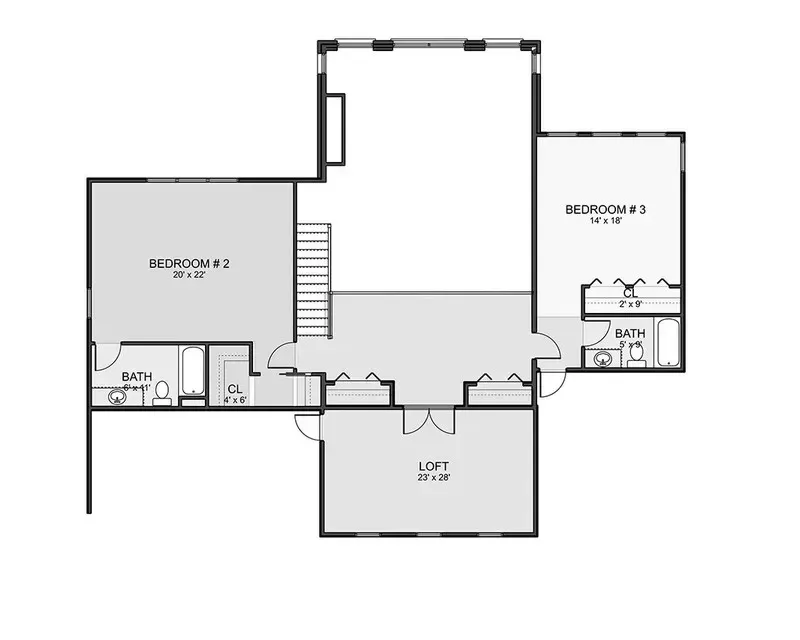

Second Floor
Second Floor 11 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R
Basement
Basement 9 – 1.5-Story House Plan 3590 ft², 4 Beds — 14862R
Full Specs & Features
Area
Main Floor: 2266 ft²
Second Floor: 1324 ft²
Basement: 1109 ft²
Bonus: 240 ft²
Porch: 933 ft²
Total Heated: 3590 ft²
Dimensions
Depth: 60'4" ft
Width: 66'3" ft
Height: 45'3" ft
Garage
Area: 661 ft²
Cars: 3
Attached
Side Entry
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 4
Half bathrooms: 1
Bedrooms: 4
Utility room
Bonus/Flex Room
Entry
Storage
Walk In Closet
Mudroom
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Front Porch
Deck
Large Windows
Architectural Style
Country
New American
American
Modern Farmhouse
Roof
Hip & Valley
Roof Pitch: 12/12 (45°)
Ceiling
Main Floor Ceiling Height: 9'0" ft
Second Floor Ceiling Height: 9'0" ft

Plan 14862R is a 4-bedroom 2-story house plan with 3590 ft² of living space, a steep 12/12 hip and valley roof and a modern farmhouse look that blends Country, New American and American design. The single family home sits on a T-shaped footprint wrapped in siding and measures 66'3" wide and 60'4" deep, with a height of 45'3". It has four bedrooms, four full bathrooms and a half bath, all set above a walkout basement.

The front entry leads into an open floor plan centered on a large family room. Its fireplace anchors the space, and the room is open to below, so the full height of the house rises above the seating area while a loft on the upper level looks down into it. This makes it a true house plan with fireplace at its heart, where winter evenings gather everyone in one place. The large kitchen flows straight from the family room and is built for daily use and for hosting: an island for preparation, a breakfast bar for quick meals and conversation, a breakfast nook for slower mornings and a walk-in pantry that keeps supplies close but out of sight.

The main floor master gives the owners a private retreat with its own walk-in closet, and the split bedrooms layout keeps the remaining bedrooms well apart from it, which suits families with older children or regular guests. With four full bathrooms and a powder room for visitors, mornings run without waiting. A bonus/flex room adapts to a home office, playroom or media space as the family's needs change. Practical rooms are generous: a mudroom catches coats and boots on the way in, a utility room handles laundry and household chores, and dedicated storage keeps the living areas uncluttered.

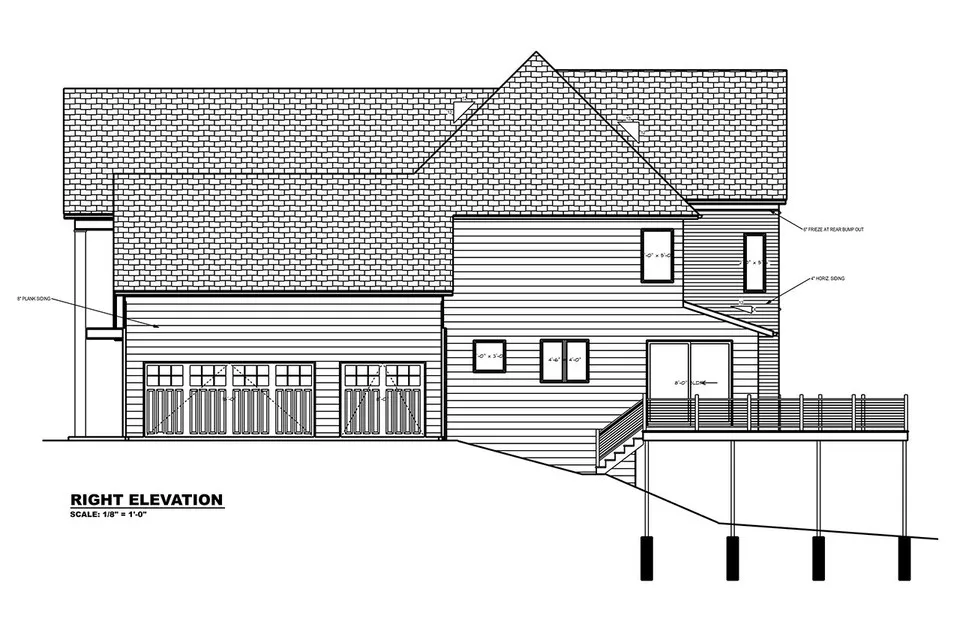

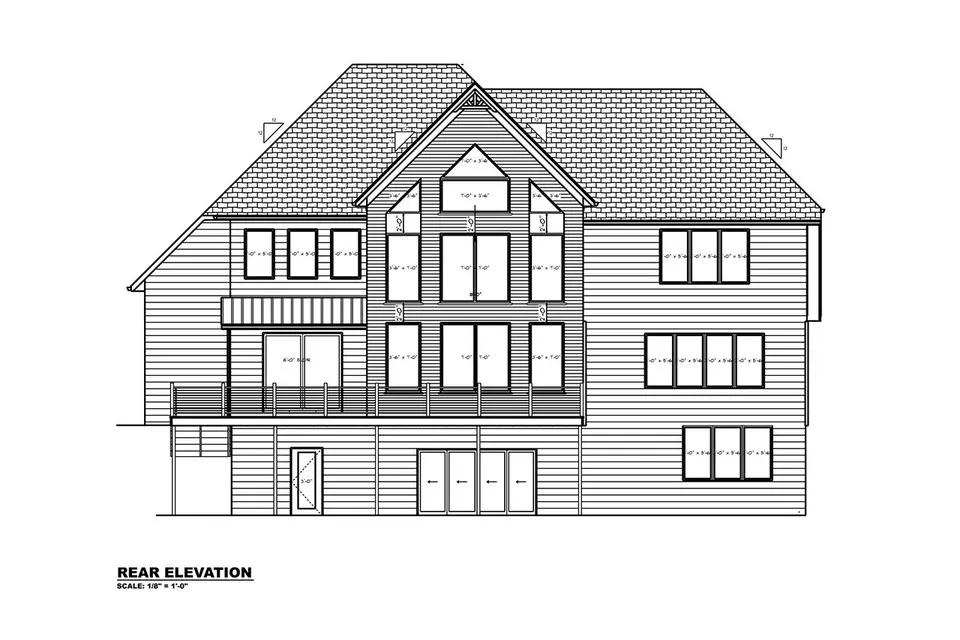

Outside, the house rests on a walkout basement, with a slab or crawl space also available on request. The walls are framed with 2x6 wood, and 2x4 framing is offered as an alternative. A 3-car attached garage with side entry keeps the front elevation clean and gives direct access into the home. Stacked porches add depth to the facade: a covered front porch below and a balcony above invite you to sit outside and watch the evening light, while a deck extends living space outdoors for summer meals. Large windows throughout bring daylight deep into every room and connect the interior to the surroundings.

Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
Plan Package

Digital Concept (Imperial)
CA$771
Printed Plan Set
CA$2967
Digital Plan Set
CA$1766
CA$2429
CA$4789
CA$5285
CA$5810
Foundation
CA$911
CA$0
CA$911
Exterior Walls
CA$0
CA$911
Additional Options
CA$1766
CA$725
CA$110
CA$221
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
