1,117 Sq Ft Bungalow L-Shaped Single-Story House Plan with 3 Bedrooms, 1.5 Bathrooms and 2-Car Garage

Plan
87760C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1117
Total Heated ft²
1 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

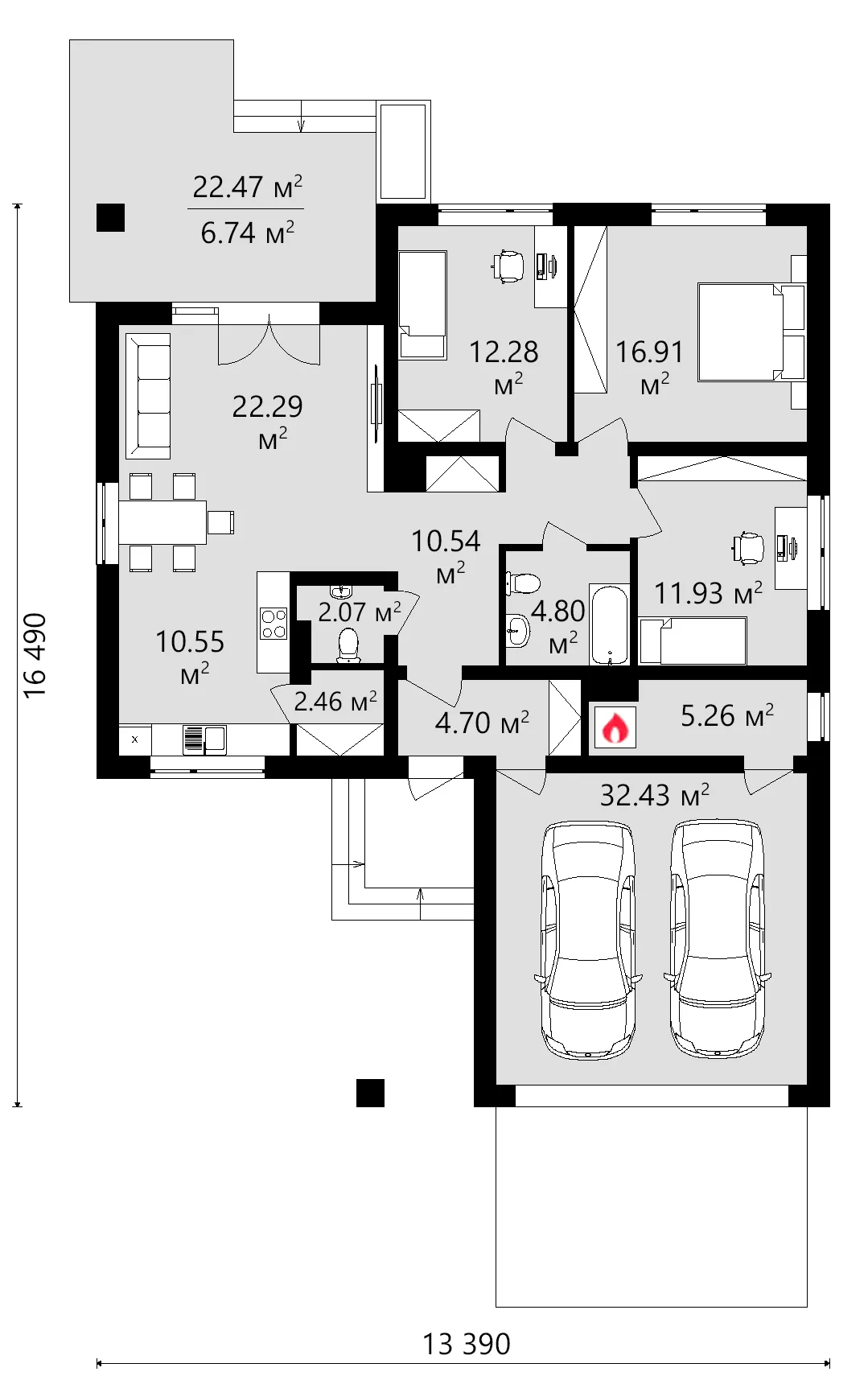

Main Floor
Main Floor 12 – 1,117 Sq Ft Bungalow Single-Story House Plan with 3 Bedrooms and 1.5 Bathrooms – 87760C
Full Specs & Features
Area
Total Unheated: 349.07 ft²
Total Heated: 1117.19 ft²
Dimensions
Depth: 50'3" ft
Width: 40'8" ft
Height: 19'4" ft
Garage
Area: 349 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 1
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Exterior Features
Covered Rear Porch
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 3261.46 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

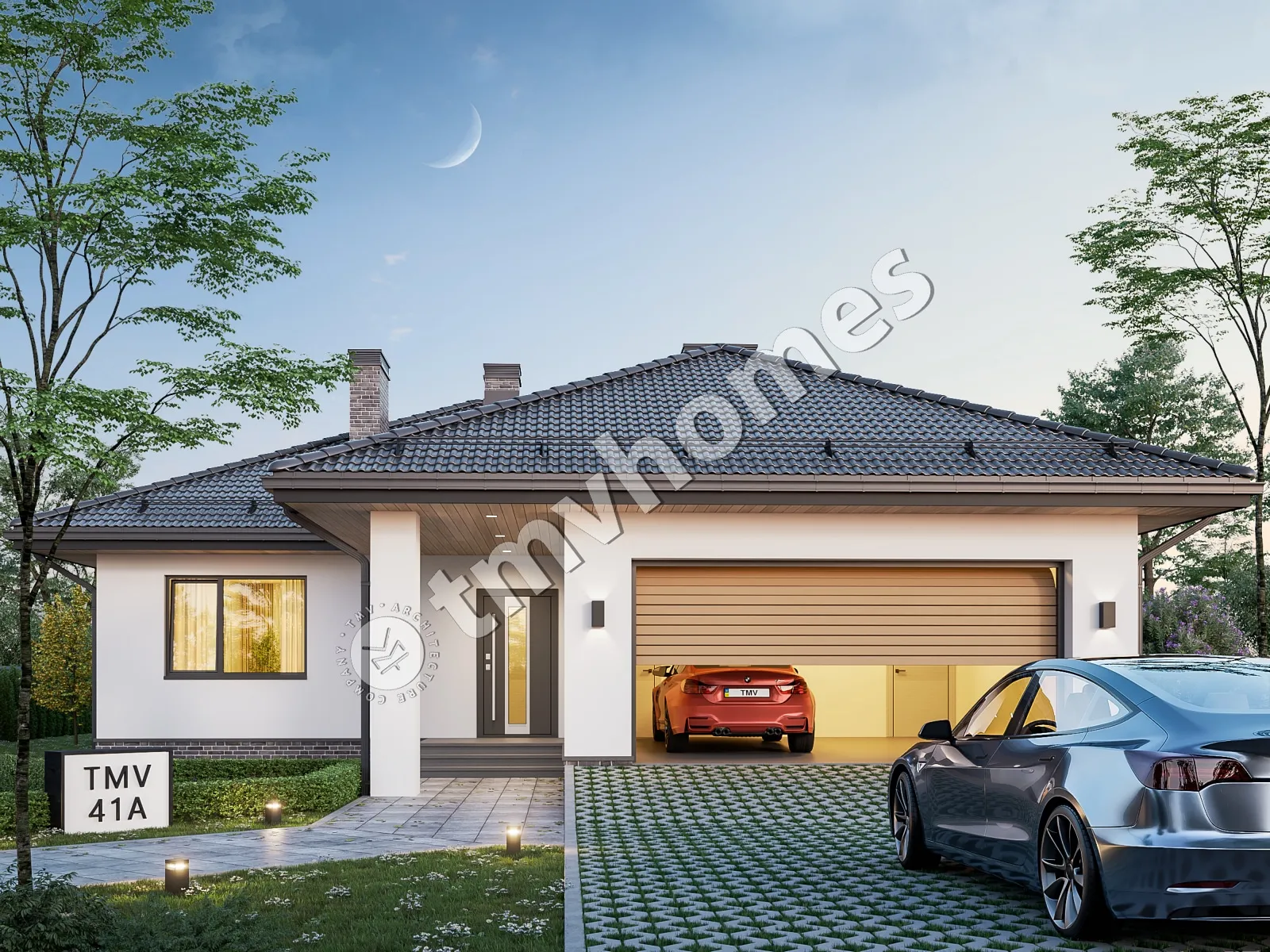

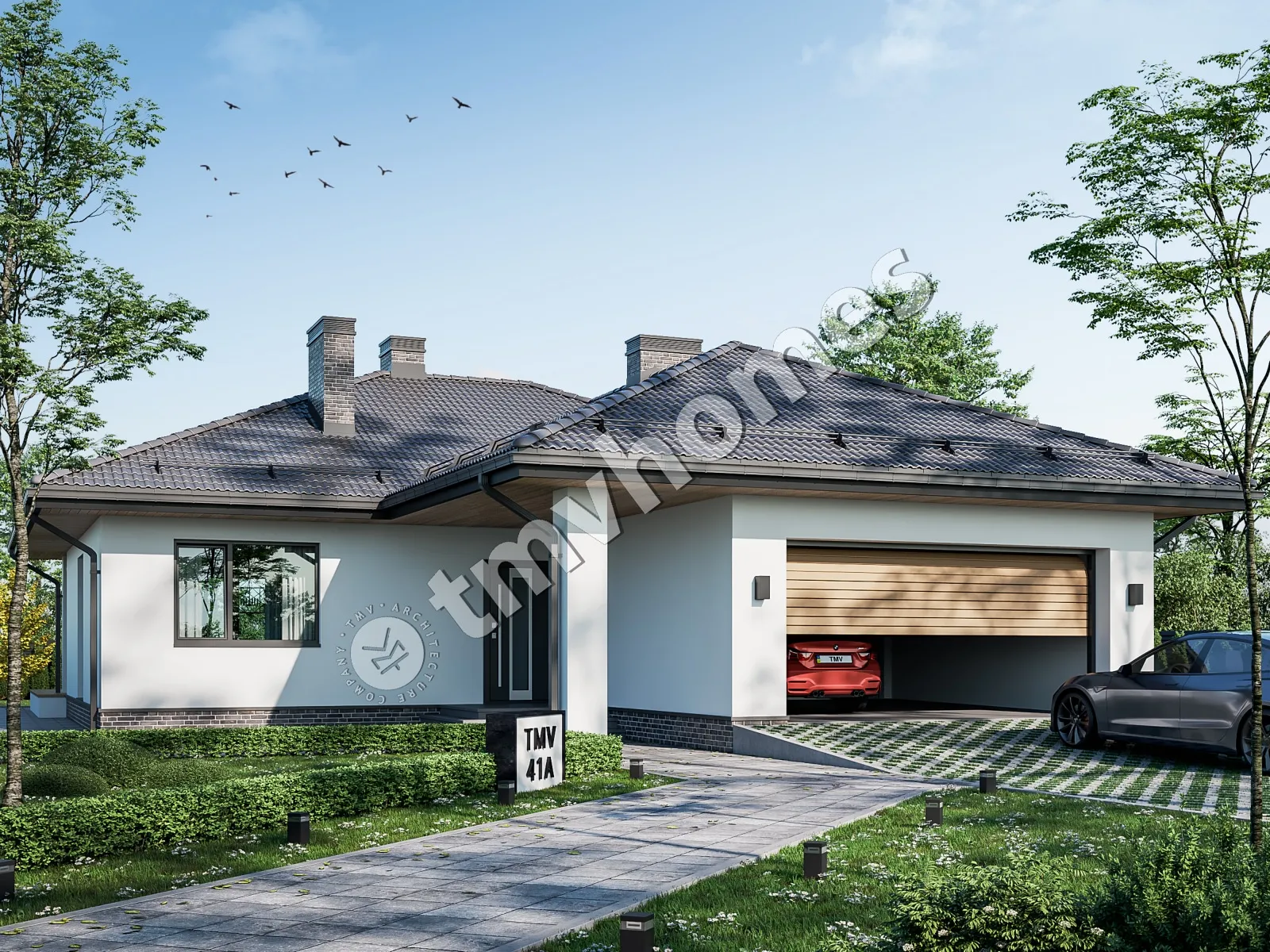

Plan 87760C is a 3-bedroom bungalow house plan on a single storey, offering 1,117 Sq Ft under a hip & valley roof with a 6/12 (26°) pitch. European and Traditional influences shape its stucco exterior and its L-shaped footprint, where the garage steps forward and the main body of the house sits behind it. This single family home is 40'8" wide and 50'3" deep and rises to 19'4" at its highest point, so the 1-storey design stays modest in scale and easy to read from the street.

The sleeping side of this layout deserves a first look. All three bedrooms are clustered in one wing, and because the main floor master sits right among them, parents of young children can stay within a few steps of everyone at night. One full bathroom serves the household, and a half bathroom gives guests a powder room of their own without sending them into the family's private space. A dedicated utility room takes laundry baskets, cleaning supplies and household equipment out of the kitchen and the hallways, which matters in a home of this size.

Past the entry, the open floor plan joins the living area and the kitchen in one continuous space, so conversation carries easily from the stove to the sofa. A breakfast nook sets aside a casual table for weekday mornings and after-school snacks. The walk-in pantry holds bulk groceries, baking supplies and appliances that are used only now and then, leaving the counters free for cooking. On winter evenings the whole family can share one warm room while dinner comes together.

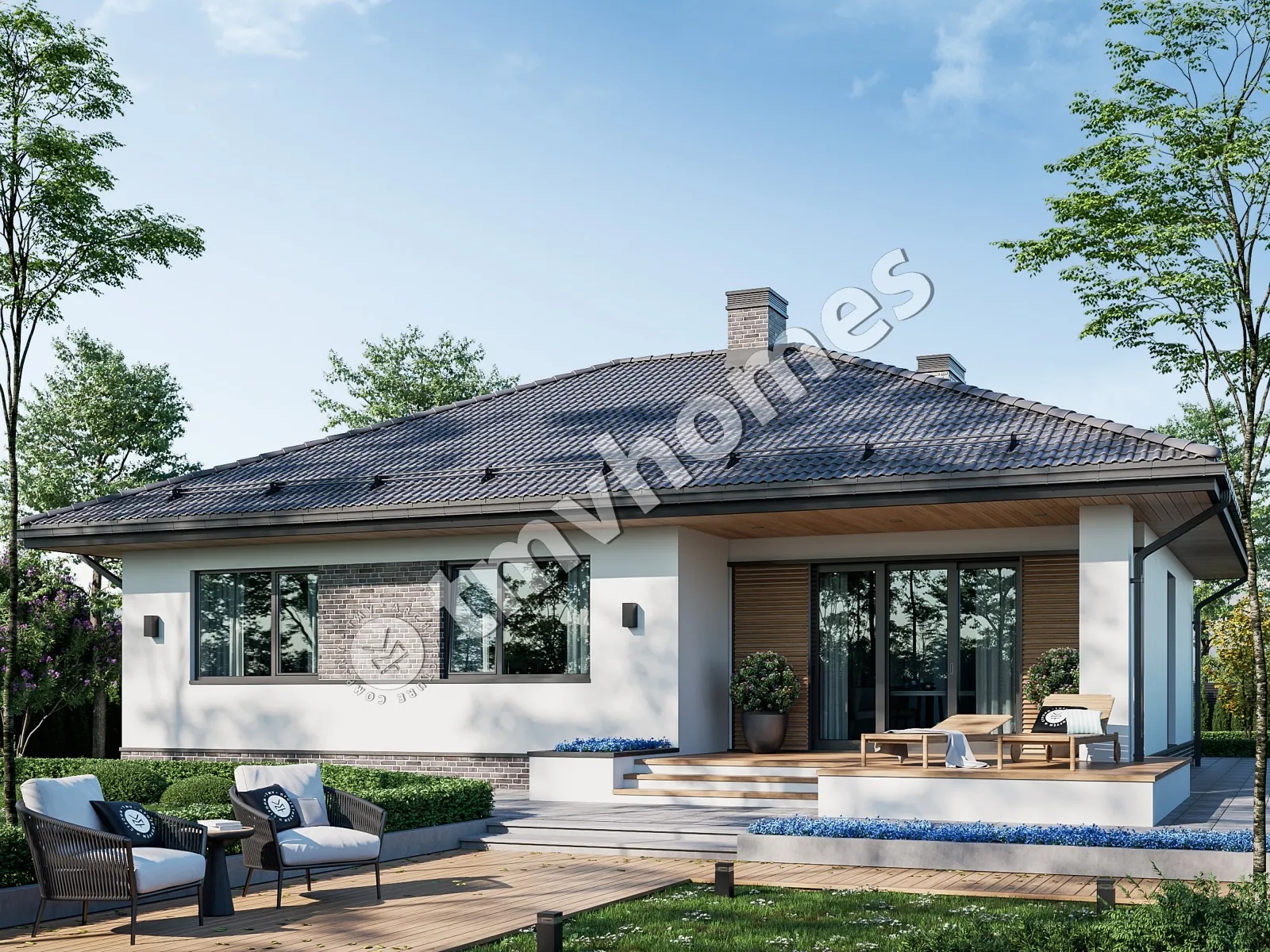

Outside, the front-entry 2-car garage extends forward of the living spaces and gives the home its distinctive L-shaped outline. At the back, a covered rear porch adds a sheltered spot for morning coffee or a summer supper in the open air. The house has no basement and rests on strip footings, with a slab or a block foundation available on request. Its exterior walls are built of aerated concrete, and clay hollow block or calcium silicate block can be chosen instead. For families browsing house plans Canada for a manageable, step-free bungalow, this home design pairs a compact plan with a well-sorted kitchen, a quiet bedroom wing and room for two cars.
