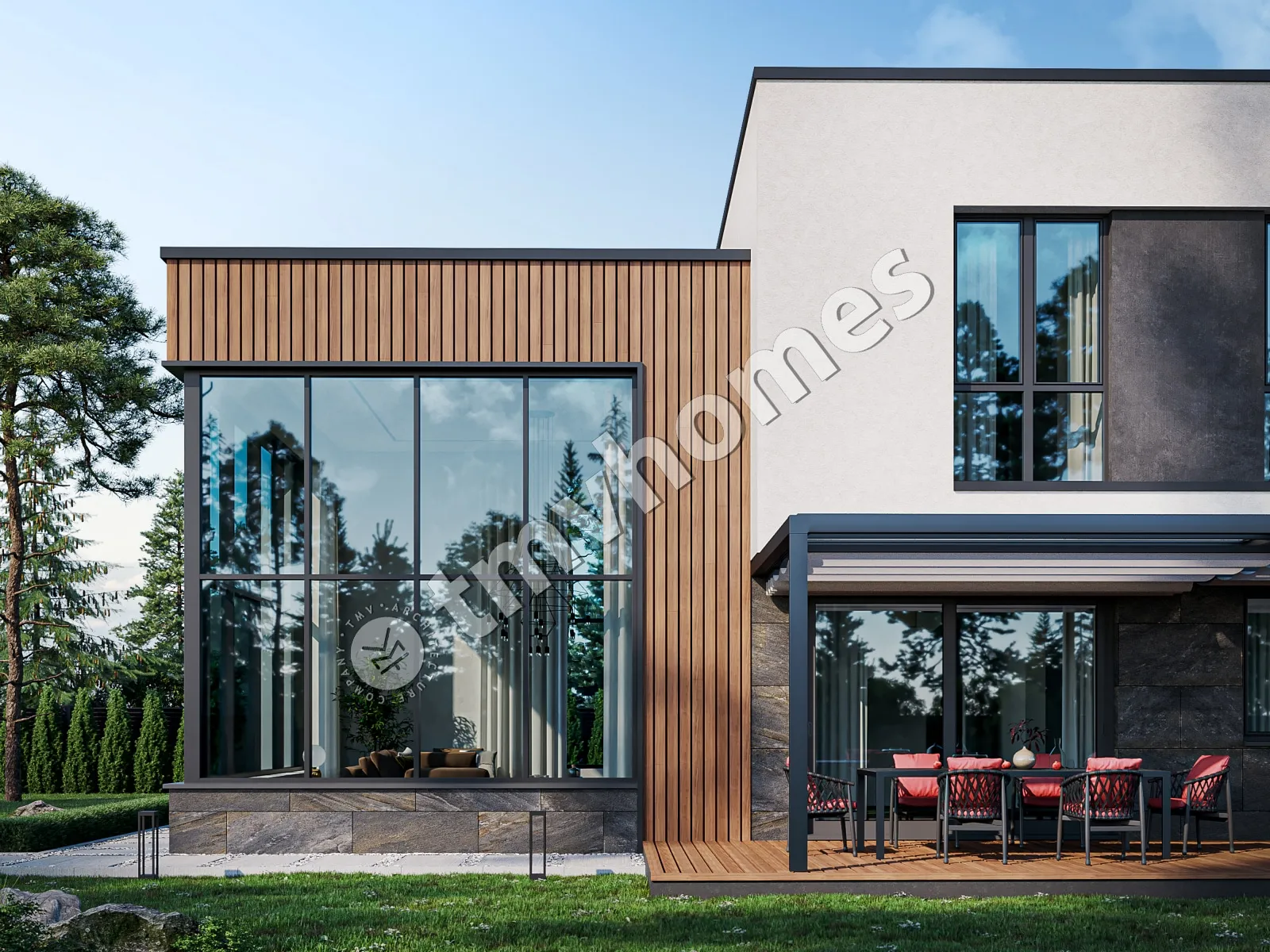

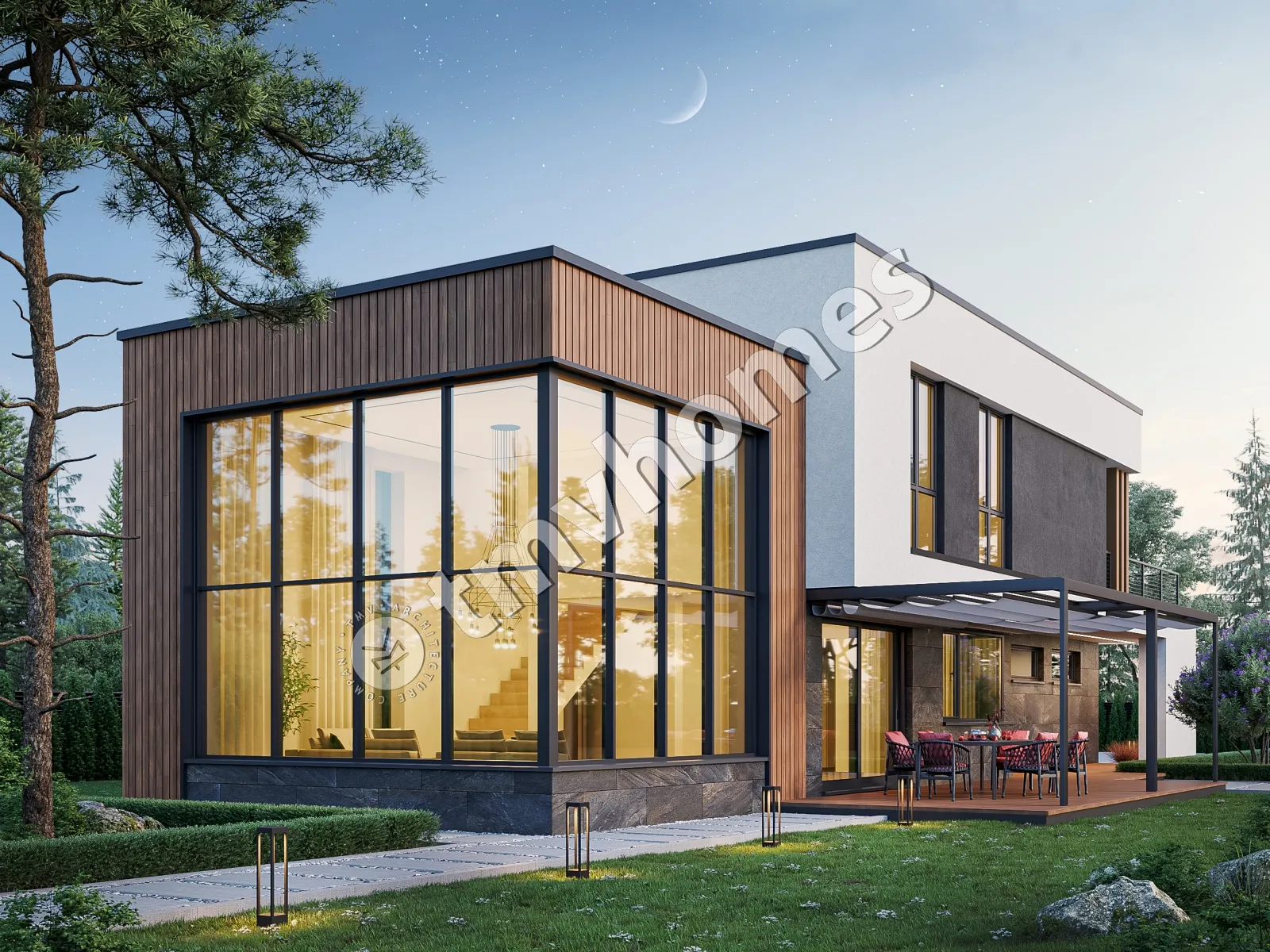

Renderings 2 – 2-Story House Plan 2163 ft², 3 Beds — 57448C
Renderings 4 – 2-Story House Plan 2163 ft², 3 Beds — 57448C Renderings 7 – 2-Story House Plan 2163 ft², 3 Beds — 57448C
8
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2163 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
57448C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2163
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

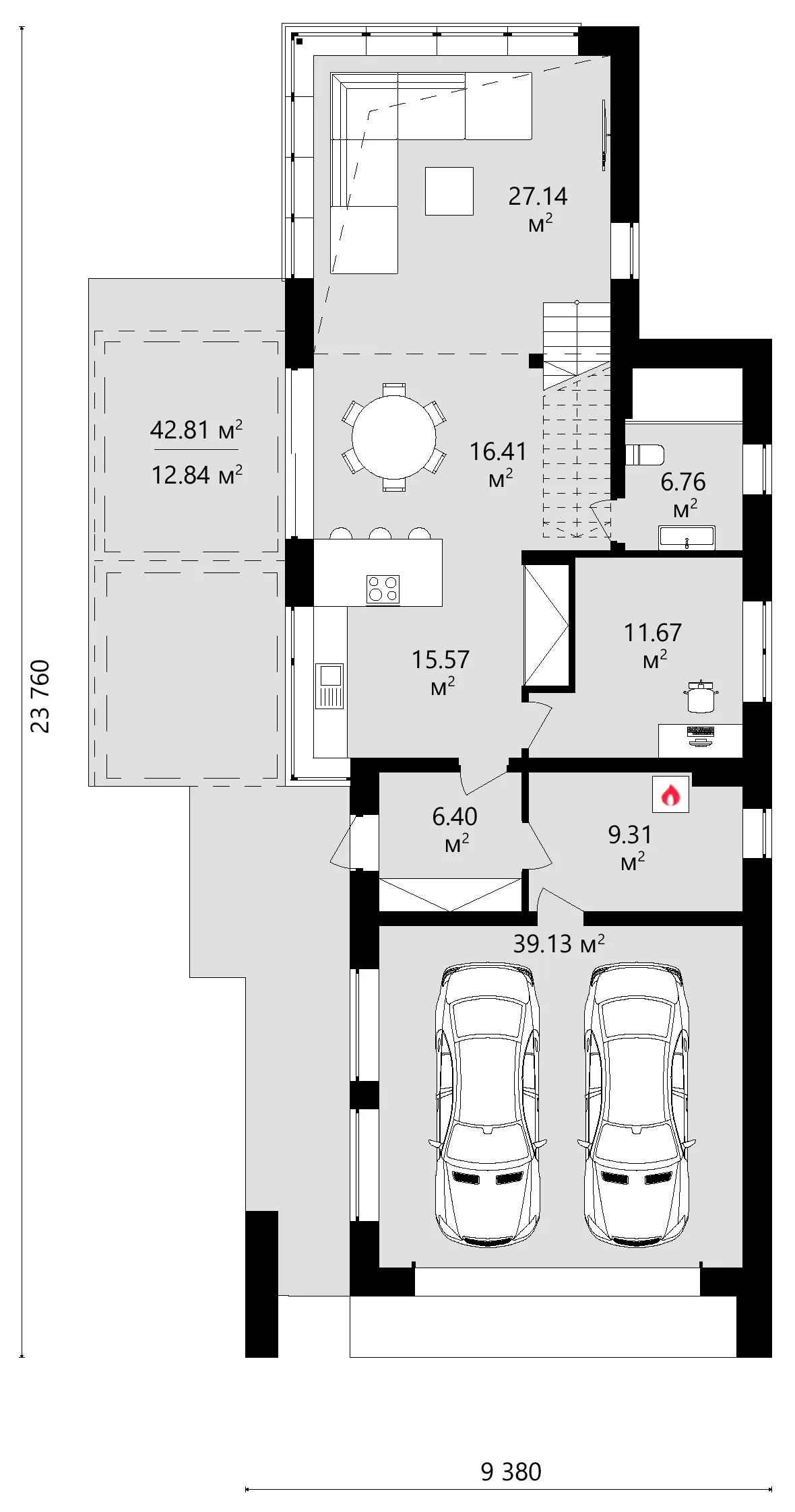

Main Floor
Main Floor 10 – 2-Story House Plan 2163 ft², 3 Beds — 57448C

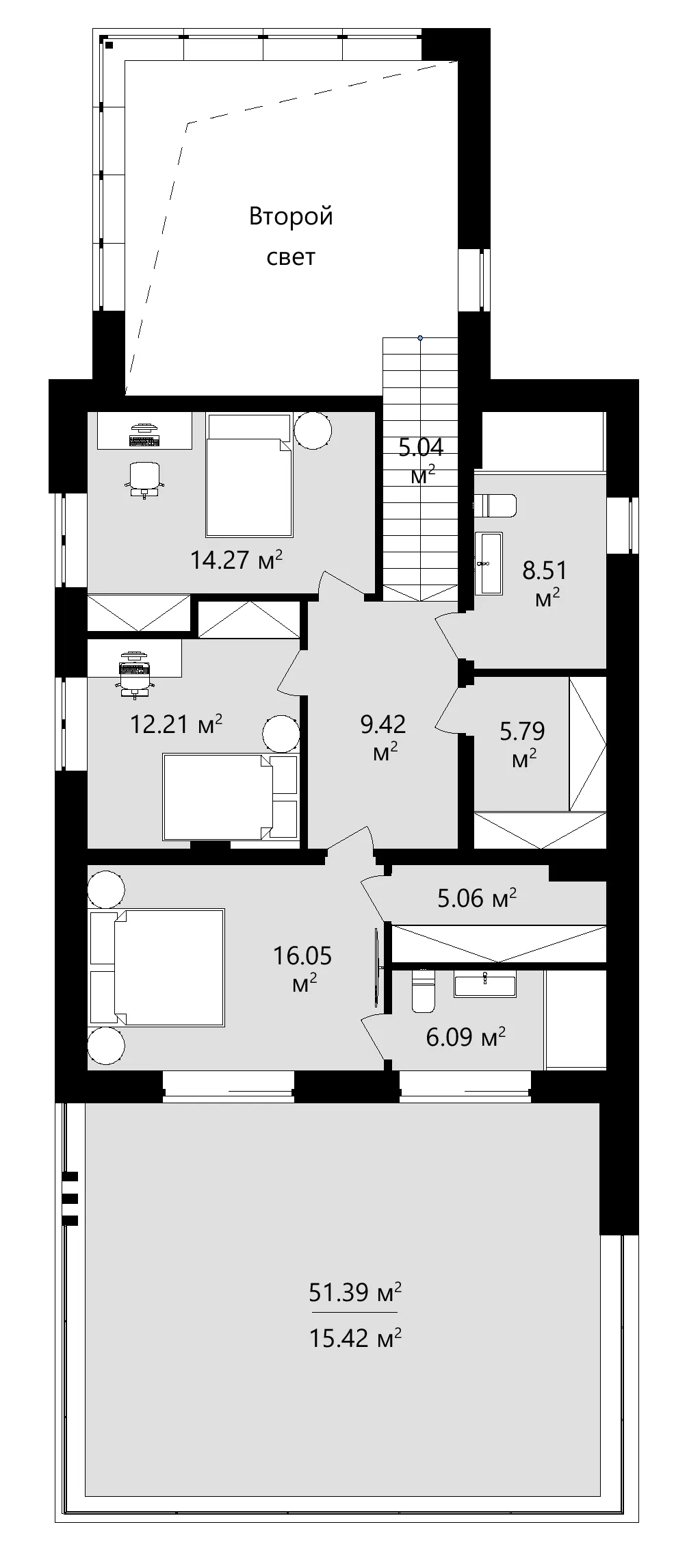

Second Floor
Second Floor 11 – 2-Story House Plan 2163 ft², 3 Beds — 57448C
Full Specs & Features
Area
Total Unheated: 421.19 ft²
Total Heated: 2163.12 ft²
Dimensions
Depth: 72'4" ft
Width: 28'6" ft
Height: 21'8" ft
Garage
Area: 421 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Tiles
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Corner Window
Panoramic Windows
Window Walls
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
High-tech
Modern
Roof
Roof Area: 1251.52 ft²
Flat

Three storeys of crisp, contemporary living rise beneath a flat roof in plan 57448C, a 3-bedroom 3-storey house plan that brings 2163 ft² of modern design with high-tech detailing to a slim, vertical footprint. Wood, stucco and tiles share the facade, giving the exterior a layered texture that changes with the light through the day. The home measures 28'6" wide and 72'4" deep and stands 21'8" high, a narrow house plan that makes the most of its height. Its exterior walls are built of aerated concrete, while clay block and sand-lime block framing are also available on request.

The bedrooms are clustered together, so parents and children stay within easy reach of one another. On the second floor, the master suite offers a walk-in closet for organized storage, and three full bathrooms spread across the house keep busy mornings running smoothly. A separate home office suits remote work or homework, set apart from the shared rooms. Everyday practicality is covered as well: a proper entry gives everyone a place to drop bags and boots on arrival, and a utility room keeps laundry and household equipment out of sight.

Downstairs, an open concept layout joins a large family room and a large kitchen in a single generous space. The ceiling above the family room is open to below, so the two-storey volume feels airy and connects the levels visually. Window walls and floor-to-ceiling glass draw the eye outward, and on a winter evening the room glows like a lantern. In the kitchen, a centre island anchors meal preparation, a breakfast bar seats the family for a quick bite, and a breakfast nook tucked against a corner window becomes the favourite spot for a slow weekend breakfast.

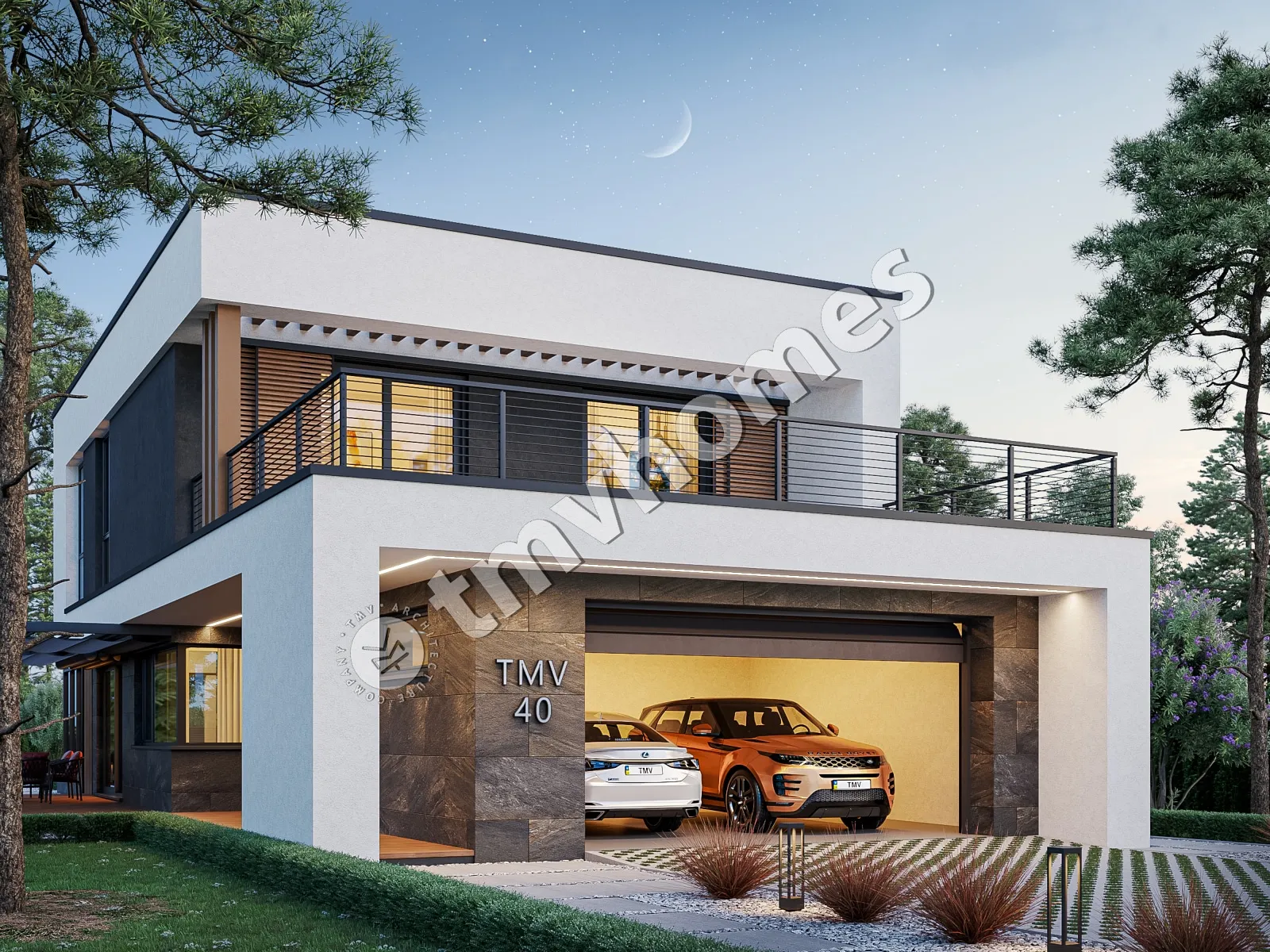

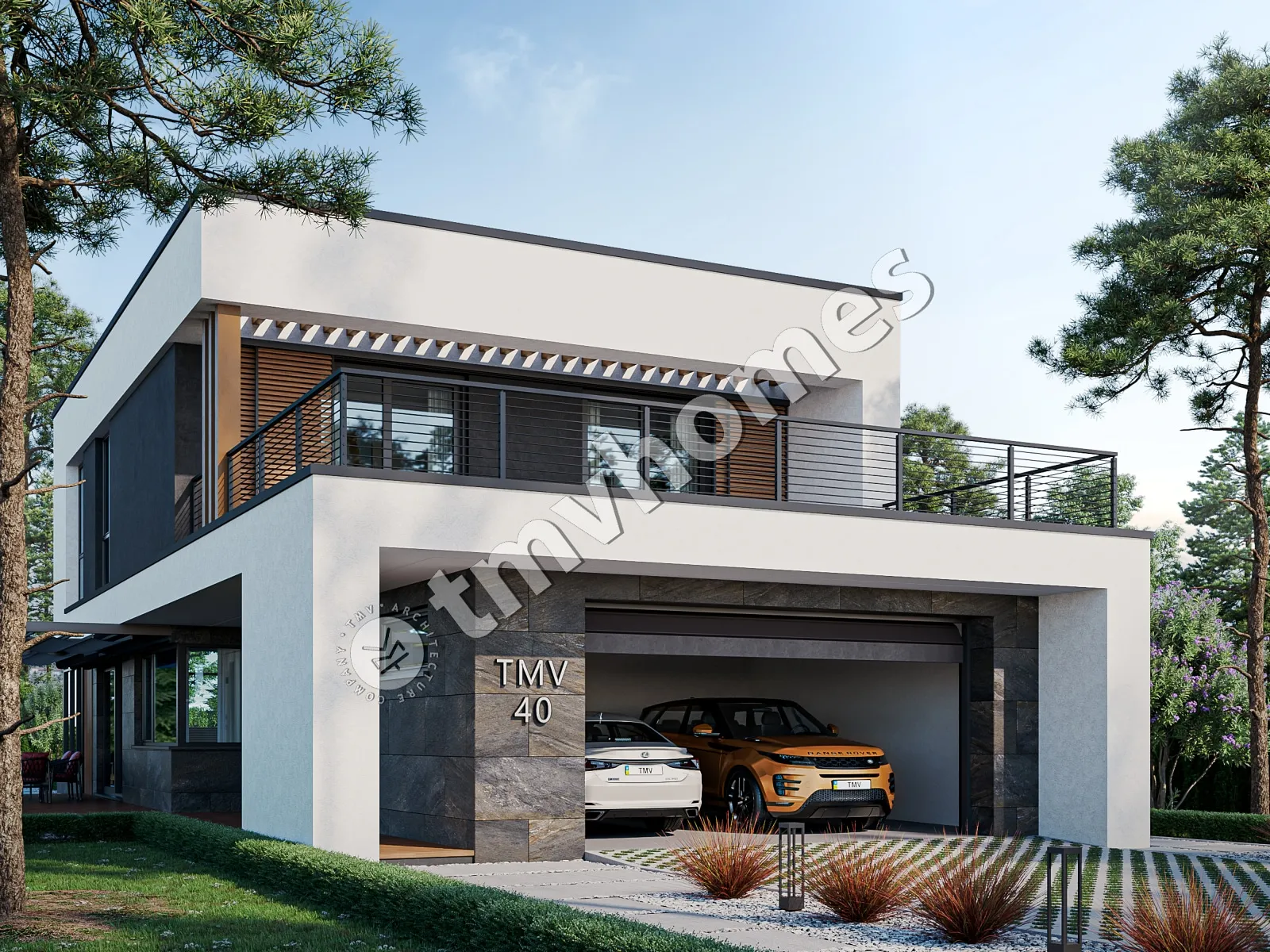

The house rests on strip footings, with a slab or a concrete block foundation offered as alternatives, and it is designed without a basement. A front-entry garage for two cars sits at the street side, and its roof is put to work as a garage rooftop deck, a private outdoor terrace above the driveway. A balcony and a separate deck add further room for fresh air, while panoramic windows, large windows and corner windows bring daylight into every storey. For families browsing house plans Canada for a contemporary home design with real character, this 3 bedroom house plan delivers 2163 ft² of thoughtful, light-filled space.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
