Renderings 2 – 1.5-Story House Plan 1854 ft², 4 Beds — 41187C
Renderings 4 – 1.5-Story House Plan 1854 ft², 4 Beds — 41187C Renderings 9 – 1.5-Story House Plan 1854 ft², 4 Beds — 41187C
8
Concept
Construction documents are prepared for the following countries:

1.5-Story House Plan 1854 ft²: 4 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
41187C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1854
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

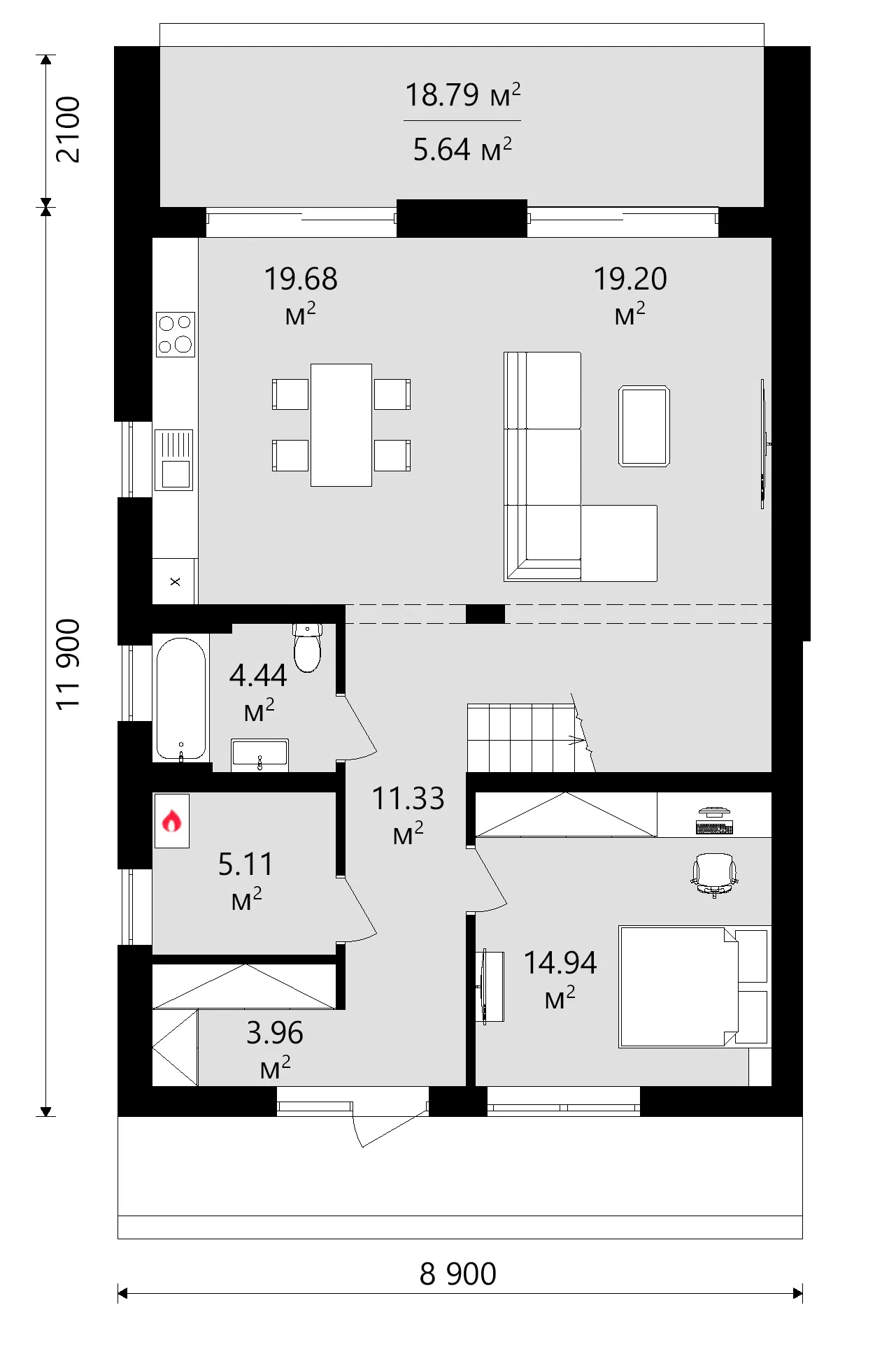

Main Floor
Main Floor 8 – 1.5-Story House Plan 1854 ft², 4 Beds — 41187C

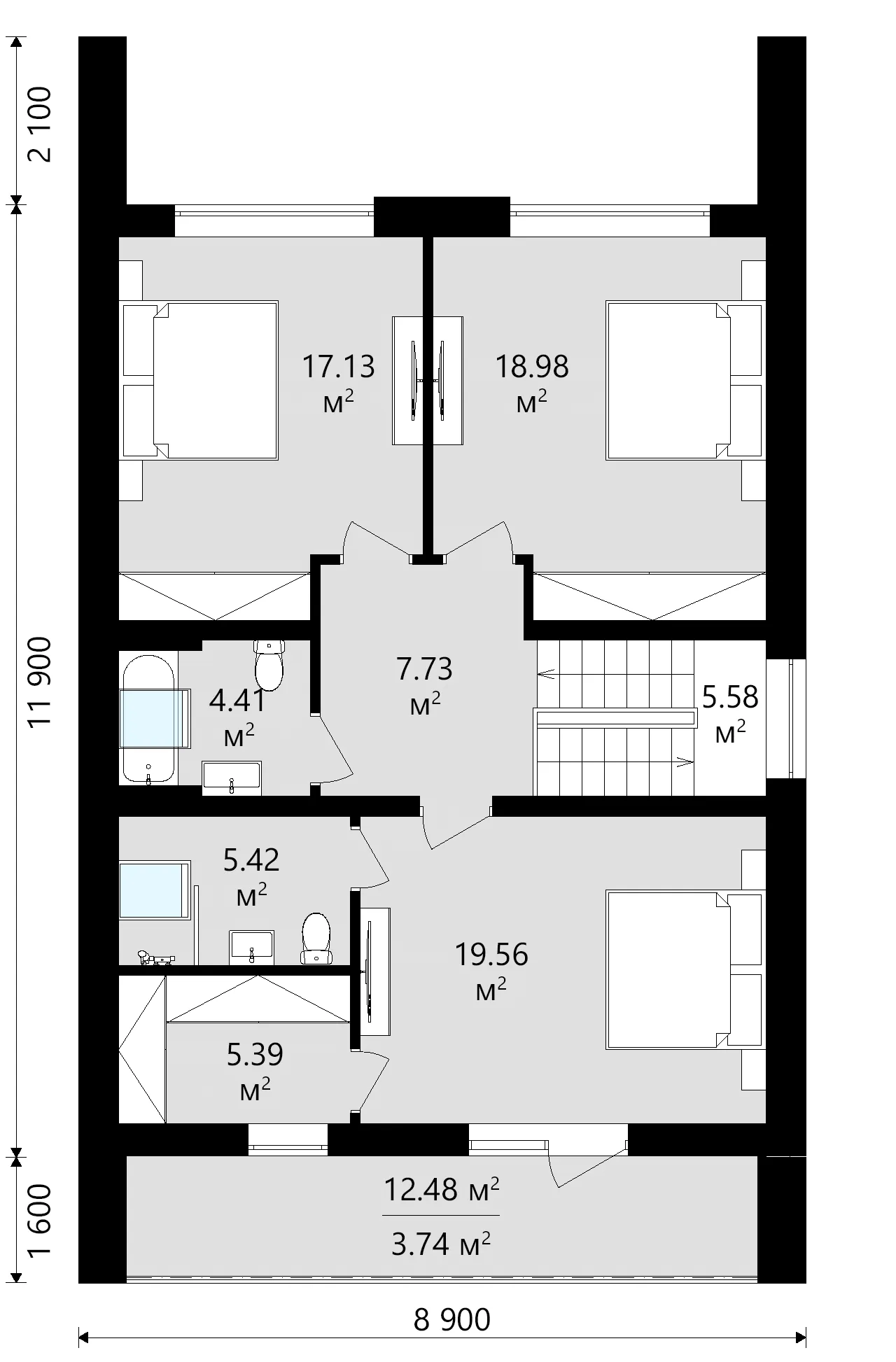

Second Floor
Second Floor 11 – 1.5-Story House Plan 1854 ft², 4 Beds — 41187C
Full Specs & Features
Area
Total Heated: 1853.98 ft²
Dimensions
Depth: 47'5" ft
Width: 27'1" ft
Height: 25'4" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Metal Panels
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Second Floor Master
Split Bedrooms
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Barn
Contemporary
European
Modern
Scandinavian
Roof
Roof Area: 1717.06 ft²
Gable
Skylight
Ridge perpendicular to street
Roof Pitch: 7/12 (30°)

Scandinavian in spirit and crisp in outline, plan 41187C is a 4-bedroom 2-storey house plan that arranges 1854 ft² of living space under a steep gable roof with a 7/12 (30°) pitch. Modern and contemporary lines meet European proportions here, and the wood cladding adds a rustic warmth beside the stucco and metal panels. The home measures 27'1" wide and 47'5" deep and rises to a height of 25'4". Because of its narrow shape, the ridge runs perpendicular to the street, so the gable end becomes the face of the house. For anyone comparing house plans Canada offers in a single-family home design with a clean silhouette, this one keeps its form simple and its details deliberate.

The sleeping quarters are planned with privacy in mind. The master bedroom is on the second floor and has its own walk-in closet, and a split bedroom layout sets this principal room apart from the other three bedrooms. Those three are clustered close together, which suits parents of young children and still gives older kids a room of their own. Four bedrooms share three full bathrooms, a generous ratio that keeps busy school mornings calm. A separate utility room collects laundry and household chores in one place, well away from the rooms where the family relaxes.

The shared living space follows an open floor plan, linking the kitchen, dining area and living room into a single bright volume. The large kitchen leaves ample counter space for cooking together, and a breakfast nook provides an informal table for weekday meals and homework. Floor-to-ceiling windows and other large windows connect the interior with the outdoors, while a skylight set into the roof sends extra daylight down from above. On a short winter day, every hour of that light counts.

Outdoor living is covered by a deck for meals and gatherings in the warmer months, along with a balcony that opens the upper storey to fresh air. This plan has no garage and no basement. The house rests on strip footings, and a slab or a concrete block foundation is also available. Its exterior walls are built of aerated concrete, with ceramic block or sand-lime block offered as alternatives on request. With four bedrooms, three full baths, plenty of glass and a modern profile, this 2-storey home design brings together thoughtful zoning and easy family routines.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1285
