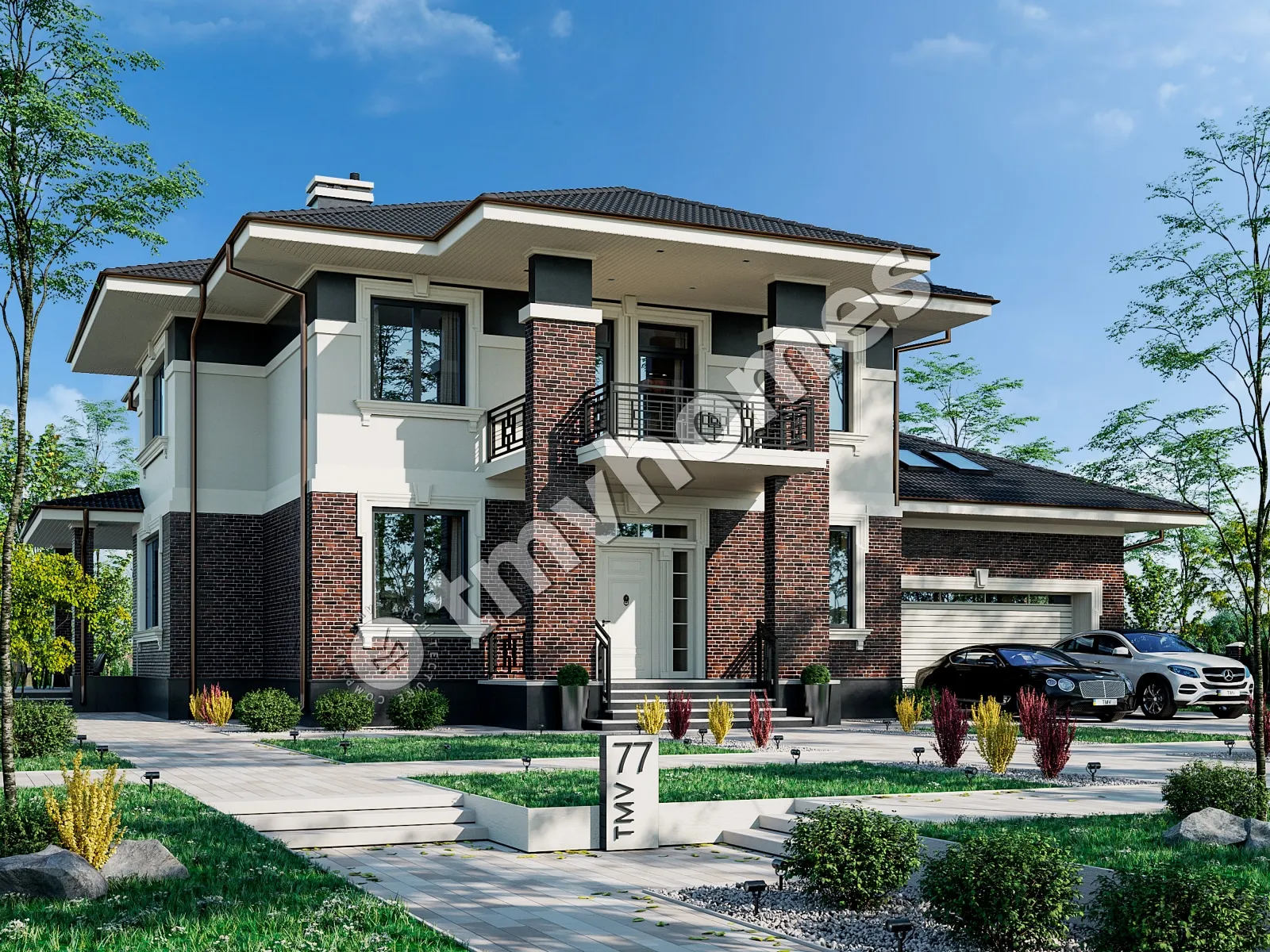

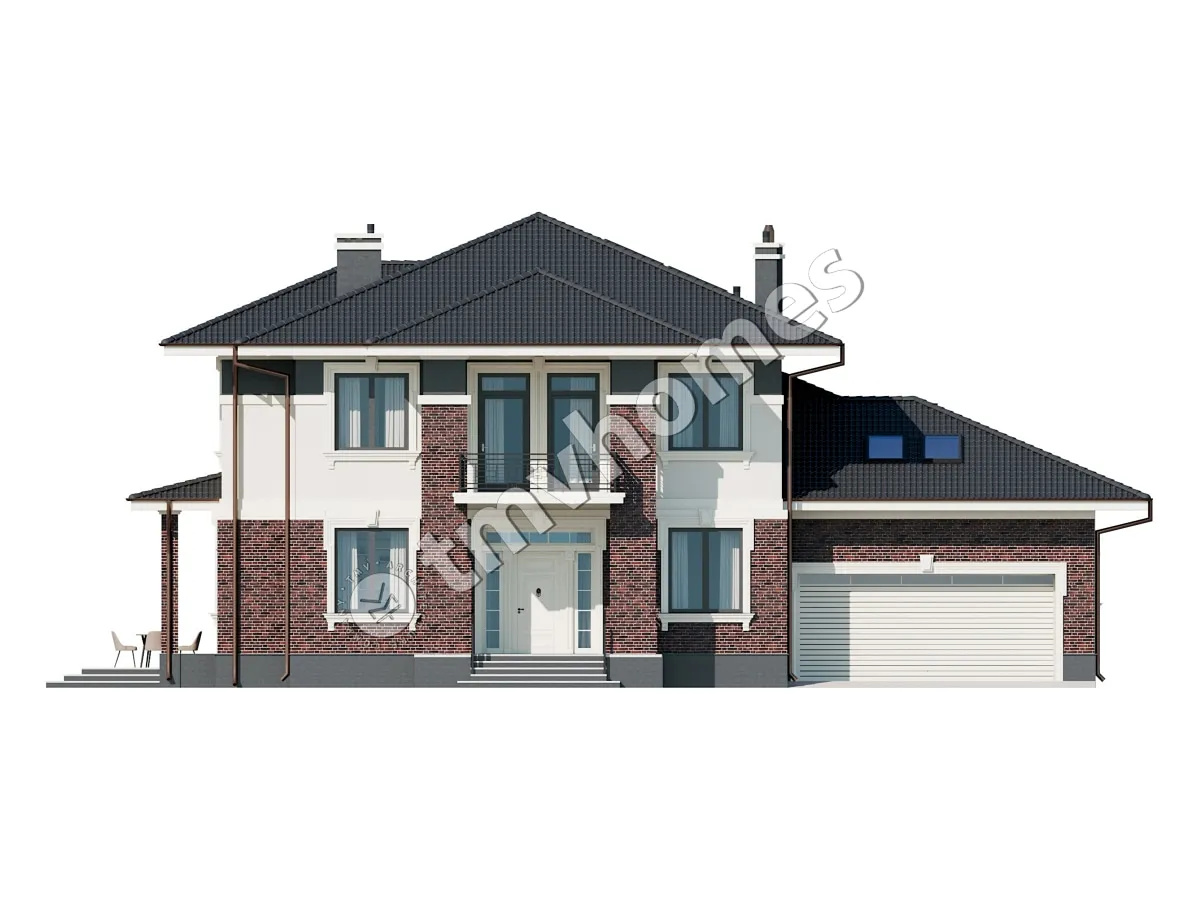

Renderings 2 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C

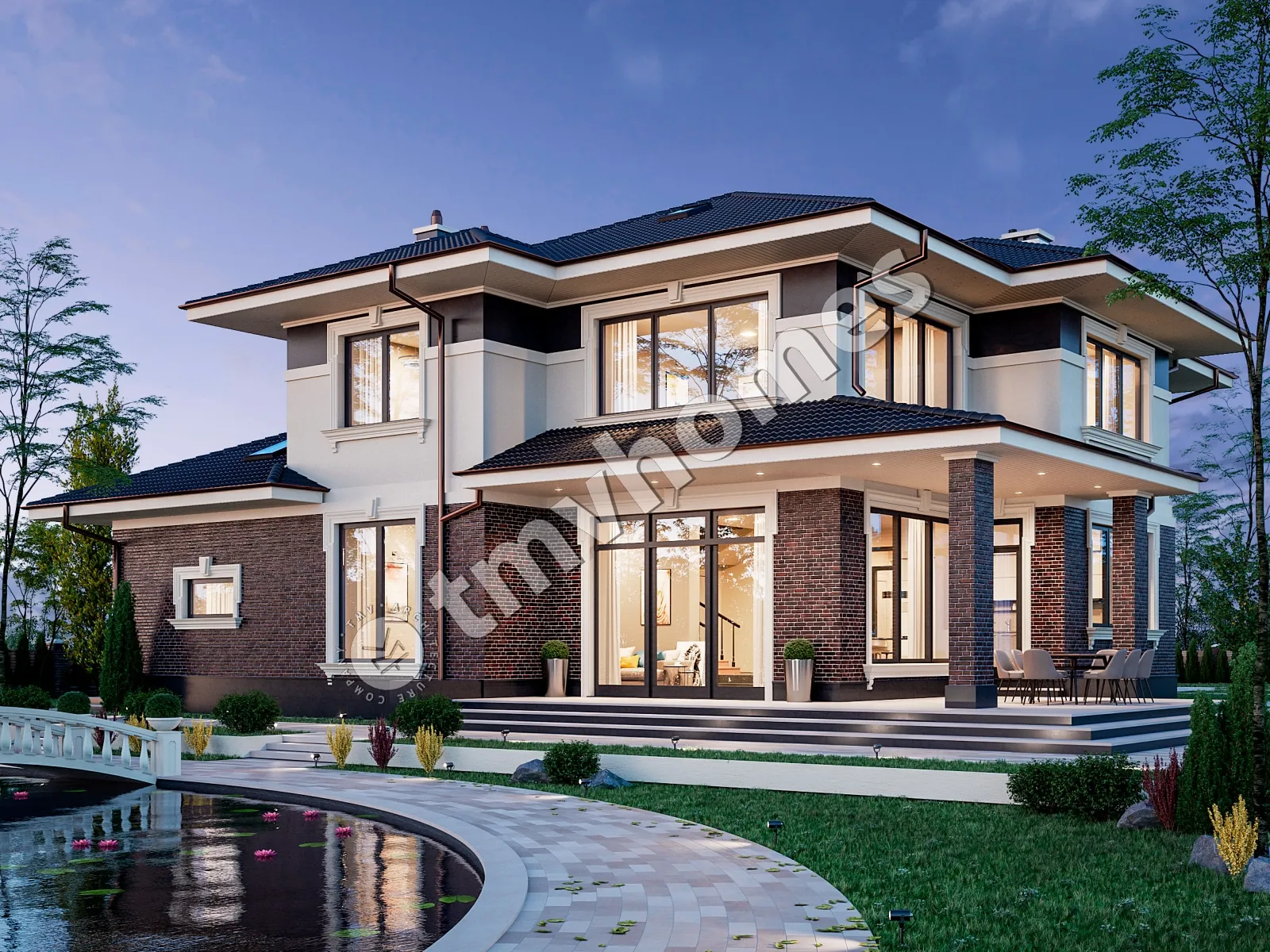

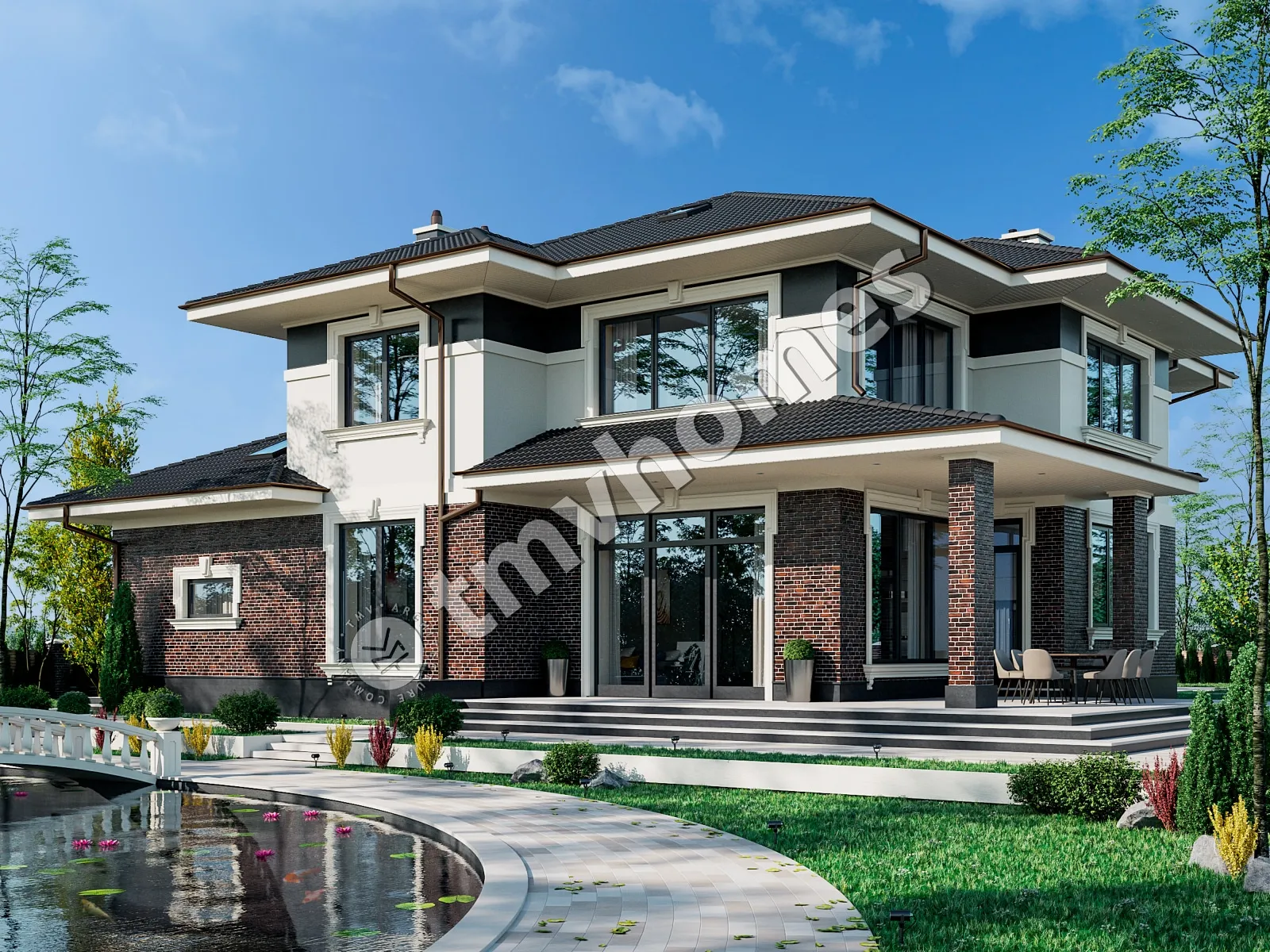

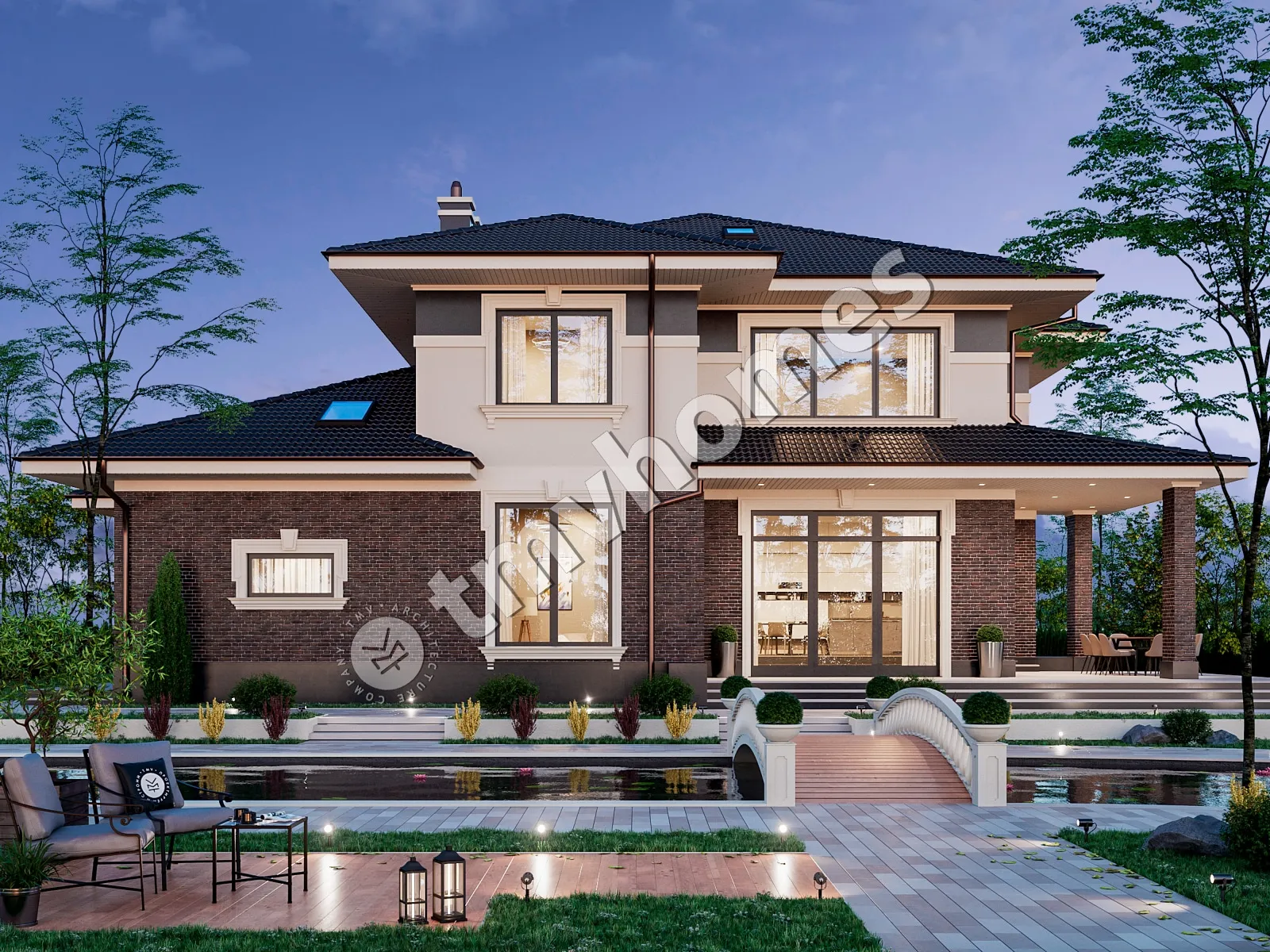

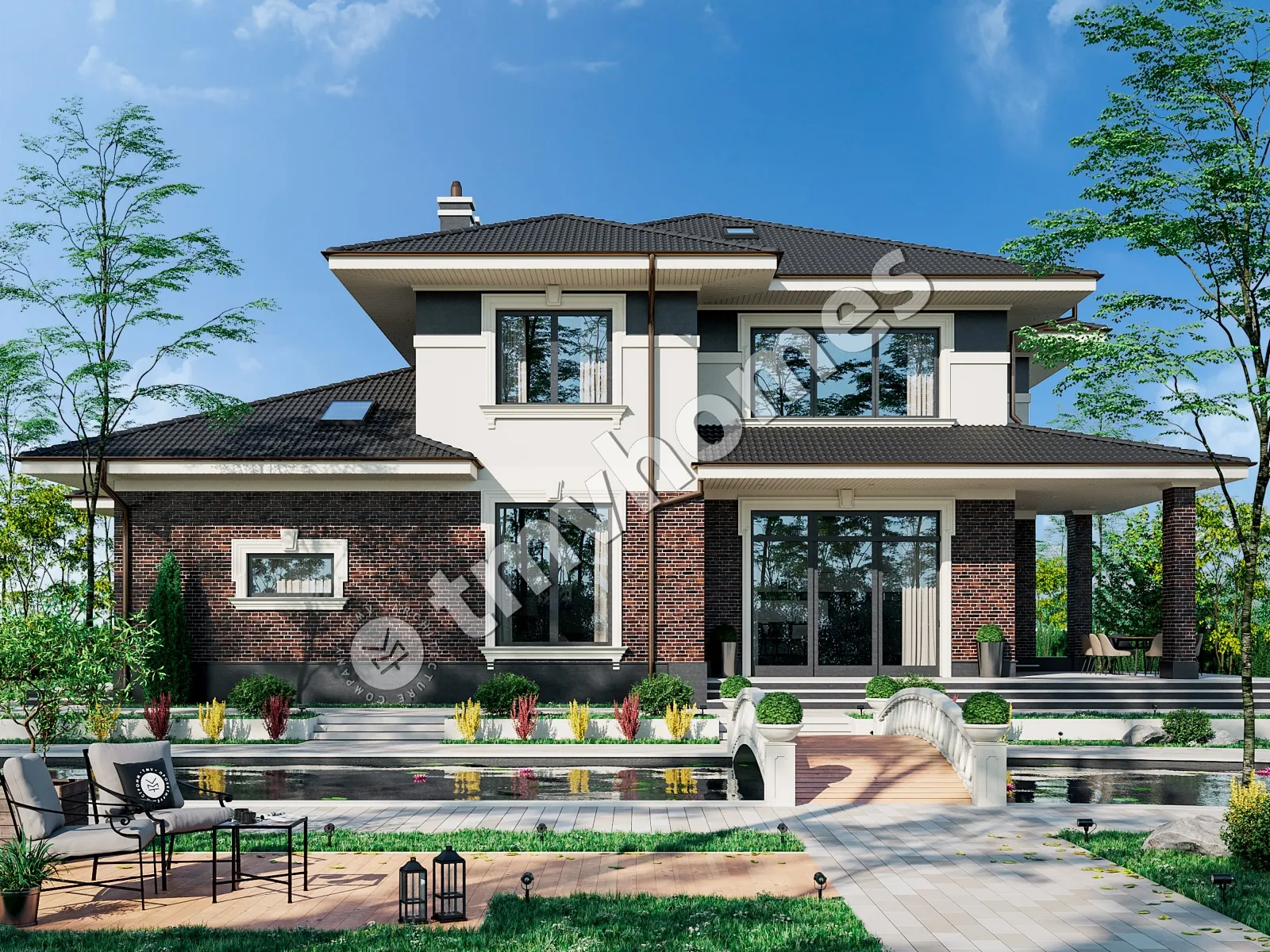

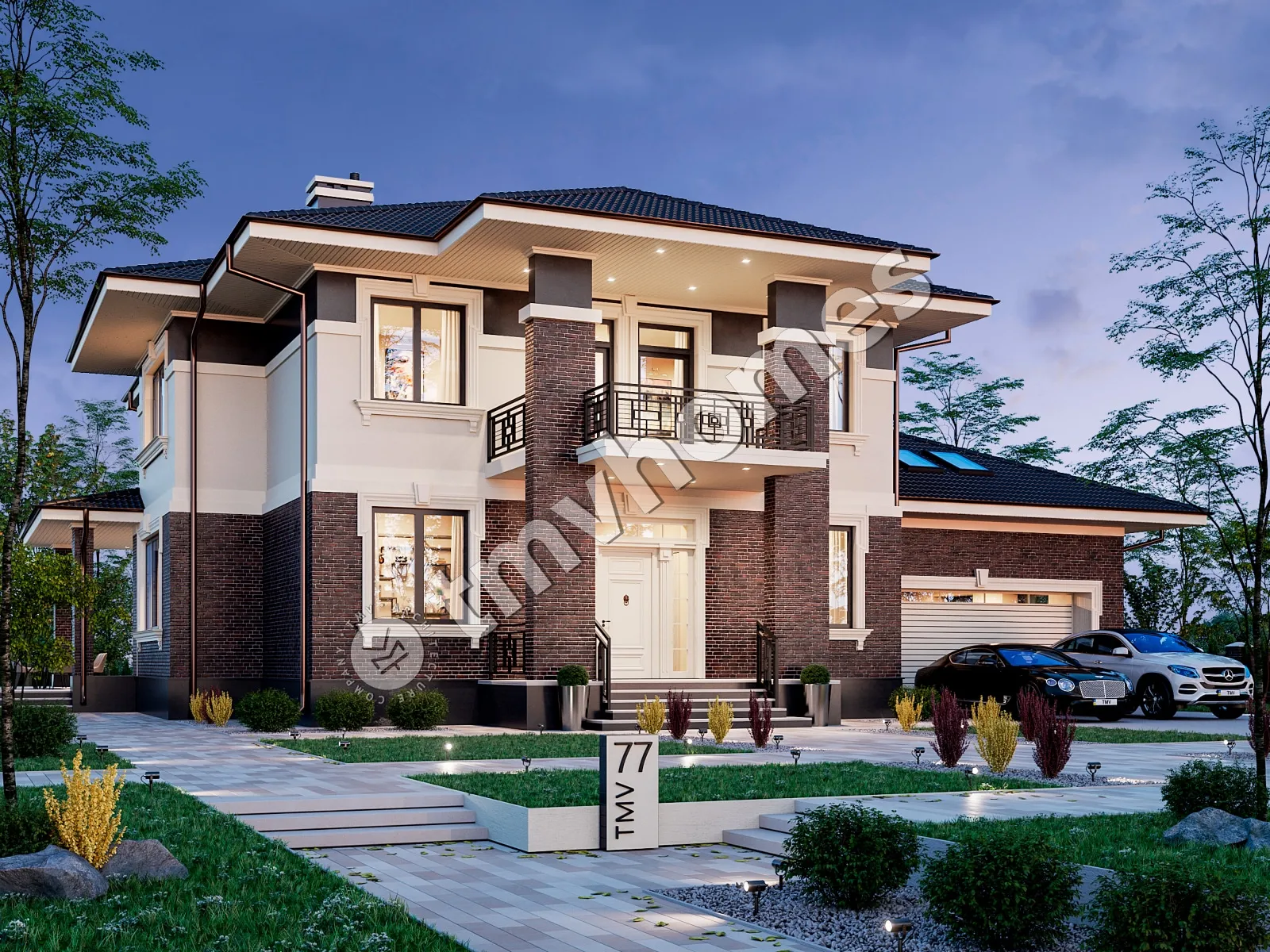

Renderings 3 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C Renderings 4 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C
8
Concept
Construction documents are prepared for the following countries:

4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
38085C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
4234
Total Heated ft²
3 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

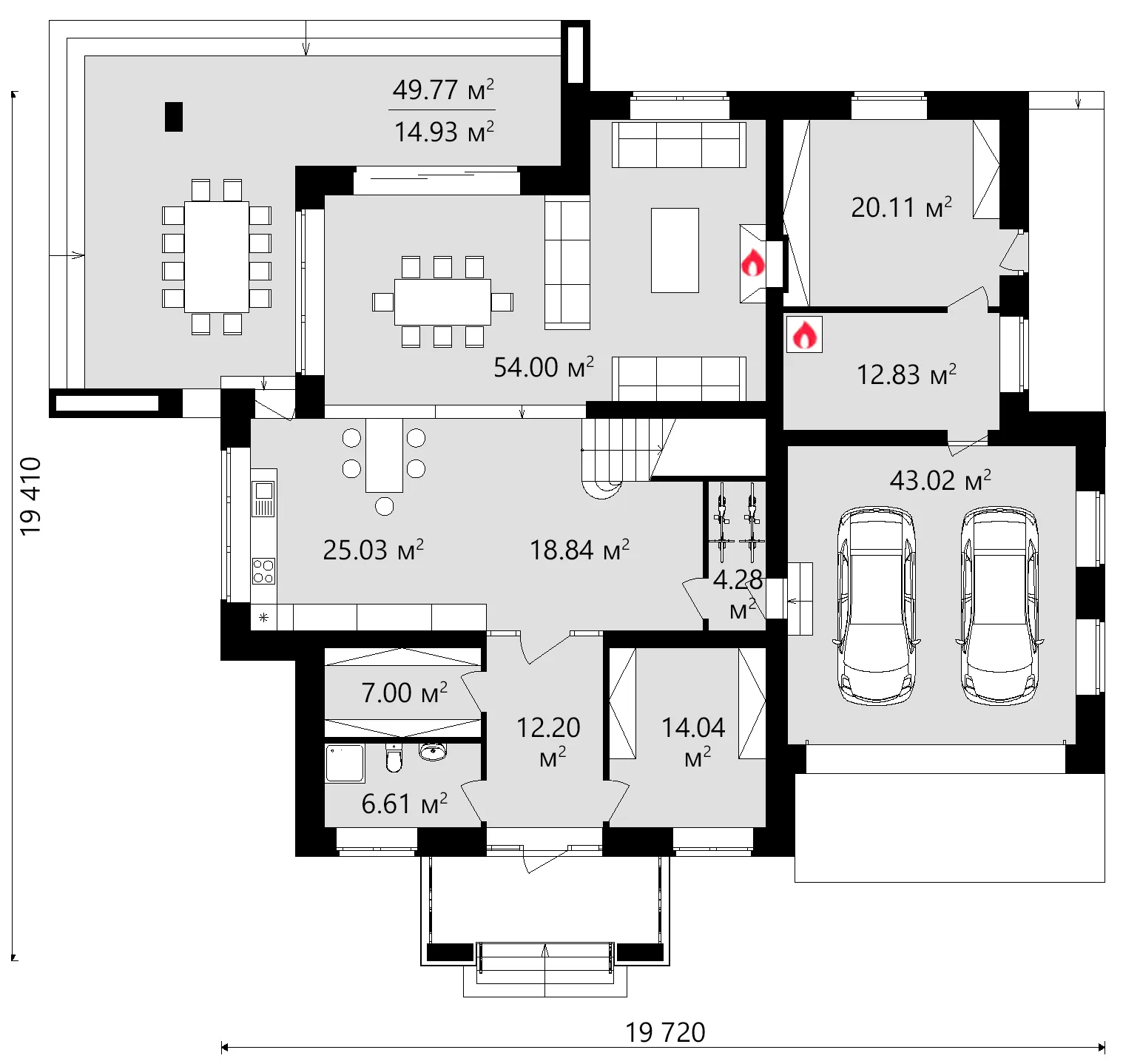

Main Floor
Main Floor 13 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C

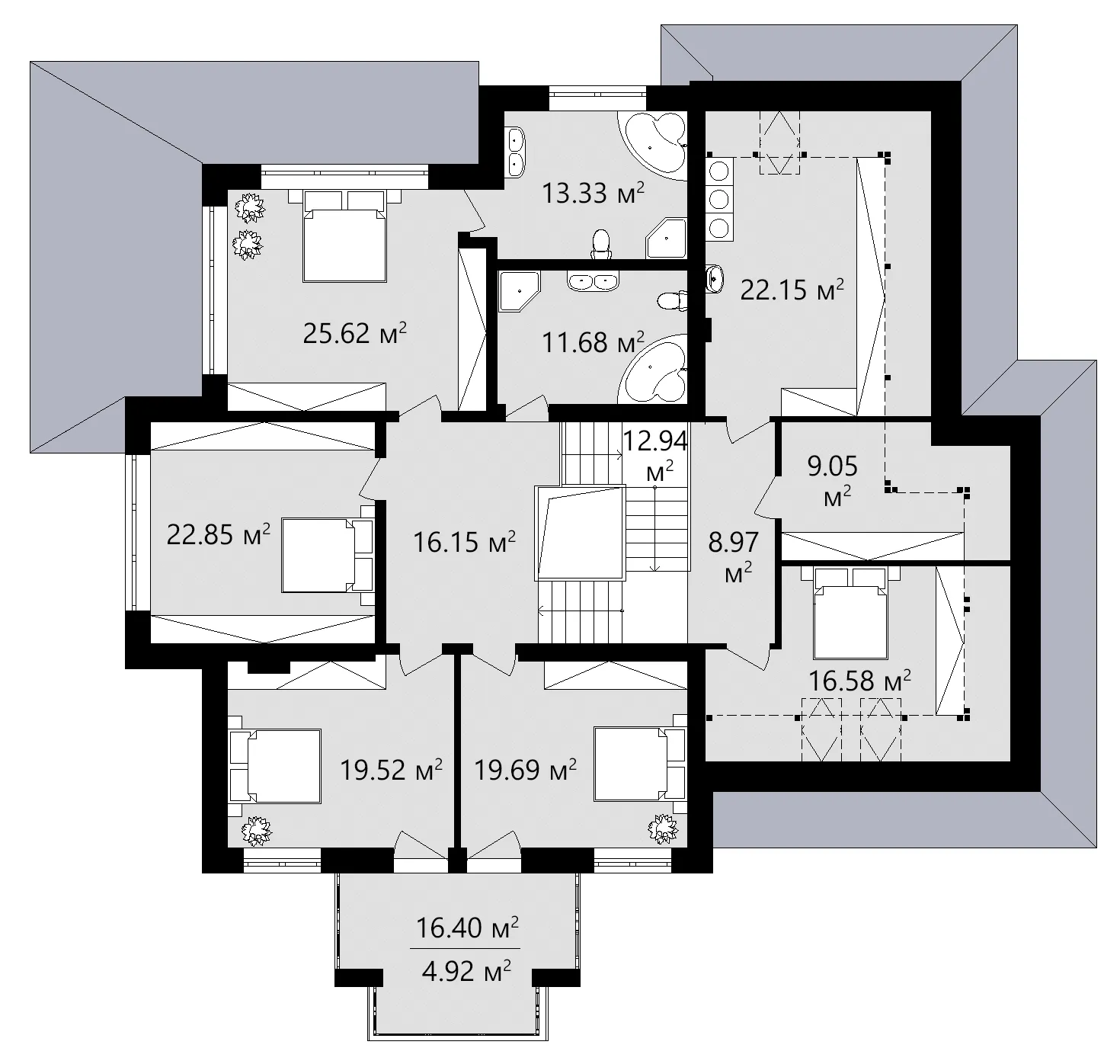

Second Floor
Second Floor 14 – 4,234 Sq Ft Traditional 2-Story House Plan with 5 Bedrooms and 2-Car Garage – 38085C
Full Specs & Features
Area
Total Unheated: 463.06 ft²
Total Heated: 4233.66 ft²
Dimensions
Depth: 59'2" ft
Width: 60'1" ft
Height: 32'3" ft
Garage
Area: 463 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 5
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Breakfast bar
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Covered Rear Porch
Portico
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

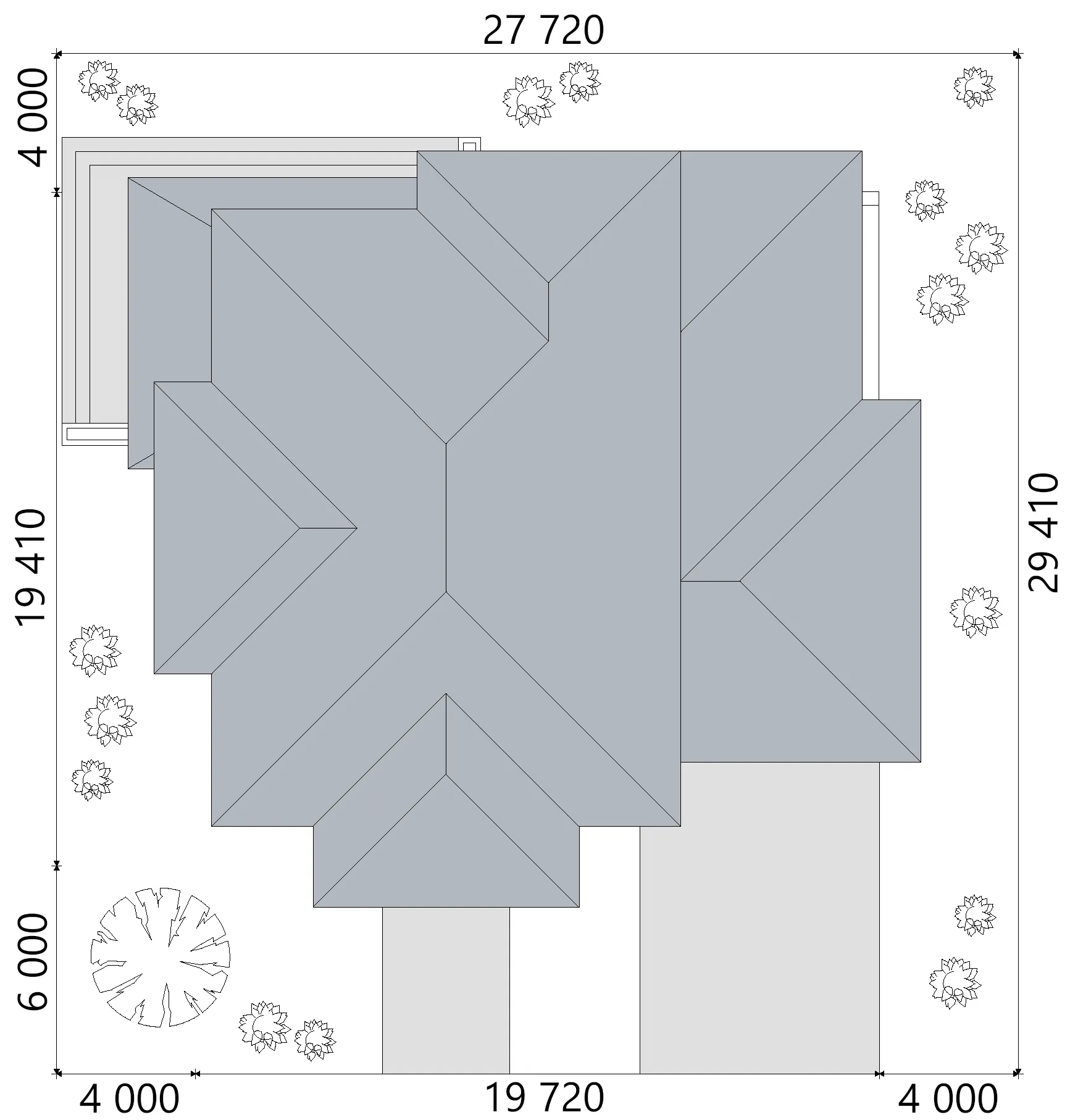

Roof
Roof Area: 4994.45 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Built around family life on three levels, the 38085C home design is a 5-bedroom 3-storey house plan of 4,234 Sq Ft, sheltered by a hip and valley roof with a 5/12 (22°) pitch. Its character blends European, Prairie and traditional architecture, and the exterior walls pair stone/brick veneer with stucco. Large windows and floor-to-ceiling glazing bring generous daylight indoors and give the elevations an open, confident look. Overall, the house is 60'1" wide and 59'2" deep and rises to a height of 32'3". For anyone comparing house plans in Canada for a big household, this single-family home offers three full bathrooms and a two-car garage.

The private side of the house begins upstairs. The master suite sits on the second floor, with the other bedrooms clustered nearby, an arrangement that keeps children within easy reach of their parents at night. Three full bathrooms share the load of five bedrooms, so getting everyone ready in the morning stays calm. Placing the laundry on the second floor means clean clothes travel only a few steps from the washer to the closets, with no baskets carried up and down the stairs. A utility room and a storage room complete the practical spaces, giving sports gear, tools and seasonal things a proper place of their own.

At the front, a portico shelters the entry and leads into an open floor plan where the main rooms flow freely into one another. The large family room is the heart of the home, warmed by a fireplace and crowned by an open-to-below space that connects it visually with the floor above. On a winter evening, this family room with fireplace becomes the natural gathering point for the whole household. The large kitchen opens onto the same space, and a breakfast bar lets someone chat with the cook, grab a quick snack or finish homework while the meal comes together.

Outdoor living is layered as generously as the interior. Stacked porches and a balcony add sheltered spots on more than one storey, ideal for morning coffee above the garden, while the covered rear porch extends the living area for long summer dinners. The attached, front-entry 2-car garage provides convenient access to the house. Without a basement, the home rests on strip footings, and a slab or a concrete block foundation is also available on request. The exterior walls are framed in aerated concrete (AAC), with clay hollow block or sand-lime block offered as alternatives.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2636
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
