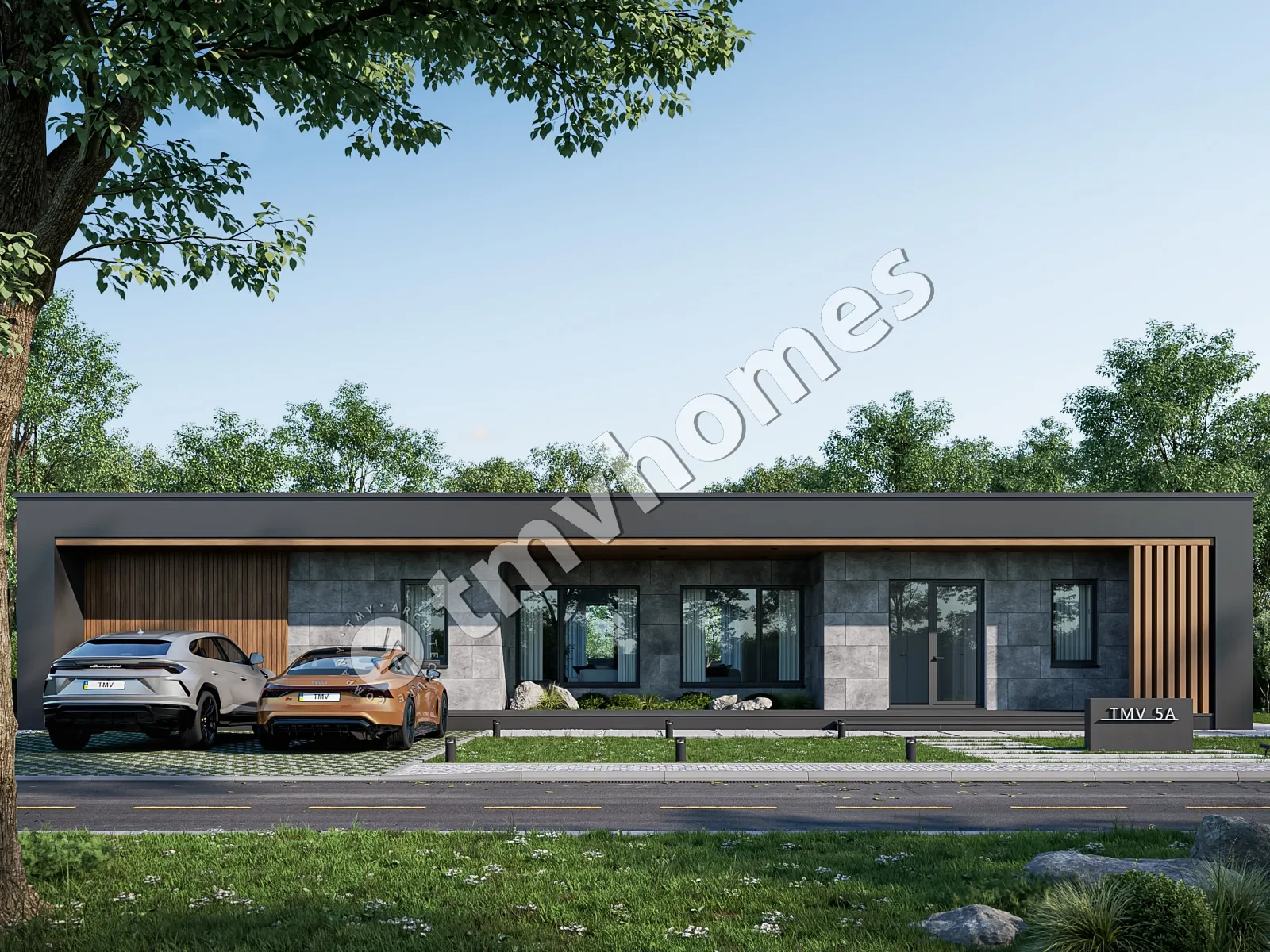

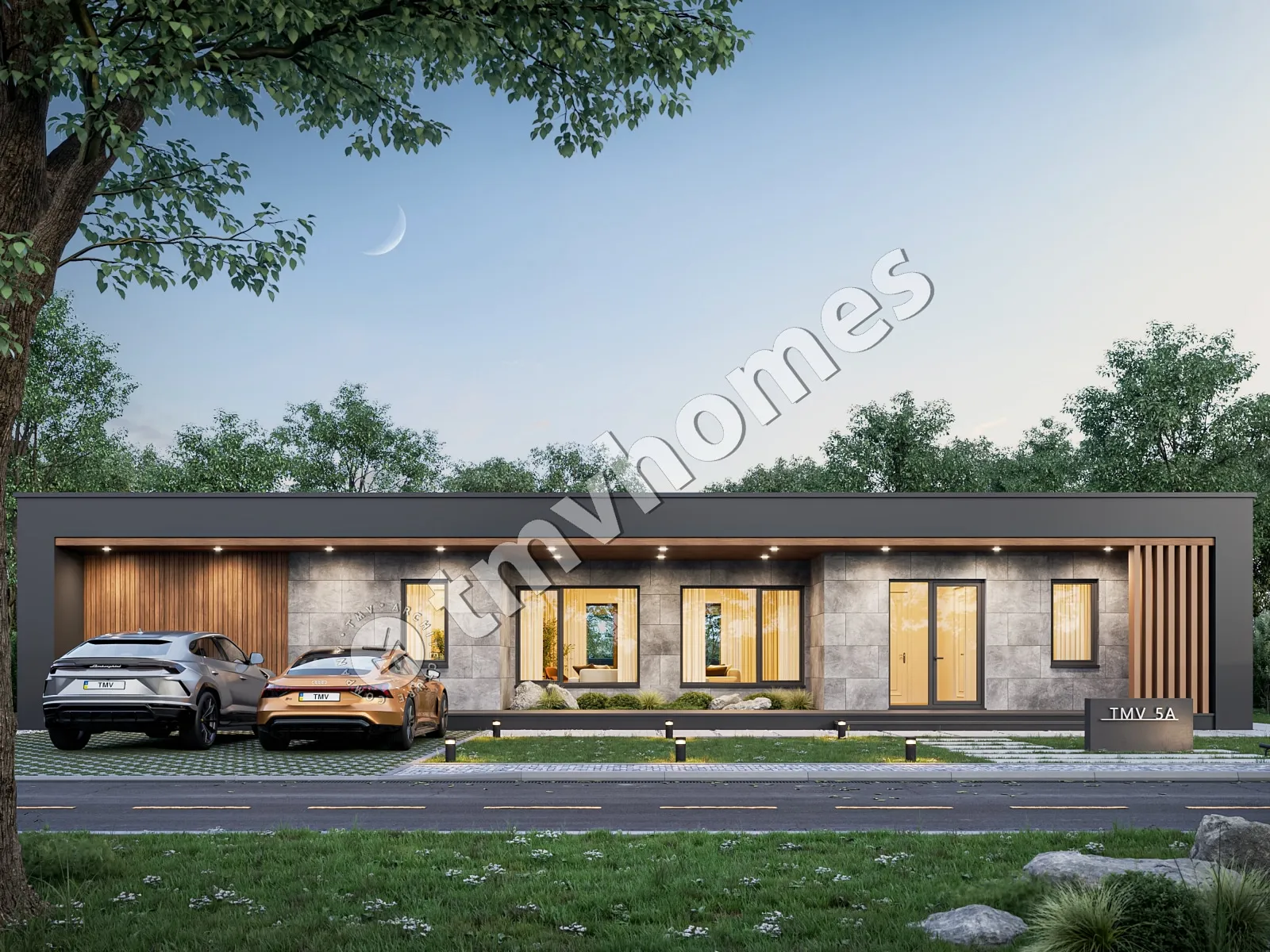

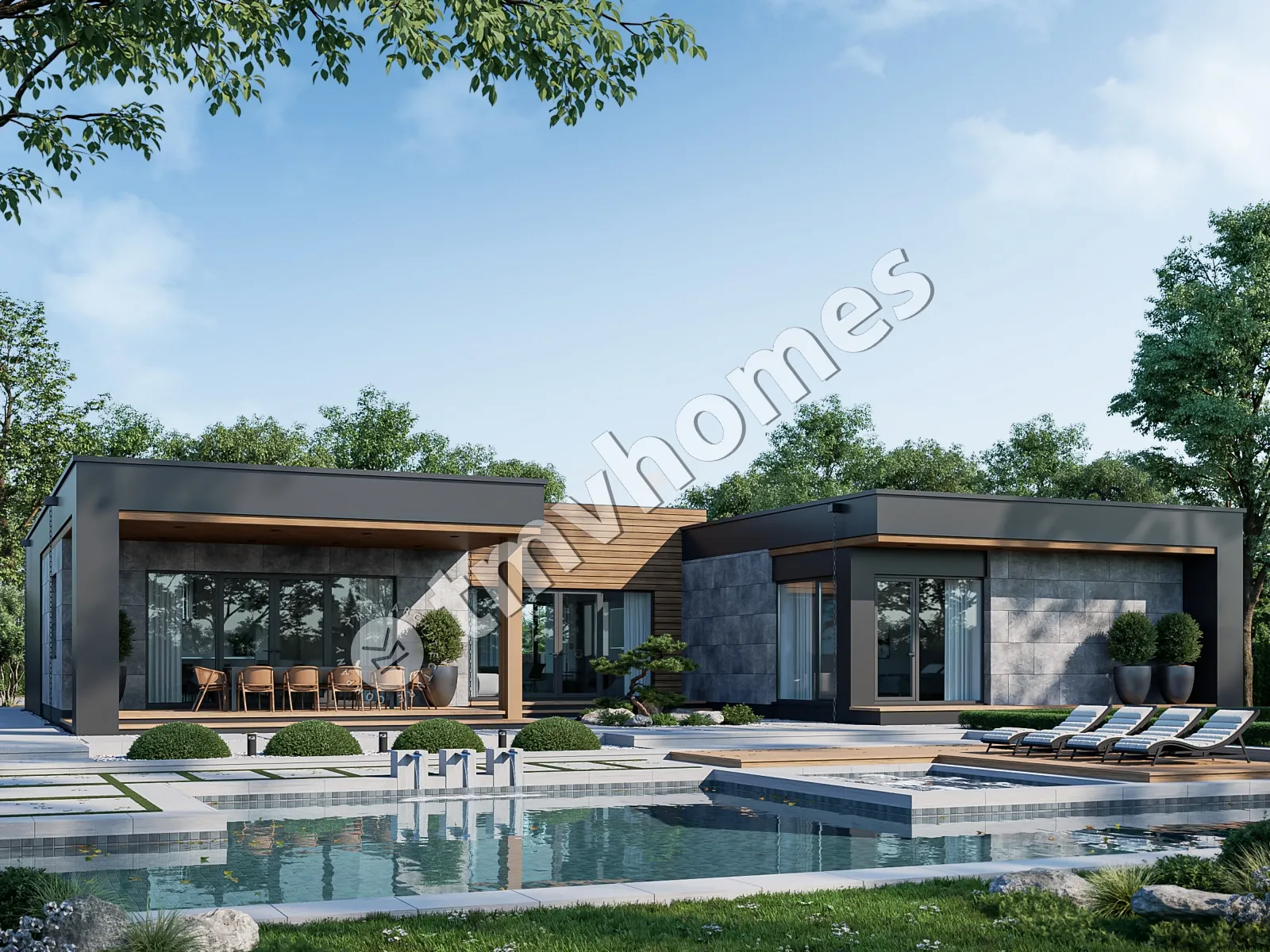

Renderings 2 – 3-Story House Plan 2331 ft², 3 Beds — 28123C
Renderings 3 – 3-Story House Plan 2331 ft², 3 Beds — 28123C Renderings 6 – 3-Story House Plan 2331 ft², 3 Beds — 28123C
8
Concept
Construction documents are prepared for the following countries:

3-Story House Plan 2331 ft²: 3 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
28123C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2331
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

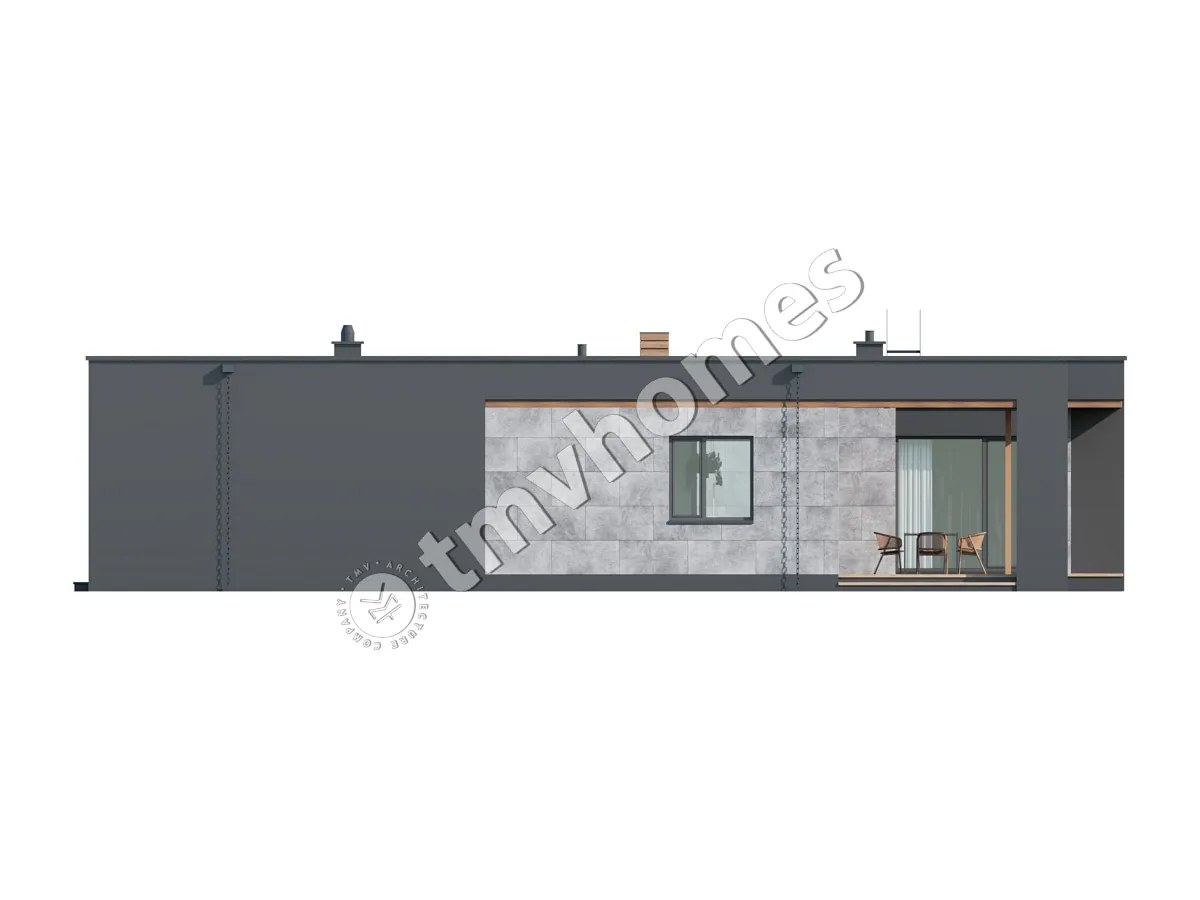

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

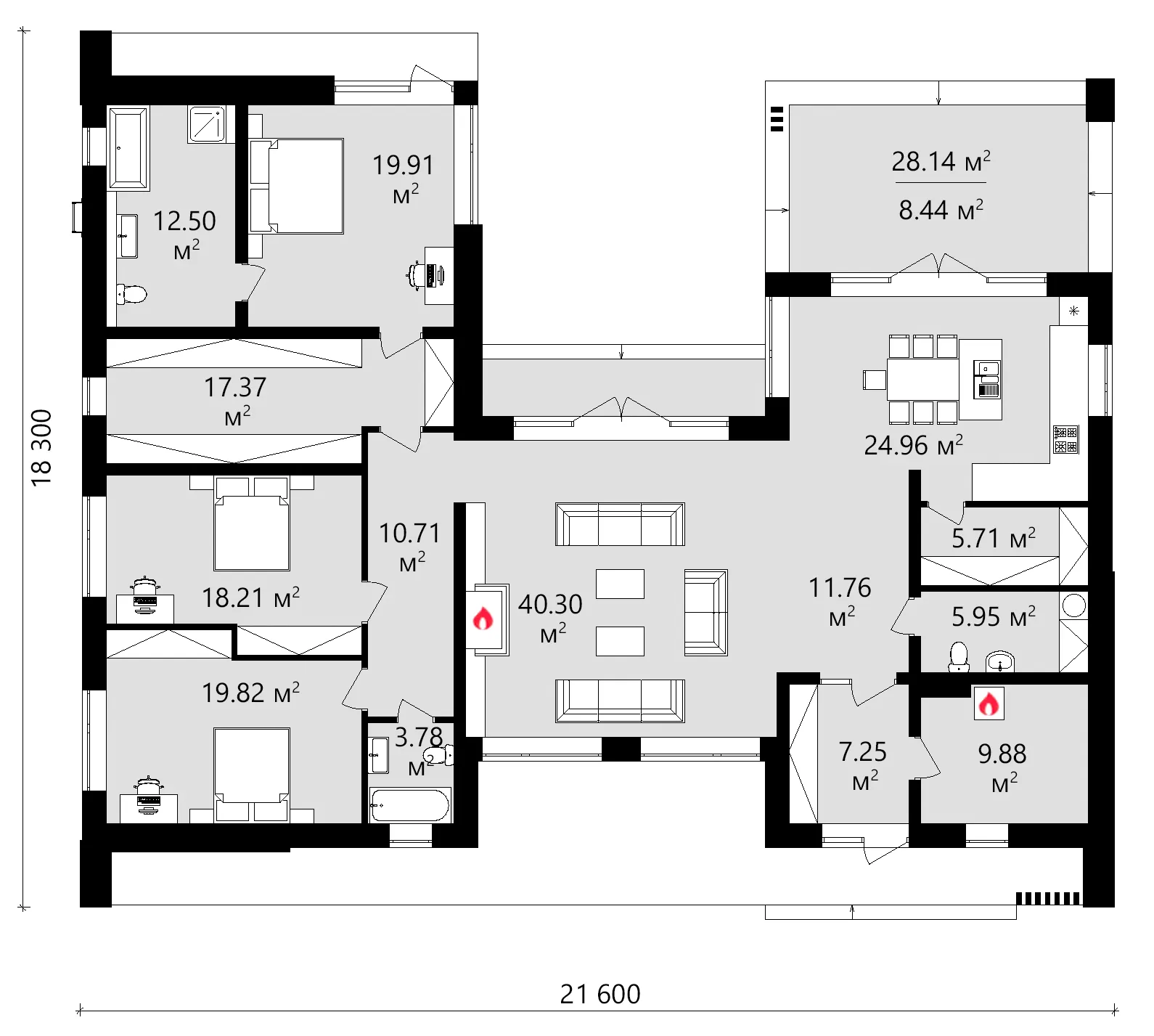

Floor Plans
Main Floor
Main Floor 10 – 3-Story House Plan 2331 ft², 3 Beds — 28123C
Full Specs & Features
Area
Total Heated: 2331.03 ft²
Dimensions
Depth: 55'8" ft
Width: 65'8" ft
Height: 14'1" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
High-tech
Modern
Roof
Roof Area: 3125.84 ft²
Flat

Designed around three wings under a crisp flat roof, Plan 28123C is a 3-bedroom contemporary house plan of 2331 ft² with Modern, European and High-tech influences. Its U-shaped and H-shaped layout keeps the volume low and horizontal: the house measures 65'8" wide and 55'8" deep, with a height of 14'1". Wood, stucco and flexible ceramic dress the exterior walls, while large windows, floor-to-ceiling glazing and a corner window give the façade its clean, open character. At the back, a covered rear porch offers a sheltered outdoor room for summer dinners.

The sleeping quarters are grouped together as clustered bedrooms, so the private side of the home stays quiet while the shared rooms carry on. The master suite is on the main floor, a welcome feature for anyone who prefers to avoid stairs, and it pairs a walk-in closet with its own full bathroom. Three full bathrooms in all mean that the two secondary bedrooms never compete for a sink in the morning. A dedicated utility room handles laundry and household storage out of view.

From the entry, the open floor plan unfolds into a large family room, warmed by a fireplace and generous enough for a sectional, a reading corner and a long table. The large kitchen sits within the same space and works hard: an island for prep and casual meals, a walk-in pantry for bulk groceries, and a breakfast nook where the day can start slowly in the light from the tall windows. Sightlines run from the cooking zone straight across to the covered rear porch, so parents can keep an eye on the yard while making dinner.

The house rests on strip footings with no basement, and a slab or concrete block foundation is also available on request. The walls are framed in aerated concrete, with clay hollow block or sand-lime block offered as alternatives. No garage is part of this design, which leaves the whole footprint for family living. For buyers browsing house plans Canada who want a flat roof home design with a main floor master and a calm, well-zoned layout, this plan is a strong match.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
