1-Story House Plan with Basement 2308 ft²: 4 Beds, 3.5 Baths, Open Floor Plan, 3-Car Garage

Plan
16009R
Complete
Unsigned & Unsealed
DC Available
Key Specs
2308
Total Heated ft²
3 + 1
Baths + 1/2 Baths
4 + 0
Beds + Home Office
3
Cars
Canada United States
Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

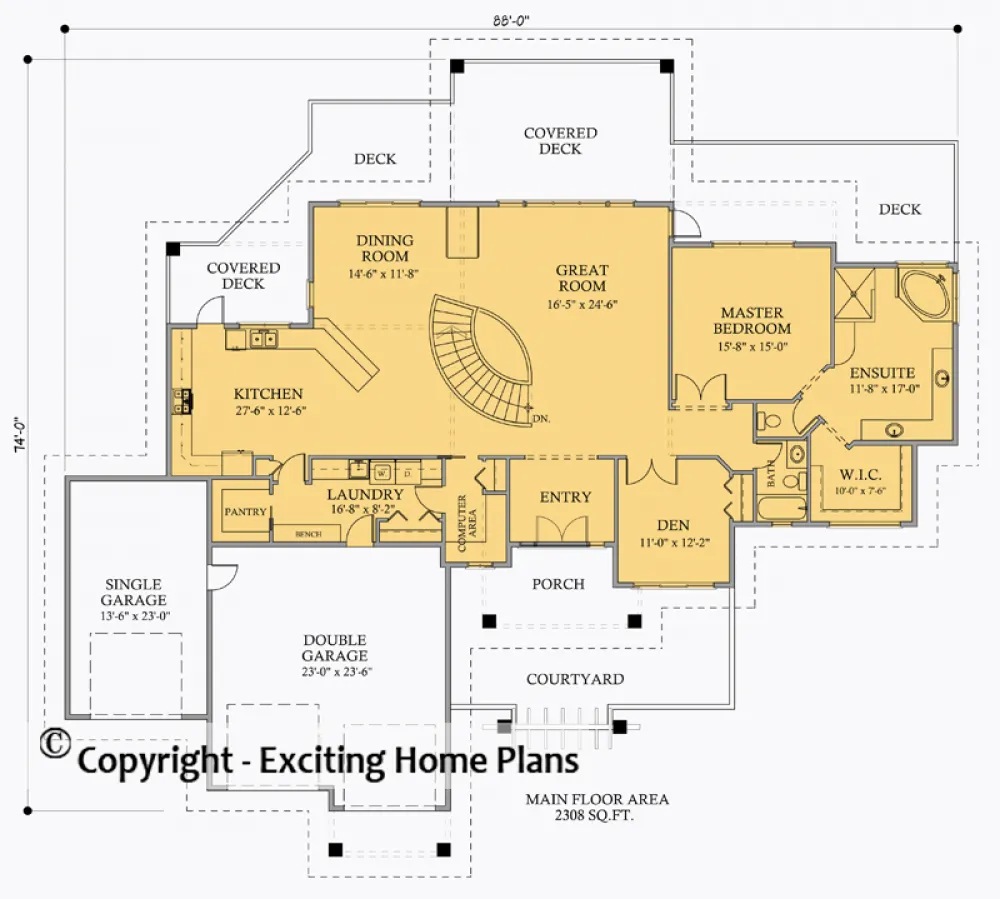

Main Floor 5 – 1-Story House Plan 2308 ft², 4 Beds — 16009R
Basement

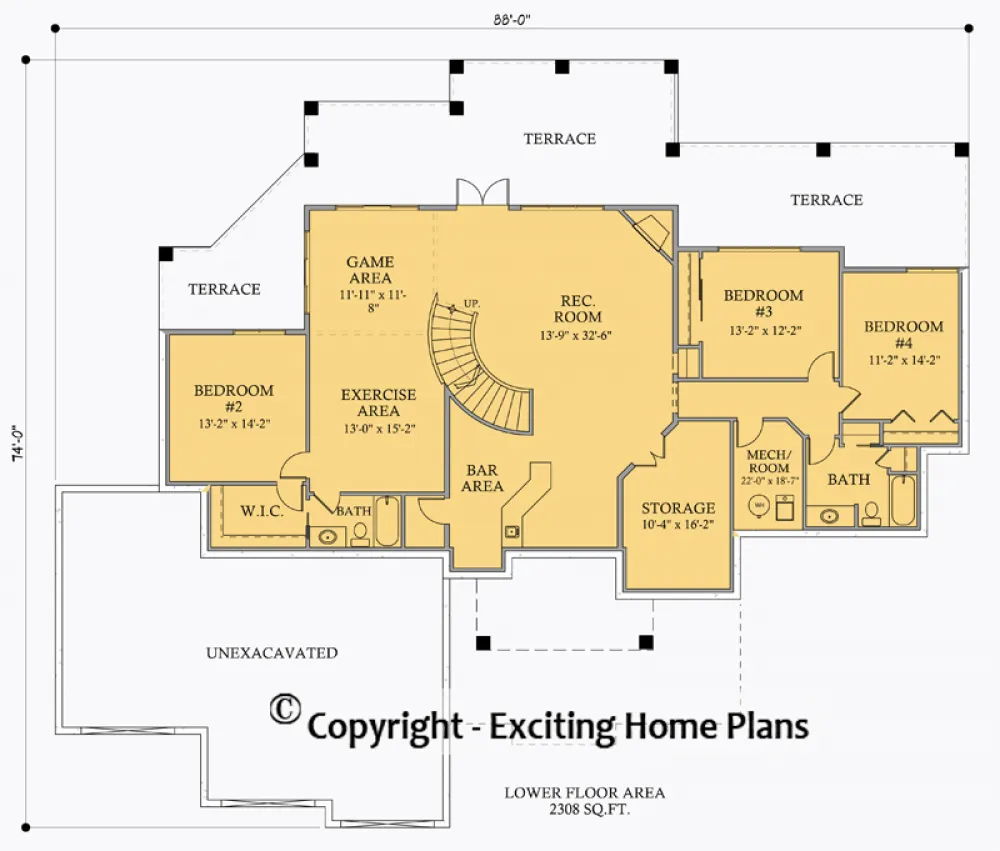

Basement 6 – 1-Story House Plan 2308 ft², 4 Beds — 16009R
Full Specs & Features
Area
Main Floor: 2308 ft²
Basement: 2308 ft²
Total Heated: 2308 ft²
Dimensions
Depth: 74'0" ft
Width: 88'0" ft
Garage
Area: 870 ft²
Cars: 3
Front Entry
Extension Forward
Foundation
Slab (Optional)
Walkout Basement
Crawl Space (Optional)
Exterior Wall Framing
Wood 2x6
Wood 2x4 (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Half bathrooms: 1
Bedrooms: 4
Utility room
Bonus/Flex Room
Exercise Room
Game Room
Laundry
Media Room
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Reverse Living
Exterior Features
Balcony
Courtyard
Stacked Porches
Covered Front Porch
Covered Rear Porch
Patio
Deck
Large Windows
Architectural Style
Craftsman
Mountain
Ranch
American
Roof
Hip & Valley
Ceiling
Main Floor Ceiling Height: 10'0" ft
Basement Ceiling Height: 9'0" ft

Plan 16009R is a 4-bedroom bungalow house plan: a 1-storey Craftsman and Mountain home design of 2308 ft², sheltered by a hip & valley roof and set over a walkout basement. Ranch proportions give the house a relaxed American character, and the exterior walls pair stone/brick veneer with stucco for a finish that feels both rugged and polished. The footprint measures 88'0" wide and 74'0" deep. Walls are framed in wood 2x6, and wood 2x4 framing can be supplied on request. With three full bathrooms and a half bath, this single family residence gives a growing household plenty of breathing room on one level.

Privacy shapes the sleeping wing. Thanks to a split bedroom arrangement, the main floor master is set apart from the three secondary bedrooms, so the owners enjoy a quiet retreat of their own, complete with a walk-in closet. Three full bathrooms keep the morning routine moving, and the half bath is there for guests. Everyday chores stay close at hand with laundry on the main floor, a separate utility room and dedicated storage. Beyond the essentials, the plan includes a media room, a game room, an exercise room and a bonus/flex room, so film nights, table tennis tournaments, workouts and a home office or guest space each get their own place.

A proper entry leads into an open floor plan where the large family room, the kitchen and the breakfast nook flow together. Vaulted ceilings open up the volume overhead, while large windows let the daylight travel across the rooms. The fireplace in the family room anchors the space and becomes the centre of the house on snowy weekends. The large kitchen is designed for real cooking: a breakfast bar seats children doing homework or friends chatting with the cook, the nook hosts unhurried Sunday breakfasts, and a walk-in pantry holds bulk groceries and appliances. The reverse living layout keeps the daily heart of the home on the main level.

Outside, the 3-car garage with front entry is extended forward, sheltering the approach and creating a welcoming arrival. A covered front porch greets visitors at the door, and a covered rear porch extends living space toward the backyard. Stacked porches with a balcony, along with a deck, a patio and a courtyard, offer a choice of outdoor spots for barbecues, quiet reading or evenings with neighbours. The walkout basement is the standard foundation, with slab and crawl space versions also available on request. For anyone comparing house plans in Canada, this Craftsman bungalow combines one-storey ease with generous rooms for both work and play.
