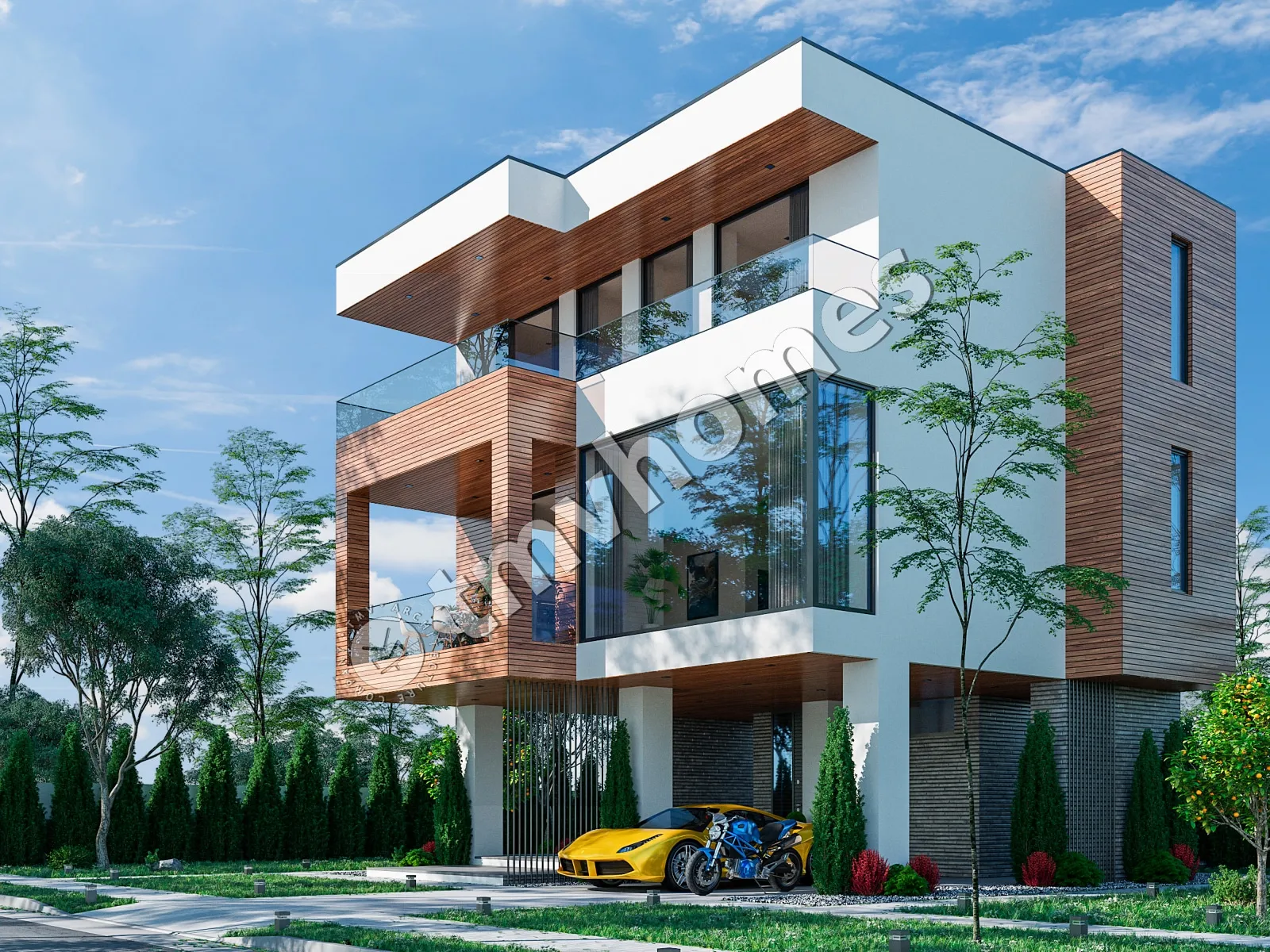

Renderings 2 – 3-Story House Plan 1555 ft², 3 Beds — 10865C

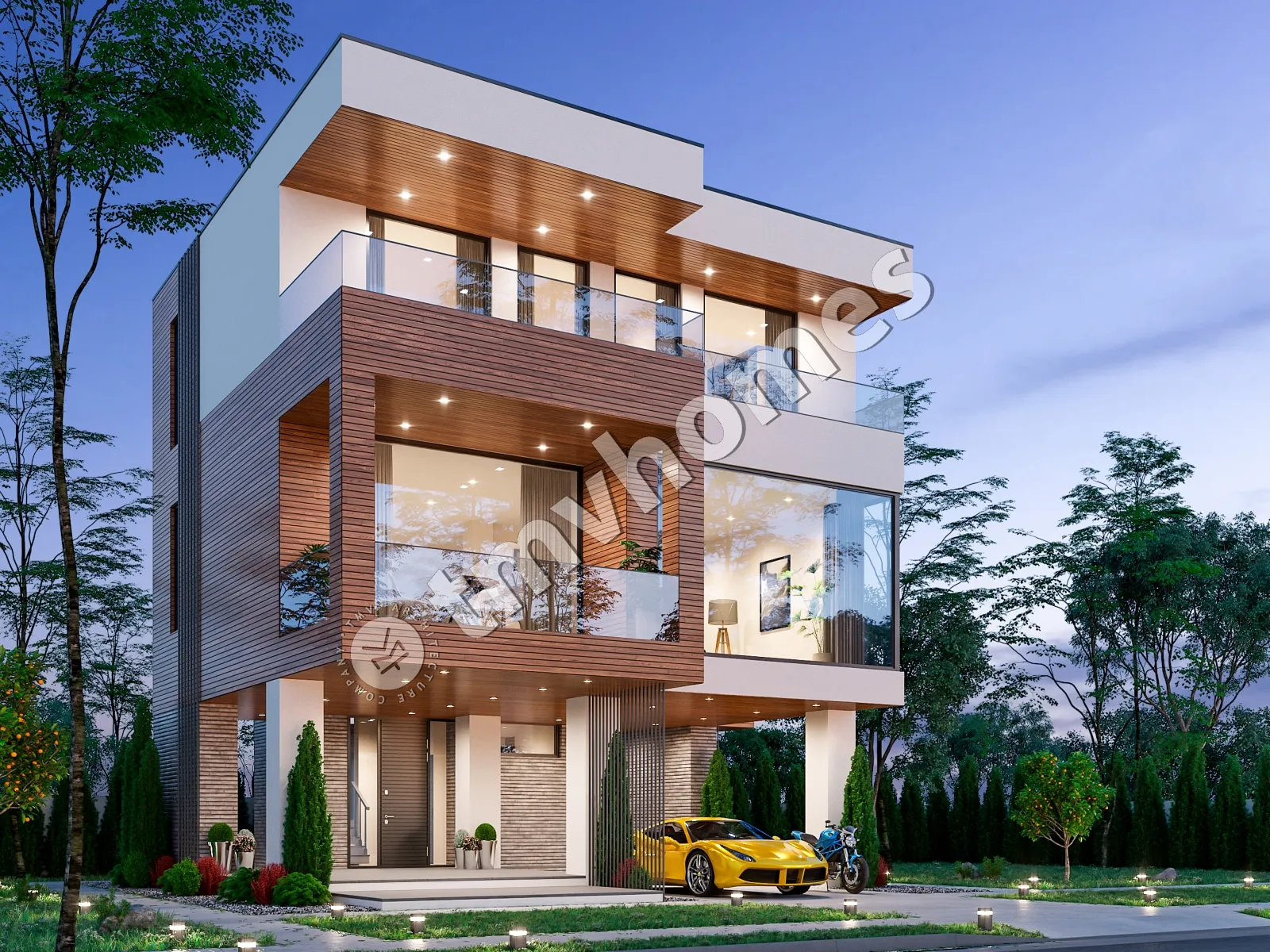

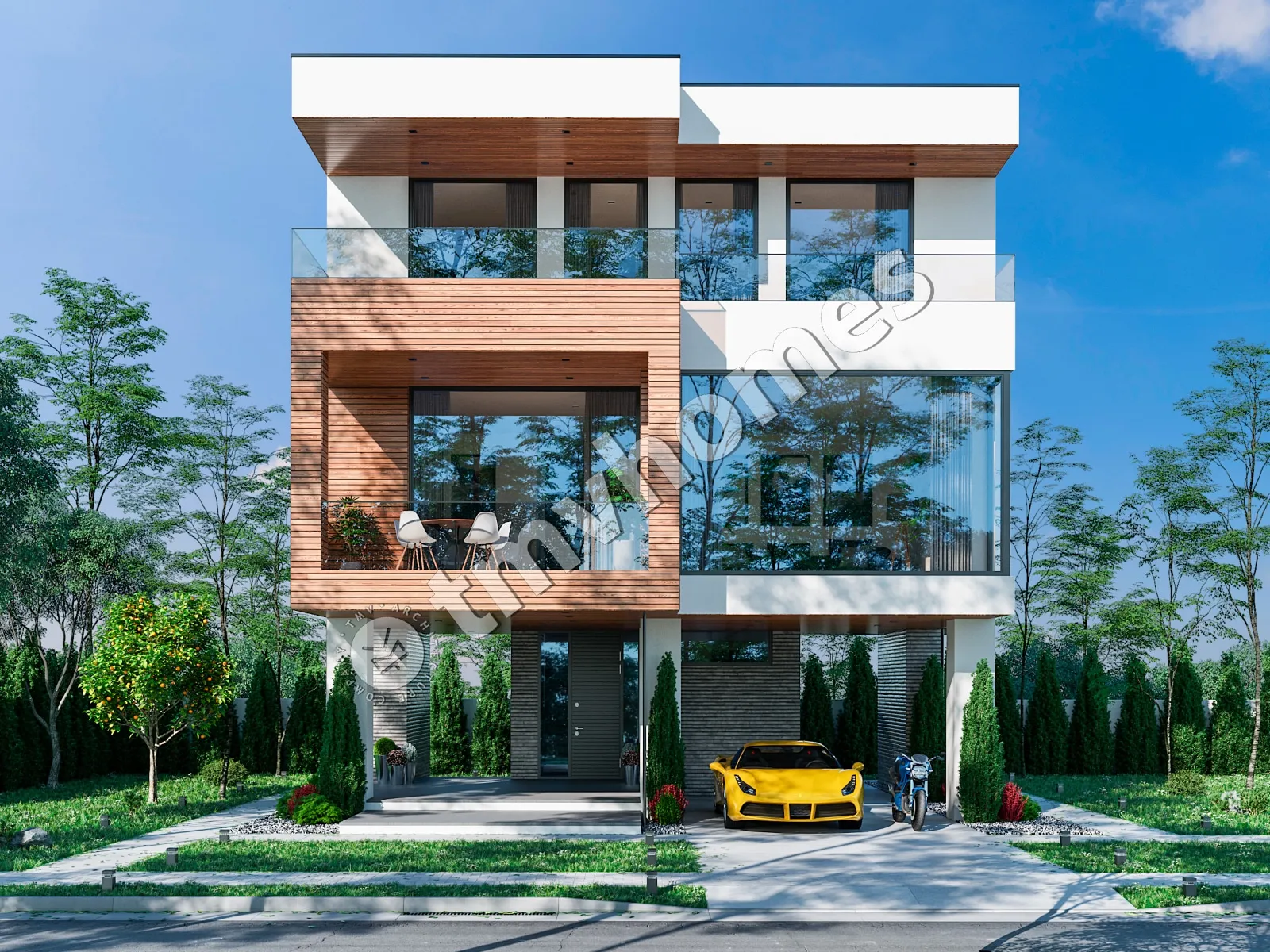

Renderings 3 – 3-Story House Plan 1555 ft², 3 Beds — 10865C Renderings 4 – 3-Story House Plan 1555 ft², 3 Beds — 10865C
9
Concept
Construction documents are prepared for the following countries:

3-Story House Plan 1555 ft²: 3 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
10865C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1555
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

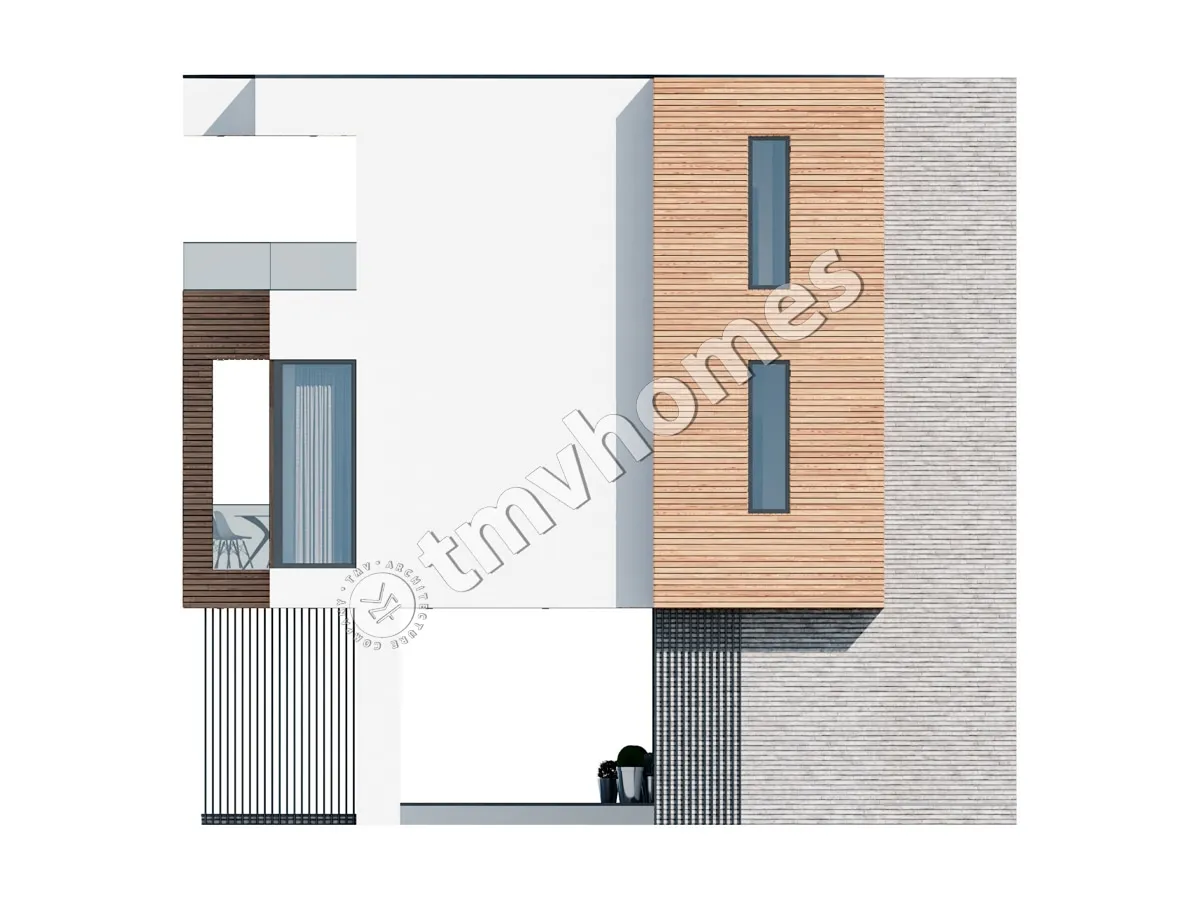

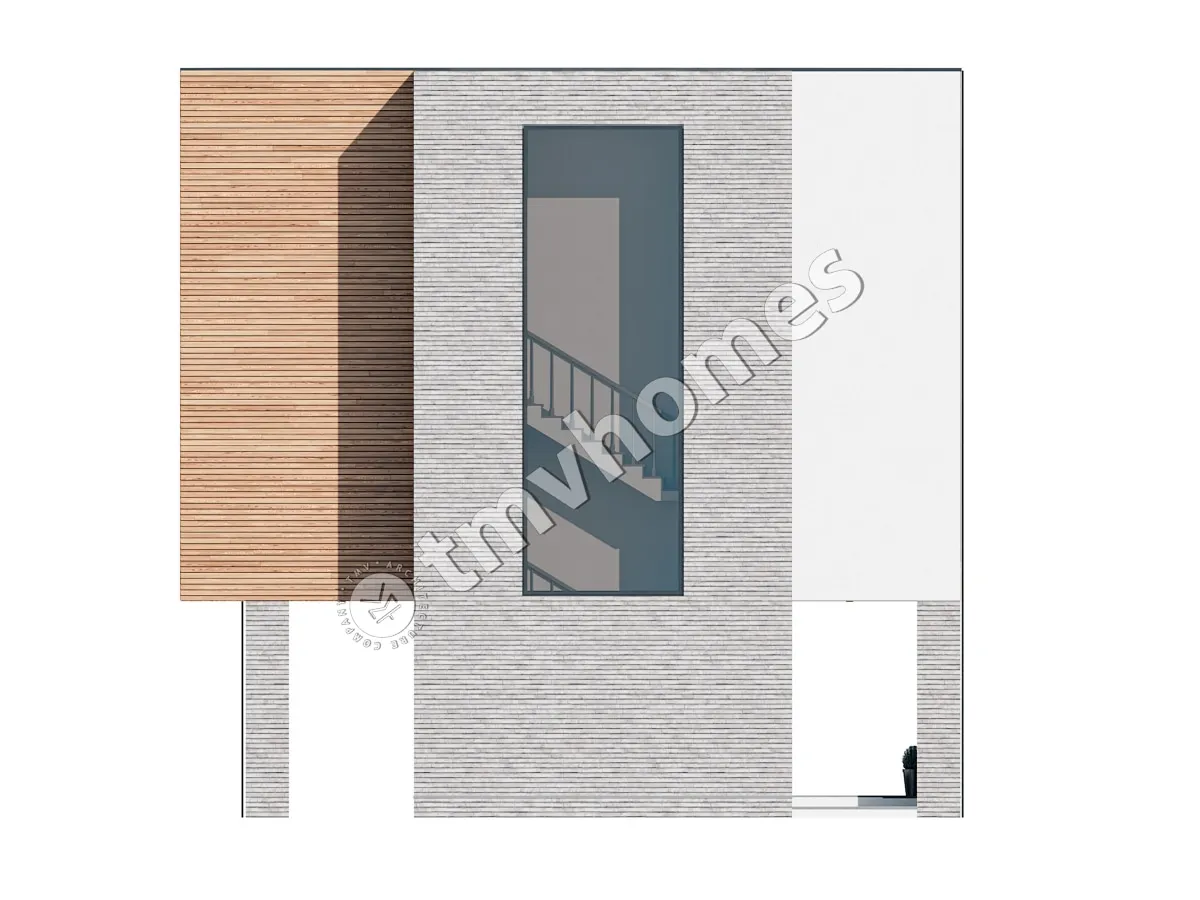

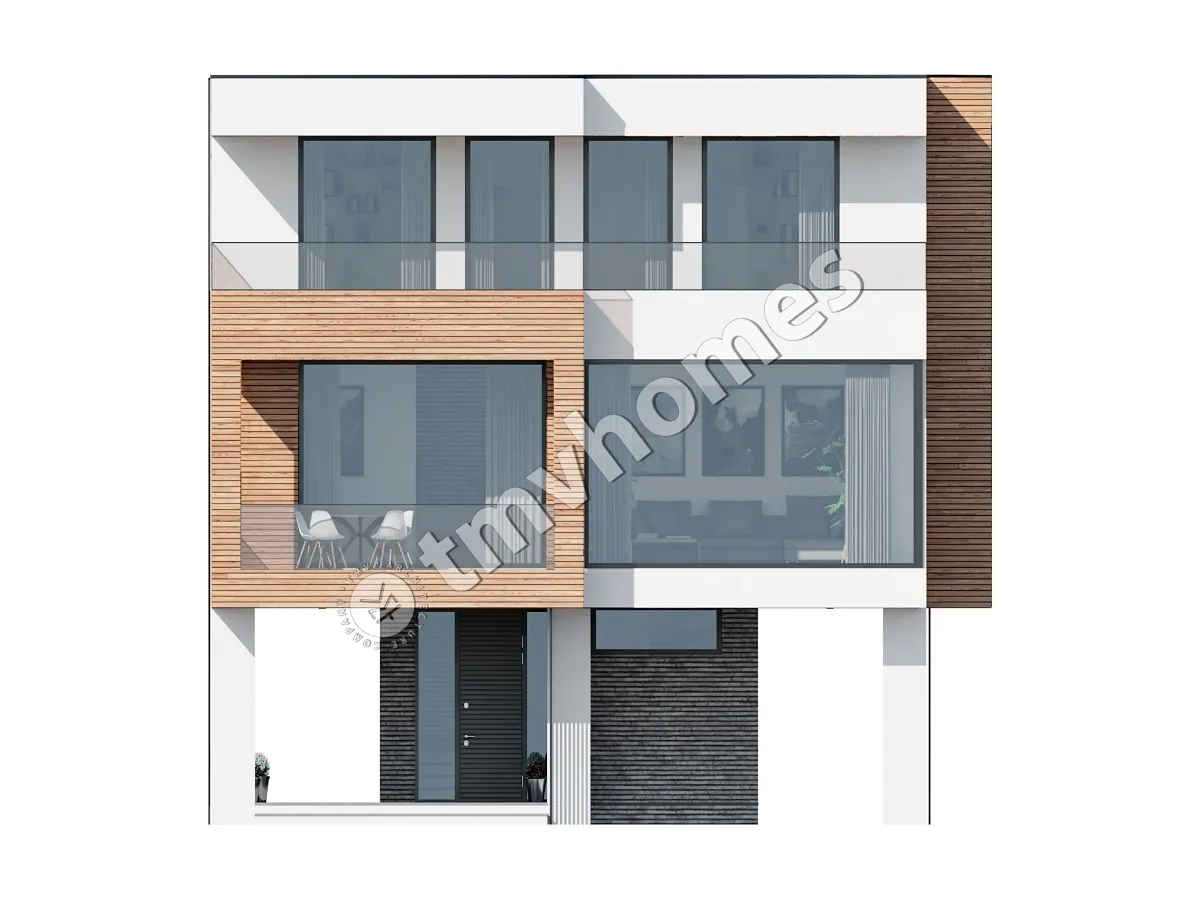

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

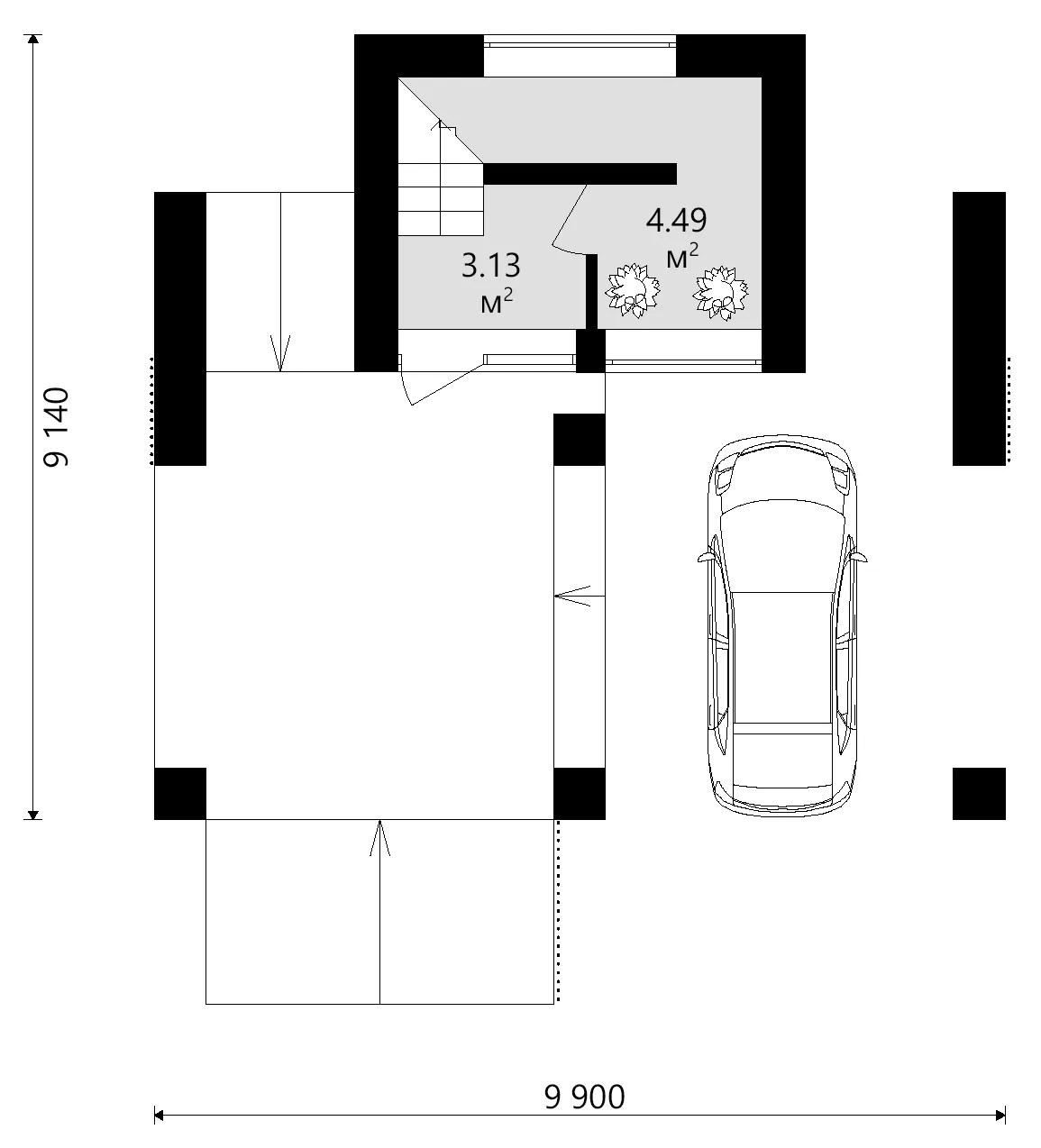

Main Floor
Main Floor 12 – 3-Story House Plan 1555 ft², 3 Beds — 10865C

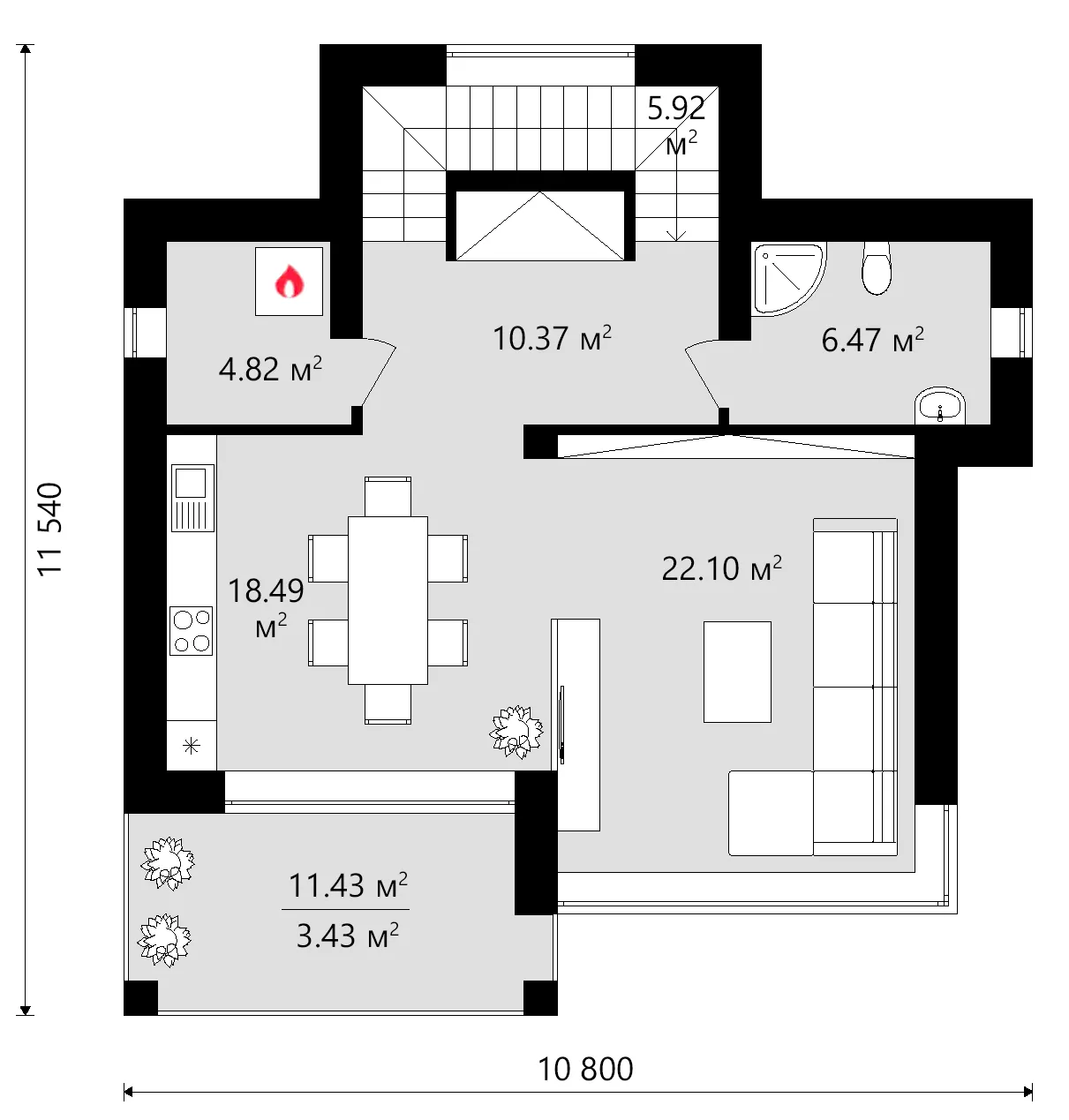

Second Floor
Second Floor 13 – 3-Story House Plan 1555 ft², 3 Beds — 10865C

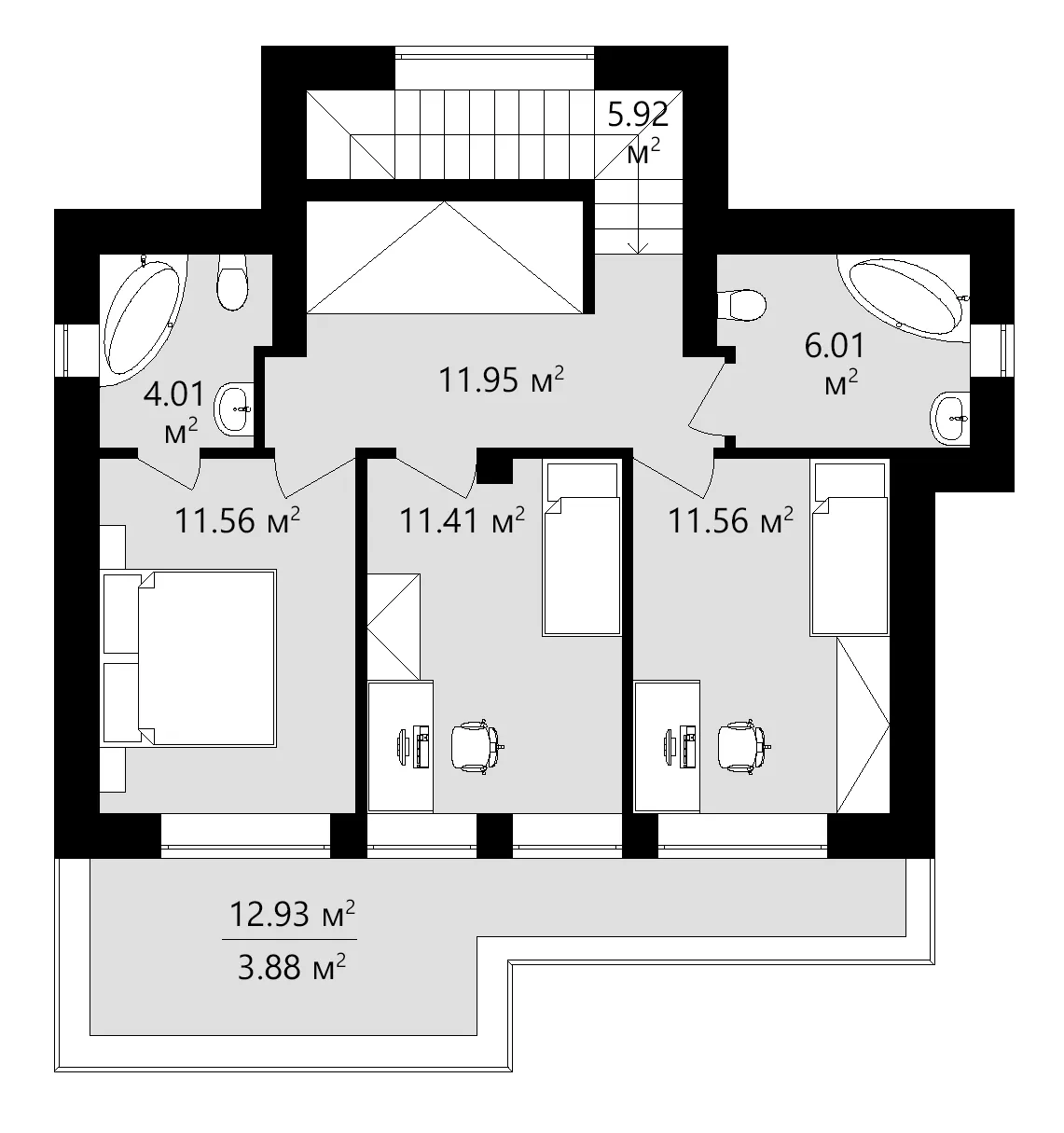

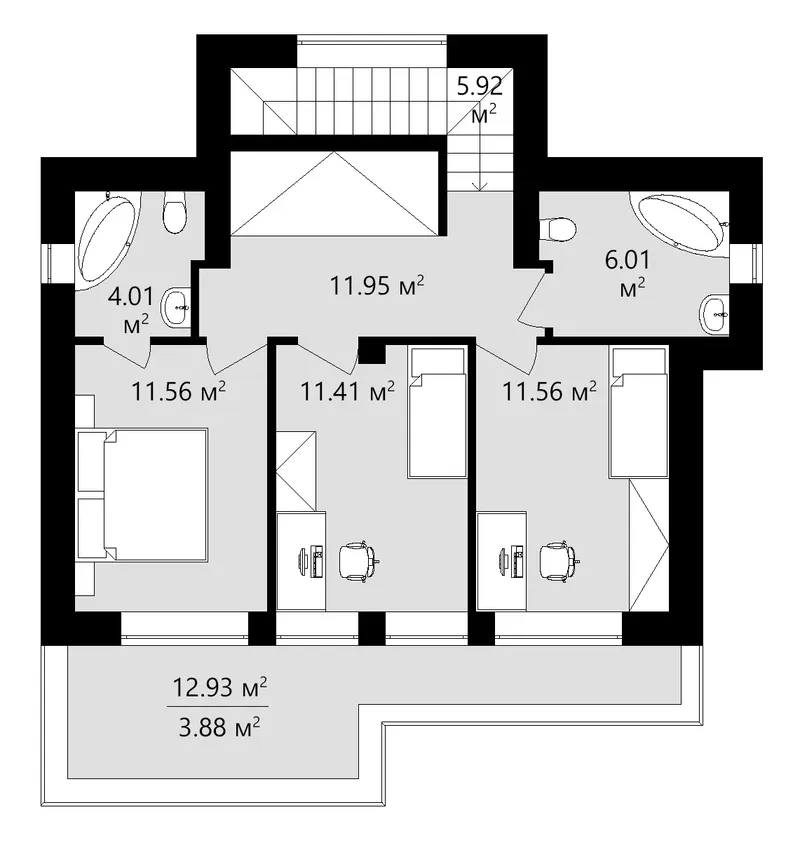

Third Floor
Third Floor 14 – 3-Story House Plan 1555 ft², 3 Beds — 10865C
Full Specs & Features
Area
Total Heated: 1554.95 ft²
Dimensions
Depth: 35'2" ft
Width: 32'9" ft
Height: 32'0" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Interior Features
Second Floor Master
Clustered Bedrooms
Open to Below
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Stacked Porches
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 914.93 ft²
Flat

Built upward rather than outward, Plan 10865C is a 3-bedroom 4-storey house plan with a flat roof, a contemporary and modern style sharpened by high-tech detailing, and 1555 ft² spread across four levels. This single-family home design measures 32'9" wide and 35'2" deep, with a height of 32'0". Stucco, wood and stone/brick veneer clad the facades, while floor-to-ceiling windows, panoramic windows and a corner window give every elevation a crisp, glassy profile.

The three clustered bedrooms share one quiet zone instead of being scattered among the living areas, so rest and daily activity stay naturally apart. The master bedroom is placed on the second floor, and with three full bathrooms there are as many baths as bedrooms, which makes busy school-day mornings far easier for everyone. A dedicated utility room keeps household equipment and chores in one place, and a separate entry gives the family a spot to drop bags, jackets and boots before stepping further inside.

At the centre of the home, an open floor plan lets the living and dining areas flow into a large kitchen, roomy enough for one person to cook while others gather close by. Part of this space is open to below, creating a double-height volume that ties one storey to the next and draws daylight from the large windows deep into the interior. Late-afternoon light settles across the open rooms and lingers well into the evening.

Outdoors, a balcony and stacked porches add open-air space on more than one level, so fresh air is never far from the rooms inside. A one-car carport shelters the vehicle while keeping the footprint light, and there is no basement. The house sits on strip footings, with exterior walls framed in aerated concrete (AAC) block. A slab or concrete block foundation is also available on request, as is wall framing in ceramic hollow block or calcium silicate block. For anyone comparing house plans Canada for a compact contemporary home with generous glazing, this design offers a tall, light-filled silhouette and a carefully layered layout.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1609
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
