Renderings 2 – 1-Story House Plan 1670 ft², 3 Beds — 56534C
Renderings 3 – 1-Story House Plan 1670 ft², 3 Beds — 56534C Renderings 4 – 1-Story House Plan 1670 ft², 3 Beds — 56534C
10
Concept
Construction documents are prepared for the following countries:

1-Story House Plan 1670 ft²: 3 Beds, 2 Baths, Open Floor Plan, without Garage

Plan
56534C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1670
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

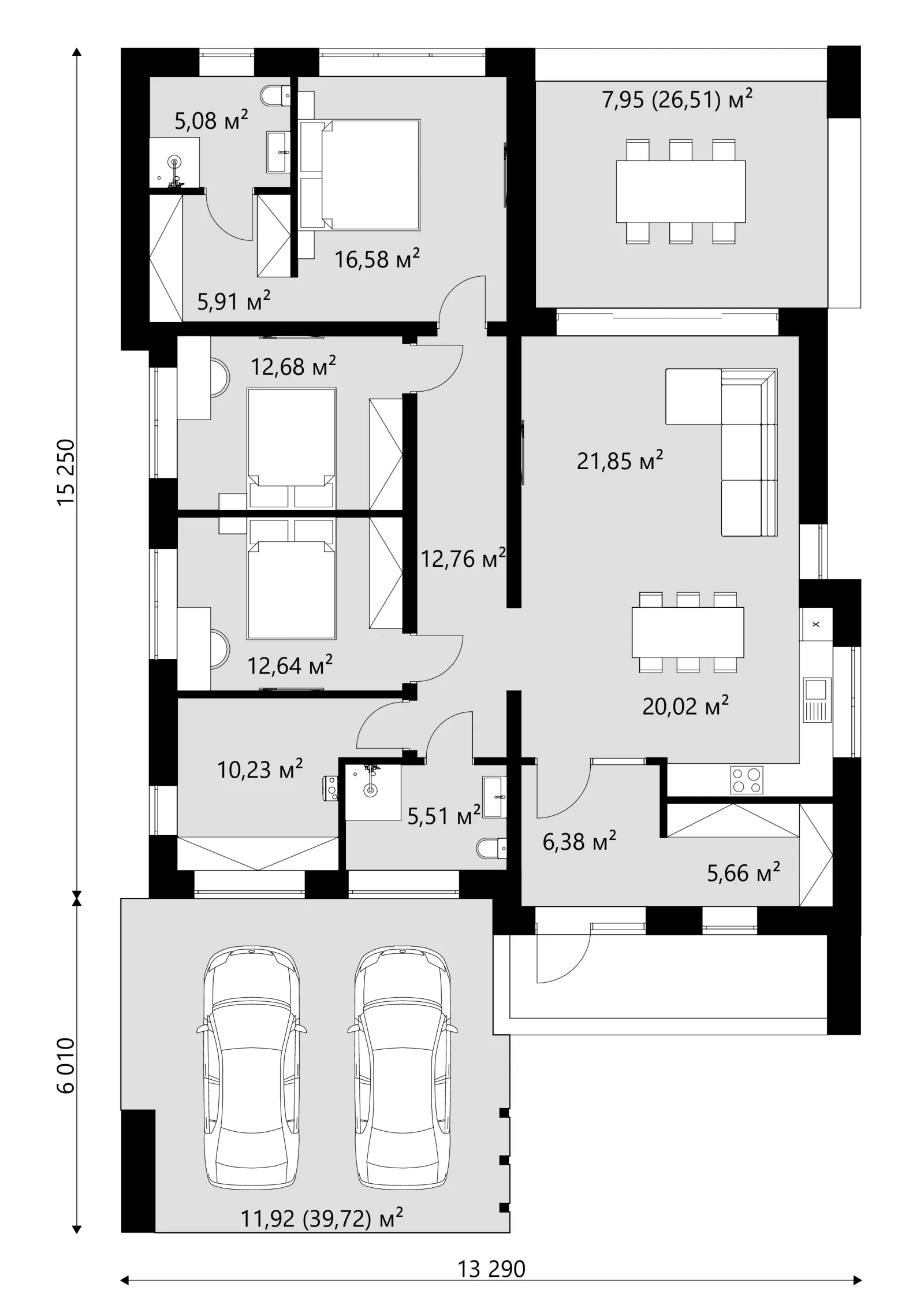

Floor Plans
Main Floor
Main Floor 16 – 1-Story House Plan 1670 ft², 3 Beds — 56534C
Full Specs & Features
Area
Total Heated: 1670.24 ft²
Dimensions
Depth: 64'8" ft
Width: 40'5" ft
Height: 13'1" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
Contemporary
European
Minimalism
Modern
Roof
Roof Area: 2382.05 ft²
Flat

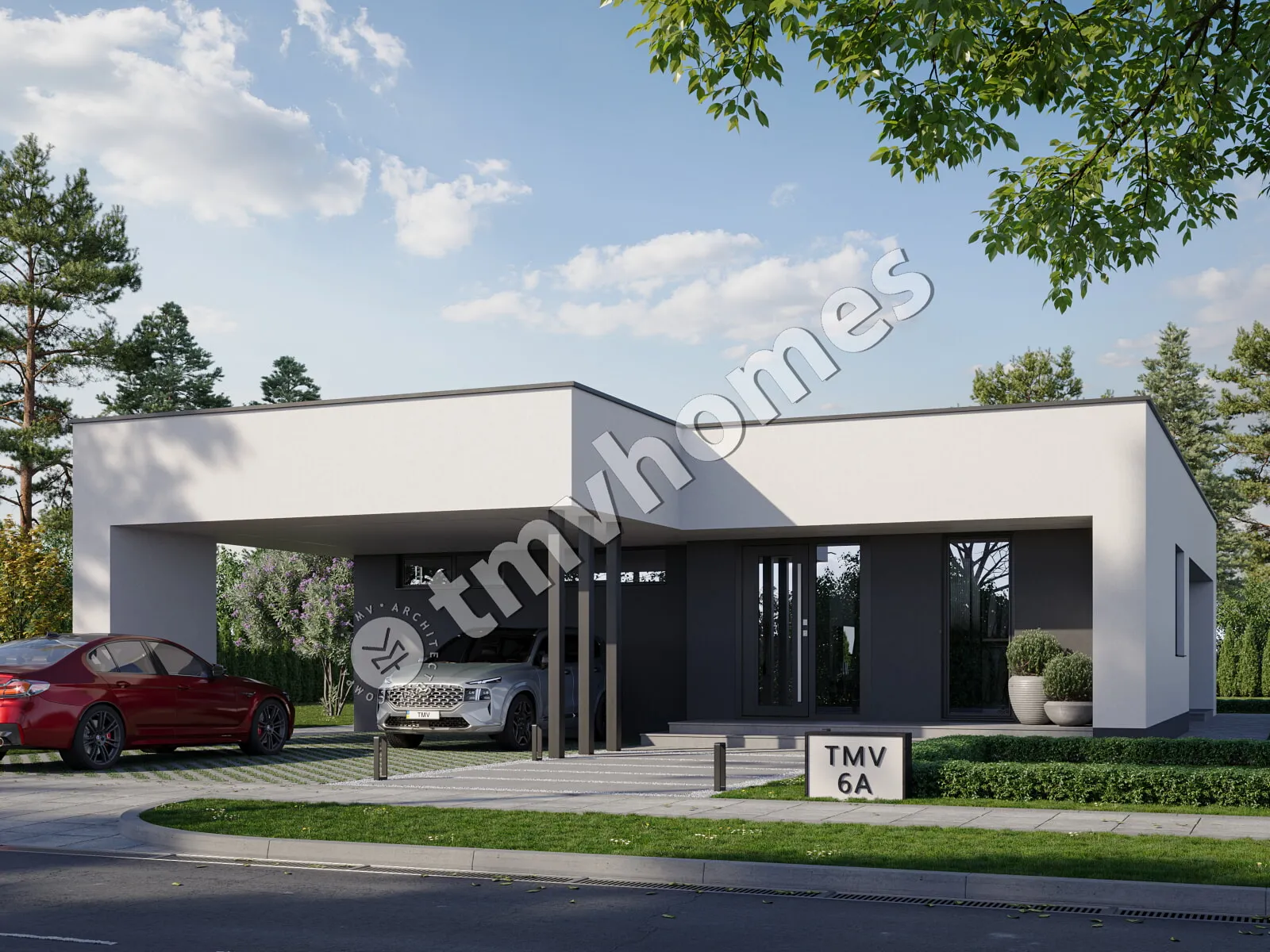

Plan 56534C is a 3-bedroom bungalow house plan that places 1670 ft² on a single storey beneath a flat roof, finished with stucco exterior walls and shaped by modern, contemporary and European influences. Minimalism guides the design: the T-shaped footprint, the clean planes of the facade and the generous glazing give this single-family home a calm, confident presence. Overall, the house measures 40'5" wide and 64'8" deep, and it rises to a height of 13'1". There is no basement and there are no stairs to climb, so every room is reached on the same level.

The private side of the plan deserves attention first. All three bedrooms are clustered together, which keeps sleeping quarters close to one another and set apart from the gathering spaces. As a main floor master layout, the principal bedroom shares the level with the rest of the house and comes with a walk-in closet for clothing and seasonal storage. Two full bathrooms divide the morning routine between parents, children and visiting guests. Laundry, cleaning supplies and household equipment find their place in a dedicated utility room, so practical tasks stay out of the living areas.

Guests step first into a proper entry, a buffer that gives boots and jackets somewhere to go before anyone reaches the main rooms. From there, an open floor plan unites the living space and the kitchen, and the sightlines run freely across the centre of the home. The kitchen is large by any measure, offering more than 130 square feet of working room, and a breakfast nook beside it suits quick weekday meals as well as slow weekend breakfasts. Large windows, including floor-to-ceiling panes, let natural light reach far into the interior, and on grey winter afternoons that brightness is welcome.

Outside, a covered rear porch adds a sheltered spot for dining, reading or simply watching the garden. A two-car carport protects the vehicles while keeping the silhouette light and open. The house is set on strip footings, with a slab or a concrete block foundation also available on request. Its walls are framed in aerated concrete blocks, and ceramic hollow blocks or sand-lime blocks can be chosen instead. For families browsing house plans Canada for a modern bungalow with an open concept and a clear one-level layout, this home design pairs restrained architecture with everyday ease.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1180
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
